GALA: Graph-Augmented LLM Agents for Root Cause Analysis and Incident Response in Microservices

T0 review · 4 major / 5 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read GALA+ claims that bounding LLM investigation by the service dependency graph, with fused metric- and trace-based hypotheses, raises microservice root cause accuracy to 74.44% AC@1 on OnlineBoutique and 73.33% on TrainTicket, more than 25…

desk verdict GALA+ is a genuine incremental contribution to LLM-based microservice RCA with a clean architecture and thorough ablations, but its headline accuracy claim overstates diagnosis quality because the ranking metric ignores failure-mode match. read the letter →

arxiv 2608.08968 v1 pith:6X4LRMT4 submitted 2026-08-10 cs.SE cs.AI

Yifang Tian , Yaming Liu , Zichun Chong , Zihang Huang , Yiran Li , Hans-Arno Jacobsen This is my paper · ORCID
classification cs.SEcs.AI
keywords rootcauseanalysismicroserviceslargelanguagemodelsagenticworkflowservicedependencygraphdistributedtracingincidentresponsemulti-modaltelemetry
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that root cause analysis in microservices should be treated as a topology-constrained search rather than open-ended LLM reasoning. It presents GALA+, an agentic framework where parallel LLM investigator agents are guided by the service dependency graph, starting from initial hypotheses produced by fusing a metrics-based causal ranking with STRIX, a trace- and dependency-graph-aware scoring module. The central claim is that graph-guided investigation both improves diagnostic accuracy and produces actionable incident response: ranked diagnoses, incident summaries, and stratified remediation actions. On two benchmarks, GALA+ reports AC@1 of 74.44% and 73.33%, outperforming the strongest LLM-based baseline by more than 25 percentage points, and receives the highest SURE-Score ratings across all four evaluation dimensions, confirmed by automated and human SRE evaluation. A sympathetic reader would care because the work turns LLM-based RCA from an exploratory, hallucination-prone process into a bounded, causally grounded one.

What carries the argument

The load-bearing machinery has two parts. STRIX (Structural Trace Ranking via Intermodal eXploration) constructs a weighted directed service dependency graph from trace spans and scores each service on three dimensions: instability $\phi_1(v)=p_{99}(v)/p_{50}(v)$, centrality $\phi_2(v)=\mathrm{PageRank}(v)\cdot\frac{1+\mathrm{in}(v)}{1+\mathrm{out}(v)}$, and impact $\phi_3(v)=\mathrm{TotalLatency}(v)\cdot\max\left(0,1-\frac{\max_u \mathrm{AvgLatency}(u)}{\mathrm{AvgLatency}(v)}\right)$, then aggregates rank positions by reciprocal rank fusion with smoothing constant $\epsilon=60$. The second part is the graph-guided investigation algorithm: $k$ parallel Investigator Agents start from the top consolidated candidates, each returns a confidence $\hat{c}_v$, and unless $\hat{c}_v\ge\theta=0.6$, the agent samples batches of size $b=2$ from the candidate's predecessors and successors, bounding worst-case work to $O(k\Delta)$ where $\Delta$ is the maximum graph degree. Final ranking follows two arbitration rules: signal anchoring, which keeps initial confidences as priors, and chain coherence, which requires the top candidate's causal chain to explain symptoms seen in other branches.

What would settle it

Run GALA+ on a benchmark case where the true faulty service is connected to the alerted service only through an edge that is deliberately missing or reversed in the trace-derived dependency graph; if the bounded search never examines that service and the top-ranked diagnosis is wrong, the central claim that graph-guided bounding preserves diagnostic completeness is refuted.

Watch

Extended reading notes

Core claim

The paper's central discovery is that root cause analysis in microservice systems becomes substantially more accurate and operationally useful when LLM agents are prevented from exploring freely and must instead reason along a service dependency graph derived from traces. GALA+ builds an initial hypothesis from complementary metric- and trace-based sources, consolidates them with provenance-aware confidence, then dispatches parallel Investigator Agents that expand only to predecessors and successors when local evidence is inconclusive. The reported results are 74.44% AC@1 and 98.89% AC@3 on OnlineBoutique, and 73.33% AC@1 and 85.56% AC@3 on TrainTicket; removing STRIX alone drops OnlineBoutique AC@1 from 74.44% to 35.56%. The framework also produces incident summaries and three stratified remediation actions. SURE-Score, co-developed with industry SRE experts, grades GALA+ highest on evidence groundedness, operational feasibility, diagnostic precision, and triage logic, with the two evaluator LLMs agreeing (Kendall's $\tau=0.68$) and automated scores correlating with human SRE ratings (Spearman's $\rho=0.92$).

Load-bearing premise

The trace-derived service dependency graph has to be a faithful map of how failures actually travel between services, because a missing, reversed, or spurious edge would keep the bounded investigation from ever visiting the true faulty service.

Editorial extensions

If this is right

  • Bounded search is enough: restricting agentic investigation to the local dependency neighborhood (worst-case $O(k\Delta)$) yields higher accuracy than unrestricted exploration, which drifts and hallucinates.
  • Complementary signals matter: the fused metric-and-trace hypothesis generation beats either signal alone; removing the trace-based scorer drops OnlineBoutique AC@1 from 74.44% to 35.56%.
  • RCA output can be a usable incident response: the same pipeline produces ranked diagnoses, an incident summary, and immediate, permanent, and preventative remediation actions, which is what SURE-Score's highest ratings reflect.
  • Evaluation of RCA reports should test causality and actionability, not lexical overlap: BERTScore, ROUGE, and cosine similarity barely discriminate methods, while checklist-based SURE-Score and human SRE ratings do.
  • Stronger and cheaper LLMs trade off predictably: top-1 accuracy ranges from 55.6% to 78.9% across seven LLMs, with open-source models approaching the top at much lower per-incident cost.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A natural extension is to make the dependency graph time-varying: the paper assumes a static DAG built from one trace corpus, but production systems change topology during an incident, and STRIX scoring could be recomputed over sliding trace windows.
  • The bounded-investigation pattern is domain-general: any diagnostic task with a known causal topology, such as network fault localization, distributed data pipeline debugging, or multi-stage CI failures, could reuse the same confidence-driven, edge-bounded agent search.
  • Because STRIX already emphasizes centrality, the paper's finding that random neighbor sampling matches or beats STRIX-ordered expansion in Phase III suggests diversity is protective; a targeted test on low-centrality leaf faults would reveal whether centrality bias ever hurts.
  • SURE-Score was co-developed with SREs from one organization; the high automated-human correlation ($\rho=0.92$) supports transfer, but having a second organization build its own checklist would test whether the four dimensions generalize.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The paper presents GALA+, a graph-augmented LLM agentic framework for microservice root cause analysis (RCA) and incident response. The pipeline has four phases: (I) initial hypothesis generation that fuses a metrics-based ranking (BARO) with a new trace- and graph-structure-aware ranking module (STRIX) via a consolidation agent; (II) construction of compact per-pod diagnostic bundles from metrics, logs, and a 1-hop dependency subgraph; (III) graph-guided, depth-bounded agentic investigation in which investigator agents examine local neighborhoods and write to a shared memory; and (IV) evidence synthesis into a final ranking, incident summary, and stratified remediation recommendations. The paper also introduces SURE-Score, a human-guided LLM evaluation framework for RCA report quality. On OnlineBoutique and TrainTicket, GALA+ is reported to achieve 74.44% and 73.33% AC@1, outperforming the strongest LLM baseline (Flow-of-Action) by more than 25 percentage points, with supporting ablations, a McNemar significance test, a parameter study, and human SRE evaluation.

Significance. If the results hold, the paper is a substantive contribution to LLM-based RCA: it demonstrates that bounding agentic exploration with a service dependency graph and fusing complementary telemetry signals yields large accuracy gains over unconstrained agentic baselines, and it addresses the under-evaluated incident-response output via SURE-Score. The ablations are valuable, particularly the replacement of the Consolidation and Evidence Synthesis agents with deterministic rules, which gives evidence that the LLM agents add real value. The McNemar test on majority-vote outcomes is an appropriate significance check for nondeterministic LLM runs, and the cost/accuracy comparison across seven LLMs is practically useful. However, the central quantitative claim is weakened by an inconsistency between the paper's root-cause definition and its ranking metric, and by reproducibility limitations (no code, no per-run variance, and defaults that appear to be selected on the test set).

major comments (4)
  1. [Section 5.2 ('Evaluation Metrics') and Section 2 ('Problem Statement')] The paper defines a root cause as 'the specific pod and failure mode' (Section 2), but Section 5.2 states that all ranking metrics are 'computed at the pod level: a ranked candidate counts as correct when it matches the ground-truth faulty pod, and no fault-type match is required.' These two statements are internally inconsistent: a diagnosis that names the correct pod but the wrong failure mechanism is counted as a correct top-1 answer, even though Phase IV remediation actions are explicitly stratified by failure mode and the case study emphasizes fault type. The headline 74.44%/73.33% AC@1 numbers therefore measure pod localization, not the defined RCA task, and the claim that GALA+ performs 'accurate RCA' while producing 'actionable incident response' is stronger than what the metric supports. The SURE-Score Diagnostic Precision criterion also does not explicitly require the failure mode to be correct, so the textual evaluation does not fully rescue the claim. Please re-evaluate with a fault-type-aware AC@1/MRR (e.g., correct only if both pod and failure mode match), or at minimum report fault-type accuracy separately and discuss how wrong-fault-type top-1 diagnoses affect the remediation recommendations.
  2. [Section 5.1 ('Parameter Settings') and Section 5.3.5 (RQ5)] The default parameters for Algorithm 1 are k=6, theta=0.6, and b=2, and Section 5.3.5 reports AC@1 and execution time on the TrainTicket test set across variations of these parameters, with the best-performing settings matching the defaults. This suggests that the default configuration was selected on the same data used for the headline comparison, which can bias the reported gains over baselines. Please clarify whether these defaults were fixed a priori or chosen from a validation split, and, if they were tuned on the test set, report the sensitivity of the central comparison (GALA+ vs. Flow-of-Action and vs. the best non-LLM baseline) across a plausible range of parameter values on both datasets, or show that the conclusions are unchanged under alternative reasonable defaults.
  3. [Data Availability and Table 1] The Data Availability statement says the source code cannot be released and only aggregate measurement data are available on request, and Table 1 reports a single mean per metric with no standard deviations, confidence intervals, or per-run values, despite Section 8 stating that 'results averaged over three runs.' This makes it impossible for a reader to verify the McNemar test, the ablations in Figure 4, the variance of the headline AC@1 numbers, or the cost/accuracy trade-offs in Table 5. Please release at least the per-incident predictions, per-run results, and the prompt and agent templates in the artifact repository, or provide a concrete justification for why each of these cannot be shared.
  4. [Section 3.1.2, Section 3.3 (Algorithm 1), and Section 5.3.3 (Figure 4)] Algorithm 1 bounds investigation to predecessors and successors in the trace-derived dependency graph, and STRIX scores services using the same graph. If a failure-propagation edge is missing, reversed, or spurious, the true root cause can be excluded from investigation entirely. The ablation in Figure 4 shows how much the result depends on graph-based ranking (removing STRIX drops OnlineBoutique AC@1 from 74.44% to 35.56%), yet the paper does not report graph coverage or accuracy statistics for the two benchmarks, nor does it analyze scenarios where the dependency graph is incomplete or incorrect. Please add such an analysis, or a sensitivity study over graph perturbations (e.g., edge removal or reversal), to substantiate the completeness assumption underlying the bounded search.
minor comments (5)
  1. [Table 2] The column layout of Table 2 is difficult to parse in the manuscript text; please format the numeric values with clearer separators and add standard deviations or inter-evaluator ranges for the SURE-Score results.
  2. [Section 5.3.2 ('Human Evaluation')] Please clarify whether the three human SRE graders were among the eight Company A experts who co-developed the SURE-Score checklist, and define precisely what 'independent' means in this context, since the same industrial partner appears to be involved in both checklist construction and human grading.
  3. [Figure 5] The parameter study shows point estimates without error bars or per-seed values, even though models are run at temperature 1.0; please include variability information or state the number of runs per configuration.
  4. [Section 3.1.2 ('Rank Aggregation via Reciprocal Rank Fusion')] The RRF smoothing constant is written as epsilon=60; in the cited original implementation the corresponding parameter is usually called k, and aligning the notation with the cited source would avoid confusion.
  5. [Section 5.3.1 ('AegisLab Results')] The AegisLab results are only summarized in the main paper and deferred to a technical report; including the full result table in an appendix would make the additional-dataset claim verifiable by reviewers and readers.

Circularity Check

0 steps flagged · score 0.0 of 10

No circular derivation: central RCA accuracy claims are external benchmark measurements, not fitted constructions; flagged metric mismatch is a validity concern, not circularity.

full rationale

The paper's central claim is an empirical accuracy result measured on external benchmarks (RCAEval OB/TT, AegisLab) against non-LLM and LLM baselines. STRIX's ranking is a fixed closed-form score (p99/p50, PageRank times degree ratio, latency-decomposition impact) with no fitted label-dependent parameters; the Consolidation, Investigator, and Evidence Synthesis agents are LLM prompts; the only tunable quantities (k, theta, b) are workflow hyperparameters, not per-incident predictions, so no reported AC@1 value is forced by an equation or a fit. Self-citations (GALA [55], technical report [56]) are used for comparison and auxiliary reporting, not to justify a premise of the derivation. SURE-Score was constructed by the authors with Company A experts, which raises possible bias, but it is an evaluation instrument rather than an input to the ranking pipeline, and human SRE grading is an external check; this is a validity concern, not a circular step. Two passages create an internal inconsistency: Section 2 defines a root cause as 'the specific pod and failure mode,' while Section 5.2 states 'no fault-type match is required' for AC@1, and RQ5's parameter study appears to tune defaults on the same benchmarks used for final results. These are metric-validity and evaluation-leakage problems that can inflate the headline numbers, but they do not make the derivation circular, because the accuracy values are not equivalent to any input by construction. Under a strict circularity standard, the derivation chain is self-contained; score 0.

Assumptions & free parameters 5 free parameters · 5 assumptions · 0 invented entities

The central claim rests on hand-chosen algorithmic parameters, an unverified DAG fidelity assumption, ad hoc STRIX scoring dimensions, and the reliability of benchmark ground truth. No new physical or theoretical entities are introduced; STRIX and SURE-Score are computational methods, not postulated entities.

free parameters (5)
  • pruning threshold theta = 0.6
    Used in Algorithm 1 to decide whether local evidence is sufficient or neighbors must be explored; chosen after parameter study on TrainTicket with no separate tuning set described (Section 5.3.5).
  • parallel branches k = 6
    Number of top ranked candidates investigated in parallel; default selected via parameter study (Section 5.3.5).
  • batch size b = 2
    Randomized neighbor batch size during graph-guided expansion; selected via parameter study (Section 5.3.5).
  • look-around window Delta tau = not specified
    Fixed time window around anomaly onset used to serialize metrics into diagnostic bundles; the value is never given (Section 3.2).
  • RRF smoothing constant epsilon = 60
    Taken from the original reciprocal rank fusion paper, but it influences STRIX rankings and is not re-justified for this setting (Section 3.1.2).
assumptions (5)
  • domain assumption The trace-derived service dependency graph is a DAG whose edges represent failure propagation directions.
    Used in Sections 3.1.2 and 3.3 to bound agent exploration to local neighborhoods; if an edge is missing or reversed, the true root cause may lie outside the explored region.
  • ad hoc to paper Root-cause services exhibit the three STRIX signatures: tail-heavy latency (p99/p50), high fan-in centrality, and latency attributable to their own processing.
    These dimensions are asserted in Section 3.1.2 without derivation; the only evidence is ablation on the same benchmarks used to design the method.
  • domain assumption The RCAEval and AegisLab fault-injection benchmarks have correct and complete ground truth, so pods not labeled as faulty are not root causes.
    All ranking metrics in Section 5.2 inherit this assumption; inaccuracies in the labels would change every reported accuracy number.
  • domain assumption The LLM-generated confidence scores in Consolidation and Investigation agents are meaningful enough to gate search expansion and ranking.
    Confidence scores c_hat from Sections 3.1.3 and 3.3 are used to stop or expand investigation and to rank; no calibration data or prompt text is provided.
  • domain assumption All three telemetry modalities are available and reliable across every incident window.
    The paper states in Section 8 that GALA+ requires access to metrics, logs, and traces; if one modality is missing or noisy, the framework's performance is not guaranteed.

how reviews work

0 comments
Cite this review

Pith. "Pith review of GALA: Graph-Augmented LLM Agents for Root Cause Analysis and Incident Response in Microservices." pith.science (2026). https://pith.science/paper/6X4LRMT4

@misc{pith2026260808968,
  author       = {Pith},
  title        = {Pith review of: GALA: Graph-Augmented LLM Agents for Root Cause Analysis and Incident Response in Microservices},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/6X4LRMT4}},
  note         = {Machine review of arXiv:2608.08968}
}
read the original abstract

Microservice root cause analysis (RCA) requires correlating failures across heterogeneous telemetry within complex service dependency graphs. Existing methods often rely on a single telemetry modality; recent LLM-based approaches can suffer from unconstrained exploration and hallucination; and most systems stop at fault ranking without producing actionable incident response. We present GALA+, a graph-augmented LLM agentic framework centered on graph-guided investigation, which uses service dependencies to bound exploration and refine diagnosis through localized multi-modal evidence. For initial hypothesis generation, GALA+ combines complementary telemetry signals with STRIX, a novel trace- and graph-structure-aware scoring module. GALA+ then produces ranked diagnoses, incident summaries, and stratified action recommendations. We further introduce SURE-Score, a human-guided evaluation framework co-developed with industry SRE experts for assessing RCA-specific output quality beyond conventional text similarity metrics. On two microservice benchmarks, GALA+ consistently achieves the strongest overall results, surpassing the best LLM-based baseline by more than 25 percentage points in AC@1, while also receiving the highest ratings from both SURE-Score and independent human SRE evaluation.

Figures

Figures reproduced from arXiv: 2608.08968 by the authors.

Figure 1

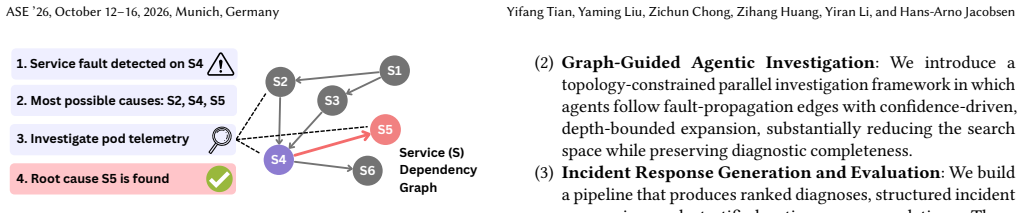

Figure 1. Motivating example: a fault detected on 𝑆4 is traced through the dependency graph to the true root cause 𝑆5. possibilities for automating complex reasoning [6], with chain-of￾thought [60], tree-of-thought [66], and agentic workflows such as ReAct [67] demonstrating potential for multi-step problem-solving. However, our empirical evaluation shows that unconstrained multi-agent reasoning may search across the entire s… view at source ↗
Figure 2
Figure 2. Overview of GALA+. 3.1 Initial Hypothesis Generation Before dispatching LLM agents for deep pod-level investigation, GALA+ first requires a coarse estimate of which services are most likely responsible for the incident. In Phase I, this initial hypothesis is provided efficiently by analyzing metrics and traces with modality-specific methods, including our novel trace analysis technique STRIX. The resulting modality-… view at source ↗
Figure 3
Figure 3. SURE-Score framework. Evaluating RCA-generated summaries and remediation rec￾ommendations should focus on whether the outputs are logically coherent, causally grounded in the observed failure, and opera￾tionally useful for incident response. However, standard natural language generation metrics such as BLEU [38], ROUGE [31], and [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figures from the paper (3 more)
Figure 4
Figure 4. Figure 4: Ablation study of GALA+ [PITH_FULL_IMAGE:figures/full_fig_p009_4.png]
Figure 5
Figure 5. Figure 5: GALA+ parameter study results. 5.3.5 RQ5: Impact of Agentic Workflow Parameters [PITH_FULL_IMAGE:figures/full_fig_p010_5.png]
Figure 6
Figure 6. Figure 6: GALA+’s reasoning chain for a CPU hog fault case in order-service, ranked top-1 with optimal SURE-Score [PITH_FULL_IMAGE:figures/full_fig_p010_6.png]

Discussion (0). Continue with ORCID to comment.
