REVIEW 3 major objections 6 minor 38 references
Mapping the Inner Milky Way with Infrared-Derived Distances to AGB Stars
T0 review · 3 major / 6 minor · reviewed 2026-08-12 · deepseek-v4-flash
Pith's one-line read A machine-learning model trained on infrared magnitudes alone assigns statistical distances to more than 36,000 dust-obscured AGB stars, and the resulting catalog recovers the Milky Way's bar and separates young and old bulge Miras.
desk verdict A genuinely useful distance catalog for 36k obscured AGB stars, with an honest but under-supported extrapolation from the MSX training set that needs a quantitative check before the 6% accuracy claim is taken at face value. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
The mechanism is the empirical photometry-to-distance mapping learned by the XGBoost regressor. The feature vector is five apparent magnitudes (2MASS $J,H,K_s$ and AKARI 9 and 18 $\mu$m) with no extinction correction; the training labels are SED-based distances for BAaDE/MSX stars, so the ML outputs inherit that distance scale. The transfer works because the AKARI-selected sources occupy similar near- and mid-IR color-magnitude space to the training sample, and the paper checks this by comparing predicted distances with independent estimates. A secondary mechanism is the dimensionless vertical dispersion $\tilde{\sigma}_z = \sigma_z / Z_{\max}$, which normalizes the measured vertical dispersion by the maximum accessible height under the latitude cut, allowing bulge and disk thickness to be compared despite the $|b| \lesssim 6^\circ$ selection.
What would settle it
Measure VLBI parallaxes for 20-30 AKARI-selected O-rich AGB stars with SiO masers located beyond 5 kpc and compare them with the ML distances: if the median residual exceeds the quoted ~36% uncertainty or correlates with Galactic longitude, the transferability assumption is falsified.
Extended reading notes
Core claim
The central claim is that apparent multi-band infrared photometry - 2MASS $J,H,K_s$ and AKARI 9 and 18 $\mu$m - contains enough information to predict statistical distances to oxygen-rich AGB stars in the inner Milky Way. The paper builds an XGBoost (gradient-boosted decision tree) regressor on BAaDE/MSX stars whose distances come from an earlier SED-based analysis; the model reaches $R^2 \approx 0.98$ and a mean absolute percentage error near 6% on an independent test set, with a binned fit of predicted versus SED distance consistent with slope $1.01 \pm 0.01$ and zero offset. Applying the model to the AKARI/IRC color-selected sample yields distances for 36,134 sources with a combined ~35.5% uncertainty. The authors validate the scale against Gaia parallaxes for high-latitude OH/IR stars, bolometric luminosities from an OH/IR catalog, and several Mira period-luminosity relations, finding broad agreement with Galactic calibrations and systematic offsets from LMC-calibrated ones that they attribute to known distance-scale and metallicity differences. They use the catalog to recover the bar's near-far distance asymmetry, measure a dimensionless vertical dispersion $\tilde{\sigma}_z \approx 0.40$ in the bulge versus about 0.30 in the disk, and show that Miras with periods longer than 400 days trace the bar while shorter-period Miras do not; they explicitly decline to treat the far-side enhancement in short-period Miras as a physical result.
Load-bearing premise
The load-bearing premise is that the photometry-to-distance relation learned on the brighter, near-side-heavy MSX sample transfers directly to the fainter AKARI sample with broader far-side longitude coverage, so any undetected difference in color-magnitude space or distance distribution between the two samples would shift the distances and the structural conclusions.
Editorial extensions
If this is right
- The published catalog extends statistical distance coverage for dust-obscured O-rich AGB stars from about 0.5 to 20 kpc, roughly tripling the number of inner-Galaxy AGB stars with distance information compared with the MSX-based training sample.
- If the distance scale is correct, the near-far asymmetry in the longitude-selected distance distributions is an independent confirmation that the Milky Way's bulge is barred, with the bar's near end at positive longitudes.
- Long-period Miras ($P>400$ days) become established as tracers of a younger, more massive bar population, while short-period Miras ($P\le 400$ days) trace a smoother, older spheroidal component.

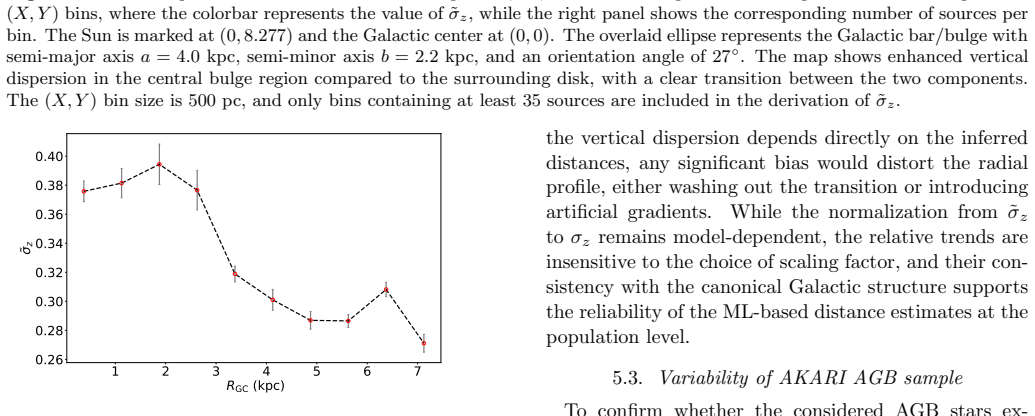

- The dimensionless vertical dispersion profile, high and flat in the bulge and lower and flat in the disk with the bulge about 30% larger, provides a population-level measure of the inner Galaxy's vertical structure that is insensitive to the adopted scale-height conversion.
- Agreement with Galactic-calibrated period-luminosity relations, at the ~12% level for mid-IR relations, supports using these statistical distances as a prior or cross-check for individual Mira distances in the inner Galaxy.
Reading between the lines
- If the MSX-to-AKARI transfer holds, the same photometry-to-distance training strategy could be extended to other infrared surveys to reach fainter and more crowded sightlines, including the nuclear stellar disk that this sample cannot adequately cover.
- The paper's Gaia validation is limited to 166 high-latitude sources outside the $|b|<5^\circ$ footprint, so the in-plane transferability is not directly tested by Gaia; VLBI maser parallaxes for AKARI-selected stars inside the footprint would close that gap and could also settle whether the short-period Mira far-side enhancement is real.
- Because pulsation period is not a model input, the period-stratified bar morphology is an emergent result, but period-correlated changes in dust-shell emission could still leak into the distances; comparing ML distances for Miras of different periods at fixed apparent magnitudes would separate a population effect from an SED-driven artifact.
- Combining the catalog with line-of-sight velocities from the BAaDE survey could upgrade the projected structural maps into kinematic constraints on the bar, since density alone fixes neither the pattern speed nor the three-dimensional orientation.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper develops an XGBoost regression model that maps 2MASS and AKARI infrared photometry to heliocentric distances for oxygen-rich AGB stars, trained on MSX-selected stars with SED-based distances from Bhattacharya et al. (2024). The model achieves R^2 ≈ 0.98 and a MAPE of about 6% on a held-out test set drawn from the same MSX sample, and is then applied to 36,134 AKARI-selected AGB candidates that do not overlap the training sample. The resulting distance catalog is validated by comparison with Gaia parallaxes (for 166 sources at |b| > 5 deg), with several period-luminosity relations, and with OH/IR bolometric luminosities. Using these distances, the authors report that the combined AKARI+MSX sample recovers the Galactic bar through an asymmetry in near/far distance distributions, finds a roughly constant vertical dispersion in the bulge that is about 30% larger than in the disk, and shows that long-period Miras (P > 400 d) trace a barred morphology more strongly than short-period Miras. The paper is careful to describe the distances as statistical, with a quoted per-source uncertainty of about 35.5%, and explicitly declines to interpret a far-side enhancement of short-period Miras as a physical result.
Significance. If the distance catalog is reliable at the population level, it would be a useful resource for mapping the inner Milky Way in heavily obscured regions where Gaia astrometry and kinematic distances are unavailable or biased. The methodology is straightforward, reproducible in principle, and the paper includes several diagnostic checks: 5-fold cross-validation, Optuna-based hyperparameter optimization, a held-out test set, binned 1:1 diagnostics, and comparisons with multiple independent distance estimators. The paper also explicitly acknowledges that the ML distances are tied to the SED-based distance scale of the training set and cannot be more accurate than those training labels. The main scientific claims, that long-period Miras preferentially trace the bar and that bulge and disk vertical dispersions differ, are consistent with prior work and are presented with appropriate caution. However, the central transfer from the MSX training sample to the AKARI application sample, and the interpretation of the 6% MAPE as a measure of accuracy, need stronger quantitative support before the catalog and its structural inferences can be fully endorsed.
major comments (3)
- [Section 3.1, with implications for Sections 4.2, 5.2, and 5.3.2] The load-bearing assumption that the AKARI-selected sources occupy a color-magnitude space 'similar' to the MSX training sample is asserted without a quantitative demonstration. Figure 1 shows that the MSX training set has a pronounced far-side deficit for -30 deg < l < 0 deg, while the AKARI sample provides substantially more far-side coverage, and Section 2.1 states that AKARI reaches ~2-3 mag fainter than MSX. Because XGBoost is an interpolator, predictions for AKARI sources that are fainter or on the far side can be unconstrained and may inherit the training set's selection bias. I recommend adding a quantitative feature-space overlap analysis (e.g., density distributions of AKARI sources versus the training set in the five-dimensional photometric space, or a nearest-neighbor distance statistic) and a side-split or far-side validation in which the model is trained on one longitude range and tested on the other. Without such a check, the far-side structural results in Figures 8, 12, 13, 14, and 15 may be artifacts of extrapolation.
- [Table 3 and Section 4.2.2] The headline '6% MAPE' measures the model's ability to reproduce the SED-derived training labels, not the absolute accuracy of the distances. The paper states this in Section 3.1, but the abstract and Section 4.1.3 present the 6% value in a way that can easily be misread as the total distance error. In addition, the per-source error budget of 35.5% is obtained by summing the maximum SED uncertainty (~35%) and the mean ML MAPE (~6%) in quadrature. This is not a proper propagation of per-source uncertainties: the 35% value is an upper limit, not a random error, and the 6% is a mean absolute percentage error, not a standard deviation. I recommend rephrasing the abstract to say that the model reproduces SED-based distances with a MAPE of about 6%, and either providing per-source error estimates or explicitly labeling the 35.5% as a conservative ensemble-level envelope rather than an individual 1-sigma uncertainty.
- [Section 5.3.2, Figures 14-15] The paper correctly disclaims the far-side enhancement of short-period Miras as a physical result, but the same extrapolation risk applies to the long-period Mira bar signal and to the vertical-dispersion map. Although period is not an explicit model feature, period correlates with mid-IR colors and circumstellar dust emission, so period-correlated SED differences can induce apparent period-dependent spatial structure through the model's feature mapping. The argument that the model 'has no explicit mechanism' to assign period-dependent distances is therefore not sufficient. I recommend testing whether the bar morphology (Figure 14) and the vertical-dispersion profile (Figures 12-13) persist when the analysis is restricted to the distance and longitude range where the training sample has good coverage, or when the model is retrained on a longitude-balanced subset of the MSX sample.
minor comments (6)
- [References and Section 5.1.1] The author names for the Gaia OH/IR catalogs are inconsistent: the text uses 'B. L. Marti et al. (2025)' and 'B. Lopez Marti et al. (2025)', while the reference list has both 'Lopez Marti, B., Jimenez-Esteban, F. M., Engels, D., & Garcia-Lario, P. 2025' and 'Marti, B. L., Jimenez-Esteban, F., Engels, D., & Garcia-Lario, P. 2025'. Please unify the citation style and remove the duplicate reference.
- [Abstract and Section 4.2.2] The abstract quotes 'a 36% total error margin' while Section 4.2.2 derives 35.5%; please make these numbers consistent or explain the rounding.
- [Equation (1) and Section 4.1.1] The paper reports a 'MAPE-based accuracy metric' of ~94% and then translates it to 'a mean deviation of ~6%'. Reporting the MAPE directly (about 6%) would be clearer and would avoid the impression that the model achieves 94% accuracy in an absolute sense.
- [Figure 5 caption] The caption says 'the blue points show the binned median trend, indicating the 16th-84th percentile spread within each bin,' but it is unclear whether the blue points are the medians and the shaded band represents the percentile spread, or whether both are shown. Please clarify the caption and ensure the figure legend matches.

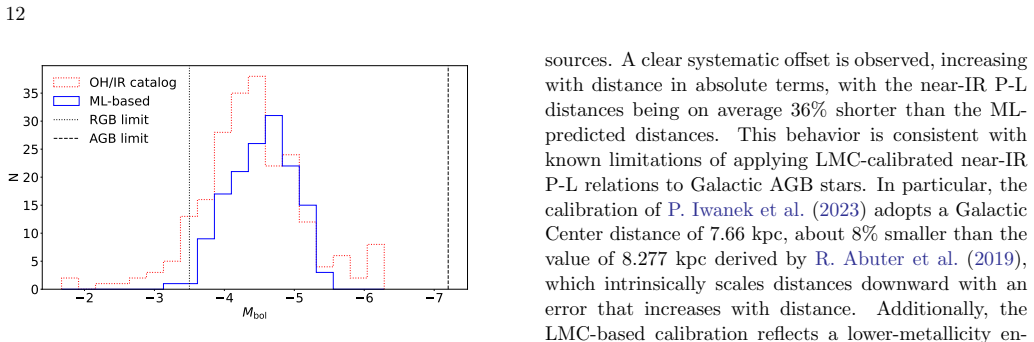

- [Section 5.1.2] The bolometric luminosities derived from ML distances are compared with Feast et al. (1989) P-L expectations without explicitly stating in the comparison paragraph that the bolometric fluxes are not corrected for interstellar extinction; the paper later notes that extinction correction would raise the luminosities, but this caveat should appear before the comparison is interpreted.
- [Figures 14 and 16] The colorbar units are given as N kpc^-2 in Figure 14 and N kpc^-3 in Figure 16; if these are intentional (projected versus volume-corrected densities), please state this in the captions, but currently the units appear inconsistent at a glance.
Circularity Check
No significant circularity: the ML distance scale is explicitly tied to externally anchored SED distances, and the headline structural results survive independent external checks and period splits.
full rationale
The training labels are the SED-based distances of R. Bhattacharya et al. (2024), but this is not a circular reduction because the paper openly defines the ML output as a surrogate for that SED distance scale: 'the ML-derived distances should be interpreted as empirical distances tied to the SED-based distance scale of the training set' (Sect. 3.1), and the SED scale itself is anchored by VLBI parallax sources and Galactic-center constraints external to the ML fit. The ~6% test MAPE is a fidelity measure of the photometric mapping to those labels, not a claim of independent physical accuracy; the abstract's 'independent test set' refers to a held-out split of the label sample, and the paper separately validates against Gaia parallaxes (Sect. 5.1.1), the external Sanders (2023) P-L relation, and Catchpole et al. (2016) Mira distances. The period-dependent bar result is not built in because period is not an input feature (Sect. 5.3.2), making the short/long-period split an independent check. The MSX-to-AKARI transfer is a stated assumption whose failure would bias results, but it is an extrapolation/robustness limitation, not a reduction of the output to the input; the authors also explicitly decline to interpret the far-side short-period enhancement as physical. Self-citations are numerous but are anchored to external measurements, so they do not make the derivation circular.
Assumptions & free parameters
free parameters (5)
- XGBoost hyperparameters =
n_estimators=360, max_depth=7, learning_rate=0.03144, min_child_weight=4, subsample=0.66957
- AKARI color selection range =
-0.6 < [9]-[18] < 0.6
- Mira period threshold =
P = 400 d
- Vertical dispersion scaling factor c =
not fitted (left general)
- Zmax normalization =
Zmax = d sin(6 deg)
assumptions (5)
- domain assumption The SED-based distances from Bhattacharya et al. 2024 are accurate enough to serve as training labels.
- domain assumption The AKARI-selected sample occupies the same photometric-distance space as the MSX training sample.
- domain assumption Apparent IR magnitudes without extinction correction can map to distance without systematic extinction bias.
- domain assumption Non-AGB contamination (~2.4%) is negligible for population-level analysis.
- ad hoc to paper Systematic offsets in Gaia and P-L comparisons are attributable to known biases in those methods, not to the ML distances.
Cite this review
Pith. "Pith review of Mapping the Inner Milky Way with Infrared-Derived Distances to AGB Stars." pith.science (2026). https://pith.science/paper/KP352DIT
@misc{pith2026260810577,
author = {Pith},
title = {Pith review of: Mapping the Inner Milky Way with Infrared-Derived Distances to AGB Stars},
year = {2026},
howpublished = {\url{https://pith.science/paper/KP352DIT}},
note = {Machine review of arXiv:2608.10577}
}
read the original abstract
The structure and evolution of the Milky Way (MW) can be traced with distance estimates to the evolved stellar populations in the inner galactic region. However, direct astrometric distances remain unavailable or highly uncertain for the majority of these sources due to instrumental limitations, large angular diameters, and complex variability. In this work, we develop a supervised machine-learning model to estimate statistical distances to oxygen-rich asymptotic giant branch (AGB) stars selected from the AKARI mid-infrared survey. We build an XGBoost regression model that maps multi-band IR photometry to distance using a training set of AGB stars with previously derived SED-based distances achieving a mean absolute percentage error (MAPE) of 6% on an independent test set. Distance estimates for over 36,000 AGB sources are obtained within a 36% total error margin, greatly expanding distance coverage (0.5-20 kpc) for dust-obscured AGB populations in the Galactic plane. We find good agreement with reported distances for Galactic Mira variables and independent period-luminosity relations. Utilizing the expanded distance set, we further investigate the spatial distribution of Mira variables in the Galactic bulge and disk. Longer-period Miras preferentially trace the bulge's barred morphology compared to their shorter-period counterparts that populate the disk. We also find roughly constant, but differing, relative scale heights for the bulge and disk, with the bulge vertical dispersion about 30% larger. These findings show that IR photometry-derived statistical distances can recover large-scale Galactic structures and establish long-period Mira variables as efficient tracers of stellar populations in heavily obscured regions of the MW.
