Non-resonant laser-driven narrowing of particle velocity distributions

Alexandros Gerakis; Ashwini Vaishnav; Matthias Rupp; Mikhail N. Shneider; Olivier De Castro

REVIEW 3 major objections 4 minor 36 references

Non-resonant laser-driven narrowing of particle velocity distributions

T0 review · 3 major / 4 minor · reviewed 2026-08-12 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Chirped optical lattices can narrow a particle beam's velocity spread, not just extract a subset.

desk verdict A genuinely new scheme—free-space velocity-position separation plus a decelerating chirped lattice—but the central narrowing claim never gets the quantitative width comparison it needs. read the letter →

arxiv 2608.10998 v1 pith:RN4WP3VX submitted 2026-08-11 physics.optics physics.acc-phphysics.comp-ph

Ashwini Vaishnav , Matthias Rupp , Olivier De Castro , Mikhail N. Shneider , Alexandros Gerakis This is my paper · ORCID

classification physics.opticsphysics.acc-phphysics.comp-ph PACS 37.10.Vz

keywords chirpedopticallatticeStarkdecelerationvelocitydistributionnarrowingfree-spacepropagationvelocity-positioncorrelationcesiumatomsclassicaltrajectorysimulationdipoleforce

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Chirped optical lattices—moving interference patterns of two crossed laser beams—are known to trap and accelerate or decelerate a small fraction of a particle ensemble. This paper asks whether such a lattice can do something different: narrow the entire velocity distribution of a propagating ensemble about its mean velocity. Using classical-trajectory simulations of 105 cesium atoms with a mean speed of 1000 m/s and a 100 m/s spread, the authors show that a straightforward accelerating or decelerating lattice fails—one shifts population to the fast edge, the other depletes the center. They then propose a third interaction scheme in which the ensemble first expands freely for about 4.6 microseconds, stretching so that fast atoms lead and slow atoms lag, and a decelerating lattice then acts selectively on the fast atoms, pulling them into the central velocity region while leaving the central population nearly untouched. The net result is a higher peak near the mean velocity, i.e., a narrowed velocity distribution, which the paper presents as a new operational regime for chirped optical lattices.

What carries the argument

The enabling mechanism is the velocity–position correlation produced by free-space propagation, combined with a decelerating chirped optical lattice whose velocity sweep is timed to match the arrival order of the stretched packet. In the lattice frame the single-particle dynamics reduce to a pendulum-like equation with a dimensionless parameter ψ = β/(a k_latt), the ratio of the lattice's acceleration to the maximum acceleration from the potential gradient; trapped particles correspond to closed phase-space orbits inside the separatrix of the effective potential, while untrapped particles receive velocity perturbations that weaken as their velocity mismatch grows. The free-space propagation stage converts the initial Gaussian velocity distribution into a spatial ordering, so the lattice effectively sees a sequence of atoms ordered from fast to slow, allowing selective deceleration of the fast tail without perturbing the central population.

What would settle it

Run a 3D classical-trajectory simulation—or an experiment—that includes the transverse dipole force and the finite lattice waist, and measure the final velocity distribution after the case-C scheme. If the population near the mean velocity does not increase relative to the initial Gaussian, or if the width of the distribution does not shrink, the central claim is falsified. A simpler indicator is the transverse loss fraction: if a significant share of atoms leaves the effective lattice volume before the 1000 ns interaction ends, the narrowing effect disappears.

Watch

Extended reading notes

Core claim

The central claim is that a chirped optical lattice, when combined with a free-space propagation stage that induces a velocity–position correlation, can narrow the particle velocity distribution about its mean. In the working case (case-C), an ensemble with a Gaussian velocity distribution centered at 1000 m/s is allowed to expand in free space for 4.6 microseconds until its length reaches about 3000 micrometers; the lattice, turned on at that moment, decelerates linearly from 1300 m/s to 1000 m/s over 1000 nanoseconds. Because the packet enters the effective lattice region front-first, atoms in the high-velocity tail are trapped and decelerated across the entire lattice sweep range, while atoms near the mean velocity experience only weak perturbations. The simulated final distribution shows a net population increase near 1000 m/s, demonstrating narrowing rather than mere subset extraction. The authors contrast this with two other cases where the lattice is applied to a compactly localized ensemble: acceleration moves population to the fast periphery, and deceleration depletes the central region.

Load-bearing premise

The model treats the motion as purely one-dimensional along the lattice axis and assumes the atoms remain inside the roughly 120-micrometer-wide effective lattice region throughout the 4.6 microseconds of free expansion and the 1 microsecond lattice interaction; if transverse forces or finite beam size carry atoms out of this region, the selective deceleration of fast atoms and the protection of the central population would degrade.

Editorial extensions

If this is right

For a 1000 m/s cesium beam with a 100 m/s spread, the free-space-expansion scheme produces a net increase in population at the mean velocity and a narrower final velocity distribution.
The approach is non-resonant and works for any polarizable particle—atoms, molecules, or ions—as long as the laser stays far off-resonance and below multiphoton-ionization intensities.
Because the dipole force is conservative, the method redistributes phase-space volume rather than compressing it, so it is fundamentally different from dissipative laser cooling.
The scheme can be extended with nonlinear lattice velocity schedules and time-dependent intensities to enlarge the capture window and reduce perturbations near the target velocity.
A pair of timed lattices, one decelerating fast atoms and one accelerating slow atoms, could in principle compress both tails of the distribution in a single cycle.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The free-space propagation stage is essentially a time-of-flight velocity map; the same trick of spatially separating velocity classes before applying a velocity-selective force could be used with other manipulation schemes, such as resonant light or electrostatic Stark deceleration.
The paper's 1D assumption may be the key uncertainty: a full 3D treatment could reveal that transverse motion limits the usable expansion time or requires a larger lattice waist than the modeled 120 micrometers.
An experimental test could use a pulsed supersonic cesium beam and a single chirped laser pulse; the predicted narrowing should appear as a sharper time-of-flight peak at the detector.
The asymmetry noted in the paper—that decelerating the fast tail works because fast atoms arrive first, while accelerating the slow tail is harder because slow atoms arrive last—suggests that a combined scheme would need to reverse the order or use two separate lattice stages.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

The one thing to know: the scheme is genuinely new and the physics is plausible, but the paper never measures the thing its title promises. The claim is "narrowing"; the evidence is a histogram with a taller central peak. Those are not the same, and the gap is fixable with data they already have.

What's actually new: prior chirped-lattice and Stark work extracts a sub-population with a narrow spread from a distribution. Here they let the packet expand in free flight, which correlates velocity with position, then time a decelerating lattice so it catches mainly the fast atoms at the front and drags them back toward the mean. That is a real new application of a known tool. The mechanism is sensible, the collision-free assumption is supported with mean-free-path numbers, and the 1D reduction is argued from the intensity geometry rather than asserted. The case-B analysis—why naive deceleration depletes the center—shows real understanding of the dynamics, and the honest acknowledgment that this is phase-space redistribution, not compression (Liouville), is a point in the authors' favor. They also flag the multiphoton-ionization ceiling and the trapping-window requirement in the conclusion.

The soft spots, in order. First and load-bearing: no FWHM or standard deviation is ever computed for the final distribution. Case-C shows population accumulating near 1000 m/s, but a tall central spike over an untouched 700–1000 m/s tail can leave the width unchanged or worse. The paper's own optimization criterion is "net population accumulation," which is not width reduction, and the title and abstract make the narrowing claim on the strength of Fig. 8(b). This is internal to their 1D model, so it cannot be waved away with "the simulation is approximate." Second: the fast atoms are decelerated into some capture window, and the width of that window—which determines whether narrowing actually happens—is never quantified, even though Section V states the window must be smaller than the desired final width. Third: case-C is the survivor of an offset scan, reported with no sensitivity analysis and no error bars. The scan is disclosed openly, so this is a minor-to-moderate issue, but one should read the headline numbers as a best case. Fourth: the transverse velocity spread is never specified, so it is unclear whether the packet stays inside the ~120 µm lattice region over the 4.6 µs expansion; the 1D argument covers the force during the interaction, not the free flight before it.

Citation pattern is clean: the prior chirped-lattice work is cited appropriately and the extraction-versus-narrowing distinction is accurate. Who this is for: anyone working on non-resonant velocity control—matter interferometry, controlled collisions, ion-beam focusing. It deserves a serious referee. The load-bearing gap is repairable in revision (report widths, quantile measures, capture-window size, offset sensitivity), and if the width numbers confirm the claim, this becomes a tool people will want to build on. If they don't, the paper shrinks to a cautionary simulation study—still citable, but not the advance it claims to be.

Referee Report

3 major / 4 minor

Summary. The paper presents a numerical study of an ensemble of neutral cesium atoms interacting with a chirped optical lattice, with the goal of narrowing the velocity distribution about its mean velocity. Three interaction cases are simulated: acceleration of the full packet (case-A), deceleration of the full packet (case-B), and a scheme in which the ensemble first expands in free space to develop a position-velocity correlation and then interacts with a decelerating lattice (case-C). The authors report that in case-C the population near the mean velocity increases and conclude that this constitutes a new regime for narrowing particle velocity distributions via a non-resonant optical dipole force.

Significance. If the claim is quantitatively established, the scheme would be a useful addition to methods for velocity-space manipulation of polarizable particles, with potential relevance to beam focusing, controlled collisions, and matter interferometry. The paper uses standard equations of motion and direct numerical integration; the collisionless assumption is explicitly justified by mean-free-path estimates, and the authors correctly note the conservative nature of the dipole force and the resulting Liouville constraint. The main weaknesses are that the central 'narrowing' claim is supported only by visual inspection of histograms and by an optimization criterion that targets population accumulation rather than a reduction of velocity spread.

major comments (3)

[§IV, Fig. 8 and §V]
[§III, Eq. (9) and Fig. 3]
[§V, offset scan]

minor comments (4)

[§II, Eq. (2) text]
[§IV, Fig. 5 caption]
[§III, simulation parameters]
[§IV, case-B text]

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the central claim comes from direct numerical integration of standard dipole dynamics, and cited prior work is methodological background only.

full rationale

The paper's derivation chain is self-contained. The force law in Eq. (9) follows from the standard dipole potential U = -1/2 alpha_eff |E|^2 and the Gaussian beam interference model; no step defines the predicted narrowing in terms of the simulation inputs. The lattice-frame transformation and potential in Eqs. (6)-(7) are attributed to Ref. [16], which includes co-authors of the present work, but they are used only to illustrate single-particle phase-space trapping and are not needed to produce the case-C result; that result is obtained by numerically integrating Eq. (9) for 10^5 cesium atoms with velocity-Verlet and automatic differentiation. Self-citations [19,20] for the classical trajectory model are methodological, not load-bearing: they supply the integration approach, not the conclusion. The offset scan in Section V is a control-parameter optimization to maximize population transfer, not a fit of the target quantity; the narrowing claim is not statistically forced by the scan. The absence of FWHM or standard-deviation comparison in case-C is a quantitative-support gap, but it is not a circular reduction: no equation or fitted parameter is defined in terms of the claimed outcome. Thus no circular step meets the required evidentiary bar.

Assumptions & free parameters 6 free parameters · 4 assumptions · 0 invented entities

Central claim rests on standard dipole-force physics, plus several domain assumptions (no collisions, 1D motion, constant laser intensities, far-off-resonance). It introduces no new entities. Several hand-chosen simulation parameters, including the scanned packet offset, set the operating point for the demonstrated narrowing.

free parameters (6)

Laser pulse duration = 1000 ns
Hand-chosen duration; sets the lattice velocity sweep time and interaction window.
Peak laser intensity = 1e13 W/m^2
Chosen within experimental capabilities; sets potential well depth to 1.8 K.
Lattice velocity sweep range = 1300 m/s to 1000 m/s over 1000 ns
Chosen to target the fast tail while ending at the mean velocity.
Free-space expansion time and distance = 4.6 us, 5.9 mm
Chosen to stretch the packet to about 3000 um and create the required velocity-position correlation.
Initial packet axial placement = -6.85 mm to -6.6 mm
Scanned to maximize population transfer; the reported narrowing depends on this optimized offset.
Beam waist and crossing angle = w0 = 60 um, theta = 86.75 degrees
Experimental geometry, chosen to fit the simulated lattice region.

assumptions (4)

domain assumption Particles follow classical Newtonian dynamics under a conservative dipole force, with collisions neglected.
Section III argues the mean free path (about 42.8 m) is orders of magnitude larger than the lattice length, so collisions are negligible.
domain assumption The dynamics are one-dimensional along the lattice axis; transverse dipole forces and transverse velocity spread are negligible.
Section III states the transverse intensity gradient is significantly weaker than the axial gradient and therefore has negligible influence.
domain assumption Laser intensities remain constant and equal throughout the pulse, beams are identical TEM00 profiles, and cesium stays in its ground state.
Section III models the beams with constant intensity and polarization; Section II assumes far-off-resonance wavelength to keep atoms in the ground state.
standard math The dipole potential is U = -1/2 alpha_eff |E|^2 and the lattice force is derived from the interference of two Gaussian beams.
Section II derives the lattice potential from standard electrodynamics; this is the physical foundation of the simulation.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Non-resonant laser-driven narrowing of particle velocity distributions." pith.science (2026). https://pith.science/paper/RN4WP3VX

@misc{pith2026260810998,
  author       = {Pith},
  title        = {Pith review of: Non-resonant laser-driven narrowing of particle velocity distributions},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/RN4WP3VX}},
  note         = {Machine review of arXiv:2608.10998}
}

read the original abstract

Stark acceleration and deceleration based techniques for generating particle ensembles with low velocity spread are useful in many experimental applications. For a given velocity distribution of a particle ensemble, these techniques accelerate or decelerate a small subset of the total population, with a low velocity uncertainty. However, narrowing the original velocity distribution by accelerating or decelerating the ensemble particles near the mean velocity is fundamentally limited and not yet explored. We present a numerical study of particle dynamics using neutral cesium atoms as an example. We investigate different interaction regimes, identify key limitations, and propose an interaction regime in which optical Stark deceleration can be used to narrow the velocity distribution of a propagating ensemble about its mean velocity. These findings have potential implications for optical manipulation and control, controlled collisions, and matter interferometry.

Figures

Figures reproduced from arXiv: 2608.10998 by the authors.

**Figure 2.** FIG. 2: Phase space dynamics in the lattice frame. (a) [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** FIG. 3: Normalized spatial intensity distribution of the [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

Figures from the paper (5 more)

**Figure 4.** Figure 4: FIG. 4: Initial distribution of cesium atoms. (a) Initial [PITH_FULL_IMAGE:figures/full_fig_p006_4.png]

**Figure 5.** Figure 5: FIG. 5: Interaction case-A. (a) Variation in lattice phase [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]

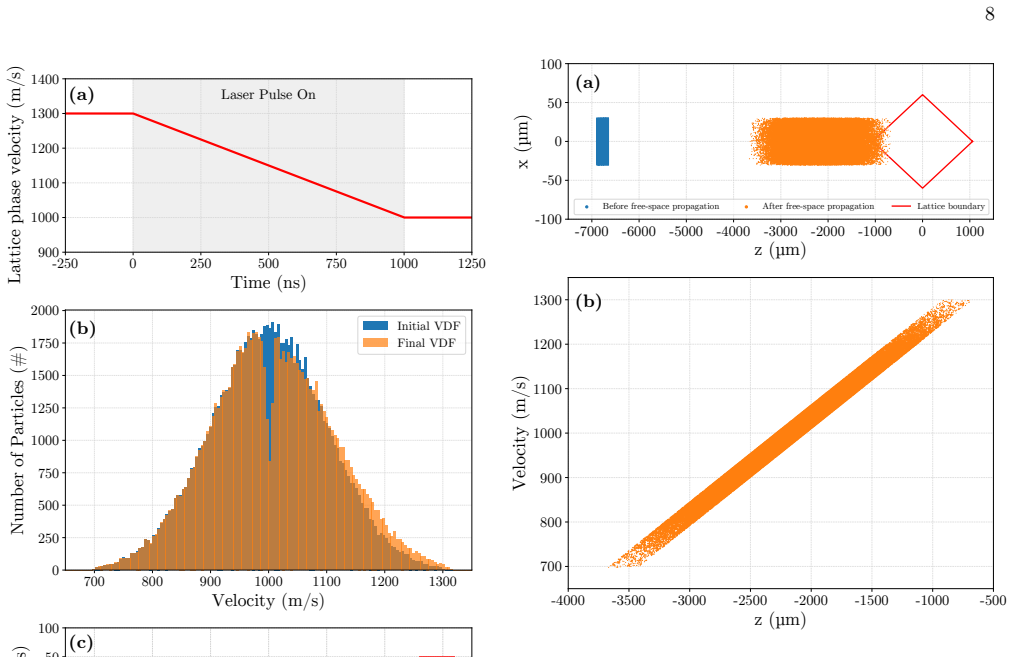

**Figure 7.** Figure 7: FIG. 7: Effect of free-space propagation on the [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]

**Figure 6.** Figure 6: FIG. 6: Interaction case-B. (a) Variation in lattice [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]

**Figure 8.** Figure 8: FIG. 8: Interaction case-C. (a) Variation in lattice [PITH_FULL_IMAGE:figures/full_fig_p009_8.png]
