arxiv: 2606.20455 · v1 · pith:373F4LETnew · submitted 2026-06-18 · 💻 cs.CV

PCFootprint: A Large-Scale Dataset and Benchmark for Vectorized Building Footprint Extraction from Aerial LiDAR Point Clouds

Haoyuan Shen , Kuihao Wang , Ruisheng Wang , Yujun Liu This is my paper

Pith reviewed 2026-06-26 18:04 UTC · model grok-4.3

classification 💻 cs.CV
keywords building footprint extractionLiDAR point cloudsvectorized footprintsaerial laser scanningdatasetbenchmarkremote sensingurban modeling
0
0 comments X

The pith

PCFootprint supplies the first large-scale public set of 33,000 aligned tiles for extracting vectorized building footprints directly from airborne LiDAR point clouds.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces PCFootprint as the first large-scale public dataset for vectorized building footprint extraction from aerial laser scanning point clouds rather than optical images. It consists of 33,000 tiles of 128 by 128 meters drawn from Estonian data, each paired with systematically aligned vectorized footprints, plus a separate 3,000-tile cross-domain test set. The authors benchmark existing methods on this data and document persistent difficulties such as high intra-class variance, imbalance, and noise in complex urban and rural scenes. A sympathetic reader would care because optical imagery is limited by occlusions, perspective distortion, and missing elevation, whereas point clouds supply direct height information needed for accurate Level of Detail building models. If the dataset holds, it supplies a common testbed that can drive progress in building modeling, urban scene understanding, and geospatial analysis.

Core claim

We present PCFootprint, the first large-scale public dataset for footprint extraction from airborne laser scanning point clouds, comprising 33,000 tiles with systematically aligned vectorized footprints. Each tile spans 128 by 128 meters and covers diverse urban and rural landscapes; a 3,000-tile cross-domain test set supports evaluation of geographic generalization. Comprehensive benchmarks of mainstream methods reveal significant remaining challenges including high intra-class variance, data imbalance, and noise.

What carries the argument

The PCFootprint dataset of 33,000 128-by-128-meter tiles containing point clouds paired with systematically aligned vectorized footprints.

If this is right

  • Methods can now be trained and evaluated using explicit elevation data rather than inferred from imagery alone.
  • The cross-domain test set provides a concrete measure of geographic generalization for any new footprint extraction algorithm.
  • Benchmark results establish baseline performance levels that future point-cloud-specific models must surpass.
  • The dataset directly supports downstream tasks that require aligned 2D footprints together with 3D height information for Level of Detail modeling.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The dataset could be extended by adding per-building semantic labels or multi-temporal scans to support change detection.
  • Point-cloud methods developed on PCFootprint may transfer to other airborne laser scanning collections once alignment protocols are standardized.
  • Combining the footprints with image-based cues could produce hybrid systems that correct residual alignment errors.

Load-bearing premise

The vectorized footprints are accurately and systematically aligned to the point clouds and the chosen tiles plus cross-domain test set represent a sufficiently broad range of urban and rural conditions to serve as a general benchmark.

What would settle it

Manual verification on a random sample of tiles shows systematic misalignment between the supplied footprints and the underlying point clouds, or a method trained on the training tiles fails to generalize on the 3,000-tile cross-domain test set.

Figures

Figures reproduced from arXiv: 2606.20455 by Haoyuan Shen, Kuihao Wang, Ruisheng Wang, Yujun Liu.

Figure 1

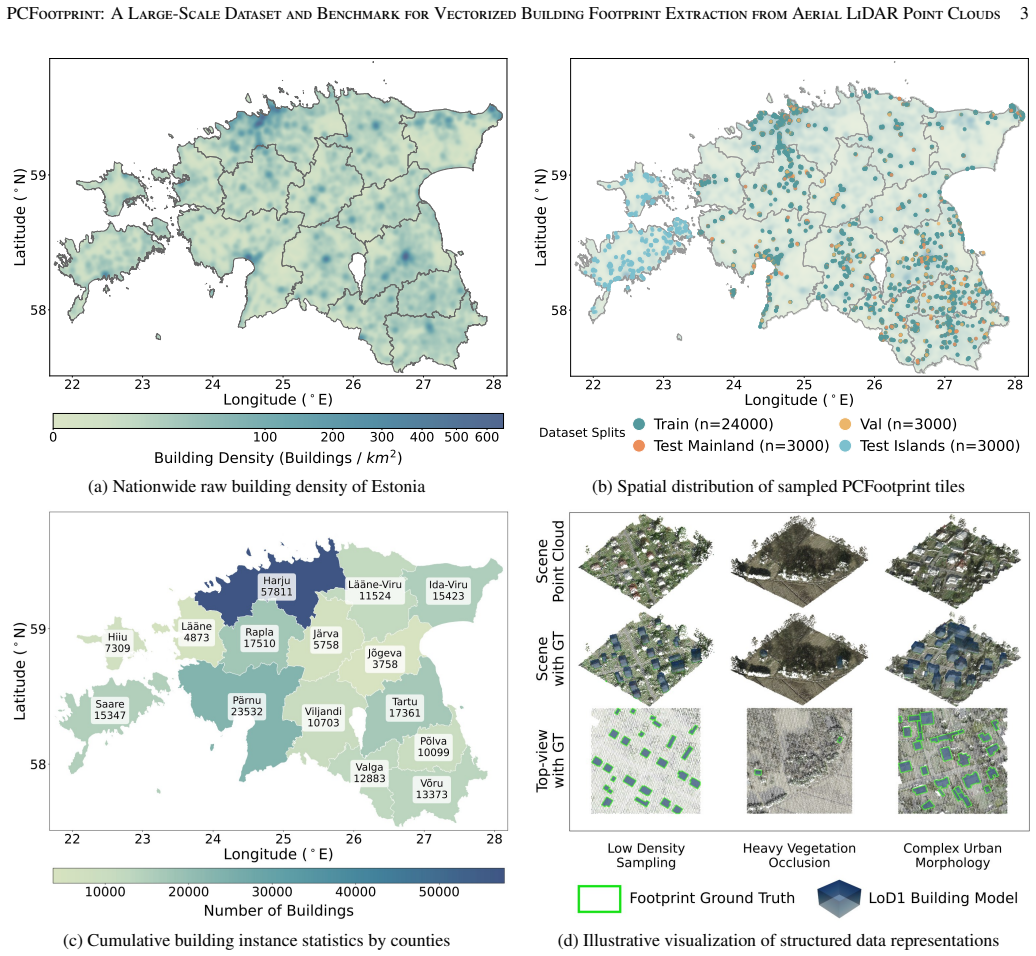

Figure 1. Figure 1: Geographic sampling strategy and illustrative visualization of the PCFootprint dataset. (a) Nationwide building density [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 3

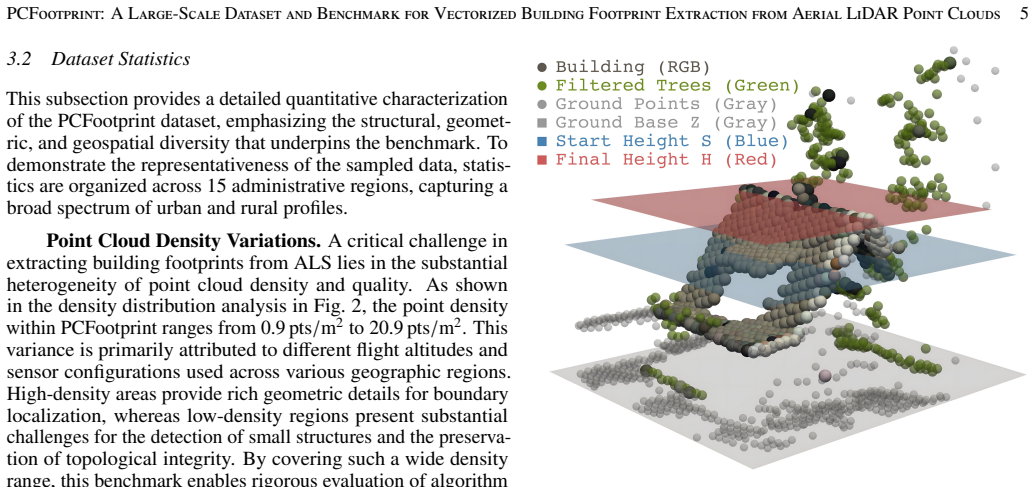

Figure 3. Figure 3: Conceptual workflow of the building height estimation. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 2

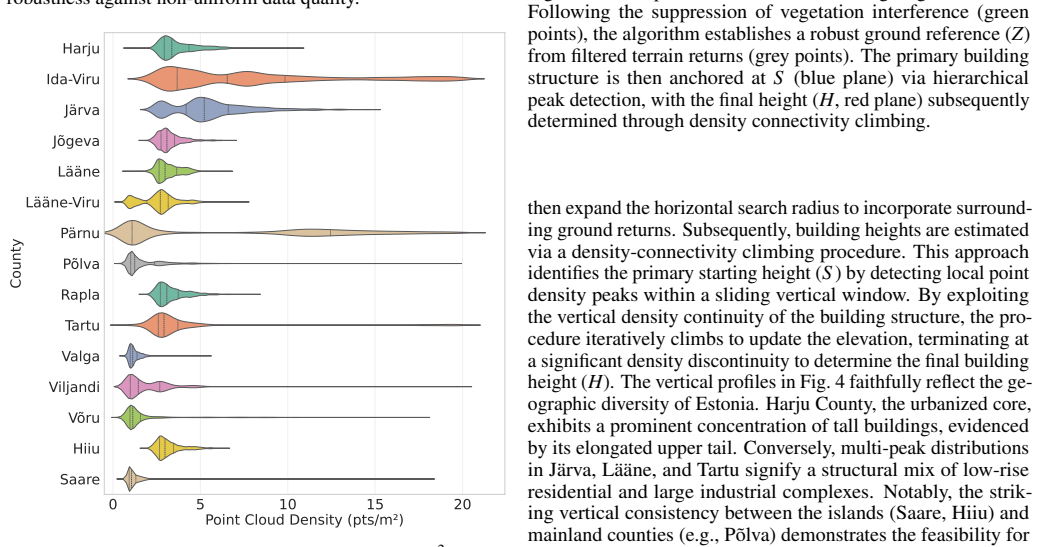

Figure 2. Figure 2: Comparison of point cloud densities (pts/m2 ) across different counties in Estonia. Each violin plot shows the distri￾bution of point cloud density, revealing the spread and concen￾tration of points over building areas within each region. The multi-modal nature of these distributions indicates significant variations in LiDAR scanning patterns. Multi-scale Characteristics. The structural complexity of PCFoo… view at source ↗
Figure 4

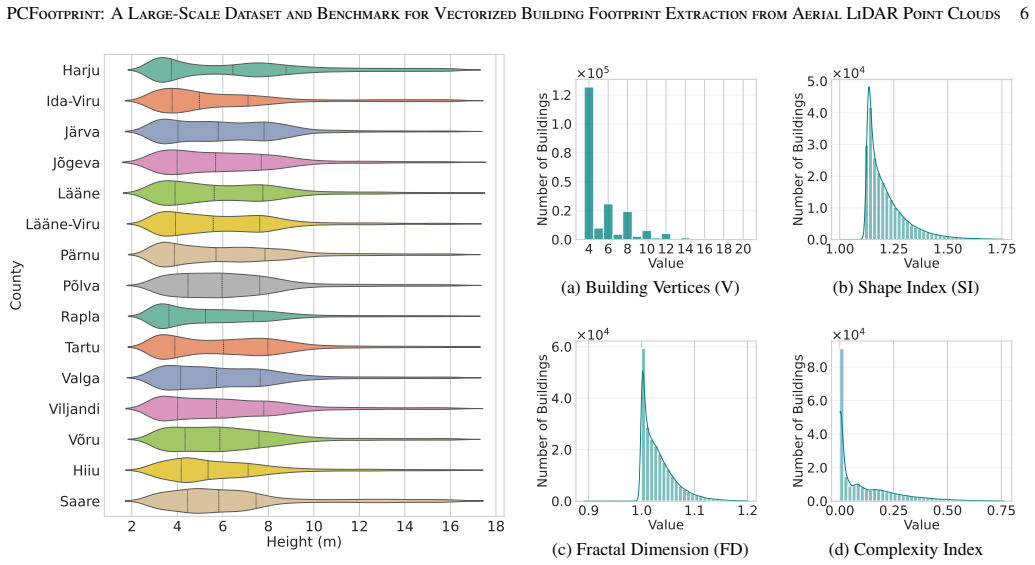

Figure 4. Figure 4: Statistical distribution of building heights across Es [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

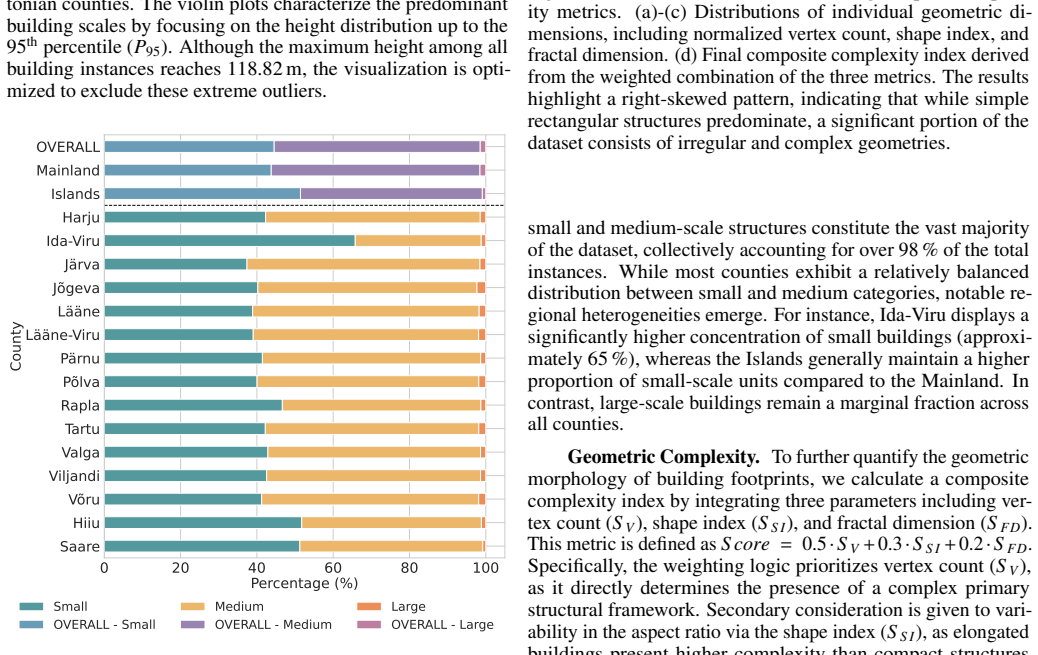

Figure 5. Figure 5: Regional distribution of building scales across Esto [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 8

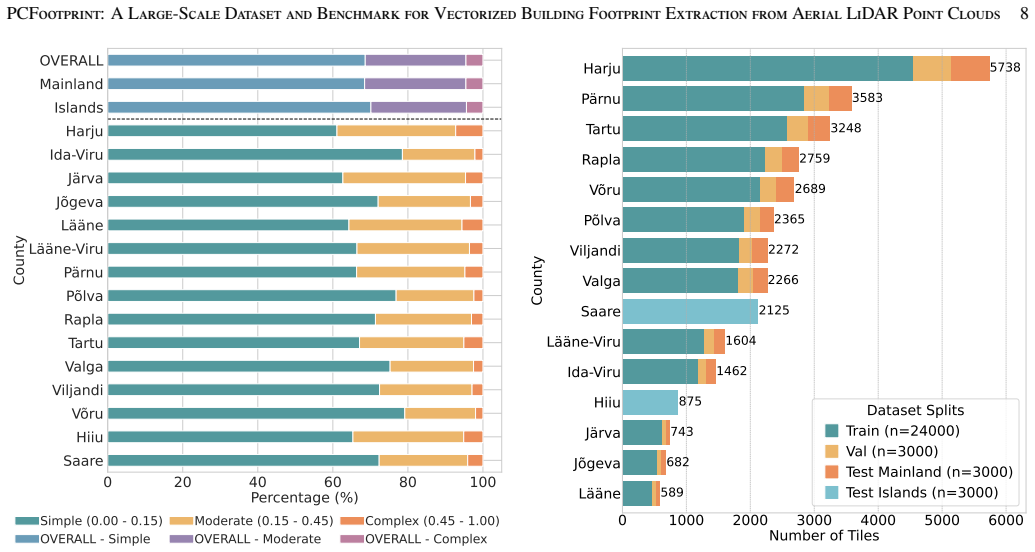

Figure 8. Figure 8: Proportional distribution and subset splitting of point [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗
Figure 9

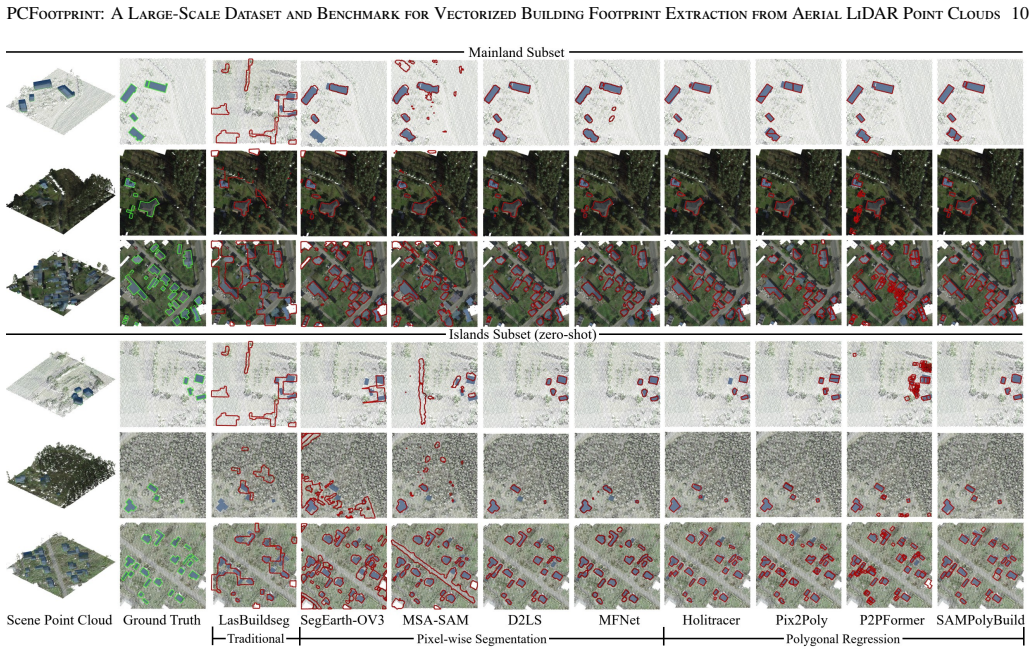

Figure 9. Figure 9: Qualitative comparison of building footprint extraction results across various methodologies. Representative scenarios [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
read the original abstract

Building footprint extraction is a fundamental task in photogrammetry, remote sensing, and computer vision. Recent image-based methods have achieved remarkable progress in extracting vectorized footprints from high-resolution optical imagery. However, optical imagery inherently susceptible to occlusions, perspective distortions, and residual relief displacement, yielding incomplete or misaligned footprint extraction. Furthermore, the lack of explicit elevation information limits its direct applicability to Level of Detail building modeling. In this paper, we present PCFootprint, the first large-scale public dataset for footprint extraction from airborne laser scanning point clouds. PCFootprint comprises \num{33000} tiles derived from the Estonian Land and Spatial Development Board, covering diverse urban and rural landscapes. Each tile spans \qtyproduct{128 x 128}{\m} with systematically aligned vectorized footprints aligned to point clouds. The dataset includes a \num{3000} tiles cross-domain test set for evaluating generalization across geographic regions. We establish comprehensive benchmarks by evaluating mainstream methods. Experimental results reveal significant challenges including high intra-class variance, data imbalance, and noise across complex geospatial environments. We believe PCFootprint will advance future research in building modeling, urban scene understanding, and geospatial analysis. The PCFootprint dataset is publicly available at \url{https://huggingface.co/datasets/Haoyuan-Shen/PCFootprint}.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces PCFootprint as the first large-scale public dataset for vectorized building footprint extraction from airborne laser scanning (ALS) point clouds. It comprises 33,000 tiles of 128 m × 128 m point clouds from the Estonian Land and Spatial Development Board, each with systematically aligned vectorized footprints, plus a 3,000-tile cross-domain test set intended to evaluate generalization across geographic regions. The work benchmarks mainstream methods on the dataset and reports challenges such as high intra-class variance, data imbalance, and noise in complex environments. The dataset is released publicly via Hugging Face.

Significance. If the alignment between point clouds and footprints is rigorously validated and the test set provides genuine geographic diversity beyond a single national source, this would constitute a valuable public benchmark resource. It directly addresses limitations of optical imagery (occlusions, lack of elevation) for Level-of-Detail building modeling and supplies the first large-scale ALS-specific resource with reproducible code and data access, enabling systematic progress in urban scene understanding and geospatial analysis.

major comments (2)
  1. [Abstract] Abstract: the manuscript asserts that the 3,000-tile cross-domain test set supports evaluation of 'generalization across geographic regions' and positions the dataset as a 'general benchmark,' yet all tiles originate from a single national provider (Estonian Land and Spatial Development Board). No spatial separation metrics, municipality-level metadata, or evidence of multi-country coverage are supplied, so the test set may capture only intra-national variation rather than the broader generalization claimed; this directly affects the central benchmark utility assertion.
  2. [Abstract] Abstract: the claim of 'systematically aligned vectorized footprints aligned to point clouds' is load-bearing for dataset usability, but the manuscript supplies no description of the alignment procedure, validation metrics (e.g., IoU thresholds, manual review statistics), or error rates. Without these, downstream benchmark results cannot be confidently interpreted as reflecting true point-cloud-to-footprint correspondence.
minor comments (1)
  1. [Abstract] Abstract: the phrasing 'systematically aligned vectorized footprints aligned to point clouds' is redundant; a single concise statement of alignment would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive comments, which help clarify the scope and presentation of our work. We address each major comment point by point below and indicate where revisions will be made.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the manuscript asserts that the 3,000-tile cross-domain test set supports evaluation of 'generalization across geographic regions' and positions the dataset as a 'general benchmark,' yet all tiles originate from a single national provider (Estonian Land and Spatial Development Board). No spatial separation metrics, municipality-level metadata, or evidence of multi-country coverage are supplied, so the test set may capture only intra-national variation rather than the broader generalization claimed; this directly affects the central benchmark utility assertion.

    Authors: We agree that the current wording risks overstating the geographic scope. All tiles, including the cross-domain test set, originate from the Estonian Land and Spatial Development Board and therefore represent intra-national variation across diverse urban, suburban, and rural landscapes within Estonia. The term 'cross-domain' was intended to denote separation by geographic sub-regions rather than international boundaries. In the revised manuscript we will explicitly qualify the claim to 'generalization across diverse geographic sub-regions within Estonia' and will add a brief discussion of this limitation in the dataset description section. We will also include any available municipality-level or spatial-separation statistics that can be derived from the source data. revision: partial

  2. Referee: [Abstract] Abstract: the claim of 'systematically aligned vectorized footprints aligned to point clouds' is load-bearing for dataset usability, but the manuscript supplies no description of the alignment procedure, validation metrics (e.g., IoU thresholds, manual review statistics), or error rates. Without these, downstream benchmark results cannot be confidently interpreted as reflecting true point-cloud-to-footprint correspondence.

    Authors: We acknowledge that the alignment procedure and its validation are insufficiently documented. The revised manuscript will include a new subsection detailing the alignment workflow (including any automated registration steps and subsequent manual verification), the quantitative validation metrics employed (such as IoU thresholds and overlap statistics), the scale of manual review performed, and any observed error rates or residual misalignment statistics. This addition will allow readers to assess the reliability of the point-cloud-to-footprint correspondence used in the benchmarks. revision: yes

Circularity Check

0 steps flagged

No significant circularity: dataset release with no derivations

full rationale

This is a data-release paper whose central claim is the creation and public availability of PCFootprint (33000 tiles + 3000-tile test set) with aligned vectorized footprints. No equations, fitted parameters, predictions, or derivation chains exist in the abstract or described content. Benchmarks simply evaluate existing mainstream methods on the released data. The representativeness of the Estonian-sourced test set is an empirical assumption about geographic coverage, not a circular reduction of any result to its own inputs. No self-citation load-bearing steps, ansatzes, or renamings are present. The paper is self-contained as a benchmark contribution.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a dataset release and benchmark paper; the central contribution is new data rather than any derivation, so no free parameters, axioms, or invented entities are involved.
