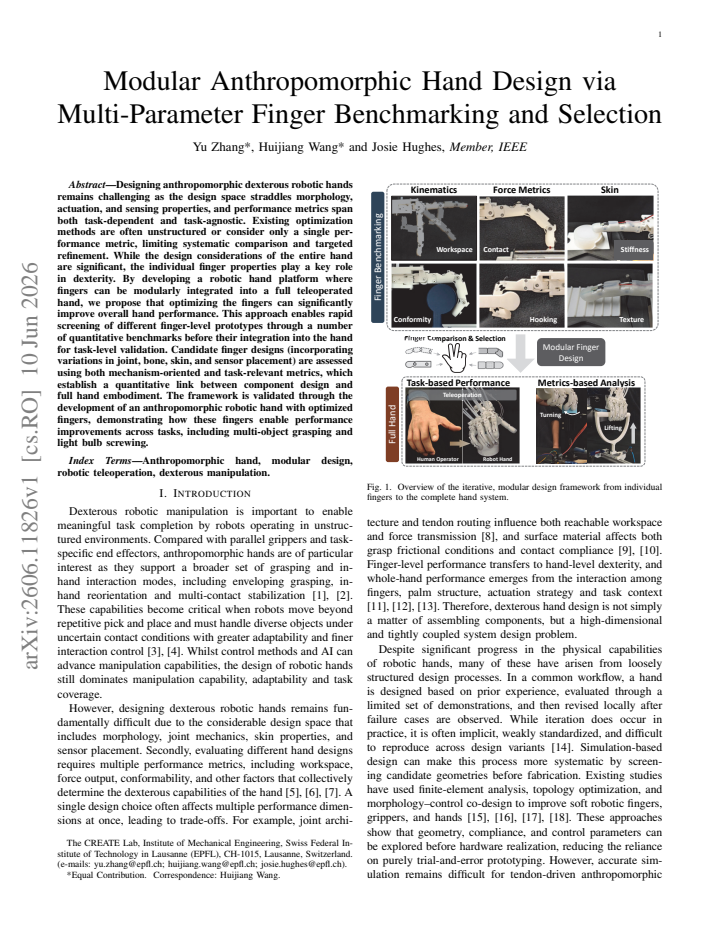

Modular Anthropomorphic Hand Design via Multi-Parameter Finger Benchmarking and Selection

Yu Zhang , Huijiang Wang , Josie Hughes This is my paper

Pith reviewed 2026-06-27 09:44 UTC · model grok-4.3

classification 💻 cs.RO
keywords robotic handdexterous manipulationmodular designfinger optimizationbenchmarkingteleoperationanthropomorphic roboticsgrasping
0
0 comments X

The pith

Benchmarking isolated fingers with multiple metrics and integrating the best ones modularly improves performance in a teleoperated anthropomorphic hand.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes screening candidate finger designs, which vary in joints, bones, skin, and sensors, through quantitative benchmarks that combine mechanism-oriented and task-relevant metrics. These screened fingers are then assembled into a full hand using a modular platform that supports teleoperation. The central claim is that this component-level optimization produces measurable gains once the fingers are combined, without requiring redesign of the entire hand each time. A sympathetic reader would see value in the structured link between finger properties and whole-hand outcomes on tasks such as multi-object grasping and light-bulb screwing.

Core claim

Creating a modular robotic hand platform allows different finger prototypes to be tested in isolation with a set of quantitative benchmarks and then integrated into the complete teleoperated hand, demonstrating that the selected fingers deliver performance improvements across multiple tasks.

What carries the argument

The modular finger integration platform that supports rapid swapping of finger prototypes, paired with multi-parameter benchmarking that evaluates joint, bone, skin, and sensor variations using both mechanism and task metrics.

If this is right

  • Finger-level design choices can be refined systematically before full-hand assembly.
  • Performance gains appear in multi-object grasping when optimized fingers are used.
  • Precision tasks such as light-bulb screwing show improvement after modular integration.
  • The quantitative link between component metrics and hand-level outcomes enables targeted iteration.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same modular screening approach could be applied to other robotic limbs or grippers where isolated testing is feasible.
  • If integration effects prove small, designers might rely more on finger-only tests and reduce full-system simulation costs.
  • Extending the benchmarks to include dynamic interactions between multiple fingers could further strengthen the method.

Load-bearing premise

Metrics measured on isolated fingers will continue to predict and improve performance once those fingers are placed inside the assembled hand, without new interactions or embodiment effects changing the results.

What would settle it

A finger design that scores highest on the isolated benchmarks produces no gain, or produces worse results, when tested in the integrated hand on the same tasks.

Figures

Figures reproduced from arXiv: 2606.11826 by Huijiang Wang, Josie Hughes, Yu Zhang.

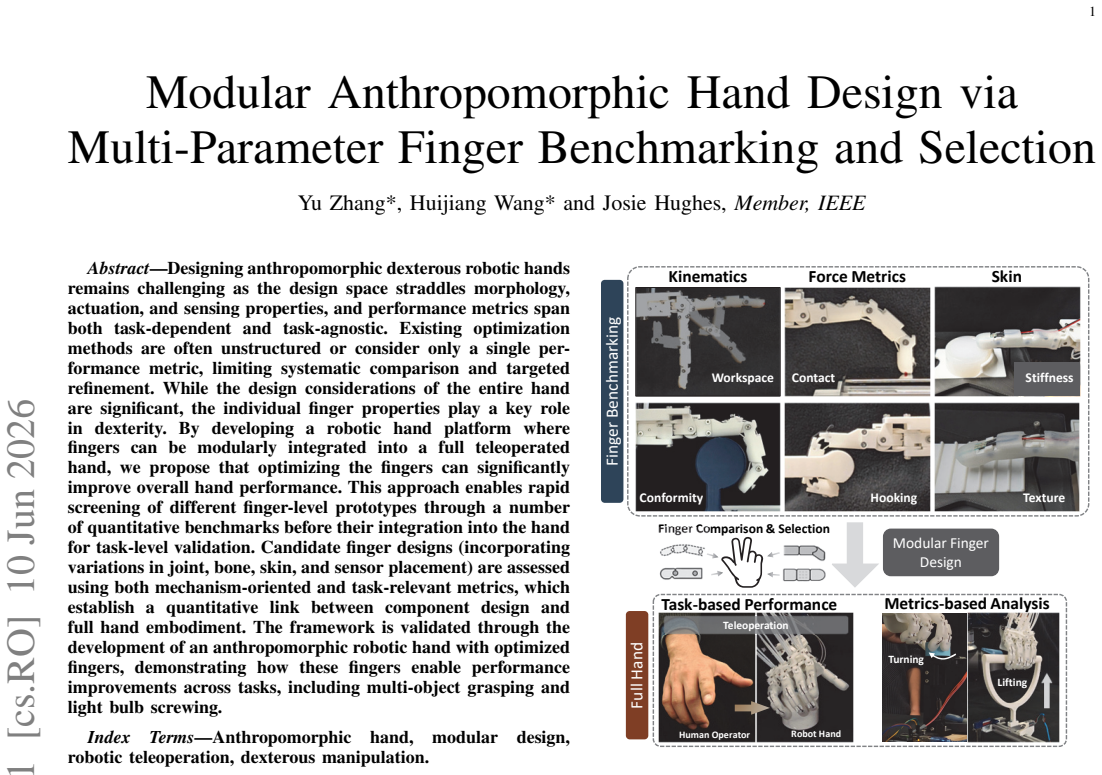

Figure 1
Figure 1. Figure 1: Overview of the iterative, modular design framework from individual [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

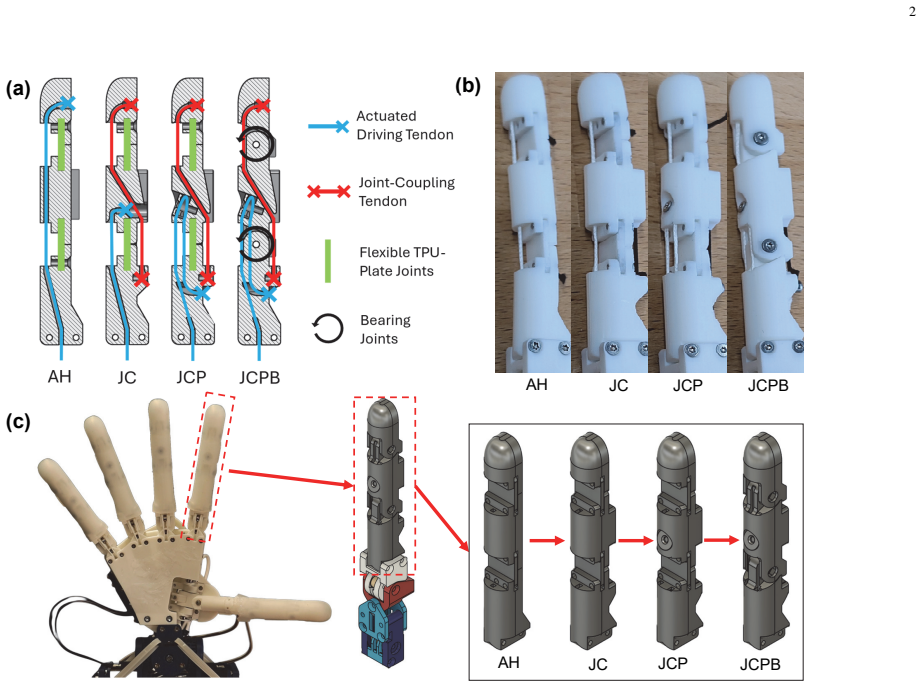

Figure 2
Figure 2. Figure 2: Finger modules and modular hand platform. (a) Schematics of the four finger designs. (b) Fabricated finger modules. (c) Modular hand assembled [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

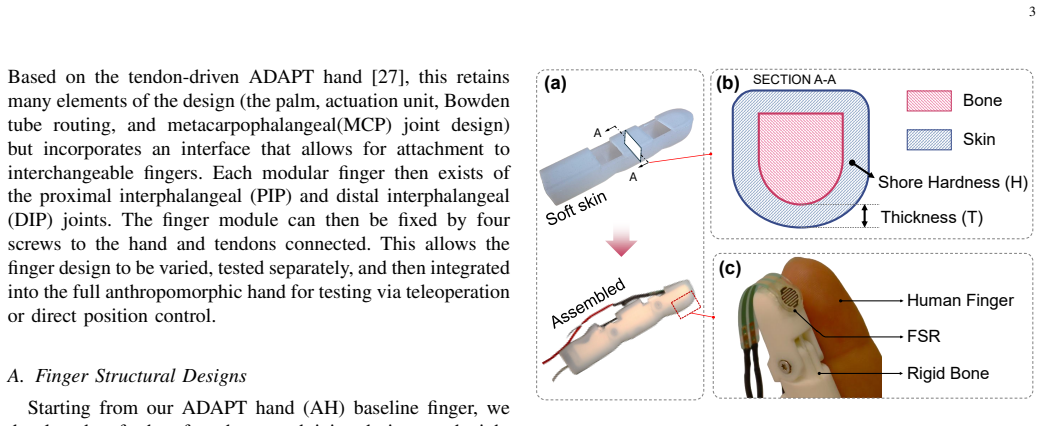

Figure 3
Figure 3. Figure 3: Soft skin module and sensing setup. (a) Modular soft skin before and [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗

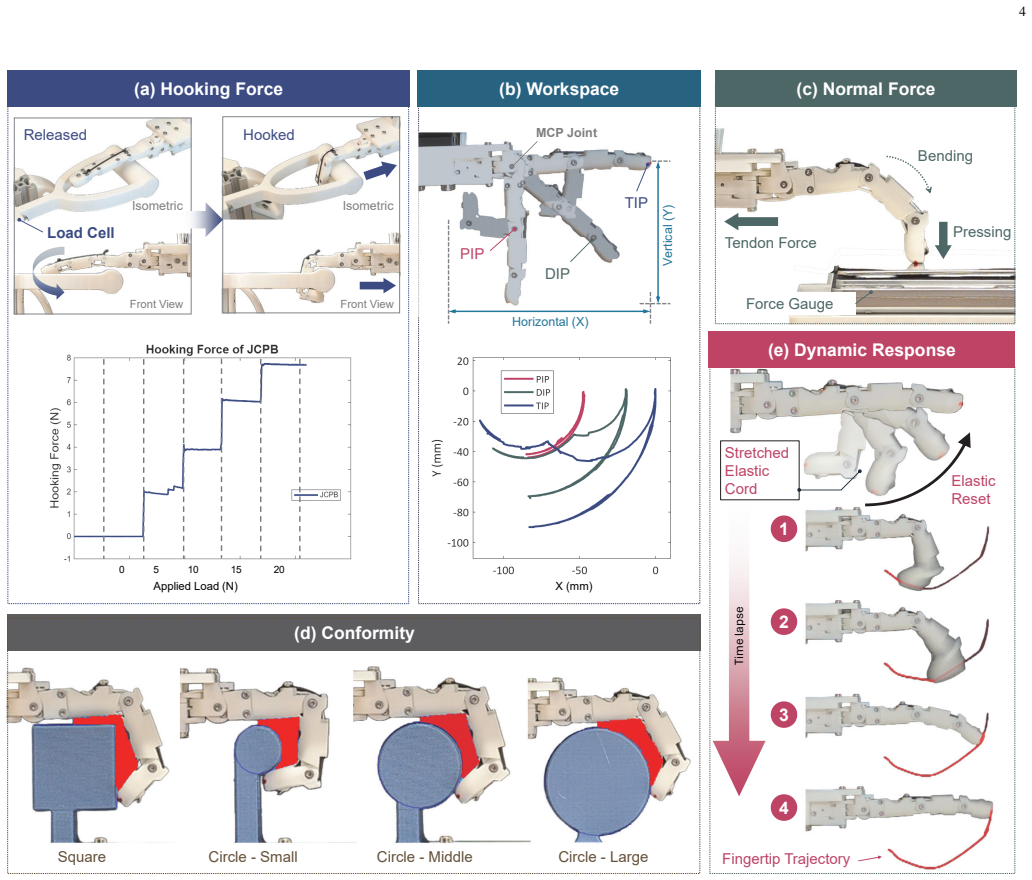

Figure 4
Figure 4. Figure 4: Structural evaluation methods for the finger designs. (a) Hooking force test, showing the released and hooked states, and exemplary time series data [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

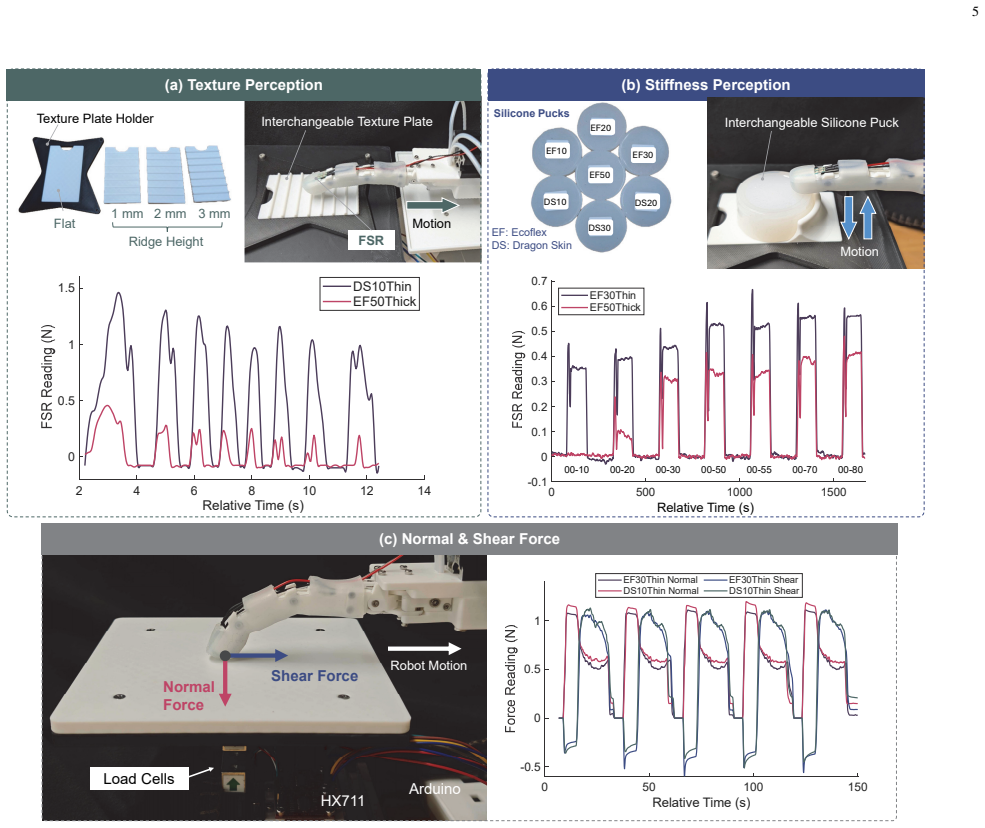

Figure 5
Figure 5. Figure 5: Soft skin evaluation methods. (a) Texture perception test with interchangeable texture plates of different ridge heights and representative FSR readings [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

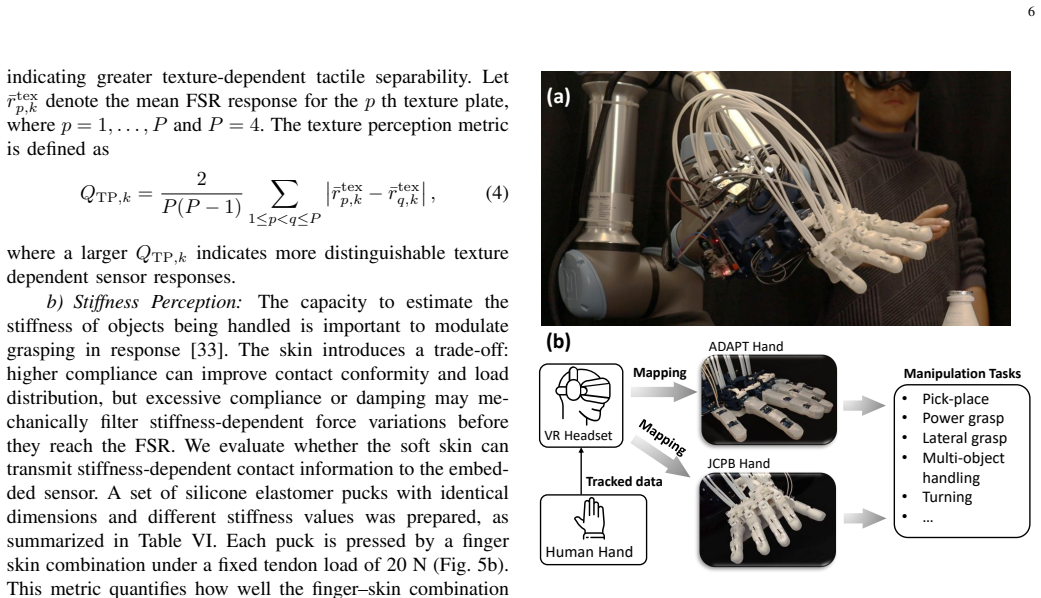

Figure 6
Figure 6. Figure 6: Hand-level evaluation methods. (a) Illustration of the teleoperation [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

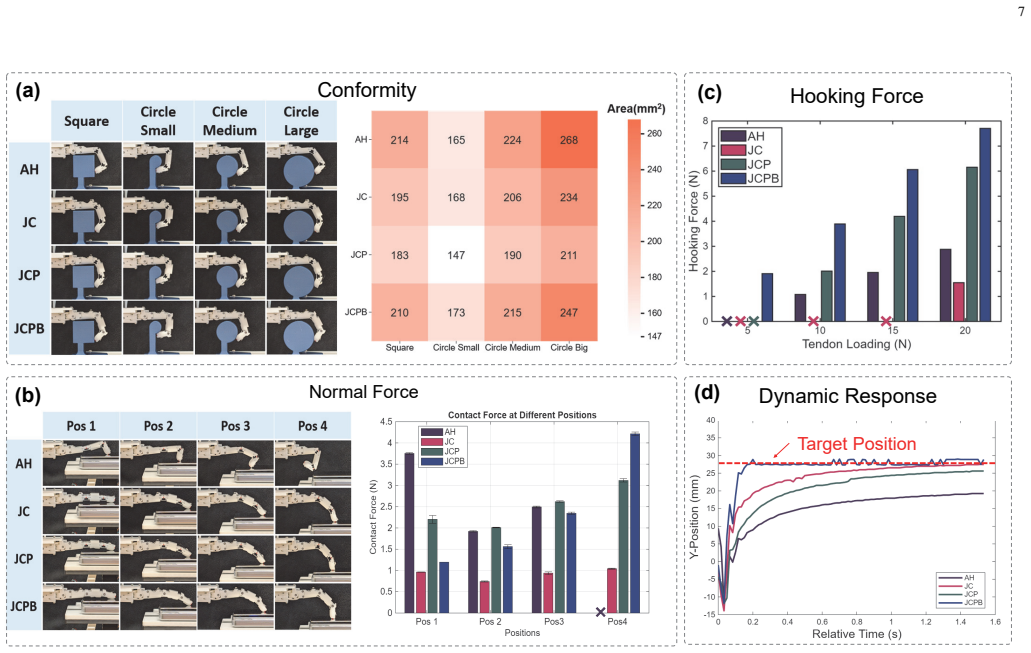

Figure 7
Figure 7. Figure 7: Results of the structural evaluation of the finger designs. (a) Conformity evaluation, with representative snapshots of finger–object wrapping for [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

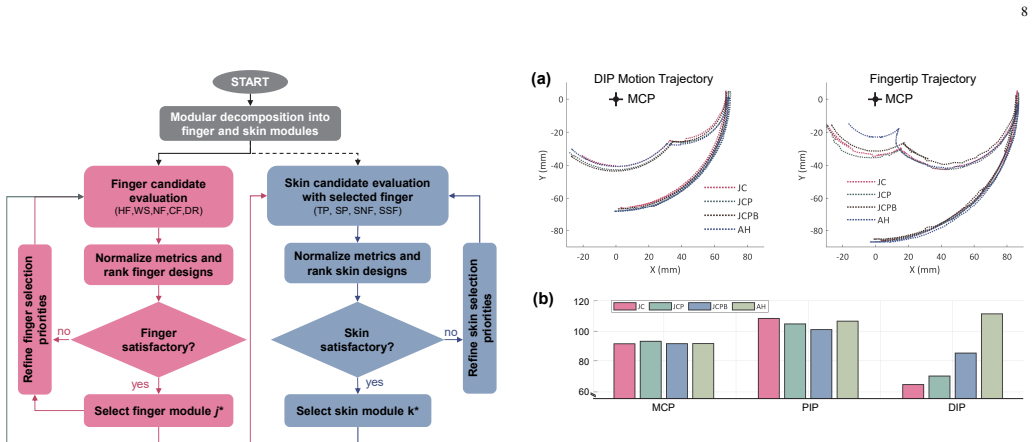

Figure 9
Figure 9. Figure 9: Workspaces of the four finger designs. (a) Trajectories of the tracked [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗

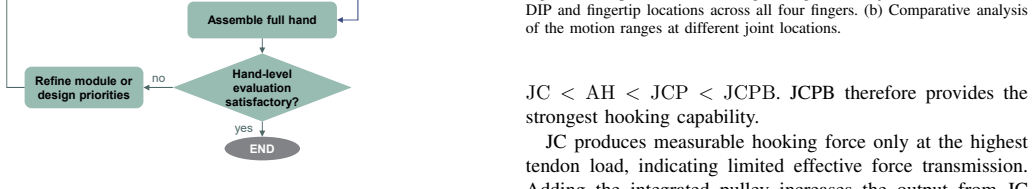

Figure 8
Figure 8. Figure 8: Flowchart of the proposed modular hand design and selection process. [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

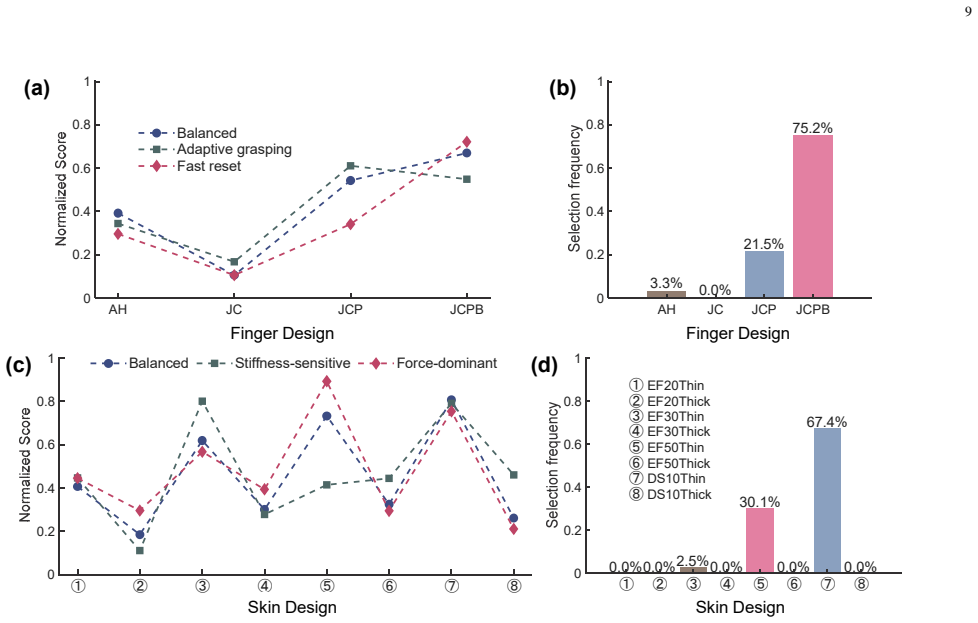

Figure 10
Figure 10. Figure 10: Scores under different weighting conditions. (a) Finger scores under three representative weighting cases. (b) Finger selection frequency from Monte [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗

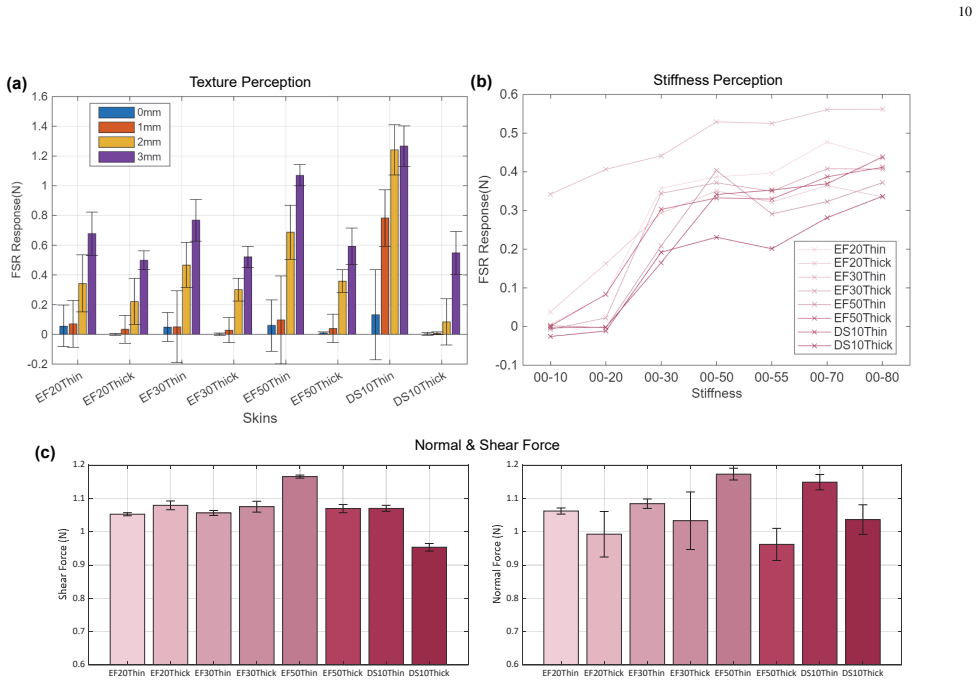

Figure 11
Figure 11. Figure 11: Experimental results in soft skin design evaluations. (a) FSR Responses recorded in the texture perception experiments. (b) FSR Responses recorded [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗

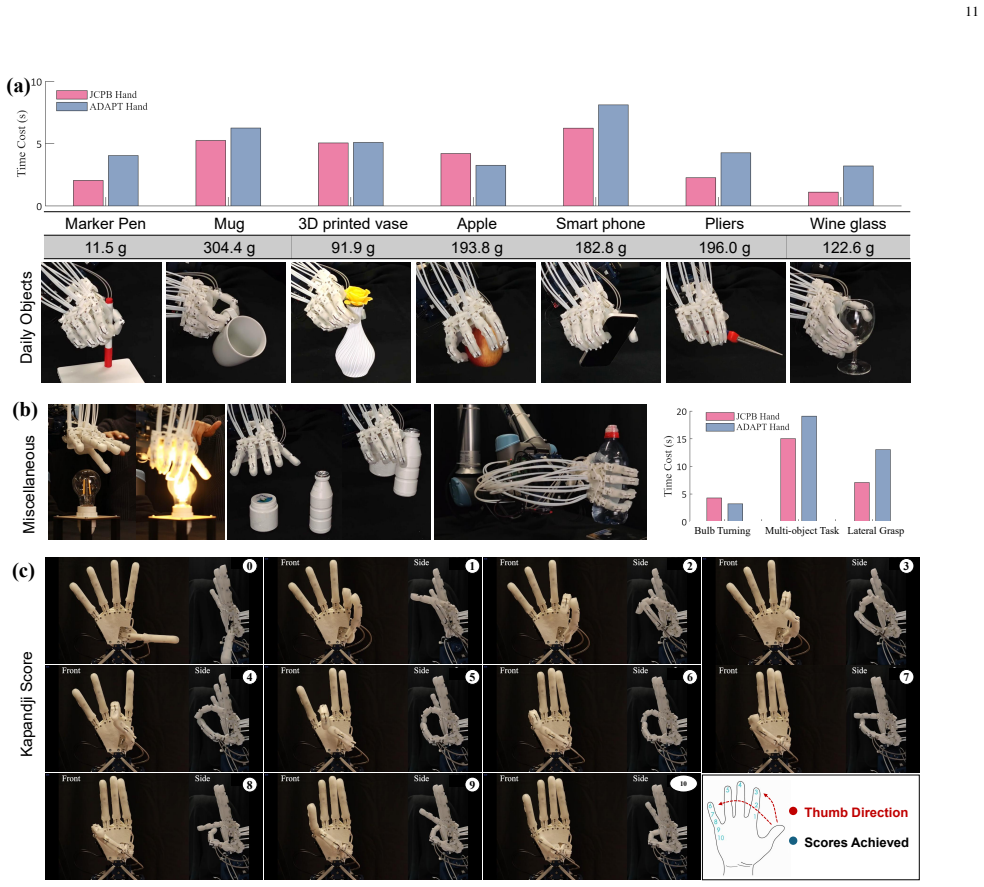

Figure 12
Figure 12. Figure 12: Manipulation performance of the JCPB hand. (a) Pick-and-place of various daily-use objects, (b) representative complex tasks including light bulb [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗

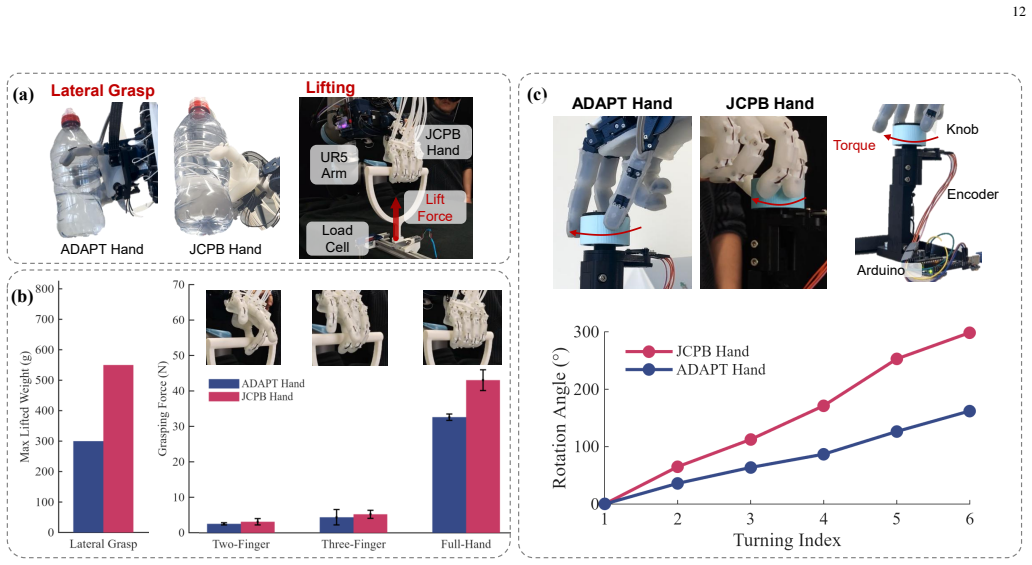

Figure 13
Figure 13. Figure 13: Comparison between the JCPB hand and the ADAPT hand across multiple manipulation metrics. (a) Representative grasping postures, (b) object [PITH_FULL_IMAGE:figures/full_fig_p012_13.png] view at source ↗
read the original abstract

Designing anthropomorphic dexterous robotic hands remains challenging as the design space straddles morphology, actuation, and sensing properties, and performance metrics span both task-dependent and task-agnostic. Existing optimization methods are often unstructured or consider only a single performance metric, limiting systematic comparison and targeted refinement. While the design considerations of the entire hand are significant, the individual finger properties play a key role in dexterity. By developing a robotic hand platform where fingers can be modularly integrated into a full teleoperated hand, we propose that optimizing the fingers can significantly improve overall hand performance. This approach enables rapid screening of different finger-level prototypes through a number of quantitative benchmarks before their integration into the hand for task-level validation. Candidate finger designs (incorporating variations in joint, bone, skin, and sensor placement) are assessed using both mechanism-oriented and task-relevant metrics, which establish a quantitative link between component design and full hand embodiment. The framework is validated through the development of an anthropomorphic robotic hand with optimized fingers, demonstrating how these fingers enable performance improvements across tasks, including multi-object grasping and light bulb screwing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper proposes a modular platform for anthropomorphic robotic hand design in which candidate fingers (varying in joint, bone, skin, and sensor placement) are screened via multi-parameter benchmarks that combine mechanism-oriented and task-relevant metrics; the selected fingers are then integrated into a teleoperated hand, with the claim that this yields measurable performance gains on tasks such as multi-object grasping and light-bulb screwing.

Significance. If the finger-level metrics are shown to correlate with full-hand task outcomes, the approach would supply a more structured alternative to unstructured whole-hand optimization, potentially accelerating targeted refinement of dexterity while reducing the cost of full-system iteration.

major comments (2)
  1. [Abstract] Abstract: the validation statement that the optimized fingers “enable performance improvements” is unsupported by any quantitative results, baselines, error bars, or exclusion criteria, so the data-to-claim link cannot be evaluated.
  2. [Abstract] Abstract / validation description: no data or analysis is supplied showing that the relative ranking produced by the isolated-finger benchmarks survives modular integration; unmodeled effects (tendon compliance, inter-finger collisions, palm contact forces) could dominate, rendering the screening step non-predictive.
minor comments (1)
  1. [Abstract] Abstract: the phrase “a number of quantitative benchmarks” is used without enumerating the specific metrics or the procedure that establishes the quantitative link between component design and full-hand embodiment.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on the abstract and the strength of the validation claims. We address the major comments point-by-point below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the validation statement that the optimized fingers “enable performance improvements” is unsupported by any quantitative results, baselines, error bars, or exclusion criteria, so the data-to-claim link cannot be evaluated.

    Authors: We agree that the abstract should be more precise and data-driven. The full manuscript reports quantitative task results (grasping success rates, completion times) with baselines and variability measures in the experimental sections. We will revise the abstract to explicitly include key metrics, baselines, and error information so the claim is directly supported by the presented data. revision: yes

  2. Referee: [Abstract] Abstract / validation description: no data or analysis is supplied showing that the relative ranking produced by the isolated-finger benchmarks survives modular integration; unmodeled effects (tendon compliance, inter-finger collisions, palm contact forces) could dominate, rendering the screening step non-predictive.

    Authors: The manuscript demonstrates measurable hand-level improvements after integration and states that the finger benchmarks establish a quantitative link to full-hand embodiment. However, we acknowledge that an explicit correlation analysis between isolated-finger rankings and integrated-hand outcomes is not detailed. We will add a concise comparison or discussion of ranking preservation (or the impact of unmodeled effects) in the revised version to address this concern directly. revision: yes

Circularity Check

0 steps flagged

No circularity; empirical benchmarking and task validation are independent

full rationale

The paper presents an empirical workflow: candidate fingers are screened via mechanism-oriented and task-relevant metrics at the isolated-finger level, then integrated into a teleoperated hand and evaluated on separate full-hand tasks (multi-object grasping, light-bulb screwing). No equations, fitted parameters, or self-citations are described that would make the reported task improvements equivalent to the finger benchmarks by construction. The validation step uses distinct performance measures on the assembled system, rendering the derivation self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that finger-level metrics provide a reliable proxy for full-hand dexterity; no free parameters or invented entities are mentioned in the abstract.

axioms (1)
  • domain assumption Individual finger properties play a key role in overall hand dexterity
    Explicitly stated in the abstract as the rationale for focusing optimization at the finger level.
