Interpretable and Verifiable Hardware Generation with LLM-Driven Stepwise Refinement

T0 review · 4 major / 6 minor · reviewed 2026-07-15 · grok-4.5

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read An LLM agent can turn hardware design specs into RTL code with formal correctness guarantees by repeatedly applying a fixed set of sound refinement rules.

desk verdict Solid hardware-specific refinement calculus plus a working agent; the end-to-end 'guaranteed correctness' claim is overstated because auto-formalization sits outside the formal guardrails. read the letter →

arxiv 2606.19387 v2 pith:4FAWM67X submitted 2026-06-16 cs.SE cs.AI

You Li , Samuel Mandell , David Z. Pan This is my paper · ORCID
classification cs.SEcs.AI
keywords LLMRTLgenerationprogramrefinementformalmethodshardwaredesignagenticsystemscorrect-by-constructionVerilogEval
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Chip designers distrust pure LLM-generated RTL because models hallucinate subtle timing, concurrency, and logic bugs that are catastrophic at manufacturing scale. This paper shows that the same models can be constrained by a refinement calculus: a library of transformation rules that mix plain-language design decisions with mathematically checked application conditions and algebraic rewrites. Starting from a formal specification of the requirements, an agent iteratively picks a rule, applies it to a program fragment, and verifies the step; the final code is therefore correct by construction relative to the specification. On the VerilogEval suite the system reaches 92 percent functional pass rate in a single attempt, outperforming stronger baselines that are allowed ten tries. The approach matters because it keeps the creative breadth of language models while restoring the explainability and guarantees that hardware teams require.

What carries the argument

The hardware refinement calculus (Tables 1–2): each rule pairs a natural-language design decision (chosen by the LLM) with a formal application condition and an algebraic transformation; soundness of the rule guarantees that the refined program implements the previous version.

What would settle it

Run the agent on a held-out set of larger sequential designs whose natural-language specifications contain subtle timing or concurrency requirements; if the produced RTL fails a golden testbench or a human expert review even though every refinement step was accepted by the verifier, the central claim of end-to-end correctness collapses.

Watch

Extended reading notes

Core claim

By translating a natural-language design specification into a formal statement and then repeatedly applying a predefined suite of sound refinement rules, an LLM agent can produce a synthesizable RTL implementation whose every intermediate step is formally verified, yielding guaranteed functional correctness relative to that specification.

Load-bearing premise

The initial automatic translation of natural-language, tables, and waveforms into the formal specification language must faithfully capture the designer’s true intent; any error at that stage lies outside the later formal guarantees.

Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 6 minor

Summary. The paper proposes an agentic RTL generation framework that couples LLMs with a hardware refinement calculus. Natural-language (and tabular/waveform) design requirements are first auto-formalized into a specification language L_spec; an LLM agent then iteratively selects and applies rules from a predefined suite (Tables 1–2) that mix natural-language design decisions with algebraic transformations and side-conditions; Dafny checks application conditions and feasibility at each step; a final stage translates the resulting Dafny program into synthesizable Verilog. The authors claim that iterative application of these rules yields RTL with guaranteed correctness, and report 92.3% (144/156) functional pass@1 on VerilogEval V2, outperforming Claude Opus 4.6 (pass@10 87.2%) and VeriMaAS (pass@10 90.0%).

Significance. If the technical claims hold, the work is a meaningful step beyond monolithic LLM RTL generators: it supplies an explicit, inspectable intermediate design process, local formal guardrails, and a path toward verifiable-reward training data for hardware. The separation of planning (design decision in natural language) from action (algebraic rule application checked by Dafny) is a clean systems idea, and the process-level plus control/data-flow rule sets (Tables 1–2) are a concrete contribution relative to classical software refinement calculi. The agent architecture, incremental verification strategy, and low backtrack rate (2.6%) are useful engineering results. These strengths remain even if the end-to-end correctness slogan is narrowed.

major comments (4)
  1. [Abstract, §1, §5 Auto-Formalization / RTL Translation] Abstract, §1, and the strongest claim overstate end-to-end guarantees. The refinement calculus (Tables 1–2) and Dafny checks only guarantee that each refined version implements the preceding L_spec fragment when application conditions hold. Section 5 and Figure 2 make clear that the input to that calculus is itself an LLM-produced L_spec statement, validated only by a Syntax Checking / Functional Judge loop (another LLM). No formal guarantee is claimed or enforced for auto-formalization. The abstract’s phrasing “convert a design specification into an RTL program with guaranteed correctness” should be revised to state precisely what is guaranteed (refinement of the formalized L_spec) and what is not (faithfulness of L_spec to the original natural-language/tables/waveforms intent). The same caveat applies to the final RTL Translation stage, which is also LLM-mediated and unchecked.
  2. [§6, Table 3] Table 3 compares Proposed Pass@1 (single run) against Claude Opus and VeriMaAS Pass@10. This is not an apples-to-apples comparison and inflates the apparent advantage. Either report Pass@k under a matched budget (tokens, wall-clock, or number of attempts with backtracking), or report Pass@1 for all methods under identical sampling. Without that, the claim that the method “achieves the highest pass rate” is not supported by the experimental design.
  3. [§4, Tables 1–2] Soundness of the hardware refinement calculus is asserted but not established beyond local Dafny checks of application conditions. Tables 1–2 introduce hardware-specific constructs (duration-bounded temporal operators, non-blocking assignment with T/(T+1) substitution, process composition with env/dur rely-guarantee style conditions, Iteration with inductive invariants). Classical software refinement citations do not automatically transfer. The paper should either (a) provide a concise soundness argument or mechanized meta-theory for the new rules, or (b) explicitly scope the claim to “locally checked rule applications under the stated side-conditions,” and discuss residual risks (e.g., interaction of concurrent processes, encoding of temporal operators into Dafny).
  4. [§6 Failure Analysis] Failure analysis (§6) reclassifies many non-matching designs as still “correct” (ambiguities on 062/063/093; different schedule/reset on 034, 053, 078, 099, 104, 137, 145, 149). The evaluation criterion is “passes all test cases and is approved by a human expert.” If human approval overrides reference mismatch, the 92.3% figure mixes formal testbench success with subjective equivalence judgments. Please report separately: (i) testbench pass rate vs. reference, (ii) cases where the design differs from the reference but is judged observationally equivalent, and (iii) true functional failures. Without this split, it is hard to assess how much of the gain comes from the refinement guardrails versus lenient acceptance.
minor comments (6)
  1. [§3, Figure 1] Figure 1 BNF is dense; a short informal reading of L_spec vs L_impl and one fully annotated example early in §3 would help non-formal-methods readers.
  2. [§3–§4] Notation for specification statements switches between w:[pre,dur,post]|env, ss, and sf without a single consolidated glossary; add a short notation table.
  3. [Appendix A / §5] Appendix examples (oscillator, Euclid 1/2) are valuable; consider moving one fully worked example into the main body near §5 so readers see rule selection, condition checking, and backtracking in context.
  4. [§6, Table 4] Table 4 reports Stage 2 as ~80% of runtime and ~74% of tokens; clarify whether Dafny verification time is included in Stage 2 and how cache hit rate (53.2%) is measured.
  5. [§2] Related work on HLS and software refinement (Cai et al., Morgan) is cited; a sharper paragraph contrasting why HLS intermediate models are “undesirable” versus the paper’s own Dafny intermediate would strengthen positioning.
  6. [§1, Tables 3–4] Typos/style: “dead end,i.e.,it” (missing spaces); “A vg.” in tables should be “Avg.”; arXiv id and venue formatting in the header can be cleaned for camera-ready.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: correctness is relative refinement under classical rules checked by Dafny; evaluation is on external VerilogEval, not a fit renamed as prediction.

full rationale

The paper’s load-bearing chain is: (1) translate NL/tables/waveforms into L_spec via an LLM Formalization/Functional-Judge loop; (2) iteratively apply the refinement rules of Tables 1–2, with Dafny checking application conditions and feasibility; (3) translate the resulting L_impl program to Verilog. The formal guarantee claimed is only the classical refinement relation P ⊑ Q when a rule’s side-conditions hold—i.e., each refined version implements the preceding version. That is definitional of a refinement calculus (Morgan, Back, Breuer et al.), not a circular reduction of a prediction to a fitted input. The rules are not fitted to VerilogEval; pass@1 is measured against an external suite and independent baselines (Claude Opus, VeriMaAS). There is no uniqueness theorem imported from the authors, no self-citation that forces the result, and no parameter fit re-labeled as a prediction. The auto-formalization stage is outside the formal guardrails (a scope/correctness limitation, not circularity). The derivation is therefore self-contained against external benchmarks; score 0.

Assumptions & free parameters 0 free parameters · 3 assumptions · 2 invented entities

The central correctness claim rests on the soundness of the invented refinement rules, the fidelity of the LLM-produced initial formalization, and the assumption that Dafny’s sequential semantics adequately model concurrent RTL processes. No numeric free parameters are fitted; the main invented entities are the languages L_spec/L_impl and the rule suite itself.

assumptions (3)
  • ad hoc to paper Each listed refinement rule (Tables 1–2) is sound: if its application condition holds then the transformed program refines the original specification.
    Soundness is asserted but not machine-checked; the paper relies on classical refinement theory plus informal argument.
  • domain assumption Dafny’s sequential verification of pre/post/during conditions correctly captures the concurrent, clocked semantics of the target RTL processes.
    Hardware concurrency and non-blocking assignment are encoded via custom constructs; any mismatch would invalidate the incremental checks.
  • domain assumption The auto-formalization LLM produces an L_spec statement that is a faithful formalization of the natural-language design intent.
    Functional Judge is itself an LLM; residual semantic gaps are outside the formal guardrails.
invented entities (2)
  • Hardware refinement calculus (Tables 1–2)
    purpose: Provide a finite set of LLM-selectable, formally checkable steps that reduce nondeterminism from abstract specs to RTL statements.
    New collection of rules specialized to processes, non-blocking assignment, and inductive invariants over discrete time; independent evidence is only the empirical pass rate.
  • L_spec / L_impl formal languages
    purpose: Unified representation that can express both abstract requirements and concrete HDL fragments so that mixed programs can be refined and verified.
    Custom syntax with duration-bounded temporal operators and process blocks; no external formalization exists.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Interpretable and Verifiable Hardware Generation with LLM-Driven Stepwise Refinement." pith.science (2026). https://pith.science/paper/4FAWM67X

@misc{pith2026260619387,
  author       = {Pith},
  title        = {Pith review of: Interpretable and Verifiable Hardware Generation with LLM-Driven Stepwise Refinement},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/4FAWM67X}},
  note         = {Machine review of arXiv:2606.19387}
}
read the original abstract

Large language models (LLMs) have achieved remarkable success in software development. However, they are susceptible to hallucinations, meaning that they can introduce subtle semantic and logical errors. Due to the high stakes in chip design and manufacturing, hardware engineers are still reluctant to rely on LLMs for register-transfer level (RTL) generation. In this paper, we propose a hardware generation framework that combines the creativity and broad knowledge of LLMs with the explainability and mathematical rigor of formal methods. Specifically, we devise a set of transformation rules that cover various design decisions and hardware features. By iteratively applying these rules, an LLM agent can convert a design specification into an RTL program with guaranteed correctness. Experimental results demonstrate the effectiveness and efficiency of the framework.

Figures

Figures reproduced from arXiv: 2606.19387 by the authors.

Figure 1
Figure 1. Syntax of the formal specification language [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

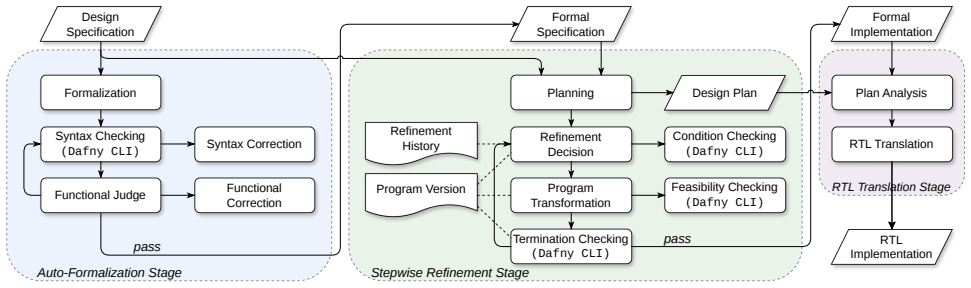

Figure 2. Architecture of the agentic system for correct-by-construction RTL generation. [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Number of tokens consumed in stage 2 vs. [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figures from the paper (1 more)
Figure 4

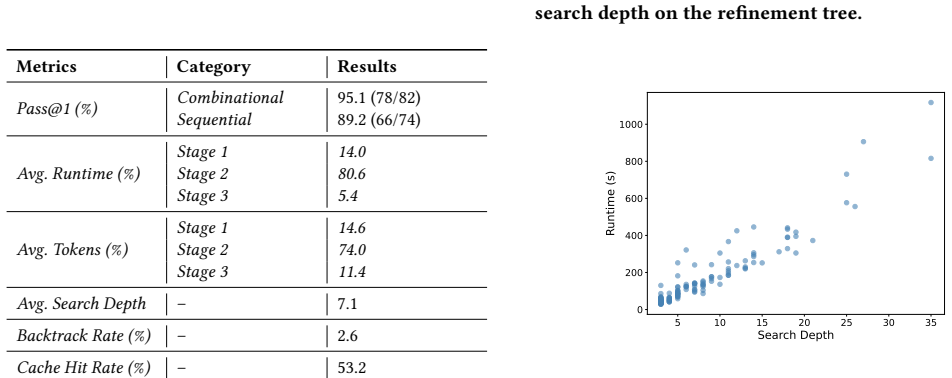

Figure 4. Figure 4: Total runtime of stage 2 vs. search depth on [PITH_FULL_IMAGE:figures/full_fig_p008_4.png]
