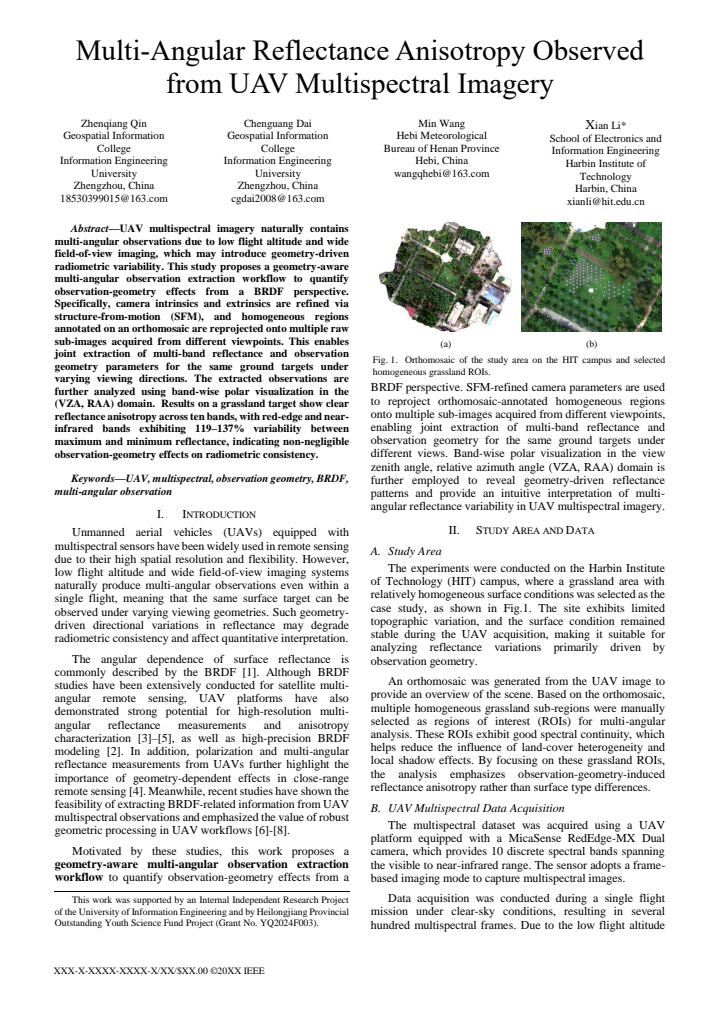

Multi-Angular Reflectance Anisotropy Observed from UAV Multispectral Imagery

Zhenqiang Qin , Chenguang Dai , Min Wang , Xian Li This is my paper

Pith reviewed 2026-06-27 14:08 UTC · model grok-4.3

classification 💻 cs.CV
keywords UAV multispectral imageryreflectance anisotropymulti-angular observationsBRDFradiometric consistencystructure-from-motiongrasslandobservation geometry
0
0 comments X

The pith

UAV multispectral imagery exhibits reflectance anisotropy across bands due to varying observation geometry, with red-edge and near-infrared showing 119-137% variability.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper develops a workflow to extract multi-angular reflectance observations from UAV multispectral images by using structure-from-motion to refine camera parameters and reprojecting manually annotated homogeneous regions from an orthomosaic onto raw sub-images acquired from different viewpoints. The approach jointly captures multi-band reflectance values and observation geometry parameters for the same ground targets under varying viewing directions. Analysis via band-wise polar plots in the viewing zenith angle and relative azimuth angle domain on grassland targets reveals clear reflectance anisotropy in all ten bands. Red-edge and near-infrared bands in particular display 119-137% variability between maximum and minimum reflectance, pointing to non-negligible geometry-driven effects on radiometric consistency. A sympathetic reader would care because these effects can undermine the assumption of consistent measurements in UAV-based remote sensing applications.

Core claim

The paper claims that UAV multispectral imagery naturally contains multi-angular observations due to low flight altitude and wide field-of-view imaging, which introduce geometry-driven radiometric variability. A geometry-aware workflow refines camera intrinsics and extrinsics via structure-from-motion, reprojects homogeneous regions annotated on an orthomosaic onto multiple raw sub-images, and extracts multi-band reflectance together with observation geometry parameters for identical ground targets. Band-wise polar visualization in the (VZA, RAA) domain on grassland data shows reflectance anisotropy across ten bands, with red-edge and near-infrared bands exhibiting 119-137% variability betwe

What carries the argument

The geometry-aware multi-angular observation extraction workflow that refines camera intrinsics and extrinsics via structure-from-motion and reprojects annotated homogeneous regions from an orthomosaic onto raw sub-images to enable joint extraction of multi-band reflectance and observation geometry parameters.

If this is right

  • Radiometric consistency of UAV multispectral imagery requires accounting for observation geometry effects.
  • Red-edge and near-infrared bands display the largest reflectance variability with changes in viewing direction.
  • Band-wise polar visualization in the (VZA, RAA) domain can be used to identify and quantify anisotropy patterns.
  • BRDF perspective analysis applies to UAV data to measure geometry-driven variability in reflectance.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The workflow could be extended to other surface types to determine whether anisotropy patterns are land-cover specific.
  • Angular correction procedures derived from such extractions might reduce inconsistencies in vegetation index calculations from UAV imagery.
  • The extracted multi-angular observations could serve as input to test or calibrate existing BRDF models for low-altitude platforms.
  • Repeating the reprojection analysis on datasets with known ground truth targets would help isolate geometry effects from other sources of variability.

Load-bearing premise

That the homogeneous regions manually annotated on the orthomosaic truly correspond to identical ground targets when reprojected into raw images from different viewpoints, with negligible error from SfM inaccuracies, terrain relief, or sub-pixel misalignment.

What would settle it

Extracting reflectance from the same annotated regions across multiple viewpoints and finding no systematic correlation between reflectance values and viewing zenith angle or relative azimuth angle parameters, or finding that variability is fully explained by factors unrelated to observation geometry.

Figures

Figures reproduced from arXiv: 2606.10350 by Chenguang Dai, Min Wang, Xian Li, Zhenqiang Qin.

Figure 1
Figure 1. Figure 1: Orthomosaic of the study area on the HIT campus and selected homogeneous grassland ROIs [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of observation geometry [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: illustrates the overall workflow of the proposed geometry-aware multi-angular observation extraction and analysis pipeline. The method consists of four main stages: (1) SFM-based reconstruction for refined camera parameters and orthomosaic generation, (2) ROI annotation on the orthomosaic, (3) geometry-aware observation extraction via reprojection to raw images, and (4) polar visualization of multi-angular… view at source ↗
Figure 5
Figure 5. Figure 5: Polar maps of multi-angular reflectance across ten spectral bands for the grassland region. The radial coordinate denotes the view zenith angle, the angular coordinate denotes the relative azimuth angle, and color indicates reflectance magnitude [PITH_FULL_IMAGE:figures/full_fig_p003_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: Spectral reflectance curves of a grassland ROI observed from 20 viewing angles [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
read the original abstract

UAV multispectral imagery naturally contains multi-angular observations due to low flight altitude and wide field-of-view imaging, which may introduce geometry-driven radiometric variability. This study proposes a geometry-aware multi-angular observation extraction workflow to quantify observation-geometry effects from a BRDF perspective. Specifically, camera intrinsics and extrinsics are refined via structure-from-motion (SFM), and homogeneous regions annotated on an orthomosaic are reprojected onto multiple raw sub-images acquired from different viewpoints. This enables joint extraction of multi-band reflectance and observation geometry parameters for the same ground targets under varying viewing directions. The extracted observations are further analyzed using band-wise polar visualization in the (VZA, RAA) domain. Results on a grassland target show clear reflectance anisotropy across ten bands, with red-edge and nearinfrared bands exhibiting 119-137% variability between maximum and minimum reflectance, indicating non-negligible observation-geometry effects on radiometric consistency.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript proposes a geometry-aware workflow for extracting multi-angular reflectance observations from UAV multispectral imagery. Camera intrinsics/extrinsics are refined via SfM; homogeneous regions annotated on an orthomosaic are reprojected onto raw sub-images from varying viewpoints to jointly extract multi-band reflectance and geometry parameters for identical ground targets. Band-wise polar plots in the (VZA, RAA) domain are used to analyze the observations. Results on a grassland target indicate clear reflectance anisotropy across ten bands, with red-edge and NIR bands exhibiting 119-137% variability between maximum and minimum reflectance.

Significance. If the variability is shown to arise from BRDF rather than reprojection or alignment artifacts, the result would demonstrate that observation-geometry effects are non-negligible for radiometric consistency in low-altitude UAV multispectral data, with direct relevance to vegetation monitoring and multi-temporal analysis.

major comments (1)
  1. [Abstract / workflow description] The headline quantitative result (119-137% variability in red-edge/NIR bands) is computed directly from reflectance tuples extracted after back-projection of annotated regions. No reprojection RMSE, sub-pixel registration statistics, terrain-correction residuals, or SfM drift metrics are reported, so it remains possible that modest alignment errors mix adjacent pixels and inflate the apparent anisotropy.
minor comments (2)
  1. [Abstract] The abstract supplies no error bars on the reported variability percentages and gives no information on the number of targets or the criteria used to select homogeneous regions.
  2. [Abstract] No comparison against independent multi-angular reflectance measurements (e.g., field goniometer or satellite BRDF products) is described.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and for identifying a key point that strengthens the manuscript. We address the major comment below and will incorporate the suggested metrics in revision.

read point-by-point responses

  1. Referee: [Abstract / workflow description] The headline quantitative result (119-137% variability in red-edge/NIR bands) is computed directly from reflectance tuples extracted after back-projection of annotated regions. No reprojection RMSE, sub-pixel registration statistics, terrain-correction residuals, or SfM drift metrics are reported, so it remains possible that modest alignment errors mix adjacent pixels and inflate the apparent anisotropy.

    Authors: We agree that the absence of these quantitative accuracy metrics leaves open the possibility that alignment errors contribute to the reported variability. The manuscript as submitted emphasizes the workflow design and the observed anisotropy but does not report reprojection RMSE, sub-pixel statistics, terrain residuals, or SfM drift. In the revised version we will add a new subsection (likely under Methods or Results) that reports: (i) mean and maximum reprojection RMSE from the SfM bundle adjustment, (ii) sub-pixel registration accuracy for the back-projected homogeneous regions, (iii) any terrain-correction residuals, and (iv) bundle-adjustment drift metrics. These numbers will be compared against the magnitude of the observed reflectance variability to demonstrate that the anisotropy exceeds plausible alignment error. We thank the referee for this observation. revision: yes

Circularity Check

0 steps flagged

No circularity: purely observational extraction and reporting of empirical variability

full rationale

The paper proposes an extraction workflow (SfM refinement followed by reprojection of annotated regions) and reports measured reflectance values across viewpoints. No equations, fitted parameters, or predictions are defined such that the reported 119-137% variability reduces to those quantities by construction. No self-citations are invoked as load-bearing premises, and the central claim is a direct empirical observation rather than a derived result. The analysis is self-contained against external benchmarks with no reduction to inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review supplies insufficient detail to enumerate free parameters or invented entities; the central claim rests on the unstated assumption that SfM camera refinement and manual region annotation introduce negligible geometric error.

axioms (1)
  • domain assumption SfM-derived camera intrinsics and extrinsics are sufficiently accurate to allow reliable reprojection of orthomosaic regions onto raw images.
    Invoked when the workflow reprojects annotated regions onto multiple raw sub-images.
