arxiv: 2606.10104 · v1 · pith:5I4C2GXWnew · submitted 2026-06-08 · 🌀 gr-qc · astro-ph.HE

The Fifth RIT Catalog of Binary Black Hole Simulations: Multiple-Resolution Studies of Eccentric Orbits

Giuseppe Ficarra , James Healy , Carlos O. Lousto This is my paper

Pith reviewed 2026-06-27 15:26 UTC · model grok-4.3

classification 🌀 gr-qc astro-ph.HE
keywords binary black holesnumerical relativitygravitational waveseccentric orbitswaveform catalogresolution convergencemismatch analysis
0
0 comments X

The pith

The RIT binary black hole catalog expands by 248 new simulations, with 197 eccentric orbits and accuracy estimated from multiple-resolution mismatch studies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper releases the fifth version of the RIT public catalog of numerical relativity binary black hole waveforms, adding 248 configurations that include 197 eccentric orbits and bringing the total to 2129 cases. All waveforms receive corrections for center-of-mass drift and extrapolation to future null infinity. Multiple-resolution convergence studies on 10 eccentric simulations, using three global resolutions scaled by factors of 1.2 and one six-resolution case, estimate waveform accuracy through mismatches against infinite-resolution extrapolations. The work also tracks convergence in merger times, number of orbits, final masses and spins, recoil velocities, and peak gravitational wave quantities. These additions matter for gravitational wave astronomy because they supply reference waveforms for non-circular mergers that current detection pipelines must handle.

Core claim

The fifth RIT catalog release supplies 248 additional binary black hole configurations, 197 of them eccentric, each extrapolated to future null infinity after center-of-mass correction. Waveform accuracy for eccentric cases is quantified by mismatches computed against theoretical infinite-resolution limits obtained from three-resolution convergence studies scaled by 1.2 on 10 simulations reaching up to 33 orbits, augmented by a six-resolution study on one 18-orbit case. Convergence behavior is reported for merger times, orbit counts, final masses, final spins, recoil velocities, and the peak amplitude, frequency, and luminosity of the emitted gravitational waves.

What carries the argument

Multiple-resolution convergence studies that use three global resolutions increased by factors of 1.2 (plus one six-resolution run) to produce infinite-resolution extrapolations and mismatch-based error estimates for eccentric waveforms.

If this is right

  • Waveform errors for eccentric binary black hole mergers are now quantified up to 33 orbits through direct mismatch calculations.
  • Merger times, final masses, final spins, and recoil velocities exhibit consistent convergence across the tested resolutions.
  • Peak gravitational-wave amplitude, frequency, and luminosity values carry explicit accuracy estimates derived from the same studies.
  • The catalog total of 2129 cases now includes a larger set of eccentric orbits ready for use in gravitational-wave template banks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The mismatch values could serve as practical error bars when these waveforms are used to test or calibrate approximate models for eccentric inspirals.
  • Repeating the resolution studies on a broader sample of eccentricities and mass ratios would test whether the observed convergence rates generalize.
  • The catalog growth supports direct numerical checks against post-Newtonian predictions for the same eccentric systems at early inspiral stages.

Load-bearing premise

Three global resolutions scaled by factors of 1.2 suffice to produce reliable infinite-resolution extrapolations and mismatch values for the eccentric waveforms.

What would settle it

A new simulation at a fourth resolution level substantially finer than the three used, compared against the existing extrapolations, would show whether the reported mismatches remain stable or change by more than the estimated error.

Figures

Figures reproduced from arXiv: 2606.10104 by Carlos O. Lousto, Giuseppe Ficarra, James Healy.

Figure 1

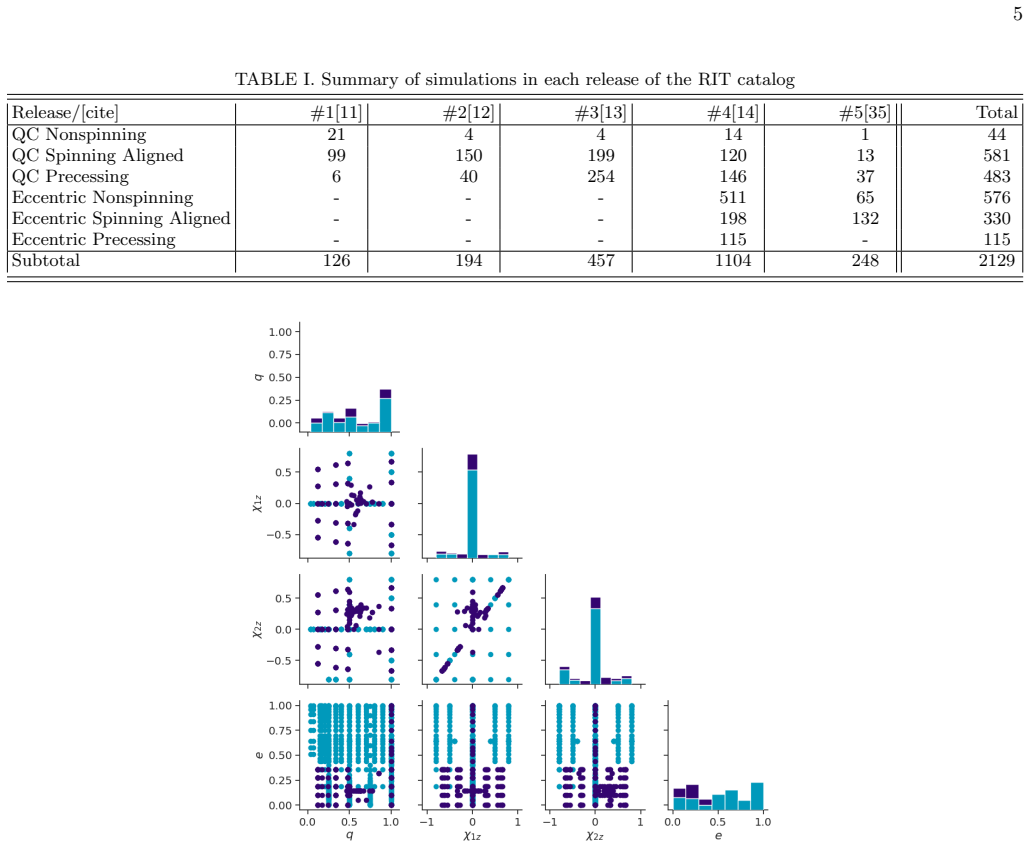

Figure 1. Figure 1: FIG. 1. Counting simulations in the ( [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

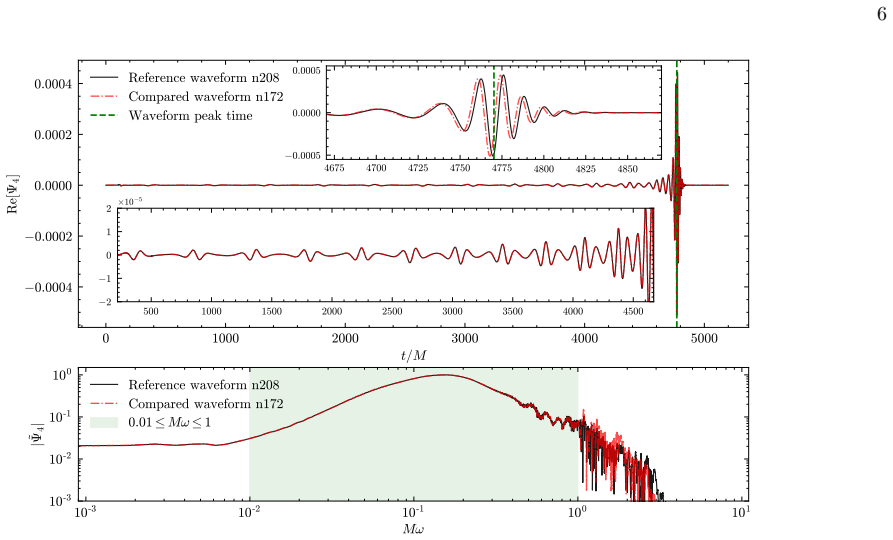

Figure 2. Figure 2: FIG. 2. Frequency cutoff representative example used for the computation of the mismatch in Tab.III between the n172 and [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗
read the original abstract

This fifth release of the RIT public catalog of numerical relativity binary black hole waveforms http://ccrg.rit.edu/~RITCatalog introduces an additional 248 configurations, prioritizing 197 newly simulated eccentric orbits. This update brings the catalog to a total of 2129 cases. All waveforms are corrected for center-of-mass drift and extrapolated to future null infinity. To rigorously estimate waveform errors, we conduct multiple-resolution convergence studies on 10 eccentric simulations (up to 33 orbits to merger) using three global resolutions increasing by factors of 1.2, plus a comprehensive six-resolution study for a single 18-orbit configuration. We evaluate waveform accuracy by computing mismatches against theoretical infinite-resolution extrapolations. Additionally, we analyze the convergence properties of key physical observables: merger times, number of orbits, final masses, final spins, recoil velocities, and the peak amplitude, frequency, and luminosity of the gravitational radiation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript presents the fifth release of the RIT public catalog of binary black hole numerical relativity waveforms. It adds 248 new configurations (197 eccentric orbits), bringing the total to 2129. All waveforms are corrected for center-of-mass drift and extrapolated to future null infinity. Multiple-resolution convergence studies are conducted on 10 eccentric simulations (up to 33 orbits) using three global resolutions scaled by successive factors of 1.2, supplemented by a six-resolution study on one 18-orbit case. Waveform accuracy is quantified via mismatches against infinite-resolution extrapolations, and convergence is analyzed for merger times, number of orbits, final masses, final spins, recoil velocities, and peak gravitational-wave amplitude, frequency, and luminosity.

Significance. If the accuracy estimates hold, the expanded public catalog constitutes a valuable resource for eccentric binary black hole waveforms with quantified errors, directly supporting gravitational-wave astronomy applications such as parameter estimation and tests of general relativity for eccentric signals. The explicit multi-resolution studies and analysis of convergence for key observables add credibility beyond a simple data release. The public catalog itself is a clear strength of the work.

major comments (1)
  1. [Abstract and description of convergence studies] The central accuracy claims for the new eccentric waveforms rest on mismatches to infinite-resolution extrapolations obtained from three-resolution studies with successive factors of 1.2 (plus one six-resolution case). The small lever arm between the three points makes the fitted convergence order and extrapolated value sensitive to deviations from pure power-law convergence, which can arise from eccentricity-induced features, gauge effects, or higher-order terms. The manuscript does not demonstrate that the three-resolution extrapolations are consistent with the six-resolution result for the validated case, nor does it test the sensitivity of the mismatch values to the fitting procedure or to the precise choice of resolutions. This directly affects the reliability of the reported waveform errors for the 197 new eccentric configurations.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the thorough review and for identifying a key aspect of our convergence analysis that requires additional clarification and documentation. We address the major comment below and will incorporate the suggested checks into a revised manuscript.

read point-by-point responses

  1. Referee: [Abstract and description of convergence studies] The central accuracy claims for the new eccentric waveforms rest on mismatches to infinite-resolution extrapolations obtained from three-resolution studies with successive factors of 1.2 (plus one six-resolution case). The small lever arm between the three points makes the fitted convergence order and extrapolated value sensitive to deviations from pure power-law convergence, which can arise from eccentricity-induced features, gauge effects, or higher-order terms. The manuscript does not demonstrate that the three-resolution extrapolations are consistent with the six-resolution result for the validated case, nor does it test the sensitivity of the mismatch values to the fitting procedure or to the precise choice of resolutions. This directly affects the reliability of the reported waveform errors for the 197 new eccentric configurations.

    Authors: We agree that the manuscript does not explicitly demonstrate consistency between the three-resolution and six-resolution extrapolations, nor does it include sensitivity tests on the fitting procedure. The six-resolution study was performed on one 18-orbit eccentric case precisely to validate the three-resolution approach, but the direct comparison and sensitivity analysis were omitted. We will revise the manuscript to add: (i) a side-by-side comparison of the extrapolated mismatch values and convergence orders obtained from the three-resolution subset versus the full six-resolution data for that case; (ii) an assessment of how the reported mismatches change when the assumed convergence order is varied or when different subsets of the three resolutions are used for the fit. These additions will be placed in the section describing the convergence studies and will be accompanied by updated tables or figures as appropriate. We believe this will directly address the concern about the reliability of the error estimates for the 197 new eccentric waveforms. revision: yes

Circularity Check

0 steps flagged

No significant circularity; numerical catalog release with standard convergence analysis

full rationale

The paper releases 248 new binary black hole simulation configurations (197 eccentric) and reports their properties after center-of-mass correction and null-infinity extrapolation. Waveform accuracy is quantified via mismatches to infinite-resolution extrapolations obtained from three-resolution (factor-1.2) studies on 10 cases plus one six-resolution study. This is a standard numerical-relativity error-estimation procedure applied to the simulation outputs themselves; no derivation, fitted parameter, or theoretical claim is presented as a prediction that reduces by construction to the input data or to a self-citation. The central content is the catalog data, not a self-referential result. No load-bearing self-citations, ansatzes smuggled via prior work, or renaming of known results appear in the provided text.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Work rests on standard numerical relativity methods for solving Einstein's equations; no new free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

axioms (1)
  • standard math Standard assumptions of general relativity and numerical methods for evolving binary black hole spacetimes.
    The simulations presuppose the validity of Einstein's equations and established NR techniques.
