First Principles Magnetohydrodynamical Theory for the Expanding Box Model

Sebasti\'an Saldivia , Nicol\'as Villarroel-Sep\'ulveda , Sebasti\'an Echeverr\'ia-Veas , Felipe A. Asenjo , Pablo S. Moya This is my paper

Pith reviewed 2026-06-27 11:50 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph astro-ph.SR
keywords expanding box modelmagnetohydrodynamicssolar windcovariant formulationAlfvén wavesParker spiralElsässer variables
0
0 comments X

The pith

A covariant reformulation of the expanding box model for MHD removes artifacts by modeling solar wind expansion as an anisotropic spacetime metric.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that traditional EBM-MHD formulations contain inconsistencies because they treat the magnetic field as invariant rather than properly transforming it between the co-moving and inertial frames. By adopting a fully covariant description based on an anisotropic expanding spacetime metric, the new equations eliminate those residues and restore symmetry in the co-moving frame while correctly incorporating radial acceleration and differential transverse expansion. When the system is projected back into the inertial frame it reproduces the established observational scalings for the magnetic field and flow. Linear analysis further shows that the macroscopic acceleration controls the amplitude evolution of Alfvén waves, acting as either damping or an energy source. The formulation is also recast in compressible Elsässer variables to give a clean basis for future simulations.

Core claim

The mathematical artifacts and structural asymmetries identified in previous EBM-MHD literature are direct consequences of neglecting the tensorial scaling of the magnetic field. Our covariant treatment eliminates these residues, restoring symmetry in the co-moving frame. Projecting our system back into the inertial frame recovers the established observational scaling and analogous physics, clarifies the mathematical distinction between local plasma dynamics and global expansion, and reveals the macroscopic anisotropy of the Parker spiral as a purely geometric projection. Linear wave analysis demonstrates that macroscopic acceleration governs the evolution of Alfvén wave amplitude, acting ei

What carries the argument

An anisotropic expanding spacetime metric that models the expanding solar wind frame and ensures all physical fields transform correctly under expansion.

If this is right

  • The distinction between local plasma dynamics and global expansion is placed on a mathematically clear footing.
  • The observed anisotropy of the Parker spiral is recovered as a purely geometric effect of the projection.
  • Acceleration acts as either geometric damping or an energy source for Alfvén wave amplitude.
  • The compressible Elsässer-variable form supplies a consistent foundation for numerical simulations of accelerating astrophysical plasmas.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The covariant construction could be applied to other radially accelerating plasma flows, such as those in stellar winds or accretion disk outflows.
  • Different choices of the metric expansion rates would allow systematic exploration of how transverse versus radial expansion affects wave damping rates.
  • The same spacetime-metric approach might remove similar frame ambiguities in non-MHD descriptions of expanding plasmas.

Load-bearing premise

We model the expanding solar wind frame as an anisotropic expanding spacetime metric, allowing us to incorporate radial acceleration profiles and differential transverse expansion.

What would settle it

A direct calculation showing that the projection of the covariant equations into the inertial frame fails to recover the observed radial scaling of the magnetic field strength would falsify the central claim.

Figures

Figures reproduced from arXiv: 2606.10283 by Felipe A. Asenjo, Nicol\'as Villarroel-Sep\'ulveda, Pablo S. Moya, Sebasti\'an Echeverr\'ia-Veas, Sebasti\'an Saldivia.

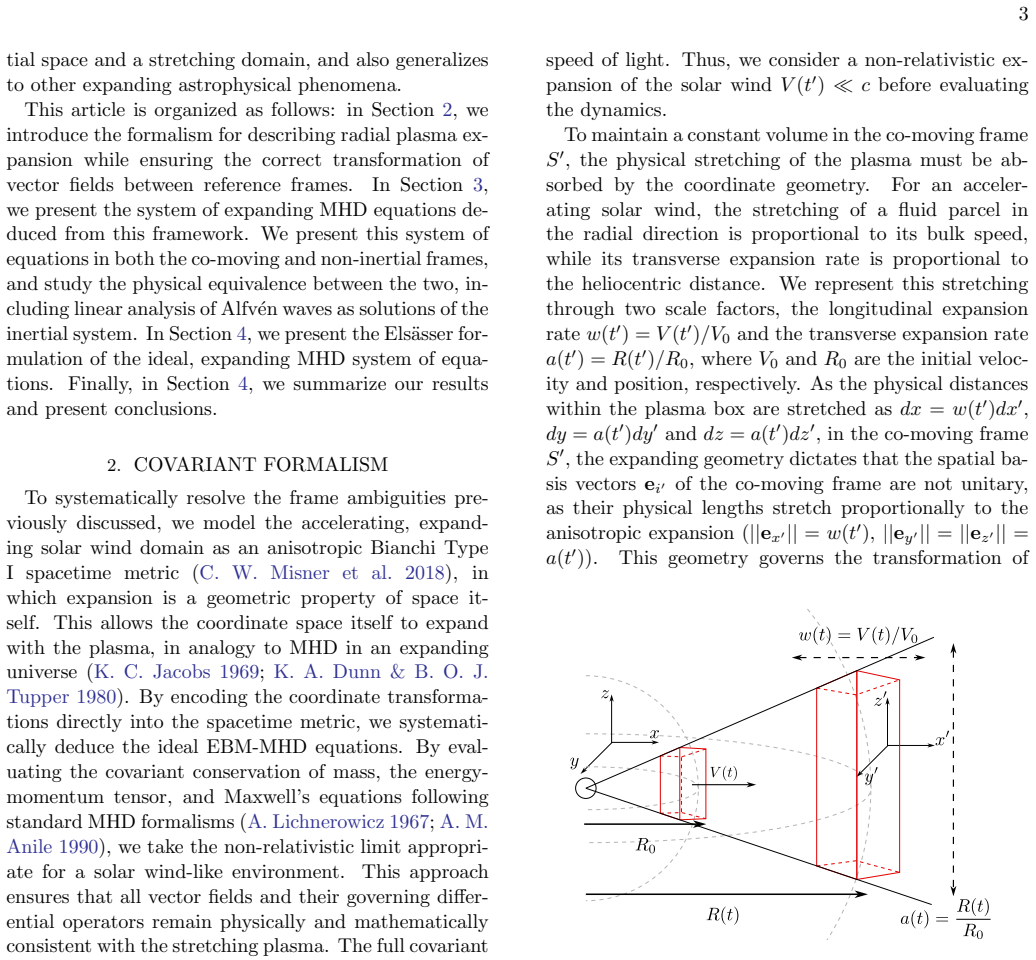

Figure 1
Figure 1. Figure 1: Schematic representation of the EBM geome￾try in the Cartesian approximation. The inertial laboratory frame S observes a radially expanding plasma moving away at R(t ′ ), while the non-inertial, co-moving frame S ′ main￾tains a constant box volume through the renormalization by the longitudinal w(t ′ ) and transverse a(t ′ ) scale factors. plasma quantities between reference frames. As the co￾moving basis … view at source ↗

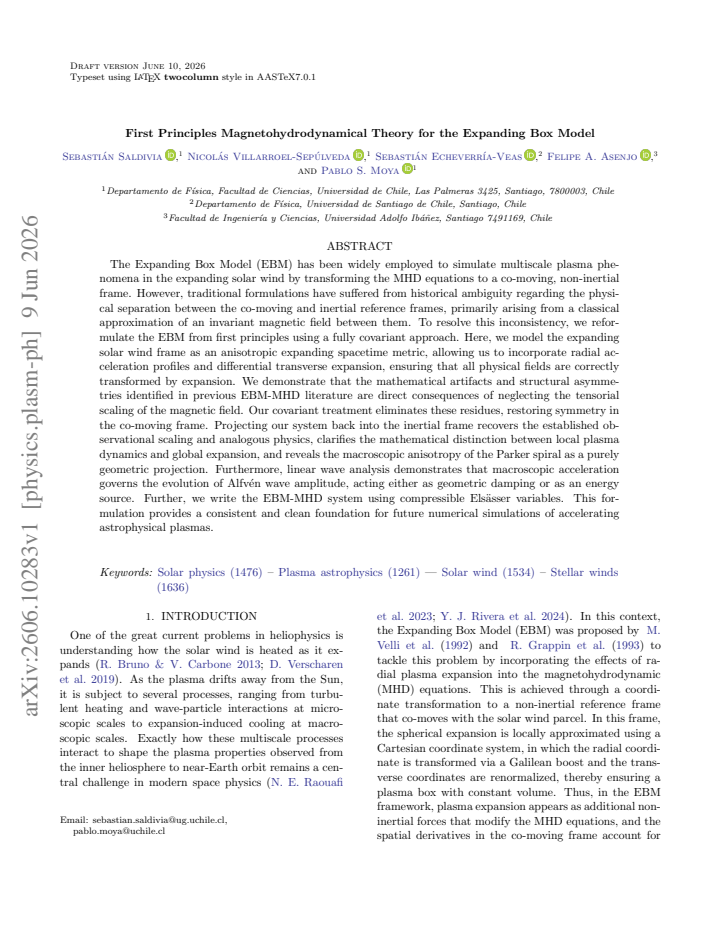

read the original abstract

The Expanding Box Model (EBM) has been widely employed to simulate multiscale plasma phenomena in the expanding solar wind by transforming the MHD equations to a co-moving, non-inertial frame. However, traditional formulations have suffered from historical ambiguity regarding the physical separation between the co-moving and inertial reference frames, primarily arising from a classical approximation of an invariant magnetic field between them. To resolve this inconsistency, we reformulate the EBM from first principles using a fully covariant approach. Here, we model the expanding solar wind frame as an anisotropic expanding spacetime metric, allowing us to incorporate radial acceleration profiles and differential transverse expansion, ensuring that all physical fields are correctly transformed by expansion. We demonstrate that the mathematical artifacts and structural asymmetries identified in previous EBM-MHD literature are direct consequences of neglecting the tensorial scaling of the magnetic field. Our covariant treatment eliminates these residues, restoring symmetry in the co-moving frame. Projecting our system back into the inertial frame recovers the established observational scaling and analogous physics, clarifies the mathematical distinction between local plasma dynamics and global expansion, and reveals the macroscopic anisotropy of the Parker spiral as a purely geometric projection. Furthermore, linear wave analysis demonstrates that macroscopic acceleration governs the evolution of Alfv\'en wave amplitude, acting either as geometric damping or as an energy source. Further, we write the EBM-MHD system using compressible Els\"asser variables. This formulation provides a consistent and clean foundation for future numerical simulations of accelerating astrophysical plasmas.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims to reformulate the Expanding Box Model (EBM) for MHD from first principles via a covariant approach. It models the expanding solar wind as an anisotropic expanding spacetime metric that incorporates radial acceleration and differential transverse expansion, ensuring tensorial transformation of fields (especially B). This is asserted to eliminate mathematical artifacts and asymmetries from traditional EBM formulations that assumed invariant B, restore symmetry in the co-moving frame, recover observational scalings when projected to the inertial frame, explain Parker spiral anisotropy as geometric projection, show that macroscopic acceleration governs Alfvén wave amplitude (as damping or source), and provide the EBM-MHD system in compressible Elsässer variables.

Significance. If the derivation is sound and the non-relativistic limit is explicitly verified, the work could supply a more rigorous, frame-consistent foundation for EBM-MHD simulations of solar wind plasmas, clarifying distinctions between local dynamics and global expansion. The introduction of Elsässer variables and the geometric interpretation of the Parker spiral would be useful for future numerical studies of accelerating astrophysical flows.

major comments (2)
  1. [Abstract / modeling of the metric] Abstract and modeling section: The central modeling choice—an anisotropic expanding spacetime metric for the (non-relativistic) solar wind expansion—is load-bearing for all subsequent claims. The manuscript must explicitly demonstrate that the covariant equations reduce to the established classical EBM-MHD system (including centrifugal, Coriolis, and other non-inertial terms) in the v ≪ c limit, with curvature/relativistic corrections shown to vanish; without this reduction the elimination of artifacts and recovery of scalings remain formal rather than physically secured.
  2. [Linear wave analysis] Linear wave analysis section: The claim that macroscopic acceleration governs Alfvén wave amplitude (acting as geometric damping or energy source) is central to the new physics; the specific linearized equations, dispersion relation, and amplitude evolution must be derived and compared to prior EBM results to confirm the effect is not an artifact of the metric choice.
minor comments (2)
  1. [Abstract] The abstract refers to 'compressible Elsässer variables' without a brief definition or reference; adding this would improve accessibility.
  2. Notation for the anisotropic scale factors and metric components should be introduced with a clear table or explicit definitions early in the text to aid readers familiar with classical EBM.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed report. We agree that the two major comments identify areas where explicit derivations will strengthen the physical grounding of the covariant formulation. We address each point below and will revise the manuscript to incorporate the requested material.

read point-by-point responses

  1. Referee: [Abstract / modeling of the metric] Abstract and modeling section: The central modeling choice—an anisotropic expanding spacetime metric for the (non-relativistic) solar wind expansion—is load-bearing for all subsequent claims. The manuscript must explicitly demonstrate that the covariant equations reduce to the established classical EBM-MHD system (including centrifugal, Coriolis, and other non-inertial terms) in the v ≪ c limit, with curvature/relativistic corrections shown to vanish; without this reduction the elimination of artifacts and recovery of scalings remain formal rather than physically secured.

    Authors: We agree that an explicit reduction to the classical limit is necessary to confirm that the covariant treatment is physically equivalent to established EBM-MHD rather than a formal extension. The manuscript discusses the projection to the inertial frame and recovery of observational scalings, but does not contain a dedicated derivation of the v ≪ c limit. In the revised version we will add an appendix that performs this reduction step by step, verifies recovery of the classical system including all non-inertial terms, and shows that curvature and relativistic corrections vanish as v/c → 0. This will directly address the concern that the removal of artifacts remains formal. revision: yes

  2. Referee: [Linear wave analysis] Linear wave analysis section: The claim that macroscopic acceleration governs Alfvén wave amplitude (acting as geometric damping or energy source) is central to the new physics; the specific linearized equations, dispersion relation, and amplitude evolution must be derived and compared to prior EBM results to confirm the effect is not an artifact of the metric choice.

    Authors: The manuscript contains a linear wave analysis demonstrating that macroscopic acceleration acts as geometric damping or a source for Alfvén wave amplitude. To meet the referee’s request for full transparency, we will expand this section to present the complete linearized equations, the derived dispersion relation, and the explicit amplitude evolution equation. We will also add a direct side-by-side comparison with results from prior classical EBM literature to show consistency and to confirm that the acceleration effect is a geometric consequence rather than an artifact of the metric construction. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained from metric ansatz

full rationale

The paper begins with the explicit modeling choice of an anisotropic expanding spacetime metric for the solar wind frame, then applies covariant tensor transformations to MHD quantities to obtain the EBM equations. This produces corrected scalings for the magnetic field and eliminates prior artifacts as a direct consequence of the tensorial treatment. No equations reduce a 'prediction' to a fitted parameter or input by construction, no load-bearing self-citations are invoked to justify uniqueness, and the final projected inertial-frame results follow from the initial metric without circular equivalence. The approach is therefore independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on treating the solar wind frame as an anisotropic expanding spacetime metric whose properties are not derived from more basic principles within the abstract; standard MHD and covariance are invoked without new entities.

axioms (2)
  • domain assumption Standard magnetohydrodynamics holds in the local inertial frame.
    Invoked when projecting the covariant system back to the inertial frame to recover observational scaling.
  • ad hoc to paper The expanding solar wind can be modeled by an anisotropic spacetime metric.
    This modeling choice is the starting point of the reformulation and is not justified from more fundamental physics in the abstract.
