DreamReg: Belief-Driven World Model for 2D-3D Ultrasound Registration

Luoyao Kang , Yuelin Zhang , Jiwei Shan , Haifan Gong , Qingpeng Ding , Shing Shin Cheng This is my paper

Pith reviewed 2026-06-26 21:47 UTC · model grok-4.3

classification 💻 cs.CV
keywords ultrasound registration2D-3D registrationworld modelbelief staterigid transformationprobe motionmedical imagingreal-time guidance
0
0 comments X

The pith

DreamReg registers 2D ultrasound slices to 3D volumes by maintaining a latent belief state over rigid transformations and updating it through internal simulation of probe motions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents DreamReg as a way to handle the partial views and noise in ultrasound by treating registration as continuous belief updating rather than a single match. It keeps a hidden state that combines past slices and probe positions, then uses a dynamics model to adjust the estimated transformation whenever a new slice arrives. The model is trained on sequences that copy how clinicians move the probe, so at runtime the system can imagine several possible next moves, predict what the images should look like, and fold those predictions back into a better estimate. This matters because one-shot or short-horizon methods often fail when any single slice is ambiguous, whereas accumulating evidence across a scan could produce usable alignment without requiring perfect visibility at every step. If the approach holds, real-time surgical navigation could become more tolerant of speckle and incomplete fields of view.

Core claim

DreamReg formulates 2D-3D ultrasound registration as belief updating over rigid transformations. It maintains a latent belief state that summarizes past observations and poses information, and continuously refines the transformation through learned dynamics as new slices arrive. During inference, DreamReg refines registration via internal imagination: it rolls out the learned world model to simulate candidate probe motions and their predicted observations, and integrates these imagined outcomes to converge to an accurate rigid transformation.

What carries the argument

Latent belief state over rigid transformations, updated by conditioning pose refinement on the current US observation and on simulated future observations from the learned dynamics model.

If this is right

  • Registration accuracy improves as additional slices are acquired because the belief state accumulates evidence rather than depending on any single observation.
  • The method can accommodate action-dependent acquisition by internally testing how different probe adjustments would affect the observed image.
  • Experiments on the CAMUS and u-RegPro datasets show competitive accuracy and greater robustness than prior registration techniques.
  • Real-time guidance becomes feasible because the system converges through repeated internal roll-outs without requiring exhaustive external search at each step.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same belief-plus-simulation structure could be applied to other medical imaging tasks where the sensor can be moved deliberately, such as freehand 3D reconstruction or catheter tracking.
  • If the world model generalizes across patients, training data requirements might shrink because the system learns predictive dynamics rather than memorizing appearance templates.
  • Clinical workflows might change if operators learn to move the probe in ways that the model can most easily disambiguate.

Load-bearing premise

The dynamics model trained on clinical-style trajectories will correctly predict the ultrasound images that would result from probe motions and patient anatomies never seen in training.

What would settle it

Apply the trained model to a held-out patient or to probe trajectories that differ markedly from the training distribution and measure whether the final registration error exceeds that of standard one-shot or short-horizon baselines.

Figures

Figures reproduced from arXiv: 2606.18825 by Haifan Gong, Jiwei Shan, Luoyao Kang, Qingpeng Ding, Shing Shin Cheng, Yuelin Zhang.

Figure 1

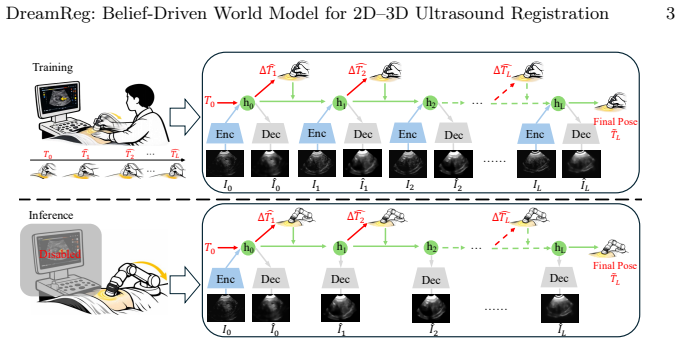

Figure 1. Figure 1: Belief-driven world-model registration in training and inference. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

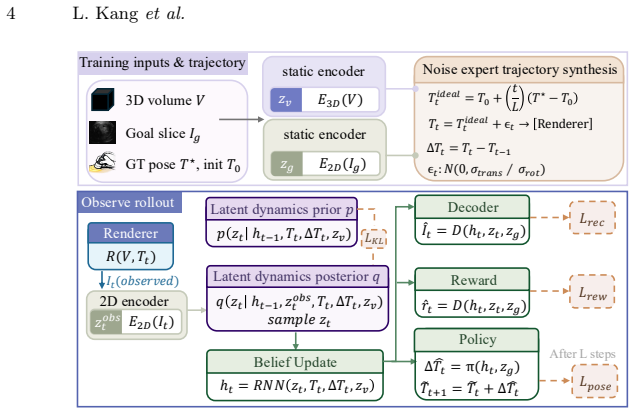

Figure 2. Figure 2: Training-time rollout. A noise-perturbed expert trajectory is rendered to produce observations. The posterior infers latent states conditioned on observations and is regularized by the prior via the KL divergence. The belief state is updated recurrently and used for slice reconstruction, reward prediction, and pose refinement. through recurrent updates ( [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

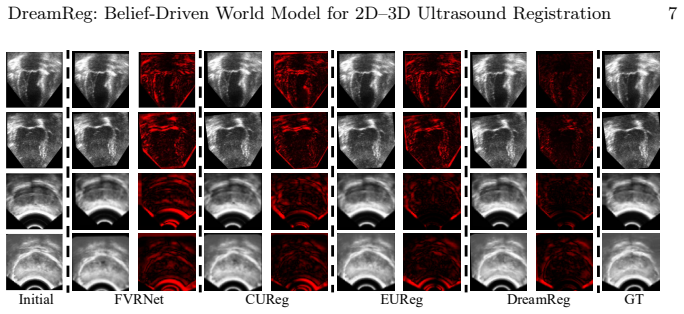

Figure 3. Figure 3: Qualitative comparison on registration results of different methods. [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
read the original abstract

Ultrasound (US) is widely used for surgical navigation, yet real-time registration between intraoperative 2D slices and preoperative 3D volumes remains challenging due to partial observability, speckle noise, and the action-dependent US acquisition. Existing methods are one-shot or short-horizon, making it hard for them to gather evidence over time or capture how surgeons adjust probe motion based on on-screen feedback. We propose DreamReg, a belief-driven world-model framework that formulates 2D-3D registration as belief updating over rigid transformations. DreamReg maintains a latent belief state that summarizes past observations and poses information, and continuously refines the transformation through learned dynamics as new slices arrive. During training, DreamReg is exposed to probe-motion trajectories that mimic clinical scanning behavior and learns to update its belief by conditioning pose refinement on the current US observation. During inference, DreamReg refines registration via internal imagination: it rolls out the learned world model to simulate candidate probe motions and their predicted observations, and integrates these imagined outcomes to converge to an accurate rigid transformation. Experiments on CAMUS and u-RegPro datasets demonstrate improved robustness and competitive registration accuracy for real-time guidance compared with state-of-the-art methods.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The paper proposes DreamReg, a belief-driven world-model framework for 2D-3D ultrasound registration. It maintains a latent belief state summarizing past observations and poses, refines the rigid transformation via learned dynamics conditioned on new US slices, and during inference rolls out the world model to simulate candidate probe motions and integrate imagined outcomes for convergence. Training uses probe-motion trajectories mimicking clinical scanning; experiments on CAMUS and u-RegPro datasets are claimed to demonstrate improved robustness and competitive accuracy versus state-of-the-art methods.

Significance. If the central claim holds, the approach would address key limitations of one-shot or short-horizon registration methods by enabling evidence accumulation over time in the presence of partial observability, speckle noise, and action-dependent acquisition, potentially improving robustness for real-time surgical navigation.

major comments (2)
  1. Abstract: the claim of 'improved robustness' and 'competitive registration accuracy' on CAMUS and u-RegPro is stated without any quantitative metrics, error bars, ablation studies, or baseline comparisons, so the central empirical claim cannot be assessed from the provided text.
  2. Inference procedure (abstract description): the load-bearing assumption that the learned dynamics model produces faithful predicted observations for arbitrary unseen probe motions and new anatomies during internal rollout is not supported by any held-out prediction-error metrics, ablation of rollout versus direct regression, or generalization tests, leaving the belief-update convergence claim unverified.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful comments on our manuscript. We address each major comment point-by-point below and outline the revisions we will incorporate.

read point-by-point responses

  1. Referee: Abstract: the claim of 'improved robustness' and 'competitive registration accuracy' on CAMUS and u-RegPro is stated without any quantitative metrics, error bars, ablation studies, or baseline comparisons, so the central empirical claim cannot be assessed from the provided text.

    Authors: We agree that the abstract would be strengthened by including brief quantitative support for the claims. The full manuscript reports detailed results with metrics, error bars, and baseline comparisons in the Experiments section. We will revise the abstract to include key quantitative highlights (e.g., mean registration errors and relative improvements) while remaining within length constraints. revision: yes

  2. Referee: Inference procedure (abstract description): the load-bearing assumption that the learned dynamics model produces faithful predicted observations for arbitrary unseen probe motions and new anatomies during internal rollout is not supported by any held-out prediction-error metrics, ablation of rollout versus direct regression, or generalization tests, leaving the belief-update convergence claim unverified.

    Authors: The dynamics model is trained end-to-end on probe trajectories that include held-out sequences, and its effectiveness is demonstrated indirectly via downstream registration accuracy. However, we acknowledge the absence of explicit held-out prediction-error metrics or rollout-specific ablations in the current version. We will add a dedicated analysis of prediction fidelity, an ablation comparing rollout-based inference to direct regression, and generalization tests on unseen anatomies in the revised manuscript. revision: yes

Circularity Check

0 steps flagged

No circularity; framework is data-driven with independent training and inference stages

full rationale

The paper formulates registration as belief updating in a learned world model trained on clinical-mimic trajectories. No equations, fitted parameters, or self-citations are shown that reduce the claimed inference-time rollouts or belief refinements to the training inputs by construction. The derivation chain consists of standard supervised learning on observed data followed by model rollout, which is self-contained against external benchmarks and does not match any enumerated circularity pattern.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no explicit free parameters, axioms, or invented entities can be extracted. The framework implicitly assumes that a learned dynamics model exists and generalizes, but these are not itemized.

pith-pipeline@v0.9.1-grok · 5761 in / 1184 out tokens · 15767 ms · 2026-06-26T21:47:42.181798+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

33 extracted references · 3 linked inside Pith

  1. [1]

    Journal of Ultrasound in Medicine35(1), 183–188 (2016)

    Bahner, D.P., Blickendorf, J.M., Bockbrader, M., Adkins, E., Vira, A., Boulger, C., Panchal, A.R.: Language of transducer manipulation: codifying terms for effective teaching. Journal of Ultrasound in Medicine35(1), 183–188 (2016)

    2016

  2. [2]

    Baum, Z.M.C., Saeed, S.U., Min, Z., Hu, Y., Barratt, D.C.: MR to ultrasound registration for prostate challenge (2023)

    2023

  3. [3]

    In: International Workshop on Biomedical Image Registration

    Brandstätter, S., Seeböck, P., Fürböck, C., Pochepnia, S., Prosch, H., Langs, G.: Rigid single-slice-in-volume registration via rotation-equivariant 2d/3d feature matching. In: International Workshop on Biomedical Image Registration. pp. 280–

  4. [4]

    Advances in Neural Information Processing Systems35, 11079–11091 (2022)

    Bulatov, A., Kuratov, Y., Burtsev, M.: Recurrent memory transformer. Advances in Neural Information Processing Systems35, 11079–11091 (2022)

    2022

  5. [5]

    Medical image analysis39, 101–123 (2017)

    Ferrante, E., Paragios, N.: Slice-to-volume medical image registration: A survey. Medical image analysis39, 101–123 (2017)

    2017

  6. [6]

    Communi- cations of the ACM24(6), 381–395 (1981)

    Fischler, M.A., Bolles, R.C.: Random sample consensus: a paradigm for model fitting with applications to image analysis and automated cartography. Communi- cations of the ACM24(6), 381–395 (1981)

    1981

  7. [7]

    Applied Sciences12(13), 6562 (2022)

    Giangrossi, C., et al.: Requirements and hardware limitations of high-frame-rate 3-d ultrasound imaging systems. Applied Sciences12(13), 6562 (2022)

    2022

  8. [8]

    Medical physics 44(9), 4708–4723 (2017)

    Gillies, D.J., Gardi, L., De Silva, T., Zhao, S.r., Fenster, A.: Real-time registration of 3d to 2d ultrasound images for image-guided prostate biopsy. Medical physics 44(9), 4708–4723 (2017)

    2017

  9. [9]

    Computers in biology and medicine155, 106389 (2023) 10 L

    Gong, H., Chen, J., Chen, G., Li, H., Li, G., Chen, F.: Thyroid region prior guided attention for ultrasound segmentation of thyroid nodules. Computers in biology and medicine155, 106389 (2023) 10 L. Kanget al

    2023

  10. [10]

    In: Interna- tional Conference on Medical Image Computing and Computer-Assisted Interven- tion

    Guo, H., et al.: End-to-end ultrasound frame to volume registration. In: Interna- tional Conference on Medical Image Computing and Computer-Assisted Interven- tion. pp. 56–65. Springer (2021)

    2021

  11. [11]

    arXiv preprint arXiv:1803.101222(3), 440 (2018)

    Ha, D., Schmidhuber, J.: World models. arXiv preprint arXiv:1803.101222(3), 440 (2018)

    Pith/arXiv arXiv 2018

  12. [12]

    In: International Conference on Learning Representations

    Hafner, D., Lillicrap, T., Ba, J., Norouzi, M.: Dream to control: Learning behaviors by latent imagination. In: International Conference on Learning Representations

  13. [13]

    arXiv preprint arXiv:2010.02193 (2020)

    Hafner, D., Lillicrap, T., Norouzi, M., Ba, J.: Mastering atari with discrete world models. arXiv preprint arXiv:2010.02193 (2020)

    Pith/arXiv arXiv 2010

  14. [14]

    Com- puters in Biology and Medicine195, 110450 (2025)

    Hidalgo, E.M., et al.: Evaluating the impacts of network latency, haptics, and ergonomics in a haptically-enabled robot for teleoperated echocardiography. Com- puters in Biology and Medicine195, 110450 (2025)

    2025

  15. [15]

    Medical image analysis16(3), 687–703 (2012)

    Hu, Y., Ahmed, H.U., Taylor, Z., Allen, C., Emberton, M., Hawkes, D., Barratt, D.: Mr to ultrasound registration for image-guided prostate interventions. Medical image analysis16(3), 687–703 (2012)

    2012

  16. [16]

    IEEE trans- actions on medical imaging38(9), 2198–2210 (2019)

    Leclerc, S., Smistad, E., Pedrosa, J., Østvik, A., Cervenansky, F., Espinosa, F., Espeland, T., Berg, E.A.R., Jodoin, P.M., Grenier, T., et al.: Deep learning for seg- mentation using an open large-scale dataset in 2d echocardiography. IEEE trans- actions on medical imaging38(9), 2198–2210 (2019)

    2019

  17. [17]

    In: International Conference on Medical Image Computing and Computer-Assisted Intervention

    Lei, L., Zhou, J., Pei, J., Zhao, B., Jin, Y., Teoh, Y.C.J., Qin, J., Heng, P.A.: Epi- cardium prompt-guided real-time cardiac ultrasound frame-to-volume registration. In: International Conference on Medical Image Computing and Computer-Assisted Intervention. pp. 618–628. Springer (2024)

    2024

  18. [18]

    Engineering5(2), 261–275 (2019)

    Liu, S., Wang, Y., Yang, X., Lei, B., Liu, L., Li, S.X., Ni, D., Wang, T.: Deep learning in medical ultrasound analysis: a review. Engineering5(2), 261–275 (2019)

    2019

  19. [19]

    arXiv preprint arXiv:1711.05101 (2017)

    Loshchilov, I., Hutter, F.: Decoupled weight decay regularization. arXiv preprint arXiv:1711.05101 (2017)

    Pith/arXiv arXiv 2017

  20. [20]

    In: Proceedings of the IEEE/CVF International Conference on Computer Vision

    Lu, G., Jia, B., Li, P., Chen, Y., Wang, Z., Tang, Y., Huang, S.: Gwm: Towards scalable gaussian world models for robotic manipulation. In: Proceedings of the IEEE/CVF International Conference on Computer Vision. pp. 9263–9274 (2025)

    2025

  21. [21]

    In: International confer- ence on medical image computing and computer-assisted intervention

    Markova, V., Ronchetti, M., Wein, W., Zettinig, O., Prevost, R.: Global multi- modal 2d/3d registration via local descriptors learning. In: International confer- ence on medical image computing and computer-assisted intervention. pp. 269–279. Springer (2022)

    2022

  22. [22]

    arXiv preprint arXiv:2602.03569 (2026)

    Mu, L., Huang, Z., Gu, Y., Qin, S., Zhang, S., Zhang, X.: Ehrworld: A patient- centric medical world model for long-horizon clinical trajectories. arXiv preprint arXiv:2602.03569 (2026)

    arXiv 2026

  23. [23]

    The Ultrasound Journal15(1), 19 (2023)

    Mulder, T.A., van de Velde, T., Dokter, E., Boekestijn, B., Olgers, T.J., Bauer, M.P., Hierck, B.P.: Unravelling the skillset of point-of-care ultrasound: a systematic review. The Ultrasound Journal15(1), 19 (2023)

    2023

  24. [24]

    Surgical endoscopy38(5), 2359– 2370 (2024)

    Pavone, M., Seeliger, B., Teodorico, E., Goglia, M., Taliento, C., Bizzarri, N., Lecointre, L., Akladios, C., Forgione, A., Scambia, G., et al.: Ultrasound-guided robotic surgical procedures: a systematic review. Surgical endoscopy38(5), 2359– 2370 (2024)

    2024

  25. [25]

    International Journal of Research in Engineering and Technology3(5), 12–16 (2014)

    Rao, Y.R., Prathapani, N., Nagabhooshanam, E.: Application of normalized cross correlation to image registration. International Journal of Research in Engineering and Technology3(5), 12–16 (2014)

    2014

  26. [26]

    International journal of computer assisted radiology and surgery 17(10), 1765–1773 (2022) DreamReg: Belief-Driven World Model for 2D–3D Ultrasound Registration 11

    Smit, J.N., et al.: Ultrasound-based navigation for open liver surgery using active liver tracking. International journal of computer assisted radiology and surgery 17(10), 1765–1773 (2022) DreamReg: Belief-Driven World Model for 2D–3D Ultrasound Registration 11

    2022

  27. [27]

    In: International Conference on Medical Image Computing and Computer-Assisted Intervention

    Wang, H., Wang, Y.: Eureg: End-to-end framework for efficient 2d-3d ultra- sound registration. In: International Conference on Medical Image Computing and Computer-Assisted Intervention. pp. 175–185. Springer (2025)

    2025

  28. [28]

    IEEE transactions on image processing 13(4), 600–612 (2004)

    Wang, Z., Bovik, A.C., Sheikh, H.R., Simoncelli, E.P.: Image quality assessment: from error visibility to structural similarity. IEEE transactions on image processing 13(4), 600–612 (2004)

    2004

  29. [29]

    IEEE transactions on ultrasonics, ferroelectrics, and frequency control62(2), 319–328 (2015)

    Wei, C.W., et al.: Real-time integrated photoacoustic and ultrasound (paus) imag- ing system to guide interventional procedures: ex vivo study. IEEE transactions on ultrasonics, ferroelectrics, and frequency control62(2), 319–328 (2015)

    2015

  30. [30]

    International Journal of Computer Assisted Radiology and Surgery20(10), 2107– 2117 (2025)

    Weld, A., Dixon, L., Dyck, M., Anichini, G., Ranne, A., Camp, S., Giannarou, S.: Identifying visible tissue in intraoperative ultrasound: a method and application. International Journal of Computer Assisted Radiology and Surgery20(10), 2107– 2117 (2025)

    2025

  31. [31]

    In: Conference on robot learning

    Wu, P., Escontrela, A., Hafner, D., Abbeel, P., Goldberg, K.: Daydreamer: World models for physical robot learning. In: Conference on robot learning. pp. 2226–

  32. [32]

    In: Proceedings of the IEEE/CVF International Conference on Computer Vision

    Yang, Y., Wang, Z.Y., Liu, Q., Sun, S., Wang, K., Chellappa, R., Zhou, Z., Yuille, A., Zhu, L., Zhang, Y.D., et al.: Medical world model. In: Proceedings of the IEEE/CVF International Conference on Computer Vision. pp. 8319–8329 (2025)

    2025

  33. [33]

    Medical Image Analysis70, 101998 (2021)

    Yeung, P.H., Aliasi, M., Papageorghiou, A.T., Haak, M., Xie, W., Namburete, A.I.: Learning to map 2d ultrasound images into 3d space with minimal human annotation. Medical Image Analysis70, 101998 (2021)

    2021
