The PM-EdgeMap: Towards Real-Time Process Mining on the Edge-Cloud Continuum

Hendrik Reiter , Christian Imenkamp , Olaf Landsiedel , Andrea Maldonado , Patrick Rathje , Wilhelm Hasselbring This is my paper

Pith reviewed 2026-06-27 08:19 UTC · model grok-4.3

classification 💻 cs.DC
keywords process miningedge computingconformance checkingsmart factoriescyber-physical systemsreal-time analysisedge-cloud continuum
0
0 comments X

The pith

Edge computing supports real-time process mining to guide autonomous factory control.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to establish that process mining algorithms can run effectively on edge devices close to sensors instead of relying solely on distant cloud servers. It introduces a formalism that captures the structure of event datasets and the edge-cloud network layout. A case study then applies an edge-hosted conformance checking method to test the setup. If the approach holds, factories could generate immediate process insights from ongoing sensor streams and use them for faster local decisions. This directly addresses the need for greater autonomy in cyber-physical production systems.

Core claim

The authors establish the feasibility of real-time process mining on the edge-cloud continuum by defining a formalism that describes relevant datasets and computing topologies, then validating the idea through a case study of an edge-based conformance checking algorithm whose outcomes indicate benefits for enhanced autonomous control in smart factories.

What carries the argument

The formalism for describing relevant datasets and the computing topology, which enables systematic evaluation of edge versus cloud placements for process mining tasks.

Load-bearing premise

That results from a single edge-based conformance checking case study will hold for other process mining tasks and for the range of datasets and network conditions found in actual smart factories.

What would settle it

A direct measurement showing that the edge conformance checking algorithm exceeds acceptable latency bounds when run on representative factory event streams would disprove the feasibility claim.

Figures

Figures reproduced from arXiv: 2606.12103 by Andrea Maldonado, Christian Imenkamp, Hendrik Reiter, Olaf Landsiedel, Patrick Rathje, Wilhelm Hasselbring.

Figure 1
Figure 1. Figure 1: The three process mining topologies differ in computing and communication allocation, with Distributed PM leveraging data sources’ inherent resources. Within the edge-cloud continuum, various topological instantiations [22, 4] exist and each topology comes with specific characteristics: Mobile Cloud Com￾puting (MCC) as shown in Figure 1a refers to mobile devices or sensors of￾floading computationally inten… view at source ↗
Figure 2

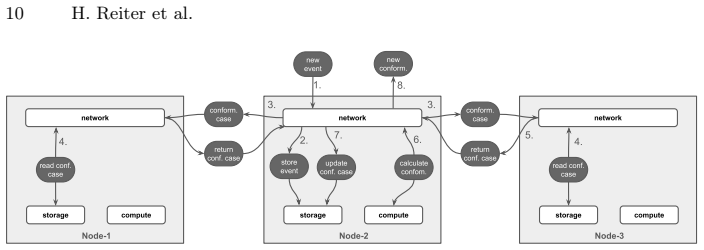

Figure 2. Figure 2: Sketch of the algorithm execution for checking the conformance for an incoming event. The invoked node sends requests to other participants to check whether they observed events with the same case id and request their conformance. During the training phase, a significant departure from traditional approaches is observed. Instead of mining a single, global process model, each instance of the algorithm, typi… view at source ↗
read the original abstract

Smart factories are evolving into Cyber-Physical Systems (CPS), demanding increased autonomy. This necessitates real-time decision making, facilitated by insights derived from sensor data. Process mining offers a valuable approach to gain such insights and guide actions. The edge computing paradigm supports this real-time requirement by enabling network communication between sensors and leveraging nearby computing resources. This paper investigates the implications of performing real-time process mining algorithms on the edge. Within this paper, we first propose a formalism to describe relevant datasets and the computing topology. We then evaluate the edge computing approach through a case study involving an edge-based conformance checking algorithm. The results demonstrate the feasibility and benefits of edge-based real-time process mining for enhanced autonomous control in smart factories.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes the PM-EdgeMap formalism to describe process mining datasets and edge-cloud computing topologies for Cyber-Physical Systems in smart factories. It then evaluates the approach via a single case study of an edge-based conformance checking algorithm, claiming that the results demonstrate the feasibility and benefits of real-time edge process mining for enhanced autonomous control.

Significance. If the empirical claims hold, the work would address a timely intersection of process mining and edge computing for real-time CPS autonomy. The introduction of a formalism for modeling datasets and topologies is a constructive contribution that could support more systematic future studies in distributed process mining.

major comments (2)
  1. [Abstract / Case Study evaluation] Abstract: the assertion that 'the results demonstrate the feasibility and benefits' is load-bearing for the central claim, yet the provided description of the case study supplies no quantitative metrics (latency, throughput, accuracy, resource usage), error analysis, or explicit edge-vs-cloud baselines, preventing evaluation of whether the data support the feasibility conclusion.
  2. [Case Study] Case Study section: reliance on a single conformance-checking workload leaves the representativeness assumption untested; no additional datasets, topologies, or workload variations are reported to establish that the formalism and edge approach generalize beyond this instance.
minor comments (1)
  1. [Abstract] The abstract could more explicitly separate the contributions of the formalism from those of the empirical case study.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address the major comments point by point below and commit to revisions that strengthen the empirical support and clarify limitations without overstating the current results.

read point-by-point responses

  1. Referee: [Abstract / Case Study evaluation] Abstract: the assertion that 'the results demonstrate the feasibility and benefits' is load-bearing for the central claim, yet the provided description of the case study supplies no quantitative metrics (latency, throughput, accuracy, resource usage), error analysis, or explicit edge-vs-cloud baselines, preventing evaluation of whether the data support the feasibility conclusion.

    Authors: We agree that the abstract claim requires more explicit quantitative backing than is currently detailed in the case study description. The revised manuscript will expand the case study section to report concrete metrics including latency, throughput, accuracy, and resource usage, along with error analysis and direct edge-versus-cloud comparisons drawn from the experiments performed. This will allow readers to evaluate the feasibility conclusion directly from the data. revision: yes

  2. Referee: [Case Study] Case Study section: reliance on a single conformance-checking workload leaves the representativeness assumption untested; no additional datasets, topologies, or workload variations are reported to establish that the formalism and edge approach generalize beyond this instance.

    Authors: We acknowledge the limitation of relying on a single workload for the case study. The PM-EdgeMap formalism itself is workload-agnostic by design, but the evaluation section will be revised to explicitly discuss this scope limitation, justify the choice of conformance checking as a representative real-time CPS task in smart factories, and outline how the formalism can be applied to other workloads and topologies. If additional variations can be incorporated without new experiments, they will be added; otherwise the text will be updated to avoid implying broader generalization than the evidence supports. revision: partial

Circularity Check

0 steps flagged

No circularity: empirical case study with independent formalism and evaluation

full rationale

The paper proposes a formalism for datasets and topologies then evaluates via one conformance-checking case study. No equations, fitted parameters, predictions, or self-citation chains are present that reduce any claim to its own inputs by construction. The central feasibility claim rests on the reported case-study outcomes, which are externally falsifiable and not derived from the formalism itself.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract supplies no information on free parameters, background axioms, or newly postulated entities.
