arxiv: 2606.25738 · v1 · pith:5QMMH35Pnew · submitted 2026-06-24 · 💻 cs.DC

Endeavor: Efficient PairHMM for Detection of DNA Variants in Genome-Scale Datasets

Pith reviewed 2026-06-25 19:52 UTC · model grok-4.3

classification 💻 cs.DC
keywords PairHMMvariant callingparallel algorithmsSIMDDNA sequencesbioinformatics pipelinesCPUsGPUs
0
0 comments X

The pith

Endeavor redefines PairHMM to unlock row-level parallelism for accurate variant calling on sequences up to 100k basepairs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a new formulation of the Pair Hidden Markov Model that shifts from anti-diagonal to row-level parallelism while keeping the same numerical results. This change opens the way to SIMD vectorization on both CPUs and GPUs. The approach processes DNA sequences far longer than prior methods could handle efficiently. In large genomic datasets the restructured computation reduces the time spent on the main bottleneck of variant detection pipelines. A reader would care because genomic data volumes are growing rapidly and current tools cannot keep pace on standard hardware.

Core claim

Endeavor redefines the traditional PairHMM formulation to explore row-level fine-grained parallelism without loss in solution accuracy. Based on this, a novel and portable SIMD-based approach is derived for efficient and high-performance processing of short and long sequences in CPUs and GPUs, leveraging novel levels of parallelism and synchronization to achieve high throughput in sequences up to 100k basepairs for the first time.

What carries the argument

The redefinition of the PairHMM recurrence relations that exposes independent row computations instead of the conventional anti-diagonal wavefront.

If this is right

  • CPUs achieve up to 2.14 times higher peak throughput than GKL.
  • Real-world GATK HaplotypeCaller runs become at least twice as fast.
  • GPUs deliver up to 2.05 times speedup over existing GPU PairHMM implementations.
  • Sequences of 100k basepairs become practical on commodity hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same row-wise reformulation could be applied to other dynamic-programming bioinformatics kernels that currently rely on anti-diagonal parallelism.
  • Portable SIMD code generated from the new formulation might reduce the need for separate CPU and GPU code paths in production pipelines.
  • If the numerical invariance holds under reduced precision, further speedups on low-precision accelerators become possible.

Load-bearing premise

Changing the order of PairHMM operations preserves exact numerical accuracy while exposing new parallelism.

What would settle it

Running the original and redefined formulations on identical input sequences of length 50k basepairs and checking whether the computed variant probabilities differ by more than floating-point roundoff.

Figures

Figures reproduced from arXiv: 2606.25738 by Aleksandar Ilic, Miguel Gra\c{c}a.

Figure 1

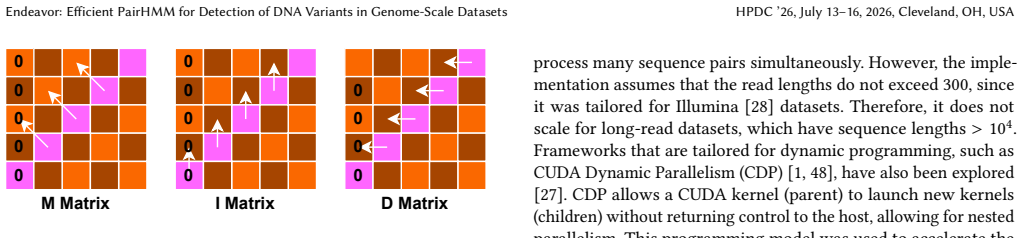

Figure 1. Figure 1: Antidiagonal Dependencies of PairHMM. the conditional probability of the read at position 𝑖, given the hap￾lotype at position 𝑗, calculated as 𝑃 (𝑟𝑖 |ℎ𝑗) = ( 10 − (𝑄𝑖 −33) 10 /3 if 𝑟𝑖 ≠ ℎ𝑗 1 − 10 − (𝑄𝑖 −33) 10 if 𝑟𝑖 = ℎ𝑗 (3) where 𝑄𝑖 is a base quality score for the read at position 𝑖. The final result is a likelihood, 𝐿, which is the cumulative probability of all sequence alignments, calculated as 𝐿 = ∑︁ 𝑗… view at source ↗
Figure 2

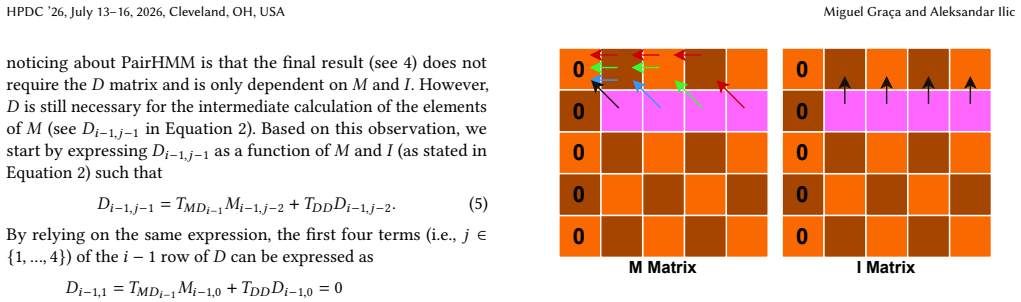

Figure 2. Figure 2: Rowwise Dependencies of Endeavor [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

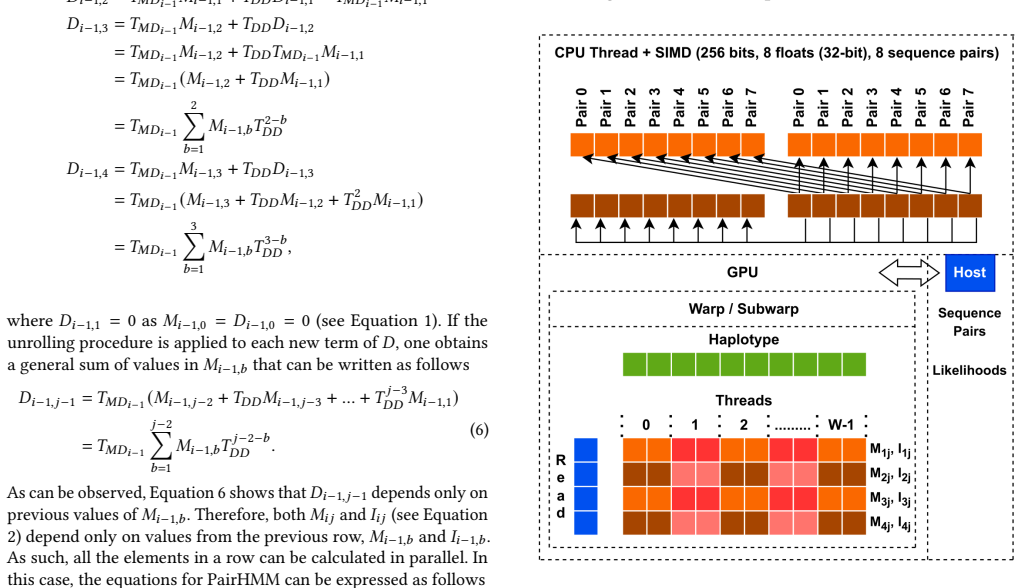

Figure 3. Figure 3: Multithreading+SIMD-Based (CPU) and Warp [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

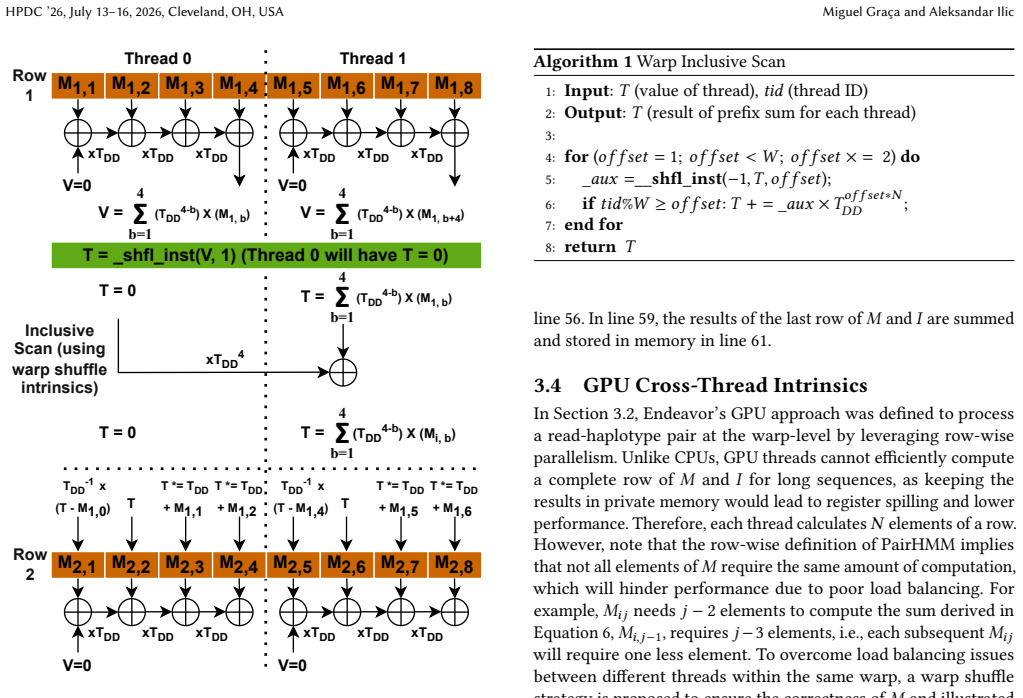

Figure 4. Figure 4: Endeavor’s GPU Pipeline for 𝑀 (for this example, 𝑁 = 4, with 2 threads per read-haplotype pair). defined as𝑚256 arrays of size 𝐾 where, for example, the first 32 bits in each position define the 𝑀 and 𝐼 rows for the first read-haplotype pair to process. The first read and quality characters are read in lines 15 to 17. In line 18, a gather operation (𝑚256_𝑔𝑎𝑡ℎ𝑒𝑟_𝑝𝑠) loads from memory the powers of 10 associ… view at source ↗
Figure 5

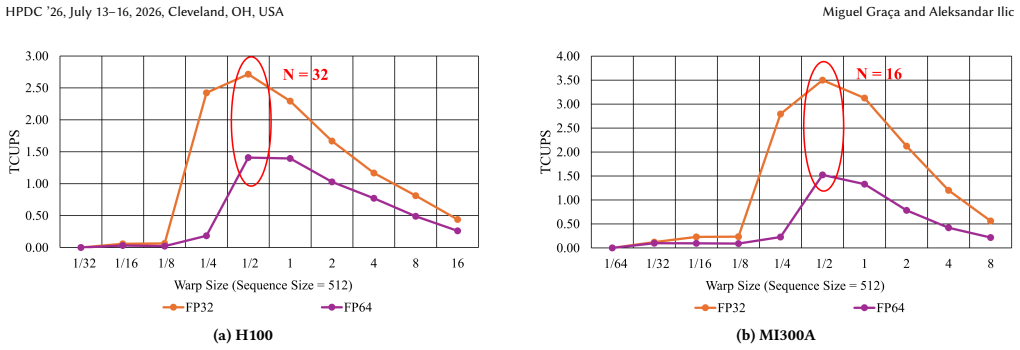

Figure 5. Figure 5: TCUPS evolution with the elements processed by each thread ( [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

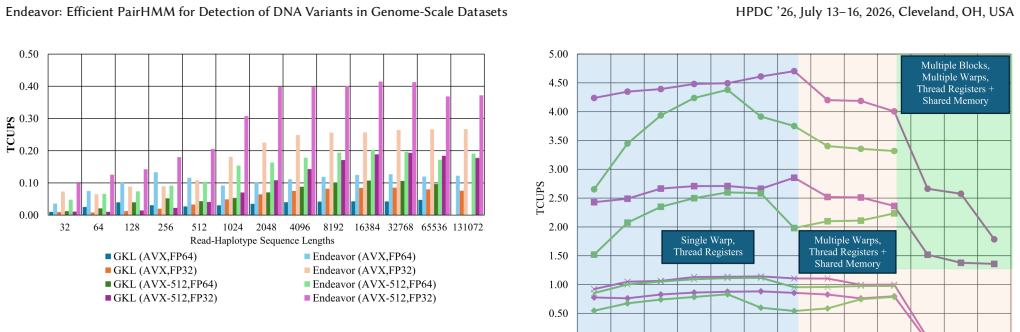

Figure 6. Figure 6: TCUPS evolution in Intel Xeon Gold 6438 for En [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7

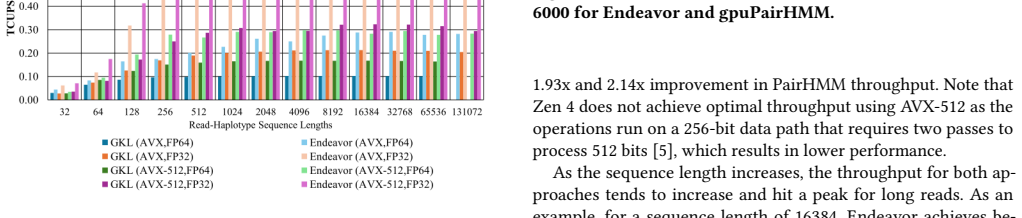

Figure 7. Figure 7: TCUPS evolution in AMD EPYC Zen 4 for Endeavor [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 9

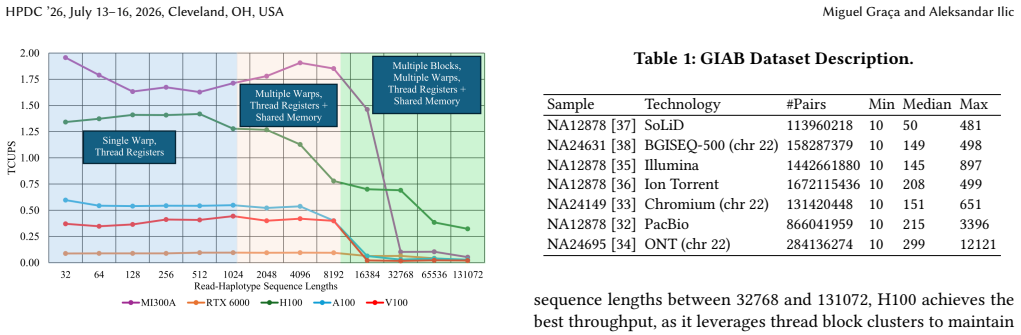

Figure 9. Figure 9: TCUPS evolution with sequence length in Endeavor [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
Figure 10

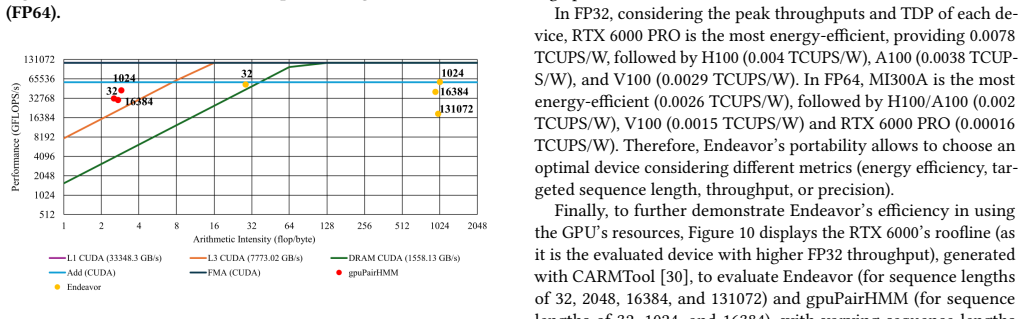

Figure 10. Figure 10: CARM Roofline for Endeavor and gpuPairHMM. [PITH_FULL_IMAGE:figures/full_fig_p010_10.png] view at source ↗
Figure 11

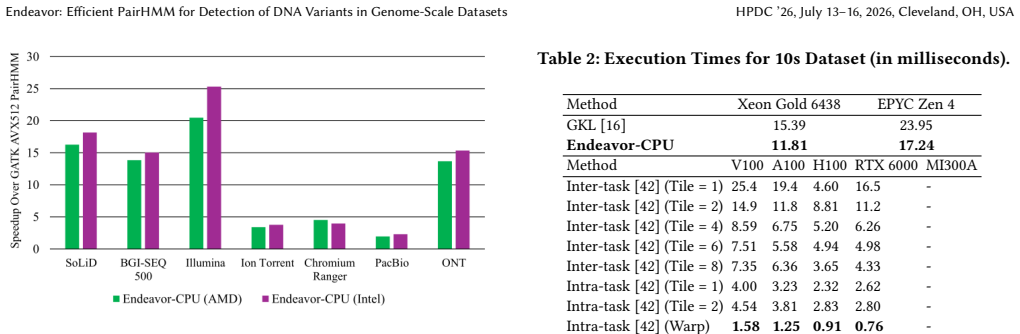

Figure 11. Figure 11: Speedup of Endeavor-CPU over GATK AVX-512 [PITH_FULL_IMAGE:figures/full_fig_p011_11.png] view at source ↗
Figure 12

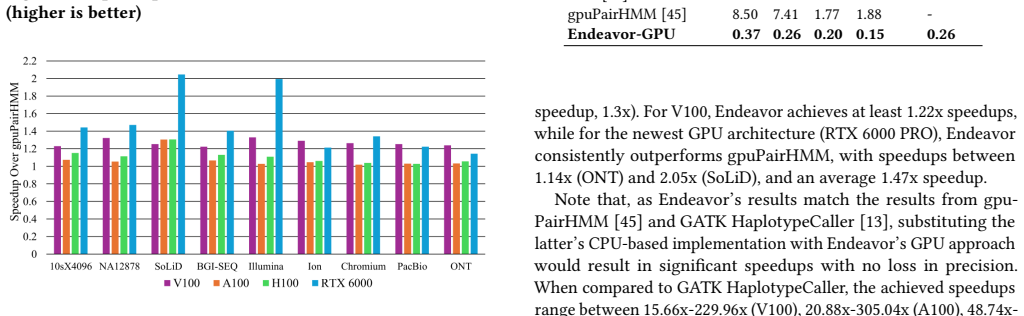

Figure 12. Figure 12: Speedup of Endeavor-GPU over gpuPairHMM (higher is better). and datasets from the original paper [45]. Finally, the 10s dataset [9], a typical benchmark used in the literature to test novel approaches for PairHMM, is also evaluated with Endeavor and compared to gpuPairHMM and GKL, as well as other well-known PairHMM implementations in the literature (based on CDP [27] and on inter￾and intra-task paralleli… view at source ↗
read the original abstract

DNA variant calling represents a key operation in bioinformatics pipelines that aims at identifying genetic variants. Given an evidenced explosion in genomic data availability, there is an urgent need for a high-performant, portable and efficient solution for variant calling, which can further improve our understanding of genomic structure and genetic basis for complex diseases. In its most common formulation, the Pair Hidden Markov Model (PairHMM) algorithm for variant calling stands as the main bottleneck in the pipeline, accounting for up to 70% of the execution time in large-scale genomic datasets. The state-of-the-art approaches for accelerating PairHMM in CPUs and GPUs do not scale to long DNA sequences and only explore very limited anti-diagonal data parallelism, which yields poor performance. In this work, Endeavor is proposed as a new parallelization strategy for PairHMM that redefines its traditional formulation to explore row-level fine-grained parallelism without loss in solution accuracy. Based on this, a novel and portable SIMD-based approach is derived for efficient and high-performance processing of short and long sequences in CPUs and GPUs, leveraging novel levels of parallelism and synchronization to achieve high throughput in sequences up to 100k basepairs for the first time. Evaluation on Intel and AMD CPUs shows that Endeavor outperforms GKL up to 2.14x in peak throughput and GATK HaplotypeCaller by at least 2x in real-world datasets, while NVIDIA and AMD GPUs achieve up to 2.05x speedups in genome-scale datasets when compared to state-of-the-art GPU-based methods.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript introduces Endeavor, a new parallelization strategy for the Pair Hidden Markov Model (PairHMM) algorithm used in DNA variant calling. It redefines the traditional formulation to enable row-level fine-grained parallelism without loss in solution accuracy, deriving a portable SIMD-based approach for CPUs and GPUs that achieves high throughput on sequences up to 100k basepairs. Evaluations report speedups of up to 2.14x over GKL on Intel/AMD CPUs and 2.05x over prior GPU methods on NVIDIA/AMD GPUs in genome-scale datasets.

Significance. If the row-level reformulation preserves numerical accuracy while unlocking the claimed parallelism and scalability, the work could meaningfully accelerate a key bottleneck (up to 70% of runtime) in bioinformatics pipelines for large genomic datasets. The emphasis on portability across CPU and GPU architectures and handling of long sequences represents a practical advance over prior anti-diagonal limited approaches.

minor comments (2)
  1. [Abstract] Abstract: performance numbers and accuracy-preservation claims are asserted without any reference to the specific reformulation equations, error bounds, or benchmark methodology; adding a one-sentence pointer to the relevant section would improve readability.
  2. The manuscript would benefit from an explicit statement (perhaps in the evaluation section) of the sequence-length distribution in the real-world datasets used for the GATK HaplotypeCaller comparison.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary and recommendation of minor revision. The report highlights the potential significance of the row-level reformulation for PairHMM and its portability across architectures, which aligns with our goals. No major comments were provided in the report, so we have no specific points to address point-by-point. We will incorporate any minor suggestions in the revised version.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper claims a row-level reformulation of PairHMM that enables fine-grained SIMD parallelism on long sequences while preserving exact numerical accuracy. No equations, fitted parameters, self-citations, or ansatzes appear in the supplied abstract or skeptic analysis that reduce any prediction or uniqueness claim to the inputs by construction. The central premise is granted as a novel reformulation, after which standard SIMD/GPU techniques are applied; the argument structure is therefore self-contained against external benchmarks and does not exhibit any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract provides no equations, parameters, or background assumptions; ledger is empty by necessity.

pith-pipeline@v0.9.1-grok · 5812 in / 1043 out tokens · 32649 ms · 2026-06-25T19:52:01.820198+00:00 · methodology
