pith. sign in

arxiv: 2605.15552 · v1 · pith:5QTGG5GInew · submitted 2026-05-15 · 💻 cs.FL

Do CFLOBDDs Actually Make Use of Linear Structure?

Meghana Aparna Sistla , Swarat Chaudhuri , Thomas W. Reps This is my paper

Pith reviewed 2026-05-19 18:44 UTC · model grok-4.3

classification 💻 cs.FL
keywords CFLOBDDslinear structurehierarchical structureBoolean function compressionquantum-circuit simulationNested-Word AutomataVisibly Pushdown Automatadecision diagrams
0
0 comments X

The pith

Linear structure works with hierarchy in CFLOBDDs to enable efficient Boolean function compression.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper asks whether CFLOBDDs, a hierarchical data structure for representing Boolean functions with possible exponential savings over BDDs, actually make use of linear structure in addition to their hierarchical properties. The authors show that linear structure, which links CFLOBDDs to nested-word and visibly pushdown automata, is essential for the observed compression. They create modified versions that remove linear structure while keeping hierarchy and measure the resulting growth in size plus the drop in performance on quantum-circuit simulation. A sympathetic reader cares because the result clarifies what structural features actually drive the practical advantage of CFLOBDDs over simpler diagrams.

Core claim

We demonstrate that linear structure, in conjunction with hierarchical structure, plays a crucial role in enabling CFLOBDDs to achieve efficient function compression. Furthermore, we show that removing linearity from CFLOBDDs leads to a significant blowup in representation size, resulting in degraded performance in the domain of quantum-circuit simulation.

What carries the argument

Linear structure that connects CFLOBDDs to Nested-Word Automata and Visibly Pushdown Automata and combines with their hierarchical finite-state machine design to support compression.

If this is right

  • Both linear and hierarchical elements are required for the best-case compression that CFLOBDDs can achieve.
  • Representation size grows substantially once linear structure is removed.
  • Quantum-circuit simulation runs slower when the linear component is absent.
  • The hierarchical finite-state machine alone is not sufficient to explain the diagrams' practical efficiency.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Designers of other hierarchical automata or decision diagrams might obtain similar gains by deliberately adding linear connections.
  • The result suggests testing whether linear structure improves compression in related formal-language models used for verification.
  • Future experiments could measure how much of the double-exponential savings over decision trees is attributable to the linear component.

Load-bearing premise

Modifications that strip linearity from CFLOBDDs isolate only that property and do not change other representational or implementation details that could independently alter size or performance.

What would settle it

A side-by-side size comparison of representations for the same set of Boolean functions in unmodified CFLOBDDs versus versions with linearity removed, checking whether the predicted blowup appears.

Figures

Figures reproduced from arXiv: 2605.15552 by Meghana Aparna Sistla, Swarat Chaudhuri, Thomas W. Reps.

Figure 1
Figure 1. Figure 1: (a) Encoding of a grouping’s A-connection and B-connections as call transitions, and its return edges [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a) The CFLOBDD for the Hadamard matrix 𝐻4, with the variable ordering ⟨𝑥0, 𝑦0, 𝑥1, 𝑦1⟩. The matched path for [𝑥0 ↦→ 𝐹, 𝑦0 ↦→ 𝑇 , 𝑥1 ↦→ 𝐹, 𝑦1 ↦→ 𝑇 ], which corresponds to 𝐻4 [0, 3] (with value 1), is shown in bold. (b) The nested word for the path for [𝑥0 ↦→ 𝐹, 𝑦0 ↦→ 𝑇 , 𝑥1 ↦→ 𝐹, 𝑦1 ↦→ 𝑇 ]. The automaton 𝐴 processes the nested word 𝑛𝑤 according to a linear order of the characters of 𝑛𝑤, along with obeying … view at source ↗
Figure 3
Figure 3. Figure 3: Tree representation of the variables of a function [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

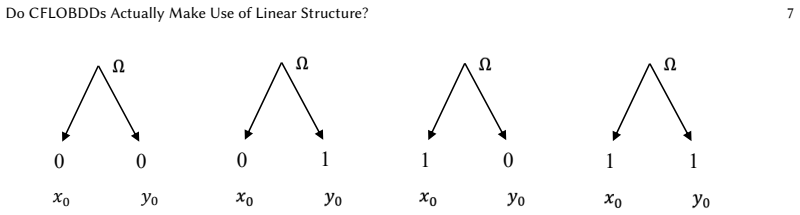

Figure 4. Figure 4: The set of trees TH representing the assignments of 𝐻2 with two variables 𝑥0, 𝑦0 as the leaves of the tree. 0 1 𝑞0 𝑞1 𝑞10 (a) The diagram shows states 𝑞0, 𝑞1, and 𝑞10, and transitions [0 → 𝑞0, 1 → 𝑞1, (𝑞0, 𝑞1) → 𝑞10] of 𝑀𝐻2 for the tree representing the assignment ⟨𝑥0 ↦→ 0, 𝑦0 ↦→ 1⟩. 0 1 𝑞0 𝑞1 𝑞10 0 1 𝑥0 𝑦0 𝑥1 𝑦1 𝑞0 𝑞1 𝑞10 𝑞20 (b) The diagram shows states 𝑞0, 𝑞1, 𝑞10, and 𝑞20, and transitions [0 → 𝑞0, 1 → … view at source ↗
Figure 5
Figure 5. Figure 5: The diagrams show the runs of tree automata ( [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

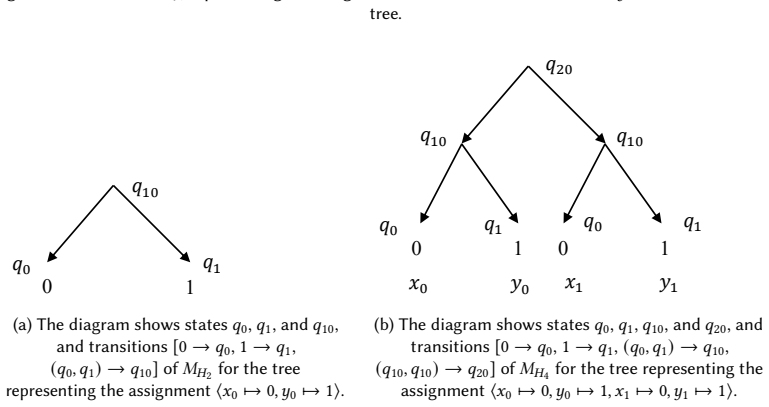

Figure 6
Figure 6. Figure 6: Object-oriented representation of TIDD for 𝐻2. (numbered according to a fixed ordering) representing the hyper-edges or the transitions. If the transitions between two levels – level-1 and level-2 – are 𝛿 (𝑞10, 𝑞10) → 𝑞20, 𝛿 (𝑞10, 𝑞11) → 𝑞20, 𝛿 (𝑞11, 𝑞10) → 𝑞21, and 𝛿 (𝑞11, 𝑞11) → 𝑞21, the transitions are represented as: 𝐸 = [ [0, 0], [1, 1]] (a two-dimensional array in row-major order),2 where 𝐸[0] [0] = … view at source ↗

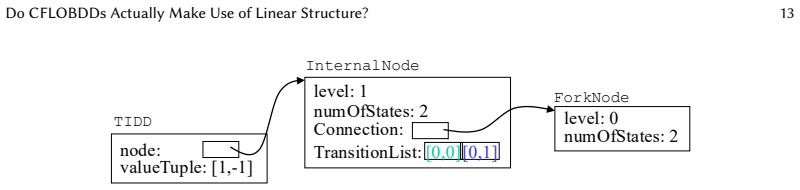

Figure 7
Figure 7. Figure 7: Diagrams showing a proto-CFLOBDD with an AConnection (Fig. [PITH_FULL_IMAGE:figures/full_fig_p023_7.png] view at source ↗

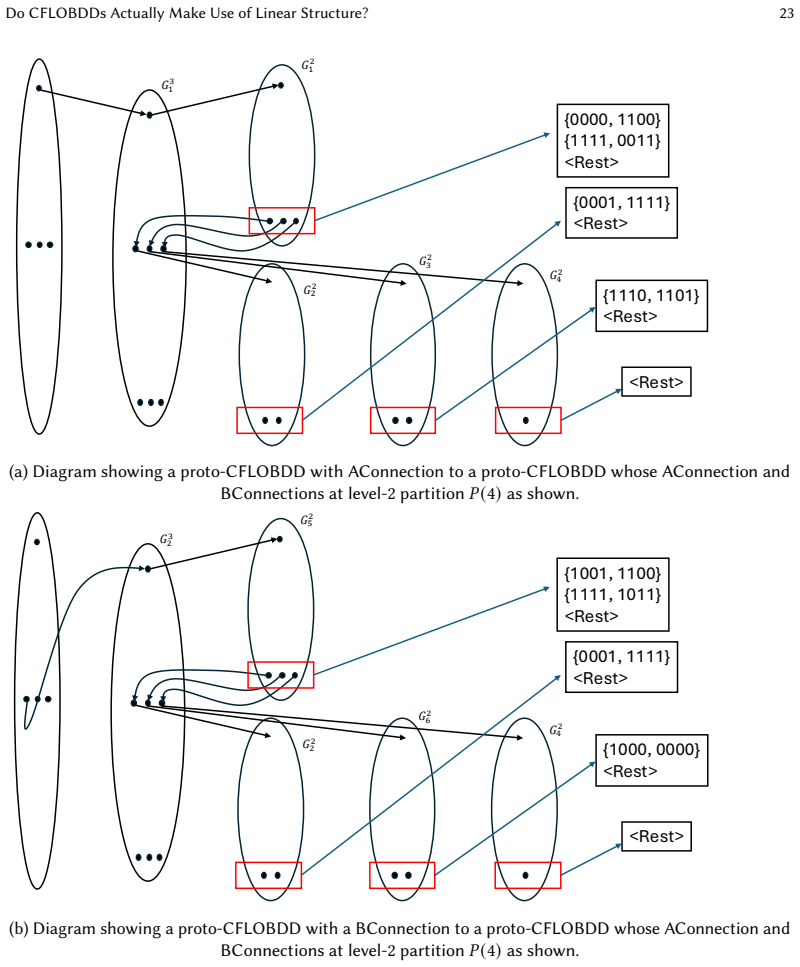

Figure 8
Figure 8. Figure 8: The diagrams show proto-CFLOBDDs for 𝐹 (2, .), 𝐹 (4, .). ND represents NoDistinctionNode. The first set consists of the 4-bit strings with a 0 in the 1 st position. Similarly, the proto￾CFLOBDD, shown in Fig. 8d, recursively calls a NoDistinctionNode for the AConnection and the proto-CFLOBDD for 𝐹 (2, 2) for the BConnection. , Vol. 1, No. 1, Article . Publication date: May 2026 [PITH_FULL_IMAGE:figures/fu… view at source ↗

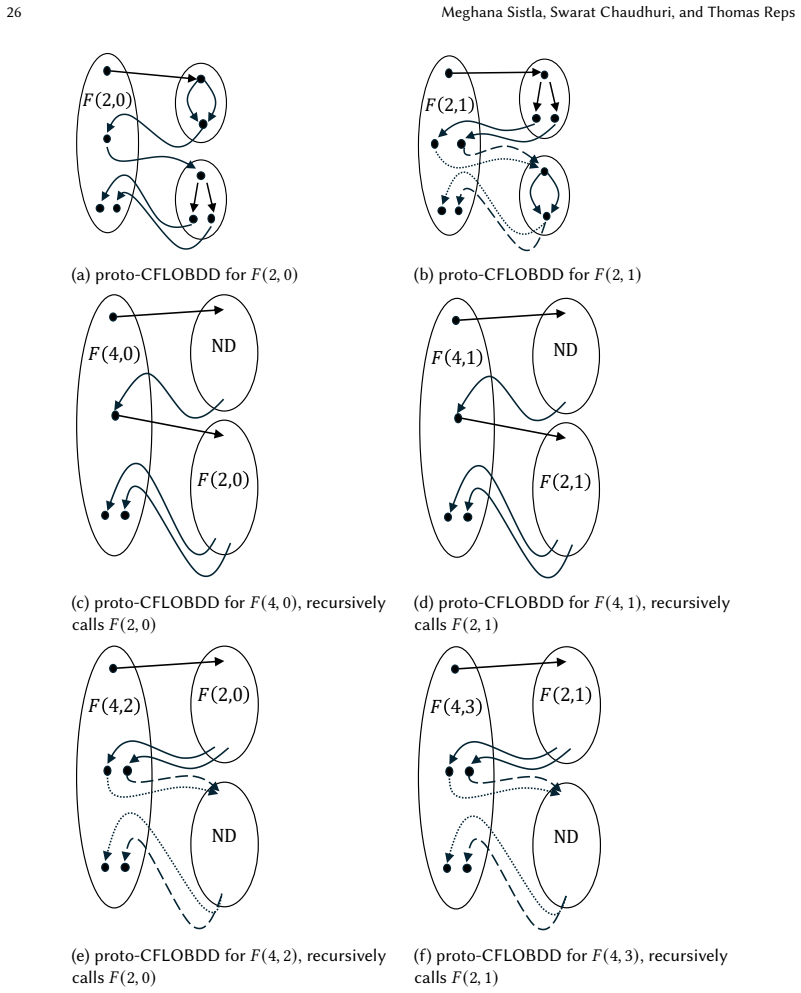

Figure 9
Figure 9. Figure 9: Diagrams show proto-CFLOBDDs for 𝐹 (𝑘, 𝑠) when 𝑠 < 2 𝑘−1 and 𝑠 ≥ 2 𝑘−1 . ND represents NoDistinctionNode. (3) 𝐹 (4, 2) splits the assignments of length 4 into  {0000, 0001, 0010, 0011, 1000, 1001, 1010, 1011}, {0100, 0101, 0110, 0111, 1100, 1101, 1110, 1111}  The first set consists of the 4-bit strings with a 0 in the 2 nd position. The proto-CFLOBDD, shown in Fig. 8e, recursively calls a proto-CFLOBDD f… view at source ↗
Figure 10
Figure 10. Figure 10: Diagrams showing proto-CFLOBDDs of ℎ𝑛 at level-log(𝑛) + 1 (Fig. 10a) and level-𝑙 + 1, 𝑙 > log(𝑛) + 1(Fig. 10b). • 𝑖 = 𝑠: the new states would partition the space of 2 𝑛 strings into 2 𝑠+1 partitions, where the 𝑗 𝑡ℎ partition has elements that satisfy 𝑒%2𝑠+1 = 𝑗, where 𝑒 is an element in the 𝑗 𝑡ℎ partition. Hence, #states = 2 𝑠+1 . Hence, for 𝑖 = 𝑛 − 1, i.e., the total number of states at level-log𝑛 of the… view at source ↗
read the original abstract

Binary Decision Diagrams (BDDs) are a widely used data structure for efficient Boolean function representation. Context-Free-Language Ordered Binary Decision Diagrams (CFLOBDDs) are a recently introduced hierarchical data structure that can, in the best case, exhibit exponential compression over BDDs and double-exponential compression over decision trees. Roughly speaking, a CFLOBDD is a finite, acyclic, non-recursive hierarchical finite-state machine (HFSM) (with some additional restrictions). In this paper, we investigate the role of \emph{linear structure} in CFLOBDDs -- a property that connects them to Nested-Word Automata (NWAs) and Visibly Pushdown Automata (VPAs) -- and examine whether CFLOBDDs actively exploit this structure beyond their well-studied hierarchical properties. We demonstrate that linear structure, in conjunction with hierarchical structure, plays a crucial role in enabling CFLOBDDs to achieve efficient function compression. Furthermore, we show that removing linearity from CFLOBDDs leads to a significant blowup in representation size, resulting in degraded performance in the domain of quantum-circuit simulation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper examines whether CFLOBDDs exploit linear structure (linking them to NWAs and VPAs) in addition to their hierarchical properties. It claims that linear structure is essential for the observed exponential compression over BDDs, demonstrated by constructing a non-linear variant whose representation sizes blow up significantly, leading to worse performance on quantum-circuit simulation benchmarks.

Significance. If the isolation of linear structure is clean, the result would clarify the source of CFLOBDD power and strengthen the case for retaining NWA/VPA-style connections in hierarchical decision diagrams. The quantum-simulation experiments provide a concrete, falsifiable test of the practical impact.

major comments (2)
  1. [§4.2] §4.2 (Definition of the non-linear variant): the construction that removes linearity must be shown to preserve all other representational invariants (canonicalization, hierarchical sharing rules, and call/return encoding) exactly; otherwise the observed size blowup cannot be attributed solely to the absence of linear structure. The current description leaves open whether additional changes to the merge or reduction steps were introduced.
  2. [Table 2] Table 2 (size-comparison results): the reported blowup factors for the non-linear variant are large, but without an explicit statement of the number of instances, variance across runs, or a control experiment that re-introduces linearity while keeping the variant's other changes, it is difficult to assess whether the effect is robust or sensitive to implementation details.
minor comments (2)
  1. [Abstract / §1] The abstract and §1 use “linear structure” without a forward pointer to the precise definition (presumably in §3); a brief inline reminder would improve readability.
  2. [Figure 3] Figure 3 caption should state the exact benchmark suite and the metric (node count or memory) used for the plotted sizes.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading and constructive comments on our investigation of linear structure in CFLOBDDs. We address each major comment below, indicating planned revisions where appropriate.

read point-by-point responses

  1. Referee: [§4.2] §4.2 (Definition of the non-linear variant): the construction that removes linearity must be shown to preserve all other representational invariants (canonicalization, hierarchical sharing rules, and call/return encoding) exactly; otherwise the observed size blowup cannot be attributed solely to the absence of linear structure. The current description leaves open whether additional changes to the merge or reduction steps were introduced.

    Authors: We agree that additional detail is warranted to isolate the effect of linearity. The non-linear variant was obtained by disabling only the linear linking rules that connect call and return sites (in the style of NWAs and VPAs), while retaining the original hierarchical sharing, canonicalization, and call/return encoding mechanisms without modification. The merge and reduction algorithms are identical to those used for standard CFLOBDDs. In the revised manuscript we will expand §4.2 with an explicit enumeration of the preserved invariants and a short argument that no other representational changes were introduced, thereby attributing the size blowup directly to the removal of linear structure. revision: yes

  2. Referee: [Table 2] Table 2 (size-comparison results): the reported blowup factors for the non-linear variant are large, but without an explicit statement of the number of instances, variance across runs, or a control experiment that re-introduces linearity while keeping the variant's other changes, it is difficult to assess whether the effect is robust or sensitive to implementation details.

    Authors: We will update the text and caption of Table 2 to state the exact number of quantum-circuit instances used and to report any observed variance in representation sizes. A control that re-introduces linearity while preserving the variant's other modifications would recover the original CFLOBDD construction, which is already shown for direct comparison in the same table. To address sensitivity concerns we will add a short paragraph clarifying that the only implementation difference between the two variants is the linear-linking component, with all other algorithmic steps left unchanged; this supports that the measured blowup is due to the absence of linear structure rather than ancillary implementation choices. revision: partial

Circularity Check

0 steps flagged

No significant circularity; claims rest on empirical modification and measurement

full rationale

The paper's central claims rest on an experimental demonstration: a modified CFLOBDD variant is constructed to remove linearity, after which representation sizes and quantum-simulation runtimes are measured and compared with the original. No equations or definitions are shown that make the reported blowup tautological by construction, nor is any fitted parameter renamed as a prediction. Background citations to prior CFLOBDD work supply the baseline definition but are not invoked as a uniqueness theorem or load-bearing justification for the new experimental outcome. Because the result is obtained by direct measurement against an external benchmark (quantum-circuit simulation performance), the derivation chain remains independent of its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so no concrete free parameters, axioms, or invented entities can be extracted; the work appears to rest on standard definitions of CFLOBDDs and automata models from prior literature.

pith-pipeline@v0.9.0 · 5728 in / 1138 out tokens · 44272 ms · 2026-05-19T18:44:01.685786+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

21 extracted references · 21 canonical work pages

  1. [1]

    Reps, and Mihalis Yannakakis

    Rajeev Alur, Michael Benedikt, Kousha Etessami, Patrice Godefroid, Thomas W. Reps, and Mihalis Yannakakis. 2005. Analysis of recursive state machines.ACM Trans. Program. Lang. Syst.27, 4 (2005), 786–818. https://doi.org/10.1145/ 1075382.1075387

    work page arXiv 2005

  2. [2]

    Rajeev Alur and Parthasarathy Madhusudan. 2009. Adding nesting structure to words.Journal of the ACM (JACM)56, 3 (2009), 1–43

    work page 2009

  3. [3]

    Anuchit Anuchitanukul, Zohar Manna, and Tomás E. Uribe. 1995. Differential BDDs. InComputer Science Today: Recent Trends and Developments (Lecture Notes in Computer Science, Vol. 1000), J. van Leeuwen (Ed.). Springer-Verlag, 218–233

    work page 1995

  4. [4]

    Iris Bahar, Erica A

    R. Iris Bahar, Erica A. Frohm, Charles M. Gaona, Gary D. Hachtel, Enrico Macii, Abelardo Pardo, and Fabio Somenzi

    work page

  5. [5]

    Des.10, 2/3 (1997), 171–206

    Algebraic Decision Diagrams and Their Applications.Formal Methods Syst. Des.10, 2/3 (1997), 171–206. https://doi.org/10.1023/A:1008699807402

    work page doi:10.1023/a:1008699807402 1997

  6. [6]

    Brace, Richard L

    Karl S. Brace, Richard L. Rudell, and Randal E. Bryant. 1991. Efficient implementation of a BDD package. InProceedings of the 27th ACM/IEEE design automation conference. 40–45

    work page 1991

  7. [7]

    Randal E. Bryant. 1986. Graph-Based Algorithms for Boolean Function Manipulation.IEEE Trans. on Comp.C-35, 6 (Aug. 1986), 677–691

    work page 1986

  8. [8]

    Bryant and Yirng-An Chen

    Randal E. Bryant and Yirng-An Chen. 1995. Verification of Arithmetic Circuits with Binary Moment Diagrams. InProc. of the 30th ACM/IEEE Design Automation Conf.535–541

    work page 1995

  9. [9]

    Clarke, Masahiro Fujita, and Xudong Zhao

    Edmund M. Clarke, Masahiro Fujita, and Xudong Zhao. 1995.Applications of Multi-Terminal Binary Decision Diagrams. Technical Report CS-95-160. Carnegie Mellon Univ., School of Comp. Sci

    work page 1995

  10. [10]

    Clarke, Kenneth L

    Edmund M. Clarke, Kenneth L. McMillan, Xudong Zhao, Masahiro Fujita, and Jerry Chih-Yuan Yang. 1993. Spectral Transforms for Large Boolean Functions with Applications to Technology Mapping. InProc. of the 30th ACM/IEEE Design Automation Conf.54–60

    work page 1993

  11. [11]

    Hubert Comon, Max Dauchet, Rémi Gilleron, Florent Jacquemard, Denis Lugiez, Christof Löding, Sophie Tison, and Marc Tommasi. 2008. Tree automata techniques and applications

    work page 2008

  12. [12]

    Adnan Darwiche. 2011. SDD: A New Canonical Representation of Propositional Knowledge Bases. InTwenty-Second International Joint Conference on Artificial Intelligence

    work page 2011

  13. [13]

    Younes Guellouma and Hadda Cherroun. 2016. Efficient implementation for deterministic finite tree automata minimization.Journal of computing and information technology24, 4 (2016), 311–322

    work page 2016

  14. [14]

    Bitner, Magdy S

    Jawahar Jain, James R. Bitner, Magdy S. Abadir, Jacob A. Abraham, and Donald S. Fussell. 1997. Indexed BDDs: Algorithmic Advances in Techniques to Represent and Verify Boolean Functions.IEEE Trans. on Comp.C-46, 11 (Nov. 1997), 1230–1245

    work page 1997

  15. [15]

    K McMillan. 1994. Hierarchical Representations of Discrete Functions, with Application to Model Checking, Computer Aided Verification, LNCS

    work page 1994

  16. [16]

    Kengo Nakamura, Shuhei Denzumi, and Masaaki Nishino. 2020. Variable shift SDD: a more succinct sentential decision diagram.arXiv preprint arXiv:2004.02502(2020)

    work page arXiv 2020

  17. [18]

    Sistla, S

    M. Sistla, S. Chaudhuri, and T. Reps. 2023. Symbolic quantum simulation with Quasimodo. InComputer Aided Verification (CA V)

    work page 2023

  18. [19]

    Meghana Sistla, Swarat Chaudhuri, and Thomas Reps. 2024. CFLOBDDs: Context-free-language ordered binary decision diagrams.ACM Transactions on Programming Languages and Systems (TOPLAS)36, 4 (2024), 1–73. DOI: 10.1145/3651157

    work page doi:10.1145/3651157 2024

  19. [20]

    Meghana Sistla, Swarat Chaudhuri, and Thomas W. Reps. 2023. Weighted Context-Free-Language Ordered Binary Decision Diagrams.CoRRabs/2305.13610 (2023). https://doi.org/10.48550/ARXIV.2305.13610 arXiv:2305.13610

    work page doi:10.48550/arxiv.2305.13610 2023

  20. [21]

    2000.Branching Programs and Binary Decision Diagrams

    Ingo Wegener. 2000.Branching Programs and Binary Decision Diagrams. SIAM. http://ls2-www.cs.uni-dortmund.de/ monographs/bdd/

    work page 2000

  21. [22]

    2020.Introducing Design Automation for Quantum Computing

    Alwin Zulehner and Robert Wille. 2020.Introducing Design Automation for Quantum Computing. Springer. , Vol. 1, No. 1, Article . Publication date: May 2026

    work page 2020
