Attitude-Aided Linear Calibration of Triaxial Accelerometers

Yongqiang Yu , Tian Huang , Yipeng Yang This is my paper

Pith reviewed 2026-06-28 00:52 UTC · model grok-4.3

classification 💻 cs.RO
keywords accelerometer calibrationtriaxial MEMSlinear least squaresattitude-aided calibrationsensor error modelinginertial measurement unitsclosed-form estimationconstrained homogeneous least squares
0
0 comments X

The pith

Attitude data turns accelerometer calibration into a closed-form linear least-squares problem solvable with five measurements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents attitude-aided linear accelerometer calibration (ALAC) that uses platform orientation to build a combined error matrix representing all sensor errors in one model. This matrix supports direct linear least-squares estimation instead of nonlinear iteration, with bias and gravity jointly recovered while implicitly handling misalignment. Under static conditions the problem is recast as a constrained homogeneous least-squares task solved exactly by standard linear algebra routines. Matrix decomposition then extracts scale factors, non-orthogonality, and alignment angles. The method needs only five arbitrarily oriented static readings and includes a recursive form for online use, showing improved accuracy and noise tolerance over reference-based and iterative baselines on both robot and IMU data.

Core claim

ALAC constructs a combined error matrix (CEM) to represent sensor errors in a unified calibration model and enables linear least-squares estimation. The bias and gravity vector are jointly estimated, implicitly accounting for platform misalignment, and matrix decomposition of the CEM recovers scale, non-orthogonality, and alignment rotation parameters. Under static gravity, calibration is formulated as a constrained homogeneous least-squares (CHLS) problem and solved in closed form using standard linear algebra. Only five arbitrarily oriented measurements are required.

What carries the argument

The combined error matrix (CEM) that unifies all sensor errors for linear estimation, together with the constrained homogeneous least-squares (CHLS) formulation solved under static gravity.

If this is right

  • Calibration becomes feasible on any platform that already supplies orientation, such as robotic arms or IMUs, without dedicated reference equipment.
  • The recursive extension supports continuous in-field recalibration during quasi-static operation.
  • Joint estimation of bias and gravity removes the need for separate misalignment correction steps.
  • Performance holds on raw unfiltered measurements where iterative methods degrade.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The linear formulation could be embedded directly inside existing Kalman-filter sensor-fusion pipelines without iteration overhead.
  • Relaxing the static-gravity assumption to slowly varying gravity would require only a modest change to the constraint set.
  • The same CEM construction might generalize to magnetometer or gyroscope calibration when attitude references are present.

Load-bearing premise

Accurate external attitude information must be available and all measurements must occur under truly static gravity so the gravity vector can be treated as a single constant unknown.

What would settle it

Collect a new set of five static accelerometer readings with known high-precision attitude and compare the ALAC-derived scale, misalignment, and bias parameters against those obtained from a full nonlinear batch optimizer on the same raw data; a statistically significant difference in residual gravity norm error would falsify the closed-form claim.

Figures

Figures reproduced from arXiv: 2606.06308 by Tian Huang, Yipeng Yang, Yongqiang Yu.

Figure 1

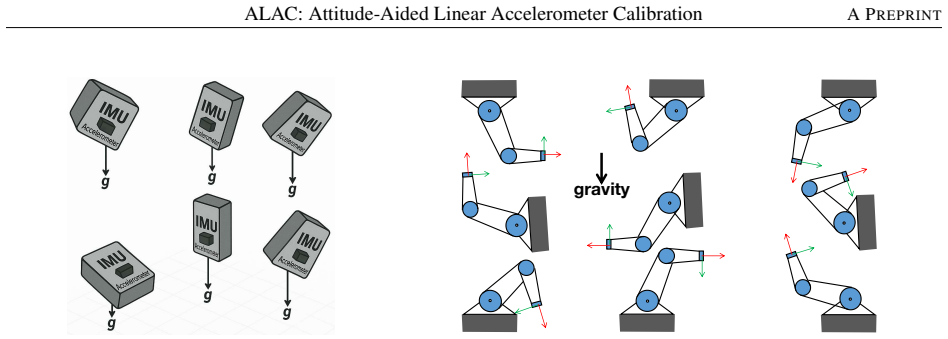

Figure 1. Figure 1: Schematic of the attitude-aided accelerometer calibration. The method exploits external attitude information [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

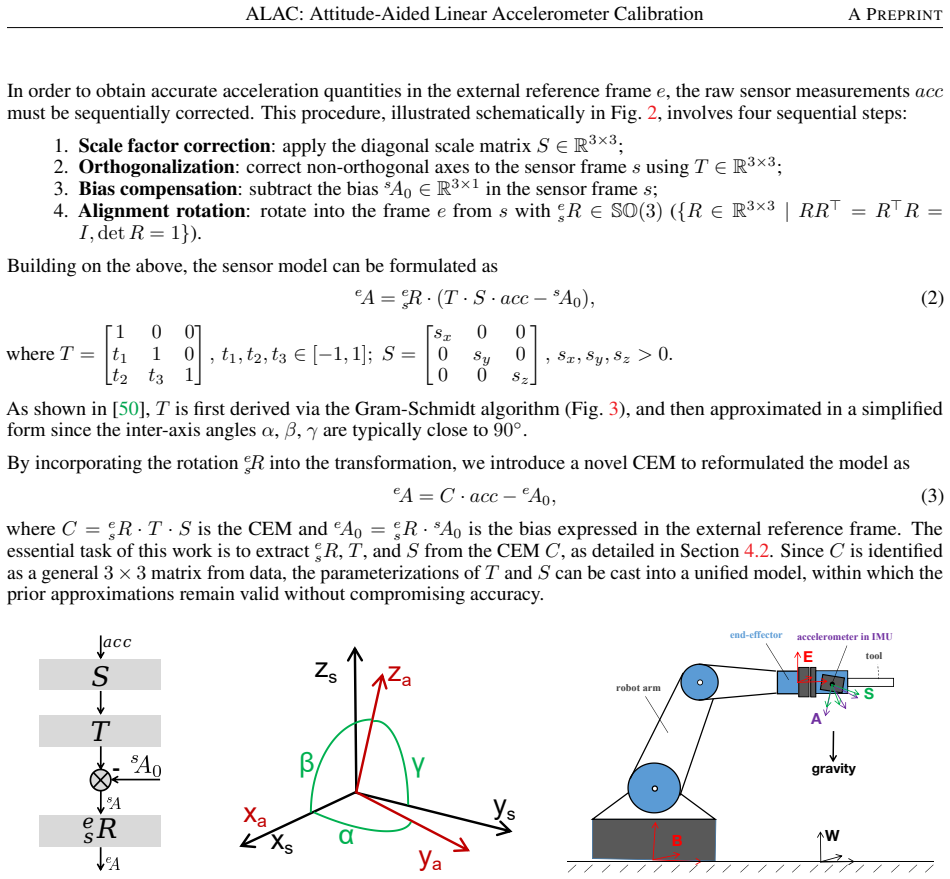

Figure 2. Figure 2: Accelerome￾ter sensor model. za ya xa xs ys zs α β γ [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 5

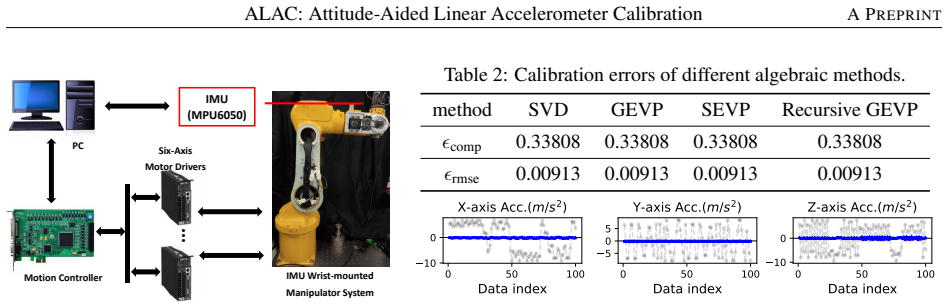

Figure 5. Figure 5: Robot-mounted IMU [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 7

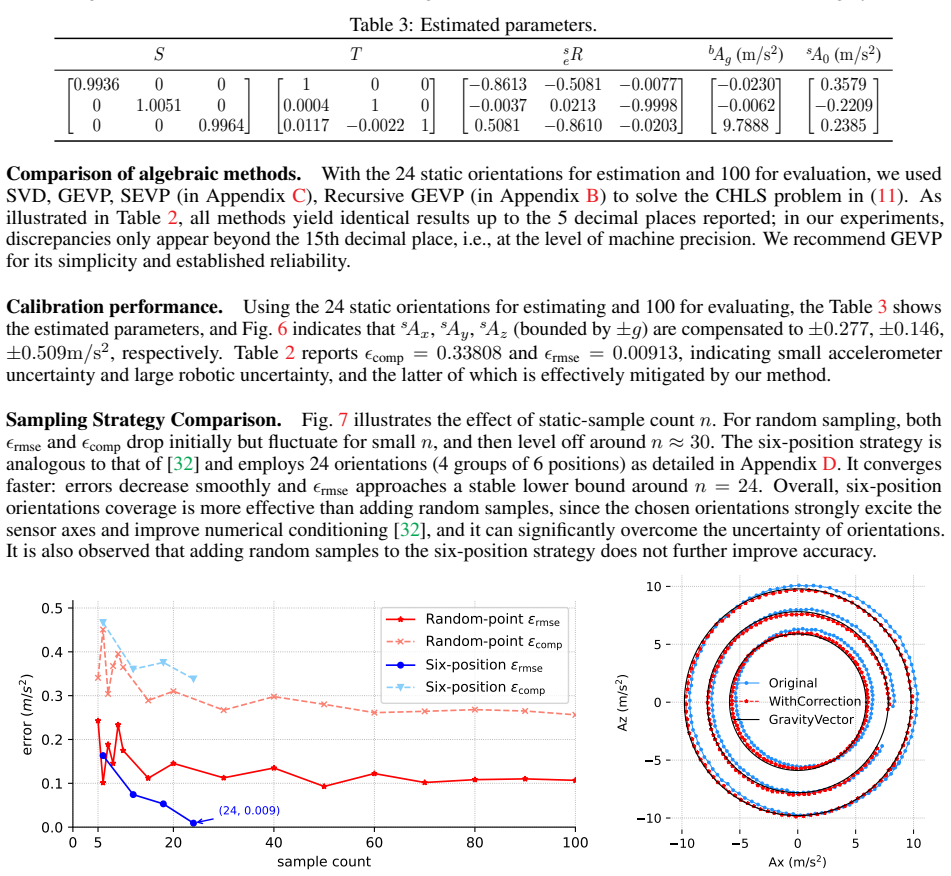

Figure 7. Figure 7: Effect of sampling strategy and sample count. [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
read the original abstract

Triaxial MEMS accelerometers are widely used for inertial sensing, navigation, and sensor fusion, but existing calibration methods often rely on costly reference setups or nonlinear iterative optimization, limiting their efficiency and applicability to low-cost or self-calibrating systems. We present attitude-aided linear accelerometer calibration (ALAC), a method that operates on any platform providing orientation information, such as turntables, robotic arms, or inertial measurement units. ALAC constructs a combined error matrix (CEM) to represent sensor errors in a unified calibration model and enables linear least-squares estimation. The bias and gravity vector are jointly estimated, implicitly accounting for platform misalignment, and matrix decomposition of the CEM recovers scale, non-orthogonality, and alignment rotation parameters. Under static gravity, calibration is formulated as a constrained homogeneous least-squares (CHLS) problem and solved in closed form using standard linear algebra. Only five arbitrarily oriented measurements are required, and a recursive extension supports online or in-field calibration. Experiments on a stationary robot-mounted accelerometer and a quasi-static public IMU trajectory show that ALAC, in both offline and online modes, outperforms reference-based and online baselines in accuracy and robustness to sensor noise. On the same dataset, it matches iterative self-calibration under filtered conditions and surpasses all evaluated baselines on raw measurements. These results demonstrate a robust and practical calibration scheme for MEMS-based inertial platforms, especially low-cost IMUs and online calibration scenarios.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces Attitude-Aided Linear Accelerometer Calibration (ALAC), which constructs a Combined Error Matrix (CEM) to unify sensor error modeling for triaxial accelerometers and formulates calibration under static gravity as a constrained homogeneous least-squares (CHLS) problem solved in closed form via standard linear algebra. It requires only five arbitrarily oriented measurements, jointly estimates bias and gravity (implicitly handling misalignment), recovers scale/non-orthogonality/alignment via matrix decomposition, and provides a recursive online extension; experiments on a stationary robot-mounted accelerometer and a quasi-static public IMU trajectory claim outperformance over reference-based and online baselines in accuracy and noise robustness, matching iterative self-calibration under filtered conditions.

Significance. If the closed-form CHLS solution and minimal-measurement claim hold under the stated assumptions, the method offers an efficient linear alternative to nonlinear iterative calibration for MEMS IMUs on platforms supplying attitude (turntables, robotic arms, or IMUs), with the recursive extension enabling online use; the explicit construction of CEM and use of standard linear algebra for the homogeneous problem are strengths that could improve practicality for low-cost systems.

major comments (2)
  1. [Experiments] The CHLS formulation (min ||CEM · [g; 1]|| s.t. ||g||=1) treats attitude R as error-free and gravity as strictly constant across the five poses; the experiments section provides no sensitivity study or noise injection on R, leaving open whether attitude errors are absorbed into the recovered scale and non-orthogonality terms and thereby undermining the claim that five measurements suffice for accurate recovery.
  2. [Method (recursive extension)] The recursive online extension is presented as supporting in-field calibration, yet no analysis quantifies how deviations from the static-gravity assumption (e.g., platform dynamics or time-varying g) propagate into the CEM and bias the linear estimator.
minor comments (1)
  1. [Abstract] The abstract asserts outperformance without naming the quantitative error metrics (e.g., RMSE on scale factors or alignment angles) used in the comparisons; adding one sentence would improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the opportunity to respond to the referee's comments. We address each major comment below with clarifications based on the manuscript's assumptions and content, and indicate revisions where the points identify gaps.

read point-by-point responses

  1. Referee: [Experiments] The CHLS formulation (min ||CEM · [g; 1]|| s.t. ||g||=1) treats attitude R as error-free and gravity as strictly constant across the five poses; the experiments section provides no sensitivity study or noise injection on R, leaving open whether attitude errors are absorbed into the recovered scale and non-orthogonality terms and thereby undermining the claim that five measurements suffice for accurate recovery.

    Authors: The CHLS formulation in Sections 3–4 explicitly assumes error-free attitude R (provided by the platform) and constant g across poses, consistent with the attitude-aided setting. Experiments in Section 5 use a stationary robot mount and quasi-static trajectory satisfying these conditions. We agree that no sensitivity analysis to R noise is present, which leaves unquantified whether such errors are absorbed into scale/non-orthogonality estimates. We will add a sensitivity study in the revision by injecting controlled noise into R and reporting effects on parameter recovery and the five-measurement claim. revision: yes

  2. Referee: [Method (recursive extension)] The recursive online extension is presented as supporting in-field calibration, yet no analysis quantifies how deviations from the static-gravity assumption (e.g., platform dynamics or time-varying g) propagate into the CEM and bias the linear estimator.

    Authors: The recursive extension in Section 4.3 is derived directly from the batch CHLS solution under the static-gravity assumption and is evaluated on quasi-static data. We acknowledge the lack of explicit propagation analysis for dynamic deviations or time-varying g. In revision we will expand the discussion to clarify applicability limits to quasi-static conditions and note potential bias under dynamics, while preserving the original claims under the stated assumptions. revision: partial

Circularity Check

0 steps flagged

No significant circularity; derivation applies standard linear algebra to external attitude inputs.

full rationale

The ALAC method constructs a combined error matrix from known attitude R and measured acceleration, then solves the CHLS problem min ||CEM * [g; 1]|| subject to ||g||=1 in closed form. This is a direct application of linear algebra under the stated assumptions of accurate external attitude and static gravity; the recovered parameters (scale, bias, etc.) are not defined in terms of themselves, nor is any prediction fitted to a subset and renamed. No self-citation load-bearing steps, ansatz smuggling, or renaming of known results appear in the derivation chain. The approach is self-contained against the external benchmarks of attitude data and gravity constancy.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The central claim rests on the availability of accurate attitude data and the validity of the static-gravity model; the CEM is introduced as a modeling device without independent external validation in the abstract.

axioms (2)
  • domain assumption Platform provides accurate orientation information
    Invoked to enable attitude-aided formulation; stated in the opening description of the method.
  • domain assumption Measurements taken under static gravity
    Required for the CHLS formulation and joint bias-gravity estimation.
invented entities (1)
  • Combined Error Matrix (CEM) no independent evidence
    purpose: Unified representation of scale, non-orthogonality, alignment, and bias errors
    Introduced to allow linear least-squares; no external evidence supplied in abstract.
