REVIEW 3 major objections 5 minor 25 references

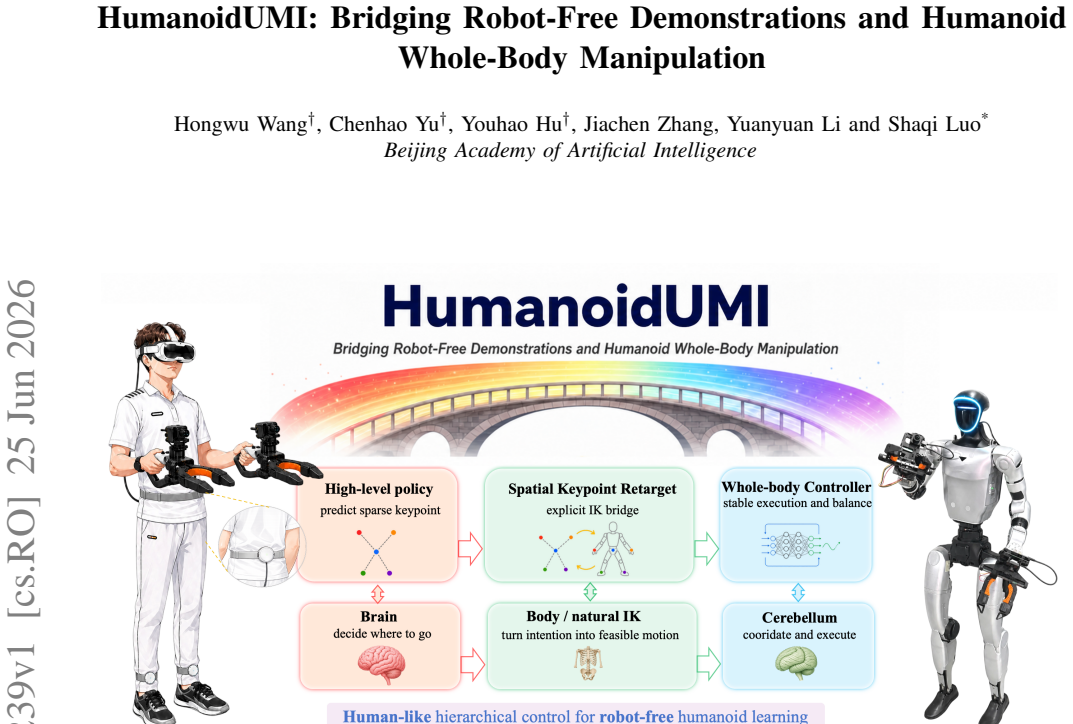

HumanoidUMI: Bridging Robot-Free Demonstrations and Humanoid Whole-Body Manipulation
T0 review · 3 major / 5 minor · reviewed 2026-07-12 · grok-4.5
Pith's one-line read Portable VR and handheld grippers let people teach humanoids whole-body skills without ever touching the robot.
desk verdict Solid portable robot-free humanoid demo pipeline with real G1 results and a clear efficiency win; the transfer claim is under-supported without a teleop-trained policy baseline. read the letter →
The pith
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
The reading
What carries the argument
Spatial Keypoint Retargeting (SKR): a morphology-aware bridge that keeps metric spatial relationships among five (or seven) task-space keypoints, applies only a fixed anisotropic vertical scale (λ_leg = 0.75) to leg-related points to match robot height, then solves a two-stage weighted inverse-kinematics problem to produce executable root pose and joint references.
What would settle it
On the same Unitree G1 and the same five tasks, replace SKR with a naïve global rescaling or pure joint-space retargeting of the identical human demos and measure whether success rates collapse relative to the reported SKR results, especially on under-table waste disposal and walking coffee delivery.
Extended reading notes
Core claim
Robot-free human demonstrations collected with a portable VR–UMI interface can be turned into deployable humanoid whole-body skills: a high-level diffusion policy predicts sparse keypoint trajectories, Spatial Keypoint Retargeting converts them into feasible robot references, and a learned whole-body controller executes them with balance on a physical Unitree G1 across five real tasks spanning single-arm, bimanual, dynamic, bending, and loco-manipulation behaviors.
Load-bearing premise
A handful of body keypoints plus wrist cameras, after one fixed leg-length scale and weighted inverse kinematics, still carries enough geometric information to close the human-to-robot body gap for coordinated whole-body skills.
Editorial extensions
If this is right
- Valid whole-body training data can be collected without the target humanoid present, lowering hardware and safety barriers.
- Novice operators can produce usable loco-manipulation demos at rates close to experienced users, reducing skill dependence.
- A single sparse keypoint interface plus a general whole-body controller can cover both quasi-static manipulation and timing-sensitive dynamic release.
- Hierarchical separation of task-space prediction, retargeting, and low-level tracking makes the same human demos reusable across different humanoid morphologies once SKR is re-calibrated.
Reading between the lines
- If the sparse keypoint set proves sufficient, large-scale in-the-wild humanoid datasets could be gathered by ordinary people with consumer VR kits rather than robot labs.
- The same hierarchy may transfer to other morphologically mismatched platforms (e.g., different bipedal robots) by changing only the SKR scale and IK weights.
- Wrist-view-only sensing may limit long-horizon spatial memory; adding a sparse third-person or head-mounted stream is a natural next stress test.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. HumanoidUMI presents a robot-free pipeline for collecting and deploying humanoid whole-body manipulation demonstrations. Using a PICO VR full-body capture setup and UMI-inspired dual handheld grippers, the system records wrist-view fisheye images, gripper widths, and a sparse five-keypoint (or seven-keypoint) trajectory of pelvis, TCPs, feet (and optionally knees). A diffusion policy predicts future relative keypoint motions and gripper actions conditioned on wrist views and lower-body proprioception; Spatial Keypoint Retargeting (SKR) applies a fixed anisotropic leg scale λ_leg=0.75 and weighted two-stage IK to produce robot-native root/joint references; a learned whole-body controller tracks those references on a Unitree G1. Real-robot experiments cover five tasks (cluttered pick-and-place, bimanual vegetable collection, dynamic ball throwing, under-table waste disposal, walking coffee delivery), with ablations of SKR vs GMR, latency matching, and 5- vs 7-keypoint layouts, plus a throughput comparison against TWIST2 teleoperation.
Significance. If the transfer claim holds, the work offers a practical, low-cost route to scalable humanoid whole-body data without robot-in-the-loop teleoperation, extending the UMI paradigm to coordinated loco-manipulation. Strengths include a clear hierarchical separation of task-space prediction, morphology-aware retargeting, and low-level tracking; real G1 deployment across five qualitatively different tasks; and concrete ablations (SKR, latency matching, knee keypoints) plus a quantified collection-efficiency gain over TWIST2. The sparse keypoint interface and online SKR visualization during collection are useful engineering contributions for the community.
major comments (3)
- The central claim is that robot-free demos yield transferable, deployable whole-body skills, not only that demos can be collected faster. §IV.A–B report success rates only for HumanoidUMI-trained policies (and internal ablations of SKR, latency matching, and 5- vs 7-keypoint layouts). §IV.C / Table I compare only valid-demo throughput vs TWIST2, not policy quality under matched data budgets or identical evaluation protocols. Without a teleop-trained (or embodiment-matched) policy baseline on the same five tasks, high success is consistent with either successful morphology-gap closure or with tasks that a competent whole-body controller can solve once any reasonable high-level policy is available. An apples-to-apples policy comparison is load-bearing for the transfer claim.

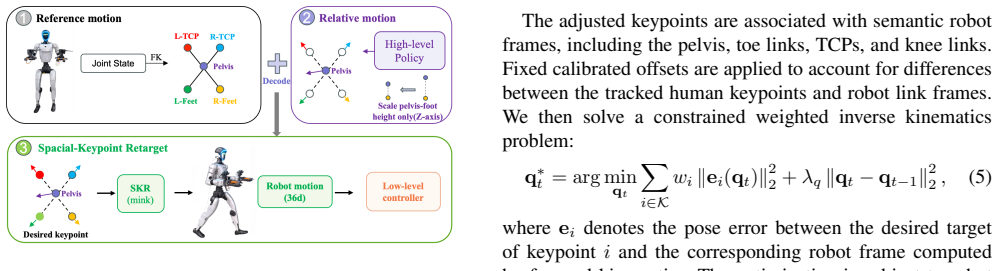

- §III.C, Eqs. (4)–(5): SKR relies on a single free scale λ_leg=0.75 and fixed two-stage weighted IK. The paper does not report sensitivity of success rates to λ_leg, to the IK weights w_i / λ_q, or to alternative morphology-compensation schemes. Given that the weakest technical assumption is that this sparse anisotropic adjustment plus IK sufficiently closes the human–G1 gap for loco-manipulation, a short sensitivity study (or failure-mode analysis when λ_leg is misspecified) is needed to support that the interface is robust rather than tuned to the present demonstrator and robot.

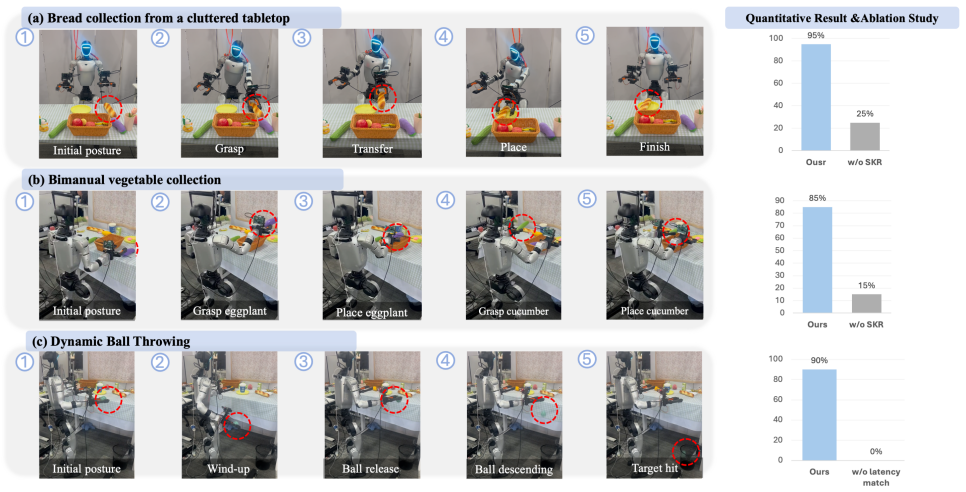

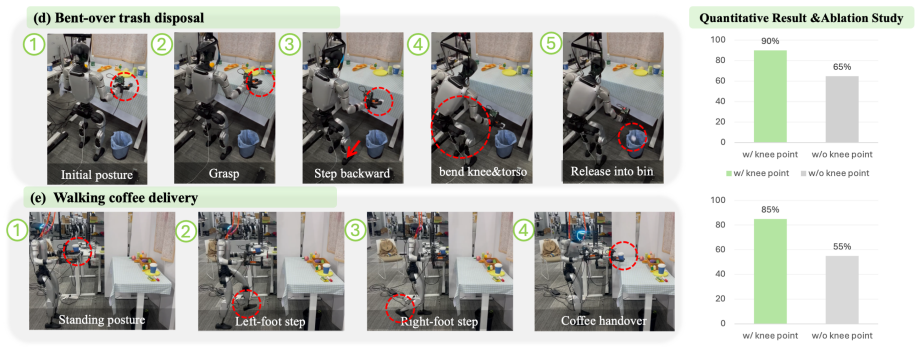

- Success rates in Figs. 6–7 are given as point estimates over 20 trials with no error bars, confidence intervals, or statistical comparison. For the ablations that are used to justify SKR and latency matching, binomial CIs or a simple significance test would make the claimed improvements interpretable and would strengthen the empirical support for the hierarchical design.
minor comments (5)
- Fig. 6 and Fig. 7 captions refer to “left-side bar plots” of success rates; ensure the published figures include numerical labels or a table of exact rates so readers can recover the values without visual estimation.

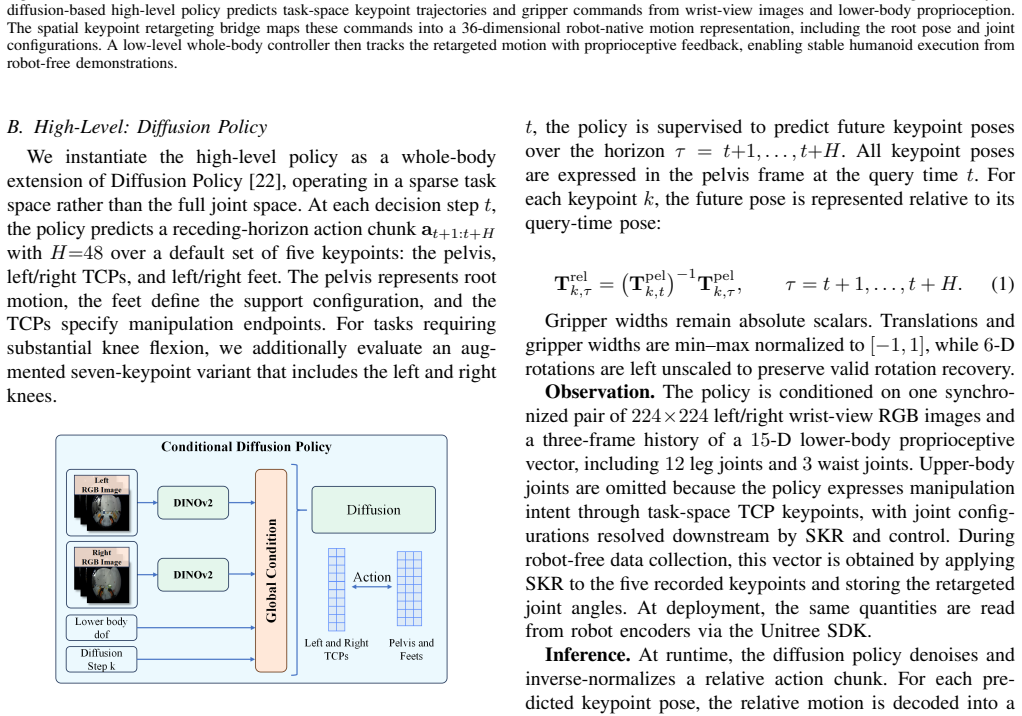

- §III.B: the action dimension is stated as 5×9+2=47 (and 65 for seven keypoints). A brief note clarifying that the 6-D rotation is the continuous representation of Zhou et al. and how it is recovered at inference would help reproducibility.
- Latency-matching procedure is only referenced to UMI; a short description of the measured delays (camera, gripper encoder, policy, control) for the G1 setup would make the dynamic-throwing result more self-contained.
- Related work correctly positions HuMI and HoMMI; a one-sentence clarification of how online SKR during collection differs from HuMI’s retargeting coupling would sharpen the novelty claim.
- Minor notation: T_rel and T_pel in Eqs. (1)–(2) would benefit from an explicit statement that all poses are SE(3) and that gripper widths remain absolute scalars after min–max normalization of translations.
Circularity Check
No circularity: empirical systems paper whose success rates and throughput are external physical measurements, not algebraic restatements of fitted inputs.
full rationale

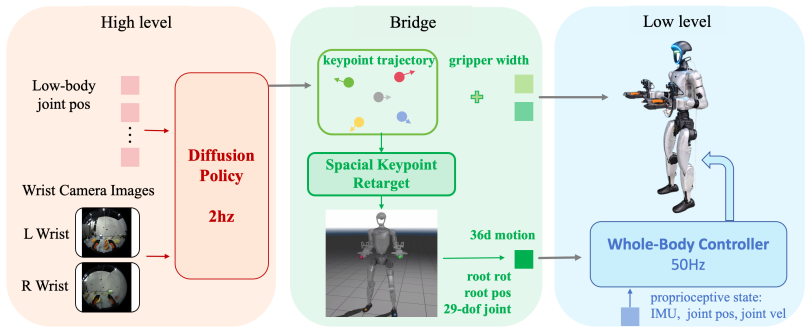

HumanoidUMI is a robot-free data-collection and hierarchical control pipeline (VR–UMI demos → diffusion keypoint policy → Spatial Keypoint Retargeting → learned whole-body controller). The load-bearing claims are (i) physical success rates on five Unitree G1 tasks and (ii) valid-demo throughput vs TWIST2 (Table I). Neither quantity is defined in terms of the other, nor recovered by construction from a fitted constant. λ_leg=0.75 (Eq. 4) is an explicit free morphology scale, not a predicted observable; SKR (Eq. 5) is a constrained IK design choice, not a uniqueness theorem. Self-citations to UMI/HuMI/OmniUMI supply background methods and do not define the reported success rates or force the efficiency comparison. Policy “predictions” are standard learned action chunks evaluated on real-robot trials. No self-definitional loop, fitted-input-as-prediction, load-bearing self-citation uniqueness claim, or renamed known result appears in the derivation chain. Circularity score is therefore 0; concerns about missing teleop-trained policy baselines are completeness/correctness issues, not circularity.
Assumptions & free parameters
free parameters (4)
- λ_leg (pelvis-relative vertical leg scale)
- Diffusion action horizon H
- SKR IK weights w_i, λ_q and two-stage prioritization
- Low-level residual action scale s and clip a_max
assumptions (5)
- domain assumption Sparse task-space keypoints (pelvis, TCPs, feet; optional knees) plus wrist RGB and lower-body proprioception are a sufficient interface for whole-body visuomotor intent.
- ad hoc to paper Morphology mismatch is adequately handled by anisotropic vertical leg scaling plus constrained IK without full mesh/contact retargeting.
- domain assumption A learned whole-body motion tracker trained in simulation (MJLab) can execute SKR references on the physical G1 with balance under contact tasks.
- domain assumption Diffusion Policy in relative pelvis-frame keypoint space is an appropriate high-level learner for these demos.
- domain assumption Valid demonstration throughput in 10 minutes is a meaningful proxy for collection efficiency relevant to scalable humanoid learning.
invented entities (3)
-

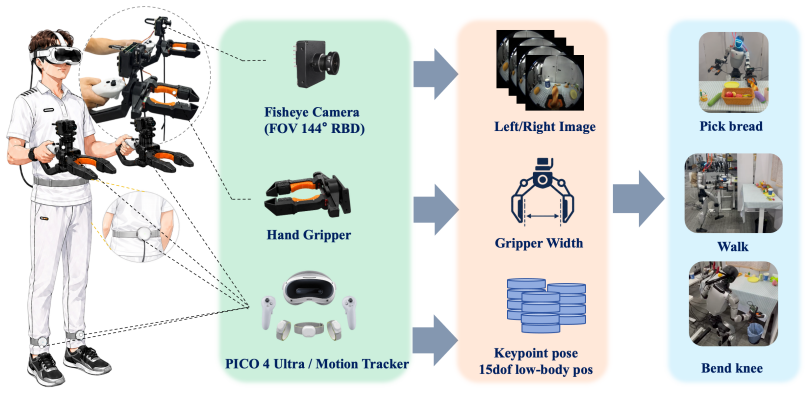

HumanoidUMI data-collection stack (PICO full-body + UMI-inspired dual grippers)
-
Spatial Keypoint Retargeting (SKR)
-
Default 5-keypoint / augmented 7-keypoint whole-body task interface
Cite this review
Pith. "Pith review of HumanoidUMI: Bridging Robot-Free Demonstrations and Humanoid Whole-Body Manipulation." pith.science (2026). https://pith.science/paper/5YK7W5VP
@misc{pith2026260627239,
author = {Pith},
title = {Pith review of: HumanoidUMI: Bridging Robot-Free Demonstrations and Humanoid Whole-Body Manipulation},
year = {2026},
howpublished = {\url{https://pith.science/paper/5YK7W5VP}},
note = {Machine review of arXiv:2606.27239}
}
read the original abstract
High-quality demonstration data are essential for humanoid robot skill learning, especially for whole-body behaviors that require coordinated perception, locomotion, and manipulation. Existing data-collection methods largely rely on robot teleoperation, which is constrained by hardware accessibility, operator expertise, and limited efficiency. Inspired by the Universal Manipulation Interface (UMI), we propose HumanoidUMI, a portable and robot-free framework for humanoid whole-body data collection. HumanoidUMI uses lightweight VR devices and UMI-inspired grippers to collect sparse human keypoint trajectories, wrist-view observations, and gripper actions. These demonstrations train a high-level policy to predict future keypoints, which are retargeted to robot-native whole-body references and executed by a whole-body controller. Experiments in five real-world scenarios demonstrate the effectiveness of the proposed framework and validate the collected demonstrations for transferable humanoid whole-body skill learning.
Figures
Figures from the paper (4 more)
Reference graph
Works this paper leans on
-
[1]
Droid: A large-scale in-the-wild robot manipulation dataset,
A. Khazatsky, K. Pertsch, S. Nair, A. Balakrishna, S. Dasari, S. Karam- cheti, S. Nasiriany, M. K. Srirama, L. Y . Chen, K. Ellis,et al., “Droid: A large-scale in-the-wild robot manipulation dataset,” inProceedings of Robotics: Science and Systems, Delft, Netherlands, July 2024
2024
-
[2]
Twist2: Scalable, portable, and holistic humanoid data collection system,
Y . Ze, S. Zhao, W. Wang, A. Kanazawa, R. Duan, P. Abbeel, G. Shi, J. Wu, and C. K. Liu, “Twist2: Scalable, portable, and holistic humanoid data collection system,” in2026 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2026
2026
-
[3]
Humanplus: Humanoid shadowing and imitation from humans,
Z. Fu, Q. Zhao, Q. Wu, G. Wetzstein, and C. Finn, “Humanplus: Humanoid shadowing and imitation from humans,” inProceedings of The 8th Conference on Robot Learning, ser. Proceedings of Machine Learning Research, vol. 270. PMLR, 2025, pp. 2828–2844
2025
-
[4]
Clone: Closed-loop whole-body humanoid teleoperation for long-horizon tasks,
Y . Li, Y . Lin, J. Cui, T. Liu, W. Liang, Y . Zhu, and S. Huang, “Clone: Closed-loop whole-body humanoid teleoperation for long-horizon tasks,” 2025. [Online]. Available: https://arxiv.org/abs/2506.08931
arXiv 2025
-
[5]
Mobile-television: Predictive motion priors for humanoid whole-body control,
C. Lu, X. Cheng, J. Li, S. Yang, M. Ji, C. Yuan, G. Yang, S. Yi, and X. Wang, “Mobile-television: Predictive motion priors for humanoid whole-body control,” in2025 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2025
2025
-
[6]
Learning versatile humanoid manipulation with touch dreaming,
Y . Niu, Z. Fang, B. Chen, S. Zhou, R. Senthilkumaran, H. Zhang, B. Chen, C. Qiu, H. E. Tseng, J. Francis, and D. Zhao, “Learning versatile humanoid manipulation with touch dreaming,” 2026. [Online]. Available: https://arxiv.org/abs/2604.13015
arXiv 2026
-
[7]
Learning human-to-humanoid real-time whole-body teleoperation,
T. He, Z. Luo, W. Xiao, C. Zhang, K. Kitani, C. Liu, and G. Shi, “Learning human-to-humanoid real-time whole-body teleoperation,” in2024 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, 2024, pp. 8944–8951
2024
-
[8]
Omnih2o: Universal and dexterous human-to- humanoid whole-body teleoperation and learning,
T. He, Z. Luo, X. He, W. Xiao, C. Zhang, W. Zhang, K. M. Kitani, C. Liu, and G. Shi, “Omnih2o: Universal and dexterous human-to- humanoid whole-body teleoperation and learning,” inProceedings of The 8th Conference on Robot Learning, ser. Proceedings of Machine Learning Research, vol. 270. PMLR, 2025, pp. 1516–1540
2025
Show all 25 references
-
[9]
Universal manipulation interface: In-the-wild robot teaching without in-the-wild robots,
C. Chi, Z. Xu, C. Pan, E. Cousineau, B. Burchfiel, S. Feng, R. Tedrake, and S. Song, “Universal manipulation interface: In-the-wild robot teaching without in-the-wild robots,” inProceedings of Robotics: Science and Systems (RSS), 2024
2024
-
[10]
Omniumi: Towards physically grounded robot learning via human-aligned multimodal interaction,
S. Luo, Y . Li, Y . Hu, C. Yu, C. Xu, J. Zhang, G. Yao, T. Huang, R. He, and Z. Wang, “Omniumi: Towards physically grounded robot learning via human-aligned multimodal interaction,”arXiv preprint arXiv:2604.10647, 2026
2026 arXiv
-
[11]
Data scaling laws in imitation learning for robotic manipulation,
F. Lin, Y . Hu, P. Sheng, C. Wen, J. You, and Y . Gao, “Data scaling laws in imitation learning for robotic manipulation,” inInternational Conference on Learning Representations (ICLR), 2025
2025
-
[12]
In-the-wild compliant manipulation with umi-ft,
H. Choi, Y . Hou, C. Pan, S. Hong, A. Patel, X. Xu, M. R. Cutkosky, and S. Song, “In-the-wild compliant manipulation with umi-ft,” in 2026 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2026
2026
-
[13]
Activeumi: Robotic manipulation with active perception from robot-free human demonstrations,
Q. Zeng, C. Li, J. St. John, Z. Zhou, J. Wen, G. Feng, Y . Zhu, and Y . Xu, “Activeumi: Robotic manipulation with active perception from robot-free human demonstrations,” 2025. [Online]. Available: https://arxiv.org/abs/2510.01607
2025
-
[14]
Umi-on-legs: Making manipulation policies mobile with manipulation-centric whole-body controllers,
H. Ha, Y . Gao, Z. Fu, J. Tan, and S. Song, “Umi-on-legs: Making manipulation policies mobile with manipulation-centric whole-body controllers,” inProceedings of The 8th Conference on Robot Learning, ser. Proceedings of Machine Learning Research, vol. 270. PMLR, 2025, pp. 5254–5270
2025
-
[15]
Umi-on-air: Embodiment-aware guidance for embodiment-agnostic visuomotor policies,
H. Gupta, X. Guo, H. Ha, C. Pan, M. Cao, D. Lee, S. Scherer, S. Song, and G. Shi, “Umi-on-air: Embodiment-aware guidance for embodiment-agnostic visuomotor policies,” in2026 IEEE Interna- tional Conference on Robotics and Automation (ICRA). IEEE, 2026
2026
-
[16]
Hommi: Learning whole-body mobile manipulation from human demonstrations,
X. Xu, J. Park, H. Zhang, E. Cousineau, A. Bhat, J. Barreiros, D. Wang, J. Bohg, and S. Song, “Hommi: Learning whole-body mobile manipulation from human demonstrations,” inProceedings of Robotics: Science and Systems (RSS), 2026
2026
-
[17]
Humanoid manipulation interface: Humanoid whole-body manipulation from robot-free demonstrations,
R. Nai, B. Zheng, J. Zhao, H. Zhu, S. Dai, Z. Chen, Y . Hu, Y . Hu, T. Zhang, C. Wen,et al., “Humanoid manipulation interface: Humanoid whole-body manipulation from robot-free demonstrations,” arXiv preprint arXiv:2602.06643, 2026
2026
-
[18]
Learning fine-grained bimanual manipulation with low-cost hardware,
T. Z. Zhao, V . Kumar, S. Levine, and C. Finn, “Learning fine-grained bimanual manipulation with low-cost hardware,” inProceedings of Robotics: Science and Systems, Daegu, Republic of Korea, July 2023
2023
-
[19]
Mobile aloha: Learning bimanual mobile manipulation using low-cost whole-body teleoperation,
Z. Fu, T. Z. Zhao, and C. Finn, “Mobile aloha: Learning bimanual mobile manipulation using low-cost whole-body teleoperation,” in Proceedings of The 8th Conference on Robot Learning, ser. Proceed- ings of Machine Learning Research, vol. 270. PMLR, 2025, pp. 4066–4083
2025
-
[20]
Egohumanoid: Unlocking in-the-wild loco-manipulation with robot-free egocentric demonstration,
M. Shi, S. Peng, J. Chen, H. Jiang, Y . Li, D. Huang, P. Luo, H. Li, and L. Chen, “Egohumanoid: Unlocking in-the-wild loco-manipulation with robot-free egocentric demonstration,” 2026. [Online]. Available: https://arxiv.org/abs/2602.10106
2026 arXiv
-
[21]
Xrobotoolkit: A cross-platform framework for robot teleoperation,
Z. Zhao, L. Yu, K. Jing, and N. Yang, “Xrobotoolkit: A cross-platform framework for robot teleoperation,” in2026 IEEE/SICE International Symposium on System Integration (SII). IEEE, 2026, pp. 15–20
2026
-
[22]
Diffusion policy: Visuomotor policy learning via action diffusion,
C. Chi, S. Feng, Y . Du, Z. Xu, E. Cousineau, B. Burchfiel, and S. Song, “Diffusion policy: Visuomotor policy learning via action diffusion,” in Proceedings of Robotics: Science and Systems (RSS), 2023
2023
-
[23]
On the continuity of rotation representations in neural networks,
Y . Zhou, C. Barnes, J. Lu, J. Yang, and H. Li, “On the continuity of rotation representations in neural networks,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2019, pp. 5745–5753
2019
-
[24]
mjlab: A Lightweight Framework for GPU-Accelerated Robot Learn- ing,
K. Zakka, Q. Liao, B. Yi, L. Le Lay, K. Sreenath, and P. Abbeel, “mjlab: A Lightweight Framework for GPU-Accelerated Robot Learn- ing,” 2026
2026
-
[25]
Retargeting matters: General motion retargeting for humanoid motion tracking,
J. P. Araujo, Y . Ze, P. Xu, J. Wu, and C. K. Liu, “Retargeting matters: General motion retargeting for humanoid motion tracking,” in2026 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2026
2026
