Sketch Bug: Using Sketch-Based Input for Interactive Code Debugging

Helen Weixu Chen , Daniel Vogel This is my paper

Pith reviewed 2026-06-30 14:30 UTC · model grok-4.3

classification 💻 cs.HC
keywords sketch-based inputinteractive debuggingpen inputgesture recognitionexecution controlprogrammer studyPython debugging
0
0 comments X

The pith

Sketch-like pen input supports execution control tasks in debugging but introduces challenges in precision and gesture recall.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper investigates sketch-based pen input as an alternative to mouse and keyboard for controlling program execution during debugging. The prototype allows drawing marks to set breakpoints, symbolic strokes to step through code, and spirals to repeat actions, integrated with Python execution tracing. In a study with 24 programmers performing tasks like breakpoint placement and state inspection, the sketch method was found to handle these tasks effectively. However, it also presented issues with precise input, accurate recognition of gestures, and users remembering the gestures. The approach appears suitable particularly for debugging interactions that leverage spatial positioning or continuous gestures rather than replacing all traditional controls.

Core claim

The results show that sketch-like input can support these execution-control tasks, while also introducing challenges in precision, recognition, and gesture recall. Our findings suggest that pen input is most promising where debugger interactions benefit from spatial grounding or continuous movement, rather than as a wholesale replacement for conventional debugging controls.

What carries the argument

Sketch interface using gesture recognition combined with Python execution tracing in an editor, where lightweight marks set breakpoints, strokes control execution, and extended strokes into spirals repeat traversals.

If this is right

  • Sketch input enables programmers to set breakpoints and control execution steps via drawing.
  • Pen-based methods are viable for spatial or continuous debugging actions.
  • Precision, recognition accuracy, and gesture recall remain key hurdles to overcome.
  • Conventional mouse and keyboard remain preferable for many debugging interactions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Deploying the prototype in actual development environments could test its utility in complex, real projects.
  • Gesture sets might be standardized across tools to improve recall.
  • Combining sketch input with other modalities could address precision issues.
  • Similar techniques could extend to debugging in visual programming languages.

Load-bearing premise

The specific debugging tasks and the prototype used in the controlled study are representative of everyday debugging practice.

What would settle it

Observing that professional developers using the sketch interface on their daily work show no measurable improvement in debugging efficiency or preference over standard interfaces.

Figures

Figures reproduced from arXiv: 2605.24228 by Daniel Vogel, Helen Weixu Chen.

Figure 1

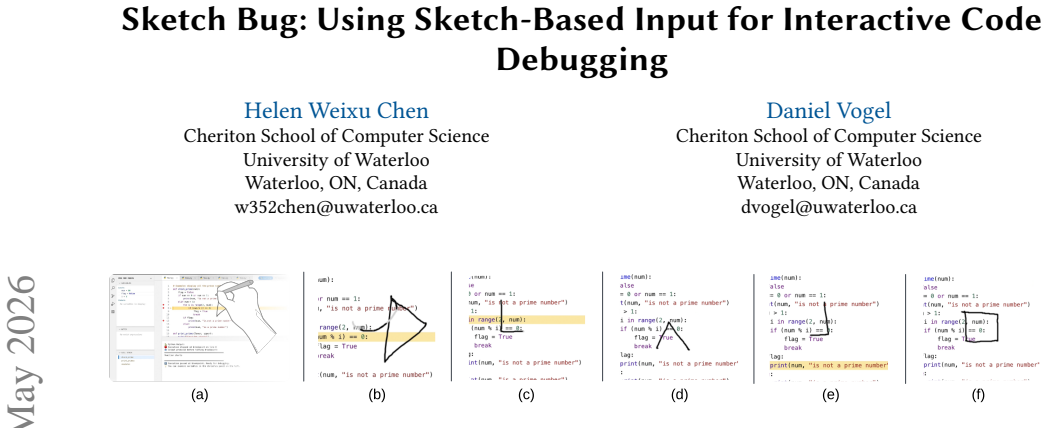

Figure 1. Figure 1: Sketch-like pen gestures: (a) a programmer draws a continue symbol on the canvas; (b) after a 300ms dwell, they add [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

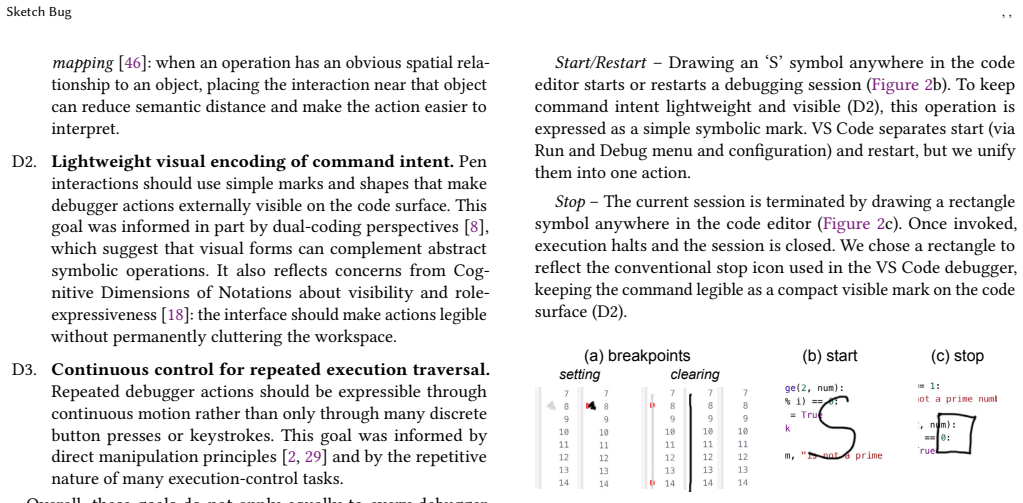

Figure 2. Figure 2: Session control interactions: (a) set and remove [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

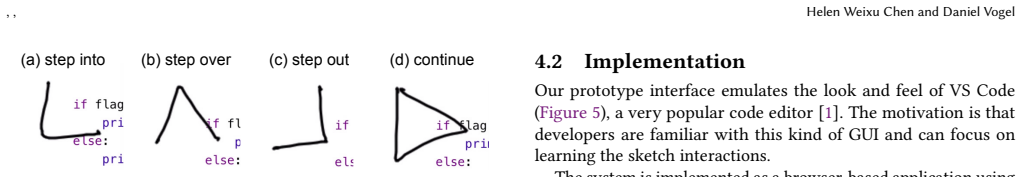

Figure 3. Figure 3: Execution flow strokes: (a) step into with ‘L’ shape; [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

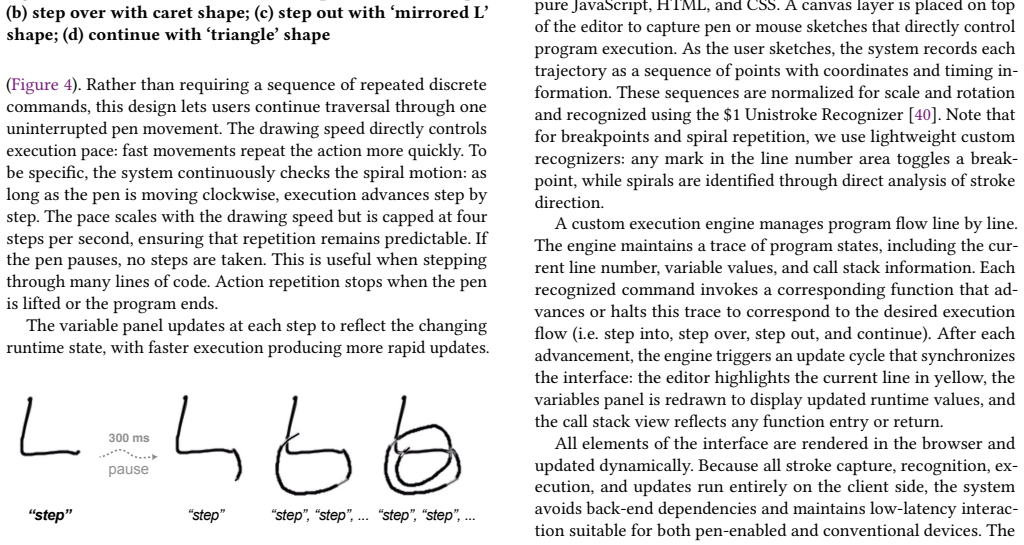

Figure 4. Figure 4: Repeating spiral: draw an execution stroke, pause [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

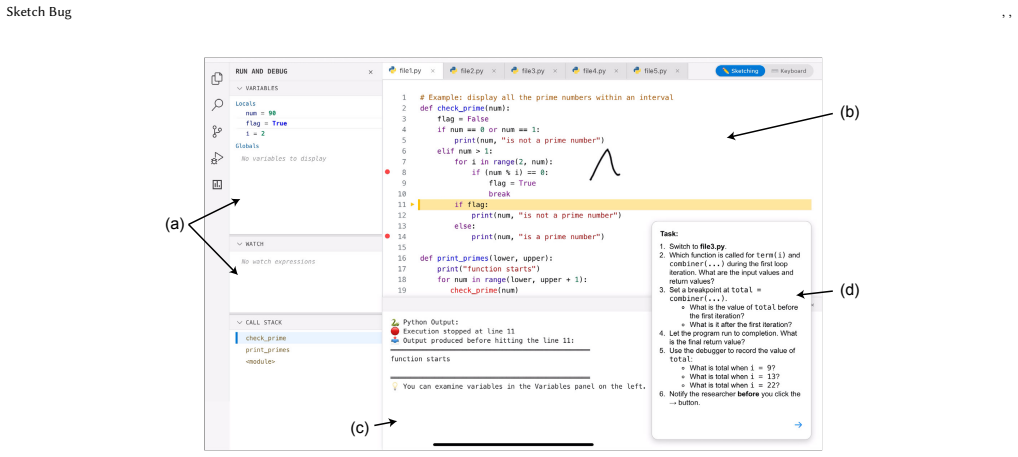

Figure 5. Figure 5: Simulated VS Code interactive debugging user interface: (a) debug information panels; (b) code editor with overlaid [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6

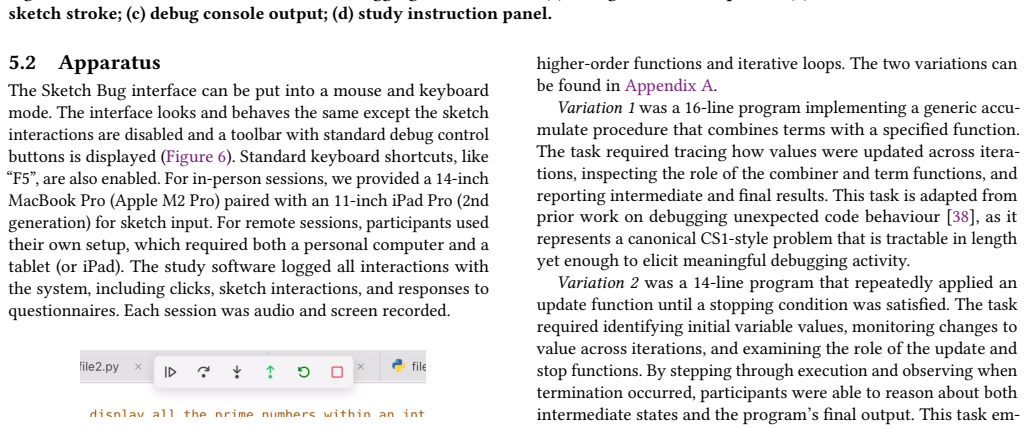

Figure 6. Figure 6: Standard debug control buttons for mouse and key [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7

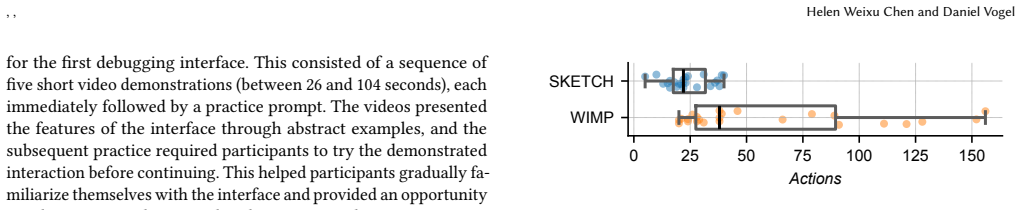

Figure 7. Figure 7: Actions by interface technique. repeating spiral, can compress multiple repeated commands into a single stroke, this measure should be interpreted as the number of discrete interaction units rather than as a direct measure of effort. Participants produced fewer such interaction units with sketch than with wimp (see [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
read the original abstract

We investigate sketch-like pen input as an alternative way to support execution control in interactive debugging. In our interface, programmers draw lightweight marks to set breakpoints, use symbolic strokes to control execution, and extend strokes into spirals to repeat traversal actions. The prototype combines gesture recognition with Python execution tracing in a conventional editor interface. In a controlled study with 24 programmers, we compared the sketch interface with conventional mouse-and-keyboard input on debugging tasks that required breakpoint placement, step-wise execution, and runtime state inspection. The results show that sketch-like input can support these execution-control tasks, while also introducing challenges in precision, recognition, and gesture recall. Our findings suggest that pen input is most promising where debugger interactions benefit from spatial grounding or continuous movement, rather than as a wholesale replacement for conventional debugging controls.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The paper presents 'Sketch Bug', an interface using sketch-based pen input for debugging tasks: drawing marks to set breakpoints, symbolic strokes for execution control (e.g., stepping), and extending strokes into spirals to repeat actions. The prototype integrates gesture recognition with Python execution tracing in a standard editor. It reports a controlled study with 24 programmers comparing the sketch interface to conventional mouse-and-keyboard input on tasks requiring breakpoint placement, step-wise execution, and runtime state inspection. Results indicate sketch input can support these tasks but introduces challenges in precision, recognition, and gesture recall; the authors conclude it is most promising for interactions benefiting from spatial grounding or continuous movement rather than as a full replacement.

Significance. If the empirical results hold, this contributes to HCI research on programming tools by providing evidence for an alternative input modality in debugging, highlighting scenarios where pen input may offer advantages over discrete controls. The tempered conclusions (not claiming wholesale replacement) and focus on specific benefits strengthen the work's utility for guiding future interface designs in spatially-oriented debugging contexts.

major comments (1)
  1. [Methods] Methods section (study design): The description of the controlled tasks does not specify code complexity details such as presence of loops, nested conditionals, repeated state inspections, or multi-file navigation. This is load-bearing for assessing whether the observed support for breakpoint, stepping, and inspection tasks generalizes beyond short single-file snippets, as precision and recall challenges could compound in realistic sessions.
minor comments (2)
  1. [Abstract] Abstract and results: No statistical details (e.g., means, p-values, error bars, or effect sizes) are provided for the comparison between interfaces, making it difficult to evaluate the strength of the 'can support' claim.
  2. [Results] The paper should include a table or figure summarizing task performance metrics across conditions to allow direct comparison.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and positive assessment of the work's contribution. We address the major comment below.

read point-by-point responses

  1. Referee: [Methods] Methods section (study design): The description of the controlled tasks does not specify code complexity details such as presence of loops, nested conditionals, repeated state inspections, or multi-file navigation. This is load-bearing for assessing whether the observed support for breakpoint, stepping, and inspection tasks generalizes beyond short single-file snippets, as precision and recall challenges could compound in realistic sessions.

    Authors: We agree that explicit details on task code complexity are important for evaluating generalizability. Our study tasks used short single-file Python programs (20-40 LOC) containing loops, nested conditionals, and multiple state inspections to require repeated stepping and inspection actions, but without multi-file navigation. We will revise the Methods section to include quantitative metrics (e.g., LOC, control-flow nesting depth, number of inspection points) and example code snippets so readers can assess how precision/recall issues might scale. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical user study grounded in external participant data

full rationale

The paper reports a controlled study with 24 programmers measuring task performance on breakpoint placement, step-wise execution, and state inspection using sketch input versus mouse/keyboard. All claims rest on observed participant outcomes against external benchmarks rather than any derivation, fitted parameters, equations, or self-citation chains. No self-definitional steps, predictions that reduce to inputs, or load-bearing self-citations appear in the abstract or study description. This matches the default expectation for non-circular empirical HCI work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the validity of the user-study design, the accuracy of the gesture recognizer, and the assumption that the chosen tasks capture the relevant aspects of debugging; no free parameters, invented entities, or non-standard axioms are introduced in the abstract.

axioms (1)
  • domain assumption Standard assumptions of controlled user studies in HCI (task representativeness, participant pool validity, absence of major learning effects between conditions)
    Invoked implicitly when generalizing from the 24-participant lab study to broader claims about sketch input utility.
