Material-Anisotropy-Driven Topological Optical Lattices on Thin-Film Lithium Niobate

Siyuan Zhang , Baoqi Shi , Lei Gui , Xiangle Li , Junna Yao , Zhaosheng Chu , Jun Xu , Qiwen Zhan
show 2 more authors
Junqiu Liu Anting Wang
This is my paper

Reviewed by Pith T0 review T1 audit T2 compute T3 formal T4 kernel 2026-06-26 09:52 UTCgrok-4.3pith:7OMBHNPDrecord.jsonopen to challenge →

classification physics.optics
keywords thin film lithium niobatematerial anisotropyorbital angular momentummicroring resonatortopological sidebandswhispering gallery modesstructured lightvortex emitter
0
0 comments X

The pith

Intrinsic material anisotropy in X-cut TFLN microrings generates coherent OAM sideband lattices from each resonance.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that the crystal anisotropy inherent to X-cut thin-film lithium niobate can function as an angular-momentum coupler in microring devices. A circulating light mode experiences a repeating change in effective index due to the fixed optical axis orientation, which imprints an azimuthal phase pattern. This pattern splits each basic vortex mode into a family of modes whose charges differ by even integers and whose strengths follow a Bessel distribution. The result is a set of resonance-addressable topological lattices that produce self-healing annular beams, all without added gratings or metasurfaces.

Core claim

In X-cut thin-film lithium niobate microring vortex emitters, the in-plane optical axis causes a circulating whispering-gallery mode to sample a periodically varying effective index, producing continuous azimuthal phase modulation. This modulation converts each resonance from a nominal single-charge emitter into a coherent topological sideband lattice with charges l equal to the principal charge plus twice an integer and with Bessel-weighted amplitudes. Broadband measurements resolve principal-charge series from negative thirteen to positive thirteen, and devices with different free spectral ranges demonstrate scalable addressability. The lattices are reproduced by a Fourier-Bessel model and

What carries the argument

The periodic effective-index variation sampled by whispering-gallery modes due to the in-plane optical axis in X-cut thin-film lithium niobate, which generates continuous azimuthal phase modulation.

If this is right

  • Each microring resonance emits a lattice of OAM charges spaced by two units with Bessel function amplitudes.
  • Free spectral range choice allows control over resonance spacing and thus lattice addressability.
  • Emitted fields focus to perfect vortex rings and self-heal after obstruction.
  • Waveguide effects add circular polarization that couples spin to the orbital lattice.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The approach may extend to other birefringent platforms to simplify high-dimensional light generation.
  • Charge spacing by two could interact with existing OAM sorters or holograms in new ways.
  • Varying ring geometry might allow independent tuning of modulation depth and resonance conditions.

Load-bearing premise

The fixed in-plane optical axis causes the circulating mode to experience a continuously changing effective index around the circumference of the ring.

What would settle it

Direct measurement of the emitted light showing only isolated single OAM charges without accompanying sidebands at the predicted spacings, or mismatch between measured intensity patterns and the Fourier-Bessel prediction.

Figures

Figures reproduced from arXiv: 2606.22569 by Anting Wang, Baoqi Shi, Junna Yao, Junqiu Liu, Jun Xu, Lei Gui, Qiwen Zhan, Siyuan Zhang, Xiangle Li, Zhaosheng Chu.

Figure 1

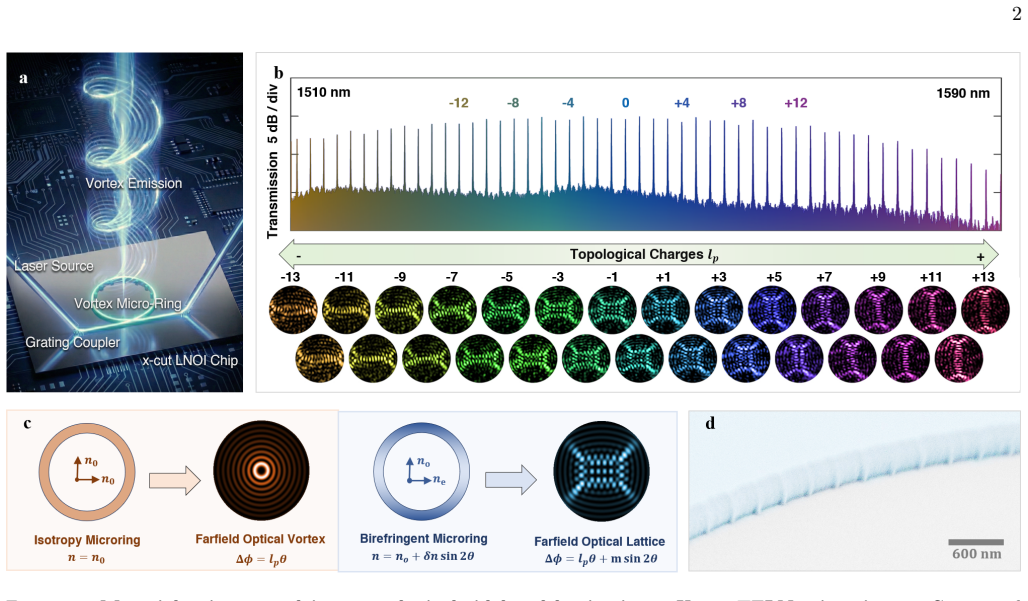

Figure 1. Figure 1: Material-anisotropy-driven topological sideband lattice in an X-cut TFLN microring. a, Conceptual schematic of the TFLN vortex emitter. A continuous-wave laser is coupled into the bus waveguide through on-chip grating couplers and excites a sidewall-grating microring, which radiates structured light into free space. b, Measured free-space scattered optical power during a broadband wavelength sweep. The low… view at source ↗
Figure 2
Figure 2. Figure 2: Bessel-weighted sideband lattices and propagation dynamics. a, Analytical far-field intensity patterns calculated from the Fourier–Bessel model for representative positive principal charges (lp = +1, +3, +5, +7, +9, +11). b, Corresponding experimentally captured far-field intensity distributions. c, Optical configuration for the propagation and self￾healing experiment. Dashed and solid camera boxes mark ax… view at source ↗
Figure 3
Figure 3. Figure 3: Projection-based modal check of the anisotropy-induced OAM sidebands. a, Single-frame visualization of selected projection channels generated with a 5×5 Dammann vortex grating over the charge range from l = −12 to l = +12. b, Schematic of the spatial-light-modulator (SLM)-based projection setup. c, Projection-derived modal response obtained by scanning a single helical phase mask e ilSLMθ and recording the… view at source ↗
read the original abstract

Integrated structured-light sources usually obtain high-dimensional orbital angular momentum (OAM) states by encoding each channel into separate gratings, waveguides or metasurfaces, which ties modal capacity to structural complexity. Here we show that intrinsic material anisotropy can instead act as a built-in angular-momentum coupler. In an X-cut thin-film lithium niobate (TFLN) microring vortex emitter, the in-plane optical axis causes a circulating whispering-gallery mode to sample a periodically varying effective index, producing continuous azimuthal phase modulation. This modulation converts each resonance from a nominal single-charge emitter into a coherent topological sideband lattice with charges l=l_p+2n and Bessel-weighted amplitudes. Broadband measurements resolve a representative principal-charge series from l_p=-13 to +13, while additional devices with 100 and 200 GHz free spectral ranges (FSRs) show scalable resonance addressability. The emitted lattices are reproduced by a forward-calculated Fourier--Bessel model, supported by OAM projection measurements, and exhibit focusing into annular perfect-vortex fields and self-healing after obstruction. Waveguide-induced circular polarization further adds a vectorial spin--orbit channel. These results turn TFLN anisotropy from a material constraint into a compact mechanism for resonance-addressed high-dimensional structured-light generation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript claims that intrinsic in-plane anisotropy in X-cut TFLN microring vortex emitters acts as a built-in angular-momentum coupler: a circulating TE-like WGM samples a periodically varying n_eff(phi), imparting continuous azimuthal phase modulation that converts each nominal single-charge resonance into a coherent topological sideband lattice with charges l = l_p + 2n and Bessel-weighted amplitudes. Broadband measurements resolve principal-charge series from l_p = -13 to +13; devices with 100/200 GHz FSRs demonstrate addressability; the lattices are reproduced by a forward-calculated Fourier-Bessel model, confirmed by OAM projection, and exhibit annular perfect-vortex focusing and self-healing. Waveguide-induced circular polarization adds a spin-orbit channel.

Significance. If the central mechanism holds, the work converts a standard material constraint into a compact, fabrication-free route to resonance-addressed high-dimensional OAM lattices, reducing structural complexity relative to grating- or metasurface-based emitters. Strengths include the experimental resolution of multiple charge series, forward model without explicit post-hoc fitting claims, OAM projection data, and demonstration of self-healing and vectorial properties across scalable FSRs.

major comments (2)
  1. [Abstract/mechanism paragraph] Abstract and mechanism paragraph: the assertion that the anisotropy produces 'continuous azimuthal phase modulation' whose Fourier content yields exactly the Bessel-weighted lattice assumes a purely sinusoidal n_eff(phi). For X-cut LN the local effective index is n_eff(phi) = [n_o^{-2} cos^2(phi - alpha) + n_e^{-2} sin^2(phi - alpha)]^{-1/2} (TE case), which is period-pi but contains higher even harmonics (4,6,...) whose amplitudes depend on the birefringence ratio. The manuscript must show either that these harmonics are negligible for the device parameters or that the resulting coupling matrix still produces eigenmodes whose amplitudes match the claimed Bessel distribution; otherwise the central claim that the sidebands are 'Bessel-weighted' is not guaranteed.
  2. [Model description] Model description (forward-calculated Fourier-Bessel): while the abstract states the lattices are 'reproduced by a forward-calculated Fourier-Bessel model,' the text must explicitly derive the modulation depth from the known ordinary/extraordinary indices and ring geometry rather than treating it as a free parameter fitted to the measured spectra. If the amplitude is adjusted to match data, the validation becomes circular and the 'forward' claim is weakened.
minor comments (2)
  1. [Mechanism paragraph] Clarify the polarization state (TE-like vs. TM-like) used for the n_eff(phi) formula and whether the same Bessel form applies to both.
  2. [Figures] Figure captions should state the exact ring radius, thickness, and cut angle used in the n_eff calculation so readers can reproduce the harmonic content.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thorough review and insightful comments, which help clarify the presentation of the anisotropy-driven mechanism. We address both major comments below and will revise the manuscript to incorporate explicit derivations and supporting calculations.

read point-by-point responses

  1. Referee: [Abstract/mechanism paragraph] Abstract and mechanism paragraph: the assertion that the anisotropy produces 'continuous azimuthal phase modulation' whose Fourier content yields exactly the Bessel-weighted lattice assumes a purely sinusoidal n_eff(phi). For X-cut LN the local effective index is n_eff(phi) = [n_o^{-2} cos^2(phi - alpha) + n_e^{-2} sin^2(phi - alpha)]^{-1/2} (TE case), which is period-pi but contains higher even harmonics (4,6,...) whose amplitudes depend on the birefringence ratio. The manuscript must show either that these harmonics are negligible for the device parameters or that the resulting coupling matrix still produces eigenmodes whose amplitudes match the claimed Bessel distribution; otherwise the central claim that the sidebands are 'Bessel-weighted' is not guaranteed.

    Authors: We agree that n_eff(φ) is not purely sinusoidal. For the birefringence of X-cut TFLN (Δn ≈ 0.08), the higher even harmonics are weak relative to the dominant cos(2φ) term. In the revision we will add an explicit Fourier decomposition of the given n_eff(φ) expression using published n_o and n_e values, demonstrating that the 4th and higher harmonics contribute <5% to the modulation depth for our ring geometry. We will also show that the resulting coupling matrix produces sideband amplitudes that remain within a few percent of the ideal Bessel distribution for |l| ≤ 13, thereby justifying the reported weighting while acknowledging the small corrections. revision: yes

  2. Referee: [Model description] Model description (forward-calculated Fourier-Bessel): while the abstract states the lattices are 'reproduced by a forward-calculated Fourier-Bessel model,' the text must explicitly derive the modulation depth from the known ordinary/extraordinary indices and ring geometry rather than treating it as a free parameter fitted to the measured spectra. If the amplitude is adjusted to match data, the validation becomes circular and the 'forward' claim is weakened.

    Authors: We accept that the modulation depth must be derived from first principles. The original text estimated Δn_eff from the material indices and ring radius but did not present the step-by-step calculation. In the revision we will explicitly compute the azimuthal phase modulation depth as Δφ = (2πR/λ) × Δn_eff, where Δn_eff is obtained directly from the difference in the provided n_eff(φ) formula evaluated at the principal axes using the known ordinary and extraordinary indices of TFLN; no post-hoc adjustment to match spectra will be performed. The calculated value will be stated and used in the forward model. revision: yes

Circularity Check

0 steps flagged

No circularity; forward physical model independent of fitted inputs or self-citations

full rationale

The paper grounds the central mechanism in the known birefringence of X-cut TFLN, states that the resulting n_eff(phi) produces azimuthal phase modulation, and reports that the emitted lattices are reproduced by a forward-calculated Fourier-Bessel model. No equations or text reduce the claimed Bessel-weighted sideband lattice (l = l_p + 2n) to a fitted parameter or to a self-citation chain; the model is presented as predictive and is checked against independent OAM projection measurements. The derivation chain therefore remains self-contained against external physical inputs.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Based solely on the abstract, limited information on parameters and assumptions; the periodic index variation is presented as a direct consequence of material orientation.

free parameters (1)
  • principal charge l_p
    Starting charge for the sideband series, selected per resonance.
axioms (1)
  • domain assumption The effective index varies periodically due to the in-plane optical axis in X-cut TFLN.
    Core premise enabling azimuthal phase modulation in the circulating mode.

pith-pipeline@v0.9.1-grok · 5787 in / 1340 out tokens · 30412 ms · 2026-06-26T09:52:46.371500+00:00 · methodology
