From PowerPoint UI Sketches to Web-Based Applications: Pattern-Driven Code Generation for GIS Dashboard Development Using Knowledge-Augmented LLMs, Context-Aware Visual Prompting, and the React Framework

T0 review · 4 major / 5 minor · reviewed 2026-08-07 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read A knowledge-augmented LLM pipeline turns PowerPoint wireframes into working GIS dashboards.

desk verdict A plausible, clearly described prototype for turning PowerPoint wireframes into React GIS dashboards, but the automation claims outrun the evidence: two in-distribution case studies, no baseline, and a knowledge base built from the authors' own projects. read the letter →

arxiv 2502.08756 v1 pith:A56MCVUX submitted 2025-02-12 cs.AI cs.SE

Haowen Xu , Xiao-Ying Yu This is my paper · ORCID
classification cs.AIcs.SE
keywords knowledge-augmentedgenerationlargelanguagemodelsGISdashboardsUIwireframetocodecontext-awarevisualpromptingretrieval-augmentedReactframeworksoftwaredesignpatterns
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that a knowledge-augmented pipeline can take a user's wireframe sketch, drawn in a tool like PowerPoint or Adobe Illustrator, and turn it into a working React-based GIS dashboard with little or no hand-written front-end code. The idea is to retrieve software-engineering conventions, GIS domain knowledge, and sample code from a curated knowledge base, then feed that context to a large language model through structured, chain-of-thought prompts. The authors demonstrate the pipeline on two dashboards—one for meteorological time-series and site data, one overlaying wind-turbine locations with land-cover rasters—and argue that the generated code is modular, maintainable, and follows industry patterns like MVVM and Separation of Concerns. If the claim holds, it would lower the barrier for domain scientists who need custom environmental and urban data interfaces but do not have dedicated web-development expertise.

What carries the argument

Context-Aware Visual Prompting is the method that carries the argument: Python scripts read SVG wireframes, treat each annotated rectangle as a GUI component, compute its position, size, and style, and convert the whole layout into structured prompts with plain-language annotations. Around that sits a knowledge base and code base implemented as a knowledge graph with vector embeddings, storing library metadata, package-management commands, software-design patterns, and sample code; retrieval-augmented prompts then drive an iterative LLM code-generation loop that enforces React file-structure conventions and Separation of Concerns, that is, the practice of keeping UI, logic, and data handling in distinct modules.

What would settle it

Give the framework a wireframe for a dashboard type with components and libraries not present in the knowledge base, such as a real-time 3D terrain viewer or a network-graph view, and check whether the generated React project builds and runs without any human-written code beyond the wireframe annotations. A failure to produce a working application in that setting would show that the knowledge base, rather than the LLM, is doing the load-bearing work and that the claimed generality does not extend beyond the curated examples.

Watch

Extended reading notes

Core claim

The central claim is that LLM code generation for GIS front-ends becomes reliable enough for real use when the model is augmented, not fine-tuned, with a structured knowledge base built from previous GIS projects. The framework parses SVG wireframes into a component tree with positional and styling metadata, matches each component to libraries and design patterns stored in a knowledge graph, retrieves relevant sample code, and then guides an LLM through iterative, procedure-based prompts to write a complete React project. The paper presents this as a generalizable method: users express their intent visually, and the knowledge layer supplies the software engineering expertise that general-purpose LLMs lack. Two case studies are offered as evidence that the generated applications are functional, modular, and aligned with industry-standard architecture, while the authors acknowledge that human expert review and manual backend integration are still required.

Load-bearing premise

The load-bearing premise is that the knowledge base, whose sample code comes from previous GIS projects, is general enough to guide the LLM for new dashboards built from components and libraries outside that project set; the paper never tests an unseen dashboard type.

Editorial extensions

If this is right

  • A scientist with no front-end training could sketch a dashboard in presentation software and receive a deployable React project with map, chart, and form components wired together.
  • Because the generated code follows MVVM and Separation of Concerns, it can be extended with additional dashboards in the same project without rewriting the whole application.
  • Domain knowledge stored once in the knowledge base can be reused across projects, so each new dashboard benefits from previously curated library choices and code patterns.
  • The same knowledge-augmented prompting approach could be applied to other LLMs, making the method independent of any single model.
  • Automating the repetitive parts of dashboard development would let environmental researchers spend more effort on data analysis and less on UI/UX and web programming.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • A decisive test the paper does not run is to feed the pipeline a dashboard type absent from the knowledge base, such as a real-time 3D scene or a graph analytics view; whether retrieval can still assemble a working app would separate the knowledge-base contribution from the LLM's general code ability.
  • The visual prompting stage is the most portable part of the design: any tool that can export annotated SVG wireframes could feed the same pipeline, so the method may transfer to non-GIS scientific dashboards once the knowledge base is extended.
  • The framework's automation is currently front-end only; pairing this approach with an automated backend and API generator would be the natural next step to make the full wireframe-to-application promise real, but the paper intentionally leaves backend development out of scope.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

4 major / 5 minor

Summary. The manuscript presents a knowledge-augmented code-generation framework that converts SVG-based UI wireframes (created in PowerPoint or Illustrator) into structured visual prompts, retrieves software-engineering and GIS knowledge from a graph/vector knowledge base built from previous projects, and uses iterative LLM prompting to generate React-based GIS dashboards. A 12-task pipeline (T1–T12) covering visual prompting, knowledge-base construction, package management, iterative code generation, and React file organization is described. Two case studies are reported: a meteorological data dashboard and a wind-turbine/land-cover dashboard, both illustrated with screenshots. The paper is primarily an architectural and implementation report; Section 4.5 explicitly acknowledges the lack of comparative analysis, reliance on a single LLM, the need for human expert review, and the need for manual programming of customized functions.

Significance. If the framework works as claimed, it would provide a useful integration of existing techniques—RAG, chain-of-thought prompting, visual wireframe parsing, and React/MVVM conventions—for scientific dashboard development, lowering the entry barrier for domain scientists. The paper's strengths include a clear set of design requirements (R1–R6), a well-structured pipeline (T1–T12), separation of concerns enforced through React file organization, multi-tool package management, and an honest limitations section. However, the evidence presented is limited to two in-distribution demonstrations with screenshots; no quantitative evaluation, baseline comparison, or ablation is provided. The abstract and conclusion claim that the approach 'significantly reduces manual effort,' but this central practical claim is not supported by any measurement in the manuscript.

major comments (4)
  1. [Abstract, Section 4, Section 5] The claim that the framework 'significantly reduces manual effort' is load-bearing and unquantified. The paper reports no development-time measurements, no count of human edits or corrections, no code compilation/execution success rates, and no comparison against direct LLM prompting, prompt-template baselines, or human development. Because this is the central practical claim of the abstract and conclusion, it should either be measured with a concrete evaluation or removed and replaced with a more limited claim about the feasibility of the pipeline.
  2. [Section 3.3.2, Table 1, Section 4] The knowledge base is populated with sample code 'excerpted and refined from previous projects,' and both case studies use the same technology stack (React, Leaflet, time-series and raster visualization) already represented in Table 1. The demonstrations are therefore in-distribution retrievals from the authors' own project set; they do not test whether the framework can handle previously unseen dashboard types. The generalizability claim in Section 3.1 and the Conclusion requires at least one out-of-distribution case study or a held-out/ablated knowledge-base experiment to be supported.
  3. [Section 4] The evaluation is limited to screenshots of the generated dashboards. There are no metrics for visual fidelity to the wireframes, functional correctness, code quality, maintainability, or user effort, and no ablation that isolates the contributions of Context-Aware Visual Prompting, the knowledge base, or the CoT/RAG prompting strategy. This makes it impossible to attribute the observed outputs to the proposed components rather than to generic capabilities of the underlying LLM. A minimal experiment comparing the framework against plain prompting on the same wireframes would substantially strengthen the paper.
  4. [Section 3.3.3, Section 4.5] The manuscript acknowledges that human experts must review, debug, and revise the generated code and that customized functions require manual programming, yet Section 4 and the abstract describe the framework as 'autonomously' generating the dashboards. These statements are in tension. The paper should either define the precise scope of automation (e.g., standard components are generated, custom logic is hand-written) or soften the language to match the acknowledged human-in-the-loop requirements.
minor comments (5)
  1. [Figures 5 and 6] The explanatory callout text in Figures 5 and 6 is nearly identical, including the same route ('/home') and the same annotation example; the caption for Figure 6 should be tailored to the meteorological dashboard wireframe so the reader can understand what is unique about that input.
  2. [Section 3.3.2] The text mentions a 'vector index search on a Neo4j-backed knowledge graph' but does not specify the embedding model, vector index parameters, or similarity metric used. Adding one sentence with these details would improve reproducibility.
  3. [Table 1] Many rows in Table 1 cite the authors' prior projects. This is legitimate for provenance, but the table would be more informative if it indicated which sample-code entries were actually used in the two case studies.
  4. [Figure 2] Figure 2 is dense and central to understanding the framework; a short caption explaining the data and control flow through T1–T12 would help readers map the architecture to the text.
  5. [General] The text contains recurring spacing artifacts such as 'e fforts' and 'o ffers' that appear to be PDF-extraction remnants; these should be cleaned in the final version.

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity: the framework is a RAG-based code generator whose outputs are newly generated React code, not the retrieved sample code; in-distribution evaluation and unquantified effort claims are validity concerns, not circular reasoning.

full rationale

This paper is a systems/prototyping contribution rather than a derivational one, so there is no equation-level chain in which an output reduces to an input by construction. The knowledge base is populated with sample code 'excerpted and refined from previous projects' (Section 3.3.2), and Table 1 lists prior projects, several authored by the present authors. But the framework's operation is explicitly RAG-based: sample code is retrieved and embedded into prompts to guide an LLM in writing new React components. The output is not defined as the retrieved sample code; the two case-study dashboards in Section 4 are new artifacts generated from user wireframes. The evaluation is indeed in-distribution and lacks a baseline, a human-effort measurement, or a wall-clock comparison, and Section 4.5 acknowledges that expert review and manual programming remain. Those are external-validity and overclaiming concerns, not circularity. No load-bearing argument reduces to a self-citation or to a fitted parameter; the only self-citation, e.g., Xu et al. 2024b for the Neo4j-backed knowledge graph in T5, is a minor implementation reference rather than the justification of the central claim. Therefore the paper receives a circularity score of 0.

Assumptions & free parameters 0 free parameters · 3 assumptions · 0 invented entities

There are no numerical fitted parameters. The central claim rests on domain assumptions about knowledge-base sufficiency, LLM prompt-following, and user annotation quality, none of which are measured.

assumptions (3)
  • domain assumption The knowledge base curated from the authors' previous projects provides sufficient coverage for new dashboard generation tasks.
    Section 3.3.2 states sample code is excerpted and refined from previous projects; the framework's success depends on this coverage, which is untested beyond two case studies.
  • domain assumption LLMs can faithfully follow structured prompts to produce React code that compiles after expert review.
    The whole Step 3 pipeline assumes prompt-following reliability; the authors note in Section 4.5 that human review is still required, so this assumption is only partially satisfied.
  • domain assumption Users can express complete UI requirements through PowerPoint wireframes with text annotations.
    The visual prompting step relies on vector elements and annotations to capture layout and interactions; no evidence shows that non-expert users can create such wireframes effectively.

how reviews work

0 comments
Cite this review

Pith. "Pith review of From PowerPoint UI Sketches to Web-Based Applications: Pattern-Driven Code Generation for GIS Dashboard Development Using Knowledge-Augmented LLMs, Context-Aware Visual Prompting, and the React Framework." pith.science (2026). https://pith.science/paper/A56MCVUX

@misc{pith2026250208756,
  author       = {Pith},
  title        = {Pith review of: From PowerPoint UI Sketches to Web-Based Applications: Pattern-Driven Code Generation for GIS Dashboard Development Using Knowledge-Augmented LLMs, Context-Aware Visual Prompting, and the React Framework},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/A56MCVUX}},
  note         = {Machine review of arXiv:2502.08756}
}
read the original abstract

Developing web-based GIS applications, commonly known as CyberGIS dashboards, for querying and visualizing GIS data in environmental research often demands repetitive and resource-intensive efforts. While Generative AI offers automation potential for code generation, it struggles with complex scientific applications due to challenges in integrating domain knowledge, software engineering principles, and UI design best practices. This paper introduces a knowledge-augmented code generation framework that retrieves software engineering best practices, domain expertise, and advanced technology stacks from a specialized knowledge base to enhance Generative Pre-trained Transformers (GPT) for front-end development. The framework automates the creation of GIS-based web applications (e.g., dashboards, interfaces) from user-defined UI wireframes sketched in tools like PowerPoint or Adobe Illustrator. A novel Context-Aware Visual Prompting method, implemented in Python, extracts layouts and interface features from these wireframes to guide code generation. Our approach leverages Large Language Models (LLMs) to generate front-end code by integrating structured reasoning, software engineering principles, and domain knowledge, drawing inspiration from Chain-of-Thought (CoT) prompting and Retrieval-Augmented Generation (RAG). A case study demonstrates the framework's capability to generate a modular, maintainable web platform hosting multiple dashboards for visualizing environmental and energy data (e.g., time-series, shapefiles, rasters) from user-sketched wireframes. By employing a knowledge-driven approach, the framework produces scalable, industry-standard front-end code using design patterns such as Model-View-ViewModel (MVVM) and frameworks like React. This significantly reduces manual effort in design and coding, pioneering an automated and efficient method for developing smart city software.

Figures

Figures reproduced from arXiv: 2502.08756 by the authors.

Figure 1

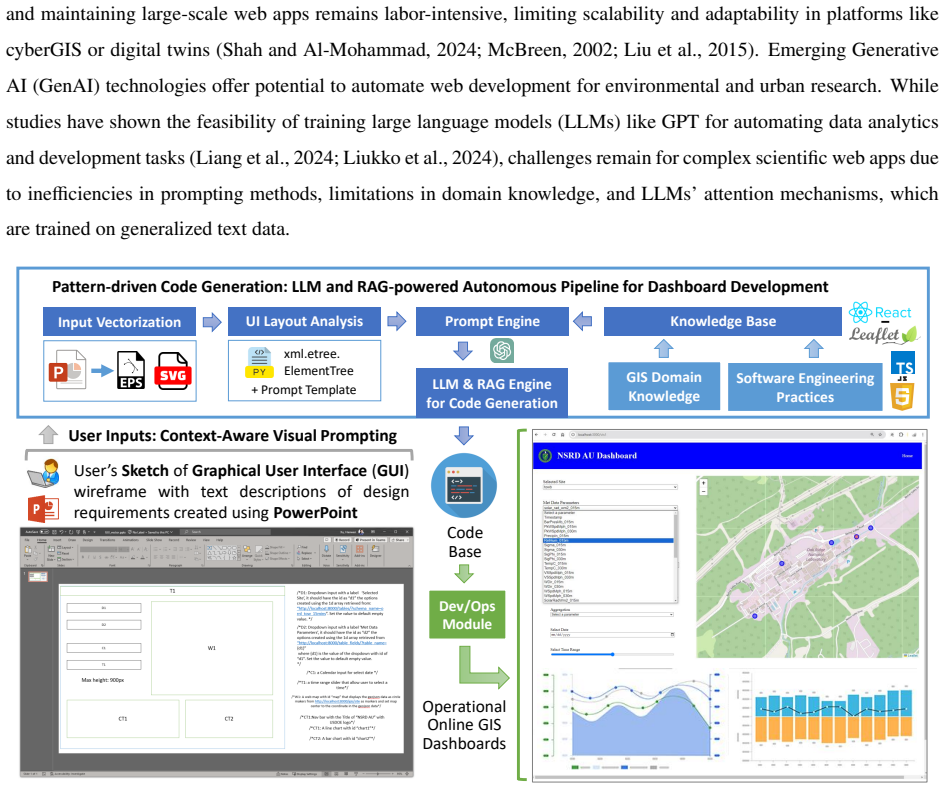

Figure 1. From annotated wireframe to code generation, a knowledge driven framework for automated software development of cyberGIS platform [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Overall framework architecture for LLM-driven code generation using knowledge-augmented prompting and structured domain knowl [PITH_FULL_IMAGE:figures/full_fig_p011_2.png] view at source ↗
Figure 3
Figure 3. Structured knowledge representations for converting plain-language annotations from UI wireframes into structured prompts with tech [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figures from the paper (5 more)
Figure 4
Figure 4. Figure 4: A procedure-based, knowledge-augmented code generation process that aligns with the conventions and best practices of the React [PITH_FULL_IMAGE:figures/full_fig_p016_4.png]
Figure 5
Figure 5. Figure 5: The UI wireframe for the homepage of the web-based application includes thumbnails that serve as navigation links, directing users to [PITH_FULL_IMAGE:figures/full_fig_p019_5.png]
Figure 6

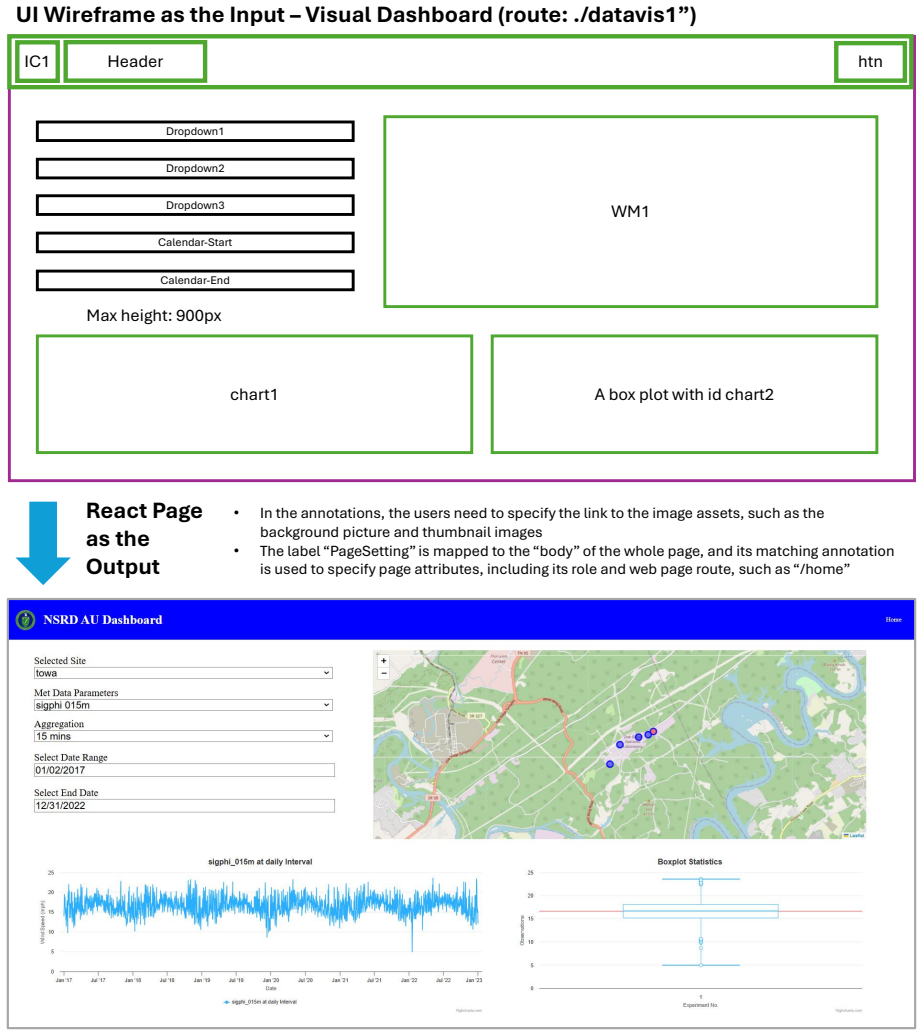

Figure 6. Figure 6: The UI wireframe for the visual dashboard of Use Case I is designed for visualizing meteorological data, incorporating time-series data [PITH_FULL_IMAGE:figures/full_fig_p020_6.png]
Figure 7
Figure 7. Figure 7: A demonstration of the dashboard’s capability to visualize meteorological data (e.g., shapfiles and time-series) for Use Case I. [PITH_FULL_IMAGE:figures/full_fig_p021_7.png]
Figure 8
Figure 8. Figure 8: A demonstration of the dashboard’s capability to visualize land use and land cover raster data for Use Case II. [PITH_FULL_IMAGE:figures/full_fig_p022_8.png]
