Multinuclear fingerprinting

Gonzalo G. Rodriguez , Zidan Yu , Lauren O'Donnell , Martijn A. Cloos , Guillaume Madelin This is my paper

Pith reviewed 2026-05-25 05:07 UTC · model grok-4.3

classification ⚛️ physics.med-ph
keywords multinuclear MRImagnetic resonance fingerprintingsodium imagingproton densityquantitative MRIbrain mapping7 Tesla
0
0 comments X

The pith

Multinuclear fingerprinting produces seven exactly co-registered quantitative brain maps from simultaneous proton and sodium data acquired in 13 minutes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces multinuclear fingerprinting as a method that acquires proton and sodium magnetic resonance data at the same time and processes them to yield seven quantitative maps. These maps cover proton density, T1 and T2 from water protons plus tissue sodium concentration, T1, T2short and T2long from sodium ions. All maps share identical spatial and temporal resolution and are exactly co-registered because the raw data are collected simultaneously. The approach combines dual-nucleus fingerprinting with a super-resolution step that raises sodium resolution to match the proton resolution. Demonstrated on seven healthy volunteers at 7 T, the technique finishes in 13 minutes at 1.5 by 1.5 by 5 mm resolution and is presented as a route to joint morphological and physiological brain measurements.

Core claim

Multinuclear fingerprinting consists of simultaneous 1H/23Na magnetic resonance fingerprinting followed by a super-resolution algorithm that raises 23Na resolution to match the 1H resolution; the resulting seven maps (PD, T1, T2 from 1H; TSC, T1, T2short, T2long from 23Na) are obtained at 1.5x1.5x5 mm³ resolution in 13 minutes on seven healthy subjects at 7 T, with all images exactly co-registered.

What carries the argument

Multinuclear fingerprinting, the combination of simultaneous dual-nucleus MRF acquisition with a super-resolution reconstruction step that aligns sodium maps to proton resolution while preserving quantitative values.

If this is right

  • All seven maps share identical spatial and temporal sampling because the underlying 1H and 23Na data are acquired simultaneously.
  • The exact co-registration enables direct voxel-wise comparison between tissue structure from proton maps and ion homeostasis from sodium maps.
  • The 13-minute acquisition time supports longitudinal studies that track joint 1H/23Na changes during tasks or interventions.
  • The same acquisition and reconstruction pipeline can be adapted to body regions other than the brain.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method could be extended to include additional nuclei or functional tasks to map dynamic ion changes alongside structure.
  • If the super-resolution step proves robust across patient populations, the approach might shorten total exam times for combined proton-sodium protocols in clinical research.
  • Exact co-registration at this resolution opens the possibility of using the maps as joint inputs for biophysical models of brain tissue.

Load-bearing premise

The super-resolution algorithm recovers sodium image detail without introducing bias or artifacts that would distort the derived sodium parameter maps.

What would settle it

A side-by-side comparison on the same subjects showing statistically significant differences between sodium T2 or TSC values obtained from MNF versus values obtained from separate high-resolution 23Na acquisitions or calibrated phantoms.

Figures

Figures reproduced from arXiv: 2605.23075 by Gonzalo G. Rodriguez, Guillaume Madelin, Lauren O'Donnell, Martijn A. Cloos, Zidan Yu.

Figure 1
Figure 1. Figure 1: The multinuclear fingerprinting (MNF) method. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Examples of the seven MNF HR 1H and 23Na maps of a whole brain. Representative sagittal, transversal and coronal slices include proton density (PD), T1 and T2 from 1H , and tissue sodium concentration (TSC), T1, T2,short and T2,long from 23Na. Resolution = 1.5×1.5×5 mm3 , TA = 13 min. maps (proton density [PD], T1 and T2) of the whole brain in a single 13-min acquisition. Finally, we implemented an iterati… view at source ↗
Figure 3

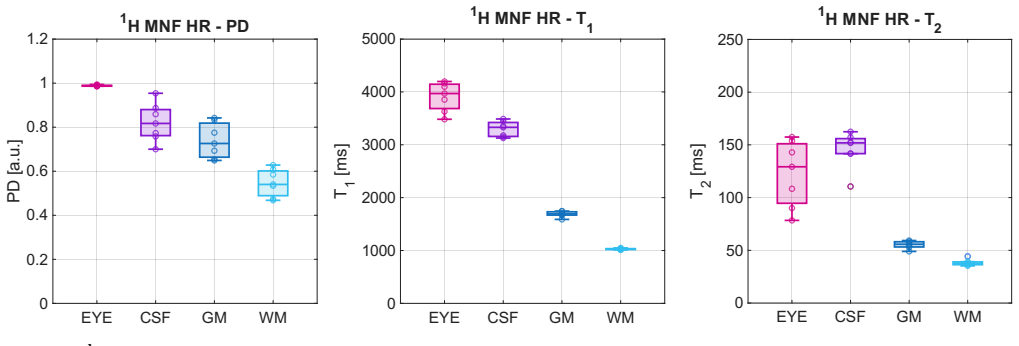

Figure 3. Figure 3: 1H MNF HR measurements. The boxplots show distributions and median values of final mean values (from the standard method) of the mean measurements from the NROI and NREF values (histograms) from N = 7 subjects, from the 1H MNF HR data (PD, T1, T2), in the EYE, CSF, GM and WM ROIs. Highest values used were NROI = 5% to 100% by steps of 5% (20 values), NREF = 5% to 100% by steps of 5% (20 values). ods/Statis… view at source ↗
Figure 4
Figure 4. Figure 4: 23Na MNF HR, LR, and FLORET measurements. The boxplots show distributions and median values of the final mean values (from the standard method) of the mean measurements from the NROI and NREF values (histograms), from the 23Na MNF HR (7 subjects), LR (7 subjects) and FLORET (FLO, 2 subjects: 5 and 6) data (TSC, T1, T2,short, T2,long), in the EYE, CSF, GM and WM ROIs. Highest values used were NROI = 5% to 1… view at source ↗
Figure 5
Figure 5. Figure 5: The simultaneous 1H/23Na MRF pulse sequence. Magnetic resonance fingerprinting (MRF) data is acquired simultaneously for proton (1H) using a full-radial stack-of-stars k-space trajectory and for sodium (23Na) using a center-out stack-of-stars trajectory. The 1H flip angle (FA) train is made up of 500 RF pulses α applied every delay τ of 7.5 ms, and that includes 27 variable pulses (for data acquisition) an… view at source ↗
read the original abstract

We developed a new magnetic resonance imaging method called multinuclear fingerprinting (MNF) which leverages simultaneously-acquired proton (1H) and sodium (23Na) data to generate seven quantitative maps of the whole brain: proton density (PD), T1 and T2 relaxation times from water, and tissue sodium concentration (TSC), T1, T2short and T2long from Na+ ions. MNF consists of two parts: (1) simultaneous 1H/23Na magnetic resonance fingerprinting (MRF), and (2) a super-resolution (SR) algorithm to increase the 23Na resolution to match the 1H resolution. It was tested on the brain of seven healthy subjects at 7 T, with a final resolution of 1.5x1.5x5 mm3 for all maps acquired in 13 min. MNF could provide new fundamental insights into the inter-relationship between morphology (i.e. tissue structure from the 1H maps) and physiology (i.e. ion homeostasis from the 23Na maps) in vivo to help improve our understanding of the human brain in general, and to study neuropathologies and their treatments. Since all 1H/23Na MRF data is acquired simultaneously, all images are exactly co-registered with identical spatial and temporal resolutions. MNF could be useful in future longitudinal studies for assessing local time-dependent and conjoint 1H/23Na MR changes during tasks or interventions. MNF was initially developed for neuroimaging, but it can be adapted to any other parts of the body.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript introduces multinuclear fingerprinting (MNF), a method combining simultaneous 1H/23Na MR fingerprinting with a super-resolution (SR) step to produce seven co-registered quantitative maps (PD, T1, T2 from 1H; TSC, T1, T2short, T2long from 23Na) of the whole brain at 1.5×1.5×5 mm³ resolution acquired in 13 min on seven healthy volunteers at 7 T. The central claim is that simultaneous acquisition ensures exact co-registration while the SR algorithm recovers 23Na detail at the 1H resolution without compromising the quantitative sodium parameter maps.

Significance. If the SR step is shown to be unbiased, MNF would enable joint morphological and ion-homeostasis mapping in a single short scan, with potential value for longitudinal studies of brain physiology and neuropathology. The simultaneous acquisition and multi-nuclear parameter set are novel strengths; however, the absence of direct validation for the SR outputs against independent high-resolution 23Na measurements weakens the quantitative claims for the sodium maps.

major comments (1)
  1. [Abstract and Methods (SR algorithm description)] The SR step is load-bearing for the four sodium maps (TSC, T1, T2short, T2long). The abstract states that SR increases 23Na resolution to match the 1H resolution, yet the method description provides no comparison of SR-reconstructed sodium parameter maps against separately acquired high-resolution 23Na data or against phantoms with known sodium concentrations. Without such a check, any systematic bias or artifact introduced by the SR network would propagate directly into the reported TSC, T1, T2short, and T2long values.
minor comments (1)
  1. [Abstract] The abstract reports results on seven healthy subjects but does not state whether the quantitative maps were compared to literature values or to conventional separate 1H and 23Na acquisitions in the same cohort.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and for recognizing the novelty of simultaneous 1H/23Na acquisition and the multi-nuclear parameter set. We address the single major comment below and will revise the manuscript to strengthen the validation of the super-resolution component.

read point-by-point responses

  1. Referee: [Abstract and Methods (SR algorithm description)] The SR step is load-bearing for the four sodium maps (TSC, T1, T2short, T2long). The abstract states that SR increases 23Na resolution to match the 1H resolution, yet the method description provides no comparison of SR-reconstructed sodium parameter maps against separately acquired high-resolution 23Na data or against phantoms with known sodium concentrations. Without such a check, any systematic bias or artifact introduced by the SR network would propagate directly into the reported TSC, T1, T2short, and T2long values.

    Authors: We agree that explicit validation of the SR step against independent references is important to rule out systematic bias in the sodium maps. Direct high-resolution 23Na acquisitions are SNR-limited and were not performed in the original study, which is why the SR approach was developed. In the revised manuscript we will add a new subsection to Methods describing (i) numerical simulations with known ground-truth sodium parameter maps and (ii) phantom experiments using solutions of calibrated sodium concentration. These will quantify any residual bias or variance introduced by the SR network on TSC, T1, T2short and T2long, and the results will be reported in Results. This addition directly addresses the referee’s concern while preserving the core claim that simultaneous acquisition guarantees co-registration. revision: yes

Circularity Check

0 steps flagged

No significant circularity; method development relies on established MRF and SR components without self-referential reduction

full rationale

The abstract and provided context describe MNF as a combination of simultaneous 1H/23Na MRF (a standard dictionary-matching technique) plus a separate SR algorithm to match resolutions. No equations, fitted parameters presented as predictions, or self-citation chains are visible that would make any output equivalent to its inputs by construction. The co-registration advantage follows directly from simultaneous acquisition, not from any derived claim. The reader's assessment of score 2.0 aligns with absence of load-bearing circular steps. This is a typical technical methods paper whose central claims (seven co-registered maps in 13 min) rest on implementation details rather than tautological definitions or renamed fits.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no equations, fitting procedures, or explicit assumptions beyond the existence of the SR algorithm and the MRF dictionary matching; free parameters, axioms, and invented entities cannot be extracted.

pith-pipeline@v0.9.0 · 5825 in / 1135 out tokens · 17116 ms · 2026-05-25T05:07:19.513957+00:00 · methodology
