Discovery of a quasi-periodic oscillation non-harmonically related to the Type-C QPO in the hard intermedidate state of MAXI J1820+070

Pei Jin , Mariano M\'endez , Federico Garc\'ia , Diego Altamirano , Ruican Ma This is my paper

Pith reviewed 2026-06-26 23:23 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords black hole X-ray binariesquasi-periodic oscillationsstate transitionsMAXI J1820+070Type-C QPOType-B QPOradio ejections
0
0 comments X

The pith

A QPO at 3.5-5.9 Hz appears in the hard-intermediate state of MAXI J1820+070 and evolves into the Type-B QPO after the transition.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents timing analysis of NICER data on MAXI J1820+070 during the hard-intermediate to soft-intermediate state transition. It reports detection of an additional QPO in the 2-12 keV power density spectrum roughly half a day before the transition. This feature evolves smoothly across the transition and occupies the same region in the rms-frequency diagram as Type-B QPOs in other sources. The authors conclude that such QPOs are not confined to the soft-intermediate state and that their presence before the transition separates them from the discrete radio ejections that appear at the transition itself.

Core claim

We detect a QPO at 3.5-5.9 Hz in the 2-12 keV power density spectrum of MAXI J1820+070 roughly half a day before the HIMS-to-SIMS transition. This QPO appears to evolve smoothly into the Type-B QPO observed immediately after the transition, and its location in the broadband rms versus QPO frequency plot matches Type-B QPOs in GX 339-4 and GRO J1655-40. The result indicates that QPOs with these characteristics can emerge prior to the transition and are not confined exclusively to the SIMS, implying no direct physical connection to the discrete radio ejections that occur at the transition.

What carries the argument

The additional QPO component at 3.5-5.9 Hz identified in the power density spectrum before the transition, distinguished by its frequency evolution, rms properties, and non-harmonic relation to the Type-C QPO.

If this is right

  • QPOs with Type-B characteristics can emerge prior to the HIMS-to-SIMS transition.
  • There may be no direct physical connection between the Type-B QPO and the discrete radio ejections.
  • The disappearance of the Type-C QPO, the drop in broadband noise, and the emergence of discrete radio ejections are linked at the transition.
  • The simultaneous presence of a non-harmonically related QPO in the HIMS could be compatible with a spine-sheath outflow structure.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Similar pre-transition QPOs may be found by re-examining archival data from other sources that show Type-B QPOs after their transitions.
  • The mechanism producing this QPO likely operates independently of the processes that quench the compact jet at the transition.
  • Multi-source comparisons could test whether the non-harmonic relation to the Type-C QPO is a general signature of the late HIMS.

Load-bearing premise

That the smooth frequency evolution and position in the rms-frequency diagram establish the pre-transition QPO as the direct precursor of the Type-B QPO.

What would settle it

If the 3.5-5.9 Hz feature does not continue evolving into the observed post-transition Type-B frequencies, or if no similar pre-transition QPO appears in other black hole binaries with comparable state transitions.

Figures

Figures reproduced from arXiv: 2606.18004 by Diego Altamirano, Federico Garc\'ia, Mariano M\'endez, Pei Jin, Ruican Ma.

Figure 1

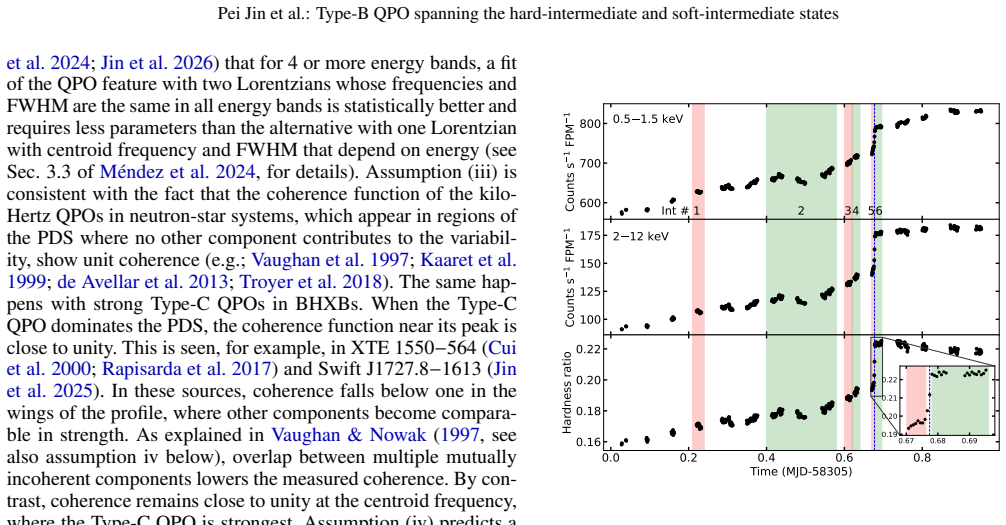

Figure 1. Figure 1: X-ray Light curves and hardness ratio of MAXI J1820+070 for ObsID 1200120197 on MJD 58305. Upper panel: the 0.5−1.5 keV light curve. Middle panel: the 2.0−12.0 keV light curve. Bottom panel: the hardness ratio between the 2.0−12.0 keV and 0.5−1.5 keV light curves. The blue dotted line marks the transition from the HIMS to the SIMS (Homan et al. 2020). The shaded regions indicate the intervals for which we … view at source ↗
Figure 2

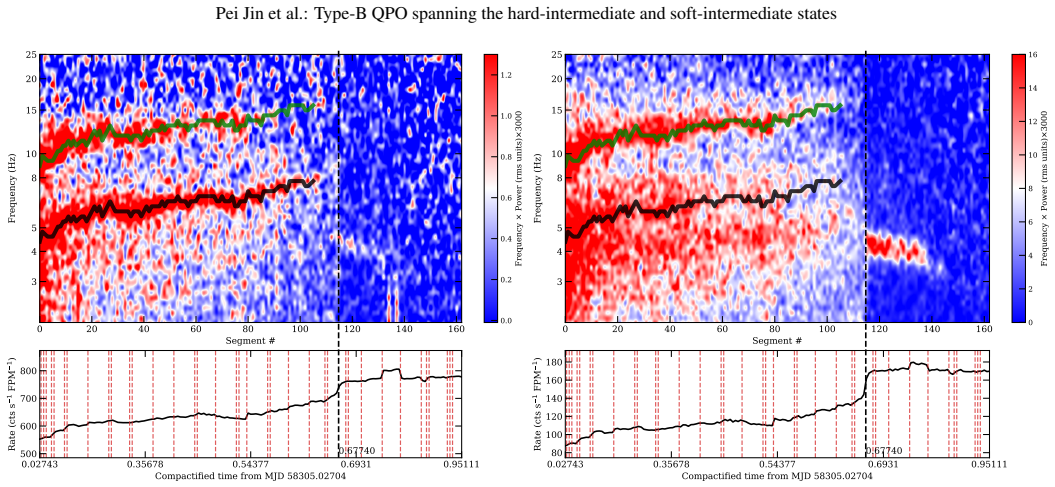

Figure 2. Figure 2: Dynamical power spectra (top panels) and light curves (bottom panels) of MAXI J1820+070 for ObsID 1200120197: 0.5−1.5 keV (left) and 2.0−12.0 keV (right). The segments in the X-axis of the dynamical PDS have a duration of ∼128 seconds. Compactified time in the bottom panels is the true elapsed time since MJD 58305.02704, with the gaps in the data removed from the plot. We do not show the time gaps between … view at source ↗
Figure 3

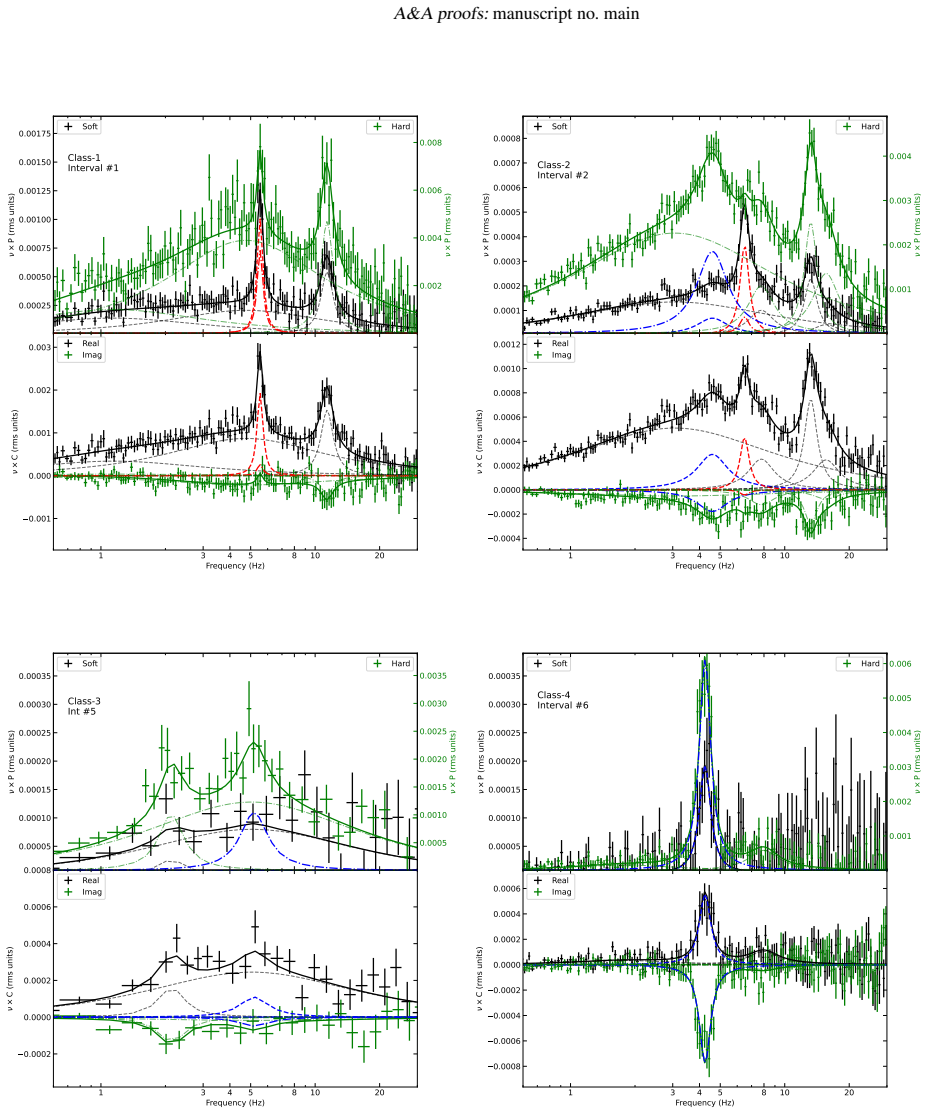

Figure 3. Figure 3: PDS and real and imaginary parts of the CS for four PDS classes near the transition from the HIMS to the SIMS in MAXI J1820+070: Class-1 in the upper-left panel (Interval #1), Class-2 in the upper-right panel (Interval #2), Class-3 in the lower-left panel (Interval #5), and Class-4 in the lower-right panel (Interval #6). The soft band is 0.5−1.5 keV and the hard band is 2.0−12.0 keV. To improve visibility,… view at source ↗
Figure 4

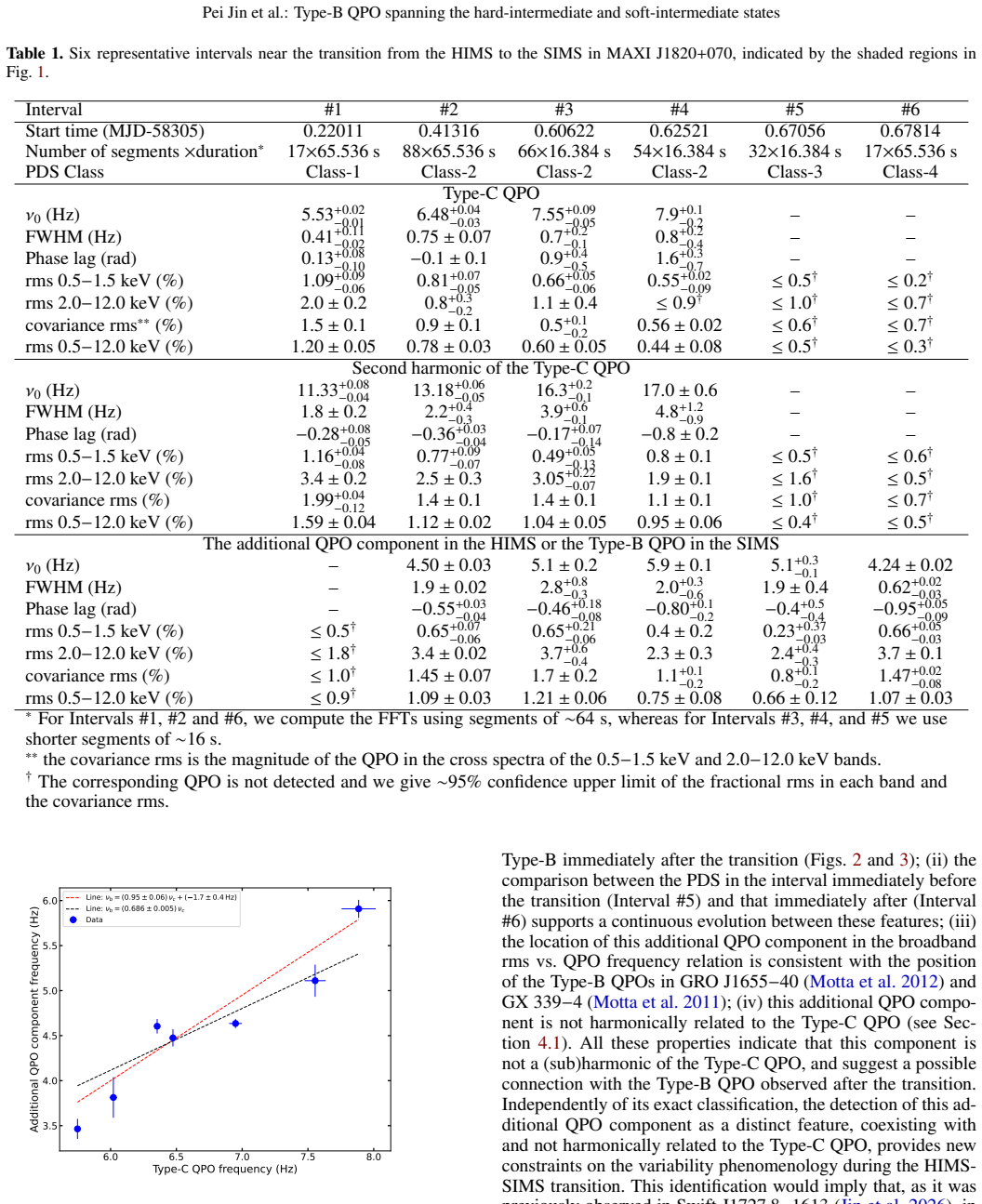

Figure 4. Figure 4: Frequency of the additional QPO component versus that of the Type-C QPO in MAXI J1820+070 when both features appear simul￾taneously. The red line is the best fitting linear model to the data. The black line shows the fit with a fixed intercept of zero Hz. and the CS of MAXI J1820+070: (i) This additional QPO com￾ponent appears to evolve continuously into the QPO identified as Type-B immediately after the t… view at source ↗
Figure 5

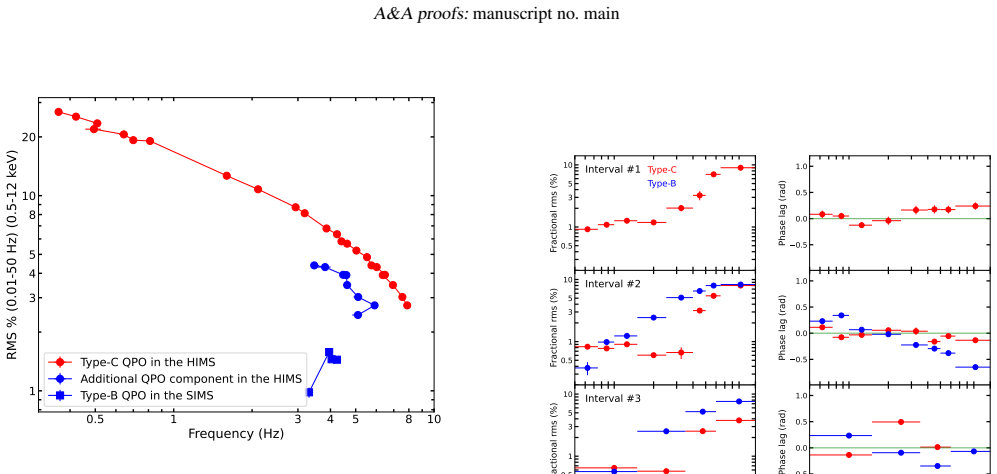

Figure 5. Figure 5: Broadband rms vs. QPO frequency relation for the QPOs in MAXI J1820+070. The red circles are the Type-C QPO in the HIMS, the blue circles are the additional QPO component in the HIMS, and the blue squares are the Type-B QPO in the SIMS. nent of the accretion flow that, in the HIMS, produces the strong broadband variability and the Type-C QPO. 4.1. The additional QPO component in the hard-band PDS in the HI… view at source ↗
Figure 6

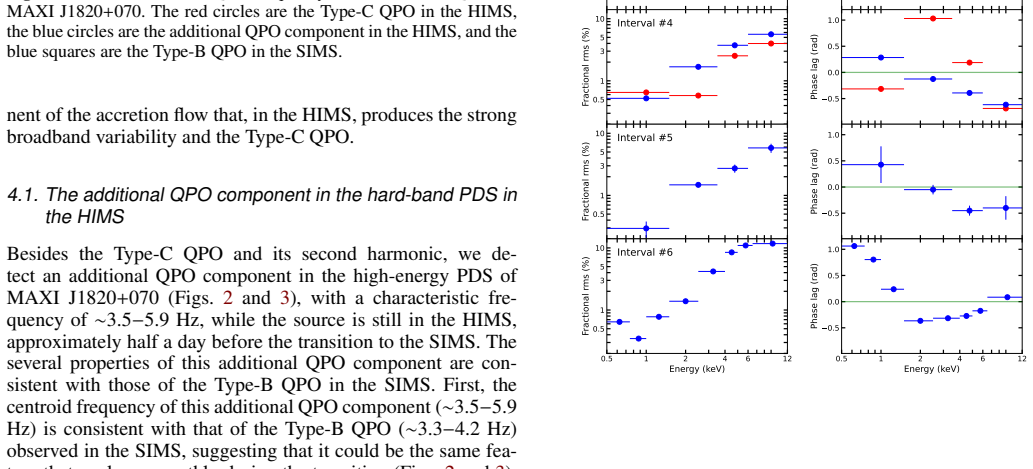

Figure 6. Figure 6: Fractional-rms (left panels) and phase-lag (right panels) spectra of the Type-C QPO (red) and the Type-B QPO (blue) of MAXI J1820+070 in Intervals #1-6 in [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗
read the original abstract

We present a detailed timing analysis of the transition from the hard-intermediate state (HIMS) to the soft-intermediate state (SIMS) in MAXI J1820+070 using NICER observations. This transition is marked by a sharp drop of the broadband noise across both the soft and hard X-ray bands, the disappearance of the Type-C quasi-periodic oscillation (QPO), the quenching of the steady, optically thick, compact jet, the appearance of a Type-B QPO, and the detection of discrete, optically thin, radio ejections. For the first time, we detect a QPO at 3.5-5.9 Hz in the 2-12 keV power density spectrum of MAXI J1820+070 roughly half a day before the transition, which appears to evolve smoothly into the Type-B QPO observed immediately after the transition. The location of this additional QPO component in the broadband rms vs. QPO frequency plot is consistent with that of the Type-B QPOs in GX 339-4 and GRO J1655-40, suggesting a possible connection between this additional QPO in the HIMS and the Type-B QPO in the SIMS. This result, together with recent findings in Swift J1727.8-1613, suggests that QPOs with these characteristics can emerge prior to the HIMS-to-SIMS transition and are not confined exclusively to the SIMS. If this additional QPO feature is the precursor of the Type-B QPO in the SIMS, its presence before the transition, whereas the bright discrete, optically thin, radio ejections appear at the transition, would imply that there may be no direct physical connection between the Type-B QPO and the discrete radio ejections. Our results further suggest a link between the disappearance of the Type-C QPO, the drop of the broadband noise, and the emergence of discrete radio ejections at the HIMS-to-SIMS transition. We speculate that the simultaneous presence of such a QPO, non-harmonically related to the Type-C QPO in the HIMS, could be compatible with a spine-sheath outflow structure.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript reports a timing analysis of NICER data on MAXI J1820+070 during the HIMS-to-SIMS transition. It claims detection of a new QPO at 3.5-5.9 Hz in the 2-12 keV PDS roughly half a day before the transition, which appears to evolve smoothly into the post-transition Type-B QPO. The feature's location in the rms-frequency diagram matches Type-B QPOs in GX 339-4 and GRO J1655-40, leading the authors to interpret it as a possible precursor to Type-B QPOs (not exclusive to the SIMS) and to suggest no direct physical link to the discrete radio ejections that appear at the transition. The work also links the Type-C QPO disappearance and broadband noise drop to the transition and speculates on compatibility with a spine-sheath outflow structure.

Significance. If the detection is robust and the evolutionary continuity holds, the result would be significant for black-hole X-ray binary timing studies. It would show that QPOs with Type-B characteristics can appear in the HIMS, extending the known phenomenology beyond the conventional SIMS association and providing a potential observational test for multi-component outflow models. The decoupling from radio ejections would also bear on jet-disk coupling at state transitions. The analysis draws on high-cadence NICER observations, which is a methodological strength for resolving rapid changes across the transition.

major comments (2)
  1. [Abstract] Abstract (detection paragraph): the claim that the 3.5-5.9 Hz QPO 'appears to evolve smoothly' into the Type-B QPO is load-bearing for the precursor interpretation, yet the text supplies neither the measured frequencies with uncertainties, the number of independent observations spanning the transition, nor any quantitative continuity test (e.g., a joint fit or χ^{2} comparison of a continuous vs. discontinuous track).
  2. [Abstract] Abstract (rms-frequency comparison): the statement that the new QPO's location in the broadband rms vs. QPO frequency plot is 'consistent' with Type-B QPOs in GX 339-4 and GRO J1655-40 is central to the suggested connection, but no rms value, uncertainty, or data point for MAXI J1820+070 is reported, preventing verification of the match or assessment against alternative placements.
minor comments (1)
  1. [Abstract] The frequency range 3.5-5.9 Hz is given without specifying whether these are the observed range across multiple observations or the 1-σ bounds on a single detection; clarifying this would aid reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which help clarify the presentation of our results. We address each major comment below and have revised the abstract to incorporate the requested quantitative details.

read point-by-point responses

  1. Referee: [Abstract] Abstract (detection paragraph): the claim that the 3.5-5.9 Hz QPO 'appears to evolve smoothly' into the Type-B QPO is load-bearing for the precursor interpretation, yet the text supplies neither the measured frequencies with uncertainties, the number of independent observations spanning the transition, nor any quantitative continuity test (e.g., a joint fit or χ^{2} comparison of a continuous vs. discontinuous track).

    Authors: We agree that the abstract would benefit from these quantitative elements to support the evolutionary continuity claim. The main text already presents the frequency measurements from the NICER observations and the observed track across the transition; we have revised the abstract to explicitly include the measured frequencies with uncertainties, the number of independent observations, and a reference to the continuity assessment (including model comparison) detailed in the results section. This strengthens the precursor interpretation without changing the underlying analysis. revision: yes

  2. Referee: [Abstract] Abstract (rms-frequency comparison): the statement that the new QPO's location in the broadband rms vs. QPO frequency plot is 'consistent' with Type-B QPOs in GX 339-4 and GRO J1655-40 is central to the suggested connection, but no rms value, uncertainty, or data point for MAXI J1820+070 is reported, preventing verification of the match or assessment against alternative placements.

    Authors: We agree that reporting the specific rms value is necessary for independent verification. We have revised the abstract to include the measured broadband rms value with its uncertainty for the QPO in MAXI J1820+070, allowing direct comparison to the Type-B QPOs in the other sources and assessment of the consistency claim. revision: yes

Circularity Check

0 steps flagged

No circularity: purely observational timing detection with no derivation chain

full rationale

This is an observational X-ray timing study reporting detection of a 3.5-5.9 Hz QPO feature in NICER PDS data of MAXI J1820+070 and noting its location in the rms-frequency plane plus apparent frequency evolution. The central claims rest on direct measurements of frequencies, rms amplitudes, and comparisons to published data from other sources (GX 339-4, GRO J1655-40). No equations, model fits, or derivations are presented that reduce to inputs by construction; no self-citation load-bearing uniqueness theorems or ansatzes appear. The precursor interpretation is a qualitative inference from data properties, not a mathematical reduction, so the paper is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is purely observational. No free parameters are introduced beyond standard timing-analysis choices (frequency bins, energy bands). No new physical entities are postulated; the spine-sheath speculation is interpretive.
