FDDet: Achieving Data-Efficient Food Defect Detection Under Real-World Scenarios

Ruihao Xu , Yong Liu , Yansong Tang This is my paper

Pith reviewed 2026-06-30 13:45 UTC · model grok-4.3

classification 💻 cs.CV
keywords food defect detectionsemi-supervised learningdata augmentationpseudo-label calibrationobject detectionFDD-48 datasetBBoxMixUpCGPC
0
0 comments X

The pith

FDDet improves food defect detection accuracy under limited labeled data by mixing same-category defect regions and calibrating pseudo-labels for consistency.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces the FDD-48 dataset covering 13 food types and 48 defect categories with fine-grained annotations under diverse real conditions. It proposes FDDet, a semi-supervised detector built around BBoxMixUp for data augmentation and CGPC for pseudo-label refinement. BBoxMixUp mixes defect bounding boxes from the same category to cut down on spurious feature links, while CGPC filters pseudo-labels by checking consistency within each sample. These elements target the data scarcity problem common in food quality control. If the approach holds, automated inspection systems could achieve reliable performance without large amounts of manually labeled examples.

Core claim

The paper claims that FDDet significantly outperforms mainstream detectors on FDD-48 by using BBoxMixUp, a data augmentation technique that mixes same-category defect regions to reduce spurious feature associations, and CGPC, which filters pseudo-labels based on intra-sample consistency, thereby enabling effective detection in data-limited scenarios.

What carries the argument

BBoxMixUp and CGPC: BBoxMixUp mixes defect regions from same-category examples during training to reduce irrelevant feature correlations, while CGPC applies consistency checks inside individual samples to calibrate and filter pseudo-labels in the semi-supervised loop.

If this is right

  • FDDet delivers higher detection accuracy than standard object detectors when only limited labeled food defect images are available.
  • The framework supports detection across 13 food types and 48 distinct defect categories collected under varied real-world conditions.
  • Reduced reliance on large labeled datasets makes automated quality control more practical for food production lines.
  • The two components together address both data augmentation and reliable pseudo-label usage in a semi-supervised setting.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The mixing and consistency ideas could transfer to defect detection tasks in other domains such as manufacturing parts or medical imaging.
  • Combining FDDet with additional unlabeled data sources from production lines might further lower labeling costs.
  • Testing the method on datasets that include temporal sequences or multi-view images would reveal whether the consistency calibration generalizes.

Load-bearing premise

The performance gains come specifically from the designs of BBoxMixUp and CGPC rather than from other training choices or properties of the FDD-48 dataset itself.

What would settle it

An ablation experiment that disables both BBoxMixUp and CGPC while keeping all other training details identical and still shows FDDet outperforming mainstream detectors on FDD-48 would falsify the central claim.

Figures

Figures reproduced from arXiv: 2605.24508 by Ruihao Xu, Yansong Tang, Yong Liu.

Figure 1

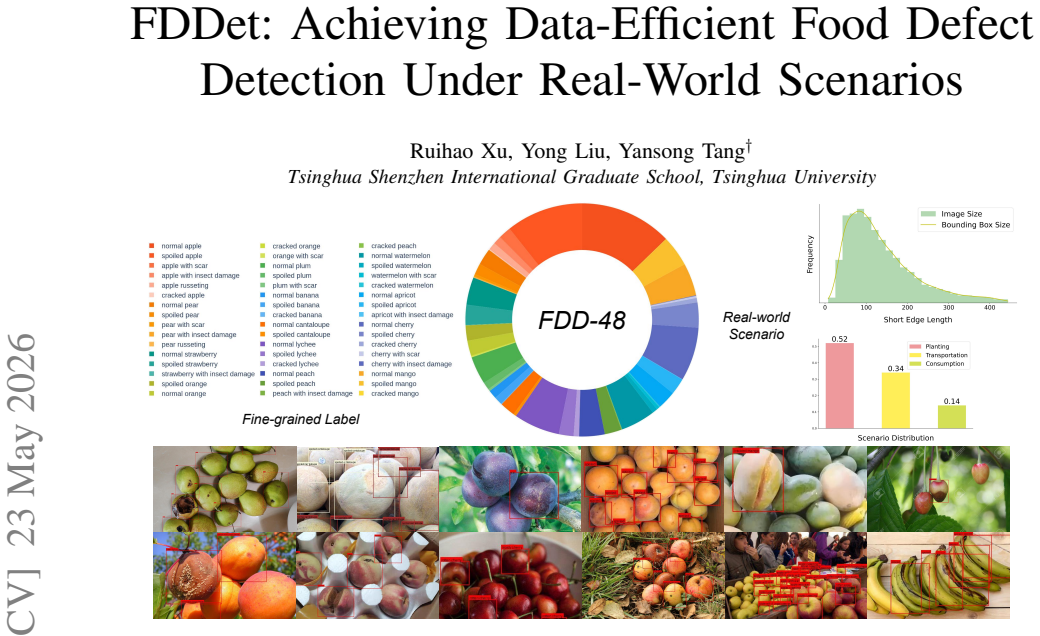

Figure 1. Figure 1: FDD-48: A food defect detection dataset with fine-grained annotations to closely align with practical application [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 3

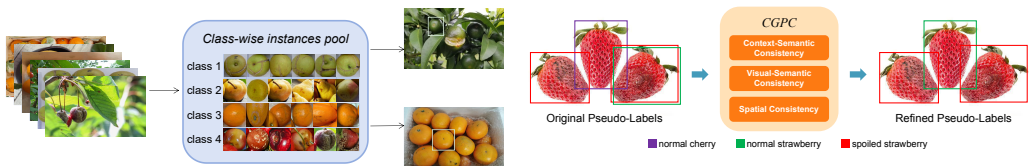

Figure 3. Figure 3: CGPC applies multi-dimensional consistency calibra [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of BBoxMixUp. (a) Mixing Candidate Selection. Bounding boxes of the same class are pooled and randomly paired for mixing. (b) Localized Mixing. Regions from different images are blended to create new instance. inputting a vocabulary list of the 13 fruit names as a prompt, YOLO-World generated bounding box annotations for both normal and defective fruits within the images. Subsequently, we cond… view at source ↗
Figure 4

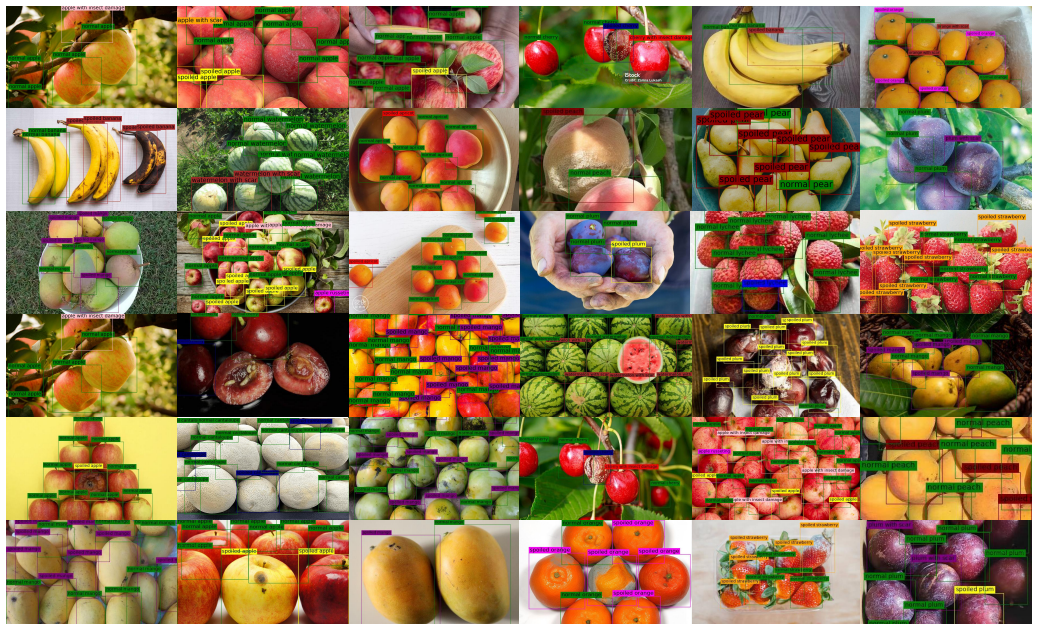

Figure 4. Figure 4: More sample images from FDD-48, demonstrating the diversity of food types and defect categories. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

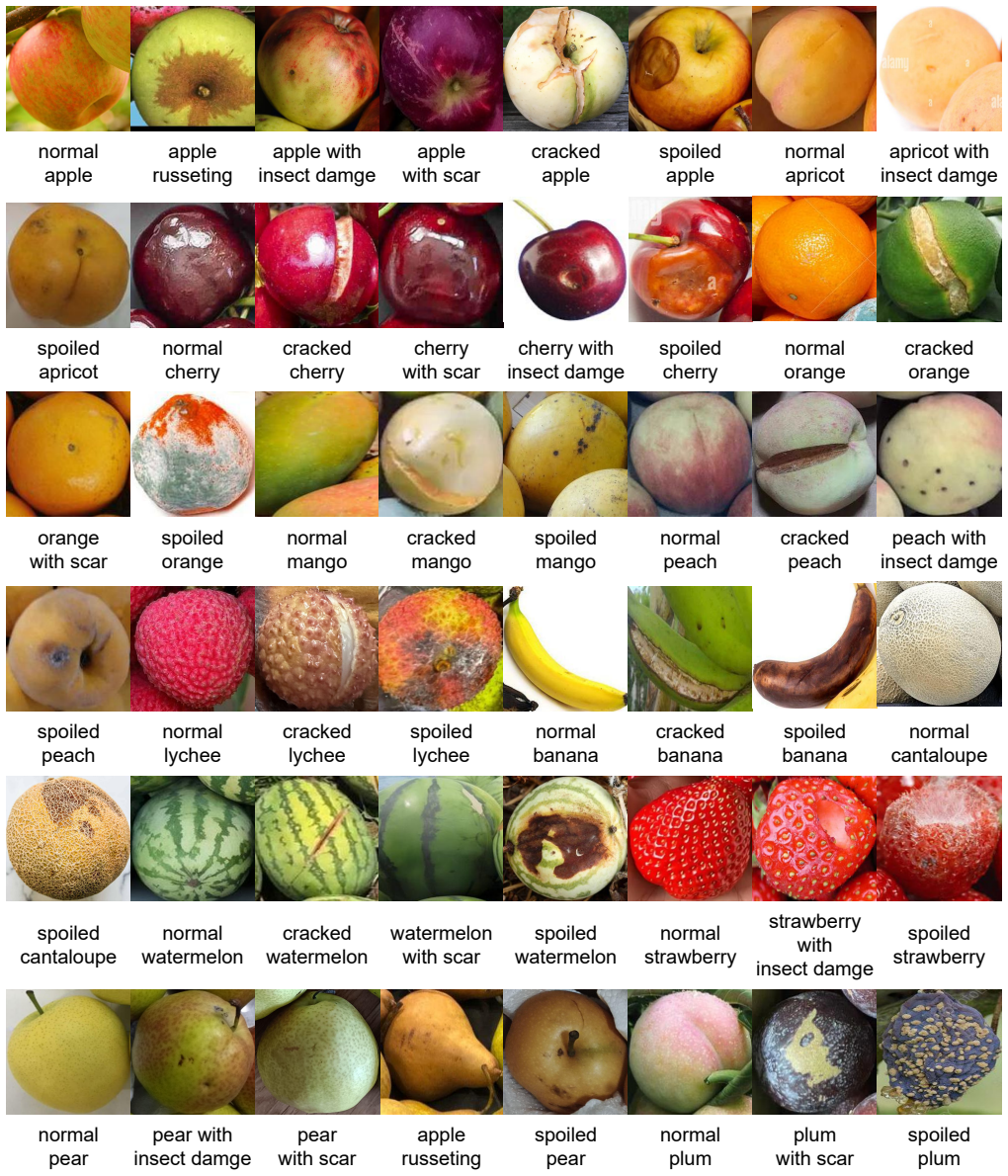

Figure 5. Figure 5: Illustrative examples for each defect category in FDD-48, showing the visual characteristics of different food defects. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

Food defect detection is critical for automated quality control, yet existing studies lack unified benchmarks and suffer from data scarcity. We introduce FDD-48, a comprehensive dataset with fine-grained annotations across 13 food types and 48 defect categories under diverse real-world conditions. To improve detection with limited labeled data, we propose FDDet, a semi-supervised framework featuring two key components: (1) BBoxMixUp, a data augmentation technique that mixes same-category defect regions to reduce spurious feature associations, and (2) CGPC (Consistency-Guided Pseudo-Label Calibration), which filters pseudo-labels based on intra-sample consistency. Experiments show FDDet significantly outperforms mainstream detectors on FDD-48, demonstrating its effectiveness for food defect detection under data-limited scenarios.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces the FDD-48 dataset comprising 13 food types and 48 defect categories with fine-grained annotations under real-world conditions. It proposes FDDet, a semi-supervised object detection framework whose two highlighted components are BBoxMixUp (mixing same-category defect bounding boxes) and CGPC (intra-sample consistency filtering of pseudo-labels). The central claim is that FDDet significantly outperforms mainstream detectors on FDD-48 in data-limited regimes.

Significance. A new benchmark dataset and a semi-supervised detector tailored to food-defect imagery would be useful for industrial quality-control applications if the performance gains are shown to be robust and specifically attributable to the proposed modules. The work addresses a genuine data-scarcity problem, but the current presentation supplies no quantitative results, baseline tables, or ablation controls, limiting any assessment of practical impact.

major comments (2)
  1. [Abstract] Abstract: the statement that 'FDDet significantly outperforms mainstream detectors' supplies no mAP, AP50, or other numeric deltas, no list of compared detectors, and no indication of the labeled-data fraction used; without these quantities the central empirical claim cannot be evaluated.
  2. [Experiments (implied by abstract description of key components)] The attribution of gains to BBoxMixUp and CGPC is not isolated. No ablation is described that replaces BBoxMixUp with standard MixUp/CutMix or CGPC with conventional confidence-threshold pseudo-labeling while keeping the remainder of the semi-supervised pipeline fixed; therefore the performance delta cannot be confidently credited to the two named components rather than other implementation choices.
minor comments (2)
  1. [Abstract] The abstract mentions 'diverse real-world conditions' but provides no statistics on lighting, occlusion, or defect-size distributions that would allow readers to judge dataset difficulty.
  2. [Method (implied)] Notation for BBoxMixUp and CGPC is introduced without an accompanying equation or algorithmic listing, making the precise mixing and filtering operations difficult to reproduce from the text alone.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. The comments correctly identify that the abstract and experimental sections require more specific quantitative support and component-isolating ablations to allow proper evaluation of the claims. We will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the statement that 'FDDet significantly outperforms mainstream detectors' supplies no mAP, AP50, or other numeric deltas, no list of compared detectors, and no indication of the labeled-data fraction used; without these quantities the central empirical claim cannot be evaluated.

    Authors: We agree that the abstract is insufficiently specific. In the revision we will update the abstract to report concrete mAP and AP50 deltas, name the compared detectors, and state the labeled-data fractions used in the FDD-48 experiments. revision: yes

  2. Referee: [Experiments (implied by abstract description of key components)] The attribution of gains to BBoxMixUp and CGPC is not isolated. No ablation is described that replaces BBoxMixUp with standard MixUp/CutMix or CGPC with conventional confidence-threshold pseudo-labeling while keeping the remainder of the semi-supervised pipeline fixed; therefore the performance delta cannot be confidently credited to the two named components rather than other implementation choices.

    Authors: We acknowledge that the current manuscript does not contain the requested ablations. We will add new ablation tables that replace BBoxMixUp with standard MixUp/CutMix and CGPC with conventional confidence-threshold pseudo-labeling while holding all other pipeline elements fixed, thereby isolating the contribution of each proposed module. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical claims rest on experiments, not self-referential derivations

full rationale

The paper introduces a dataset FDD-48 and a semi-supervised detection framework FDDet with two proposed components (BBoxMixUp and CGPC). All claims are supported by experimental comparisons on the dataset rather than any derivation chain, equations, or parameters fitted to the target quantities and then relabeled as predictions. No self-definitional steps, fitted-input predictions, or load-bearing self-citations appear in the provided text. Attribution questions about whether gains isolate to the two components are experimental-design issues, not circularity under the defined patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Review based on abstract only; no explicit free parameters, axioms, or invented entities are described in the provided text.

pith-pipeline@v0.9.1-grok · 5656 in / 1093 out tokens · 35775 ms · 2026-06-30T13:45:15.215075+00:00 · methodology
