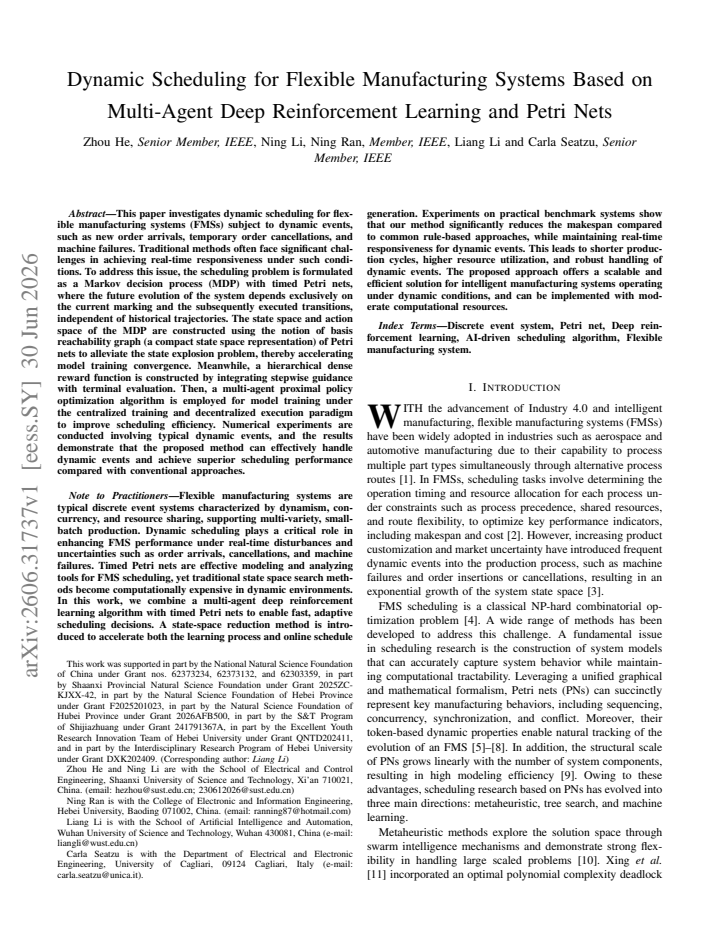

Dynamic Scheduling for Flexible Manufacturing Systems Based on Multi-Agent Deep Reinforcement Learning and Petri Nets

Zhou He , Ning Li , Ning Ran , Liang Li , Carla Seatzu This is my paper

Pith reviewed 2026-07-01 03:45 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords flexible manufacturing systemsdynamic schedulingPetri netsmulti-agent deep reinforcement learningMarkov decision processbasis reachability graphproximal policy optimization
0
0 comments X

The pith

A multi-agent reinforcement learning method built on timed Petri nets and their basis reachability graphs solves dynamic scheduling in flexible manufacturing systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper formulates dynamic scheduling for flexible manufacturing systems as a Markov decision process using timed Petri nets. The future system evolution depends only on the current state and next transitions, so historical data is not needed. A compact basis reachability graph reduces the state space to make training feasible. Hierarchical rewards combine immediate guidance with final performance scores, and multi-agent proximal policy optimization trains the system under centralized training and decentralized execution. Tests with order changes and machine failures show the method handles these events and beats standard scheduling techniques.

Core claim

The scheduling problem is formulated as a Markov decision process (MDP) with timed Petri nets, where the future evolution of the system depends exclusively on the current marking and the subsequently executed transitions, independent of historical trajectories. The state space and action space of the MDP are constructed using the notion of basis reachability graph of Petri nets to alleviate the state explosion problem. A hierarchical dense reward function is constructed by integrating stepwise guidance with terminal evaluation. Then, a multi-agent proximal policy optimization algorithm is employed for model training under the centralized training and decentralized execution paradigm. Numeric

What carries the argument

The basis reachability graph of the timed Petri net, which provides a compact yet sufficient representation of system states for constructing the Markov decision process.

If this is right

  • The compact state representation accelerates convergence of the reinforcement learning model.
  • Dynamic events such as new order arrivals, cancellations, and machine failures can be handled in real time.
  • The hierarchical reward function improves learning efficiency over purely terminal rewards.
  • Centralized training with decentralized execution allows efficient multi-agent coordination.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Manufacturers could integrate this scheduler directly with existing Petri-net models of their production lines.
  • Extending the approach to include energy consumption or quality metrics in the reward could address additional factory goals.
  • The same MDP construction might apply to scheduling in other timed discrete-event systems like transportation networks.

Load-bearing premise

The basis reachability graph of the timed Petri net supplies a compact yet sufficient state representation that preserves all information needed for optimal dynamic decisions.

What would settle it

A direct comparison on benchmark flexible manufacturing system instances showing that the multi-agent method produces longer completion times or fails to recover from machine failures as well as conventional rescheduling methods would disprove the performance claim.

Figures

Figures reproduced from arXiv: 2606.31737 by Carla Seatzu, Liang Li, Ning Li, Ning Ran, Zhou He.

Figure 1

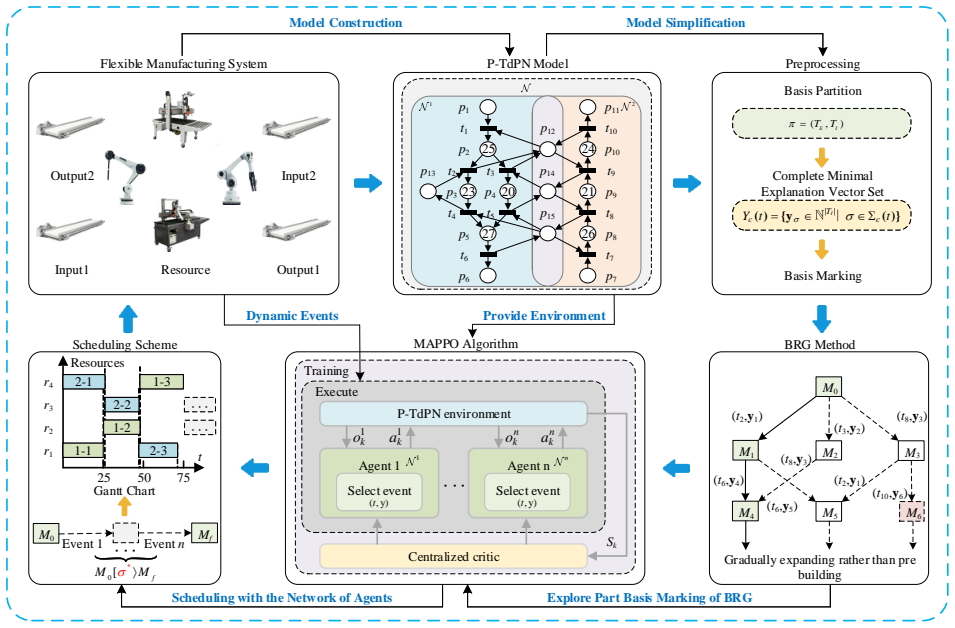

Figure 1. Figure 1: Flow chart of the proposed scheduling method. [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

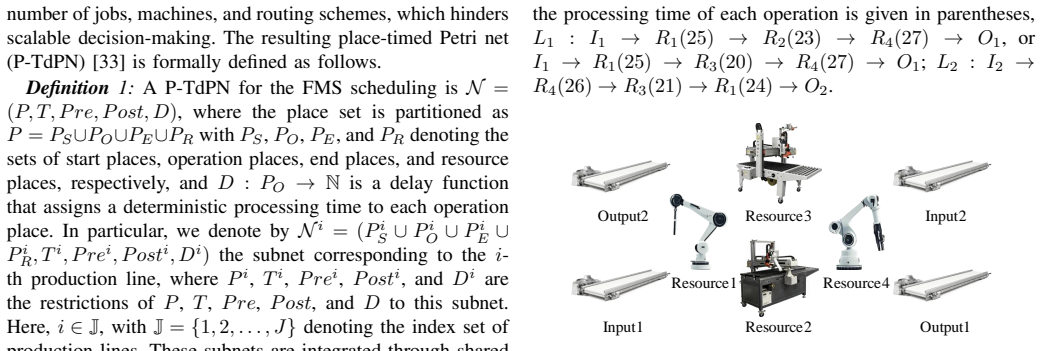

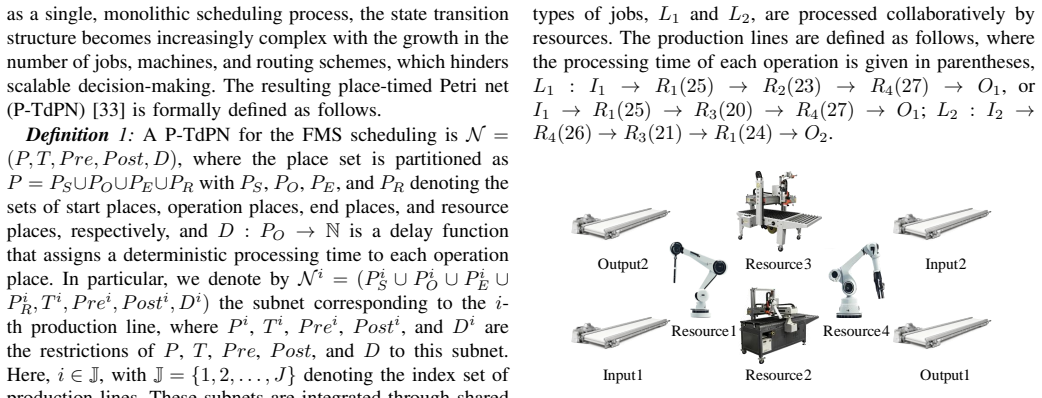

Figure 2. Figure 2: An industrial FMS. The P-TdPN of the FMS is illustrated in [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

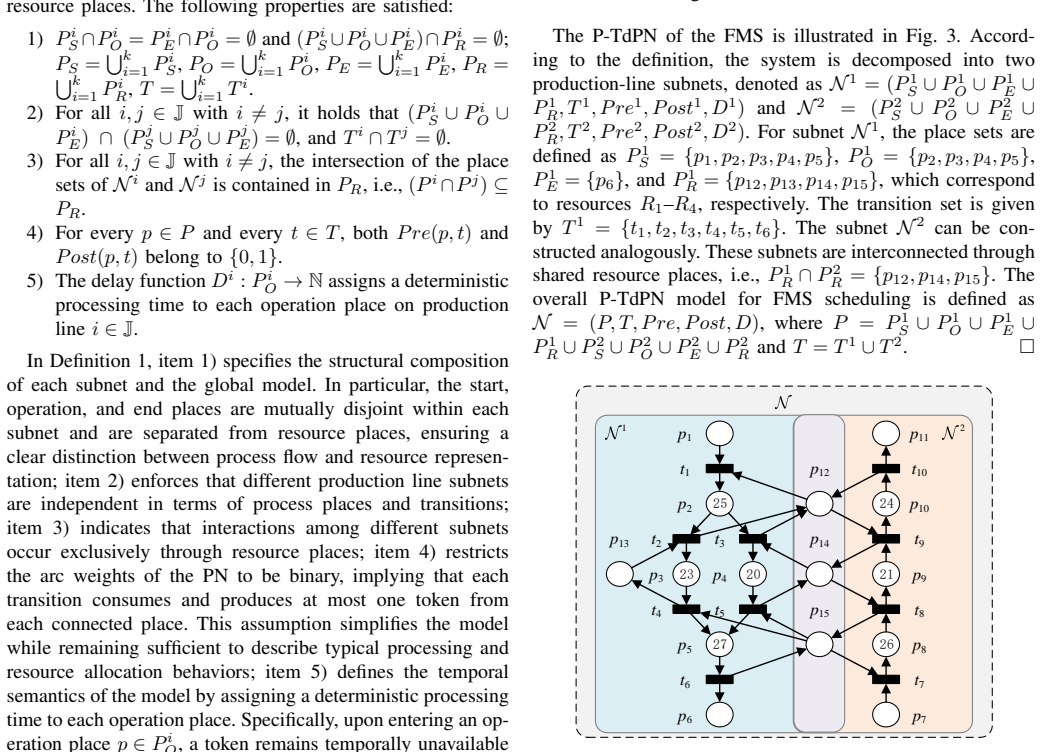

Figure 3. Figure 3: The P-TdPN of the FMS in Example 1. C. Problem Statement Given a P-TdPN N = (P, T, P re, P ost, D) for an FMS as defined in Definition 1, the dynamic scheduling problem can be formally stated as follows. The system starts from an initial marking M0, in which tokens in start places PS represent jobs to be processed, and tokens in resource places PR indicate the [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

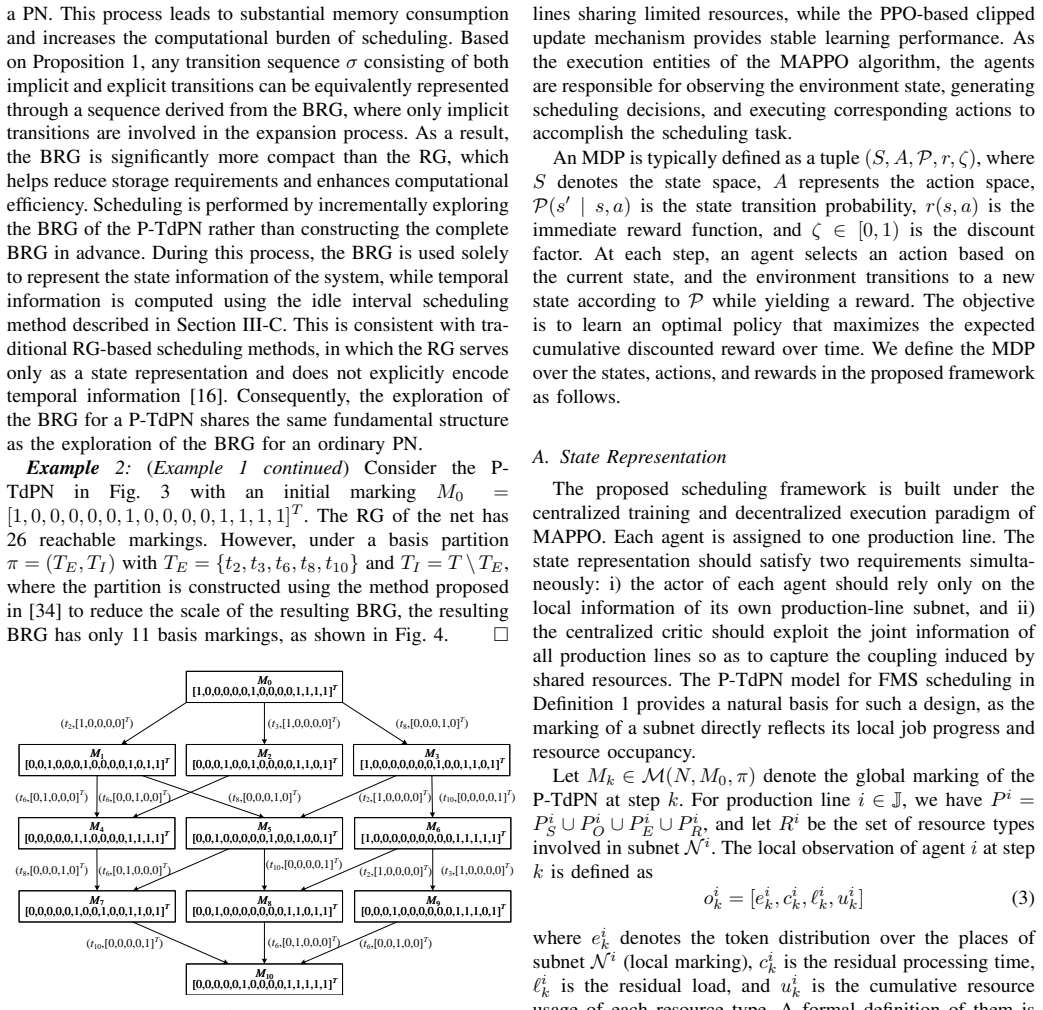

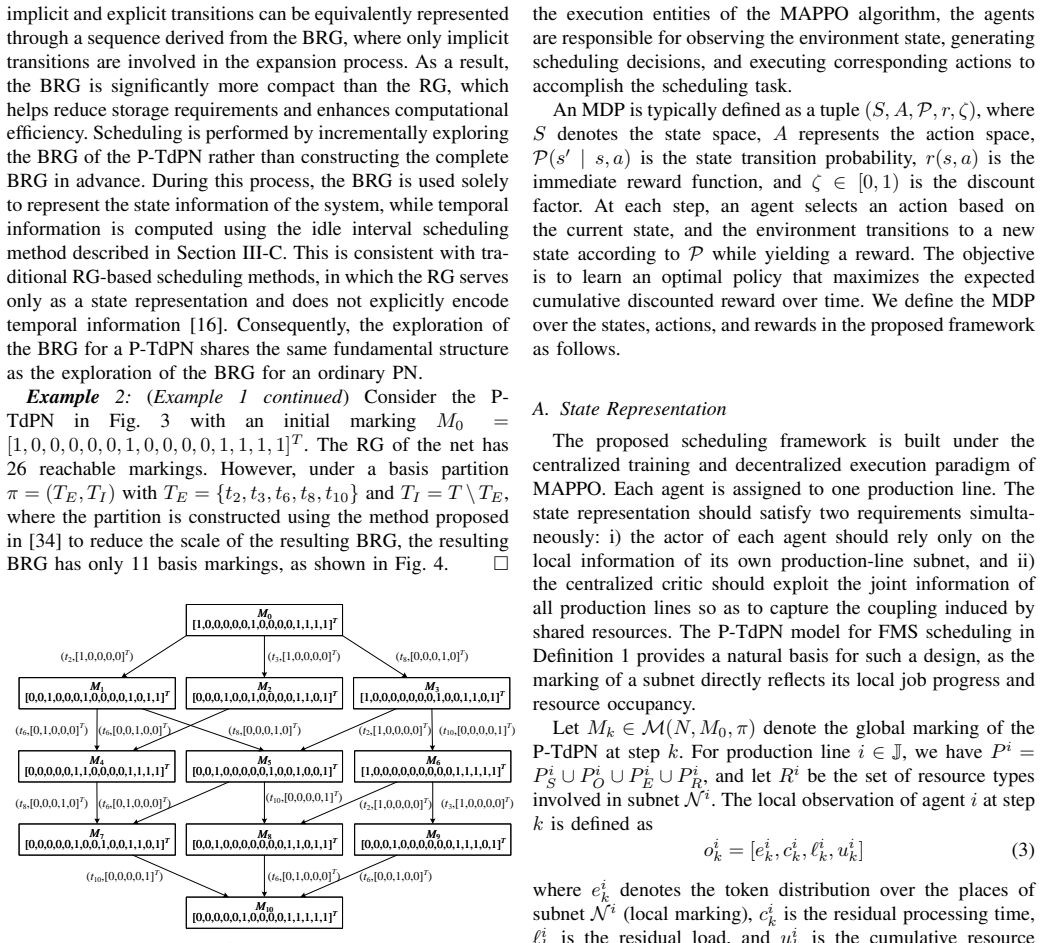

Figure 4. Figure 4: The BRG B of the P-TdPN in [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

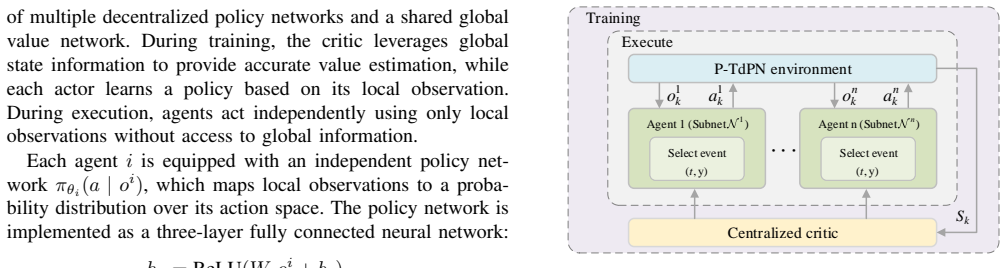

Figure 5. Figure 5: The interaction between the policy and value networks. [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6

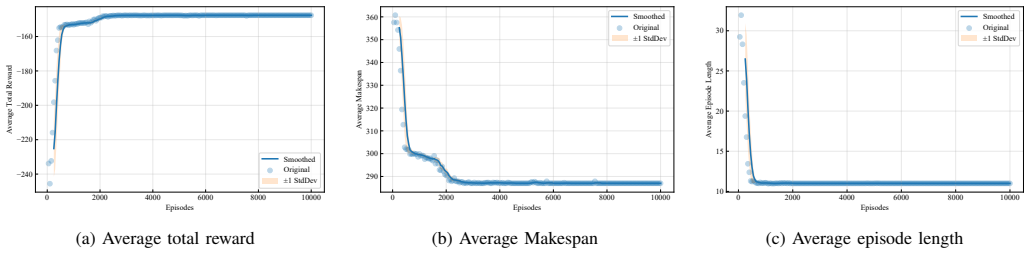

Figure 6. Figure 6: Convergence curve during training. IV. EXPERIMENTAL RESULTS The proposed algorithm is implemented in Python and executed on a personal computer equipped with a 2.1 GHz processor and 16 GB of RAM. In the subsequent subsections, several benchmark instances are evaluated, and the results are compared with those obtained from existing methods. The source code corresponding to all experimental cases is publicly… view at source ↗
Figure 8

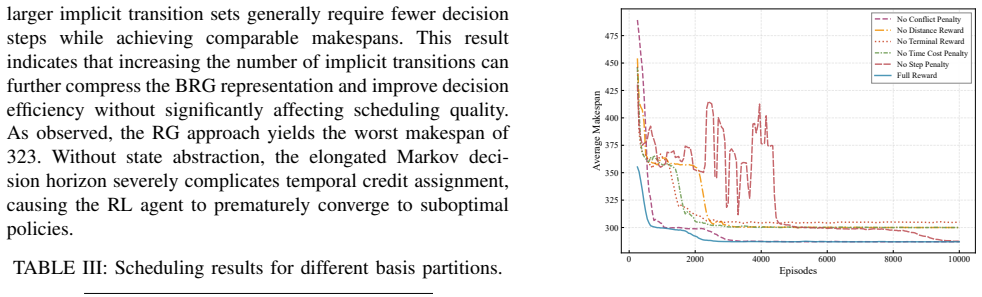

Figure 8. Figure 8: Study of reward components on Makespan. increased makespan, as shown in [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 9

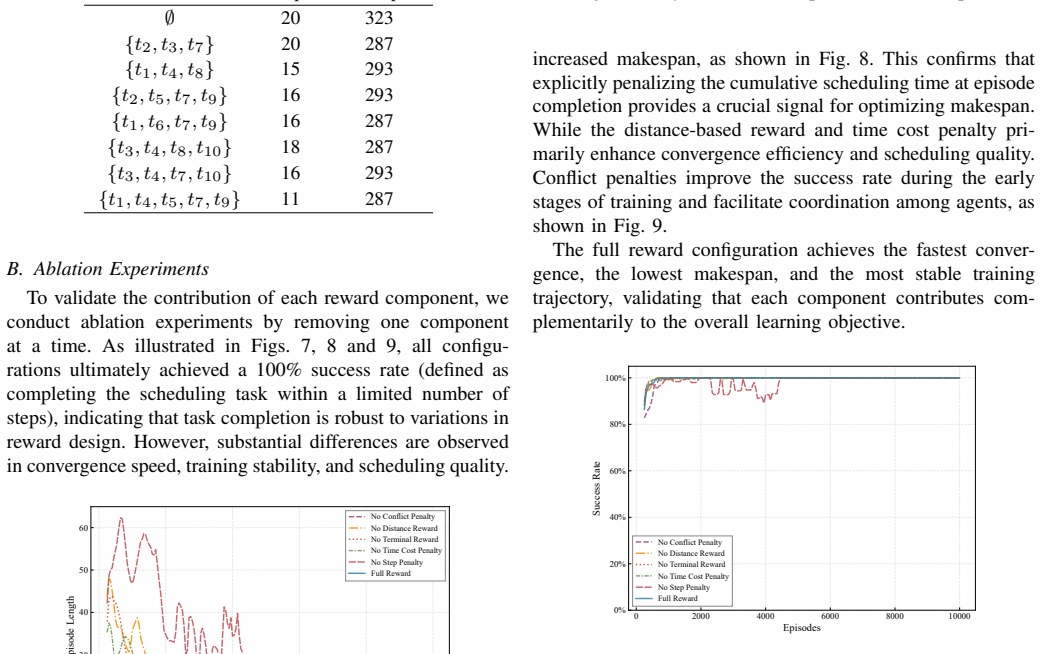

Figure 9. Figure 9: Study of reward components on success rate. [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
