CB-VER: A Stable Foundation for Modular Control Plane Verification

Dexin Zhang , Timothy Alberdingk Thijm , David Walker , Aarti Gupta This is my paper

Pith reviewed 2026-05-21 09:40 UTC · model grok-4.3

classification 💻 cs.NI cs.LO
keywords network control plane verificationeventually-stable propertiesconverges-before graphmodular verificationSMT solvingLean theorem proverfault tolerance
0
0 comments X

The pith

CB-Ver verifies eventually-stable network properties when a synthesized converges-before graph connects every component.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents CB-Ver as a framework for checking properties such as reachability or access control that hold in a network control plane after it stabilizes and continue to hold thereafter. Users supply interfaces describing each component's behavior, and the tool verifies local requirements for those interfaces using an SMT solver in parallel. It then builds a converges-before graph automatically and accepts the interfaces if the graph reaches every node, which also supports checking fault tolerance. The entire procedure is formalized and shown sound inside the Lean proof assistant.

Core claim

When a user provides interfaces for each network component, CB-Ver checks the necessary component-by-component requirements in parallel using an SMT solver. In addition, the tool automatically synthesizes a CB-graph and checks whether it connects all nodes in a network -- if it does, the interfaces are valid and users can check whether additional eventually-stable properties are implied. Moreover, the CB-graph can then be used to determine fault tolerance properties of the network. The verification algorithm is formalized and proved sound in Lean.

What carries the argument

The converges-before graph (CB-graph), a synthesized structure whose connectivity across all nodes certifies that the component interfaces imply the desired eventually-stable properties for the network as a whole.

If this is right

  • Component interfaces can be checked independently and in parallel before the global CB-graph test.
  • Once a valid CB-graph exists, fault-tolerance properties follow directly from the same structure.
  • Given a target CB-graph, a Constrained Horn Clause solver can synthesize the required interfaces automatically.
  • The soundness proof in Lean guarantees that any accepted interfaces truly imply the stated properties.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same CB-graph technique could be tried on stability questions in distributed systems that are not networks.
  • Automatic synthesis of interfaces might lower the barrier for operators who lack formal verification expertise.
  • Because the method separates local checks from the global connectivity test, it may scale to larger topologies than monolithic verifiers.

Load-bearing premise

That connectivity of the synthesized CB-graph is enough to guarantee the supplied interfaces imply the target eventually-stable properties throughout the network.

What would settle it

A concrete network and set of interfaces where the synthesized CB-graph connects every node yet some eventually-stable property fails to hold after the control plane converges.

Figures

Figures reproduced from arXiv: 2604.03539 by Aarti Gupta, David Walker, Dexin Zhang, Timothy Alberdingk Thijm.

Figure 1
Figure 1. Figure 1: Example network with devices A, B, C, D. A origi [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Synthesized CB-graphs for interfaces I1,Q1 and I2,Q2. route in Q2(C), and transfers this route to node E. Suppose E does not have any route before this transfer, e.g., if the route transfer from node B is much delayed. Then, as a result of transfer from C, node E will select this route where the path includes C. However, this route does not belong to Q2(E), as defined earlier (since its path includes C). T… view at source ↗
Figure 3
Figure 3. Figure 3: Summary: Verification Condition (VC) Formulas. [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: CB-graph of a cross-world network from the Batfish [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: CHC system for the network interface synthesis problem, given the CB-graph. [PITH_FULL_IMAGE:figures/full_fig_p010_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Evaluation results for CB-VER on fattree networks, compared with Timepiece (a modular verifier) and MS (a Minesweeper-style monolithic verifier). Internet2. CB-VER spends 22s (seconds) to verify the BlockToExternal property and reports 3 (true) violations (in phase 1). CB-VER spends 121s to verify the NoMartians property and reports one violation. Finally, CB-VER spends 74s successfully verifying InternalR… view at source ↗
Figure 7

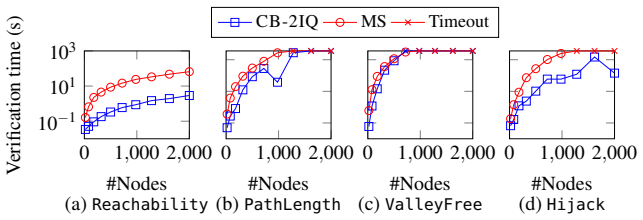

Figure 7. Figure 7: Evaluation results for automated interface synthesis (CB-2IQ), compared with a monolithic verifier (MS). [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Debugging and Repair Process: Counterexample shows the VC violation in the first column, “ [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Topology of a campus network taken from the Bat [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Error debugging process: an example (for the network in Fig. [PITH_FULL_IMAGE:figures/full_fig_p020_10.png] view at source ↗
read the original abstract

Network operators are often interested in verifying \emph{eventually-stable properties} of network control planes: properties of control plane states that hold eventually, and hold forever thereafter, provided the operating environment remains unchanged. Examples include eventually-stable reachability, access control, or path length properties. In this work, we introduce \textsc{CB-Ver}, a new framework for verifying such properties, based on the key idea of a \emph{converges-before graph} (CB-graph for short). When a user provides interfaces for each network component, \textsc{CB-Ver} checks the necessary component-by-component requirements in parallel using an SMT solver. In addition, the tool automatically synthesizes a CB-graph and checks whether it connects all nodes in a network -- if it does, the interfaces are valid and users can check whether additional eventually-stable properties are implied. Moreover, the CB-graph can then be used to determine fault tolerance properties of the network. We formalize our verification algorithm in the Lean theorem proving environment and prove its soundness. We evaluate the performance of \textsc{CB-Ver} on a range of benchmarks that demonstrate its ability to verify expressive properties in reasonable time. Finally, we demonstrate it is possible to automatically generate suitable interfaces by turning the problem around: Given a CB-graph, we use an off-the-shelf Constrained Horn Clause (CHC) solver to synthesize interfaces for every network component that together ensure the given correctness property.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The paper presents CB-Ver, a framework for verifying eventually-stable properties (e.g., reachability, access control) of network control planes. Users supply per-component interfaces that are checked in parallel via SMT; the tool synthesizes a converges-before graph (CB-graph) and accepts the interfaces if the graph is connected, after which additional properties and fault-tolerance claims can be checked. The verification algorithm, including the CB-graph connectivity implication, is formalized and proved sound in Lean. The paper also demonstrates automatic interface synthesis via an off-the-shelf CHC solver and reports performance on a range of benchmarks.

Significance. If the central claims hold, the work supplies a modular, formally grounded method for eventually-stable control-plane verification that scales via parallel SMT checks and automatic synthesis. The machine-checked Lean soundness proof is a clear strength, providing independent evidence that CB-graph connectivity implies interface validity under the stated assumptions. The CHC-based synthesis direction further increases practicality for operators.

major comments (1)
  1. §3 (Verification Procedure): the central claim that CB-graph connectivity is sufficient to guarantee that the supplied interfaces imply the target eventually-stable properties for the whole network is load-bearing; while the Lean formalization is cited, the manuscript should include a high-level statement of the key lemma (e.g., Lemma X) that directly links connectivity to validity so readers can assess the proof structure without inspecting the full Lean development.
minor comments (3)
  1. Abstract and §2: the term 'eventually-stable' is used inconsistently with respect to hyphenation and capitalization; standardize throughout.
  2. Evaluation section: timing results are reported but the hardware platform, solver versions, and exact network topologies used in the benchmarks are not specified, hindering reproducibility.
  3. Related-work discussion: a direct comparison table with prior modular or compositional verification tools (e.g., those using assume-guarantee or interface-based methods) would clarify the precise advance over existing approaches.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive feedback and positive assessment of the work. We address the single major comment below and will incorporate the suggested change in the revised manuscript.

read point-by-point responses

  1. Referee: §3 (Verification Procedure): the central claim that CB-graph connectivity is sufficient to guarantee that the supplied interfaces imply the target eventually-stable properties for the whole network is load-bearing; while the Lean formalization is cited, the manuscript should include a high-level statement of the key lemma (e.g., Lemma X) that directly links connectivity to validity so readers can assess the proof structure without inspecting the full Lean development.

    Authors: We agree that a high-level statement of the key lemma would improve accessibility. In the revised version of §3, we will explicitly state the central lemma (Lemma 3.2) establishing that CB-graph connectivity implies interface validity for the composed network, i.e., that if the synthesized CB-graph is connected then the per-component interfaces together entail the target eventually-stable properties. This statement will be accompanied by a brief informal sketch of its role in the soundness argument, while the full machine-checked proof remains in the Lean development. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper's core claim is that CB-graph connectivity (after SMT-based interface checks) suffices to validate supplied interfaces for eventually-stable network properties, with the full algorithm including this implication formalized and proved sound in Lean. A machine-checked proof in Lean constitutes independent evidence under the review criteria and does not reduce the result to a self-definitional or fitted-input construct. External SMT and CHC solvers are used for parallel checks and synthesis, keeping the derivation self-contained against external benchmarks rather than internally circular.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The framework rests on the correctness of the CB-graph synthesis procedure and the assumption that user-supplied interfaces can be checked locally; the Lean proof is the primary external grounding.

axioms (1)
  • domain assumption Standard graph connectivity implies global eventual stability once local interface conditions hold
    Invoked when the paper states that a connecting CB-graph validates the interfaces.
invented entities (1)
  • Converges-before graph (CB-graph) no independent evidence
    purpose: To encode ordering constraints among component stabilizations so that global eventual stability can be checked via connectivity
    Newly introduced as the central modeling device; no independent evidence outside the paper is supplied in the abstract.
