arxiv: 2606.22480 · v1 · pith:D2YKXPNBnew · submitted 2026-06-21 · 💻 cs.RO

ARP: Enhancing Quantized Skill Abstractions via Visual Alignment and Iterative Refinement for Robotic Manipulation

Yuntian Wang , Zesheng Jia , Yuhui Duan , Qibing Wang , Yang Liu , Song Wang , Siao Liu , Jin Wang This is my paper

Pith reviewed 2026-06-26 10:12 UTC · model grok-4.3

classification 💻 cs.RO
keywords robotic manipulationskill-based imitation learningquantized skillsvisual alignmentiterative refinementvisuomotor policiesdiscrete skill abstraction
0
0 comments X

The pith

ARP improves discrete robot skills by aligning visuals to actions and iteratively refining outputs.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper claims that skill-based imitation learning for long-horizon manipulation suffers from weak visual grounding and precision loss due to quantization. ARP fixes this by adding a contrastive visual-action alignment that grounds skill selection in observations while keeping the decoder state-independent, plus a lightweight Iterative Residual Head that refines continuous actions in two steps. If the claim holds, discrete skill methods can match or exceed continuous policies on complex tasks without losing their temporal abstraction benefits. Experiments on simulation benchmarks and a real humanoid platform are presented as evidence of consistent gains over baselines.

Core claim

ARP is a discrete-skill framework that couples semantic grounding with execution-level refinement: a visual-action alignment objective contrastively aligns visual embeddings with pre-quantized action representations in a shared latent space, and a lightweight Iterative Residual Head performs two-step refinement to recover fine-grained control, yielding state-of-the-art results on LIBERO and Meta-World while showing gains on real-robot tasks.

What carries the argument

The visual-action alignment objective together with the Iterative Residual Head (IRH), which together ground skill selection in vision and correct quantization errors during continuous action generation.

If this is right

  • Quantized skill policies can achieve higher success rates on long-horizon manipulation benchmarks without switching to fully continuous representations.
  • Skill selection becomes more reliable when visual observations are explicitly aligned with action codes in latent space.
  • Fine-grained control can be restored post-quantization via lightweight iterative correction rather than heavier model changes.
  • Real-robot deployment of discrete skills becomes more viable when both grounding and precision issues are addressed together.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same alignment-plus-refinement pattern could apply to other discrete representation problems where perception must guide action selection.
  • If the state-independent decoder remains intact, the method may scale to settings with partial observability or changing environments.
  • Future work could test whether the Iterative Residual Head generalizes across different quantization schemes or robot morphologies.

Load-bearing premise

The visual-action alignment improves skill selection without breaking the state-independent decoder, and the Iterative Residual Head recovers precision without introducing instability or new error modes.

What would settle it

An ablation study on the LIBERO benchmark showing that removing either the alignment objective or the Iterative Residual Head eliminates the reported performance gains over baselines would falsify the claim.

Figures

Figures reproduced from arXiv: 2606.22480 by Jin Wang, Qibing Wang, Siao Liu, Song Wang, Yang Liu, Yuhui Duan, Yuntian Wang, Zesheng Jia.

Figure 1

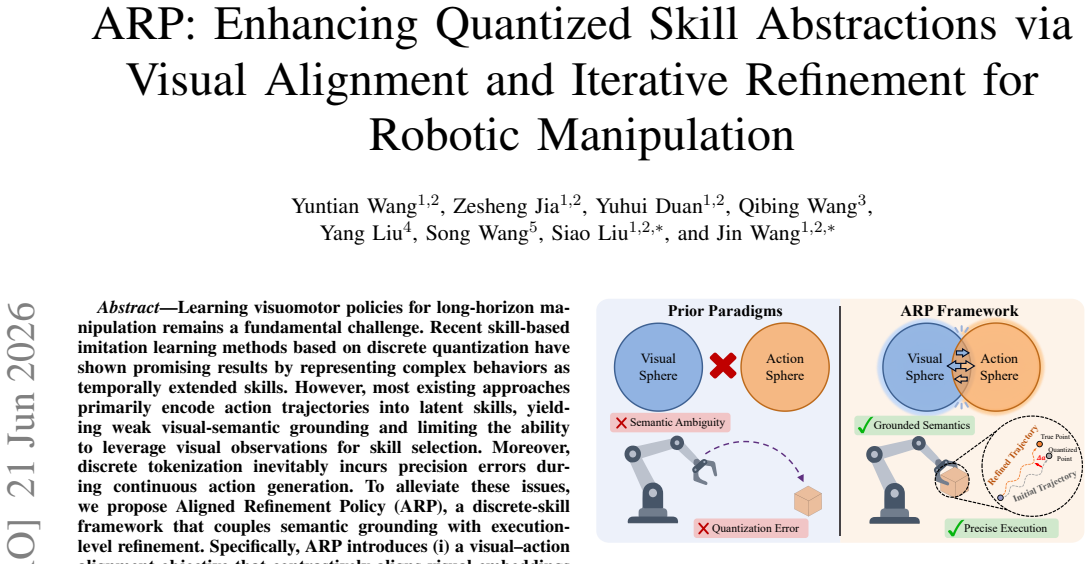

Figure 1. Figure 1: ARP overview. Left: Prior discrete-skill policies suffer from seman￾tic ambiguity and quantization error. Right: ARP aligns visual embeddings with pre-quantized action latents for semantics-aware token selection and applies iterative residual refinement for precise execution. One promising solution is to decompose long-horizon trajectories into reusable skills, providing structure for multi￾task compositio… view at source ↗
Figure 2

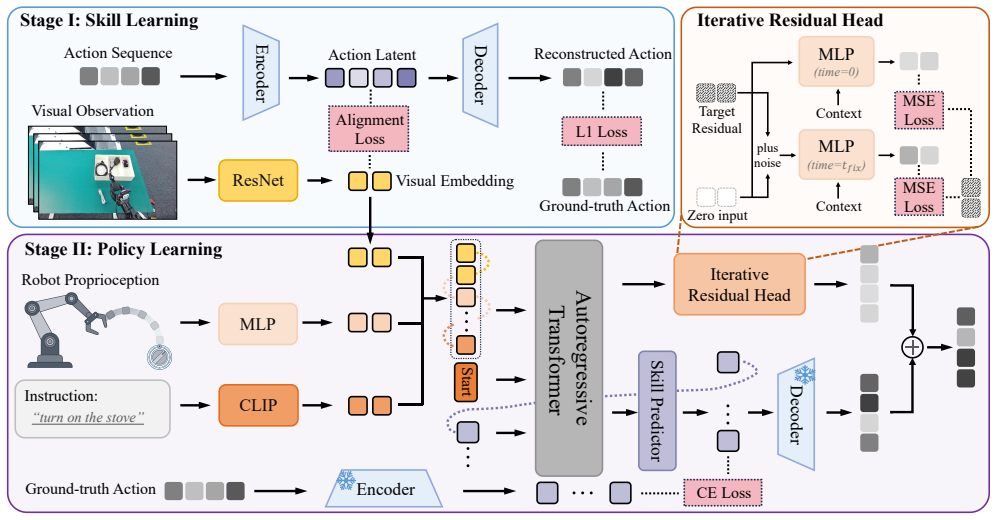

Figure 2. Figure 2: ARP framework. Stage I learns discrete action skills through reconstruction and contrastive alignment of action latents with visual embeddings. Stage II trains an autoregressive skill prior, decodes predicted tokens into actions, and refines them with an iterative residual head for precise execution. B. Stage I: Skill Learning 1) Action Tokenizer: Following QueST [11], we use a causal autoencoder to compre… view at source ↗
Figure 3

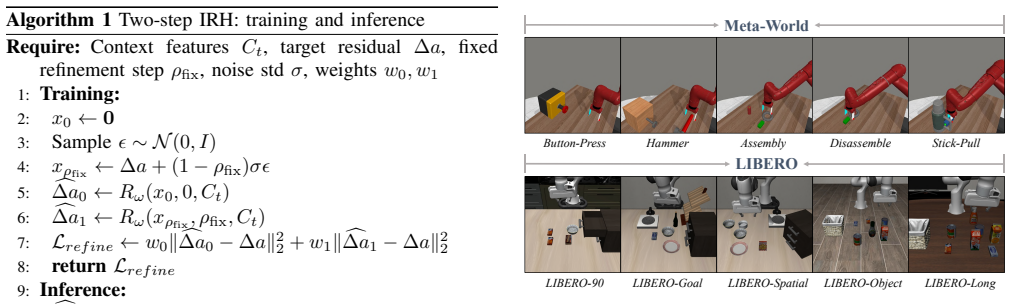

Figure 3. Figure 3: Sample visualizations of tasks from Meta-World and LIBERO. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4

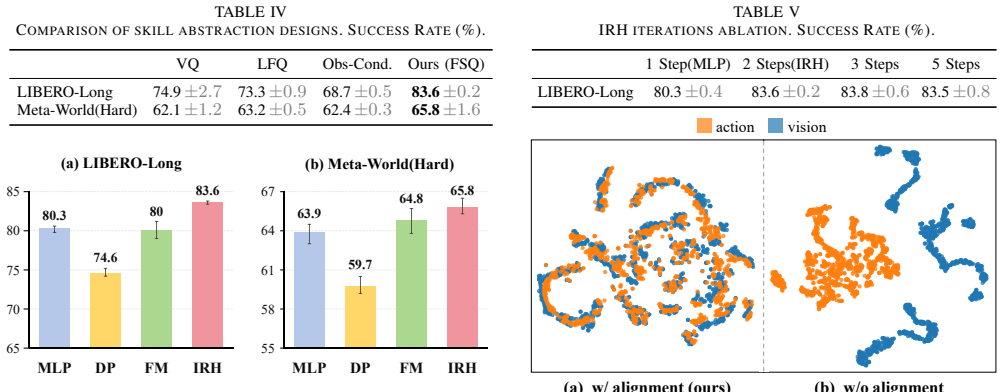

Figure 4. Figure 4: Comparison of refinement strategies and residual head design. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 6

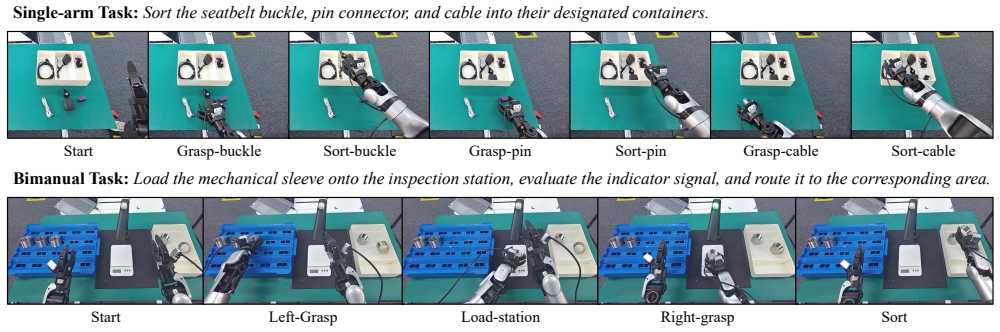

Figure 6. Figure 6: Visualization of two real-world manipulation tasks with key stages. Each frame highlights a critical step in the manipulation sequence. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7

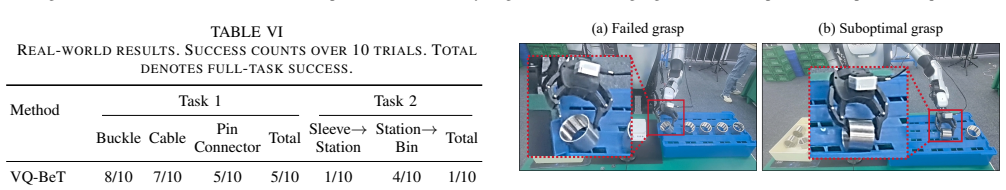

Figure 7. Figure 7: Failure cases on Kuavo 4 Pro ing, consistent with the benefit of a semantics-aware routing interface for perception-driven branching decisions. C. Failure Case Analysis We observe two recurring failure modes in contact￾sensitive manipulation on Kuavo 4 Pro ( [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
read the original abstract

Learning visuomotor policies for long-horizon manipulation remains a fundamental challenge. Recent skill-based imitation learning methods based on discrete quantization have shown promising results by representing complex behaviors as temporally extended skills. However, most existing approaches primarily encode action trajectories into latent skills, yielding weak visual-semantic grounding and limiting the ability to leverage visual observations for skill selection. Moreover, discrete tokenization inevitably incurs precision errors during continuous action generation. To alleviate these issues, we propose Aligned Refinement Policy (ARP), a discrete-skill framework that couples semantic grounding with execution-level refinement. Specifically, ARP introduces (i) a visual--action alignment objective that contrastively aligns visual embeddings with pre-quantized action representations in a shared latent space while preserving a state-independent skill decoder, and (ii) a lightweight Iterative Residual Head (IRH) that performs a two-step refinement to recover fine-grained control for precise execution. Extensive experiments show that ARP achieves state-of-the-art performance on the LIBERO and Meta-World benchmarks. Moreover, real-robot experiments on the Kuavo 4 Pro humanoid platform further validate its effectiveness, yielding consistent performance gains over several baselines on two challenging manipulation tasks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper proposes Aligned Refinement Policy (ARP), a discrete-skill imitation learning framework for long-horizon robotic manipulation. It augments quantized skill methods with (i) a contrastive visual-action alignment objective that grounds pre-quantized action representations in visual embeddings while preserving a state-independent skill decoder, and (ii) a lightweight Iterative Residual Head (IRH) that performs two-step residual refinement to mitigate precision loss in continuous action generation. The central empirical claims are state-of-the-art results on the LIBERO and Meta-World benchmarks plus consistent gains over baselines on two real-robot tasks using the Kuavo 4 Pro humanoid.

Significance. If the reported gains hold under rigorous controls, the work would provide a practical route to improve visual grounding and execution precision in quantized skill policies without sacrificing the modularity of state-independent decoders. The design choices (contrastive alignment in a shared latent space and residual refinement) are directly motivated by the stated limitations and could be adopted by other skill-based methods.

minor comments (2)
  1. [Abstract] Abstract: the phrase 'yielding consistent performance gains' would be strengthened by reporting the magnitude of improvement (e.g., success-rate deltas) rather than qualitative language.
  2. [Experiments] The manuscript would benefit from an explicit statement of the number of random seeds and statistical tests used for the benchmark tables to allow readers to assess the reliability of the SOTA claims.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity; derivation is self-contained

full rationale

The provided abstract and method description introduce ARP as an extension to existing quantized skill methods via two explicit additions: a contrastive visual-action alignment objective (preserving state-independent decoding) and a lightweight Iterative Residual Head for refinement. No equations, self-citations, or claims reduce a prediction or uniqueness result to a fitted parameter or prior self-work by construction. The SOTA and real-robot results are presented as empirical outcomes on external benchmarks, with no load-bearing step that renames or re-derives its own inputs. This matches the default expectation of a non-circular paper.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no free parameters, axioms, or invented entities are specified in the provided text.

pith-pipeline@v0.9.1-grok · 5759 in / 1110 out tokens · 38376 ms · 2026-06-26T10:12:09.325884+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

43 extracted references · 12 linked inside Pith

  1. [1]

    Learning fine-grained bimanual manipulation with low-cost hardware,

    T. Z. Zhao, V . Kumar, S. Levine, and C. Finn, “Learning fine-grained bimanual manipulation with low-cost hardware,”arXiv preprint arXiv:2304.13705, 2023

    Pith/arXiv arXiv 2023

  2. [2]

    Diffusion policy: Visuomotor policy learning via action diffusion,

    C. Chi, S. Feng, Y . Du, Z. Xu, E. Cousineau, B. Burchfiel, and S. Song, “Diffusion policy: Visuomotor policy learning via action diffusion,” in Robotics: Science and Systems, 2023

    2023

  3. [3]

    Improving robotic grasp detection under sparse annotations via grasp transformer with pixel-wise contrastive learning,

    S. Liu, Y . Liu, Z. Chen, Z. Zhou, Z. Zhao, Y . Xie, W. Li, and Z. Gan, “Improving robotic grasp detection under sparse annotations via grasp transformer with pixel-wise contrastive learning,”IEEE Transactions on Industrial Electronics, 2025

    2025

  4. [4]

    Umi-bench 1.0: An open and reproducible real-world benchmark for tabletop robotic manipulation with umi data,

    S. Jin, Y . Wang, Y . Duan, D. Wu, G. Dong, X. Liu, X. Li, H. Jia, Z. Zhang, T. Wanget al., “Umi-bench 1.0: An open and reproducible real-world benchmark for tabletop robotic manipulation with umi data,” arXiv preprint arXiv:2606.10382, 2026

    Pith/arXiv arXiv 2026

  5. [5]

    Imitation learning: Progress, taxonomies and challenges,

    B. Zheng, S. Verma, J. Zhou, I. W. Tsang, and F. Chen, “Imitation learning: Progress, taxonomies and challenges,”IEEE Transactions on Neural Networks and Learning Systems, vol. 35, no. 5, pp. 6322–6337, 2022

    2022

  6. [6]

    Rethinking mutual information for language conditioned skill discovery on imitation learning,

    Z. Ju, C. Yang, F. Sun, H. Wang, and Y . Qiao, “Rethinking mutual information for language conditioned skill discovery on imitation learning,” inProceedings of the International Conference on Auto- mated Planning and Scheduling, vol. 34, 2024, pp. 301–309

    2024

  7. [7]

    Lisa: Learning interpretable skill abstractions from language,

    D. Garg, S. Vaidyanath, K. Kim, J. Song, and S. Ermon, “Lisa: Learning interpretable skill abstractions from language,”Advances in Neural Information Processing Systems, vol. 35, pp. 21 711–21 724, 2022

    2022

  8. [8]

    Skilldiffuser: Interpretable hierarchical planning via skill abstractions in diffusion-based task execution,

    Z. Liang, Y . Mu, H. Ma, M. Tomizuka, M. Ding, and P. Luo, “Skilldiffuser: Interpretable hierarchical planning via skill abstractions in diffusion-based task execution,” inProceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, 2024, pp. 16 467–16 476

    2024

  9. [9]

    Neural discrete representation learning,

    A. Van Den Oord, O. Vinyalset al., “Neural discrete representation learning,”Advances in neural information processing systems, vol. 30, 2017

    2017

  10. [10]

    Behavior generation with latent actions,

    S. Lee, Y . Wang, H. Etukuru, H. J. Kim, N. M. M. Shafiullah, and L. Pinto, “Behavior generation with latent actions,”arXiv preprint arXiv:2403.03181, 2024

    arXiv 2024

  11. [11]

    Quest: Self- supervised skill abstractions for learning continuous control,

    A. Mete, H. Xue, A. Wilcox, Y . Chen, and A. Garg, “Quest: Self- supervised skill abstractions for learning continuous control,”Advances in Neural Information Processing Systems, vol. 37, pp. 4062–4089, 2024

    2024

  12. [12]

    Discrete policy: Learning disentangled action space for multi-task robotic manipulation,

    K. Wu, Y . Zhu, J. Li, J. Wen, N. Liu, Z. Xu, and J. Tang, “Discrete policy: Learning disentangled action space for multi-task robotic manipulation,” in2025 IEEE ICRA. IEEE, 2025, pp. 8811–8818

    2025

  13. [13]

    Libero: Benchmarking knowledge transfer for lifelong robot learn- ing,

    B. Liu, Y . Zhu, C. Gao, Y . Feng, Q. Liu, Y . Zhu, and P. Stone, “Libero: Benchmarking knowledge transfer for lifelong robot learn- ing,”Advances in Neural Information Processing Systems, vol. 36, pp. 44 776–44 791, 2023

    2023

  14. [14]

    Meta-world: A benchmark and evaluation for multi-task and meta reinforcement learning,

    T. Yu, D. Quillen, Z. He, R. Julian, K. Hausman, C. Finn, and S. Levine, “Meta-world: A benchmark and evaluation for multi-task and meta reinforcement learning,” inConference on robot learning. PMLR, 2020, pp. 1094–1100

    2020

  15. [15]

    Decision transformer: Reinforcement learning via sequence modeling,

    L. Chen, K. Lu, A. Rajeswaran, K. Lee, A. Grover, M. Laskin, P. Abbeel, A. Srinivas, and I. Mordatch, “Decision transformer: Reinforcement learning via sequence modeling,”Advances in neural information processing systems, vol. 34, pp. 15 084–15 097, 2021

    2021

  16. [16]

    Behavior transformers: Cloningkmodes with one stone,

    N. M. Shafiullah, Z. Cui, A. A. Altanzaya, and L. Pinto, “Behavior transformers: Cloningkmodes with one stone,”Advances in neural information processing systems, vol. 35, pp. 22 955–22 968, 2022

    2022

  17. [17]

    Diffskill: Improving reinforcement learning through diffusion-based skill denoiser for robotic manipulation,

    S. Liu, Y . Liu, L. Hu, Z. Zhou, Y . Xie, Z. Zhao, W. Li, and Z. Gan, “Diffskill: Improving reinforcement learning through diffusion-based skill denoiser for robotic manipulation,”Knowledge-Based Systems, vol. 300, p. 112190, 2024

    2024

  18. [18]

    Flowpolicy: Enabling fast and robust 3d flow-based policy via consistency flow matching for robot manipulation,

    Q. Zhang, Z. Liu, H. Fan, G. Liu, B. Zeng, and S. Liu, “Flowpolicy: Enabling fast and robust 3d flow-based policy via consistency flow matching for robot manipulation,” inProceedings of the AAAI Confer- ence on Artificial Intelligence, vol. 39, no. 14, 2025, pp. 14 754–14 762

    2025

  19. [19]

    Consistency policy: Accelerated visuomotor policies via consistency distillation,

    A. Prasad, K. Lin, J. Wu, L. Zhou, and J. Bohg, “Consistency policy: Accelerated visuomotor policies via consistency distillation,”arXiv preprint arXiv:2405.07503, 2024

    arXiv 2024

  20. [20]

    One-step diffusion policy: Fast visuomotor policies via diffusion distillation,

    Z. Wang, Z. Li, A. Mandlekar, Z. Xu, J. Fan, Y . Narang, L. Fan, Y . Zhu, Y . Balaji, M. Zhouet al., “One-step diffusion policy: Fast visuomotor policies via diffusion distillation,”arXiv preprint arXiv:2410.21257, 2024

    arXiv 2024

  21. [21]

    Mp1: Meanflow tames policy learning in 1-step for robotic manipulation,

    J. Sheng, Z. Wang, P. Li, and M. Liu, “Mp1: Meanflow tames policy learning in 1-step for robotic manipulation,”arXiv preprint arXiv:2507.10543, 2025

    arXiv 2025

  22. [22]

    Maniflow: A general robot manipulation policy via consistency flow training,

    G. Yan, J. Zhu, Y . Deng, S. Yang, R.-Z. Qiu, X. Cheng, M. Memmel, R. Krishna, A. Goyal, X. Wanget al., “Maniflow: A general robot manipulation policy via consistency flow training,”arXiv preprint arXiv:2509.01819, 2025

    arXiv 2025

  23. [23]

    Much ado about noising: Dispelling the myths of generative robotic control,

    C. Pan, G. Anantharaman, N.-C. Huang, C. Jin, D. Pfrommer, C. Yuan, F. Permenter, G. Qu, N. Boffi, G. Shiet al., “Much ado about noising: Dispelling the myths of generative robotic control,”arXiv preprint arXiv:2512.01809, 2025

    arXiv 2025

  24. [24]

    Efficient planning in a compact latent action space,

    Z. Jiang, T. Zhang, M. Janner, Y . Li, T. Rockt ¨aschel, E. Grefenstette, and Y . Tian, “Efficient planning in a compact latent action space,” arXiv preprint arXiv:2208.10291, 2022

    arXiv 2022

  25. [25]

    H-gap: Humanoid control with a gener- alist planner,

    Z. Jiang, Y . Xu, N. Wagener, Y . Luo, M. Janner, E. Grefenstette, T. Rockt¨aschel, and Y . Tian, “H-gap: Humanoid control with a gener- alist planner,”arXiv preprint arXiv:2312.02682, 2023

    arXiv 2023

  26. [26]

    Prise: Llm-style sequence compression for learning temporal action abstractions in control,

    R. Zheng, C.-A. Cheng, H. Daum ´e III, F. Huang, and A. Kolobov, “Prise: Llm-style sequence compression for learning temporal action abstractions in control,”arXiv preprint arXiv:2402.10450, 2024

    arXiv 2024

  27. [27]

    Oat: Ordered action tokenization,

    C. Liu, X. Han, J. Gao, Y . Zhao, H. Chen, and Y . Du, “Oat: Ordered action tokenization,”arXiv preprint arXiv:2602.04215, 2026

    arXiv 2026

  28. [28]

    Star: Learning diverse robot skill abstractions through rotation-augmented vector quantization,

    H. Li, Q. Lv, R. Shao, X. Deng, Y . Li, J. Hao, and L. Nie, “Star: Learning diverse robot skill abstractions through rotation-augmented vector quantization,”arXiv preprint arXiv:2506.03863, 2025

    Pith/arXiv arXiv 2025

  29. [29]

    Masked generative policy for robotic control,

    L. Zhuang, S. Fan, F. P. Audonnet, Y . Ru, G. A. Camarasa, and P. Henderson, “Masked generative policy for robotic control,”arXiv preprint arXiv:2512.09101, 2025

    arXiv 2025

  30. [30]

    Primary-fine de- coupling for action generation in robotic imitation,

    X. Lei, M. Wang, W. Zhou, X. Lu, and H. Li, “Primary-fine de- coupling for action generation in robotic imitation,”arXiv preprint arXiv:2602.21684, 2026

    arXiv 2026

  31. [31]

    Carp: Visuomotor policy learning via coarse-to-fine autore- gressive prediction,

    Z. Gong, P. Ding, S. Lyu, S. Huang, M. Sun, W. Zhao, Z. Fan, and D. Wang, “Carp: Visuomotor policy learning via coarse-to-fine autore- gressive prediction,” inProceedings of the IEEE/CVF International Conference on Computer Vision, 2025, pp. 13 460–13 470

    2025

  32. [32]

    Learning semantic atomic skills for multi-task robotic manipulation,

    Y . Zhu, W. Wang, S. Wu, Y . Shi, and J. Wang, “Learning semantic atomic skills for multi-task robotic manipulation,”arXiv preprint arXiv:2512.18368, 2025

    arXiv 2025

  33. [33]

    Finite scalar quantization: Vq-vae made simple,

    F. Mentzer, D. Minnen, E. Agustsson, and M. Tschannen, “Finite scalar quantization: Vq-vae made simple,”arXiv preprint arXiv:2309.15505, 2023

    Pith/arXiv arXiv 2023

  34. [34]

    Vq-vla: Improving vision-language-action models via scaling vector-quantized action tokenizers,

    Y . Wang, H. Zhu, M. Liu, J. Yang, H.-S. Fang, and T. He, “Vq-vla: Improving vision-language-action models via scaling vector-quantized action tokenizers,”arXiv preprint arXiv:2507.01016, 2025

    arXiv 2025

  35. [35]

    Representation learning with contrastive predictive coding,

    A. v. d. Oord, Y . Li, and O. Vinyals, “Representation learning with contrastive predictive coding,”arXiv preprint arXiv:1807.03748, 2018

    Pith/arXiv arXiv 2018

  36. [36]

    Denoising diffusion probabilistic models,

    J. Ho, A. Jain, and P. Abbeel, “Denoising diffusion probabilistic models,”Advances in neural information processing systems, vol. 33, pp. 6840–6851, 2020

    2020

  37. [37]

    Flow matching for generative modeling,

    Y . Lipman, R. T. Chen, H. Ben-Hamu, M. Nickel, and M. Le, “Flow matching for generative modeling,”arXiv preprint arXiv:2210.02747, 2022

    Pith/arXiv arXiv 2022

  38. [38]

    Octo: An open-source generalist robot policy,

    O. M. Team, D. Ghosh, H. Walke, K. Pertsch, K. Black, O. Mees, S. Dasari, J. Hejna, T. Kreiman, C. Xuet al., “Octo: An open-source generalist robot policy,”arXiv preprint arXiv:2405.12213, 2024

    Pith/arXiv arXiv 2024

  39. [39]

    Open- vla: An open-source vision-language-action model,

    M. J. Kim, K. Pertsch, S. Karamcheti, T. Xiao, A. Balakrishna, S. Nair, R. Rafailov, E. Foster, G. Lam, P. Sanketiet al., “Open- vla: An open-source vision-language-action model,”arXiv preprint arXiv:2406.09246, 2024

    Pith/arXiv arXiv 2024

  40. [40]

    Tracevla: Visual trace prompting enhances spatial-temporal awareness for generalist robotic policies,

    R. Zheng, Y . Liang, S. Huang, J. Gao, H. Daum ´e III, A. Kolobov, F. Huang, and J. Yang, “Tracevla: Visual trace prompting enhances spatial-temporal awareness for generalist robotic policies,”arXiv preprint arXiv:2412.10345, 2024

    Pith/arXiv arXiv 2024

  41. [41]

    Spatialvla: Exploring spatial representations for visual-language-action model,

    D. Qu, H. Song, Q. Chen, Y . Yao, X. Ye, Y . Ding, Z. Wang, J. Gu, B. Zhao, D. Wanget al., “Spatialvla: Exploring spatial representations for visual-language-action model,”arXiv preprint arXiv:2501.15830, 2025

    Pith/arXiv arXiv 2025

  42. [42]

    3d diffusion policy: Generalizable visuomotor policy learning via simple 3d representations,

    Y . Ze, G. Zhang, K. Zhang, C. Hu, M. Wang, and H. Xu, “3d diffusion policy: Generalizable visuomotor policy learning via simple 3d representations,”arXiv preprint arXiv:2403.03954, 2024

    Pith/arXiv arXiv 2024

  43. [43]

    Language model beats diffusion–tokenizer is key to visual generation,

    L. Yu, J. Lezama, N. B. Gundavarapu, L. Versari, K. Sohn, D. Minnen, Y . Cheng, V . Birodkar, A. Gupta, X. Guet al., “Language model beats diffusion–tokenizer is key to visual generation,”arXiv preprint arXiv:2310.05737, 2023

    Pith/arXiv arXiv 2023
