A Readiness-Driven Runtime for Pipeline-Parallel Training under Runtime Variability

Ruitao Liu (1) , Xinyang Tian (1) , Shuo Chen (1) , Tingrui Zhang (1) , Guang Yang (1) , Alan Zhao (2) , Wei Xu (1) ((1) Tsinghua University , (2) Scitix AI) This is my paper

Pith reviewed 2026-05-20 07:31 UTC · model grok-4.3

classification 💻 cs.DC cs.LG
keywords pipeline parallelismruntime variabilityreadiness-driven schedulingdistributed traininglarge model trainingmultimodal workloads
0
0 comments X

The pith

RRFP dispatches pipeline work by readiness rather than fixed schedule order to cut idle time in variable workloads.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Pipeline parallelism for large models suffers from idle time when actual task completion times differ from a pre-planned schedule. The paper shows that treating the schedule as a flexible hint and always prioritizing currently ready tasks can eliminate many of these waits without breaking training correctness. This matters for workloads with natural runtime variability in computation and communication, which are common in modern training. The system adds mechanisms to handle asynchronous communication and coordinate across tensor-parallel groups with low cost. Experiments at scale confirm consistent speedups over traditional fixed-order approaches.

Core claim

RRFP is a readiness-driven runtime that consumes pipeline schedules as non-binding hints for ranking ready work rather than strict execution orders. It relies on message-driven asynchronous communication, lightweight tensor-parallel coordination to ensure collective consistency, and ready-set arbitration for efficient dispatch of executable tasks. This design avoids stage misalignment and reduces idle bubbles when realized readiness diverges from the schedule.

What carries the argument

The ready-set arbitration mechanism that selects the highest-priority ready task according to the hint order while ensuring low-overhead dispatch.

If this is right

  • Improves utilization over fixed-order pipeline baselines in all tested settings.
  • Delivers up to 1.77 times faster training on language-only workloads with the BFW hint.
  • Delivers up to 2.77 times faster training on multimodal workloads with the BFW hint.
  • Outperforms the best available external system by up to 1.84 times while keeping training correct.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The method may apply to other forms of parallel training where static schedules lead to underutilization.
  • Low-overhead readiness tracking could influence scheduler design in cloud-based training platforms.
  • Further work could test whether similar hint-based approaches reduce bubbles in data-parallel or hybrid parallelism setups.

Load-bearing premise

The overhead from ready-set arbitration and tensor-parallel coordination stays small enough not to offset the benefits of avoiding misalignment under normal levels of runtime variability.

What would settle it

An experiment that isolates and measures the added latency from arbitration and coordination, or one that runs with artificially high variability to see if the speedups hold or reverse.

Figures

Figures reproduced from arXiv: 2605.18750 by (2) ScitiX AI), Alan Zhao (2), Guang Yang (1), Ruitao Liu (1), Shuo Chen (1), Tingrui Zhang (1), Wei Xu (1) ((1) Tsinghua University, Xinyang Tian (1).

Figure 1
Figure 1. Figure 1: RRFP overview. RRFP treats a pre-committed pipeline schedule as a non-binding hint order over currently ready work rather than as an execution sequence to wait for. By skipping unavailable tasks and dispatching ready work, RRFP reduces bubbles and stage misalignment, improving end-to-end training performance over fixed-order 1F1B by up to 1.77× on language-only workloads and 2.77× on multimodal workloads w… view at source ↗
Figure 2
Figure 2. Figure 2: Run-to-run latency variability under identical [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Effect of runtime variability on execution [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Workflow of RRFP at one pipeline stage. Asynchronous send/receive threads update forward/backward-ready buffers and drain finished buffers to neighboring pipeline stages. The arbitration layer repeatedly polls ready buffers and scans them according to a hint order, shown here with the backward-forward (BF) example, selecting only executable microbatches. Tensor-parallel ranks then synchronize the selected … view at source ↗
Figure 5
Figure 5. Figure 5: Performance sensitivity to buffer-size limit. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6

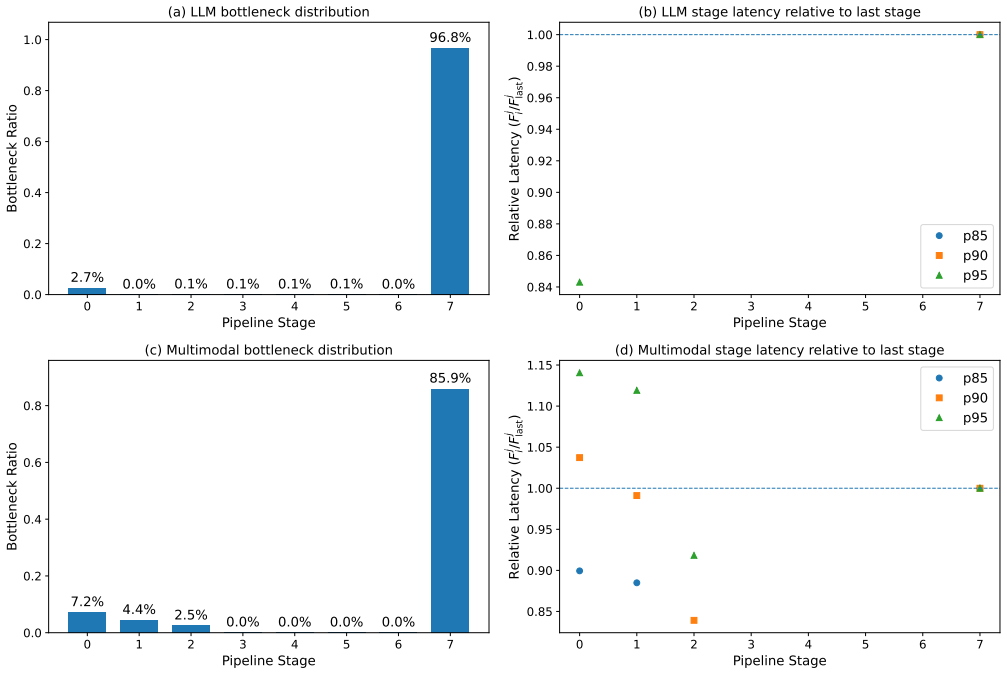

Figure 6. Figure 6: Detailed bottleneck statistics over 100 iterations. [PITH_FULL_IMAGE:figures/full_fig_p022_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Training-correctness validation for GPT-Large with TP1/PP8/DP1 and batch size 64. [PITH_FULL_IMAGE:figures/full_fig_p027_7.png] view at source ↗
Figure 8

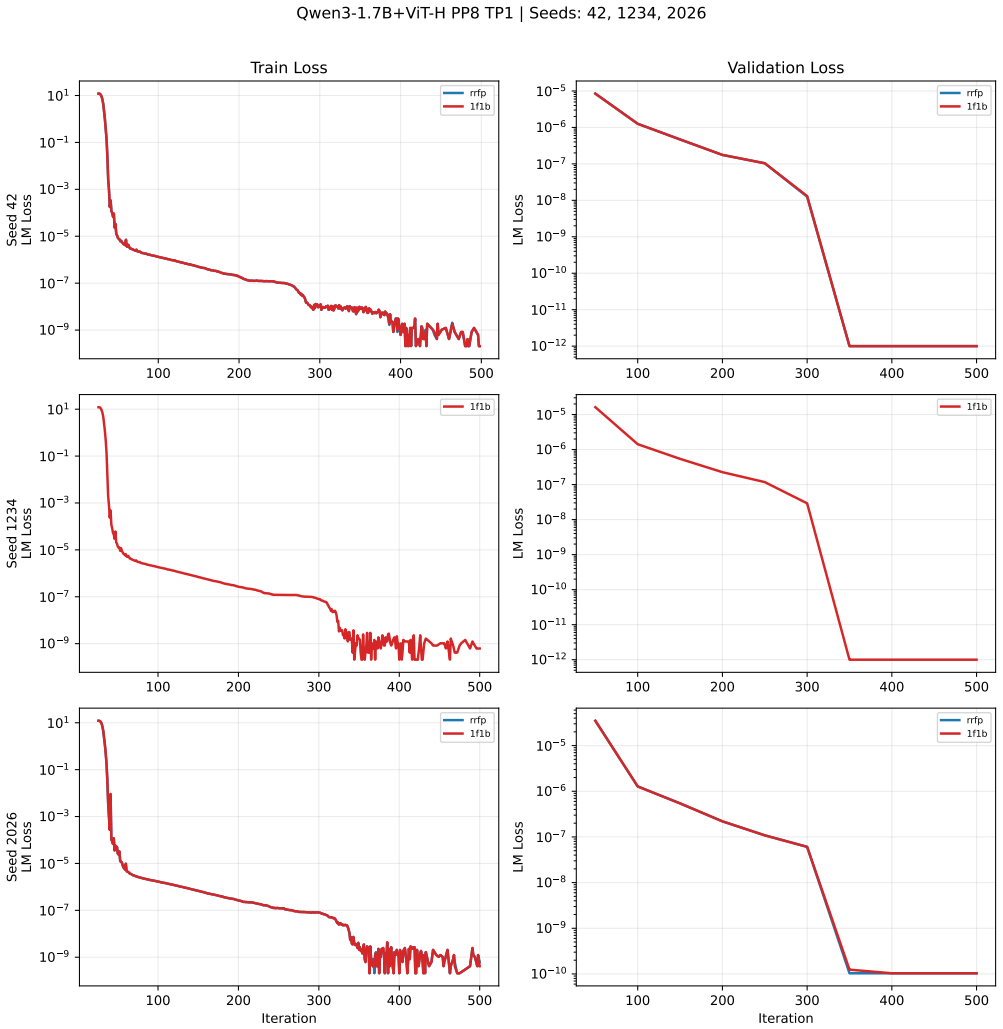

Figure 8. Figure 8: Training-correctness validation for Qwen3-1.7B+ViT-H with TP1/PP8/DP1 and batch size 96. [PITH_FULL_IMAGE:figures/full_fig_p028_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Training-correctness validation for Qwen3-1.7B+ViT-H with TP2/PP8/DP1 and batch size 96. [PITH_FULL_IMAGE:figures/full_fig_p029_9.png] view at source ↗
read the original abstract

Pipeline parallelism is a key technique for scaling large-model training, but modern workloads exhibit runtime variability in computation and communication. Existing pipeline systems typically consume static, profiled, or adaptively generated schedules as pre-committed execution orders. When realized task readiness diverges from the pre-committed order, stages may wait for not-yet-ready work even though other executable work is available, creating stage misalignment, idle bubbles, and reduced utilization. We present Runtime-Readiness-First Pipeline (RRFP), a readiness-driven runtime for pipeline-parallel training. RRFP changes how schedules are consumed at runtime: instead of treating a schedule as a sequence that stages must wait to follow, it treats the schedule as a non-binding hint order for ranking currently ready work. To support this model, RRFP combines message-driven asynchronous communication, lightweight tensor-parallel coordination for collective consistency, and ready-set arbitration for low-overhead dispatch. We implement RRFP in a Megatron-based training framework and evaluate it on language-only and multimodal workloads at up to 128 GPUs. RRFP improves over fixed-order pipeline baselines across all settings. Using the BFW hint, RRFP achieves up to 1.77$\times$ speedup on language-only workloads and up to 2.77$\times$ on multimodal workloads. In cross-framework comparisons, RRFP with the default BF hint outperforms the faster available external system by up to 1.84$\times$ while preserving training correctness.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces Runtime-Readiness-First Pipeline (RRFP), a readiness-driven runtime for pipeline-parallel training. RRFP treats static or profiled schedules as non-binding hints for ranking currently ready work rather than fixed execution orders, using message-driven asynchronous communication, lightweight tensor-parallel coordination for collective consistency, and ready-set arbitration for dispatch. Implemented in a Megatron-based framework, it is evaluated on language-only and multimodal workloads at up to 128 GPUs and reports speedups of up to 1.77× (language) and 2.77× (multimodal) over fixed-order baselines using the BFW hint, plus up to 1.84× over the faster external system using the BF hint, while preserving training correctness.

Significance. If the performance claims are substantiated with detailed experimental controls, RRFP could meaningfully improve GPU utilization in pipeline-parallel training under realistic runtime variability such as stragglers or load imbalance. The shift from consuming schedules as committed orders to readiness-driven dispatch is a practical systems contribution that directly targets stage misalignment bubbles.

major comments (2)
  1. Abstract: the central claims of 1.77× and 2.77× speedups (and 1.84× cross-framework) are presented without any description of how runtime variability was introduced, the number of runs performed, error bars, or exact baseline configurations and hardware setups. This absence directly limits assessment of the robustness of the reported gains.
  2. Evaluation (implied by the reported speedups): no microbenchmark or sensitivity analysis isolates the overhead of ready-set arbitration and lightweight tensor-parallel coordination. Without such data it is impossible to confirm that these mechanisms remain negligible relative to the utilization gains when the ready set grows or changes frequently under high variability.
minor comments (1)
  1. Clarify the distinction between the 'BFW hint' and 'BF hint' (mentioned in the abstract) with explicit definitions and usage in the main text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the thoughtful and constructive report. The two major comments identify areas where additional detail and analysis would strengthen the manuscript. We respond to each below and will incorporate revisions as indicated.

read point-by-point responses

  1. Referee: Abstract: the central claims of 1.77× and 2.77× speedups (and 1.84× cross-framework) are presented without any description of how runtime variability was introduced, the number of runs performed, error bars, or exact baseline configurations and hardware setups. This absence directly limits assessment of the robustness of the reported gains.

    Authors: We agree that the abstract would benefit from a concise description of the experimental conditions supporting the speedup claims. Section 5 of the manuscript already details the variability model (controlled injection of stragglers and load imbalance via synthetic delays), the use of five independent runs per configuration with reported means and standard deviations, the hardware platform (up to 128 NVIDIA A100 GPUs), and the precise baseline configurations (fixed-order pipelines using BFW and BF hints). We will revise the abstract to include a short clause summarizing these elements while remaining within length limits. This is a straightforward clarification that does not alter any claims. revision: yes

  2. Referee: Evaluation (implied by the reported speedups): no microbenchmark or sensitivity analysis isolates the overhead of ready-set arbitration and lightweight tensor-parallel coordination. Without such data it is impossible to confirm that these mechanisms remain negligible relative to the utilization gains when the ready set grows or changes frequently under high variability.

    Authors: The referee correctly notes the absence of isolated overhead measurements. Our current evaluation emphasizes end-to-end speedups under variability, but does not contain dedicated microbenchmarks for ready-set arbitration and tensor-parallel coordination costs. We will add a new microbenchmark subsection (Section 5.3) that profiles arbitration latency and coordination overhead as functions of ready-set size and variability intensity, demonstrating that these costs remain under 3% of per-stage execution time. The added data will be obtained from targeted profiling runs performed for the revision. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical systems paper with independent experimental validation

full rationale

The paper is a systems implementation and evaluation contribution. It describes RRFP as a readiness-driven runtime using message-driven async comm, ready-set arbitration, and lightweight TP coordination, then reports measured speedups (1.77×–2.77×) against fixed-order baselines and external frameworks on language and multimodal workloads up to 128 GPUs. No equations, parameter fitting, derivations, or self-citation chains appear in the provided text. All central claims rest on direct experimental comparisons that are externally falsifiable and do not reduce to the paper's own inputs by construction. This matches the default expectation for non-circular empirical work.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The contribution rests on the domain assumption that runtime variability creates frequent opportunities for ready work to exist outside the pre-committed order, plus the engineering choice to implement lightweight coordination without breaking collective semantics.

axioms (1)
  • domain assumption Runtime variability in computation and communication is common and significant enough to cause stage misalignment in fixed-order pipelines.
    Stated directly in the opening of the abstract as the motivation for moving away from static or pre-committed schedules.
invented entities (1)
  • RRFP runtime with ready-set arbitration no independent evidence
    purpose: To dispatch work based on actual readiness rather than schedule order.
    New system component introduced to realize the readiness-driven model.
