Automating Potential-based Reward Shaping with Vision Language Model Guidance

T0 review · 2 major / 2 minor · reviewed 2026-06-26 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

Pith's one-line read VLM preferences over image pairs can train a potential function that shapes rewards, speeds learning, and leaves optimal policies unchanged.

desk verdict VLM-PBRS shows small VLMs can supply usable preferences for learning a PBRS potential function, with reported speedups in Meta-World and Franka Kitchen. read the letter →

arxiv 2606.27180 v1 pith:DHAIKAOS submitted 2026-06-25 cs.LG cs.AIcs.RO

Henrik Müller , Daniel Kudenko This is my paper · ORCID
classification cs.LGcs.AIcs.RO
keywords reinforcementlearningrewardshapingvisionlanguagemodelspotential-basedsampleefficiencysparserewardspolicypreservation
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper shows that a vision language model can supply preference labels on pairs of environment images to train a potential function for use in potential-based reward shaping. This supplies intermediate rewards for sparse-reward reinforcement learning tasks without requiring hand-crafted shaping terms and without altering the set of optimal policies. The method deliberately uses smaller, cheaper VLMs so that repeated queries remain practical during training. Experiments in Meta-World and Franka Kitchen demonstrate faster convergence when the learned potential is added to the original sparse reward.

What carries the argument

The potential function trained directly on VLM preference labels over pairs of state images, which generates the additive shaping reward in the PBRS framework.

What would settle it

An experiment in Meta-World or Franka Kitchen in which adding the learned potential produces no measurable reduction in steps to reach target performance or yields a policy that differs from the one optimal under the original sparse reward.

Watch

Extended reading notes

Core claim

VLM-PBRS queries a lightweight vision language model for preferences over image pairs, trains a model of the potential function on those preferences, and adds the resulting shaping term to the sparse task reward; because the shaping term is potential-based, the original optimal policies remain optimal and the need for expert-designed shaping functions disappears.

Load-bearing premise

That the noisier preference labels produced by smaller VLMs remain informative enough to train a potential function that produces clear sample-efficiency gains.

Editorial extensions

If this is right

  • Optimal policies under the original sparse reward remain optimal after shaping.
  • Sample efficiency improves in the tested robotic manipulation environments.
  • No hand-designed potential function is required.
  • The method reduces vulnerability to reward hacking compared with arbitrary shaping.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The same preference-to-potential pipeline could be applied to other visual state spaces where sparse rewards currently limit progress.
  • If VLM preference accuracy continues to rise, the sample-efficiency gains may increase without changing the framework.
  • Automating the potential function could make PBRS practical in domains where domain experts are unavailable to design shaping terms.
Share X Bluesky LinkedIn Reddit HN

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

2 major / 2 minor

Summary. The paper introduces VLM-PBRS, a framework that queries a lightweight VLM for pairwise preferences over image pairs, trains a potential function Φ from these preferences via a ranking loss, and applies the resulting shaped reward in PBRS to accelerate learning in sparse-reward settings. It claims that the method preserves the original optimal policy set (by PBRS theory), eliminates the need for hand-designed shaping terms, and still yields sample-efficiency gains in Meta-World and Franka Kitchen even when smaller, less accurate VLMs are used; the authors also report a correlation between VLM label accuracy and observed gains.

Significance. If the empirical results hold, the work provides a concrete, low-cost route to automate potential-function design for PBRS using off-the-shelf VLMs, removing a long-standing barrier to applying PBRS in new domains. The explicit linkage between VLM accuracy and sample-efficiency gains is a useful diagnostic contribution.

major comments (2)
  1. [Abstract, §4] Abstract and §4 (empirical validation): the central claim that 'preference labels can still be used to accelerate learning' with smaller VLMs is load-bearing yet rests on an unverified assumption that noisy pairwise preferences remain sufficiently informative after training. The manuscript must report (i) the exact VLM preference accuracy on the target image pairs, (ii) the quantitative sample-efficiency improvement (e.g., steps to 90 % success) versus both unshaped and expert-shaped baselines, and (iii) an ablation showing that performance degrades gracefully rather than introducing new failure modes when accuracy falls below a stated threshold.
  2. [§3] §3 (method): the training procedure for Φ is described only at a high level ('ranking loss on image pairs'). The paper must specify the exact loss, the architecture of the potential network, how image pairs are sampled during training, and whether any regularization is applied to keep Φ bounded—details required to reproduce the claim that the learned Φ yields a valid PBRS signal.
minor comments (2)
  1. [Abstract] The abstract states three contributions but does not explicitly list them; numbering them in the text would improve clarity.
  2. [Figures] Figure captions should state the number of random seeds and whether shaded regions represent standard error or min/max.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major point below and will revise the manuscript to incorporate the requested details.

read point-by-point responses

  1. Referee: [Abstract, §4] Abstract and §4 (empirical validation): the central claim that 'preference labels can still be used to accelerate learning' with smaller VLMs is load-bearing yet rests on an unverified assumption that noisy pairwise preferences remain sufficiently informative after training. The manuscript must report (i) the exact VLM preference accuracy on the target image pairs, (ii) the quantitative sample-efficiency improvement (e.g., steps to 90 % success) versus both unshaped and expert-shaped baselines, and (iii) an ablation showing that performance degrades gracefully rather than introducing new failure modes when accuracy falls below a stated threshold.

    Authors: We agree that more granular reporting is needed to fully substantiate the claim. While the manuscript already notes the link between VLM accuracy and sample-efficiency gains, it does not provide the exact accuracy percentages on the target pairs or the requested quantitative metrics. In the revision we will add (i) measured VLM preference accuracy on the image pairs, (ii) steps-to-90%-success for VLM-PBRS versus both the unshaped baseline and an expert-shaped baseline in Meta-World and Franka Kitchen, and (iii) an ablation that varies VLM accuracy (via different models or controlled label noise) to demonstrate that performance degrades gracefully without introducing new failure modes. revision: yes

  2. Referee: [§3] §3 (method): the training procedure for Φ is described only at a high level ('ranking loss on image pairs'). The paper must specify the exact loss, the architecture of the potential network, how image pairs are sampled during training, and whether any regularization is applied to keep Φ bounded—details required to reproduce the claim that the learned Φ yields a valid PBRS signal.

    Authors: We acknowledge that the current description of the potential-function training is high-level and insufficient for full reproducibility. In the revised manuscript we will expand §3 to state the precise ranking loss (including its mathematical form), the neural-network architecture used for Φ, the exact procedure for sampling image pairs from the environments, and any regularization or bounding constraints applied to Φ to ensure it produces a valid PBRS signal. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No significant circularity; derivation is self-contained

full rationale

The paper applies standard PBRS theory (which guarantees policy preservation for any fixed potential) to a learned Φ trained via ranking loss on VLM pairwise preferences. No equations or steps reduce the output to the input by construction, no self-citations are load-bearing for the core claim, and no fitted parameters are renamed as predictions. Empirical validation in Meta-World and Franka Kitchen stands on external benchmarks rather than definitional equivalence. This is the expected honest non-finding for an empirical RL method.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the method rests on the standard PBRS policy-invariance property and the assumption that VLM preferences are usable for potential learning.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Automating Potential-based Reward Shaping with Vision Language Model Guidance." pith.science (2026). https://pith.science/paper/DHAIKAOS

@misc{pith2026260627180,
  author       = {Pith},
  title        = {Pith review of: Automating Potential-based Reward Shaping with Vision Language Model Guidance},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/DHAIKAOS}},
  note         = {Machine review of arXiv:2606.27180}
}
read the original abstract

Sparse rewards are inherently challenging for reinforcement learning agents as they lack intermediate feedback to guide exploration and to correctly attribute the sparse success rewards to relevant parts of the trajectory. Naive reward shaping can induce reward hacking, yielding policies that exploit auxiliary signals instead of solving the intended task. Potential-based reward shaping (PBRS) guarantees preservation of the optimal policy set, but requires the definition of a heuristic potential function over the state space. In this work, we introduce the VLM-guided PBRS framework VLM-PBRS that learns the potential function directly from vision language model (VLM) feedback. We query a lightweight VLM to obtain preferences over image pairs and train a model of the potential function using these preferences. As this approach is based on potential-based reward shaping, it preserves the original optimal policies, and removes the need for expert-designed reward shaping terms. Because large VLMs are prohibitively expensive to invoke repeatedly during policy learning, we employ smaller, more computationally efficient VLMs. Although the resulting preference labels are less accurate, empirical evidence shows that the preference labels can still be used to accelerate learning. We validate our method empirically in the Meta-World and Franka Kitchen environments and highlight the connection between VLM preference label accuracy and sample efficiency improvements. Our contributions are threefold: (1) the first application of VLM preference-based learning to synthesize a potential function for PBRS, (2) a principled, low-cost solution that leverages small VLMs, and (3) extensive empirical demonstration of improved sample efficiency and robustness to reward hacking.

Figures

Figures reproduced from arXiv: 2606.27180 by the authors.

Figure 1

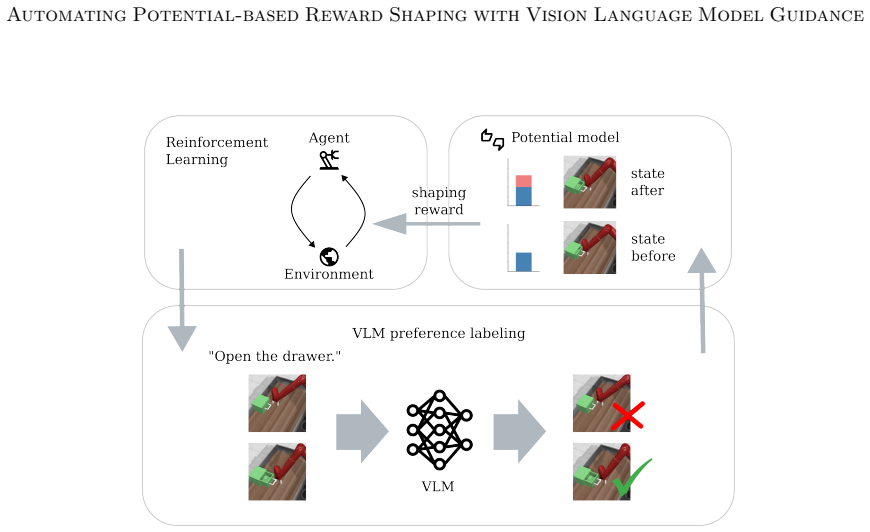

Figure 1. Overview of VLM-PBRS. 2 Related Work We organize the related work around two themes central to this paper: foundational ap￾proaches to reward shaping from domain knowledge, and the emerging literature on learning reward functions from scratch using foundation models. 2.1 Reward Shaping from Domain Knowledge Potential-based reward shaping (PBRS) is commonly used to incorporate prior knowledge of the task to guide the… view at source ↗
Figure 2

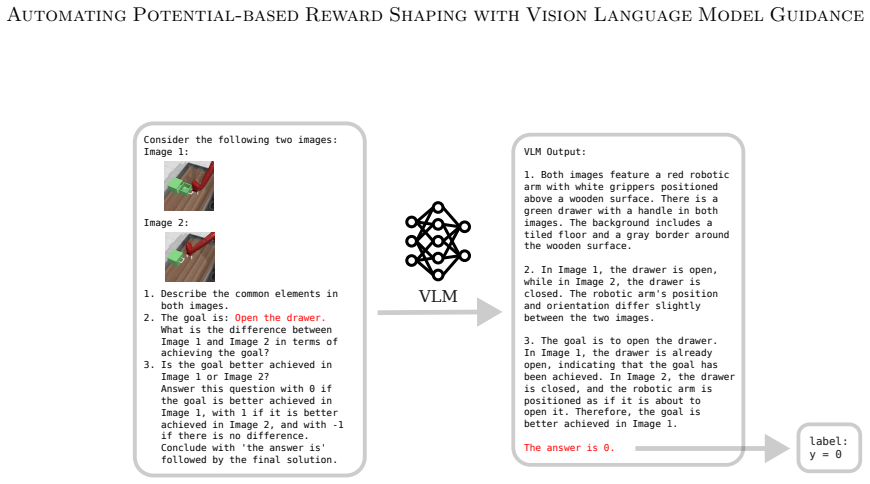

Figure 2. Prompt pipeline for an example image pair from the drawer-open task of the Meta-World environment. The images and goal description are added to the prompt template on the left. The filled template is input to the VLM. The final label is then extracted from the VLM output on the right. After the unguided exploration phase, the main potential learning and policy improvement loop begins. First, we sample pairs of image… view at source ↗
Figure 3

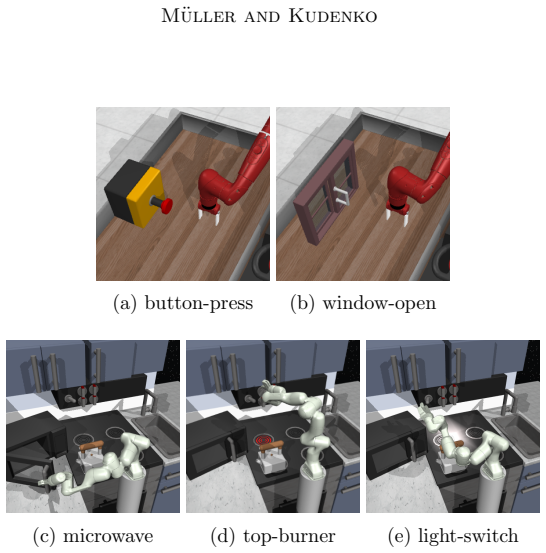

Figure 3. Example observations from Meta-World (top) and Franka Kitchen (bottom). [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figures from the paper (7 more)
Figure 4

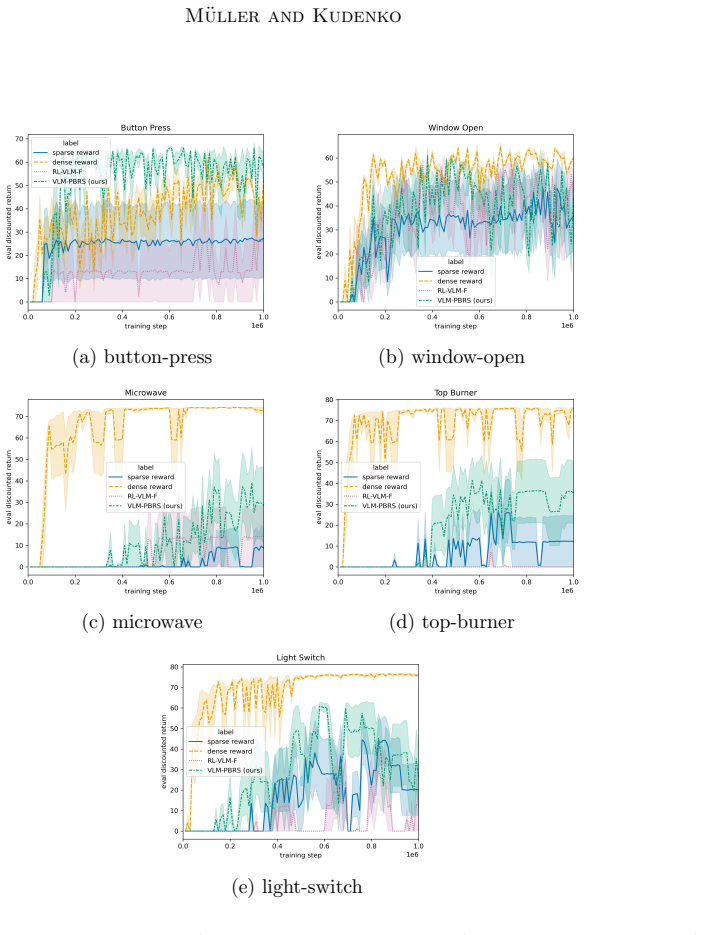

Figure 4. Figure 4: Results of Meta-World (button-press, window-open) and Franka Kitchen (mi￾crowave, top-burner, light-switch). VLM-PBRS (in green) outperforms the dense reward baseline in button-press and improves over the sparse reward baseline in all other tasks. We report the mean an…
Figure 5

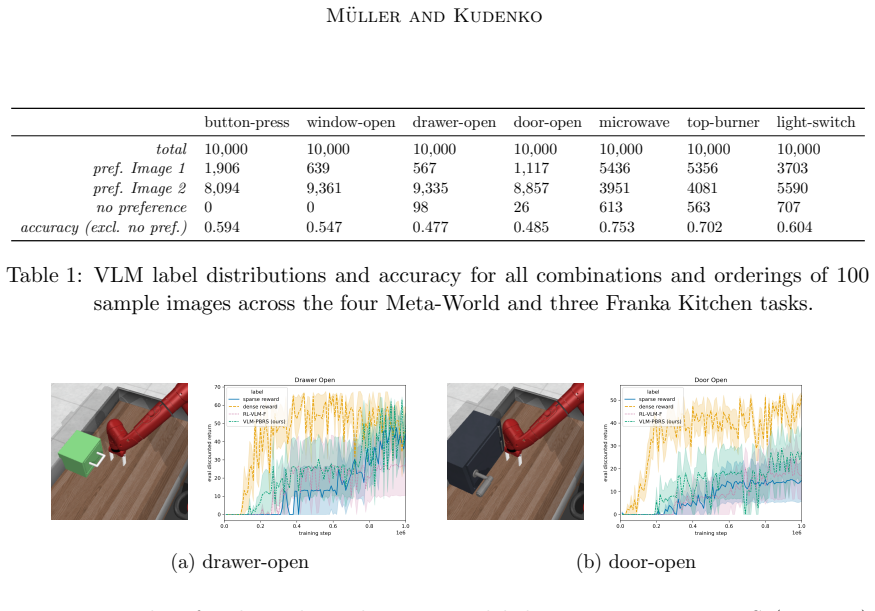

Figure 5. Figure 5: Results of tasks with at chance VLM label accuracy. VLM-PBRS (in green) improves slightly over the sparse baseline, but given the lack of accurate labels, fails to match the performance of the dense human-designed reward. labels, our method could also decrease the samp…
Figure 6

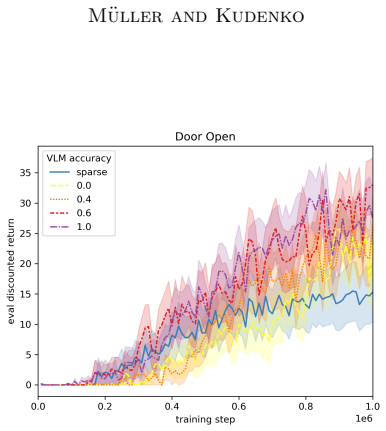

Figure 6. Figure 6: Ablation results for fixed VLM label accuracies of an oracle labeler in VLM-PBRS in the door-open task of Meta-World. We report the mean discounted evaluation returns and standard error of the mean of 20 repeated training runs [PITH_FULL_IMAGE:figures/full_fig_p016_6.png]
Figure 7

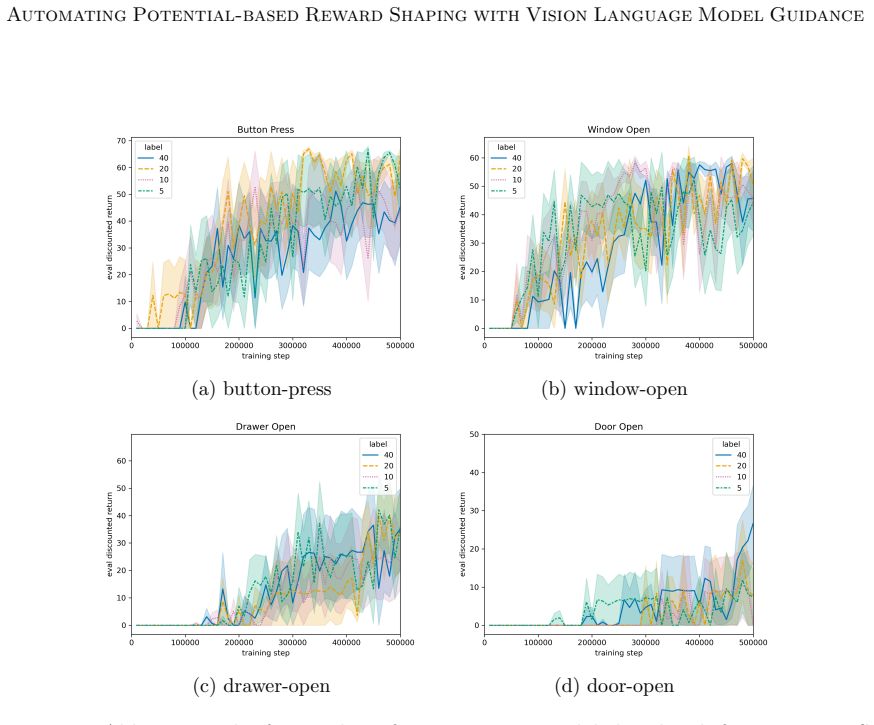

Figure 7. Figure 7: Ablation results for number of queries per VLM labeling batch for VLM-PBRS in the Meta-World environment. Given the negligible performance gap and the lower computational overhead, we adopt 20 VLM labels per batch as our default setting in all experiments instead of th…
Figure 8

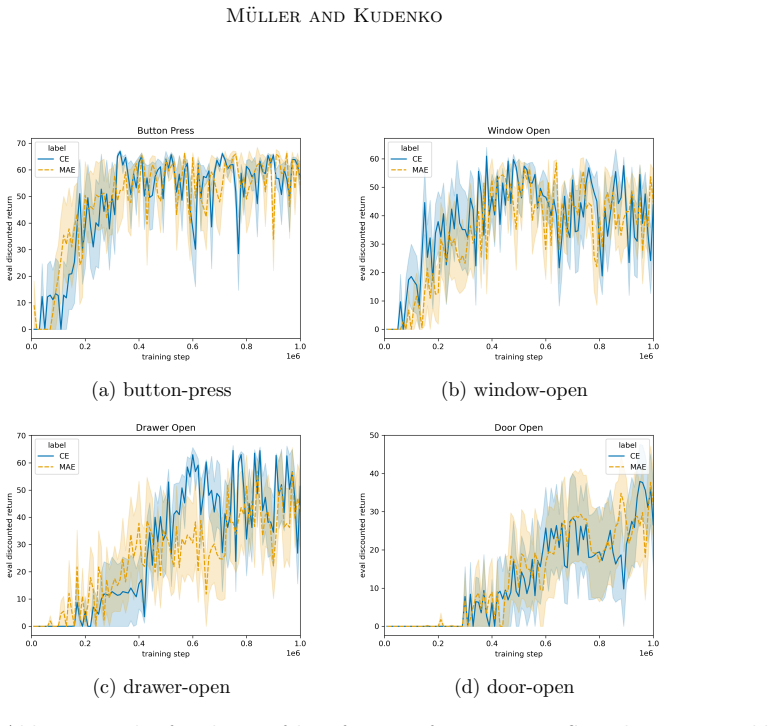

Figure 8. Figure 8: Ablation results for choice of loss function for VLM-PBRS in the Meta-World environment. random, the label for a pair is either correct or preferring either image (as the second input image) is equally likely. With the CE loss, multiple repetitions of similar image pai…
Figure 9

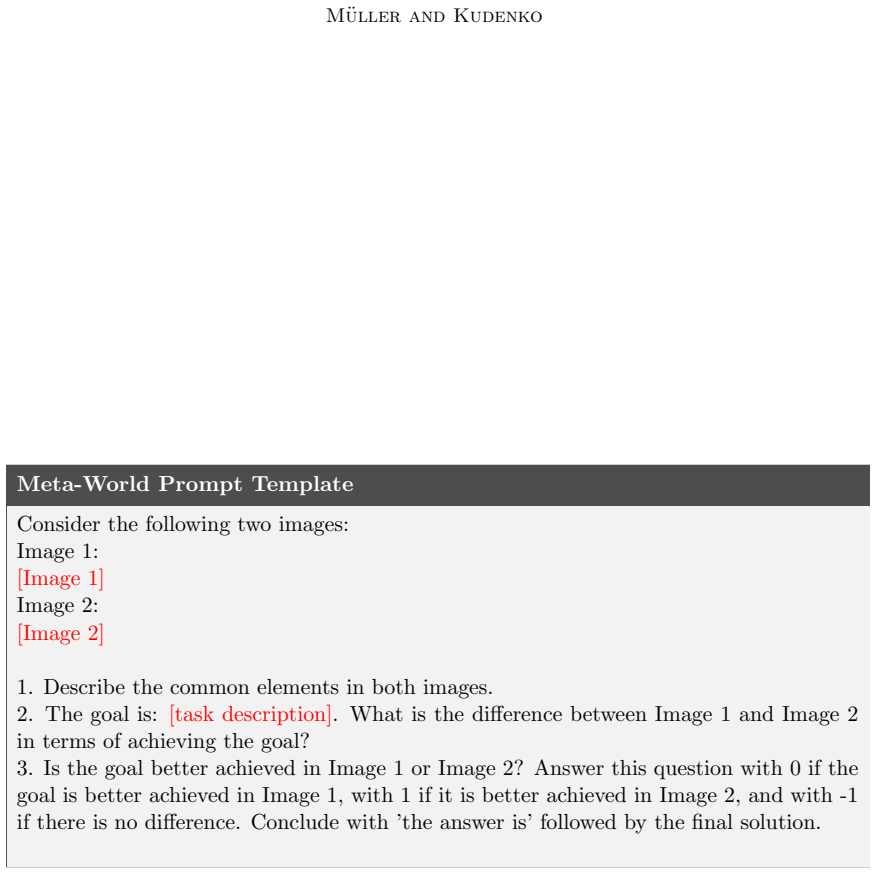

Figure 9. Figure 9: The single stage prompt template for VLM-PBRS and the RL-VLM-F baseline used for Meta-World. 22 [PITH_FULL_IMAGE:figures/full_fig_p022_9.png]
Figure 10

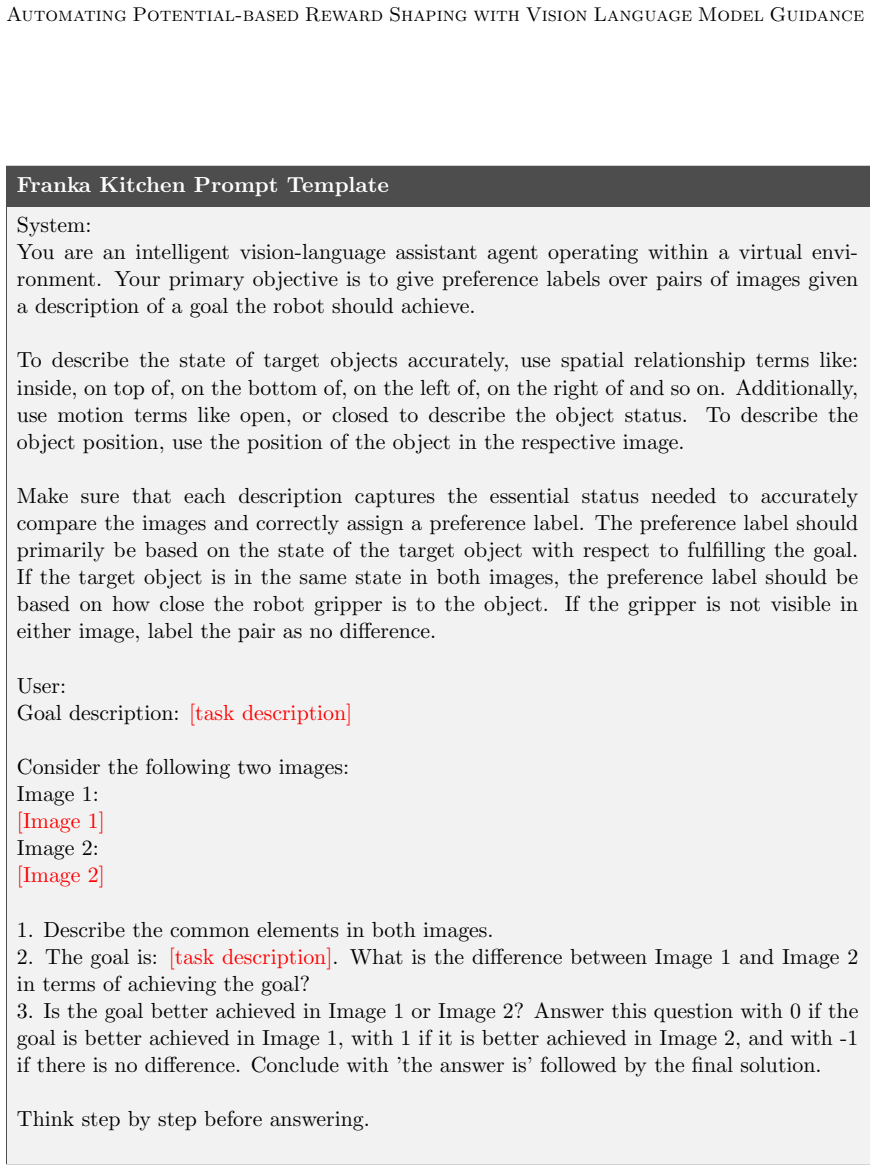

Figure 10. Figure 10: The single stage prompt template for VLM-PBRS and the RL-VLM-F baseline used for Franka Kitchen. 23 [PITH_FULL_IMAGE:figures/full_fig_p023_10.png]
