On free boundary minimal submanifolds with boundary on concentric spheres in Euclidean spac

Tianyu Ma , Vladimir Medvedev This is my paper

Pith reviewed 2026-06-26 06:48 UTC · model grok-4.3

classification 🧮 math.DG
keywords free boundary minimal submanifoldsMorse indexSteklov problemconcentric spheresflat annulusspherical shellspectral index
0
0 comments X

The pith

The Morse index of an m-dimensional flat annulus free boundary minimal submanifold in an n-dimensional spherical shell equals n-m.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends the study of free boundary minimal submanifolds from the unit ball to the setting of concentric spheres in Euclidean space. It introduces a spectral index coming from the Steklov eigenvalue problem with an indefinite weight that the coordinate functions must satisfy. This index supplies both upper and lower bounds on the Morse index. The central concrete result is an exact computation showing that the Morse index of the flat annulus equals n-m. The work also classifies all free boundary minimal immersions of 2-dimensional annuli and constructs examples whose boundary spheres have arbitrarily large radius ratios.

Core claim

Coordinate functions of free boundary minimal submanifolds with boundaries on concentric spheres satisfy a Steklov problem with indefinite weight; the associated spectral index therefore bounds the Morse index from above and below, and for the flat m-dimensional annulus in the n-dimensional spherical shell the spectral index coincides with the Morse index, which equals n-m.

What carries the argument

spectral index extracted from the Steklov eigenvalue problem with indefinite weight satisfied by the coordinate functions

If this is right

  • The Morse index of any free boundary minimal submanifold with boundaries on concentric spheres is bounded above and below by its spectral index.
  • For the flat annulus the bounds are sharp and the index is exactly the codimension n-m.
  • All free boundary minimal immersions of 2-dimensional annuli lie in subspaces of dimension at most 4.
  • There exist free boundary minimal annuli whose bounding spheres have radius ratio arbitrarily large.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The indefinite-weight Steklov framework may extend to other free-boundary problems whose boundaries lie on multiple level sets of a radial function.
  • The classification of 2D annuli to at most 4-dimensional subspaces suggests that higher-dimensional examples might be obtained by products or rotations of these low-dimensional ones.
  • The ability to make the radius ratio arbitrarily large indicates that the index formula remains valid even when the annular region becomes very thin or very wide.

Load-bearing premise

The coordinate functions of such submanifolds satisfy a Steklov problem with an indefinite weight.

What would settle it

A direct computation of the second variation for the flat annulus that yields a Morse index different from n-m, or an explicit example of a free boundary minimal annulus whose coordinate functions fail to produce the claimed spectral index.

read the original abstract

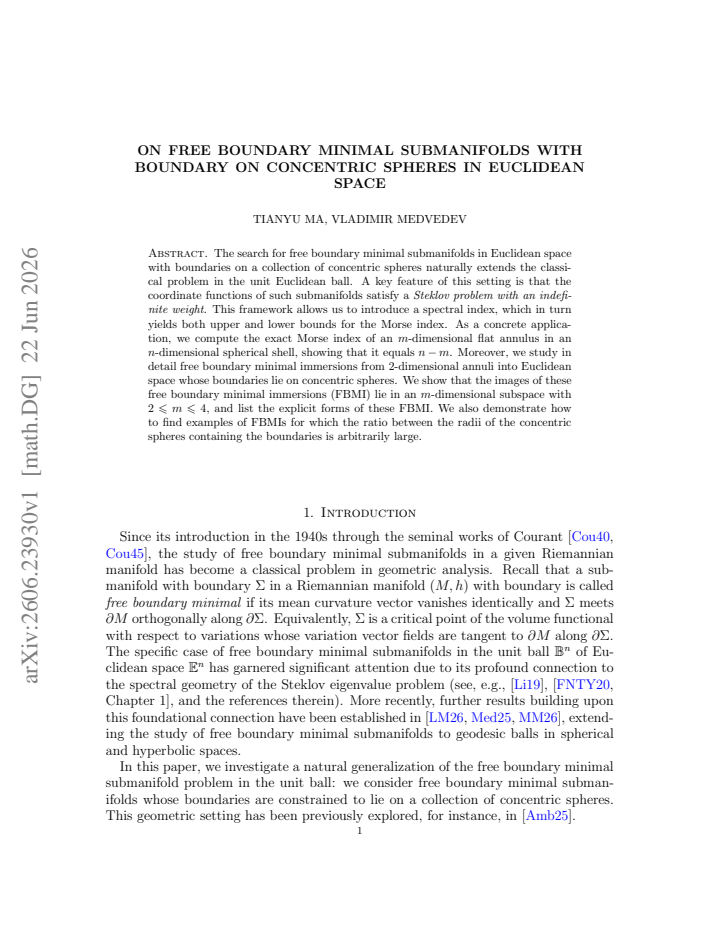

The search for free boundary minimal submanifolds in Euclidean space with boundaries on a collection of concentric spheres naturally extends the classical problem in the unit Euclidean ball. A key feature of this setting is that the coordinate functions of such submanifolds satisfy a Steklov problem with an indefinite weight. This framework allows us to introduce a spectral index, which in turn yields both upper and lower bounds for the Morse index. As a concrete application, we compute the exact Morse index of an $m$-dimensional flat annulus in an $n$-dimensional spherical shell, showing that it equals $n-m$. Moreover, we study in detail free boundary minimal immersions from 2-dimensional annuli into Euclidean space whose boundaries lie on concentric spheres. We show that the images of these free boundary minimal immersions (FBMI) lie in an $m$-dimensional subspace with $2\leqslant m\leqslant 4$, and list the explicit forms of these FBMI. We also demonstrate how to find examples of FBMIs for which the ratio between the radii of the concentric spheres containing the boundaries is arbitrarily large.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript studies free boundary minimal submanifolds in Euclidean space whose boundaries lie on concentric spheres. It develops a spectral index from the Steklov problem with an indefinite weight to obtain upper and lower bounds on the Morse index. As a main application, it computes the exact Morse index of an m-dimensional flat annulus in an n-dimensional spherical shell, showing it equals n-m. It further classifies free boundary minimal immersions from 2-dimensional annuli, proving their images lie in an m-dimensional subspace for 2 ≤ m ≤ 4, listing explicit forms, and constructing examples where the ratio of the concentric radii can be arbitrarily large.

Significance. If the derivations hold, the work supplies a new spectral tool for Morse index estimates in this geometric setting and delivers a precise computation for the flat annulus together with a low-dimensional classification. The construction of examples with arbitrarily large radius ratios is a concrete contribution. The approach via the weighted Steklov problem with indefinite weight is a distinctive feature that may extend to other free-boundary problems.

minor comments (2)
  1. The introduction would benefit from a brief statement of the main theorems (including the precise statement that the Morse index equals n-m) before the abstract-level overview of the spectral index.
  2. Notation for the indefinite weight in the Steklov problem should be fixed early and used consistently in all subsequent sections.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary and recommendation of minor revision. No specific major comments were provided in the report, so we have no individual points to address. We are pleased that the significance of the spectral index approach, the exact Morse index computation for the flat annulus, and the classification results with large radius ratios were recognized.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The derivation introduces a spectral index from the weighted Steklov problem satisfied by coordinate functions (a stated key feature of the concentric-spheres setting) and applies it to obtain Morse-index bounds, with the exact value n-m for the flat annulus obtained as a concrete application. No step reduces by definition to its own input, no fitted parameter is relabeled as a prediction, and no load-bearing premise rests on self-citation or an imported uniqueness theorem. The framework is presented as independent of the target index computation, making the central claim self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The paper relies on standard differential geometry assumptions about minimal submanifolds and Steklov problems while introducing a new spectral index as a derived tool.

axioms (1)
  • domain assumption The coordinate functions of free boundary minimal submanifolds with boundaries on concentric spheres satisfy a Steklov problem with an indefinite weight.
    Stated as the key feature in the abstract that enables the spectral index.
invented entities (1)
  • spectral index no independent evidence
    purpose: To yield upper and lower bounds for the Morse index.
    Newly introduced based on the indefinite-weight Steklov problem.

pith-pipeline@v0.9.1-grok · 5721 in / 1356 out tokens · 27075 ms · 2026-06-26T06:48:33.492225+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

22 extracted references

  1. [1]

    and Tam, L.-F

    Fan, X.-Q. and Tam, L.-F. and Yu, C. , journal=. Extremal problems for. 2015 , publisher=

    2015

  2. [2]

    Advances in Mathematics , volume=

    The first Steklov eigenvalue, conformal geometry, and minimal surfaces , author=. Advances in Mathematics , volume=. 2011 , publisher=

    2011

  3. [3]

    and Lagac

    Karpukhin, M. and Lagac. Weyl's law for the. Archive for Rational Mechanics and Analysis , volume=. 2023 , publisher=

    2023

  4. [4]

    Karpukhin, M. and M. Laplace and. The Journal of Geometric Analysis , volume=. 2022 , publisher=

    2022

  5. [5]

    , journal=

    Medvedev, V. , journal=. On free boundary minimal submanifolds in geodesic balls in. 2025 , publisher=

    2025

  6. [6]

    , journal=

    Medvedev, V. , journal=. On the index of the critical. 2023 , publisher=

    2023

  7. [7]

    , journal=

    Lima, V. , journal=. Bounds for the. 2023 , publisher=

    2023

  8. [8]

    Mathematische Annalen , volume=

    Index estimates for free boundary minimal hypersurfaces , author=. Mathematische Annalen , volume=. 2018 , publisher=

    2018

  9. [9]

    Bateman Manuscript Project) Mc Graw-Hill Book Company , volume=

    Higher transcendental functions, volume II , author=. Bateman Manuscript Project) Mc Graw-Hill Book Company , volume=

  10. [10]

    Steklov problem with an indefinite weight for the p-

    Torn. Steklov problem with an indefinite weight for the p-. Electronic Journal of Differential Equations , volume=

  11. [11]

    Proceedings of the National Academy of Sciences , volume=

    The existence of minimal surfaces of given topological structure under prescribed boundary conditions , author=. Proceedings of the National Academy of Sciences , volume=

  12. [12]

    , journal=

    Courant, R. , journal=. On

  13. [13]

    Advances in Submanifold Theory and Related Topics: In Honor of Marcos Dajczer on his 75th Birthday , pages=

    The intrinsic metric of constant mean curvature surfaces and minimal hypersurfaces with free boundary , author=. Advances in Submanifold Theory and Related Topics: In Honor of Marcos Dajczer on his 75th Birthday , pages=. 2025 , publisher=

    2025

  14. [14]

    arXiv preprint arXiv:1907.05053 , year=

    Free boundary minimal surfaces in the unit ball: recent advances and open questions , author=. arXiv preprint arXiv:1907.05053 , year=

    arXiv 1907

  15. [15]

    2020 , publisher=

    Geometric Analysis , author=. 2020 , publisher=

    2020

  16. [16]

    Calculus of Variations and Partial Differential Equations , volume=

    Eigenvalue problems and free boundary minimal surfaces in spherical caps , author=. Calculus of Variations and Partial Differential Equations , volume=. 2026 , publisher=

    2026

  17. [17]

    Canadian Journal of Mathematics , volume=

    Some new functionals related to free boundary minimal submanifolds , author=. Canadian Journal of Mathematics , volume=. 2026 , publisher=

    2026

  18. [18]

    and Karpukhin, M

    Girouard, A. and Karpukhin, M. and Lagac. Continuity of eigenvalues and shape optimisation for. Geometric and functional analysis , volume=. 2021 , publisher=

    2021

  19. [19]

    Agranovich, M. S. , journal=. On a mixed Poincar. 2006 , publisher=

    2006

  20. [20]

    Meddelanden fran Lunds universitets Matematiska seminarium , volume=

    A vibration problem , author=. Meddelanden fran Lunds universitets Matematiska seminarium , volume=

  21. [21]

    American Mathematical Society Translations , pages=

    Asymptotics of the spectrum for two model problems in the theory of liquid vibrations , author=. American Mathematical Society Translations , pages=. 1999 , publisher=

    1999

  22. [22]

    Russian Journal of Mathematical Physics , volume=

    Spectral asymptotics of variational problems with elliptic constraints in domains with piecewise smooth boundary , author=. Russian Journal of Mathematical Physics , volume=. 1999 , publisher=

    1999
