INSIGHTS: Demonstration-Based Summaries of Time Series Predictors

Bar Eini Porat , Rom Gutman , Uri Shalit , Ofra Amir This is my paper

Pith reviewed 2026-05-20 20:48 UTC · model grok-4.3

classification 💻 cs.LG cs.AI
keywords time seriesexplainable AIglobal explanationsmodel summariesutility functionsuser studydemonstration-based
0
0 comments X

The pith

INSIGHTS generates global explanations for time series models by selecting balanced sets of important and diverse samples.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces INSIGHTS to fill the gap in global explanations for time series models, which mostly receive only local instance attributions. It selects small subsets of samples by balancing their importance, measured through domain-specific utility functions, with their diversity. This produces summaries that stakeholders can review individually to understand overall model behavior. Experiments, expert interviews, and a user study indicate these summaries are preferred for providing stable insight and improve user understanding of the model.

Core claim

INSIGHTS is a model-agnostic, user-centric approach that generates sample summaries offering a comprehensive overview of model behavior. It balances the importance and diversity of time series samples to create informative subsets using utility functions that capture domain-specific aspects of time series behavior, such as exceeding domain norms. Evaluation shows the summaries are manageable for individual evaluation and preferred by domain experts for stable understanding of model behavior.

What carries the argument

INSIGHTS selection process that balances importance and diversity of time series samples via domain-specific utility functions to form global summaries.

If this is right

  • The method produces comprehensive and diverse time series subsets for review.
  • Summaries remain small enough for individual evaluation by stakeholders.
  • Domain experts gain a stable understanding of model behavior from the selected samples.
  • User study participants exhibit enhanced understanding of the model's overall behavior.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The user-centric design may support adoption in applied domains that rely on time series data.
  • Similar balancing of importance and diversity could be tested on other sequential data types.

Load-bearing premise

Utility functions that capture domain-specific aspects of time series behavior can be defined and applied to reliably balance importance and diversity for informative global summaries.

What would settle it

A controlled study in which users given INSIGHTS summaries show no better understanding of overall model behavior than users given random samples or local explanations.

Figures

Figures reproduced from arXiv: 2605.18849 by Bar Eini Porat, Ofra Amir, Rom Gutman, Uri Shalit.

Figure 1

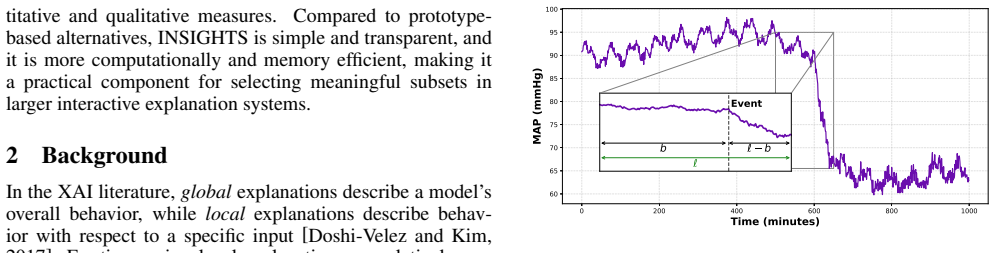

Figure 1. Figure 1: Mean Atrial Pressure example: an event et defines a win￾dow of length l, with b time points before and l − b after t. [Ye and Keogh, 2009; Theissler et al., 2022]. Feature-based conceptual frameworks [Kusters ¨ et al., 2020] offer another route, but are commonly evaluated through classification ac￾curacy and are therefore less suited to general prediction. In summary, prior work offers strong tools for loc… view at source ↗
Figure 2

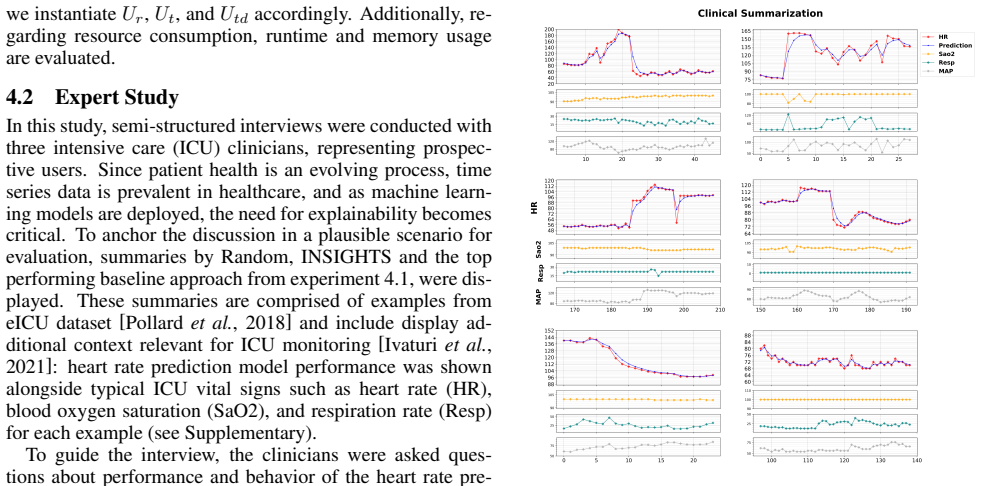

Figure 2. Figure 2: INSIGHTS-based [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: (a) Dataset size versus runtime in seconds. As the dataset size increases, ProtoDash and MMD exhibit significantly escalating [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Percentage of correct answers per TSS type. Performance is illustrated for graduate and undergraduate students. The horizon￾tal line is random choice performance. of a prediction pattern and therefore benefits from summaries containing high-utility samples. While the overall improve￾ment was not statistically significant, harder questions—those requiring deeper understanding—were better supported by the mo… view at source ↗
read the original abstract

Explainability methods have progressed rapidly, but global explanations for time-series models remain underdeveloped, with most approaches focusing on local, instance-level attributions. We introduce INSIGHTS, a model-agnostic, user-centric approach for providing global explanations of time series models. Our approach prioritizes simplicity, efficiency, and transparency in its design, ensuring that stakeholders can readily adopt its outputs. While current methods focus on local explanations, INSIGHTS generates sample summaries that offer a comprehensive overview of model behavior. It balances the importance and diversity of time series samples to create informative subsets using utility functions that capture domain-specific aspects of time series behavior, such as exceeding domain norms. We evaluate INSIGHTS through experiments, interviews, and a user study. Our results indicate INSIGHTS effectively constructs comprehensive, diverse time series subsets, producing summaries manageable for individual evaluation. It is preferred by domain experts for its ability to provide a stable understanding of model behavior and the quality of the samples identified. Moreover, user study participants presented with INSIGHTS-based summaries exhibit an enhanced understanding of the model's overall behavior.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper introduces INSIGHTS, a model-agnostic, user-centric method for global explanations of time series predictors. It selects small, informative subsets of time series samples by balancing importance and diversity via domain-specific utility functions (e.g., those encoding norms such as exceeding thresholds). The approach is evaluated through experiments, expert interviews, and a user study; the authors claim that the resulting summaries are manageable for individual evaluation, preferred by domain experts, and improve understanding of overall model behavior.

Significance. If the empirical claims hold under more rigorous controls, INSIGHTS would address a genuine gap in global explainability for time series models, where most prior work remains local. The emphasis on simplicity, transparency, and domain-expert feedback is a practical strength that could aid adoption. The multi-method evaluation (experiments + interviews + user study) is a positive design choice that goes beyond purely synthetic metrics.

major comments (2)
  1. [§4.3] §4 (Evaluation) and §4.3 (User Study): The headline result that domain experts prefer INSIGHTS and gain a 'stable understanding' of model behavior rests on the domain-specific utility functions, yet no ablation isolates their contribution versus simpler alternatives such as pure diversity sampling, k-medoids on raw features, or random selection. Without this comparison, it remains unclear whether the observed preference is attributable to the utility design or to presentation format and sample size.
  2. [§4] §4 Experiments: The abstract and evaluation sections report positive outcomes from experiments, interviews, and the user study, but supply no quantitative metrics (e.g., diversity scores, coverage statistics, inter-rater agreement), baselines, statistical tests, or exclusion criteria. This absence makes it impossible to assess whether the evidence supports the central claim that INSIGHTS 'effectively constructs comprehensive, diverse time series subsets.'
minor comments (2)
  1. [§3.2] The definition of the utility functions in §3.2 would benefit from an explicit statement of how domain norms are elicited or validated across different time-series domains rather than appearing tailored per experiment.
  2. [Figure 2] Figure 2 (example summaries) and the accompanying text would be clearer if the axes and color coding were described in the caption rather than only in the main body.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed comments. We address each major comment below and indicate the revisions we will make to improve the rigor and clarity of the evaluation sections.

read point-by-point responses

  1. Referee: [§4.3] §4 (Evaluation) and §4.3 (User Study): The headline result that domain experts prefer INSIGHTS and gain a 'stable understanding' of model behavior rests on the domain-specific utility functions, yet no ablation isolates their contribution versus simpler alternatives such as pure diversity sampling, k-medoids on raw features, or random selection. Without this comparison, it remains unclear whether the observed preference is attributable to the utility design or to presentation format and sample size.

    Authors: We agree that an explicit ablation isolating the domain-specific utility functions is necessary to strengthen the causal link to the observed expert preferences. The user study in the current manuscript compares full INSIGHTS summaries against other selection approaches and controls for sample size and presentation format, yet it does not include dedicated variants that remove or replace the utility functions with pure diversity sampling or k-medoids. We will add these ablation experiments to the revised §4.3, reporting quantitative preference differences and qualitative feedback to clarify the utility functions' contribution. revision: yes

  2. Referee: [§4] §4 Experiments: The abstract and evaluation sections report positive outcomes from experiments, interviews, and the user study, but supply no quantitative metrics (e.g., diversity scores, coverage statistics, inter-rater agreement), baselines, statistical tests, or exclusion criteria. This absence makes it impossible to assess whether the evidence supports the central claim that INSIGHTS 'effectively constructs comprehensive, diverse time series subsets.'

    Authors: We acknowledge that the evaluation would benefit from additional quantitative reporting and statistical support. The experiments section describes how INSIGHTS balances importance and diversity via the utility functions and reports qualitative outcomes from interviews and the user study, but does not include explicit numerical diversity or coverage scores, direct baselines such as random or k-medoids selection, inter-rater agreement statistics, or formal statistical tests. We will revise §4 to incorporate these elements, including computed diversity and coverage metrics, baseline comparisons, and appropriate statistical analyses where the study design permits. revision: yes

Circularity Check

0 steps flagged

No significant circularity; central claims rest on external user studies and experiments

full rationale

The paper introduces INSIGHTS as a method using utility functions for balancing importance and diversity in time series summaries. Evaluation relies on separate experiments, interviews, and a user study showing expert preference and improved understanding. No derivation step reduces a result to a fitted parameter or self-citation by construction; the utility functions are presented as domain-specific inputs defined externally rather than derived from the method's outputs. Claims about effectiveness are empirically tested rather than tautological.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim depends on the existence and effectiveness of domain-specific utility functions and on the validity of the user-study outcomes; no explicit free parameters, axioms, or invented entities are detailed in the abstract.

axioms (1)
  • domain assumption Utility functions can be defined to capture domain-specific aspects such as exceeding domain norms
    Invoked in the abstract as the mechanism for balancing importance and diversity.
