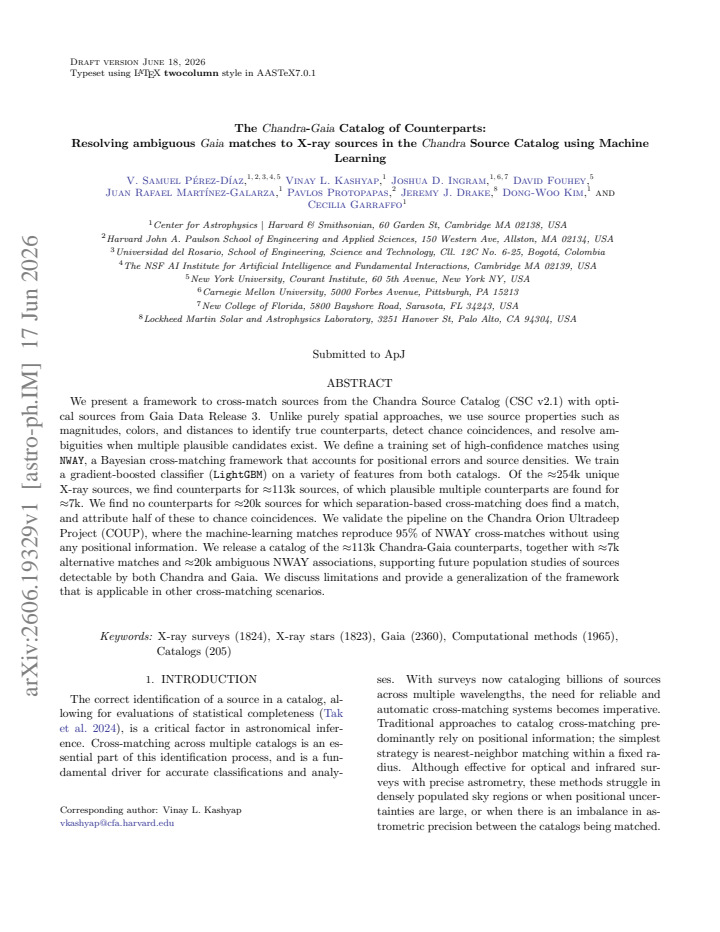

The Chandra-Gaia Catalog of Counterparts: Resolving ambiguous Gaia matches to X-ray sources in the Chandra Source Catalog using Machine Learning
Pith reviewed 2026-06-26 18:52 UTC · model grok-4.3
The pith
A gradient-boosted classifier identifies Chandra X-ray counterparts in Gaia using magnitudes, colors, and distances rather than positions.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim

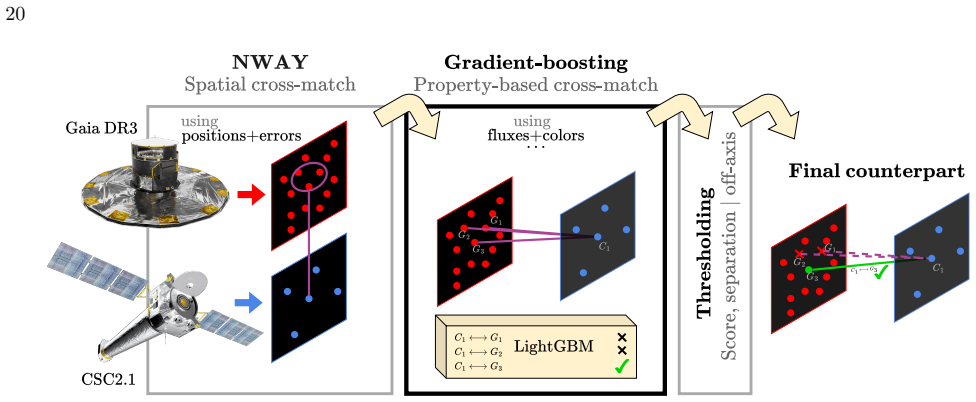

We present a framework to cross-match sources from the Chandra Source Catalog (CSC v2.1) with optical sources from Gaia Data Release 3. Unlike purely spatial approaches, we use source properties such as magnitudes, colors, and distances to identify true counterparts, detect chance coincidences, and resolve ambiguities when multiple plausible candidates exist. We define a training set of high-confidence matches using NWAY, a Bayesian cross-matching framework that accounts for positional errors and source densities. We train a gradient-boosted classifier (LightGBM) on a variety of features from both catalogs. Of the ~254k unique X-ray sources, we find counterparts for ~113k sources, of which p
What carries the argument
LightGBM gradient-boosted classifier trained on Chandra and Gaia source properties with training labels supplied by NWAY high-confidence matches.
If this is right
- Counterparts are assigned to approximately 113,000 Chandra X-ray sources.
- Multiple plausible Gaia counterparts are identified for roughly 7,000 sources.
- No counterpart is found for 20,000 sources that positional matching would link, with half attributed to chance coincidences.
- The released catalog of counterparts, alternative matches, and ambiguous cases supports population studies of joint X-ray and optical sources.
- The framework is presented as generalizable to other cross-matching scenarios between astronomical catalogs.
Where Pith is reading between the lines
- The 95 percent reproduction rate on COUP without position data implies that photometric and distance features alone carry most of the information needed to distinguish true associations in this regime.
- The method could be tested on other catalog pairs where positional errors are large or fields are crowded to see whether the same feature set remains effective.
- If the fraction of chance coincidences holds in additional fields, earlier position-only catalogs may contain a measurable rate of false positives that affects derived source populations.
- The catalog enables direct comparison of X-ray and optical properties for the matched sources without the ambiguities that affect separation-based lists.
Load-bearing premise
The high-confidence matches produced by NWAY constitute an unbiased and representative training set whose labels remain valid when positional information is removed from the classifier features.
What would settle it
A count of disagreements between the machine-learning matches and a complete manual or spectroscopic verification of counterparts in an independent deep Chandra-Gaia field.
Figures
read the original abstract
We present a framework to cross-match sources from the Chandra Source Catalog (CSC v2.1) with optical sources from Gaia Data Release 3. Unlike purely spatial approaches, we use source properties such as magnitudes, colors, and distances to identify true counterparts, detect chance coincidences, and resolve ambiguities when multiple plausible candidates exist. We define a training set of high-confidence matches using NWAY, a Bayesian cross-matching framework that accounts for positional errors and source densities. We train a gradient-boosted classifier (LightGBM) on a variety of features from both catalogs. Of the ~$254$k unique X-ray sources, we find counterparts for ~$113$k sources, of which plausible multiple counterparts are found for ~$7$k. We find no counterparts for ~$20$k sources for which separation-based cross-matching does find a match, and attribute half of these to chance coincidences. We validate the pipeline on the Chandra Orion Ultradeep Project (COUP), where the machine-learning matches reproduce 95% of NWAY cross-matches without using any positional information. We release a catalog of the ~$113$k Chandra-Gaia counterparts, together with ~$7$k alternative matches and ~$20$k ambiguous NWAY associations, supporting future population studies of sources detectable by both Chandra and Gaia. We discuss limitations and provide a generalization of the framework that is applicable in other cross-matching scenarios.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper presents a machine-learning framework (LightGBM) to cross-match Chandra Source Catalog v2.1 X-ray sources with Gaia DR3, trained on high-confidence NWAY Bayesian labels using non-positional features (magnitudes, colors, distances). It reports counterparts for ~113k of ~254k X-ray sources (with ~7k multiples), no counterparts for ~20k sources, 95% reproduction of NWAY matches on the COUP validation field without positional information, and releases the resulting catalog plus alternative matches.
Significance. If the central validation holds, the work would offer a practical method for resolving positional ambiguities in X-ray/optical cross-matches using photometric and distance information alone, with direct utility for population studies. The public release of the ~113k counterparts, ~7k alternatives, and ~20k ambiguous cases is a clear strength supporting reproducibility.
major comments (2)
- [Abstract] Abstract: the 95% reproduction rate on COUP without positional features is obtained by training and validating on high-confidence NWAY outputs; this measures how well non-positional features recover NWAY's positional decisions rather than testing independent correctness of the classifier when positional information is withheld.
- [Abstract] Abstract: the manuscript provides no information on feature-importance rankings, class-imbalance handling in the NWAY-derived training set, or quantification of label noise propagated from NWAY, all of which are required to evaluate whether the reported performance is robust.
minor comments (1)
- The generalization paragraph would be strengthened by a concrete example of applying the same non-positional pipeline to a different pair of catalogs.
Simulated Author's Rebuttal
We thank the referee for the thoughtful and constructive report. The comments highlight important aspects of how the validation should be interpreted and the need for greater methodological transparency. We address each major comment below and will make revisions to the manuscript to improve clarity and completeness.
read point-by-point responses
-
Referee: [Abstract] Abstract: the 95% reproduction rate on COUP without positional features is obtained by training and validating on high-confidence NWAY outputs; this measures how well non-positional features recover NWAY's positional decisions rather than testing independent correctness of the classifier when positional information is withheld.
Authors: We agree that the COUP validation quantifies how effectively the non-positional features recover the high-confidence labels produced by NWAY (which itself incorporates positional information and source densities). The 95% figure therefore reflects agreement with NWAY rather than an external, independent test of counterpart correctness. We will revise the abstract and the validation section to state this distinction more explicitly, while noting that NWAY provides the most reliable available labels for training and that the result still demonstrates the value of photometric and distance information for resolving ambiguities. revision: yes
-
Referee: [Abstract] Abstract: the manuscript provides no information on feature-importance rankings, class-imbalance handling in the NWAY-derived training set, or quantification of label noise propagated from NWAY, all of which are required to evaluate whether the reported performance is robust.
Authors: We acknowledge that these details are currently absent. In the revised manuscript we will add: (i) LightGBM feature-importance rankings (both gain and split-based) to identify the most influential non-positional features; (ii) a description of class-imbalance handling, including any use of class weights or sampling strategies applied to the NWAY-derived training set; and (iii) a discussion of potential label noise inherited from NWAY, supported by any sensitivity tests performed. These additions will allow readers to assess the robustness of the reported performance more thoroughly. revision: yes
Circularity Check
No significant circularity detected
full rationale
The paper defines training labels via the external NWAY Bayesian matcher and reports 95% agreement on the separate COUP field when the LightGBM classifier is run without positional features. This agreement is an empirical measurement of feature correlation, not a quantity forced by construction, self-definition, or a self-citation chain. No equation or step reduces the reported matches or performance metric to the inputs by definition; NWAY is treated as an independent source of labels, and the central output is the resulting catalog rather than a tautological reproduction.
