Graphical einops: bridging tensor networks and computation graphs

Vincent Wang-Ma\'scianica , Nikhil Khatri This is my paper

Pith reviewed 2026-06-28 22:57 UTC · model grok-4.3

classification 💻 cs.LG math.CT
keywords einopstensor networkscomputation graphsgraphical calculusequivarianceattention maskstensor programmingdiagram rewriting
0
0 comments X

The pith

A graphical calculus represents tensor axes as nested graded tubes so that architecture diagrams become formal proofs for einops identities.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a formal graphical calculus for the structural fragment of tensor programming that einops captures. Tensor axes appear as nested graded tubes around a base type, with the outer boundary supplying the undirected tensor-network perspective and the interior preserving the directed computation-graph reading. The central rewrite rule, grade-naturality, amounts to sliding spectacles over tubes and reduces standard equivariance arguments to short diagrammatic steps. The same system also converts attention masks into pre-processing operations that recover efficient sparse attention blocks. A sympathetic reader would care because the approach replaces prose-based tensor-axis manipulation with visual derivations that architecture diagrams already suggest.

Core claim

Our calculus represents tensor axes as nested graded tubes around a base type. The tube boundary recovers the undirected tensor-network view of axes, while the directed interior retains the operational reading of computation graphs. The key rewrite is grade-naturality: sliding spectacles over tubes. Standard equivariance proofs become short diagrammatic derivations. We additionally demonstrate how our rewrite system may be applied to convert attention masks into pre-processing operations, recovering efficient implementations of sparse attention blocks.

What carries the argument

nested graded tubes around a base type, with grade-naturality (sliding spectacles over tubes) as the central rewrite rule

If this is right

  • Equivariance proofs for einops operations reduce to short diagrammatic derivations using grade-naturality.
  • Attention masks convert directly into pre-processing operations that yield efficient sparse attention implementations.
  • Architecture diagrams shift from purely representational to proof-enabling for tensor-program identities.
  • The undirected tensor-network and directed computation-graph views of axes become compatible within a single calculus.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same tube representation might let researchers test whether new tensor rearrangements preserve equivariance before writing code.
  • If the rewrite system is implemented, it could serve as a lightweight checker for identities that currently rely on manual axis tracking.
  • Connections between tensor networks and computation graphs could extend to other structural tensor libraries that share the same axis-manipulation primitives.

Load-bearing premise

The structural fragment of tensor programming underlying einops admits a complete representation via nested graded tubes and grade-naturality suffices to reduce all relevant equivariance proofs to diagrammatic form without gaps or extra assumptions.

What would settle it

An equivariance identity expressible in einops whose shortest proof still requires tensor-axis prose or non-diagrammatic steps after all possible grade-naturality rewrites would show the calculus is incomplete.

Figures

Figures reproduced from arXiv: 2605.31485 by Nikhil Khatri, Vincent Wang-Ma\'scianica.

Figure 1

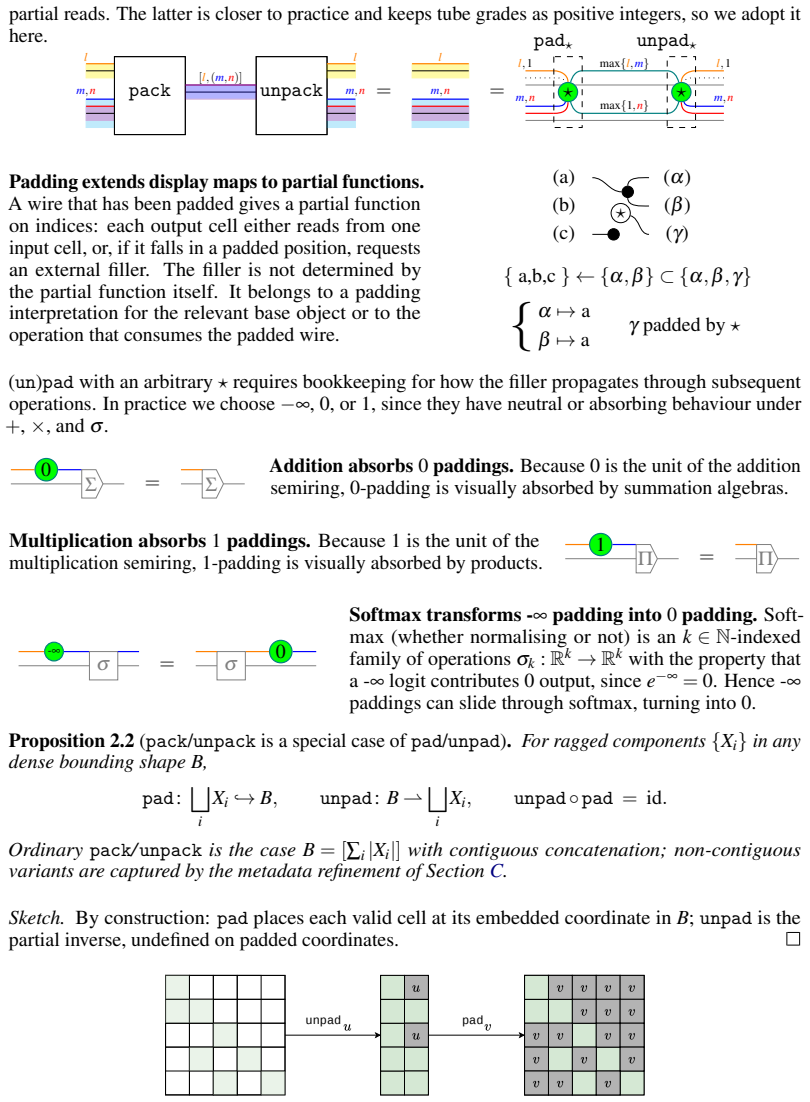

Figure 1. Figure 1: Action of unpad and pad on a square matrix. Observe that the padding introduced in unpad is overwritten by pad. 3 Method: a graded-monad calculus and sliding spectacles The formalism behind [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗
Figure 2

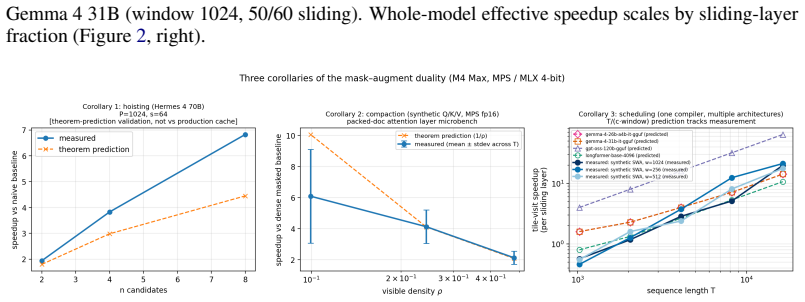

Figure 2. Figure 2: Three corollaries of the mask-augment duality. Left: Corollary 1, strict-prefix hoisting on Hermes 4 70B. Middle: Corollary 2, packed-document compaction on synthetic Q/K/V at fp16 (mean ± stdev across three T values per nd). Right: Corollary 3, bounded-component scheduling: predicted (open markers, dashed) on four GGUF frontier models from architectural metadata, measured (filled, solid) on synthetic SWA … view at source ↗
read the original abstract

Architecture diagrams are ubiquitous in deep learning, but they are usually only representational: the tensor-program identities they suggest are still proved by prose and tensor-axis manipulation. We introduce a formal graphical calculus for the structural fragment of tensor programming underlying einops, making such diagrams proof-enabling. Our calculus represents tensor axes as nested graded tubes around a base type. The tube boundary recovers the undirected tensor-network view of axes, while the directed interior retains the operational reading of computation graphs. The key rewrite is grade-naturality: sliding spectacles over tubes. Standard equivariance proofs become short diagrammatic derivations. We additionally demonstrate how our rewrite system may be applied to convert attention masks into pre-processing operations, recovering efficient implementations of sparse attention blocks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 0 minor

Summary. The paper introduces a formal graphical calculus for the structural fragment of tensor programming underlying einops. Tensor axes are represented as nested graded tubes around a base type, recovering the undirected tensor-network view at the boundary while retaining the directed operational reading inside. The central rewrite rule is grade-naturality (sliding spectacles over tubes), which is claimed to turn standard equivariance proofs into short diagrammatic derivations. The calculus is additionally applied to convert attention masks into pre-processing operations, recovering efficient implementations of sparse attention blocks.

Significance. If the nested graded tube representation is complete for the relevant fragment and grade-naturality suffices for the claimed derivations without hidden assumptions, the work would provide a proof-enabling bridge between tensor-network diagrams and computation-graph reasoning. This could shorten equivariance arguments in deep-learning architecture papers and offer a systematic route to mask-to-preprocessing rewrites for attention. The absence of any machine-checked proofs or reproducible code in the manuscript means these strengths remain potential rather than demonstrated.

major comments (3)
  1. [Abstract] Abstract: the central claim that 'standard equivariance proofs become short diagrammatic derivations' is stated without any concrete before/after example, derivation length comparison, or reference to a specific equivariance statement. Without such an illustration the reduction in proof length cannot be evaluated.
  2. [Abstract] Abstract: the completeness assumption that 'the structural fragment of tensor programming underlying einops admits a complete representation via nested graded tubes' is asserted but not accompanied by a statement of the fragment's syntax, a soundness theorem, or a counter-example check. This is load-bearing for all subsequent claims.
  3. [Abstract] Abstract: the attention-mask application is described only at the level of 'recovering efficient implementations'; no rewrite sequence, complexity argument, or comparison to existing sparse-attention methods is supplied, leaving the practical utility unassessable.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the careful reading and constructive feedback focused on the abstract. We address each major comment below and will revise the abstract to improve concreteness and assessability of the claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that 'standard equivariance proofs become short diagrammatic derivations' is stated without any concrete before/after example, derivation length comparison, or reference to a specific equivariance statement. Without such an illustration the reduction in proof length cannot be evaluated.

    Authors: We agree that a concrete illustration would allow readers to evaluate the claim directly. In the revised abstract we will insert a short before/after example referencing a standard statement (head-permutation equivariance of multi-head attention), showing the length of the conventional prose argument versus the corresponding diagrammatic derivation. revision: yes

  2. Referee: [Abstract] Abstract: the completeness assumption that 'the structural fragment of tensor programming underlying einops admits a complete representation via nested graded tubes' is asserted but not accompanied by a statement of the fragment's syntax, a soundness theorem, or a counter-example check. This is load-bearing for all subsequent claims.

    Authors: The fragment comprises precisely the operations expressible via einops; its syntax is given in Section 2. The nested graded tube representation is complete for this fragment by construction. We will add a concise statement of the fragment together with a forward reference to the completeness argument in the revised abstract. A separate formal soundness theorem is not present in the manuscript. revision: partial

  3. Referee: [Abstract] Abstract: the attention-mask application is described only at the level of 'recovering efficient implementations'; no rewrite sequence, complexity argument, or comparison to existing sparse-attention methods is supplied, leaving the practical utility unassessable.

    Authors: We will expand the abstract to outline the mask-to-preprocessing rewrite at a high level and note the resulting complexity improvement (elimination of explicit masking inside the attention kernel). A detailed comparison with prior sparse-attention techniques remains outside the abstract's scope but is consistent with the manuscript's focus on the rewrite system. revision: yes

standing simulated objections not resolved
  • The manuscript contains no machine-checked proofs or reproducible code; the referee correctly notes that this leaves the claimed strengths potential rather than demonstrated. We cannot supply these without substantial additional development beyond the present theoretical contribution.

Circularity Check

0 steps flagged

No significant circularity: new formal system introduced without self-referential reductions

full rationale

The paper presents a newly introduced graphical calculus for the structural fragment of tensor programming, representing axes as nested graded tubes with grade-naturality as the central rewrite rule. No load-bearing step reduces by construction to fitted parameters, self-citations, or prior results from the same authors; the abstract and description frame the system as a formal innovation whose completeness is posited as an assumption rather than derived from its own outputs. The derivation chain is self-contained as an axiomatic presentation of a diagrammatic language, with no evidence of renaming known results, smuggling ansatzes via citation, or uniqueness theorems imported from overlapping authorship. This matches the default expectation of no circularity for papers that define new formalisms outright.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review provides no explicit free parameters, axioms, or invented entities beyond the high-level description of the new representation; the graded tubes and spectacles are introduced as part of the calculus itself.
