Piecewise Robust Barrier Tubes for Nonlinear Hybrid Systems with Uncertainty

Hui Kong , Ezio Bartocci , Yu Jiang , Thomas A. Henzinger This is my paper

Pith reviewed 2026-05-24 16:05 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords barrier certificatesflowpipe overapproximationhybrid dynamical systemsuncertaintynonlinear polynomial dynamicssafety verificationreachability
0
0 comments X

The pith

A piecewise combination of barrier certificates yields sound, time-independent overapproximations for flowpipes of nonlinear hybrid systems with uncertainty.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to extend piecewise barrier tubes to continuous and hybrid dynamical systems that contain uncertainty in parameters or noise. It replaces interval methods with a different enclosure-box computation that keeps the overapproximation sound but runs much faster. A reader would care because many real systems have varying trajectory speeds and bounded uncertainty, making traditional reachability methods slow or imprecise. The result is demonstrated through a C++ implementation tested on several benchmarks.

Core claim

Piecewise robust barrier tubes overapproximate the flowpipes of nonlinear systems with polynomial dynamics by combining barrier certificates in segments. This construction extends to hybrid systems and systems with uncertainty while using a new enclosure computation that avoids interval arithmetic yet preserves soundness.

What carries the argument

Piecewise barrier tubes formed from combinations of barrier certificates, together with a non-interval enclosure-box method for computing the tubes.

If this is right

  • The method verifies safety properties in hybrid systems under parameter and noise uncertainty.
  • Overapproximations remain valid without depending on chosen time steps.
  • Efficiency improves substantially compared to prior interval-based versions of the same technique.
  • Precision is higher than competing methods on the evaluated benchmarks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the enclosure method generalizes, similar improvements could apply to other barrier-certificate based verifiers.
  • Hybrid systems with more complex discrete transitions might be analyzable by extending the jump handling.
  • Applications in embedded control could benefit from the time-independence for long-horizon predictions.

Load-bearing premise

The replacement enclosure-box computation method produces sound results for the barrier-certificate combinations chosen on polynomial dynamics.

What would settle it

A benchmark system where the computed tubes fail to contain a known reachable unsafe state, or where they differ from a known sound interval-based enclosure.

Figures

Figures reproduced from arXiv: 1907.11514 by Ezio Bartocci, Hui Kong, Thomas A. Henzinger, Yu Jiang.

Figure 1
Figure 1. Figure 1: (a)→(g): demonstration of RBT computation 4.4 PRBT for Hybrid Dynamics To extend our approach with the ability to deal with hybrid systems, we need to handle two problems i) compute the intersection of RBT and guard set, and ii) compute the image of the intersection after discrete jump. In general, these two issues can be very hard depending on what kind of guard sets and transitions are defined for the hy… view at source ↗
Figure 2
Figure 2. Figure 2: Lotka-Volterra: (a), (b), (c); controller 3D: (d) [PITH_FULL_IMAGE:figures/full_fig_p014_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Controller 2d: (a), (b); Van der Pol Oscillator: (c), (d) [PITH_FULL_IMAGE:figures/full_fig_p014_3.png] view at source ↗
Figure 4

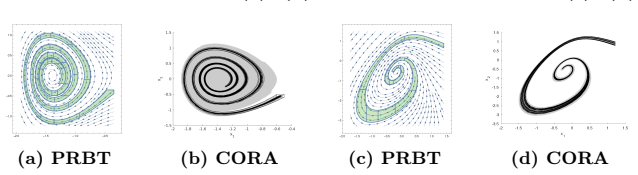

Figure 4. Figure 4: Buckling Column: (a), (b); Jet Engine: (c), (d) [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Hybridized model of TDO (a) PRBT −0.2 0 0.2 0.4 0.6 0.8 1 1.2 0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5 x2 x1 (b) Flow* (c) CORA [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Flowpipe of hybridized TDO For this model, we want to define an initial state region X0 which can guar￾antee the oscillating behaviour for the system. Due to the highly nonlinear be￾haviour of the system, a common strategy to deal with this model is to use a hybridized model to approximate the dynamics system and then apply formal verification to the hybrid model[13,18]. In our experiment, we use three cub… view at source ↗
read the original abstract

Piecewise Barrier Tubes (PBT) is a new technique for flowpipe overapproximation for nonlinear systems with polynomial dynamics, which leverages a combination of barrier certificates. PBT has advantages over traditional time-step based methods in dealing with those nonlinear dynamical systems in which there is a large difference in speed between trajectories, producing an overapproximation that is time independent. However, the existing approach for PBT is not efficient due to the application of interval methods for enclosure-box computation, and it can only deal with continuous dynamical systems without uncertainty. In this paper, we extend the approach with the ability to handle both continuous and hybrid dynamical systems with uncertainty that can reside in parameters and/or noise. We also improve the efficiency of the method significantly, by avoiding the use of interval-based methods for the enclosure-box computation without loosing soundness. We have developed a C++ prototype implementing the proposed approach and we evaluate it on several benchmarks. The experiments show that our approach is more efficient and precise than other methods in the literature.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The paper extends Piecewise Barrier Tubes (PBT) to nonlinear hybrid systems whose uncertainty may appear in parameters or additive noise. It replaces the prior interval-arithmetic enclosure-box step with a new computation that is asserted to remain sound while improving efficiency, implements the method in C++, and reports benchmark comparisons claiming superior efficiency and precision relative to existing approaches.

Significance. If the soundness claim for the new enclosure method holds, the work would strengthen reachability analysis for hybrid systems with parametric and noise uncertainty by supplying time-independent over-approximations that cope with disparate trajectory speeds. The C++ prototype and benchmark evaluation supply concrete evidence of practicality.

major comments (1)
  1. [Abstract] Abstract: the assertion that 'soundness is preserved' after dropping interval methods for enclosure-box computation supplies no derivation, invariant, or inductive argument showing why the replacement still over-approximates the reachable set under the same barrier-tube conditions previously guaranteed by interval arithmetic. This premise is load-bearing for both the efficiency claim and the hybrid-system extension.
minor comments (1)
  1. The abstract states that experiments were performed on 'several benchmarks' yet gives no indication of the specific systems, dimensions, or quantitative metrics (runtime, tightness) used for the comparison.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful review and constructive feedback. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the assertion that 'soundness is preserved' after dropping interval methods for enclosure-box computation supplies no derivation, invariant, or inductive argument showing why the replacement still over-approximates the reachable set under the same barrier-tube conditions previously guaranteed by interval arithmetic. This premise is load-bearing for both the efficiency claim and the hybrid-system extension.

    Authors: We agree the abstract is concise and asserts soundness preservation without including the supporting argument. The manuscript body (Section 4) supplies the required inductive argument: the new enclosure computation is shown to maintain the barrier-certificate over-approximation invariant by construction, without relying on interval arithmetic. To address the concern, we will revise the abstract to include a one-sentence reference to this inductive soundness argument. revision: yes

Circularity Check

0 steps flagged

No significant circularity; extension and enclosure replacement presented as independent contributions

full rationale

The paper extends prior PBT work to hybrid systems with parameter/noise uncertainty and replaces interval arithmetic for enclosure-box computation while asserting preserved soundness and improved efficiency. No quoted step reduces any claimed result (e.g., soundness preservation or over-approximation guarantee) to a fitted parameter, self-defined quantity, or load-bearing self-citation chain by construction. The derivation chain relies on standard barrier-certificate combinations and algorithmic replacement whose soundness is asserted as a new property rather than tautologically forced from the inputs themselves.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Based solely on the abstract, the central claim rests on the existence of computable barrier certificates for polynomial vector fields and on the soundness of a replacement enclosure procedure whose details are not supplied.

axioms (2)
  • domain assumption Dynamical systems under consideration have polynomial dynamics.
    Explicitly stated as the setting for which PBT applies.
  • ad hoc to paper Suitable barrier certificates exist and can be combined piecewise while preserving soundness after the enclosure change.
    Invoked when the authors claim the new method remains sound.

pith-pipeline@v0.9.0 · 5712 in / 1329 out tokens · 24396 ms · 2026-05-24T16:05:52.398089+00:00 · methodology
