arxiv: 2606.09789 · v1 · pith:FBM4J7XEnew · submitted 2026-06-08 · 💻 cs.CY

Principled Uncertainty in Clinical AI: End-to-End Bayesian Modelling and Algorithmic Equity Auditing Across Multimodal Patient Data

Oladimeji Anthonio , Dimeji Abdulsobur Olawuyi , Oloruntoba Ajayi , Temiloluwa Aderemi , Joseph Odamo This is my paper

Pith reviewed 2026-06-27 14:42 UTC · model grok-4.3

classification 💻 cs.CY
keywords Bayesian deep learningmultimodal clinical dataepistemic uncertaintyalgorithmic fairnessequity auditingvariational encodersuncertainty calibration
0
0 comments X

The pith

A Bayesian multimodal model shows epistemic uncertainty flags 15.3 percent equity gaps for rural and low-income patients.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds an end-to-end Bayesian deep learning system for multimodal clinical records that outputs separate aleatoric and epistemic uncertainty estimates. It trains the system on 1,000 simulated patients and audits the uncertainty values across facility type, socioeconomic status, age, and sex. The audit finds that epistemic uncertainty is reliably higher for primary/rural facility patients, low socioeconomic status patients, and elderly patients, while no sex difference appears. These results position calibrated epistemic uncertainty as a direct, label-free signal for detecting algorithmic inequity in clinical predictions.

Core claim

The central claim is that a precision-weighted late-fusion Bayesian architecture, trained with a composite loss of binary cross-entropy, KL divergence, and an uncertainty calibration penalty, produces epistemic uncertainty estimates that systematically differ across patient subgroups in simulated multimodal data, with primary/rural patients showing a 15.3 percent uncertainty gap, low socioeconomic status patients a 6.8 percent gap, and elderly patients a 3.9 percent gap.

What carries the argument

Modality-specific variational encoders combined with precision-weighted late fusion and a decomposed uncertainty output head that isolates epistemic uncertainty.

If this is right

  • Epistemic uncertainty can serve as an automated flag to route predictions from primary or rural facilities for additional human review.
  • Model retraining or data collection can be prioritized for the subgroups that exhibit the largest epistemic uncertainty gaps.
  • Calibration penalties in the loss function can be tuned specifically to reduce subgroup differences in uncertainty.
  • Uncertainty-based auditing can be applied at deployment time without requiring outcome labels for the audited cases.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the simulation faithfully captures real disparities, uncertainty auditing could reduce the need for separate fairness audits that require protected-attribute labels.
  • The same architecture could be tested on longitudinal patient trajectories to check whether uncertainty gaps widen or narrow over time.
  • Connecting uncertainty gaps to downstream clinical decisions would show whether high-uncertainty predictions actually lead to different treatment rates.

Load-bearing premise

The generative process that created the 1,000 simulated patient records and their labels accurately reproduces the statistical structure and disparity patterns of real clinical data.

What would settle it

Re-running the equity audit on a real clinical dataset of comparable size and modality structure and finding no statistically significant uncertainty gaps for the same subgroups.

Figures

Figures reproduced from arXiv: 2606.09789 by Dimeji Abdulsobur Olawuyi, Joseph Odamo, Oladimeji Anthonio, Oloruntoba Ajayi, Temiloluwa Aderemi.

Figure 2
Figure 2. Figure 2: Reliability Diagram — Model Calibration. Reliability diagram show￾ing mean predicted confidence against actual accuracy across 10 bins. Points near the dashed diagonal indicate well-calibrated predictions. Bin size encoded by colour intensity. ECE = 0.096. 8 [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

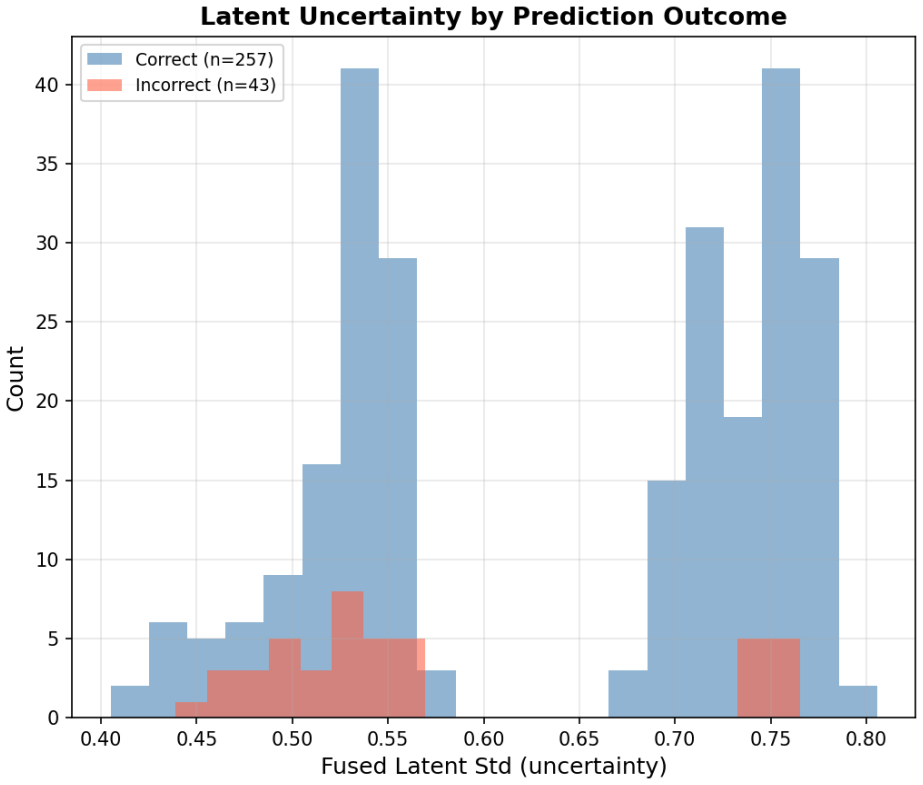

Figure 3. Figure 3: Latent Uncertainty Distribution by Prediction Outcome. Histogram of fused latent standard deviation (uncertainty) for correctly classified patients (blue, n=257) versus incorrectly classified patients (red, n=43). Higher uncer￾tainty in incorrect predictions confirms expected calibration behaviour. 9 [PITH_FULL_IMAGE:figures/full_fig_p009_3.png] view at source ↗
Figure 8
Figure 8. Figure 8: High-Uncertainty Patient Overrepresentation by Facility. Bar chart showing the percentage of each facility subgroup flagged as high-uncertainty (top quartile). Dashed line indicates the population average (25%). Primary/rural patients are overrepresented at 35.7% (+42.8%). 14 [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
read the original abstract

Clinical artificial intelligence (AI) systems routinely produce predictions without principled quantification of uncertainty, limiting their trustworthiness in high-stakes medical environments. This paper presents an integrated research programme addressing two interconnected problems: (1) the development of a fully end-to-end Bayesian uncertainty modelling framework for multimodal clinical data, and (2) the application of calibrated uncertainty estimates as a formal measure of algorithmic equity across patient subgroups. We construct a probabilistic deep learning architecture comprising modality-specific variational encoders, a precision-weighted late fusion mechanism, and a decomposed uncertainty output head that separates aleatoric from epistemic uncertainty. The system is trained with a composite Bayesian loss incorporating binary cross-entropy, Kullback-Leibler divergence regularisation, and an uncertainty calibration penalty. We evaluate model calibration using Expected Calibration Error (ECE = 0.096) and conduct a subgroup equity audit across facility type, socioeconomic status, age group, and biological sex on a dataset of 1,000 simulated patients. Results demonstrate that epistemic uncertainty systematically identifies underserved populations: primary/rural facility patients show a 15.3% uncertainty equity gap (p < 0.001, effect size = 0.698), low socioeconomic status patients exhibit a 6.8% gap (p < 0.001), and elderly patients show a 3.9% gap (p < 0.001), whilst no significant sex-based disparity is detected. These findings establish that calibrated uncertainty is not merely a technical property of probabilistic models but constitutes an actionable equity signal with direct clinical relevance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper presents an end-to-end Bayesian deep learning architecture for multimodal clinical data, using modality-specific variational encoders, precision-weighted late fusion, and a decomposed uncertainty head separating aleatoric from epistemic uncertainty. Trained via a composite loss (BCE + KL + calibration penalty), it reports ECE=0.096 on 1,000 simulated patients and claims that epistemic uncertainty identifies underserved subgroups via equity gaps of 15.3% (primary/rural facility, p<0.001, effect size 0.698), 6.8% (low SES), and 3.9% (elderly), with no sex disparity.

Significance. If the simulation were shown to be independent of the model's assumptions and validated externally, the linkage of calibrated epistemic uncertainty to algorithmic equity would constitute a substantive contribution to trustworthy clinical AI. The integrated framework and explicit subgroup audit are positive elements, but the current results do not yet support that assessment.

major comments (3)
  1. [Simulated Dataset] Simulated Dataset section: The generative process for creating the 1,000 patients' multimodal records, labels, and subgroup-specific noise/missingness patterns is unspecified. This is load-bearing for the central claim, because the reported equity gaps (15.3% facility, 6.8% SES, 3.9% age) are computed directly from the model's epistemic uncertainty on data generated under the same modeling assumptions.
  2. [Results] Results section: All quantitative findings (ECE=0.096, p-values, effect sizes) rest on a single simulated dataset with no external validation cohort, no ablation removing the uncertainty calibration penalty, and no error bars or sensitivity analysis on the reported gaps.
  3. [Methods] Methods (composite Bayesian loss): The weight of the uncertainty calibration penalty is a free parameter, yet no sensitivity analysis demonstrates whether the equity gaps persist when this term is varied or removed; the gaps may therefore be an artifact of the loss design rather than an independent property of the Bayesian model.
minor comments (2)
  1. [Abstract] Abstract and Results: The p-values and effect sizes are presented without stating the exact statistical test or correction for multiple comparisons.
  2. Notation: The precision-weighted late fusion mechanism would benefit from an explicit equation defining how modality precisions are combined.

Simulated Author's Rebuttal

3 responses · 2 unresolved

We thank the referee for the constructive and detailed review. The comments highlight important issues of transparency, robustness, and scope that we address below. We outline specific revisions to the manuscript while noting limitations that cannot be resolved within the current study.

read point-by-point responses

  1. Referee: [Simulated Dataset] Simulated Dataset section: The generative process for creating the 1,000 patients' multimodal records, labels, and subgroup-specific noise/missingness patterns is unspecified. This is load-bearing for the central claim, because the reported equity gaps (15.3% facility, 6.8% SES, 3.9% age) are computed directly from the model's epistemic uncertainty on data generated under the same modeling assumptions.

    Authors: We agree that the generative process must be fully specified. In the revised manuscript we will expand the Simulated Dataset section with a complete description of the data generation procedure, including the probabilistic models for each modality, the mechanisms for introducing subgroup-specific noise and missingness, and the label generation process. This addition will allow readers to evaluate the degree of independence between the simulation and the modeling assumptions. revision: yes

  2. Referee: [Results] Results section: All quantitative findings (ECE=0.096, p-values, effect sizes) rest on a single simulated dataset with no external validation cohort, no ablation removing the uncertainty calibration penalty, and no error bars or sensitivity analysis on the reported gaps.

    Authors: We acknowledge these limitations of the current evaluation. We will add bootstrapped error bars to all reported metrics and gaps, and we will include an ablation that removes the calibration penalty term. External validation on a real clinical cohort is outside the scope of this work, which is designed to demonstrate the framework under controlled conditions; we will state this explicitly as a limitation. revision: partial

  3. Referee: [Methods] Methods (composite Bayesian loss): The weight of the uncertainty calibration penalty is a free parameter, yet no sensitivity analysis demonstrates whether the equity gaps persist when this term is varied or removed; the gaps may therefore be an artifact of the loss design rather than an independent property of the Bayesian model.

    Authors: We will perform a sensitivity analysis over a range of weights for the calibration penalty term, including the case where the term is removed entirely. The results of this analysis will be reported in the revised Methods and Results sections to demonstrate whether the equity gaps are robust to this hyperparameter. revision: yes

standing simulated objections not resolved
  • External validation on a real clinical cohort, as the study uses only simulated data.
  • Demonstration that the simulation is fully independent of the model's assumptions without conducting additional experiments.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper presents a Bayesian multimodal architecture (modality-specific variational encoders, precision-weighted fusion, decomposed uncertainty head) trained via a composite loss (BCE + KL + calibration penalty) and evaluates calibration (ECE=0.096) plus subgroup uncertainty gaps on 1,000 simulated patients. No equations, generative-process description, or self-citation chain is provided that reduces the reported equity gaps (15.3% facility, 6.8% SES, 3.9% age) to the model inputs or simulation design by construction. The simulation is treated as an independent testbed; the derivation of the uncertainty model itself does not presuppose the subgroup findings.

Axiom & Free-Parameter Ledger

3 free parameters · 3 axioms · 0 invented entities

The central claim depends on the unstated generative model that produced the 1,000 simulated patients, the assumption that variational inference yields well-calibrated epistemic uncertainty, and the decision to treat uncertainty magnitude itself as a direct equity metric; none of these receive independent empirical support in the abstract.

free parameters (3)
  • precision weights in late fusion
    Learned or hand-tuned scalars that control modality contribution; directly affect the fused representation and downstream uncertainty values.
  • weight of uncertainty calibration penalty
    Hyperparameter in the composite loss that trades off prediction accuracy against calibration; its value shapes the reported ECE and subgroup gaps.
  • variational posterior parameters
    Means and variances of the approximate posteriors in each modality encoder; fitted during training and determine epistemic uncertainty.
axioms (3)
  • standard math Variational inference produces a faithful approximation to the true posterior over network weights
    Invoked by the use of variational encoders without further justification.
  • domain assumption The simulated patient records and labels preserve the statistical relationships and disparity structure of real multimodal clinical data
    Required for the equity gaps measured on the simulation to generalize.
  • ad hoc to paper Higher epistemic uncertainty is a valid proxy for algorithmic inequity
    The paper treats uncertainty magnitude as an equity signal without external validation against clinical outcomes.

pith-pipeline@v0.9.1-grok · 5845 in / 1894 out tokens · 30443 ms · 2026-06-27T14:42:54.556395+00:00 · methodology
