Spatially heterogeneous power-law attenuation with multiple relaxation mechanisms for ultrasound modeling

Masashi Sode , Gianmarco Pinton This is my paper

Pith reviewed 2026-06-27 10:41 UTC · model grok-4.3

classification ⚛️ physics.med-ph
keywords ultrasound modelingpower-law attenuationrelaxation mechanismsheterogeneous tissuesnumerical simulationcalibrationmedical imaging
0
0 comments X

The pith

Spatially varying power-law attenuation in ultrasound can be modeled with low error using a single set of calibrated relaxation mechanisms.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a calibration method to represent frequency-dependent attenuation that follows different power laws at different locations in tissue. It fits parameters for multiple relaxation mechanisms with derivative-free optimization so the same mechanisms work across wide ranges of attenuation strength and exponent without manual retuning for each tissue. This approach supports detailed simulations of wave propagation through heterogeneous body models. The method also applies the same formulation to absorbing boundaries and is checked in layered and three-dimensional cases drawn from anatomical data.

Core claim

A fixed collection of relaxation mechanisms, with parameters chosen by Nelder-Mead minimization of complex-wavenumber error, reproduces power-law attenuation alpha(x,f) = alpha_0(x) f^y(x) for alpha_0 ranging from 0.0022 to 1.0 dB per (MHz^y cm) and y from 0.4 to 2.0, producing mean magnitude errors below 3 percent between 1 and 20 MHz, dispersion errors of 1.1 plus or minus 0.8 m/s in the core clinical range, and boundary reflections below -50 dB when the mechanisms are used inside a convolutional perfectly matched layer.

What carries the argument

Nelder-Mead optimization that tunes relaxation parameters to minimize mismatch between the model and the target complex wavenumber for power-law attenuation.

If this is right

  • The same relaxation parameters can be used throughout a simulation domain containing many different tissue types.
  • Boundary reflections remain below -50 dB when the calibrated mechanisms are placed in the absorbing layers.
  • Per-layer errors stay under 2.5 percent in two-layer muscle, fat, and liver test cases.
  • Voxel-level heterogeneity in both alpha_0 and y is stable in three-dimensional abdominal simulations based on anatomical datasets.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Large libraries of tissue properties could be assembled without repeated manual fitting steps.
  • The low dispersion error may improve accuracy in applications that estimate acoustic radiation force or solve inverse problems.
  • The framework could be tested directly on in-vivo measurement data to check performance beyond simulated phantoms.

Load-bearing premise

A single fixed collection of relaxation mechanisms can approximate power-law attenuation for any combination of spatially varying alpha_0(x) and y(x) over the full frequency range without location-specific retuning.

What would settle it

A head-to-head comparison of simulated pressure fields against laboratory measurements in a physical phantom containing known, sharply varying alpha_0 and y values across adjacent regions, checking whether magnitude errors stay below 3 percent and dispersion stays below 2 m/s at frequencies from 1 to 20 MHz.

Figures

Figures reproduced from arXiv: 2606.11103 by Gianmarco Pinton, Masashi Sode.

Figure 1

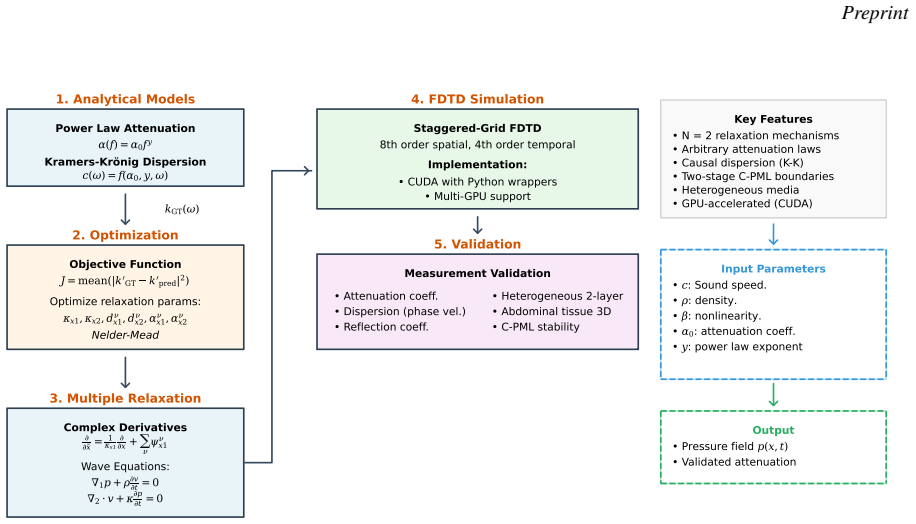

Figure 1. Figure 1: Overview of the Fullwave 2.5 workflow: (1) Analytical models define power-law attenuation and [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

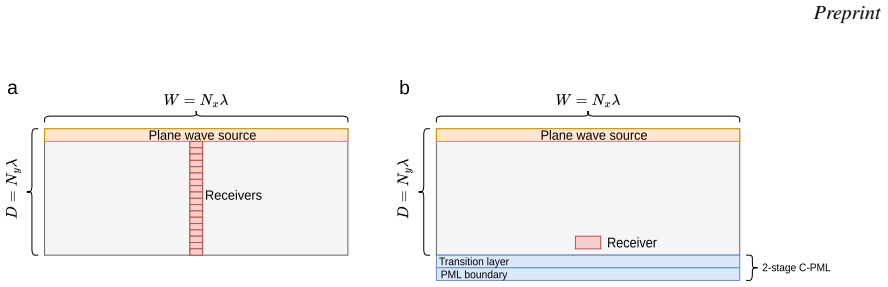

Figure 2. Figure 2: Simulation domain for attenuation coefficient, dispersion measurements, and reflection coefficient measure [PITH_FULL_IMAGE:figures/full_fig_p008_2.png] view at source ↗
Figure 3

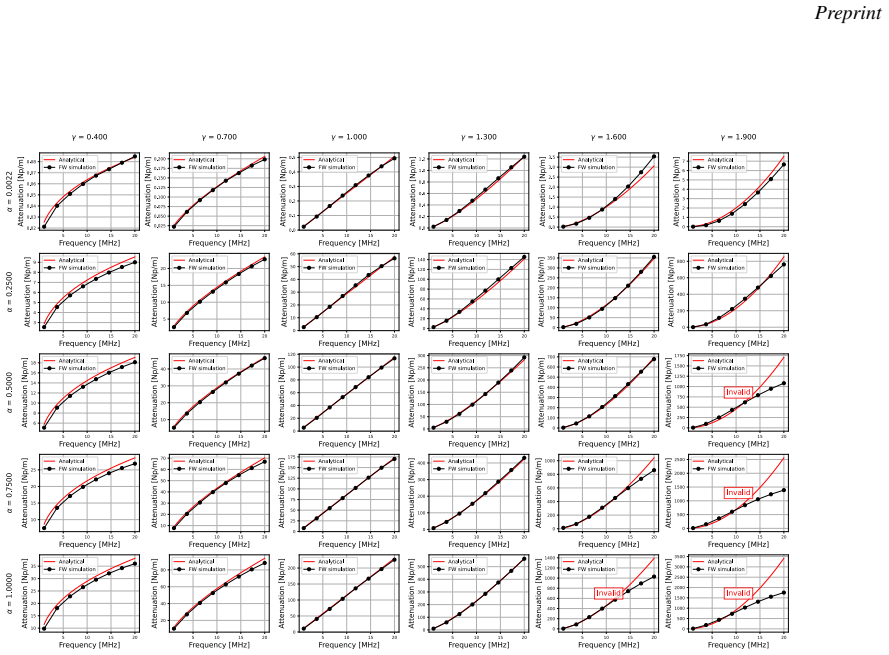

Figure 3. Figure 3: Comparison between the simulated and theoretical attenuation strength for different attenuation coefficients [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

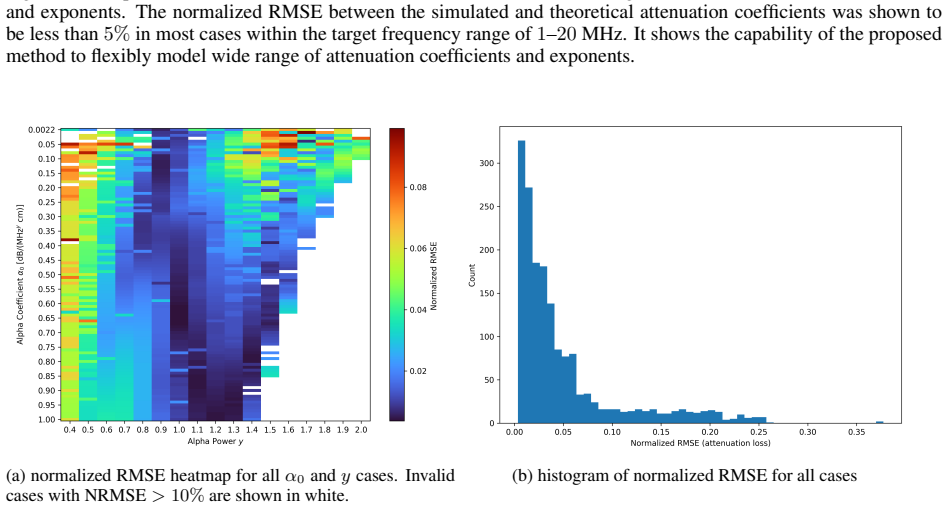

Figure 4. Figure 4: (a) Normalized RMSE between the simulated and theoretical attenuation coefficients across the full optimiza [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 5

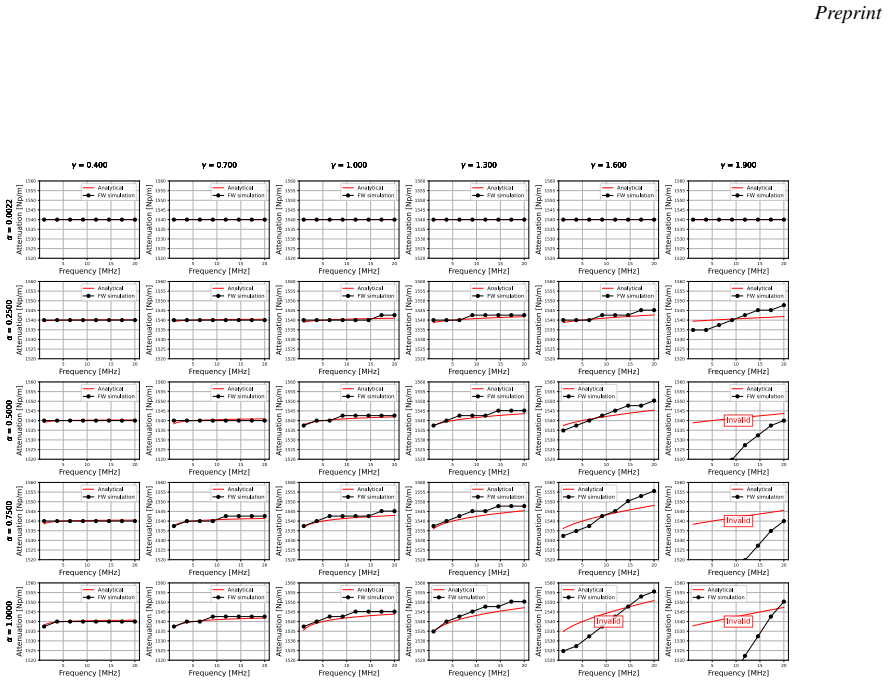

Figure 5. Figure 5: Comparison between the simulated and theoretical dispersion for different attenuation coefficients and ex [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
Figure 6

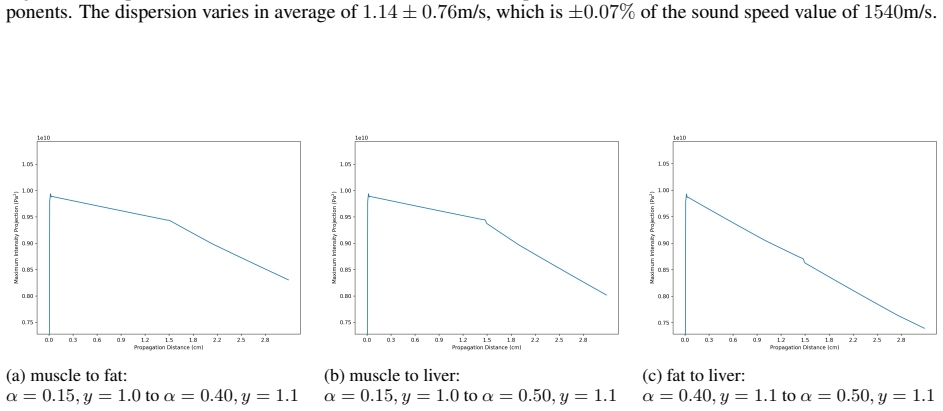

Figure 6. Figure 6: Maximum intensity projection (MIP) at the center axis of the simulation domain when the wave propagates [PITH_FULL_IMAGE:figures/full_fig_p013_6.png] view at source ↗
Figure 7

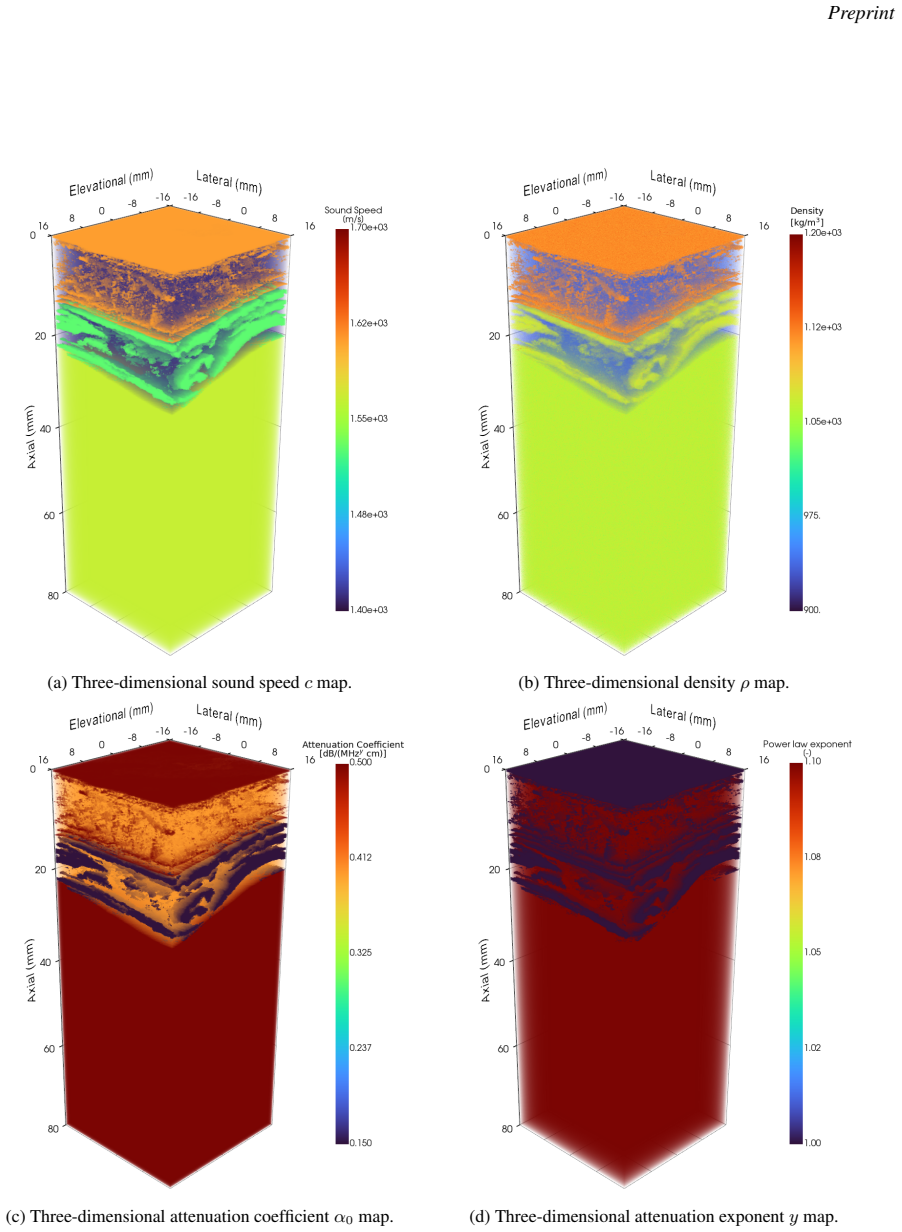

Figure 7. Figure 7: The input heterogeneous medium to demonstrate the simulation of heterogeneous power-law attenuation. It [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
Figure 8

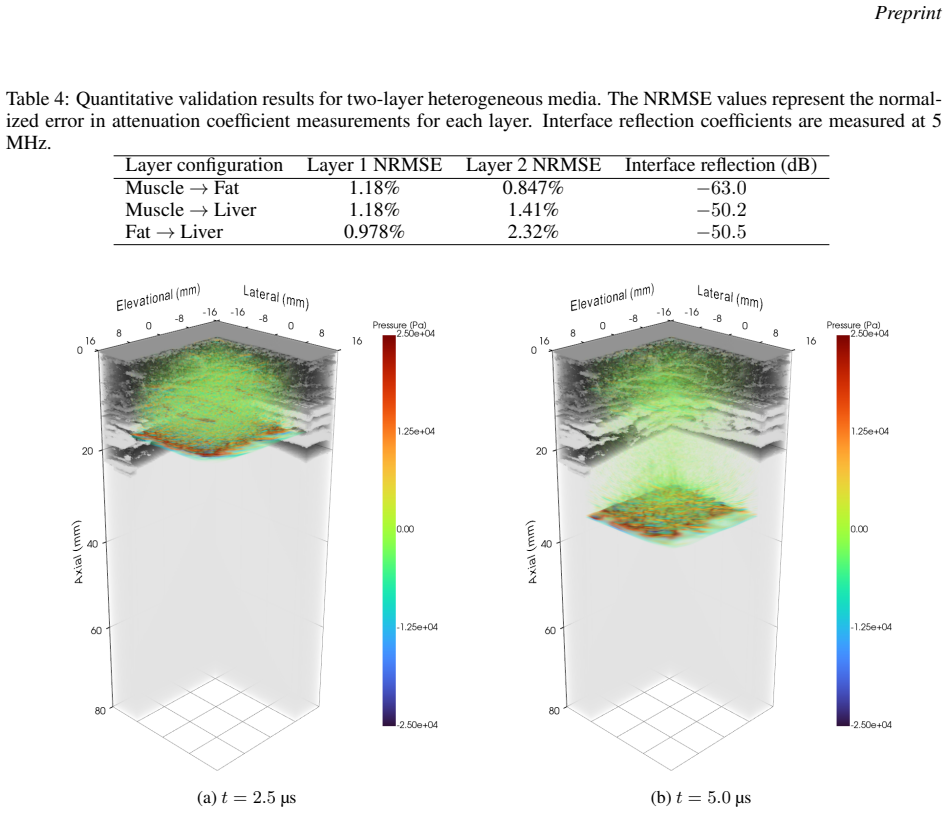

Figure 8. Figure 8: The wave propagation in the abdominal wall and liver model with heterogeneous power-law attenuation. [PITH_FULL_IMAGE:figures/full_fig_p015_8.png] view at source ↗
Figure 9

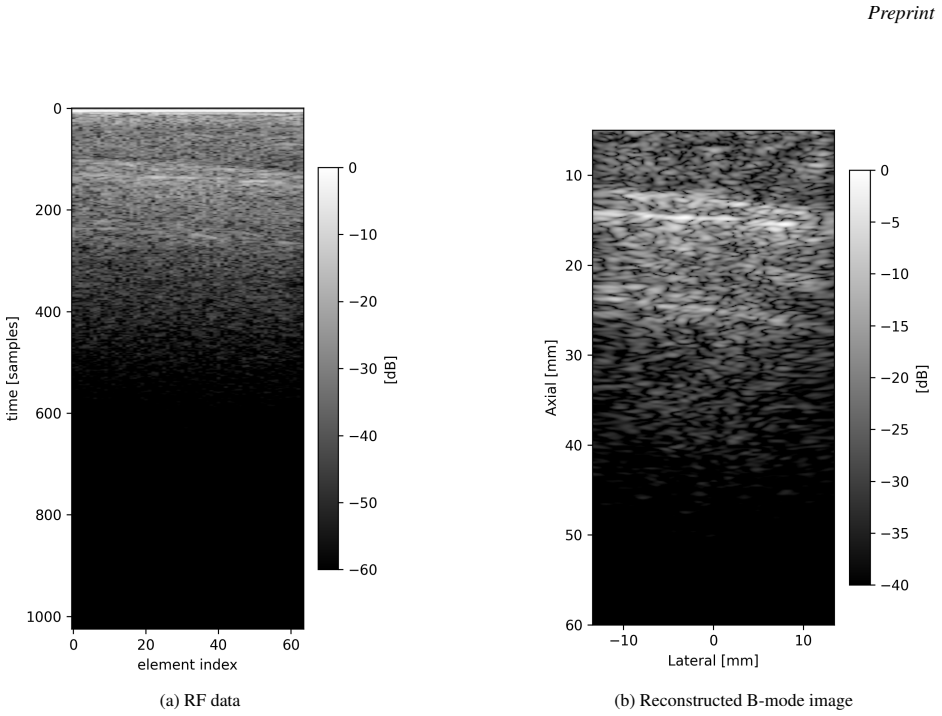

Figure 9. Figure 9: RF data and reconstructed B-mode image obtained from the 3D simulation with heterogeneous power-law [PITH_FULL_IMAGE:figures/full_fig_p016_9.png] view at source ↗
Figure 10

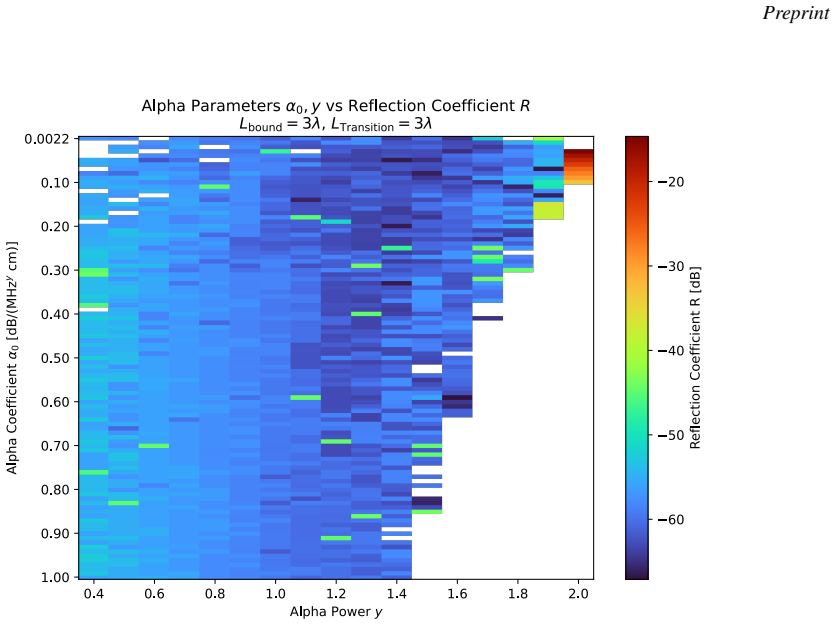

Figure 10. Figure 10: Reflection coefficient experiments for the two stage PML with transition layer when varying attenuation [PITH_FULL_IMAGE:figures/full_fig_p017_10.png] view at source ↗
Figure 11

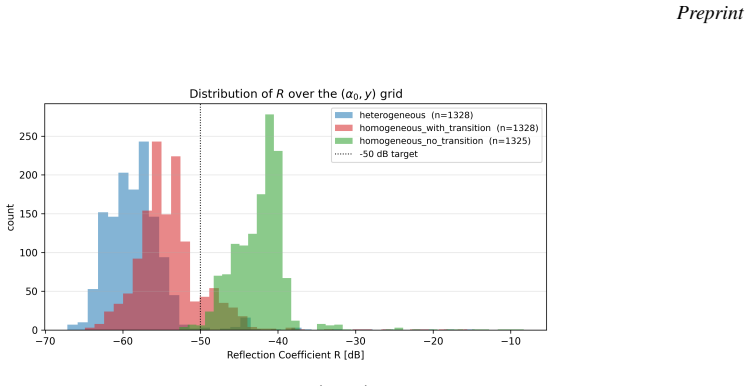

Figure 11. Figure 11: Distribution of the reflection coefficient [PITH_FULL_IMAGE:figures/full_fig_p018_11.png] view at source ↗
Figure 12

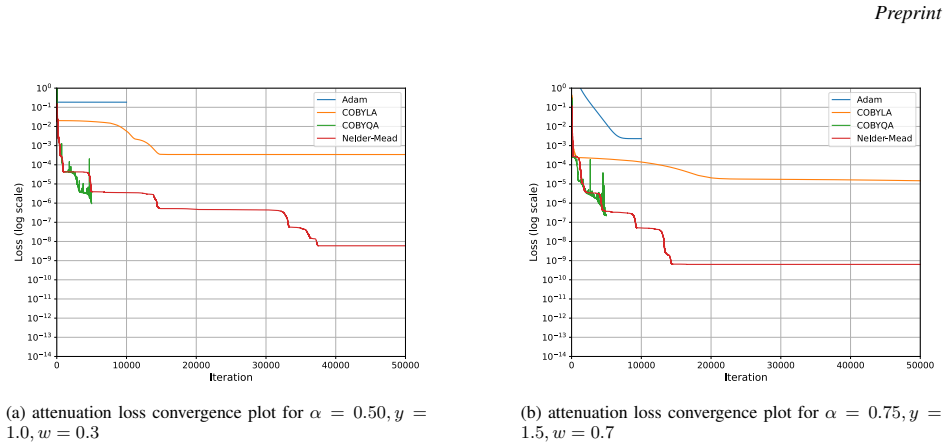

Figure 12. Figure 12: Comparison of optimization algorithms for relaxation parameters optimization. The optimization was [PITH_FULL_IMAGE:figures/full_fig_p019_12.png] view at source ↗
Figure 13

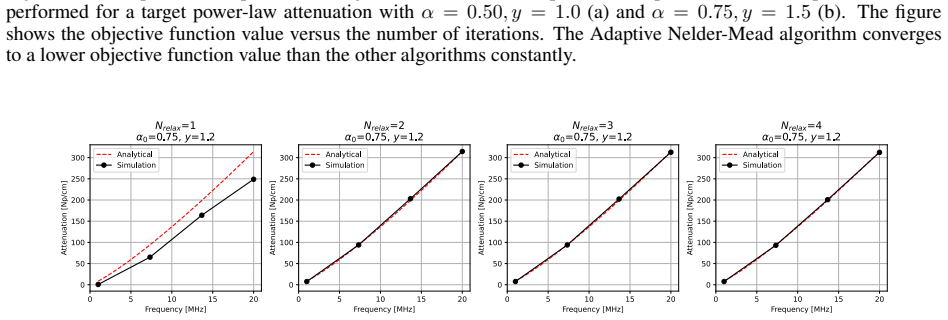

Figure 13. Figure 13: Effect of the number of relaxation parameters on attenuation modeling. The figure shows the comparison [PITH_FULL_IMAGE:figures/full_fig_p019_13.png] view at source ↗
Figure 14

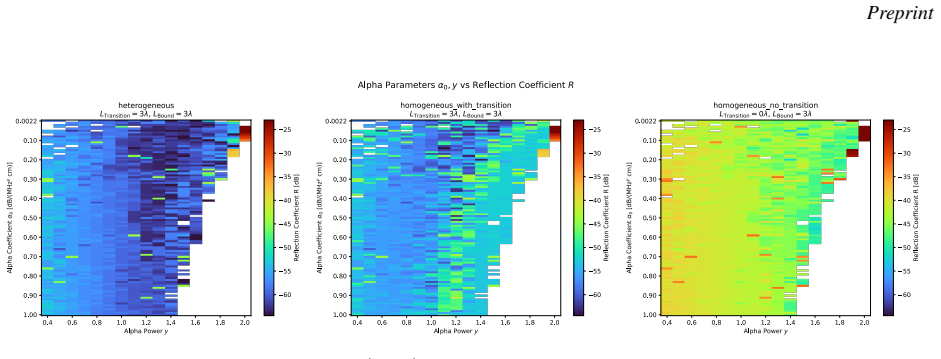

Figure 14. Figure 14: Reflection coefficient vs interior (α0, y) for three PML configurations, complementing the distribution shown in [PITH_FULL_IMAGE:figures/full_fig_p025_14.png] view at source ↗
read the original abstract

Objective. The soft tissue attenuation laws have a magnitude and frequency dependence that varies across tissue types and generally follow power laws. An accurate model of ultrasound propagation in the human body thus may require spatially heterogeneous power-law attenuation alpha(x,f) = alpha_0(x) f^(y(x)). However, a spatially heterogeneous representation of frequency-dependent attenuation is technically challenging, so existing methods introduce simplifying assumptions. For example, prior approaches such as Fullwave 2 achieved <5% error for individual tissue types but required manual parameter tuning for each (alpha_0, y) pair, limiting the construction of realistic tissue libraries. Approach. We introduce a calibration framework that uses derivative-free optimization to systematically fit relaxation parameters across diverse tissue combinations spanning alpha_0 = 0.0022-1.0 dB/(MHz^y cm) and y = 0.4-2.0. The Nelder-Mead algorithm minimizes complex-wavenumber mismatch. The attenuation is extended to a convolutional perfectly matched layer, where the same relaxation formulation is used in the boundaries. Main results. The method achieves mean errors below 3% over 1-20 MHz with dispersion error of 1.1 +/- 0.8 m/s across the clinically relevant core region (y = 0.7-1.4). Boundary reflections remain below -50 dB for clinically relevant tissue exponents (y <= 1.5). We validated the method with two-layer muscle/fat/liver models and confirmed per-layer accuracy (<2.5% normalized error). A 3D abdominal simulation using the Visible Human dataset demonstrates stable propagation with voxel-level heterogeneity in both alpha_0(x) and y(x). Significance. The open-source multi-GPU implementation (Fullwave 2.5) provides a practical tool for patient-specific therapy planning, training data generation, estimation of acoustic radiation force, quantitative imaging, and inverse problem applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript presents a calibration framework that uses Nelder-Mead derivative-free optimization to fit relaxation parameters for modeling spatially heterogeneous power-law attenuation α(x,f) = α_{0}(x) f^{y(x)} in ultrasound propagation. The approach systematically covers a grid of α_{0} = 0.0022–1.0 dB/(MHz^y cm) and y = 0.4–2.0, extends the same formulation to convolutional PML boundaries, and reports mean errors below 3% over 1–20 MHz, dispersion of 1.1 ± 0.8 m/s for clinically relevant y, and reflections below –50 dB. Validation is shown on two-layer phantoms (<2.5% per-layer normalized error) and a 3D Visible Human abdominal model with voxel-wise heterogeneity; the implementation is released as open-source Fullwave 2.5.

Significance. If the reported accuracy holds, the work removes the need for manual per-tissue tuning that limited prior methods such as Fullwave 2, thereby enabling construction of realistic, spatially varying tissue libraries for patient-specific therapy planning, radiation-force estimation, quantitative imaging, and inverse problems. The systematic grid calibration plus direct multi-layer and 3D heterogeneous validation constitute concrete numerical evidence supporting the central claim.

minor comments (3)
  1. [Abstract / Main results] Abstract and Main results: the precise definition of the reported 'mean errors below 3%' (e.g., whether it is an L2 norm over frequency, per-voxel, or averaged over the (α_{0},y) grid) and the exact form of the complex-wavenumber mismatch objective minimized by Nelder-Mead should be stated explicitly so that the quantitative claims can be reproduced from the supplied parameters.
  2. [Approach] Approach: the number of relaxation mechanisms retained in the final model and whether this number is held fixed across the entire (α_{0},y) grid or allowed to vary should be reported, as this directly affects the claim that a single fixed set suffices for arbitrary spatial heterogeneity.
  3. [Validation] Validation sections: the two-layer and 3D Visible Human results would benefit from an explicit statement of the frequency range and discretization used for the error metrics, to confirm consistency with the 1–20 MHz calibration band.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary, significance assessment, and recommendation of minor revision. No specific major comments were provided in the report.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper describes a derivative-free Nelder-Mead optimization procedure that fits a fixed set of relaxation parameters to externally specified target power-law curves (alpha_0, y) over a grid. The reported errors (<3% mean, 1.1 m/s dispersion) and boundary performance are obtained by direct numerical validation on independent test cases (two-layer phantoms, Visible Human 3D model) rather than by algebraic reduction to the fitting inputs. No self-definitional equations, fitted-input predictions, or load-bearing self-citations appear in the derivation chain; the method is a standard numerical calibration whose outputs are falsifiable against the stated benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The approach relies on the standard relaxation model for frequency-dependent attenuation and introduces fitted parameters for each combination of alpha0 and y, but no new physical entities.

free parameters (1)
  • relaxation parameters
    Multiple relaxation parameters per tissue type fitted via Nelder-Mead to minimize complex-wavenumber mismatch for given alpha_0 and y values.
axioms (1)
  • domain assumption Power-law attenuation alpha(f) = alpha_0 * f^y can be well-approximated by a sum of relaxation mechanisms over the frequency range 1-20 MHz
    This is the basis for extending the model to spatially heterogeneous cases.
