Learning Contact Representation for Leg Odometry

Emre Girgin , Cagri Kilic This is my paper

Pith reviewed 2026-06-28 05:33 UTC · model grok-4.3

classification 💻 cs.RO
keywords legged robotscontact detectionself-supervised learningodometryjoint encodersstance phaseswing phaserepresentation learning
0
0 comments X

The pith

Self-supervised learning from joint encoders detects contact states for legged robot odometry without force sensors.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to show that contact detection, essential for accurate leg odometry in legged robots, can be achieved using only joint encoder data through a self-supervised representation learning approach. This is important because force sensors are not always available and can miss disturbances like slippage during contact. The method learns representations to probabilistically model stance and swing phases and demonstrates better performance than supervised methods that require additional sensors and labeling, as well as standard probabilistic baselines.

Core claim

The self-supervised framework learns contact representations solely from joint encoder signals to model stance and swing phases probabilistically, achieving superior contact detection for odometry estimation compared to methods relying on force sensor augmentation or ground-truth labels.

What carries the argument

Self-supervised representation learning framework applied to joint encoder signals for probabilistic modeling of contact phases.

If this is right

  • Contact detection works without mounting force sensors at the foot.
  • No ground-truth labels or sensor set augmentation is needed for training.
  • Probabilistic modeling of stance and swing improves odometry feedback.
  • The approach handles unaccounted disturbances like slippage better than force-based methods.
  • Public availability of the code enables direct use on other legged robots.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Such methods could reduce hardware requirements across various legged robot designs.
  • Combining this with other sensor modalities might further improve robustness in challenging terrains.
  • Generalization to different robot morphologies could be tested by applying the framework to new platforms.
  • Long-term deployment might reveal needs for online adaptation of the learned representations.

Load-bearing premise

Joint encoder signals alone provide enough information to accurately learn contact states without force sensors or any ground-truth labels.

What would settle it

A controlled experiment on a legged robot performing stance phases with known slippage or external disturbances where the learned detector incorrectly classifies the contact state.

Figures

Figures reproduced from arXiv: 2606.05501 by Cagri Kilic, Emre Girgin.

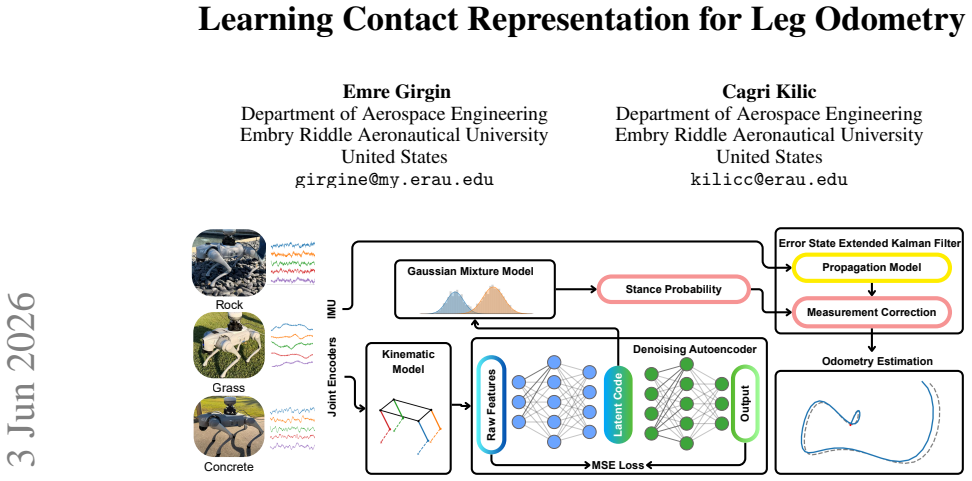

Figure 1
Figure 1. Figure 1: Our framework learns the latent representations of the leg kinematics and model the latent [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

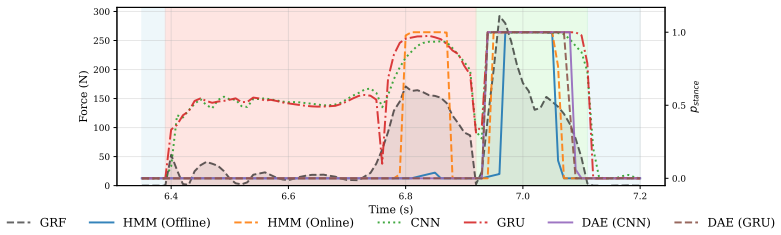

Figure 3
Figure 3. Figure 3: Stance probabilities across contact detectors during a slippage event. The non-zero GRF [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

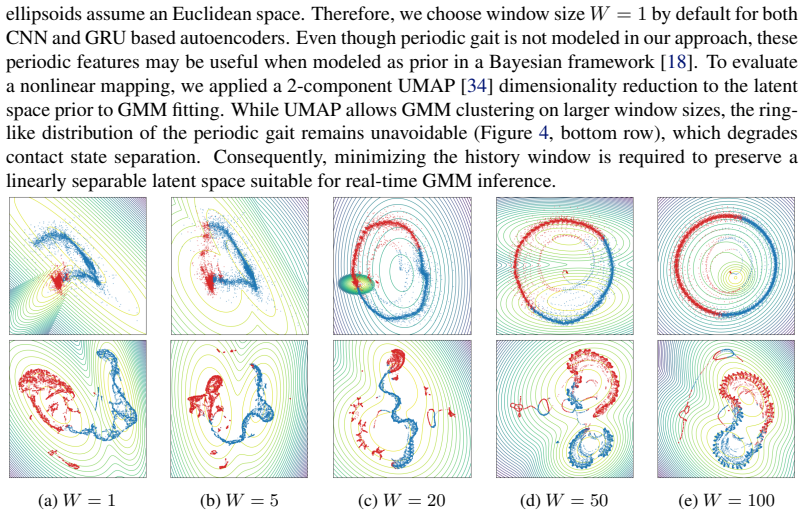

Figure 4
Figure 4. Figure 4: Latent space projected onto PCA (top) and UMAP (bottom) dimensions. Colors indicate [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

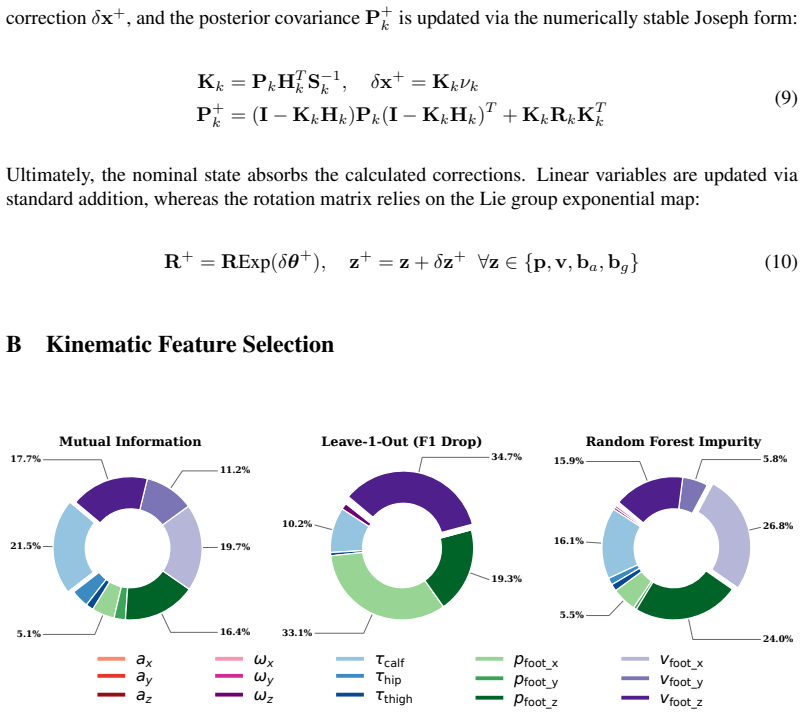

Figure 5
Figure 5. Figure 5: Feature Selection outputs ranking the predictive power of kinematic variables relative to [PITH_FULL_IMAGE:figures/full_fig_p013_5.png] view at source ↗
read the original abstract

The estimation of odometry in legged robots depends on the assumption that the velocity of the foot with respect to the world remains zero during the stance phase. Feedback for the main body velocity is derived from the kinematic serial chain of the feet making accurate leg phase detection is a critical subproblem. A considerable number of studies employ ground reaction force sensors mounted at the tip of the foot to classify, yet these sensors may not be universally available for all legged robots. Additionally, these sensors are often unresponsive to unaccounted disturbances, such as slippage, while the foot remains in contact with the ground. In this study, we propose a self-supervised representation learning framework for contact detection that utilizes the standard sensor set of joint encoders without reliance on force sensor augmentations. We employ learned representations to model the stance and swing phases probabilistically. The experimental results obtained confirm the efficacy of the proposed self-supervised contact detector. Our framework exhibited superior performance in comparison to supervised methods which necessitate sensor set augmentation and labeling, as well as baseline probabilistic approaches. Additionally, we make our code available to the public.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper proposes a self-supervised representation learning framework for contact detection in legged robot leg odometry that relies solely on joint encoder signals (positions and velocities), without force or ground-truth labels. Learned representations are used to probabilistically model stance and swing phases. Experiments are claimed to show superior performance compared to supervised methods requiring sensor augmentation and labeling, as well as baseline probabilistic approaches. The code is made publicly available.

Significance. If the central performance claim holds under the self-supervised objective, the work would be significant for legged robotics by enabling reliable contact estimation and odometry on platforms lacking GRF sensors, while addressing slippage issues that force sensors may miss. The self-supervised and code-release aspects strengthen potential impact and reproducibility.

major comments (1)
  1. [Abstract] Abstract: The central claim that joint encoder signals alone suffice for accurate self-supervised contact state separation (enabling better probabilistic modeling than labeled supervised methods) is load-bearing, yet the manuscript provides no analysis or section addressing whether kinematic signals can resolve ambiguities arising from compliance, backlash, or light contact during stance.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their review and the opportunity to respond. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that joint encoder signals alone suffice for accurate self-supervised contact state separation (enabling better probabilistic modeling than labeled supervised methods) is load-bearing, yet the manuscript provides no analysis or section addressing whether kinematic signals can resolve ambiguities arising from compliance, backlash, or light contact during stance.

    Authors: The experimental evaluation is performed on physical legged robot platforms, where compliance, backlash, and varying contact conditions (including light contact) are inherent in the joint encoder data collected during locomotion. The self-supervised representations are shown to yield superior contact phase separation and downstream odometry accuracy relative to supervised baselines that rely on force sensors. This empirical outcome indicates that the kinematic signals, when processed through the learned probabilistic model, suffice to distinguish stance and swing despite the listed ambiguities; a dedicated theoretical section on each ambiguity type is not required to support the central claim given the real-world validation. revision: no

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper presents a self-supervised representation learning approach for contact detection from joint encoders, followed by probabilistic modeling of stance/swing phases and experimental validation. No equations, derivations, fitted parameters presented as predictions, or self-citations appear in the abstract or description. The central claims rest on empirical results rather than any self-referential reduction of outputs to inputs by construction. The framework is self-contained against external benchmarks with no load-bearing self-citation or ansatz smuggling visible.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review yields no explicit free parameters, axioms, or invented entities; the central claim rests on the unstated premise that joint data suffices for contact classification.
