Evolutionary Refinement of Generative Graph Topologies: A Hybrid WGAN-GA Approach

James Sargant; Renata Dividino; Seyedeh Ava Razi Razavi; Sheridan Houghten

arxiv: 2605.29161 · v1 · pith:HALZMTW5new · submitted 2026-05-27 · 💻 cs.LG · cs.AI

Evolutionary Refinement of Generative Graph Topologies: A Hybrid WGAN-GA Approach

James Sargant , Seyedeh Ava Razi Razavi , Renata Dividino , Sheridan Houghten This is my paper

Pith reviewed 2026-06-29 13:11 UTC · model grok-4.3

classification 💻 cs.LG cs.AI

keywords graph generationWasserstein GANgenetic algorithmmaximum mean discrepancygraph neural networksstructural refinementdata augmentation

0 comments

The pith

A genetic algorithm refines the edges of graphs from a WGAN generator to lower combined MMD and match real structural patterns more closely.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper starts from a WGAN framework in which a generator produces node features and edges while a GNN critic enforces class consistency and global realism. Residual mismatches remain in degree sequences and spectral properties. A genetic algorithm then applies edge mutations to each generated graph, using MMD-based fitness to drive the synthetic graphs toward the statistics of real data. Experiments demonstrate that this post-processing step consistently reduces the combined MMD score relative to the unrefined GAN output. The result is a hybrid pipeline that improves structural fidelity while keeping class alignment and sample diversity intact.

Core claim

Applying a genetic algorithm to mutate edges of graphs produced by an existing WGAN-GNN generator consistently lowers the combined Maximum Mean Discrepancy to real graphs, yielding outputs whose degree and spectral distributions align more closely with the target data while preserving class consistency and diversity.

What carries the argument

The genetic algorithm that performs targeted edge mutations on GAN outputs, with fitness evaluated by structural discrepancy metrics, while the pre-trained GNN critic continues to guard global and class-level properties.

If this is right

Refined graphs exhibit lower deviation in both degree distribution and spectral properties than the raw GAN outputs.
The same refinement step can be attached to other GAN-based graph generators without retraining the critic.
Generated graphs become more suitable for downstream tasks that require faithful reproduction of real structural statistics.
Diversity and novelty metrics remain comparable to the base generator, so the method does not simply copy training examples.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Post-generation evolutionary correction can serve as a general remedy for residual distribution gaps that adversarial training alone leaves open.
The separation of the critic (global constraints) from the GA (local structural tuning) suggests a modular design that could be tested on other discrete generative models.
If the GA fitness were made differentiable, the refinement step might be folded back into end-to-end training to reduce the need for a separate post-processing phase.

Load-bearing premise

Edge mutations guided only by local structural fitness can reduce measured deviations without breaking the class consistency already enforced by the GNN critic.

What would settle it

Apply the same GA refinement procedure to a fresh batch of graphs from the base WGAN and measure whether the combined MMD score fails to decrease or rises above the base-model value.

Figures

Figures reproduced from arXiv: 2605.29161 by James Sargant, Renata Dividino, Seyedeh Ava Razi Razavi, Sheridan Houghten.

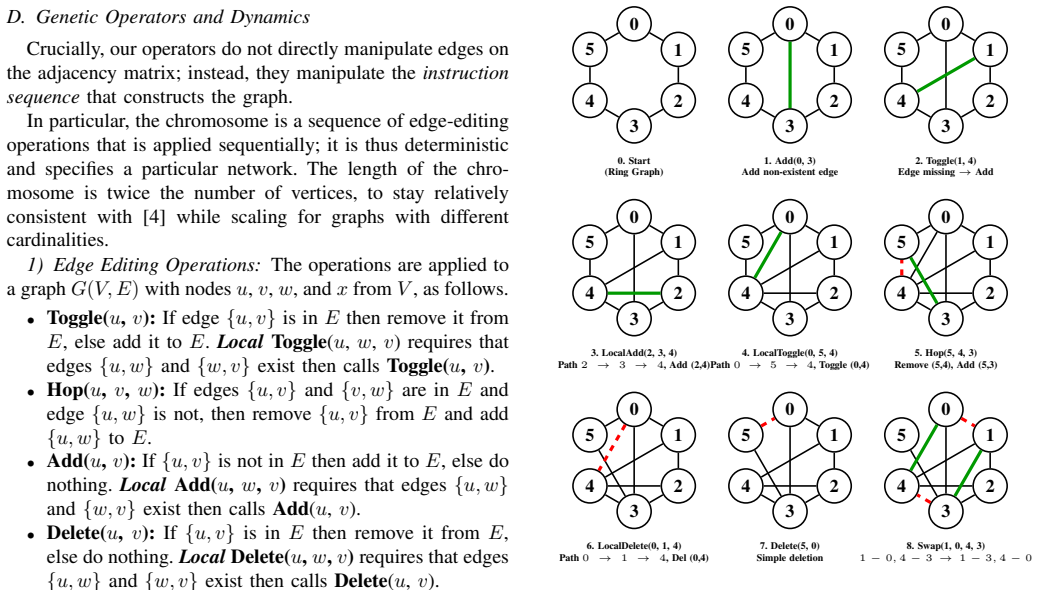

**Figure 2.** Figure 2: Sequential visualization of the edge editing operations. Green edges [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

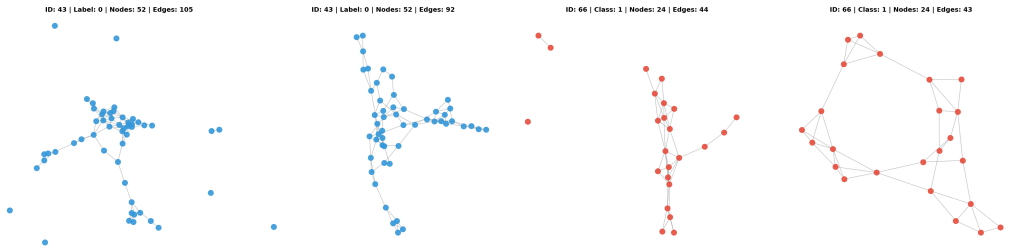

**Figure 3.** Figure 3: Visual comparison on PROTEINS dataset (left: generated and refined graphs from Class 0; right: Class 1). [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

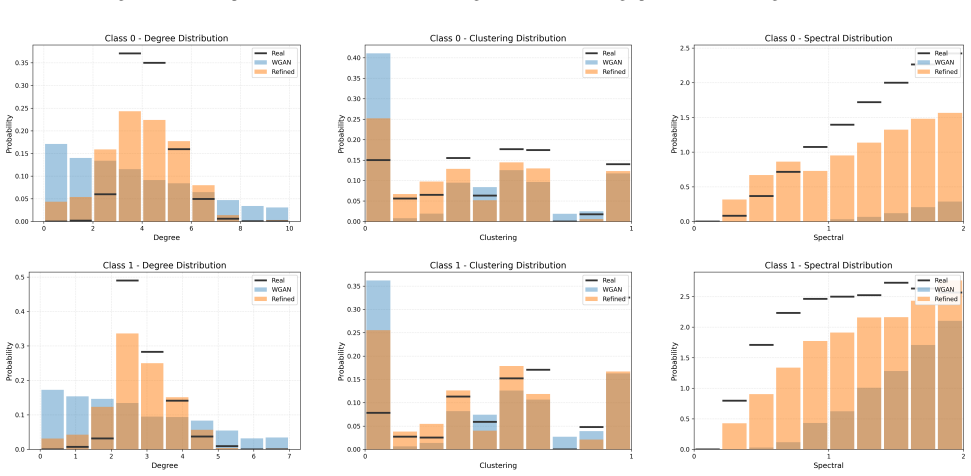

**Figure 4.** Figure 4: Distribution comparison between real and generated graphs on the PROTEINS dataset. [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

read the original abstract

Generating realistic graph-structured data is challenging due to discrete connectivity, varying graph sizes, and class-specific structural patterns. Recent Generative Adversarial Networks (GAN)-based graph generation methods improve edge modelling by learning connectivity and matching class-specific density distributions. However these models still exhibit noticeable deviations such as in degree and spectral distribution when compared to real graphs, indicating that important structural properties are not fully preserved. This work aims to reduce these deviations by refining the graphs produced by an existing GAN-based graph generator framework with a Genetic Algorithm (GA). In the GAN framework, the generator produces both node features and connectivity patterns, while a GNN-based critic evaluates graph realism and class consistency to ensure global structural and class alignment. Building on this foundation, we apply a GA to refine the edges of generated graphs. The refinement process guides synthetic graphs toward closer agreement with real data, while preserving diversity and novelty. Experimental results show that the GA refinement consistently lowers combined Maximum Mean Discrepancy (MMD) compared to the base model, leading to graphs that more closely match real structural patterns. This demonstrates that evolutionary refinement is an effective and flexible way to correct residual structural deviations in GAN-based graph generators, improving their suitability for realistic graph synthesis and data augmentation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper adds GA edge refinement to a WGAN-GNN graph generator and claims lower combined MMD, but the abstract supplies no numbers, methods, or checks on whether mutations preserve the critic's class consistency.

read the letter

The main point is that they start with an existing WGAN that uses a GNN critic to generate graphs with node features and class-aligned connectivity, then apply a genetic algorithm to tweak the edges afterward. The abstract states this step reduces residual deviations in degree and spectral distributions while keeping diversity and novelty, and that it consistently lowers combined MMD.

The approach itself is a straightforward post-processing idea. It takes the known limitation that GAN outputs still miss some structural properties and tries to correct them with evolutionary search. That framing is practical for data-augmentation settings in network science, and the choice to keep the refinement focused on edges rather than regenerating whole graphs makes sense.

The soft spots are substantial and sit right at the center of the claim. The abstract gives no quantitative MMD values, no baseline tables, no statistical tests, and no description of the fitness function, mutation operators, population size, or stopping rules. It also says nothing about how the GA avoids breaking the class consistency or global properties the GNN critic already enforced. The stress-test concern about unconstrained mutations producing MMD drops that the critic would have rejected is not addressed at all. Without those pieces the reported improvement cannot be evaluated.

This is for readers who already work on graph generators and are looking for incremental fixes for applied use cases. A specialist might note the hybrid idea, but the current version does not contain enough to assess whether the refinement works reliably.

I would not send this to peer review until the methods and results sections are filled in with actual data and controls.

Referee Report

2 major / 0 minor

Summary. The manuscript proposes a hybrid WGAN-GA framework for generating realistic graphs: a WGAN with GNN critic first produces node features and connectivity while enforcing class consistency and global structure, after which a genetic algorithm refines the edges of the generated graphs to reduce residual deviations in degree and spectral distributions. The central empirical claim is that this GA refinement consistently lowers combined MMD relative to the base WGAN model while preserving diversity and novelty.

Significance. If the reported MMD reductions are reproducible and the refinement mechanism demonstrably preserves the critic-enforced properties, the work would supply a practical post-processing technique that could improve the structural fidelity of existing GAN-based graph generators for data-augmentation tasks. No machine-checked proofs, reproducible code, or parameter-free derivations are described.

major comments (2)

[Abstract] Abstract: the assertion that 'the GA refinement consistently lowers combined Maximum Mean Discrepancy (MMD)' supplies neither quantitative MMD values, baseline comparisons, statistical tests, nor any description of the number of graphs or datasets evaluated, rendering the central empirical claim unverifiable from the provided text.
[Abstract] Abstract, paragraph on refinement process: the description of the GA states that it 'refines the edges' and 'guides synthetic graphs toward closer agreement with real data' but provides no fitness function, mutation or crossover operators, stopping criteria, or explicit mechanism ensuring that post-mutation graphs remain consistent with the GNN critic's class-specific evaluations; this directly bears on whether observed MMD reductions could be artifacts of unconstrained search.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback. We address the two major comments on the abstract point by point below, agreeing that additional specificity is warranted in the abstract itself.

read point-by-point responses

Referee: [Abstract] Abstract: the assertion that 'the GA refinement consistently lowers combined Maximum Mean Discrepancy (MMD)' supplies neither quantitative MMD values, baseline comparisons, statistical tests, nor any description of the number of graphs or datasets evaluated, rendering the central empirical claim unverifiable from the provided text.

Authors: We agree that the abstract should be more self-contained on the central empirical claim. The full manuscript reports MMD reductions, baseline comparisons, and evaluation details (including dataset counts and graph numbers) in the experimental results section, along with statistical tests. We will revise the abstract to incorporate representative quantitative MMD values, the number of datasets evaluated, and a brief note on statistical significance to make the claim verifiable from the abstract alone. revision: yes
Referee: [Abstract] Abstract, paragraph on refinement process: the description of the GA states that it 'refines the edges' and 'guides synthetic graphs toward closer agreement with real data' but provides no fitness function, mutation or crossover operators, stopping criteria, or explicit mechanism ensuring that post-mutation graphs remain consistent with the GNN critic's class-specific evaluations; this directly bears on whether observed MMD reductions could be artifacts of unconstrained search.

Authors: The abstract supplies only a high-level summary. The manuscript details the fitness function (MMD on degree and spectral distributions), mutation/crossover operators (controlled edge edits), stopping criteria (MMD convergence or generation limit), and the consistency mechanism (mutations are constrained and re-validated against the GNN critic's class-specific scores to prevent violation of enforced properties). We will revise the abstract to explicitly note that the GA operates under critic-derived constraints that preserve class consistency, thereby addressing the concern that reductions could arise from unconstrained search. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental comparison to external base model

full rationale

The paper describes an experimental hybrid WGAN-GA pipeline for graph generation and reports that GA edge refinement lowers combined MMD relative to the base WGAN. No equations, fitted parameters renamed as predictions, self-definitional loops, or load-bearing self-citations appear in the abstract or described claims. The improvement is measured against an independent base model using an external metric (MMD), satisfying the criteria for a self-contained empirical result with no reduction to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no explicit free parameters, axioms, or invented entities are stated in the provided text.

pith-pipeline@v0.9.1-grok · 5764 in / 1056 out tokens · 31074 ms · 2026-06-29T13:11:59.490218+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

14 extracted references · 3 canonical work pages · 1 internal anchor

[1]

Arjovsky, S

M. Arjovsky, S. Chintala, and L. Bottou. Wasserstein generative adversarial networks. InProc. Intl. Conf. on Machine Learning, pages 214–223, 2017

2017
[2]

Barry, J

A. Barry, J. Griffith, and C. O’Riordan. An evolutionary and graph- rewriting based approach to graph generation. InIntl. Joint Conf. on Computational Intelligence (IJCCI), volume 1, pages 237–243, 2015

2015
[3]

De Cao and T

N. De Cao and T. Kipf. MolGAN: An implicit generative model for small molecular graphs.ICML 2018 workshop on Theoretical Foundations and Applications of Deep Generative Models, 2018

2018
[4]

Dub ´e, S

M. Dub ´e, S. Houghten, and D. Ashlock. Representation for evolution of epidemic models. In2019 IEEE Congress on Evolutionary Computation (CEC), pages 2370–2377, Piscataway NJ, 06 2019. IEEE Press

2019
[5]

Fan and B

S. Fan and B. Huang. Labeled graph generative adversarial networks. arXiv preprint arXiv:1906.03220, 2019

work page arXiv 1906
[6]

Gulrajani et al

I. Gulrajani et al. Improved training of Wasserstein GANs. InAdvances in Neural Information Processing Systems, 2017

2017
[7]

Learning Deep Generative Models of Graphs

Y . Li et al. Learning deep generative models of graphs.arXiv preprint arXiv:1803.03324, 2018

work page internal anchor Pith review Pith/arXiv arXiv 2018
[8]

Morris et al

C. Morris et al. Tudataset: A collection of benchmark datasets for learning with graphs. InICML 2020 Workshop on Graph Representation Learning and Beyond (GRL+ 2020), 2020

2020
[9]

Razi Razavi et al

S.A. Razi Razavi et al. Generating labeled graphs using conditional Wasserstein GANs. In35th International Conference on Collaborative Advances in Software and Computing (CASCON). IEEE Computer Society, 2025

2025
[10]

Razi Razavi et al

S.A. Razi Razavi et al. Adaptive edge learning for density-aware graph generation.arXiv preprint arXiv:2601.23052, 2026

work page arXiv 2026
[11]

Simonovsky and N

M. Simonovsky and N. Komodakis. GraphV AE: Towards generation of small graphs using variational autoencoders. InIntl. Conf. on Artificial Neural Networks, 2018

2018
[12]

Wang et al

H. Wang et al. GraphGAN: Graph representation learning with gen- erative adversarial nets. InProceedings of the AAAI Conference on Artificial Intelligence, volume 32, 2018

2018
[13]

Wang et al

P. Wang et al. Graph generative adversarial networks with evolutionary algorithm.Applied Soft Computing, 164:111981, 2024

2024
[14]

You et al

J. You et al. Graph convolutional policy network for goal-directed molec- ular graph generation. InAdvances in Neural Information Processing Systems, 2018

2018

[1] [1]

Arjovsky, S

M. Arjovsky, S. Chintala, and L. Bottou. Wasserstein generative adversarial networks. InProc. Intl. Conf. on Machine Learning, pages 214–223, 2017

2017

[2] [2]

Barry, J

A. Barry, J. Griffith, and C. O’Riordan. An evolutionary and graph- rewriting based approach to graph generation. InIntl. Joint Conf. on Computational Intelligence (IJCCI), volume 1, pages 237–243, 2015

2015

[3] [3]

De Cao and T

N. De Cao and T. Kipf. MolGAN: An implicit generative model for small molecular graphs.ICML 2018 workshop on Theoretical Foundations and Applications of Deep Generative Models, 2018

2018

[4] [4]

Dub ´e, S

M. Dub ´e, S. Houghten, and D. Ashlock. Representation for evolution of epidemic models. In2019 IEEE Congress on Evolutionary Computation (CEC), pages 2370–2377, Piscataway NJ, 06 2019. IEEE Press

2019

[5] [5]

Fan and B

S. Fan and B. Huang. Labeled graph generative adversarial networks. arXiv preprint arXiv:1906.03220, 2019

work page arXiv 1906

[6] [6]

Gulrajani et al

I. Gulrajani et al. Improved training of Wasserstein GANs. InAdvances in Neural Information Processing Systems, 2017

2017

[7] [7]

Learning Deep Generative Models of Graphs

Y . Li et al. Learning deep generative models of graphs.arXiv preprint arXiv:1803.03324, 2018

work page internal anchor Pith review Pith/arXiv arXiv 2018

[8] [8]

Morris et al

C. Morris et al. Tudataset: A collection of benchmark datasets for learning with graphs. InICML 2020 Workshop on Graph Representation Learning and Beyond (GRL+ 2020), 2020

2020

[9] [9]

Razi Razavi et al

S.A. Razi Razavi et al. Generating labeled graphs using conditional Wasserstein GANs. In35th International Conference on Collaborative Advances in Software and Computing (CASCON). IEEE Computer Society, 2025

2025

[10] [10]

Razi Razavi et al

S.A. Razi Razavi et al. Adaptive edge learning for density-aware graph generation.arXiv preprint arXiv:2601.23052, 2026

work page arXiv 2026

[11] [11]

Simonovsky and N

M. Simonovsky and N. Komodakis. GraphV AE: Towards generation of small graphs using variational autoencoders. InIntl. Conf. on Artificial Neural Networks, 2018

2018

[12] [12]

Wang et al

H. Wang et al. GraphGAN: Graph representation learning with gen- erative adversarial nets. InProceedings of the AAAI Conference on Artificial Intelligence, volume 32, 2018

2018

[13] [13]

Wang et al

P. Wang et al. Graph generative adversarial networks with evolutionary algorithm.Applied Soft Computing, 164:111981, 2024

2024

[14] [14]

You et al

J. You et al. Graph convolutional policy network for goal-directed molec- ular graph generation. InAdvances in Neural Information Processing Systems, 2018

2018
