arxiv: 2606.24412 · v1 · pith:HEOWRK6Dnew · submitted 2026-06-23 · 💻 cs.DC

BiJuTy: An Interactive HPC-Aware Big Data Cluster Lifecycle Manager and Performance Assessment Utility for JupyterHub

Apurv Deepak Kulkarni , Jan Frenzel , Siavash Ghiasvand This is my paper

Pith reviewed 2026-06-25 23:00 UTC · model grok-4.3

classification 💻 cs.DC
keywords BiJuTyHPCbig dataJupyterHubcluster managementperformance assessmentinteractive interfacelifecycle management
0
0 comments X

The pith

BiJuTy provides an interactive interface for managing big data cluster lifecycles and assessing performance on HPC systems from within Jupyter notebooks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents BiJuTy to bridge the gap in accessing HPC for big data workflows. It offers an interactive interface in Jupyter that handles cluster setup, management, and performance assessment. This design seeks to make these tasks accessible without requiring users to leave their notebook or have prior HPC knowledge. The framework supports multiple clusters and gathers metrics to aid optimization. An example demonstrates completing the full lifecycle in a few clicks.

Core claim

BiJuTy is an interactive interface within Jupyter Notebook that guides users through setting up cluster configurations, managing the cluster lifecycle, and carrying out performance assessments. It enables seamless management of multiple clusters directly in the notebook, eliminating the need to switch environments, and collects performance metrics from various sources to simplify optimization, as illustrated by optimizing a big data application iteratively.

What carries the argument

BiJuTy, the interactive utility that embeds HPC big data cluster lifecycle management and performance assessment inside the JupyterHub interface.

If this is right

  • Users can configure and assess clusters without switching tools.
  • Multiple clusters are managed seamlessly within one notebook session.
  • Performance data from multiple sources supports easier optimization workflows.
  • Big data applications can be set up, run, and tuned interactively in few steps.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This approach may lower the barrier for data scientists to use HPC resources regularly.
  • It could inspire similar embedded management tools for other scientific computing environments.
  • Wider adoption might lead to more user feedback on HPC usability that influences system designs.

Load-bearing premise

That providing the management functions inside the Jupyter interface will remove the need for users to switch outside the environment and enable effective cluster management for those without HPC experience.

What would settle it

Observing whether novice users can successfully set up and optimize a big data cluster using only BiJuTy in Jupyter compared to traditional methods, measuring completion rates and time taken.

Figures

Figures reproduced from arXiv: 2606.24412 by Apurv Deepak Kulkarni, Jan Frenzel, Siavash Ghiasvand.

Figure 1

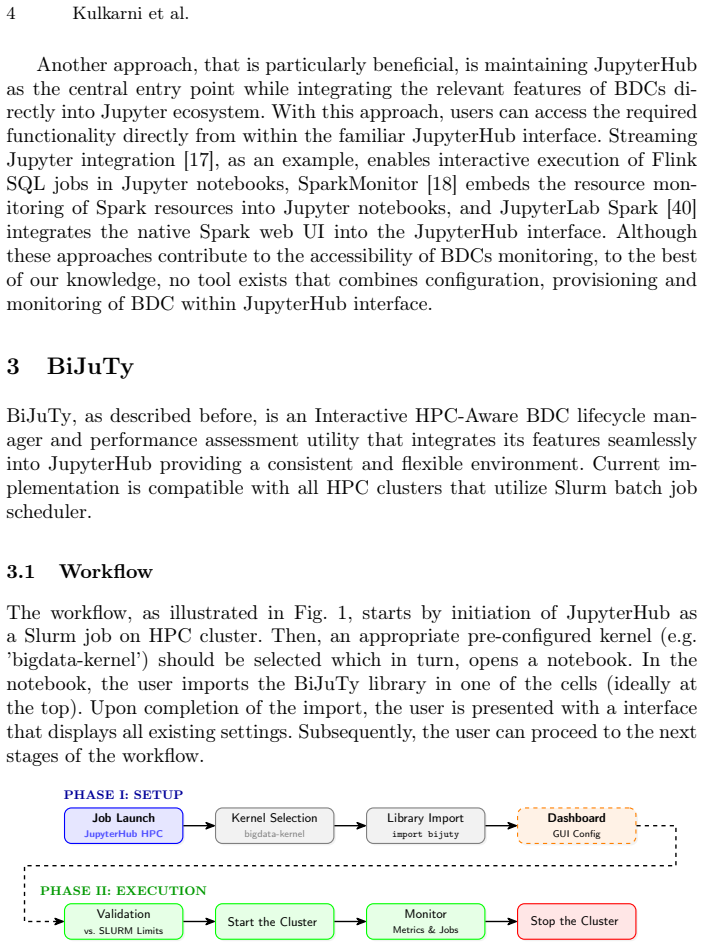

Figure 1. Figure 1: BiJuTy schematic workflow The interface presents different options and buttons to manage the stan￾dalone big data cluster, as shown in [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2

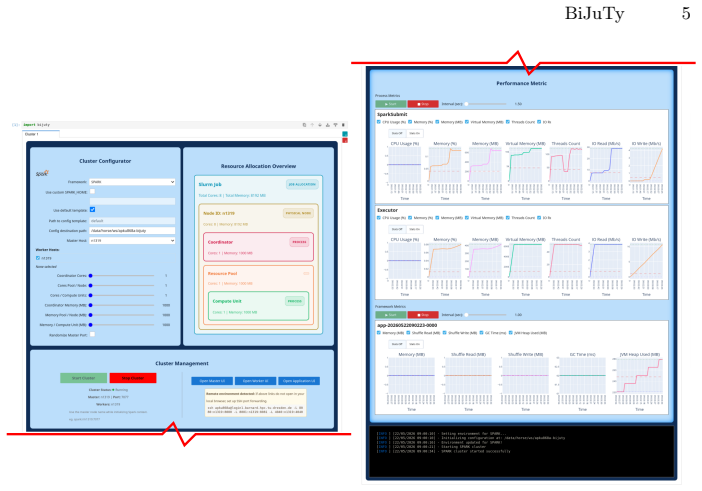

Figure 2. Figure 2: BiJuTy interface The “Cluster Configurator” section consists of basic options required to setup a standalone cluster. The default values are set such that they are sufficient for performing basic computation for testing purpose. Parameters in this section uti￾lize generic names to ensure adaptability to various naming conventions used in major BDFs. For example, Apache Spark uses the notion of a Driver [35… view at source ↗
Figure 3

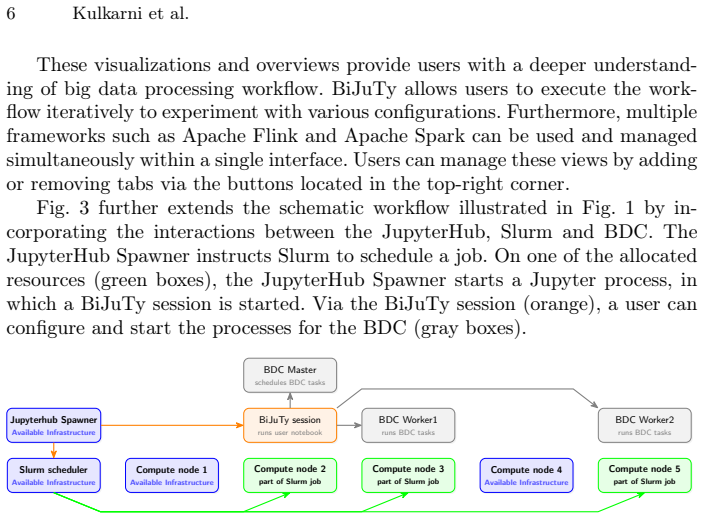

Figure 3. Figure 3: further extends the schematic workflow illustrated in [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

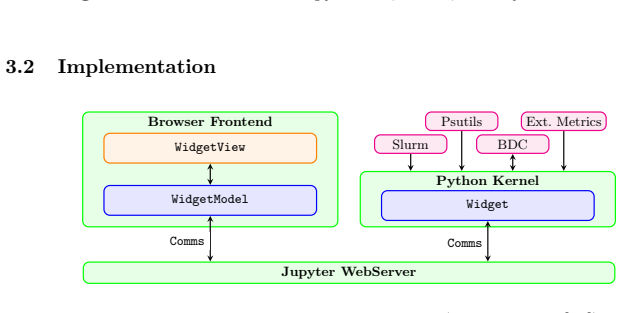

Figure 4. Figure 4: BiJuTy integration in JupyterHub (adapted from [28]). The BiJuTy package follows Jupyter’s widget architecture, as shown in [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

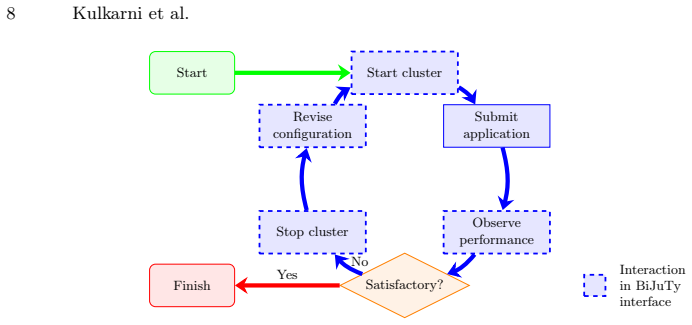

Figure 5. Figure 5: Optimization use-case workflow using BiJuTy. install git+https://github.com/scads/bijuty@main. This step needs to be done only once for any Python kernel that is being used. Following the installa￾tion, the web browser page is reloaded and the Python kernel is restarted, after which, this kernel is used for all subsequent operations. Apache Spark’s PySpark [37] is used to showcase how BiJuTy can help in ru… view at source ↗
Figure 6

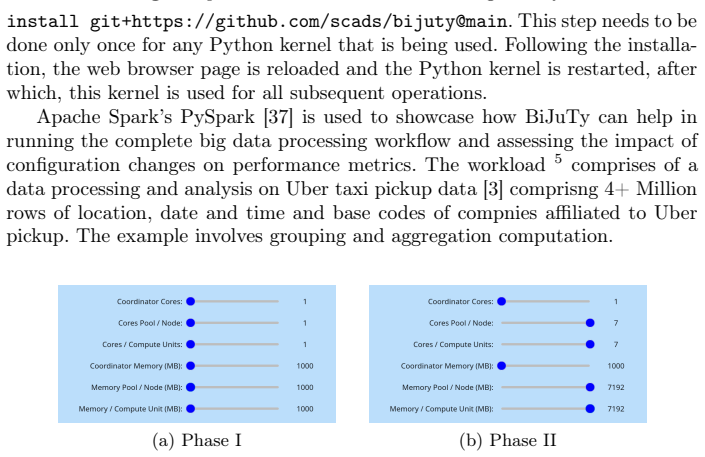

Figure 6. Figure 6: Cluster Parameters The BiJuTy interface is launched by importing the bijuty package (import bijuty). In this interface, Apache Spark is chosen as a framework of choice for the experiment. The evaluation is conducted in two phases, one with lower re￾sources and one with higher resources with the aim of checking if the higher resource really improves the performance or not. For phase I, parameters are set to… view at source ↗
Figure 7

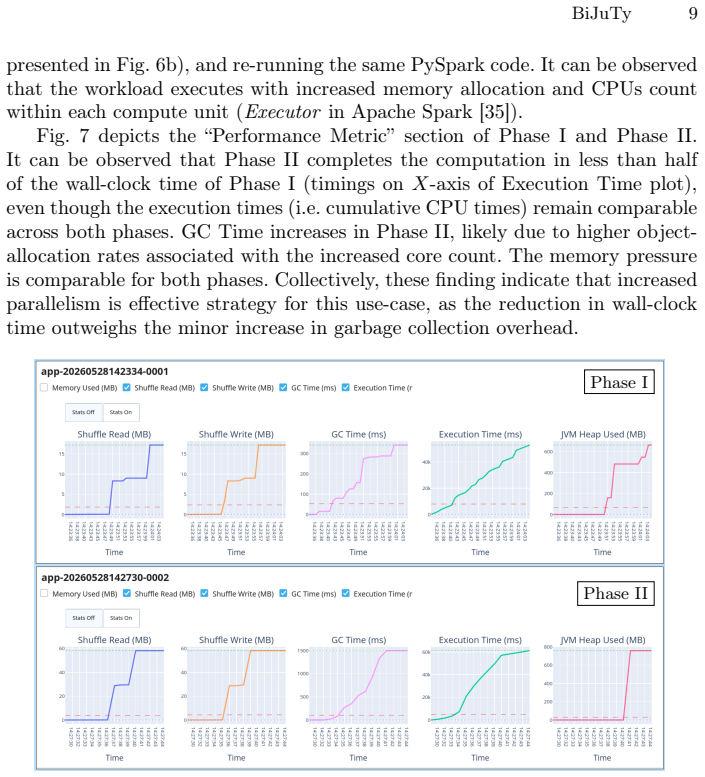

Figure 7. Figure 7: depicts the “Performance Metric” section of Phase I and Phase II. It can be observed that Phase II completes the computation in less than half of the wall-clock time of Phase I (timings on X-axis of Execution Time plot), even though the execution times (i.e. cumulative CPU times) remain comparable across both phases. GC Time increases in Phase II, likely due to higher object￾allocation rates associated wit… view at source ↗
read the original abstract

The increasing demand for data processing has created a pressing need for access to high-performance computing (HPC) systems. Nevertheless, leveraging these systems to execute complex big data processing workflows remains a significant challenge, especially for beginners. This work presents BiJuTy, a solution designed to bridge the accessibility gap for big data workflows on HPC systems within the Jupyter ecosystem. By providing an interactive and user-friendly interface, BiJuTy simplifies cluster lifecycle management and performance assessment, making it more accessible on HPC systems to beginners and experienced users alike. The solution is presented as an interactive interface that guides the user through the entire process, from setting up the cluster configuration to carrying out initial performance assessments. Additionally, the framework enables seamless management of multiple clusters directly within the Jupyter Notebook interface, eliminating the need to switch outside of working environment. The collection of performance metrics from various sources further simplifies the optimization workflow. Furthermore, an illustrative example is provided to demonstrate how BiJuTy can be deployed to optimize the performance of a big data processing application. This example showcases how the entire big data processing lifecycle can be iteratively executed and optimized in just a few clicks, helping to reach the goal of optimization easily and interactively. By facilitating such workflows, this work contributes in bringing the field of big data computing and high-performance computing one step closer to the goal of seamless interaction and usability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript presents BiJuTy, a tool for interactive HPC-aware big data cluster lifecycle management and performance assessment integrated with JupyterHub. It describes an interface that handles cluster configuration, multi-cluster management within notebooks, metric collection from various sources, and performance optimization, illustrated by a single example claiming the full lifecycle can be executed and optimized in a few clicks.

Significance. If the described interface functions as outlined, BiJuTy offers a practical contribution by embedding cluster management directly in the Jupyter environment, which could reduce context-switching for big data workflows on HPC systems. The provision of a design description together with an illustrative example is a strength for a tool-description paper in distributed computing.

major comments (1)
  1. [Abstract] Abstract: The central claim that BiJuTy 'simplifies cluster lifecycle management and performance assessment' and enables optimization 'in just a few clicks' is not supported by any quantitative performance metrics, error bars, user studies, or validation results; the manuscript supplies only a design description and one illustrative example.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review. We address the single major comment below.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim that BiJuTy 'simplifies cluster lifecycle management and performance assessment' and enables optimization 'in just a few clicks' is not supported by any quantitative performance metrics, error bars, user studies, or validation results; the manuscript supplies only a design description and one illustrative example.

    Authors: We agree that the abstract's phrasing regarding simplification and optimization 'in just a few clicks' is not supported by quantitative metrics, error bars, or user studies. The manuscript is a tool-description paper whose contribution lies in the interface design, multi-cluster management within Jupyter notebooks, and metric collection; the single illustrative example is intended only to show the workflow qualitatively. We will revise the abstract (and the corresponding sentence in the introduction) to remove unsubstantiated performance claims and to state explicitly that the example demonstrates the lifecycle in a qualitative manner. revision: yes

Circularity Check

0 steps flagged

No derivations, equations, or fitted predictions; tool-description paper is self-contained

full rationale

The manuscript is a software-tool description whose claims rest on interface design and one illustrative example. No equations, parameters, predictions, or derivation chains appear anywhere in the text. No self-citations are invoked as load-bearing premises, and none of the six enumerated circularity patterns are present. The work is therefore self-contained against external benchmarks with no reduction of outputs to inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work is a software tool presentation. It introduces no free parameters, mathematical axioms, or invented scientific entities.

pith-pipeline@v0.9.1-grok · 5787 in / 1032 out tokens · 23111 ms · 2026-06-25T23:00:30.479551+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

41 extracted references · 8 canonical work pages

  1. [1]

    In: Proceedings of the 2021 CHI Conference on Human Factors in Computing Systems

    Agrawal, N., Binns, R., Van Kleek, M., Laine, K., Shadbolt, N.: Exploring design and governance challenges in the development of privacy-preserving computation. In: Proceedings of the 2021 CHI Conference on Human Factors in Computing Systems. CHI ’21, Association for Computing Machinery, New York, NY, USA (2021).https://doi.org/10.1145/3411764.3445677

    work page doi:10.1145/3411764.3445677 2021

  2. [2]

    openpbs.org/, accessed: 2026-05-23

    Altair Engineering, Inc.: OpenPBS: Open PBS Professional,https://www. openpbs.org/, accessed: 2026-05-23

    2026

  3. [3]

    Andrew Flowers, Reuben Fischer-Baum, D.M.: Uber TLC FOIL Response,https: //github.com/fivethirtyeight/uber-tlc-foil-response, accessed: 2026-05-28

    2026

  4. [4]

    Apache Software Foundation: Flink Operations Playground - Flink WebUI, https://nightlies.apache.org/flink/flink-docs-stable/docs/try-flink/ flink-operations-playground/#flink-webui, accessed: 2026-03-15 BiJuTy 11

    2026

  5. [5]

    Apache Software Foundation: Web UI - Spark 4.0.0 Documentation,https:// spark.apache.org/docs/latest/web-ui.html, accessed: 2026-03-15

    2026

  6. [6]

    Azure CycleCloud Team: cyclecloud-open-ondemand,https://github.com/ Azure/cyclecloud-open-ondemand, accessed: 2026-03-15

    2026

  7. [7]

    In: Proceedings of the 2015 XSEDE Conference: Scientific Ad- vancements Enabled by Enhanced Cyberinfrastructure

    Baer, T., Peltz, P., Yin, J., Begoli, E.: Integrating apache spark into pbs-based hpc environments. In: Proceedings of the 2015 XSEDE Conference: Scientific Ad- vancements Enabled by Enhanced Cyberinfrastructure. XSEDE ’15, Association for Computing Machinery, New York, NY, USA (2015).https://doi.org/10. 1145/2792745.2792779

    arXiv 2015

  8. [8]

    Concurrency and Computation: Practice and Experience33(19), e6114 (2021).https://doi.org/ 10.1002/cpe.6114

    Chalker, A., Franz, E., Rodgers, M., Dockendorf, T., Johnson, D., Sajdak, D., White, J.P., Plessinger, B.D., Zia, M., Gallo, S.M., Settlage, R.E., Hudak, D.E.: Open ondemand: State of the platform, project, and the future. Concurrency and Computation: Practice and Experience33(19), e6114 (2021).https://doi.org/ 10.1002/cpe.6114

    work page doi:10.1002/cpe.6114 2021

  9. [9]

    In: 2020 IEEE International Conference on Cluster Comput- ing (CLUSTER)

    Dietrich, R., Winkler, F., Knüpfer, A., Nagel, W.: Pika: Center-wide and job-aware cluster monitoring. In: 2020 IEEE International Conference on Cluster Comput- ing (CLUSTER). pp. 424–432 (2020).https://doi.org/10.1109/CLUSTER49012. 2020.00061

    work page doi:10.1109/cluster49012 2020

  10. [10]

    DrudgeCAS: spark-in-slurm,https://github.com/DrudgeCAS/spark-in-slurm, accessed: 2026-03-15

    2026

  11. [11]

    Future Generation Computer Sys- tems87, 420–437 (2018).https://doi.org/10.1016/j.future.2017.12.068

    Enes, J., Expósito, R.R., Touriño, J.: Bdwatchdog: Real-time monitoring and pro- filing of big data applications and frameworks. Future Generation Computer Sys- tems87, 420–437 (2018).https://doi.org/10.1016/j.future.2017.12.068

    work page doi:10.1016/j.future.2017.12.068 2018

  12. [12]

    giampaolo: psutil: Cross-platform lib for process and system monitoring in Python, https://github.com/giampaolo/psutil, accessed: 2026-05-18

    2026

  13. [13]

    glennklockwood:myhadoop,https://github.com/glennklockwood/myhadoop,ac- cessed: 2026-03-15

    2026

  14. [14]

    HPC UGent: hanythingondemand,https://github.com/hpcugent/ hanythingondemand, accessed: 2026-03-15

    2026

  15. [15]

    Modules.https://hpc-wiki.info/hpc/Modules, accessed: 2026-05-18

    2026

  16. [16]

    tu-chemnitz.de/scads.ai/bigdataframeworkconfigure, accessed: 2026-05-22

    Jan Frenzel, A.D.K.: Bigdataframeworkconfigure (2025),https://gitlab.hrz. tu-chemnitz.de/scads.ai/bigdataframeworkconfigure, accessed: 2026-05-22

    2025

  17. [17]

    Kołakowski, G.: streaming-jupyter-integrations: Jupyterlab extensions for streaming data processing (flink sql),https://github.com/getindata/ streaming-jupyter-integrations, accessed: 2026-03-15

    2026

  18. [18]

    Krishnan, R., SWAN Team at CERN: Sparkmonitor,https://github.com/ swan-cern/sparkmonitor, accessed: 2026-03-15

    2026

  19. [19]

    Lawrence Livermore National Laboratory: Magpie.https://github.com/LLNL/ magpie(2026), accessed: 2026-03-15

    2026

  20. [20]

    BMC Bioinformatics26(2025).https://doi.org/10.1186/ s12859-025-06121-4

    Liberati, F., Marino, T.M.P., Bottoni, P., Canestrelli, D., Castrignanò, T.: Hpc-t-assembly: a pipeline for de novo transcriptome assembly of large multi- specie datasets. BMC Bioinformatics26(2025).https://doi.org/10.1186/ s12859-025-06121-4

    2025

  21. [21]

    Microsoft: Manage resources for Apache Spark cluster on Azure HDIn- sight,https://learn.microsoft.com/en-us/azure/hdinsight/spark/ apache-spark-resource-manager, accessed: 2026-05-23

    2026

  22. [22]

    NIH-HPC: spark-slurm,https://github.com/NIH-HPC/spark-slurm, accessed: 2026-03-15

    2026

  23. [23]

    (2025),https://www.puppet.com/, accessed: 2026-05-23 12 Kulkarni et al

    PerforceSoftware,Inc.:Puppet-infrastructureautomationandconfigurationman- agement. (2025),https://www.puppet.com/, accessed: 2026-05-23 12 Kulkarni et al

    2025

  24. [24]

    Pramanik, M.I., Lau, R.Y.K., Hossain, M.S., Rahoman, M.M., Debnath, S.K., Rashed, M.G., Uddin, M.Z.: Privacy preserving big data analytics: A critical anal- ysisofstate-of-the-art.WIREsDataMiningandKnowledgeDiscovery11(1),e1387 (2021).https://doi.org/10.1002/widm.1387

    work page doi:10.1002/widm.1387 2021

  25. [25]

    Progress Software Corporation: Chef- infrastructure automation platform (2025), https://www.chef.io/, accessed: 2026-05-23

    2025

  26. [26]

    Project Jupyter: JupyterHub,https://jupyter.org/hub, accessed: 2026-05-23

    2026

  27. [27]

    Project Jupyter Contributors: Messaging in jupyter — jupyter_client 8.8.1.dev0 documentation,https://jupyter-client.readthedocs.io/en/ latest/messaging.html, accessed: 2026-05-19

    2026

  28. [28]

    Project Jupyter Contributors: Widget — ipywidgets documentation, https://ipywidgets.readthedocs.io/en/latest/examples/Widget%20Low% 20Level.html, accessed: 2026-05-18

    2026

  29. [29]

    Pulumi Corporation: Pulumi (2025),https://www.pulumi.com/, accessed: 2026- 05-23

    2025

  30. [30]

    com/, accessed: 2026-05-23

    Red Hat, Inc.: Ansible - it automation platform (2025),https://www.ansible. com/, accessed: 2026-05-23

    2025

  31. [31]

    Roškar, R.: sparkhpc,https://github.com/rokroskar/sparkhpc, accessed: 2026- 03-15

    2026

  32. [32]

    JBDTP Professional1(1), 51–65 (2022).https://doi.org/10.54116/jbdtp.v1i1.16

    Samuel, J., Brennan-Tonetta, M., Samuel, Y., Subedi, P., Smith, J.: Strategies for democratization of supercomputing: Availability, accessibility and usability of high performance computing for education and practice of big data analytics. JBDTP Professional1(1), 51–65 (2022).https://doi.org/10.54116/jbdtp.v1i1.16

    work page doi:10.54116/jbdtp.v1i1.16 2022

  33. [33]

    SchedMD LLC: SLURM: Simple Linux Utility for Resource Management (2025), https://slurm.schedmd.com/overview.html, accessed: 2026-05-23

    2025

  34. [34]

    ACM Comput

    Shahnawaz, M., Kumar, M.: A comprehensive survey on big data analytics: Characteristics, tools and techniques. ACM Comput. Surv.57(8) (Mar 2025). https://doi.org/10.1145/3718364

    work page doi:10.1145/3718364 2025

  35. [35]

    The Apache Software Foundation: Cluster mode overview - spark 4.1.1 doc- umentation.https://spark.apache.org/docs/latest/cluster-overview.html, accessed: 2026-05-18

    2026

  36. [36]

    apache.org/flink/flink-docs-stable/docs/internals/job_scheduling/, ac- cessed: 2026-05-18

    The Apache Software Foundation: Jobs and scheduling.https://nightlies. apache.org/flink/flink-docs-stable/docs/internals/job_scheduling/, ac- cessed: 2026-05-18

    2026

  37. [37]

    The Apache Software Foundation: PySpark overview - PySpark 4.1.1 doc- umentation.https://spark.apache.org/docs/latest/api/python/index.html, accessed: 2026-05-18

    2026

  38. [38]

    VMware, Inc.: Salt- intelligent it automation software (2025),https:// saltproject.io/, accessed: 2026-05-23

    2025

  39. [39]

    IEEE Software33(2), 60–67 (2016).https://doi.org/10.1109/MS.2016.35

    Wu, D., Zhu, L., Xu, X., Sakr, S., Sun, D., Lu, Q.: Building pipelines for heteroge- neous execution environments for big data processing. IEEE Software33(2), 60–67 (2016).https://doi.org/10.1109/MS.2016.35

    work page doi:10.1109/ms.2016.35 2016

  40. [40]

    Zhang, M.: jupyterlab spark: A jupyterlab extension to show spark application ui in a jupyterlab panel,https://github.com/manuzhang/jupyterlab_spark, accessed: 2026-03-15

    2026

  41. [41]

    ZIH Team: HPC Systems,https://tu-dresden.de/zih/hochleistungsrechnen/ hpc, accessed: 2026-05-17

    2026
