arxiv: 2606.12522 · v1 · pith:HFXXBN6Bnew · submitted 2026-06-10 · 🌌 astro-ph.CO · astro-ph.GA

Magnetic fields at the dawn of structure formation I. The CARLA J1510+5958 proto-cluster

A. Pagliotta , A. Bonafede , C. Stuardi , C. J. Riseley , D. Vall\'es-P\'eerez , P. Tozzi , L. Di Mascolo This is my paper

Pith reviewed 2026-06-27 08:35 UTC · model grok-4.3

classification 🌌 astro-ph.CO astro-ph.GA
keywords magnetic fieldsproto-clustersFaraday rotationintra-cluster mediumhigh redshiftactive galactic nucleicluster formation
0
0 comments X

The pith

Asymmetric Faraday rotation in a z=1.72 proto-cluster sets a 0.4 μG lower limit on the average magnetic field in the proto-ICM.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper studies magnetic fields during early structure formation by targeting the CARLA J1510+5958 proto-cluster at redshift 1.72 with JVLA L-band observations. It measures the rotation measure on polarised emission from the central radio-loud AGN and finds that the two lobes display markedly different polarisation behaviour. Three-dimensional simulations of gas density and turbulent fields, with varied AGN orientation and path length, show that the observed RM distribution cannot be explained by a purely isotropic random field. This asymmetry yields a lower limit of 0.4 μG on the average physical magnetic field and indicates that the proto-ICM was already magnetised, with possible contribution from AGN mixing of relativistic plasma.

Core claim

The Western lobe shows a uniform RM of average -115 ± 32 rad m^{-2} with dispersion 36 ± 11 rad m^{-2}, while the Eastern lobe is depolarised. Simulations rule out a purely isotropic random field for the Western lobe, and QU fitting indicates an internal Faraday component from magnetised relativistic plasma mixed with surrounding gas. The asymmetry therefore constrains the average physical magnetic field in the proto-ICM to a lower limit of 0.4 μG, confirming a magnetised proto-ICM at z = 1.72.

What carries the argument

The observed RM asymmetry between the two AGN lobes, interpreted via 3D simulations of turbulent magnetic fields that vary AGN orientation and line-of-sight path length.

If this is right

  • Magnetic fields in the intra-cluster medium reach at least 0.4 μG already at z = 1.72.
  • AGN activity can inject and mix magnetised plasma into the surrounding gas during cluster assembly.
  • Early amplification of magnetic fields occurs before clusters reach virial equilibrium.
  • Faraday rotation on background or embedded AGN can trace magnetisation in forming structures at high redshift.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Repeating the same lobe-asymmetry analysis on other high-redshift proto-clusters would test whether 0.4 μG is typical or varies with environment.
  • If AGN-driven mixing is common, it supplies a mechanism that could seed the stronger fields observed in present-day clusters.

Load-bearing premise

The simulations correctly capture how a coherent magnetised medium versus purely isotropic turbulence would produce the measured RM distribution and depolarisation pattern.

What would settle it

Deeper observations that find identical RM statistics and no depolarisation difference between the two lobes would remove the basis for inferring a magnetised proto-ICM.

Figures

Figures reproduced from arXiv: 2606.12522 by A. Bonafede, A. Pagliotta, C. J. Riseley, C. Stuardi, D. Vall\'es-P\'eerez, L. Di Mascolo, P. Tozzi.

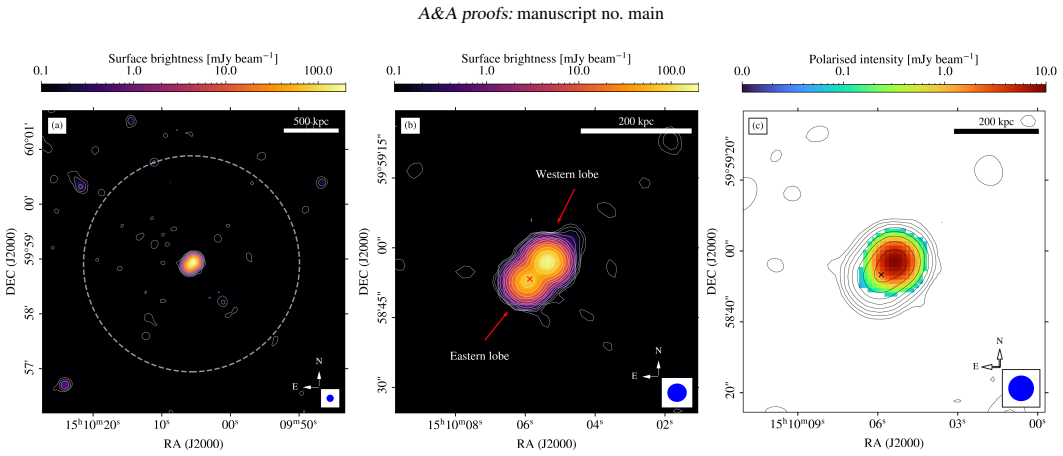

Figure 1
Figure 1. Figure 1: Total intensity and polarisation maps of CARLAJ1510 and central source. Panel (a): Stokes I map of CARLAJ1510 and surrounding field at 1.5 GHz, produced using Briggs weighting (robust = 0.5). Dashed circle corresponds to the reference distance of 1 Mpc from the proto-cluster centre. Panel (b): Zoomed-in total intensity map of the central radio-loud AGN, shown at the original resolution before convolution. … view at source ↗

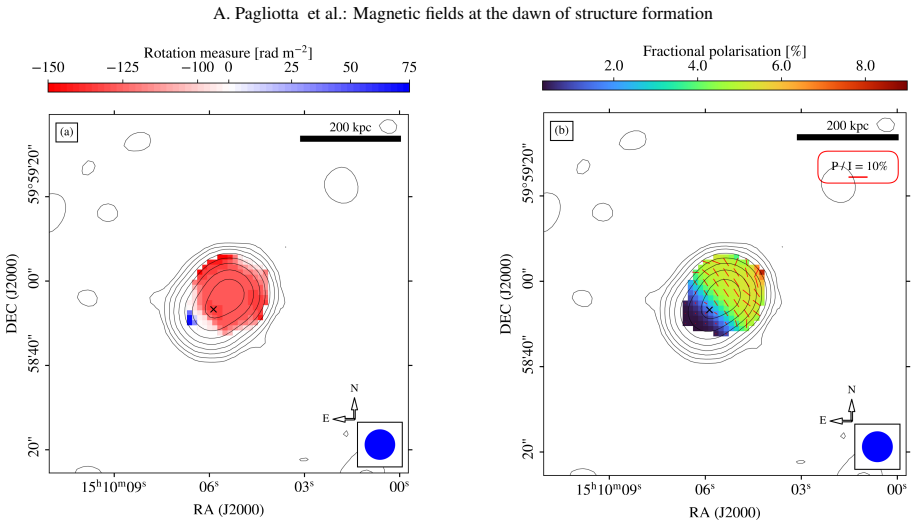

Figure 2
Figure 2. Figure 2: RM and fractional polarisation maps of the central source. Panel (a): RM map. Values were corrected for the Galactic foreground rotation and are in the source rest frame. Positive values refer to the MF orientation along the LOS towards the observer, whereas negative values refer to an orientation away from the observer. Panel (b): Fp map. Values were corrected for the Ricean bias. MF vectors at the source… view at source ↗

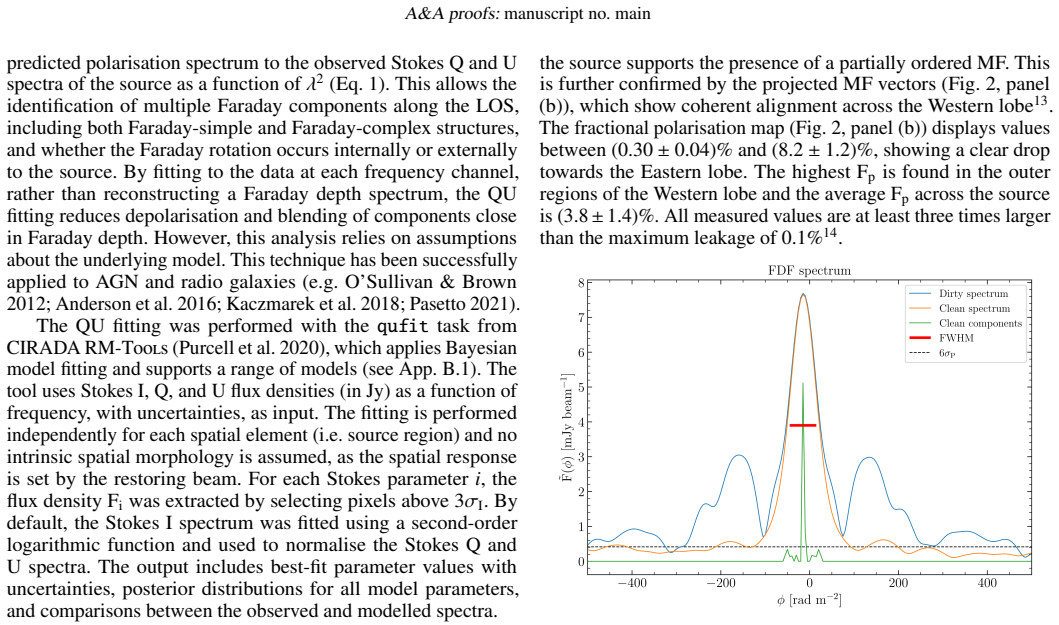

Figure 3
Figure 3. Figure 3: Reconstructed FDF spectrum extracted from the brightest po￾larised pixel of the central source. The dirty FDF is shown in blue, the CLEANed FDF in orange, and the CLEAN components in green. The FWHM of the RMTF, 60 rad m−2 , is marked in red. The 6σP level of the polarised intensity in this pixel is indicated with a black dashed line as a reference. The dominant peak is located at ϕ = −14 ± 5 rad m−2 . Val… view at source ↗

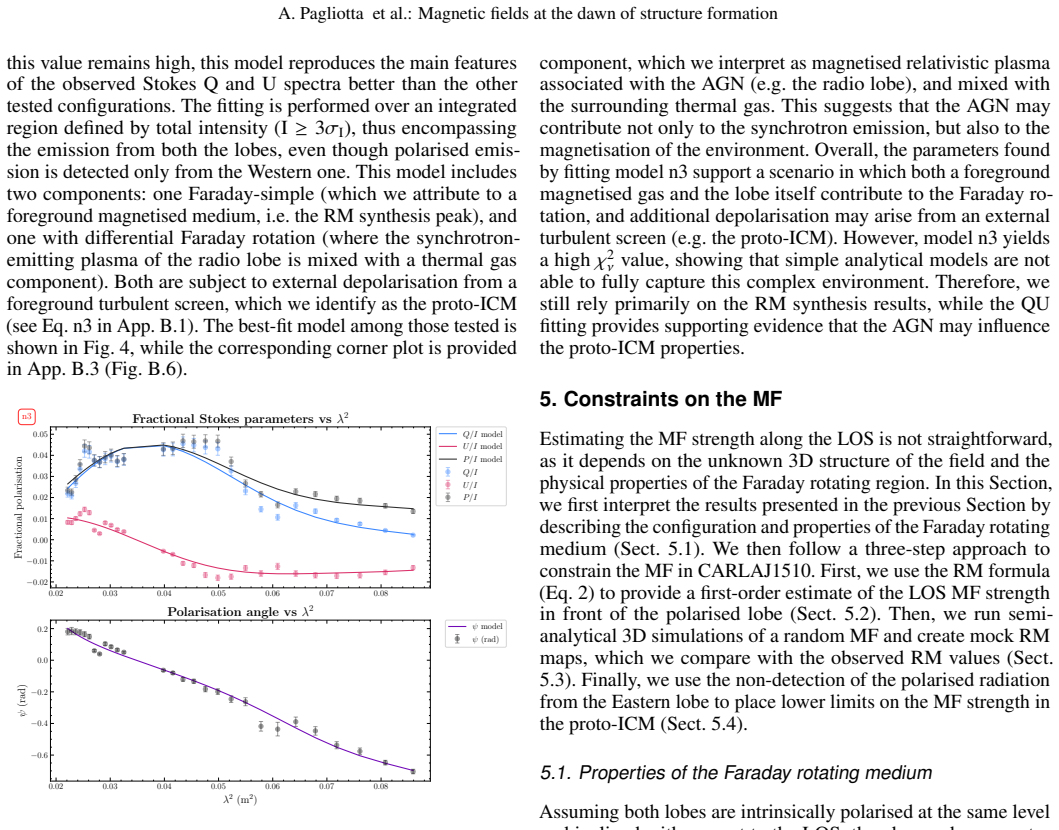

Figure 4
Figure 4. Figure 4: Best-fit of the fractional polarisation (P/I, Q/I, and U/I) and polarisation angles as a function of λ 2 for model n3. Data points represent the observations, whereas the straight lines the model prediction (P/I: black, Q/I: blue, U/I: red, ψ: purple). The RM of the simple foreground component is −13.5 ± 0.4 rad m−2 (−123.6 ± 27.5 rad m−2 rest frame), consistent with the observed average RM. The thick lobe… view at source ↗

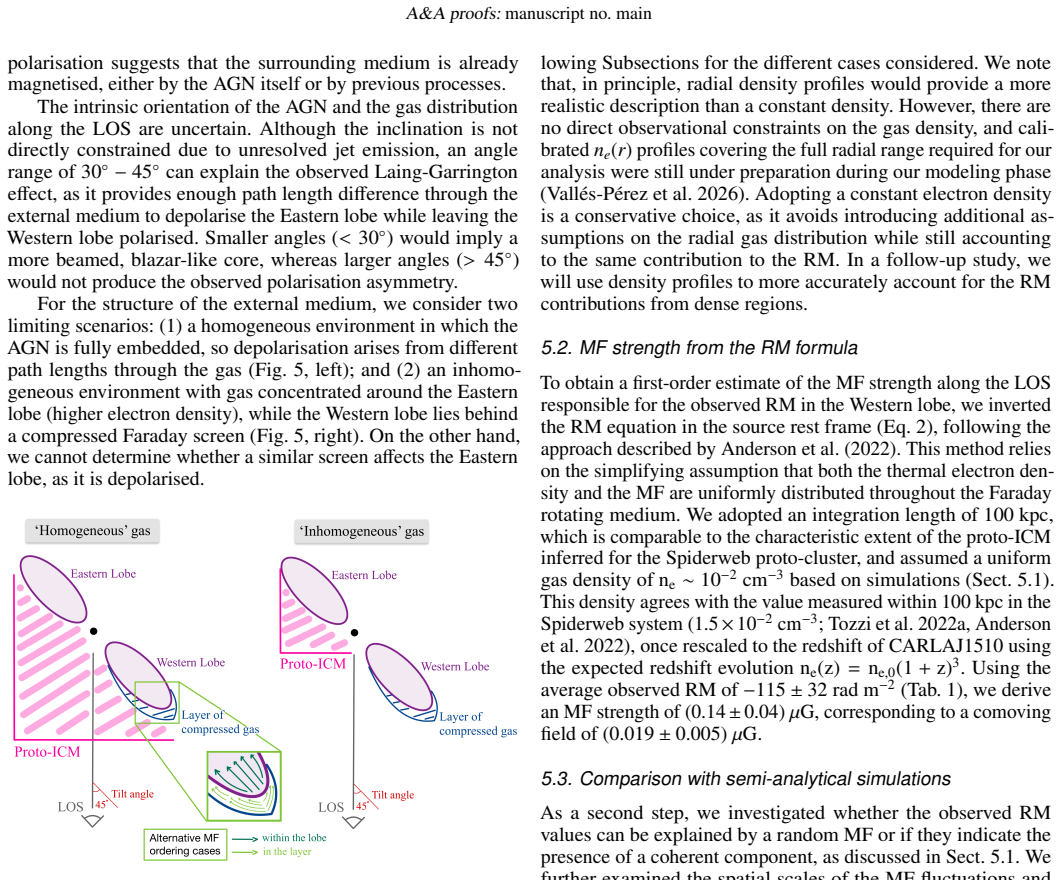

Figure 5
Figure 5. Figure 5: Schematic representation of the two limiting scenarios for the distribution of the external magnetised medium around the AGN (45◦ with respect to the LOS) and the MF ordering. Left: Homogeneous case. The AGN is fully embedded in the proto-ICM, resulting in different path lengths through the magnetised gas for the two lobes. Right: Inhomo￾geneous case. The medium is asymmetric, with the proto-ICM located pr… view at source ↗

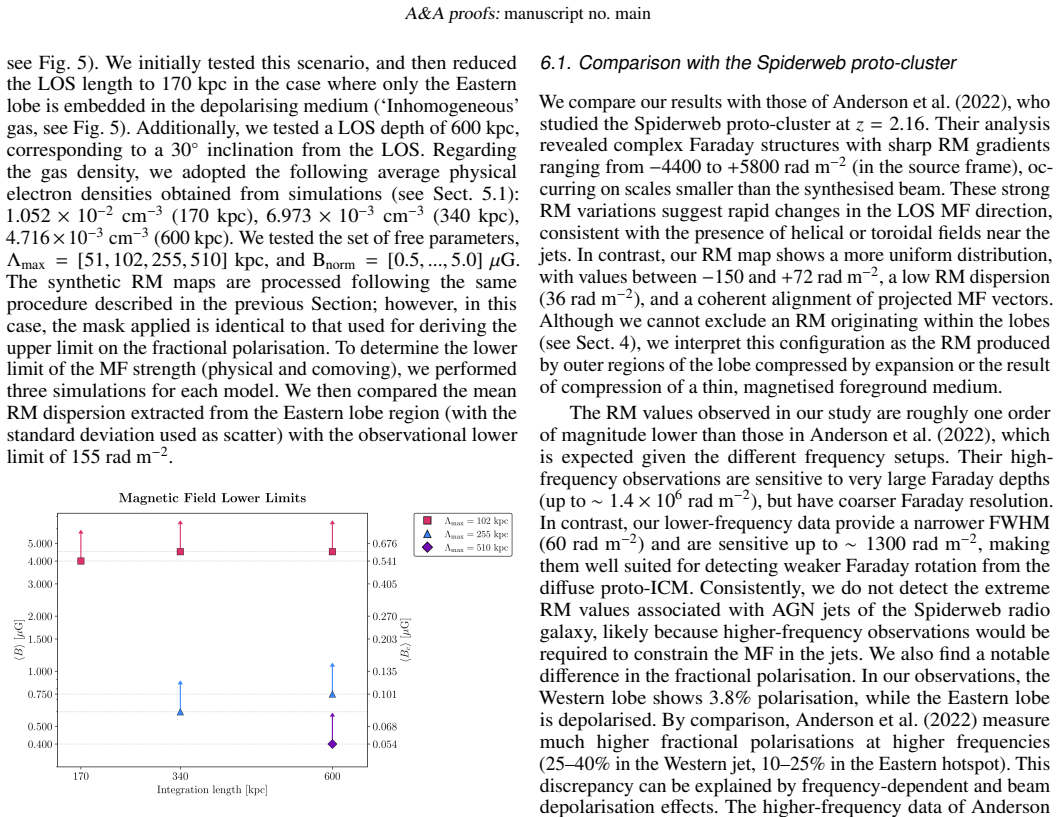

Figure 6
Figure 6. Figure 6: Lower limits on the average MF strength as a function of LOS integration length and maximum fluctuation scale of the MF. From top to bottom (Λmax): magenta square (102 kpc), light blue triangle (255 kpc), and purple diamond (510 kpc). The right-hand y-axis shows the corresponding comoving MF strength ⟨Bc⟩. The y-axes are in logarithmic scale for a better visualisation of the data. Three representative exam… view at source ↗
read the original abstract

Magnetic fields are a fundamental ingredient of the Universe, influencing the formation and evolution of cosmic structures. While magnetic fields in local galaxy clusters have been studied, their origin, amplification, and strength at high redshift are poorly understood. Proto-clusters represent the early stages of galaxy cluster formation, ideal for investigating the early magnetisation of the intra-cluster medium (ICM). We present a study of CARLA J1510+5958 proto-cluster at z = 1.72, observed with the JVLA in the L-band (1-2 GHz). We aim to investigate the magnetic field strength and structure in the proto-ICM and the role of AGN in magnetising the environment during early cluster formation. We analyse Faraday rotation on the polarised emission from the central radio-loud AGN using the Rotation Measure (RM) synthesis and QU fitting technique. We further interpret the observations with 3D simulations of gas density and turbulent magnetic fields, varying AGN orientation and path length. The two AGN lobes show different polarisation properties. The Western lobe exhibits a uniform RM (average $-115 \pm 32\text{ rad m}^{-2}$, dispersion $36 \pm 11\text{ rad m}^{-2}$), indicating a locally ordered magnetic field likely compressed by the lobe, while the Eastern lobe is depolarised. Although the asymmetry indicates a turbulent, magnetised medium, simulations rule out a purely isotropic random field for the Western lobe RM distribution. The QU fitting further suggests an internal Faraday component, interpreted as magnetised relativistic plasma from the lobe mixed with the surrounding gas, indicating possible magnetisation of the ambient medium by the AGN. From this asymmetry, we constrain the average physical magnetic field in the proto-ICM to a lower limit of 0.4 $\mu$G. These results confirm a magnetised proto-ICM at z = 1.72, proving early field amplification during cluster assembly.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper reports JVLA L-band observations of the CARLA J1510+5958 proto-cluster at z=1.72, using RM synthesis and QU fitting on the central radio-loud AGN. The Western lobe shows a uniform RM (mean -115 ±32 rad m^{-2}, dispersion 36±11 rad m^{-2}) while the Eastern lobe is depolarised; 3D simulations of turbulent magnetic fields with varying AGN orientation and path length are used to interpret the asymmetry, rule out a purely isotropic random field, and derive a lower limit of 0.4 μG on the average physical magnetic field strength in the proto-ICM, taken as evidence for early magnetisation during cluster assembly.

Significance. If the central quantitative claim holds after addressing modeling robustness, the result would provide rare observational evidence for a magnetised proto-ICM at z>1.5 and support early field amplification, which is significant for models of magnetic field origins in galaxy clusters. The observational detection of RM asymmetry and the use of both RM synthesis and QU fitting are strengths.

major comments (2)
  1. [Abstract and simulation section] Abstract and simulation section: the 0.4 μG lower limit on average physical B is obtained by comparing the observed Western-lobe RM distribution to 3D simulations in which AGN orientation and path length are varied until the model matches the data; without reported sensitivity tests to n_e profile or turbulence spectrum, the numerical bound is model-dependent rather than an independent measurement.
  2. [Simulation analysis] Simulation analysis: the rejection of a purely isotropic random field for the Western lobe RM distribution also rests on the same suite of simulations whose free parameters are tuned to the observations; this circularity undermines the claim that the asymmetry alone proves a magnetised proto-ICM independent of modeling choices.
minor comments (2)
  1. [Methods] Methods: quantitative details on data reduction, error propagation for the quoted RM values and dispersions, and the precise simulation grid (including assumed n_e and turbulence parameters) are not provided, preventing independent verification of the mapping from observed RM to the B limit.
  2. Figure captions and text: notation for RM units and error bars should be clarified for consistency between abstract and main text.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive review and for highlighting the potential significance of our results on the magnetised proto-ICM. We address the two major comments point by point below.

read point-by-point responses

  1. Referee: [Abstract and simulation section] Abstract and simulation section: the 0.4 μG lower limit on average physical B is obtained by comparing the observed Western-lobe RM distribution to 3D simulations in which AGN orientation and path length are varied until the model matches the data; without reported sensitivity tests to n_e profile or turbulence spectrum, the numerical bound is model-dependent rather than an independent measurement.

    Authors: We agree that the quoted lower limit is obtained from the simulations and is therefore model-dependent. The n_e profile follows a standard beta-model scaled to proto-cluster expectations at z=1.72, and the turbulence spectrum is Kolmogorov, both common assumptions in the field. To address the concern we will add an appendix with sensitivity tests that vary the n_e normalisation by factors of two and the turbulence spectral index between -5/3 and -2, showing the resulting range on the B lower limit. This will make the robustness of the 0.4 μG bound explicit. revision: yes

  2. Referee: [Simulation analysis] Simulation analysis: the rejection of a purely isotropic random field for the Western lobe RM distribution also rests on the same suite of simulations whose free parameters are tuned to the observations; this circularity undermines the claim that the asymmetry alone proves a magnetised proto-ICM independent of modeling choices.

    Authors: The RM asymmetry between the two lobes is an observational fact independent of any simulation. The simulations are used only to test whether an isotropic random field, after varying AGN orientation and path length, can reproduce the narrow RM distribution seen in the Western lobe. Because no isotropic model succeeds, we interpret the data as requiring a non-isotropic component. We will revise the relevant paragraphs to separate the direct observational evidence (asymmetry and depolarisation) from the simulation-based interpretation, thereby reducing any appearance of circularity. revision: partial

Circularity Check

1 steps flagged

0.4 μG lower limit obtained by fitting simulation parameters (orientation, path length) to match observed RM distribution

specific steps
  1. fitted input called prediction [Abstract]
    "We further interpret the observations with 3D simulations of gas density and turbulent magnetic fields, varying AGN orientation and path length. [...] From this asymmetry, we constrain the average physical magnetic field in the proto-ICM to a lower limit of 0.4 μG."

    The quoted lower limit is the B value at which the simulations, after adjustment of orientation and path length, reproduce the observed RM mean and dispersion; the constraint is therefore the output of the fitting procedure rather than an independent datum.

full rationale

The paper's central quantitative claim is obtained by running 3D simulations of turbulent magnetic fields, varying AGN orientation and path length until the synthetic RM statistics reproduce the Western-lobe observations, then reading off the B value that permits this match. This is a direct instance of a fitted model parameter being presented as an observational lower limit. No independent constraint on n_e or turbulence spectrum is supplied, so the numerical bound reduces to the simulation setup by construction. The rejection of the isotropic case follows the same procedure. The remainder of the analysis (RM synthesis, QU fitting) is independent and does not exhibit circularity.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that the observed RM asymmetry is produced by a magnetised proto-ICM whose properties can be recovered by varying only AGN orientation and path length in the simulations; no independent calibration of those simulation parameters is provided.

free parameters (2)
  • AGN orientation
    Varied across simulations to reproduce the observed RM distribution of the Western lobe
  • path length
    Varied across simulations to reproduce the observed RM distribution of the Western lobe
axioms (2)
  • domain assumption The RM asymmetry between lobes is caused by the proto-ICM rather than by intrinsic lobe differences or foreground effects
    Invoked when interpreting the uniform RM in the Western lobe and depolarisation in the Eastern lobe as evidence for a magnetised ambient medium
  • domain assumption The 3D simulations of turbulent magnetic fields accurately capture the statistics of the real proto-ICM
    Used to rule out a purely isotropic random field

pith-pipeline@v0.9.1-grok · 5927 in / 1467 out tokens · 21326 ms · 2026-06-27T08:35:09.892802+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
