Dosimetric Quantification of a Commercial Dual-Tube kV X-Ray System for Preclinical FLASH Research

Luka Matej Devenica , Lixiang Guo , Mohammad Rezaee , Ken Kang-Hsin Wang This is my paper

Pith reviewed 2026-06-26 05:43 UTC · model grok-4.3

classification ⚛️ physics.med-ph
keywords FLASH radiotherapydual-tube kV systemoutput asymmetrysynchronization jitterpreclinical dosimetryquality assuranceintestinal irradiationdose rate
0
0 comments X

The pith

A commercial dual-tube kV X-ray system for preclinical FLASH shows over 20% output asymmetry between tubes that compensation reduces to under 1%.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper measures output and timing performance of a commercial dual-tube kV X-ray system used for FLASH radiotherapy in small-animal studies. The tubes sit in parallel opposed geometry and deliver combined pulses, yet at equal mA/ms settings one tube produces more than 20% higher output than the other. Reducing current on the stronger tube brings the outputs within 1% and restores uniform depth dose. In a simulation of intestinal irradiation the uncompensated case leaves over 22% of the organ volume above 102% of the prescribed dose while compensation drops that fraction below 7%. The tubes also exhibit an average 10.2 ms synchronization jitter that lowers effective dose rate especially at low dose per pulse.

Core claim

In a commercial dual-tube kV X-ray platform arranged in parallel opposed geometry for FLASH RT, tube output asymmetry exceeds 20% at equal mA/ms settings and inter-tube synchronization jitter averages 10.2 ms with 7.0 ms standard deviation. Output compensation by decreasing current on the higher-output tube reduces the inter-tube difference to less than 1%, restoring symmetrical depth dose. In a simulated in vivo intestinal irradiation the naive settings produce more than 22% of the organ volume receiving over 102% of the prescribed dose, whereas compensated settings reduce that volume to less than 7%. The jitter disproportionately reduces dose rate at low dose-per-pulse values and therefore

What carries the argument

Parallel opposed dual-tube geometry in which dose per pulse is the combined single-pulse output from both tubes and dose rate equals dose per pulse divided by pulse length, with output compensation achieved by mA adjustment and synchronization checked by scintillator timing at 1 ms resolution.

If this is right

  • Compensated tube settings restore symmetrical depth dose with inter-tube output difference below 1%.
  • In simulated intestinal irradiation the compensated settings reduce the organ volume receiving more than 102% of prescribed dose from over 22% to under 7%.
  • Synchronization jitter of 10.2 ms on average reduces effective dose rate more severely at low dose-per-pulse settings.
  • Dedicated QA that tracks tube synchronization over time is required to maintain study reproducibility.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Without periodic output checks between tubes, dose distributions in preclinical FLASH experiments using similar dual-source systems could vary enough to affect biological outcomes across repeated studies.
  • The measured jitter implies that timing verification should be added to commissioning procedures for any multi-tube kV platform intended for short-pulse work.
  • The compensation approach demonstrated here could be adapted to other preclinical irradiation geometries that combine multiple X-ray sources.

Load-bearing premise

Film-based 3D dose reconstruction and scintillator timing measurements at 1 ms resolution accurately capture the true delivered dose distributions and pulse synchronization without significant systematic errors from calibration or positioning.

What would settle it

An independent ionization chamber placed at multiple points in the same phantom geometry that records output differences below 5% between tubes or measures no detectable synchronization jitter would contradict the reported discrepancies.

Figures

Figures reproduced from arXiv: 2606.23401 by Ken Kang-Hsin Wang, Lixiang Guo, Luka Matej Devenica, Mohammad Rezaee.

Figure 4

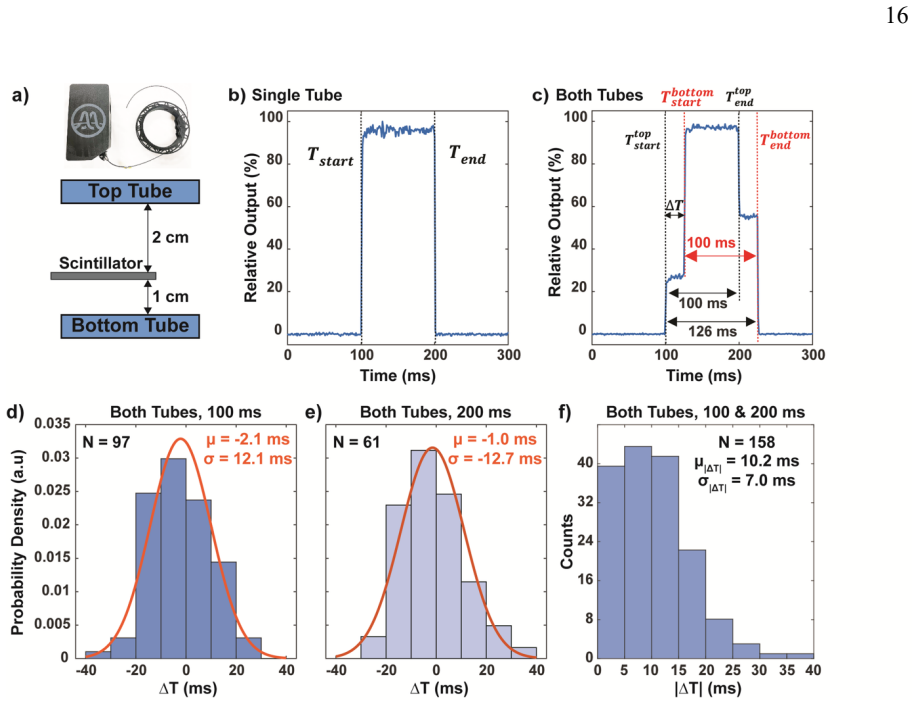

Figure 4. Figure 4: Scintillator measurements of tube pulses. a) Diagram of beam timing measurements using a scintillator. The scintillator was placed closer to the bottom tube, to distinguish the bottom and top tube pulses. b) A 100 ms pulse from a single tube. 𝑠𝑠𝑠𝑠𝑠𝑠𝑠𝑠𝑠𝑠 and 𝑒𝑒 𝑒𝑒 are defined as the time when pulse reaches 50% of maximum output. c) One instance of a pulse produced by both tubes. While both pulses are indivi… view at source ↗
Figure 5

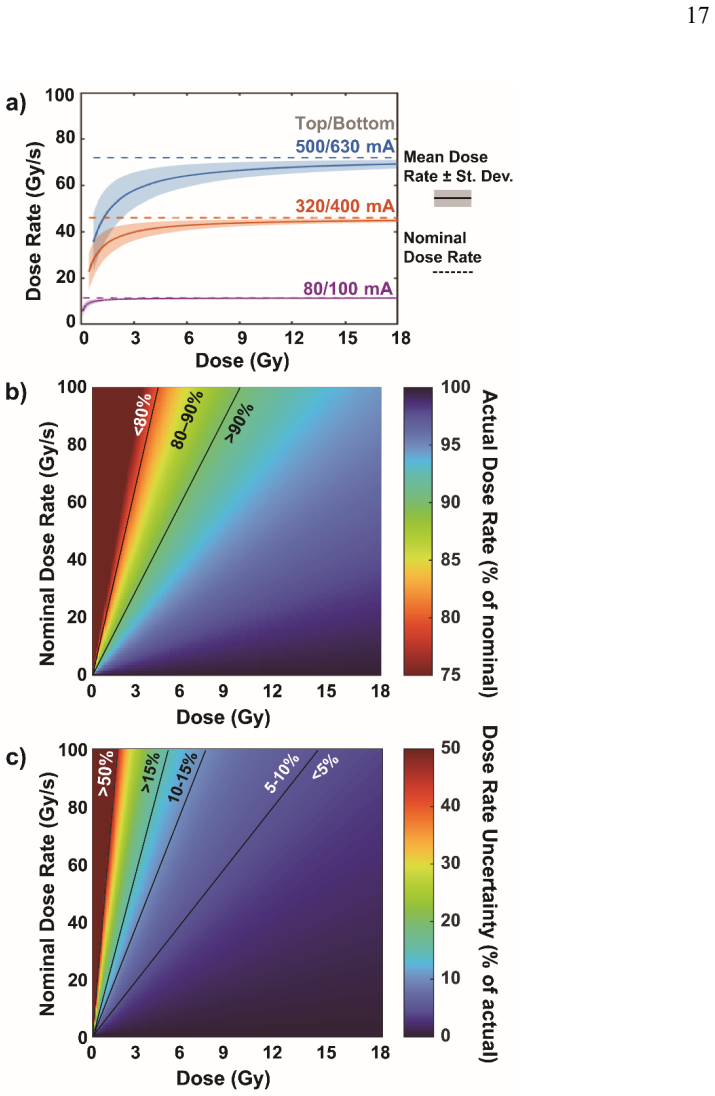

Figure 5. Figure 5: Tube jitter decreases dose-rate and increases dose-rate uncertainty. a) Comparison of nominal and actual dose-rates vs doses for various output settings. Smaller doses delivered at higher dose-rates suffer greater dose-rate undershoot and uncertainty. b) Color plot of actual dose-rates (expressed as % of nominal) as a function of nominal dose-rate and dose. c) Color plot of relative dose-rate uncertainty a… view at source ↗
