Side-Chain Tuning of Thermal-Expansion Crossover in Metal-Organic Frameworks

Wei Qiu , Penghua Ying This is my paper

Pith reviewed 2026-07-01 04:45 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci physics.comp-ph
keywords metal-organic frameworksthermal expansionnegative thermal expansionside-chain engineeringentropy crossoverMOF-5alkoxy functionalization
0
0 comments X

The pith

Alkoxy side-chain length in MOF-5 controls a tunable crossover from positive to negative thermal expansion through competing entropy terms.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that grafting alkoxy chains of varying lengths onto the linkers of MOF-5 produces distinct thermal expansion behaviors. Chains with two or fewer carbons yield steady contraction as temperature rises, while chains of three or more carbons produce expansion at low temperatures that switches to contraction at higher temperatures. The switch arises because longer chains access more conformational shapes at modest heat, creating steric pressure that enlarges the lattice, whereas higher heat strengthens framework vibrations that favor contraction. Adjusting the fraction of linkers that carry these chains further allows the overall expansion coefficient to be set to negative, near-zero, or positive values inside chosen temperature intervals.

Core claim

The central claim is that an entropy-driven PTE-to-NTE crossover occurs in alkoxy-functionalized MOF-5 when side-chain length n reaches three or more carbons: short chains (n ≤ 2) produce monotonic NTE while longer chains generate low-temperature PTE from side-chain conformational entropy and high-temperature NTE from enhanced framework vibrational entropy, with continuous regulation of the thermal expansion coefficient achieved by varying the concentration of functionalized linkers.

What carries the argument

Alkoxy side-chain length n (number of carbon atoms) and its concentration on the MOF-5 linkers, which shift the balance between conformational entropy of the chains and vibrational entropy of the framework modes.

If this is right

  • Short side chains (n ≤ 2) produce only negative thermal expansion across the studied temperature range.
  • Chains with n ≥ 3 produce positive expansion at low temperature that crosses to negative expansion at higher temperature.
  • Diluting the fraction of side-chain-functionalized linkers allows the net expansion coefficient to be set continuously to negative, zero, or positive within selected windows.
  • The crossover temperature itself shifts with side-chain length and concentration.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same side-chain strategy might be tested in other cubic MOFs to see whether the entropy competition generalizes beyond MOF-5.
  • One could check whether the near-zero expansion windows remain stable under modest pressure or guest-molecule loading.
  • Device concepts that exploit the temperature-dependent sign change for thermal switches or compensators become conceivable once the concentration tuning is validated experimentally.

Load-bearing premise

The classical and path-integral molecular dynamics simulations plus lattice dynamics correctly identify conformational and vibrational entropy as the dominant competing mechanisms without substantial force-field or sampling errors.

What would settle it

Experimental measurement of the thermal expansion coefficient versus temperature for MOF-5 samples with n=3 side chains at several concentrations, showing either no PTE-to-NTE crossover or no continuous tuning to near-zero values, would falsify the central claim.

Figures

Figures reproduced from arXiv: 2606.31417 by Penghua Ying, Wei Qiu.

Figure 1

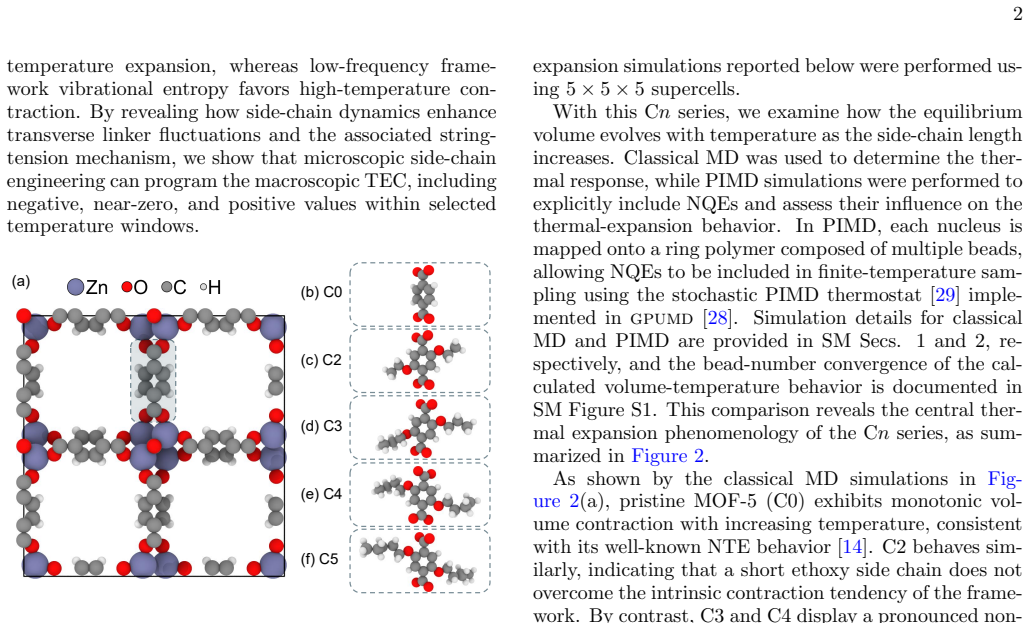

Figure 1. Figure 1: FIG. 1. Structural models of pristine and alkoxy [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Side-chain tuning of thermal-expansion crossover in [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. String-tension origin of NTE. (a) Volume-dependent [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5

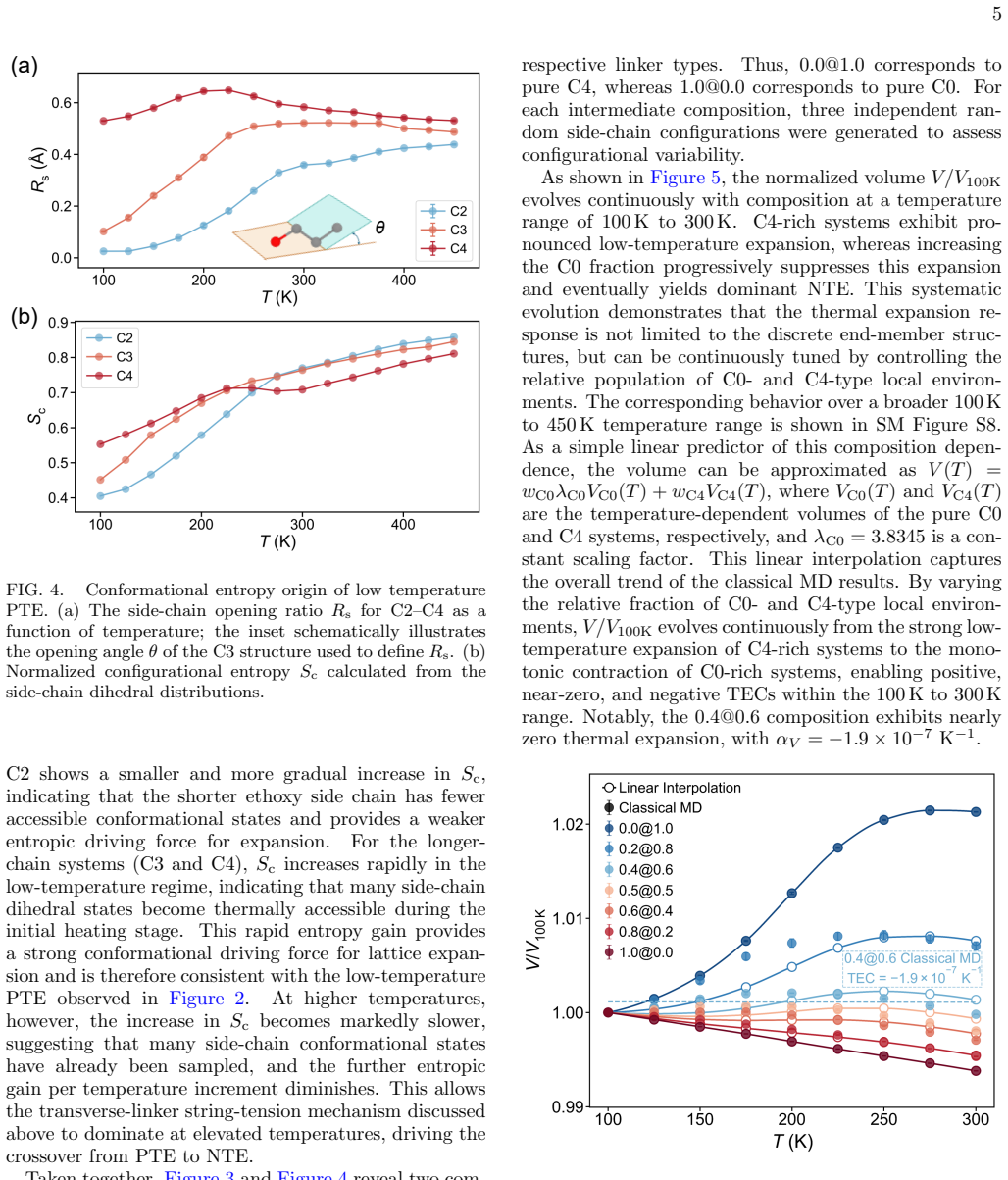

Figure 5. Figure 5: FIG. 5. Composition-programmed thermal expansion over [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗

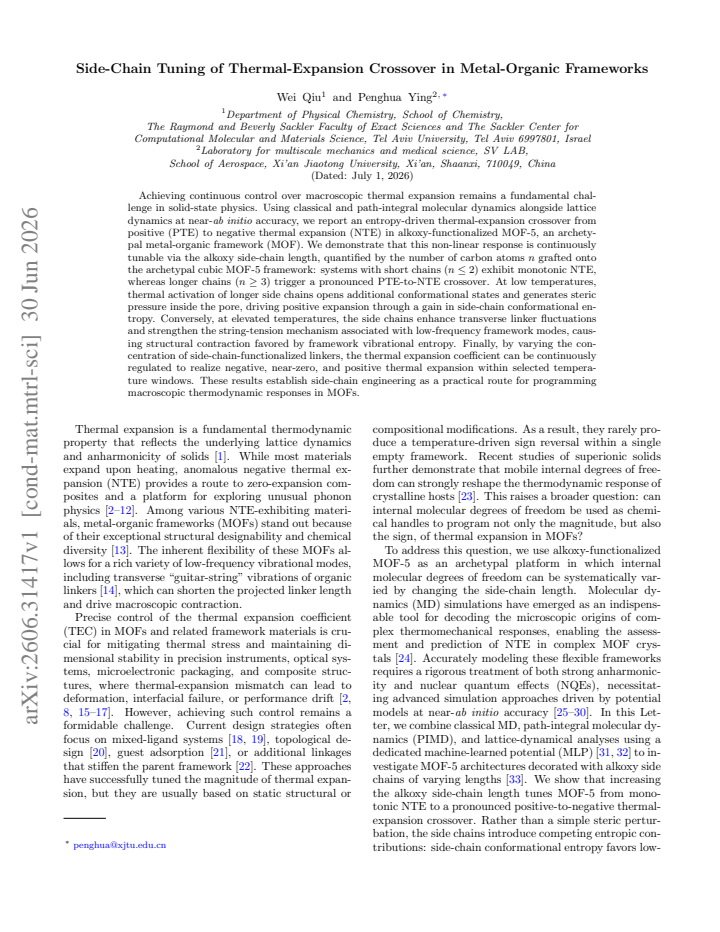

read the original abstract

Achieving continuous control over macroscopic thermal expansion remains a fundamental challenge in solid-state physics. Using classical and path-integral molecular dynamics alongside lattice dynamics at near-\emph{ab initio} accuracy, we report an entropy-driven thermal-expansion crossover from positive (PTE) to negative thermal expansion (NTE) in alkoxy-functionalized MOF-5, an archetypal metal-organic framework (MOF). We demonstrate that this non-linear response is continuously tunable via the alkoxy side-chain length, quantified by the number of carbon atoms $n$ grafted onto the archetypal cubic MOF-5 framework: systems with short chains ($n \le 2$) exhibit monotonic NTE, whereas longer chains ($n \ge 3$) trigger a pronounced PTE-to-NTE crossover. At low temperatures, thermal activation of longer side chains opens additional conformational states and generates steric pressure inside the pore, driving positive expansion through a gain in side-chain conformational entropy. Conversely, at elevated temperatures, the side chains enhance transverse linker fluctuations and strengthen the string-tension mechanism associated with low-frequency framework modes, causing structural contraction favored by framework vibrational entropy. Finally, by varying the concentration of side-chain-functionalized linkers, the thermal expansion coefficient can be continuously regulated to realize negative, near-zero, and positive thermal expansion within selected temperature windows. These results establish side-chain engineering as a practical route for programming macroscopic thermodynamic responses in MOFs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper claims that alkoxy side-chain functionalization of MOF-5 produces an entropy-driven PTE-to-NTE thermal-expansion crossover tunable by chain length n (monotonic NTE for n≤2; crossover for n≥3) and by functionalized-linker concentration, with low-T positive expansion arising from side-chain conformational entropy and high-T contraction from enhanced framework vibrational entropy, as computed via classical and path-integral MD plus lattice dynamics.

Significance. If the reported mechanisms and tunability are robust, the work supplies a concrete design principle for programming thermal expansion in MOFs via side-chain engineering, which would be of clear interest for functional materials. The use of multiple simulation techniques (including path-integral MD) to separate conformational and vibrational contributions is a methodological strength.

major comments (2)
  1. [Methods / Simulation details] The central claim that longer side chains (n≥3) generate low-T PTE via conformational entropy while enhancing high-T NTE via vibrational entropy rests on the classical force-field description of side-chain dihedrals and pore steric interactions; however, no ab-initio validation of the key torsional barriers or non-bonded parameters is reported, leaving open the possibility that force-field errors shift or remove the crossover.
  2. [Results / Concentration series] The reported continuous tunability by varying the concentration of side-chain-functionalized linkers is load-bearing for the practical-application claim, yet the manuscript supplies no explicit mixing-rule validation or concentration-dependent sampling statistics to confirm that the entropy partition remains additive across compositions.
minor comments (2)
  1. [Abstract] The abstract states 'near-ab initio accuracy' for the lattice-dynamics component but does not specify the underlying electronic-structure method, basis set, or dispersion correction.
  2. [Figures] Figure captions and axis labels for the thermal-expansion coefficient vs. temperature plots should explicitly state the temperature window and error estimation method used.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive evaluation of the work's significance and for the detailed comments. We respond to each major comment below.

read point-by-point responses

  1. Referee: [Methods / Simulation details] The central claim that longer side chains (n≥3) generate low-T PTE via conformational entropy while enhancing high-T NTE via vibrational entropy rests on the classical force-field description of side-chain dihedrals and pore steric interactions; however, no ab-initio validation of the key torsional barriers or non-bonded parameters is reported, leaving open the possibility that force-field errors shift or remove the crossover.

    Authors: We agree that explicit ab-initio validation of the torsional barriers would strengthen the force-field results. The parameters are taken from established literature for MOF-5 and alkoxy groups, and the combination of classical MD, path-integral MD, and near-ab-initio lattice dynamics provides internal consistency checks on the reported mechanisms. Nevertheless, in the revised manuscript we will add DFT calculations of the key side-chain dihedral profiles to directly validate the barriers and non-bonded terms against the force field. revision: yes

  2. Referee: [Results / Concentration series] The reported continuous tunability by varying the concentration of side-chain-functionalized linkers is load-bearing for the practical-application claim, yet the manuscript supplies no explicit mixing-rule validation or concentration-dependent sampling statistics to confirm that the entropy partition remains additive across compositions.

    Authors: The concentration series was generated by direct simulation of mixed-linker supercells at several compositions. To address the concern, the revised manuscript will include (i) explicit verification that the mixing rules reproduce the pure-component limits and (ii) concentration-dependent error estimates from block averaging to confirm adequate sampling of the entropy contributions. revision: yes

Circularity Check

0 steps flagged

No circularity: claims rest on independent simulation outputs

full rationale

The paper reports simulation results (classical MD, path-integral MD, lattice dynamics) that identify an entropy-driven PTE-to-NTE crossover tunable by side-chain length n and linker concentration. No equations, fitted parameters, or self-citations are presented that would reduce the reported crossover temperature, sign change, or tunability to a definition or prior fit by construction. The central claims derive from computed free-energy contributions and mode analysis rather than any of the enumerated circular patterns. This is the expected self-contained case for a simulation-driven study.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Abstract-only review; ledger is limited to assumptions visible in the text.

axioms (1)
  • domain assumption Classical and path-integral molecular dynamics plus lattice dynamics at near-ab initio accuracy correctly capture side-chain conformational entropy and framework vibrational entropy.
    Invoked to explain the temperature-dependent crossover and tunability.

pith-pipeline@v0.9.1-grok · 5783 in / 1177 out tokens · 33524 ms · 2026-07-01T04:45:10.720204+00:00 · methodology
