Fermi-LAT Gamma-ray Emission Discovered from the Composite Supernova Remnant B0453-685 in the Large Magellanic Cloud

Jordan Eagle This is my paper

Pith reviewed 2026-06-27 12:19 UTC · model grok-4.3

classification 🌌 astro-ph.HE
keywords gamma-ray emissionpulsar wind nebulasupernova remnantFermi-LATLarge Magellanic Cloudcosmic rays
0
0 comments X

The pith

Fermi-LAT gamma-ray emission from composite SNR B0453-685 originates in an evolved pulsar wind nebula rather than the remnant itself.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reports detection of faint point-like gamma-ray emission at the position of B0453-685 in the Large Magellanic Cloud from 300 MeV to 2 TeV. Multi-wavelength investigation and broadband modeling rule out an origin in the supernova remnant. Semi-analytic evolutionary models instead match an aged pulsar wind nebula roughly 14,000 years old that has been hit by the returning SNR reverse shock, with a possible pulsar contribution below 5 GeV. The result bears on how pulsar wind nebulae accelerate particles and contribute to cosmic rays.

Core claim

Observational evidence and physical modeling do not support an SNR gamma-ray origin for the detected emission. The data instead favor an evolved PWN that has interacted with the SNR reverse shock, possibly with a substantial pulsar component below 5 GeV.

What carries the argument

Semi-analytic radiative evolutionary models of an aged PWN interacting with the returning SNR reverse shock.

If this is right

  • Particle acceleration efficiency in this system constrains the contribution of PWNe to cosmic-ray production.
  • A possible pulsar component below 5 GeV is required in the model to match the lowest-energy data.
  • Further observations are needed to pin down the synchrotron cut-off and thereby fix the underlying particle spectrum.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Composite SNRs in other nearby galaxies may host similarly detectable evolved PWNe once reverse-shock interaction begins.
  • Higher-resolution gamma-ray spectra could separate the pulsar and nebula contributions below 5 GeV.

Load-bearing premise

The semi-analytic models and multi-wavelength data can distinguish PWN from SNR emission origins without large degeneracies or unaccounted systematic uncertainties in source detection.

What would settle it

A measured synchrotron cut-off energy or spectral shape that lies outside the range allowed by the 14,000-year PWN evolutionary tracks would contradict the favored interpretation.

Figures

Figures reproduced from arXiv: 2606.10840 by Jordan Eagle.

Figure 1

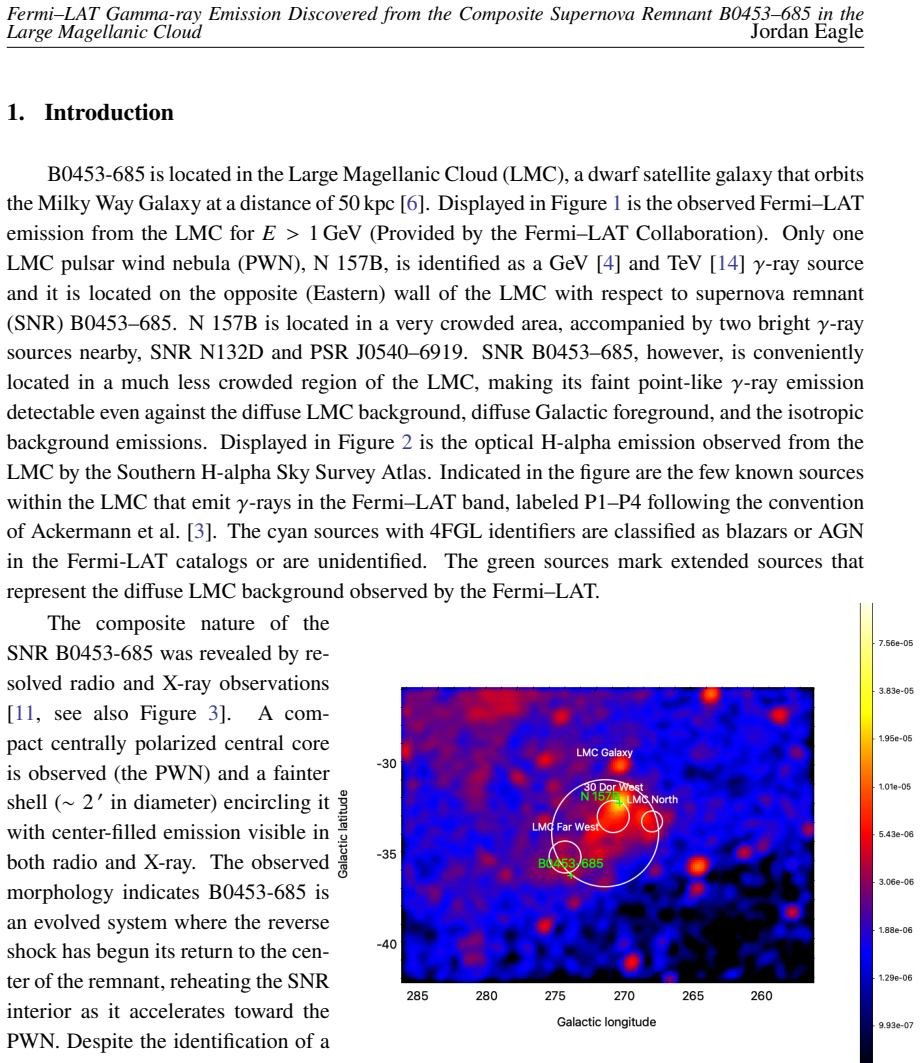

Figure 1. Figure 1: The Fermi–LAT 12-year counts map (Provided by the Fermi–LAT Collaboration). Sources indicated in green represent Fermi PWNe located within the LMC. See text for details. The composite nature of the SNR B0453-685 was revealed by re￾solved radio and X-ray observations [11, see also [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

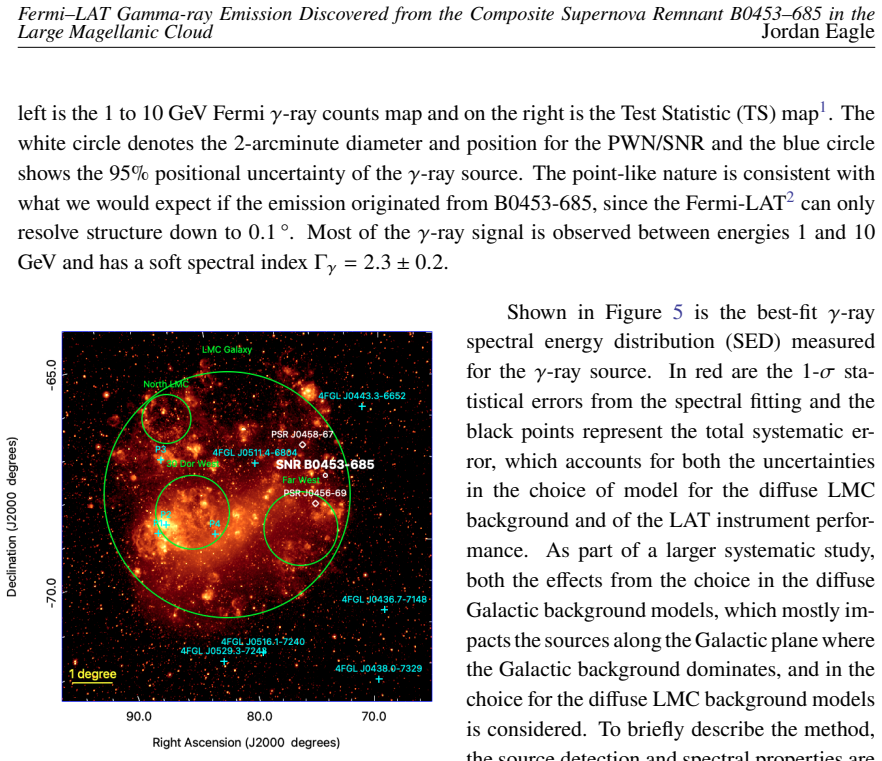

Figure 2. Figure 2: The LMC in the H𝛼 band from the Southern H-Alpha Sky Survey Atlas [SHASSA, 12]. The P1–P4 labels identify the four brightest Fermi point sources in the LMC, following the naming convention used in Ackermann et al. [3]. The four extended templates used to describe the diffuse 𝛾-ray emission from the LMC [components E1–E4 in 3] are indicated with the green circles. The location of SNR B0453–685 is marked in … view at source ↗
Figure 3

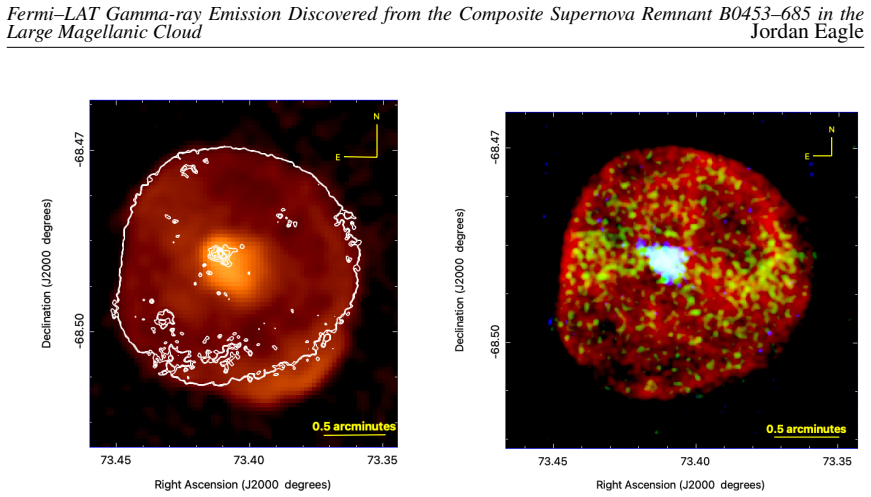

Figure 3. Figure 3: Left: The 1.4 GHz radio emission observed from SNR B0453–685 [11]. The white contours correspond to the central PWN and the outer SNR shell as observed in X-ray (right panel). Right: Tri-color X-ray flux map of SNR B0453–685 [11]. Red is soft X-ray emission between 0.5–1.2 keV, green is medium flux between 1.2–2 keV, and blue is hard flux from 2–8 keV. Soft and medium X-ray emission outlines and fills the … view at source ↗
Figure 4

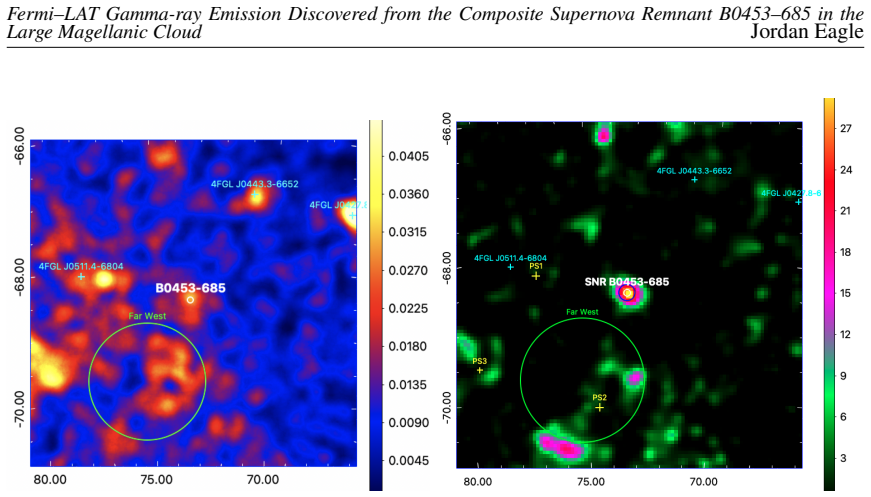

Figure 4. Figure 4: Left: Smoothed (𝜎 = 0.1 °) 5 ° × 5 ° count map of PSF3 events between 1–10 GeV with the locations of 4FGL sources in the field of view labeled. The pixel size is 0.01 deg pixel−1 . Right: 5 ° × 5 ° TS map between 1–10 GeV. The maximum TS value at the SNR position is ∼ 28 (∼ 5𝜎). The 95% positional uncertainty for the best-fit 𝛾-ray point source is in blue. In both panels, the location and approximate size … view at source ↗
Figure 5

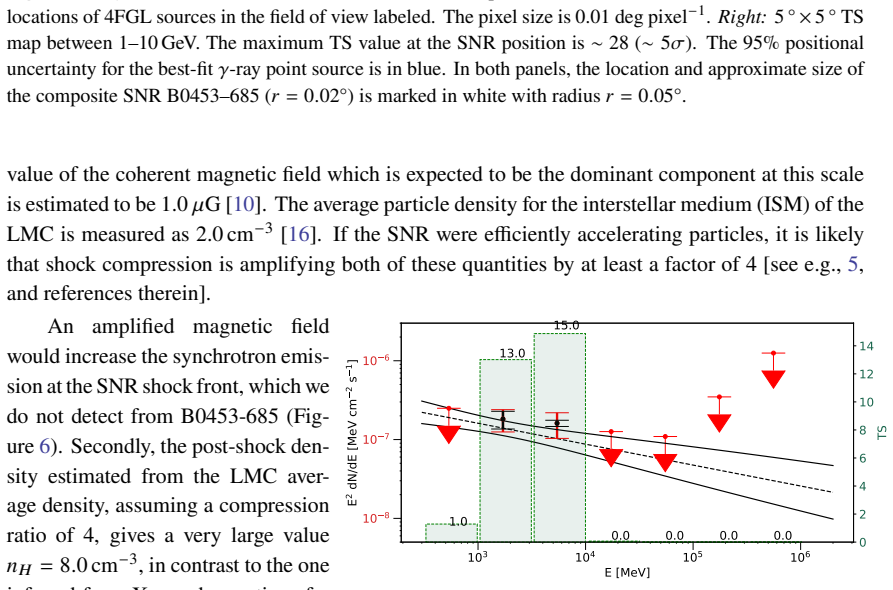

Figure 5. Figure 5: The best-fit 𝛾-ray SED for B0453–685 with 1-𝜎 sta￾tistical uncertainties in red for 𝑇 𝑆 > 1 and 95% confidence level (C.L.) upper limits otherwise. The systematic error from the choice of diffuse LMC model is plotted in black. TS values for each spectral bin are plotted as the green histogram. The data are best characterized as a power-law with Γ = 2.3 ± 0.2. An amplified magnetic field would increase the … view at source ↗
Figure 6

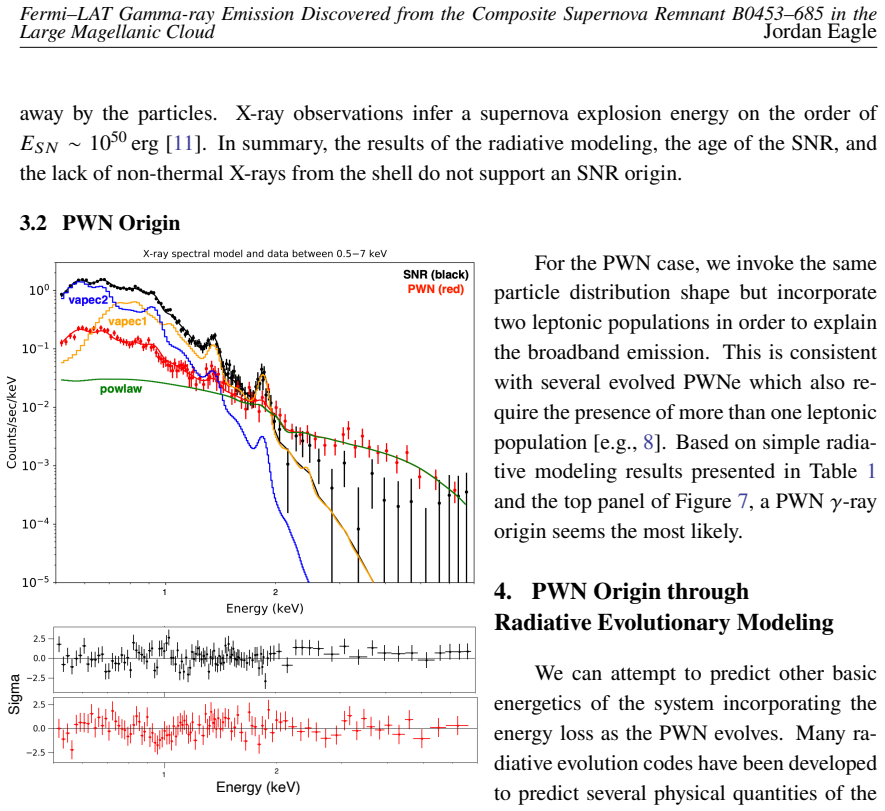

Figure 6. Figure 6: Chandra X-ray spectral data and models. The PWN is best-fit as a simple power law, Γ𝛾 ≈ 1.7. Adapted from Eagle et al. [9]. For the PWN case, we invoke the same particle distribution shape but incorporate two leptonic populations in order to explain the broadband emission. This is consistent with several evolved PWNe which also re￾quire the presence of more than one leptonic population [e.g., 8]. Based on … view at source ↗
Figure 7

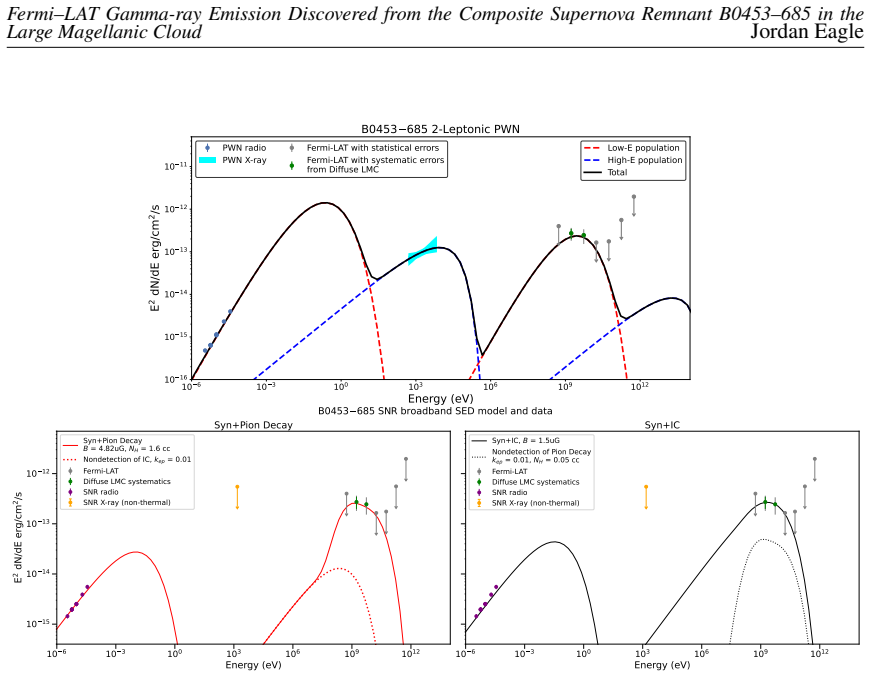

Figure 7. Figure 7: The best-fit broadband models for the three scenarios investigated to understand 𝛾-ray origin. Top: Two leptonic populations are required to explain the broadband PWN emission. Bottom Left: a single leptonic population describing SNR synchrotron emission combined with a single hadronic population describing the 𝛾-ray emission via pion decay from the SNR. Bottom Right: The case where the leptonic population… view at source ↗
Figure 8

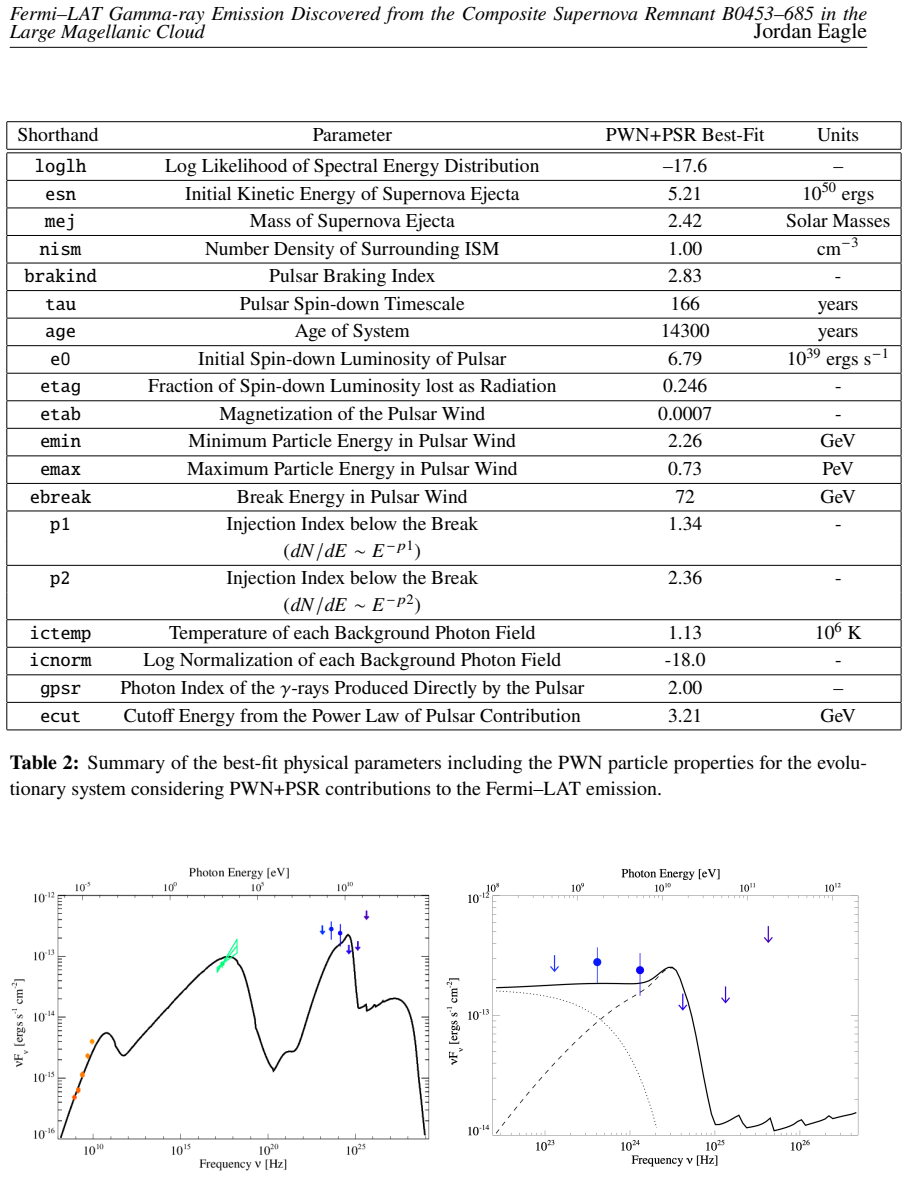

Figure 8. Figure 8: Left: The best-fit SED assuming all Fermi–LAT emission is non-magnetospheric in origin (i.e., PWN only). Right: The 𝛾-ray spectral evolutionary model assuming magnetospheric contribution to the Fermi–LAT emission. The dotted line indicates the pulsar contribution and the dashed line indicates the PWN contribution. The colored points represent the values of observed data that the model used as comparison po… view at source ↗
read the original abstract

A second extragalactic pulsar wind nebula (PWN) is discovered in the MeV-GeV band using the Fermi-LAT. Faint, point-like gamma-ray emission is detected at the location of the composite supernova remnant (SNR) B0453-685 from energies 300MeV-2TeV. The Fermi-LAT data analysis of the new gamma-ray source is presented together with a detailed multi-wavelength investigation to understand the nature of the observed emission. The observational evidence and physical implications from broadband modeling do not support an SNR gamma-ray origin. Semi-analytic radiative evolutionary models are explored to understand the potential for any pulsar or PWN component responsible for the observed gamma-ray emission. The modeling results favor an evolved PWN ($\tau\sim 14,000$ years) that has been impacted by the return of the SNR reverse shock with a possible substantial pulsar component below $5$GeV. The particle acceleration mechanisms and their efficiency within B0453-685 have important implications for the role PWNe play in generating Cosmic Rays (CRs), but constraints on the synchrotron cut-off are required to accurately characterize the underlying particle properties.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports the detection of faint, point-like gamma-ray emission (300 MeV–2 TeV) from the composite SNR B0453-685 in the LMC with Fermi-LAT. Multi-wavelength data and semi-analytic radiative evolutionary models are used to argue that an SNR origin is not supported; instead the emission is attributed to an evolved PWN (age ~14,000 yr) impacted by the returning reverse shock, with a possible pulsar contribution below 5 GeV. Implications for particle acceleration and cosmic-ray production in PWNe are discussed.

Significance. If the modeling successfully excludes an SNR origin and uniquely identifies the PWN component, the result would constitute the second extragalactic PWN detected in the MeV–GeV band and would constrain the efficiency of particle acceleration in evolved PWNe. The work correctly notes that synchrotron cut-off measurements are needed to pin down the underlying particle spectrum.

major comments (2)
  1. [Modeling and broadband SED section (referenced in abstract)] The central claim that the data 'do not support an SNR gamma-ray origin' and instead favor a specific PWN age of ~14,000 yr rests on semi-analytic modeling whose quantitative results (fit statistics, likelihood ratios, or parameter posterior distributions) are not reported. Without these, it is impossible to evaluate whether alternative SNR or mixed models are excluded at a statistically meaningful level or whether degeneracies exist between age, magnetic field, and particle injection parameters.
  2. [Semi-analytic radiative evolutionary models] The assumption that the semi-analytic models can reliably distinguish PWN from SNR emission without significant degeneracies is load-bearing for the rejection of an SNR origin. No explicit tests (e.g., alternative model fits, systematic variations in reverse-shock timing, or Monte Carlo explorations of parameter space) are described to demonstrate uniqueness of the ~14,000 yr PWN solution.
minor comments (2)
  1. [Abstract and data analysis] The abstract states detection 'from energies 300MeV-2TeV' but does not specify the precise energy binning, effective exposure, or background model used for the Fermi-LAT analysis; these details should be added for reproducibility.
  2. [Modeling results] Notation for the PWN age (τ∼14,000 years) should be clarified as to whether it is the spin-down age, the dynamical age from the model, or a fitted parameter.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed review. We address each major comment below and agree that additional quantitative details on the modeling will strengthen the manuscript.

read point-by-point responses

  1. Referee: [Modeling and broadband SED section (referenced in abstract)] The central claim that the data 'do not support an SNR gamma-ray origin' and instead favor a specific PWN age of ~14,000 yr rests on semi-analytic modeling whose quantitative results (fit statistics, likelihood ratios, or parameter posterior distributions) are not reported. Without these, it is impossible to evaluate whether alternative SNR or mixed models are excluded at a statistically meaningful level or whether degeneracies exist between age, magnetic field, and particle injection parameters.

    Authors: We agree that the manuscript does not report formal fit statistics or likelihood ratios for the model comparisons. The semi-analytic modeling was performed to assess physical consistency with the observed spectrum and multi-wavelength data rather than to conduct statistical model selection. In the revised version we will add a dedicated subsection reporting reduced chi-squared values (or equivalent metrics) for the explored PWN and SNR scenarios, along with a brief discussion of the parameter ranges tested and any evident degeneracies between age, magnetic field, and injection parameters. revision: yes

  2. Referee: [Semi-analytic radiative evolutionary models] The assumption that the semi-analytic models can reliably distinguish PWN from SNR emission without significant degeneracies is load-bearing for the rejection of an SNR origin. No explicit tests (e.g., alternative model fits, systematic variations in reverse-shock timing, or Monte Carlo explorations of parameter space) are described to demonstrate uniqueness of the ~14,000 yr PWN solution.

    Authors: The referee correctly notes the absence of systematic tests for uniqueness and degeneracy. Our original analysis involved manual variation of key parameters (age, B-field, reverse-shock epoch) to identify viable solutions, but these explorations were not documented quantitatively. We will revise the modeling section to include results from additional runs with varied reverse-shock timing and a summary of how the ~14,000 yr PWN solution remains preferred under the observational constraints. We will also note the limitations of the semi-analytic approach regarding full Monte Carlo sampling. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper reports a Fermi-LAT detection and performs multi-wavelength analysis plus semi-analytic modeling to interpret the emission origin as favoring an evolved PWN. This is standard data-driven interpretation via parameter fitting rather than a claimed first-principles derivation whose output reduces to its inputs by construction. No self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations are exhibited in the abstract or description that would collapse the central claim. The modeling is presented as exploratory fitting to match the observed SED, which does not meet the criteria for circularity under the enumerated patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review; no explicit free parameters, axioms, or invented entities can be extracted. The modeling implicitly relies on standard PWN evolutionary assumptions whose details are not stated.

pith-pipeline@v0.9.1-grok · 5738 in / 1090 out tokens · 17176 ms · 2026-06-27T12:19:56.062240+00:00 · methodology
