arxiv: 2607.01644 · v1 · pith:IE4V7C4Onew · submitted 2026-07-02 · 🌌 astro-ph.SR

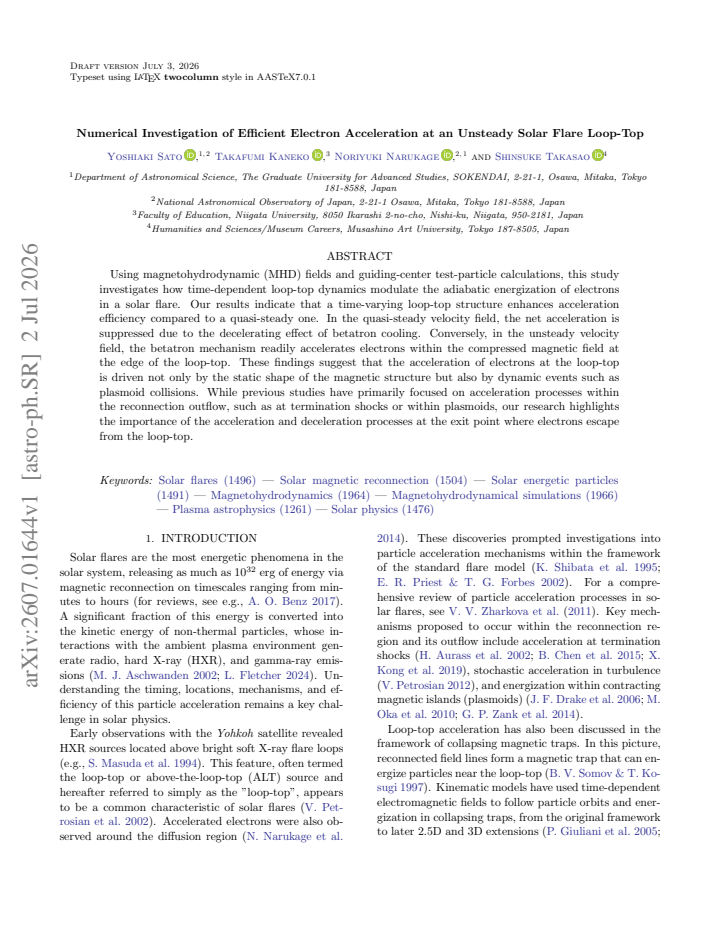

Numerical Investigation of Efficient Electron Acceleration at an Unsteady Solar Flare Loop-Top

Yoshiaki Sato , Takafumi Kaneko , Noriyuki Narukage , Shinsuke Takasao This is my paper

Pith reviewed 2026-07-03 05:31 UTC · model grok-4.3

classification 🌌 astro-ph.SR
keywords solar flareselectron accelerationloop-topbetatron mechanismMHD simulationtest-particleplasmoid
0
0 comments X

The pith

Time-varying loop-top structures in solar flares accelerate electrons more efficiently than steady ones via betatron energization at the edges.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper investigates how time-dependent dynamics at the top of solar flare loops affect electron acceleration using MHD fields and guiding-center test-particle calculations. It establishes that unsteady velocity fields enhance net acceleration by allowing the betatron mechanism to energize electrons in compressed magnetic regions at the loop-top edge. In contrast, quasi-steady fields lead to suppression because betatron cooling offsets gains. The central argument is that acceleration depends on dynamic events such as plasmoid collisions, not only the static magnetic geometry, and that processes at the exit point where electrons leave the loop-top are important. This matters because prior work has emphasized reconnection outflows like termination shocks, so including loop-top dynamics could change how models account for observed flare particle energies.

Core claim

A time-varying loop-top velocity field enhances acceleration efficiency because the betatron mechanism readily accelerates electrons in the compressed magnetic field at the edge, whereas a quasi-steady field suppresses net acceleration through the decelerating effect of betatron cooling; thus acceleration at the loop-top is driven by dynamic events such as plasmoid collisions in addition to static structure.

What carries the argument

The unsteady MHD velocity field at the loop-top, which modulates guiding-center electron motion to produce net betatron acceleration in time-varying compressed B regions.

If this is right

  • Electrons gain energy specifically at the loop-top edge when the velocity field varies in time.
  • Plasmoid collisions and similar dynamic events contribute to driving the acceleration.
  • Processes at the exit point where electrons escape the loop-top affect the overall energization.
  • Acceleration models limited to reconnection outflows may understate the role of loop-top dynamics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Flare observations with variable loop-top motions may show higher particle energies than steady cases.
  • Simulations adding turbulence or wave effects could test whether the steady-unsteady efficiency gap persists.
  • Similar unsteady structures in other reconnection environments might produce comparable acceleration patterns.

Load-bearing premise

The MHD fields combined with guiding-center test-particle motion capture the main energization without other processes such as wave-particle interactions or non-adiabatic effects contributing substantially.

What would settle it

Direct comparison of electron energy gains or spectra from flares with identified steady versus unsteady loop-tops that shows no difference in acceleration efficiency.

Figures

Figures reproduced from arXiv: 2607.01644 by Noriyuki Narukage, Shinsuke Takasao, Takafumi Kaneko, Yoshiaki Sato.

Figure 1

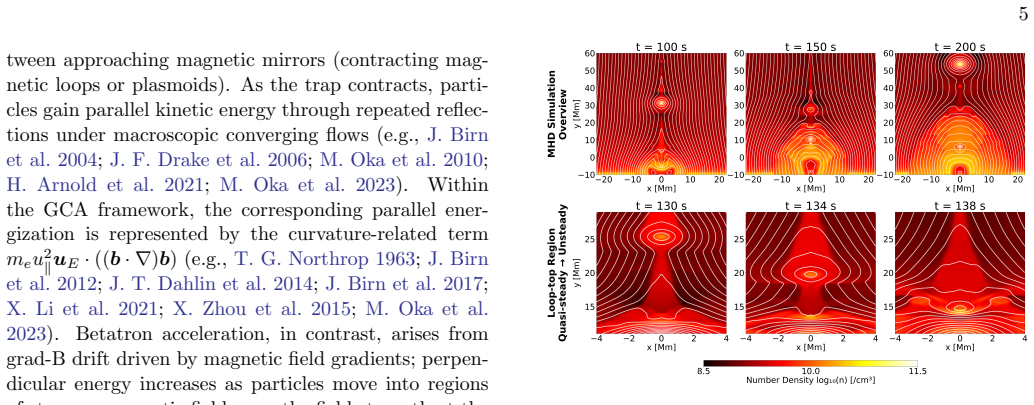

Figure 1. Figure 1: Time evolution of the number density distribu￾tion in the reconnection region from the MHD simulation. The upper panels show the overall view at t = 100, 150, and 200 s, illustrating the large-scale evolution of the recon￾nection region. The lower panels show zoomed-in views of the loop-top region at t = 130, 134, and 138 s, highlighting the transition from a quasi-steady state (t = 130 s) to an unsteady s… view at source ↗

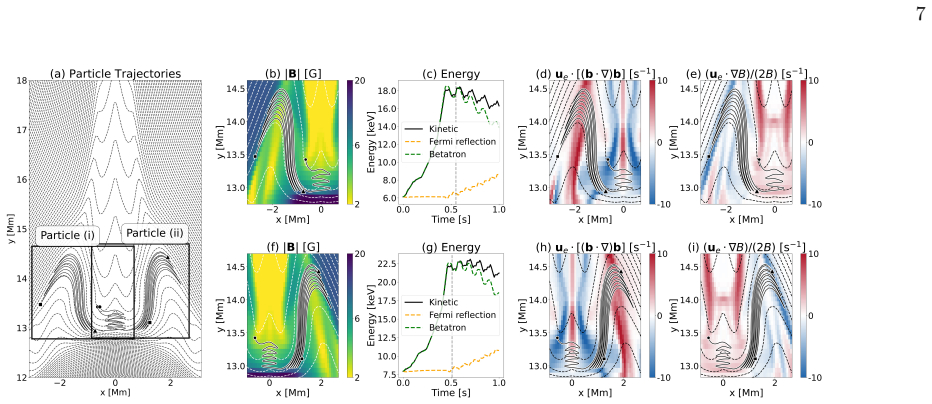

Figure 2
Figure 2. Figure 2: Electron acceleration in the quasi-steady loop-top configuration at t = 130 s. This figure shows the trajectories and energy evolution for two selected electrons. (a) Overview of electron trajectories with magnetic field lines. (b, f) Trajectories on the magnetic-field strength (B) map. (c, g) Time evolution of kinetic energy (black), cumulative Fermi reflection energy gain (orange), and cumulative betatro… view at source ↗
Figure 3

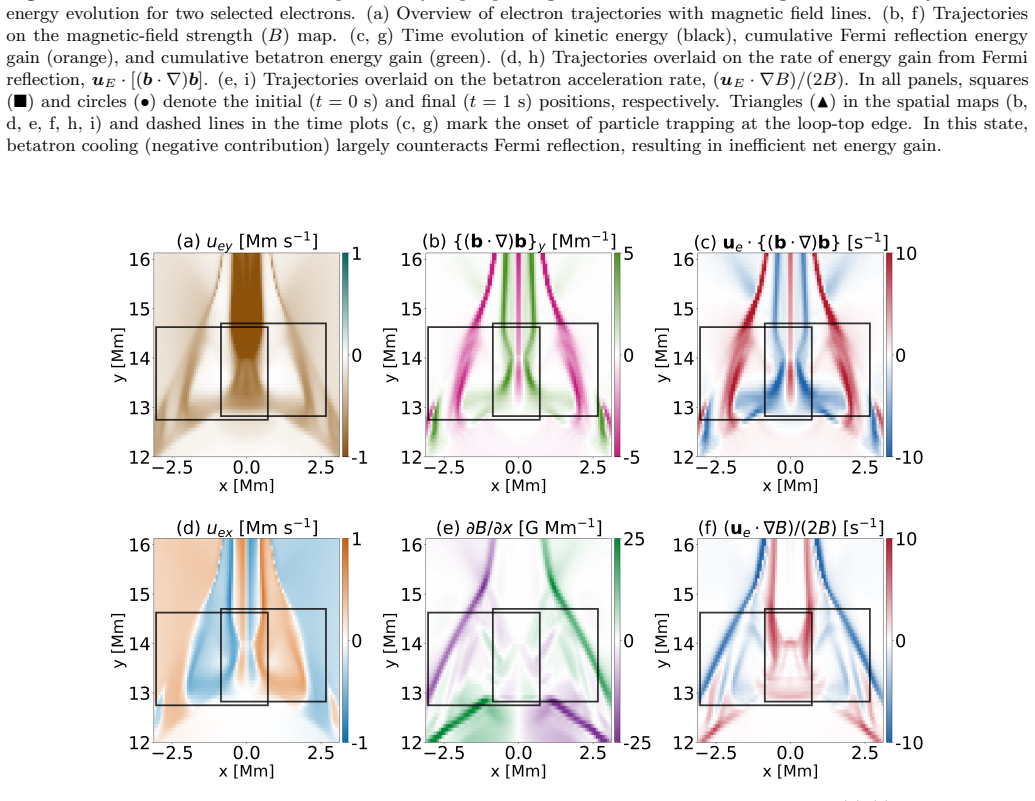

Figure 3. Figure 3: Spatial distributions of quantities governing acceleration mechanisms at t = 130 s. Panels (a)-(c) show factors for Fermi reflection: (a) vertical plasma flow (uey), (b) magnetic curvature ([(b · ∇)b]y), and (c) the resulting acceleration rate. Panels (d)-(f) show factors for betatron acceleration: (d) transverse plasma flow (uex), (e) magnetic field gradient (∂B/∂x), and (f) the resulting acceleration rat… view at source ↗
Figure 4

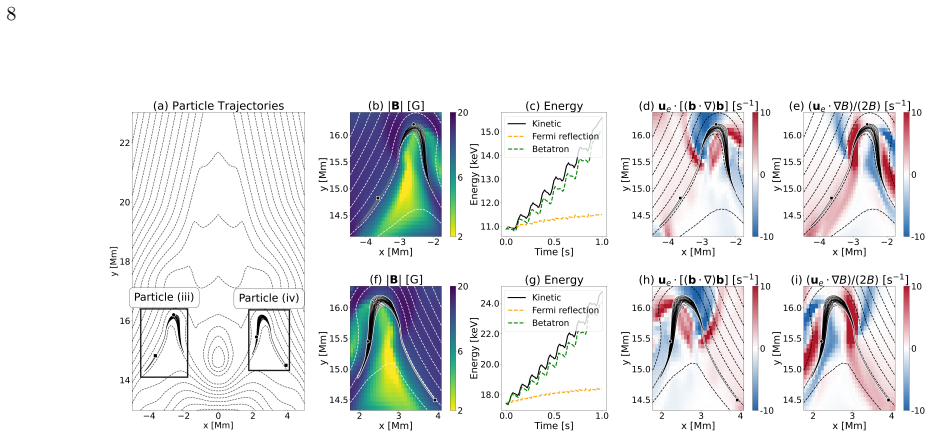

Figure 4. Figure 4: Electron acceleration in the unsteady loop-top at t = 138 s, perturbed by a plasmoid collision. The panel layout is the same as in [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

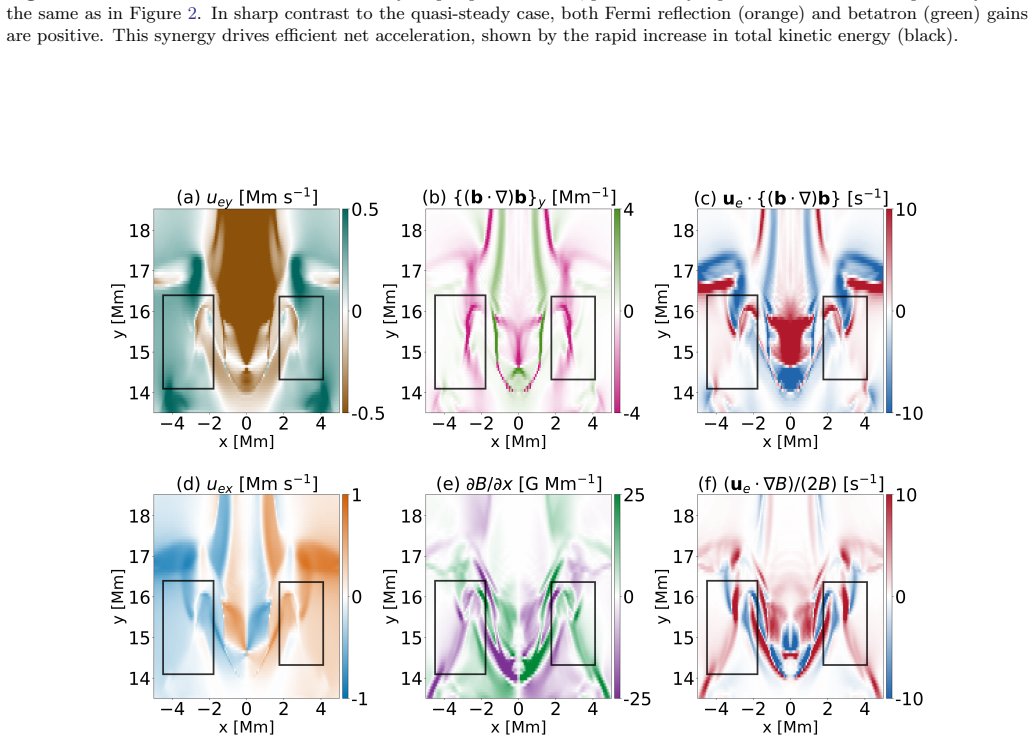

Figure 5. Figure 5: Same as [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

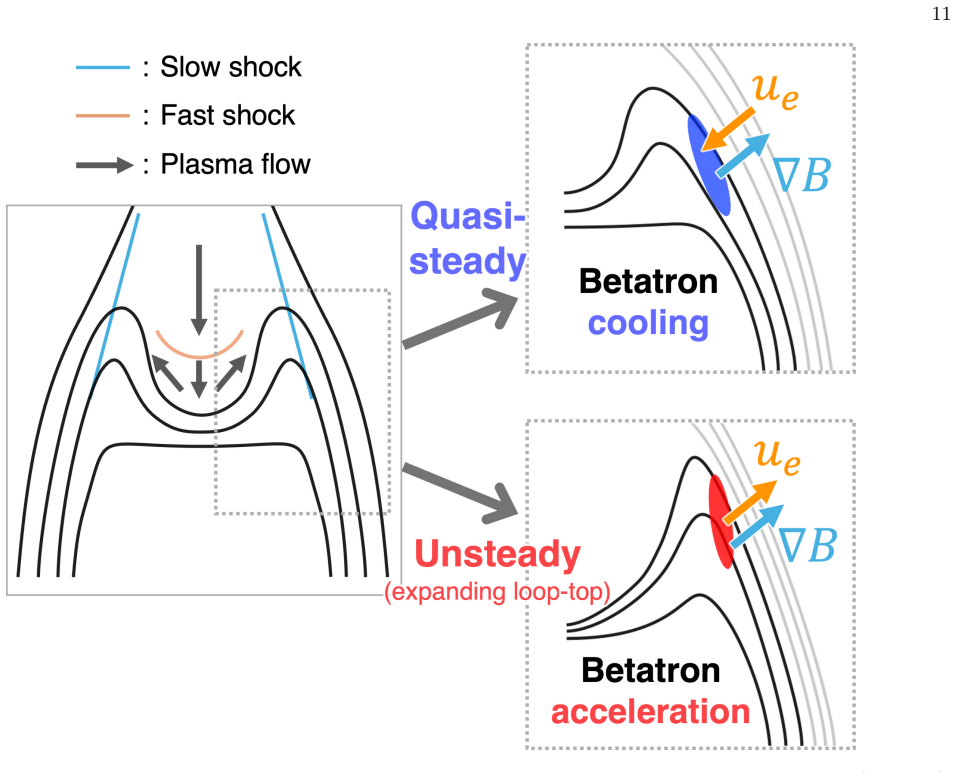

Figure 6. Figure 6: A schematic of the electron acceleration mechanism at the flare loop-top. In a quasi-steady state (top right), the inward plasma flow (uE) driven by slow shocks opposes the outward magnetic field gradient (∇B), resulting in betatron cooling. Conversely, in an unsteady, expanding loop-top (bottom right), the outward plasma flow aligns with the magnetic field gradient, leading to positive betatron accelerati… view at source ↗

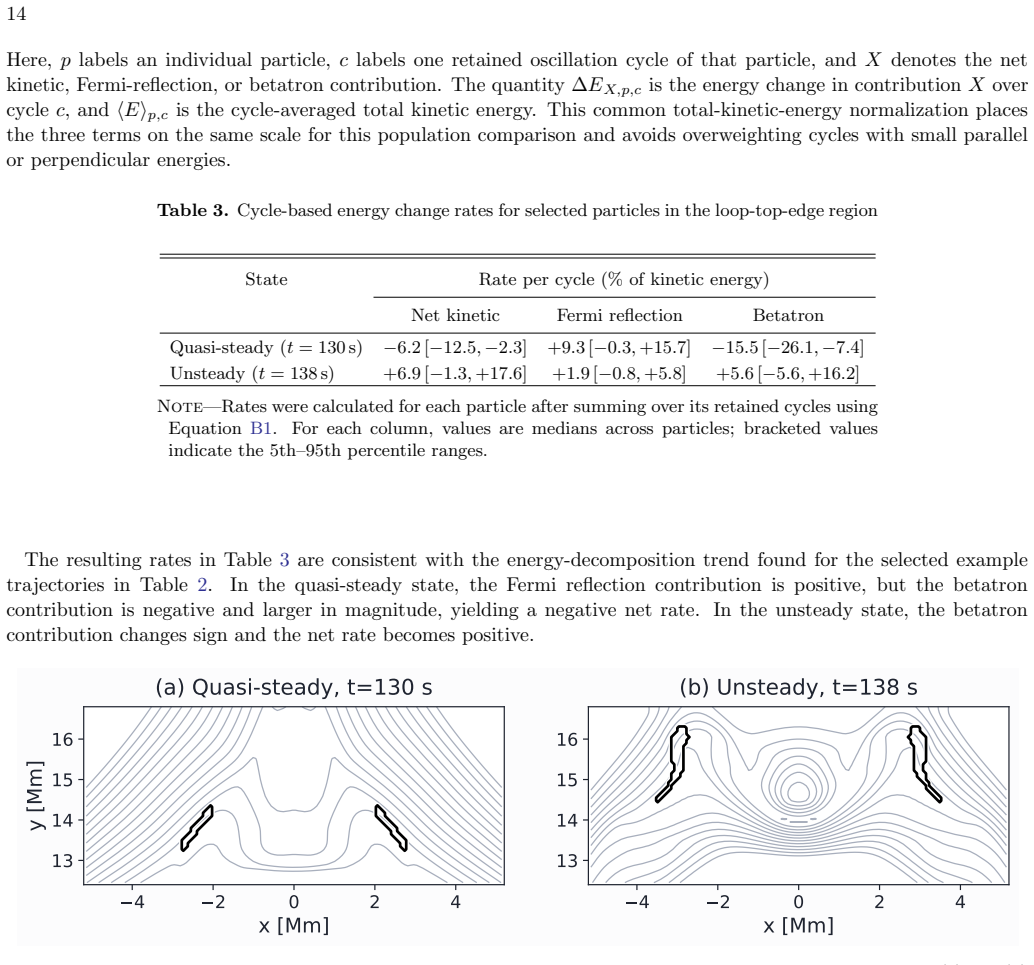

Figure 7
Figure 7. Figure 7: Spatial regions used for particle selection in the calculation with loop-top-only initial conditions. Panels (a) and (b) show magnetic field lines for the quasi-steady and unsteady snapshots; black contours mark the selected loop-top-edge regions [PITH_FULL_IMAGE:figures/full_fig_p014_7.png] view at source ↗
read the original abstract

Using magnetohydrodynamic (MHD) fields and guiding-center test-particle calculations, this study investigates how time-dependent loop-top dynamics modulate the adiabatic energization of electrons in a solar flare. Our results indicate that a time-varying loop-top structure enhances acceleration efficiency compared to a quasi-steady one. In the quasi-steady velocity field, the net acceleration is suppressed due to the decelerating effect of betatron cooling. Conversely, in the unsteady velocity field, the betatron mechanism readily accelerates electrons within the compressed magnetic field at the edge of the loop-top. These findings suggest that the acceleration of electrons at the loop-top is driven not only by the static shape of the magnetic structure but also by dynamic events such as plasmoid collisions. While previous studies have primarily focused on acceleration processes within the reconnection outflow, such as at termination shocks or within plasmoids, our research highlights the importance of the acceleration and deceleration processes at the exit point where electrons escape from the loop-top.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript uses MHD fields combined with guiding-center test-particle calculations to investigate adiabatic electron energization at a solar flare loop-top. It claims that time-varying (unsteady) loop-top structures enhance acceleration efficiency relative to quasi-steady cases, where betatron cooling suppresses net gains; in the unsteady case, betatron acceleration occurs readily in compressed fields at the loop-top edge, driven by dynamic events such as plasmoid collisions. The work argues that acceleration at the loop-top exit point is important in addition to processes in reconnection outflows.

Significance. If the central distinction between unsteady and quasi-steady cases holds under the stated approximations, the result would usefully redirect attention to time-dependent loop-top dynamics as a contributor to flare electron acceleration. The direct numerical experiments (MHD + test particles) constitute a concrete strength that allows falsifiable comparison of the two velocity-field regimes.

major comments (1)
  1. [Numerical methods / test-particle section] The central claim rests on the guiding-center test-particle results distinguishing unsteady from quasi-steady acceleration. No checks of the adiabaticity ordering (gyroradius ≪ field scale length; temporal variation slow compared with gyroperiod) or cross-validation against full-orbit integration are reported for the rapid compressions and plasmoid collisions at the loop-top edge. This omission is load-bearing because violation of the ordering would render the reported betatron enhancement an artifact of the approximation rather than a physical effect.
minor comments (1)
  1. [Abstract] Abstract and results sections lack quantitative metrics (e.g., energy spectra, acceleration timescales, efficiency ratios), grid resolution, or error estimates, making it difficult to assess the magnitude and robustness of the claimed enhancement.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thoughtful review and for highlighting the importance of validating the guiding-center approximation. We address the single major comment below and commit to revisions that strengthen the numerical methods section.

read point-by-point responses

  1. Referee: [Numerical methods / test-particle section] The central claim rests on the guiding-center test-particle results distinguishing unsteady from quasi-steady acceleration. No checks of the adiabaticity ordering (gyroradius ≪ field scale length; temporal variation slow compared with gyroperiod) or cross-validation against full-orbit integration are reported for the rapid compressions and plasmoid collisions at the loop-top edge. This omission is load-bearing because violation of the ordering would render the reported betatron enhancement an artifact of the approximation rather than a physical effect.

    Authors: We agree that explicit verification of the adiabaticity ordering is necessary to support the central claim. In the revised manuscript we will add a dedicated subsection (and associated figure) that quantifies, for representative electron energies and locations including the loop-top edge during plasmoid collisions, (i) the ratio of gyroradius to local magnetic-field gradient scale length and (ii) the ratio of the MHD temporal variation timescale to the gyroperiod. We will also integrate a statistically meaningful subset of trajectories with the full Lorentz-force equations and directly compare the resulting energy spectra and spatial distributions with the guiding-center results; any discrepancies will be reported. These additions will be placed in the numerical-methods section so that readers can assess the validity of the approximation under the specific conditions of the unsteady runs. revision: yes

Circularity Check

0 steps flagged

No circularity; results from direct numerical experiments

full rationale

The paper performs MHD simulations of quasi-steady versus unsteady loop-top flows, then integrates guiding-center test particles in the resulting time-dependent fields. The reported efficiency difference follows directly from comparing the computed particle energy gains in the two cases; no parameters are fitted to observations and re-used as predictions, no equations are defined in terms of their own outputs, and no load-bearing claims rest on self-citations. The derivation chain is therefore self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available; no specific free parameters, axioms, or invented entities can be extracted from the full text.

pith-pipeline@v0.9.1-grok · 5712 in / 1082 out tokens · 38814 ms · 2026-07-03T05:31:26.894478+00:00 · methodology
