This paper argues that in monolayer graphene with smooth finite-range disorder, the spatial radius of defects—not their potential strength—is the dominant parameter controlling thermoelectric response, and proves this by exact partial-wave

Reviewed by Pith at T0; open to challenge. T0 means a machine referee read the full paper against a public rubric. the ladder, T0–T4 →

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗

T0 review · deepseek-v4-flash

2026-08-02 22:13 UTC pith:IEZTTZ6Q

load-bearing objection A solid, incremental extension of exact phase-shift transport to thermoelectric coefficients in graphene; the radius-dominance claim is plausible but needs a smoothing test before it can be generalized. the 3 major comments →

arxiv 2602.17453 v1 pith:IEZTTZ6Q submitted 2026-02-19 cond-mat.mes-hall cond-mat.dis-nncond-mat.mtrl-scicond-mat.other

Charge and energy transport in graphene with smooth finite-range disorder

Juan A. Ca\~nas , Daniel A. Bonilla , J. C. P\'erez-Pedraza , A. Mart\'in-Ruiz This is my paper
classification cond-mat.mes-hall cond-mat.dis-nncond-mat.mtrl-scicond-mat.other
keywords GrapheneBoltzmann transportThermoelectric effectsDefectsSoft-sphere potentialPartial-wave phase shiftsWiedemann-Franz lawSeebeck coefficient
verification ladder T0 review T1 audit T2 compute T3 formal T4 reserved

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper studies charge and heat transport in monolayer graphene when disorder is smooth and finite-range, modeled as circular soft-sphere potentials of radius R and strength V0. It goes beyond the Born approximation by solving the scattering problem exactly via partial-wave phase shifts, then uses these in a Boltzmann transport framework to compute electrical and thermal conductivities, the Lorenz number, Seebeck coefficient, and figure of merit ZT. The central finding is that the spatial extent of the defects (R) controls key thermoelectric quantities—including Wiedemann-Franz law violations and ZT—while the potential strength V0 plays only a secondary role. This matters because real graphene disorder is often smooth and extended, and the result identifies defect size as a practical tuning knob for thermoelectric design.

Core claim

For a dilute ensemble of soft-sphere impurities in graphene, the exact scattering matrix yields transport relaxation times that increase monotonically with Fermi energy, with no resonant minima. The transport scattering time depends on differences between adjacent partial-wave phase shifts, reflecting pseudospin-momentum locking. Using these phase shifts in a linearized Boltzmann equation, the paper finds that the defect radius R—not the potential strength V0—dominates the magnitude and functional form of the deviation from the Wiedemann-Franz law, the Seebeck coefficient, and the figure of merit ZT. This dominance holds across the parameter ranges studied: larger spheres produce stronger WF

What carries the argument

Partial-wave phase shifts for Dirac fermions scattering off a circular constant potential. The phase shifts are obtained analytically by solving the Dirac equation in inner and outer regions and imposing continuity at r=R, giving tan δ_mj in terms of Bessel functions. The transport scattering time is then expressed as a sum over differences of adjacent phase shifts, 1/τ_tr = (2 n_imp v_F / k) Σ sin²(δ_{m+1} − δ_m). These energy-resolved phase shifts feed into the Boltzmann transport equation, producing closed-form low-temperature expressions for the Onsager coefficients, from which all transport and thermoelectric quantities follow.

Load-bearing premise

The model assumes each defect is a sharp-edged circle of constant potential; real smooth disorder has no hard boundary, and this sharp edge could introduce spurious scattering that artificially makes the radius look more important than the strength.

What would settle it

Compute the same transport coefficients using a smooth finite-range profile without a hard edge (e.g., V(r)=V0 exp(−r²/R²) or a screened Coulomb potential) in the same partial-wave and Boltzmann framework. If the Lorenz-number deviation and Seebeck coefficient no longer scale primarily with R, or if V0 becomes comparably important, the central claim is falsified. Equivalently, an experiment varying defect radius at fixed potential strength should show the predicted dependence on R.

Watch this falsifier — get emailed when new claim-graph text bears on it.

If this is right

  • Defect radius becomes a practical design parameter for engineering graphene thermoelectrics, potentially more impactful than tuning impurity strength.
  • Smooth finite-range disorder alone can produce measurable Wiedemann-Franz violations at finite temperatures, with the magnitude controlled by R.
  • Nonperturbative treatment is essential: the Born approximation fails near charge neutrality and for strong or extended scatterers, so exact phase-shift methods give qualitatively different low-energy transport.
  • Predicted low-energy transparency (Ramsauer-Townsend-like) leads to a rising residual conductivity at low Fermi energy, a signature that could be tested in high-mobility samples.
  • Combined with phonon-suppression strategies (nanostructuring, isotope engineering), the electronic ZT enhancement from defect size could approach practically relevant values.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The sharp-edged step potential may amplify the role of radius: for smooth profiles like Gaussian bumps or screened Coulomb potentials without a hard boundary, the effective 'size' is a soft scale, so the claimed dominance of R over V0 could weaken or change—this is testable by recomputing with smoother potentials.
  • The absence of resonances is tied to the scalar soft-sphere potential; adding vector potentials (strain) or different potential shapes might reintroduce quasi-bound states and resonant thermoelectric features (cf. Dirac oscillator results), suggesting a broader design space.
  • The paper stays away from charge neutrality; near the Dirac point, bipolar diffusion and hydrodynamic effects could make the Lorenz number behave differently, so the WF-violation story may differ in that regime.
  • Experimental falsification could come from engineered samples (e.g., implanted ions or controlled nanobubbles) where defect size is varied at fixed potential strength: if Seebeck or Lorenz ratio does not scale with radius, the central claim fails.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The paper develops an exact nonperturbative treatment of charge and heat transport in graphene with finite-range circular impurity potentials. The authors solve the two-dimensional Dirac equation for a step-like circular barrier, derive analytic partial-wave phase shifts (Eq. 14), construct the transport scattering time (Eq. 18), and then feed it into a semiclassical Boltzmann formalism. Using low-temperature Sommerfeld expansions they obtain the electrical conductivity, electronic thermal conductivity, Lorenz ratio, Seebeck coefficient, and figure of merit ZT. Numerical results are presented for parameters typical of graphene with impurity radii in the 1.5–5 nm range and potential strengths of 5–50 meV. The central claim is that the defect radius R controls the thermoelectric quantities, while the potential strength V0 plays a secondary role.

Significance. The exact-phase-shift approach is a strength: it goes beyond the Born approximation and provides a clear, internally consistent route from the Dirac equation to transport coefficients. If the claimed dominance of defect radius over potential strength were robust, it would offer a concrete design principle for impurity engineering in graphene thermoelectrics. The paper also carefully separates electronic from phononic contributions and correctly notes that its ZT values are upper bounds on the electronic part. However, the central claim is currently tied to a discontinuous step potential, which undermines the stated generalization to smooth disorder, and the numerical results contain a unit inconsistency that must be resolved before the quantitative conclusions can be accepted.

major comments (3)
  1. [Sec. 2 and Eq. (14)] The paper claims to model smooth finite-range disorder, but the potential V(r)=V0[Θ(r)−Θ(r−R)] is a hard step. A smooth profile has negligible Fourier weight at momenta ≫1/d, whereas the step has 1/q tails, so the partial-wave composition and the energy dependence of τ_tr can differ qualitatively. Since τ_tr feeds directly into S, L/L0, and ZT, the step-specific result does not by itself establish the title claim. Please test a smoothed profile (e.g., a tanh or Gaussian edge) at fixed R and V0, or explicitly restrict the conclusions to sharp circular barriers.
  2. [Sec. 5, Fig. 2; Eqs. (18) and (29)] Fig. 2 labels the relaxation time in picoseconds and shows values up to about 60 ps. However, with the stated parameters (n_imp=1e12 cm^-2, vF=1e6 m/s, EF=200 meV), Eq. (18) gives 1/τ ≈ 2 n_imp vF/k ≈ 6.6×10^13 s^-1, i.e., τ ≈ 15 fs. If τ were tens of ps, Eq. (29) would produce σ ≈ 0.1–1 S, which is five orders of magnitude larger than the values plotted in Fig. 3. The axis is presumably in femtoseconds; the figure, caption, and any derived quantities must be corrected.
  3. [Sec. 5, Figs. 3–7] The central claim that R is the dominant parameter and V0 is secondary is based on scans over R=1.5–5 nm and V0=5–50 meV. In Eq. (14), however, the phase shifts depend only on kR and V0R/ℏvF, and these two scan ranges vary the second combination by comparable factors. Fig. 3(b) also shows a significant change in conductivity with V0. To support the claimed dominance, provide broader scans, including V0 values comparable to EF, and discuss the dimensionless combination V0R/ℏvF rather than treating R and V0 as independent controls.
minor comments (4)
  1. [Fig. 7(a) caption] The caption states “scattering potential V0 = 15 nm”; this should be 15 meV.
  2. [Sec. 2, first paragraph] “refereed to as soft spheres” should be “referred to as soft spheres.”
  3. [Eq. (14) and surrounding text] The notation |k_in| is used, but the sign convention for k_in is defined only implicitly. Spell out that k_in = s k − V0/(χℏvF) before taking the absolute value, so the sign of V0 and the band/valley indices are unambiguous.
  4. [Fig. 3] The horizontal axes are unlabeled in the caption; specify units (nm for radius, meV for potential).

Circularity Check

0 steps flagged

No significant circularity: the phase-shift and Boltzmann derivation is self-contained; the only self-citation is comparative and not load-bearing.

full rationale

The derivation chain is self-contained. The scattering input is the exact solution of the Dirac equation for the step potential V(r)=V0(Theta(r)-Theta(r-R)) defined in Section 2, with phase shifts obtained by continuity at r=R in Eq. (14). No transport coefficient is used to define or fit the model parameters: R, V0, n_imp, v_F, and E_F are set from literature values (Section 5). The transport relaxation time, Eq. (18), follows from Fermi's golden rule and the phase-shift T-matrix; the Onsager coefficients, Eqs. (25)-(27), and the derived sigma, kappa, L, S, and ZT are standard Boltzmann-Sommerfeld expressions rather than renamings of inputs. The central claim that R dominates V0 is a numerical output, not an input: both R and V0 enter the phase shifts through kR and V0R/(hbar v_F), and the reported dependences are computed, not assumed. The only self-citation is Ref. [39], used to contrast the absence of resonant minima with a Dirac-oscillator model; this comparison does not support any load-bearing step in the derivation. The skeptical concern that a hard-step potential may not faithfully represent smooth disorder is a modeling-validity/correctness issue, not circularity, because the step model is not defined in terms of the predicted transport quantities and the model was not tuned to produce the R-dominance claim.

Axiom & Free-Parameter Ledger

4 free parameters · 6 axioms · 0 invented entities

The paper introduces no new entities. The model parameters (R, V0, n_imp, E_F) are physically motivated inputs, not fitted to the target outputs. The main extra assumption is that a step-function potential captures smooth disorder.

free parameters (4)
  • impurity radius R = 1.5, 3, 5 nm (scanned)
    Model parameter defining the spatial extent of the soft-sphere potential; central claim depends on varying R.
  • potential strength V0 = 5-50 meV (scanned)
    Model parameter for the soft-sphere potential; shown to have secondary effect, but the scan is narrow.
  • impurity density n_imp = 1e12 cm^-2
    Sets the overall scattering rate; enters Eq. (18) linearly; cancels in ratios L/L0, S, ZT.
  • Fermi energy E_F = 200 meV
    Operating point; transport coefficients evaluated at this energy.
axioms (6)
  • domain assumption Continuum Dirac model valid up to ~1 eV; intervalley scattering suppressed for R ≫ a
    Section 2: expansion around Dirac points; R ≫ a ensures independent valleys.
  • domain assumption Dilute limit n_imp R^2 ≪ 1, independent scattering centers
    Section 2: allows Boltzmann averaging with n_imp factor.
  • ad hoc to paper Soft-sphere step potential models smooth finite-range disorder
    Section 2: the step potential is chosen as a tractable proxy; real smooth disorder may differ.
  • domain assumption Electron-electron and electron-phonon scattering neglected; elastic impurity scattering dominates
    Section 1: moderate T and clean encapsulated devices.
  • domain assumption Boltzmann relaxation-time approximation with a single energy-dependent τ_tr is valid; equivalence to Kubo in DC dilute limit
    Section 4: cites [34,35,25]; not derived in this paper.
  • standard math Standard partial-wave and Bessel function mathematics
    Section 3: solving the Dirac equation in polar coordinates.

pith-pipeline@v1.3.0-alltime-deepseek · 17131 in / 19701 out tokens · 176616 ms · 2026-08-02T22:13:19.994752+00:00 · methodology

0 comments
read the original abstract

We investigate charge and energy transport in monolayer graphene with smooth finite-range disorder, modeled by soft impurity potentials. Using a continuum Dirac model, we go beyond the Born approximation by computing the exact scattering matrix for individual impurities. This captures the full nonperturbative physics of smooth disorder. From the exact scattering data, we evaluate transport coefficients by solving the Boltzmann equation with energy-resolved phase shifts. We analyze electrical and electronic thermal conductivities versus carrier density and temperature, including deviations from the Wiedemann-Franz law. Our results reveal that finite-range disorder nontrivially modifies charge and heat currents, especially at low energies where perturbative methods fail. These findings provide a more accurate transport characterization for disordered Dirac materials and clarify how smooth disorder governs energy flow in graphene.

Figures

Figures reproduced from arXiv: 2602.17453 by A. Mart\'in-Ruiz, Daniel A. Bonilla, J. C. P\'erez-Pedraza, Juan A. Ca\~nas.

Figure 1

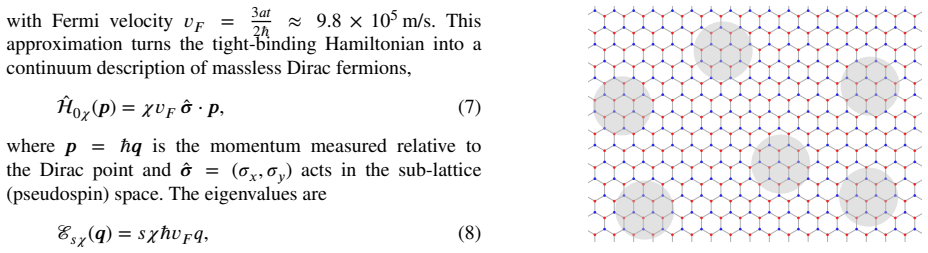

Figure 1. Figure 1: A schematic of the proposed model. Soft￾sphere scatterer potentials are randomly distributed across a graphene sheet. The dilute impurity limit ensures statistically independent scattering centers with negligible overlap. extent. Within this framework, the transport properties are derived from the scattering transition rates induced by this perturbation [34, 35]. A schematic of randomly distributed soft-sp… view at source ↗
Figure 2
Figure 2. Figure 2: Transport relaxation time (in picoseconds) as a function of the Fermi energy, calculated using Eq. (18) for a random distribution of 3 nm-radius soft spheres with a concentration of 𝑛imp = 1 × 1012 cm−2, and for various poten￾tials. The subfigure (a) corresponds to positive soft sphere potentials, whereas (b) corresponds to negative ones. -40 -20 0 20 40 0 100 200 300 400 500 600 (a) 2.5 3.0 3.5 4.0 4.5 5.… view at source ↗
Figure 5
Figure 5. Figure 5: Temperature dependence of the DC conductivity. The conductivity was calculated at a Fermi energy of ℰ𝐹 = 200 meV, for spheres distributed with density 𝑛imp = 1 × 1012 cm−2 and with: (a) a 3 nm-radius and (b) a 5 nm-radius. : Preprint submitted to Elsevier Page 12 of 10 [PITH_FULL_IMAGE:figures/full_fig_p012_5.png] view at source ↗
Figure 4
Figure 4. Figure 4: DC conductivity versus the Fermi energy at zero temperature for a distribution of: (a) 1.5 nm-radius spheres, (b) 3 nm-radius spheres and (c) 5 nm-radius spheres. 50 100 150 200 250 300 0 50 100 150 200 250 (a) 50 100 150 200 250 300 0 20 40 60 (b) [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: Temperature dependence of: (a) the thermal conductivity setting 𝑅 = 3 nm, and (b) the Lorenz number setting 𝑉0 = 15 meV. The graphs were computed for an impurity density of 𝑛imp = 1 × 1012 cm−2, and a Fermi energy of 200 meV. 0 50 100 150 200 250 300 -70 -60 -50 -40 -30 -20 -10 0 (a) 0 50 100 150 200 250 300 0.00 0.01 0.02 0.03 0.04 0.05 0.06 0.07 (b) 0 50 100 150 200 250 300 0.00 0.02 0.04 0.06 0.08 0.10 … view at source ↗
