Optimizing Expert-Designed Crystal Graph Networks for Band-Gap Prediction with an Autonomous LLM Research Loop

Pith reviewed 2026-06-30 05:46 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci cs.AIcs.LG
keywords crystal graph networksband-gap predictionMatBench benchmarkLLM coding agentautonomous optimizationmaterials machine learningspace-group embeddingmessage passing
0
0 comments X

The pith

An autonomous LLM coding agent built the top model for crystal band-gap prediction on the MatBench benchmark.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that a general-purpose coding agent can autonomously refine crystal graph networks to achieve the highest accuracy on the MatBench band-gap task among models trained without external pretraining. It outperforms all seventeen previously reported expert-designed models on a benchmark of more than 100,000 crystals. The agent reached this result by adding element-pair features to message-passing edges and incorporating crystal space-group embeddings, both of which are established techniques. The work therefore shows that LLM-driven loops can optimize expert machine-learning architectures for materials property prediction while also mapping the practical boundaries of such automation.

Core claim

On the MatBench band-gap benchmark (>100k crystals), a general-purpose coding agent autonomously built the most accurate model trained without external pretraining, ahead of all seventeen expert-designed models reported for the task. The agent reached this performance by implementing known methods: element-pair features on each message-passing edge and a crystal space-group embedding. The study both validates that LLM-agent autonomous research can optimize an expert-designed machine learning model for material property prediction and examines the limitations of the approach.

What carries the argument

Autonomous LLM research loop that iteratively codes, trains, and evaluates crystal graph networks for band-gap regression.

If this is right

  • The same agent loop can be applied to other MatBench tasks such as formation energy or elasticity prediction.
  • Element-pair edge features and space-group embeddings become standard additions to crystal graph architectures.
  • Autonomous coding agents reduce the human effort needed to reach state-of-the-art performance on fixed materials benchmarks.
  • Limitations identified in the agent loop will guide the design of more reliable autonomous research systems.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The result implies that many incremental gains in materials ML may already be reachable by systematic recombination of known components rather than novel inventions.
  • If the loop generalizes, similar agents could be deployed on private or newly collected crystal datasets without requiring a large team of domain experts.
  • The work leaves open whether the agent would discover genuinely new architectural motifs when the search space is expanded beyond current crystal-graph conventions.

Load-bearing premise

The agent's model was evaluated under identical conditions to the 17 expert models on the public benchmark, with no hidden advantages from the agent's implementation details or data handling.

What would settle it

Re-running the agent's final model on the public MatBench split and finding that its accuracy falls below at least one of the seventeen expert baselines.

Figures

Figures reproduced from arXiv: 2606.29717 by Boris I. Yakobson, Chenmu Zhang.

Figure 1

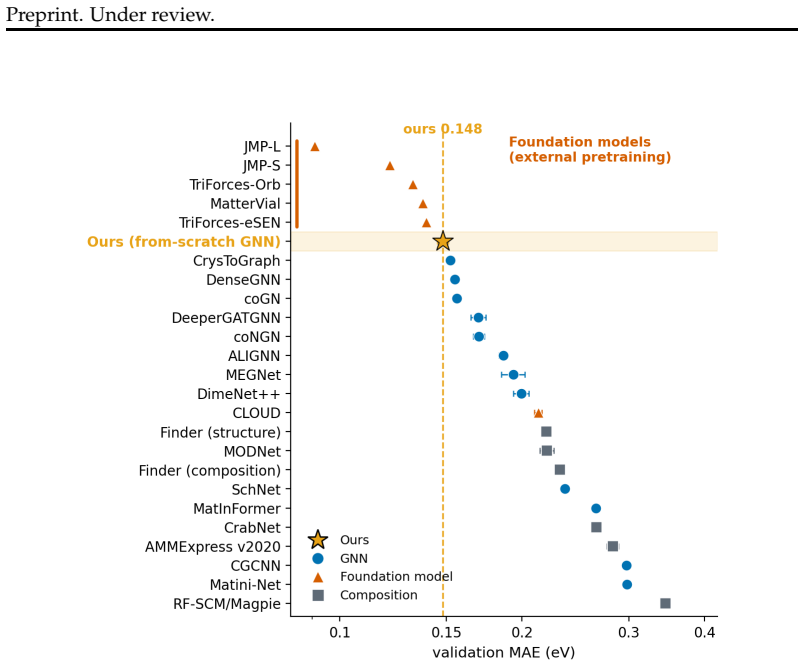

Figure 1. Figure 1: Mean absolute error (eV, log scale, lower is better) on the [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

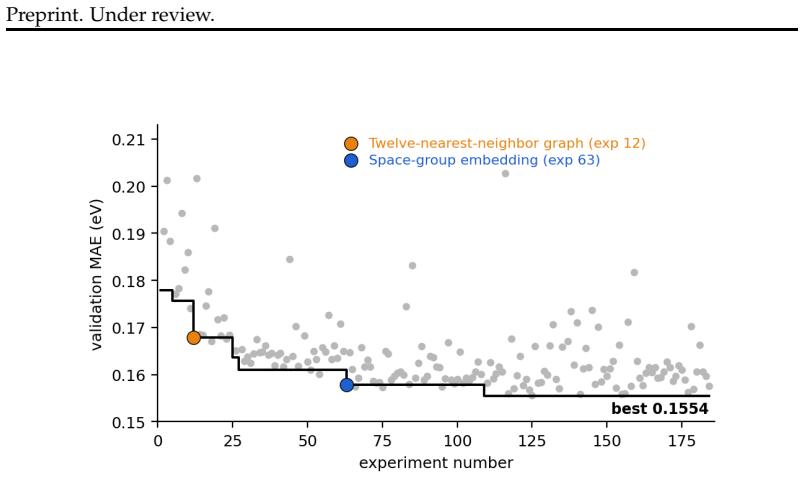

Figure 2. Figure 2: The lowest validation MAE reached (eV, solid black line) against experiment [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

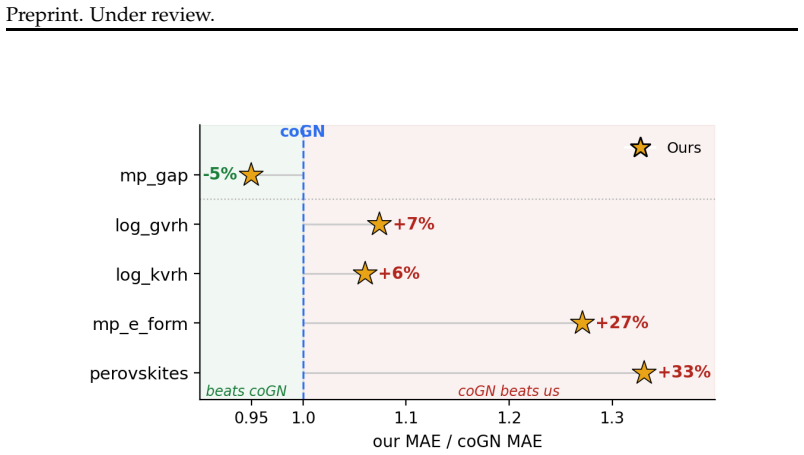

Figure 3. Figure 3: The best model’s mean absolute error (gold stars) relative to coGN’s, on [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

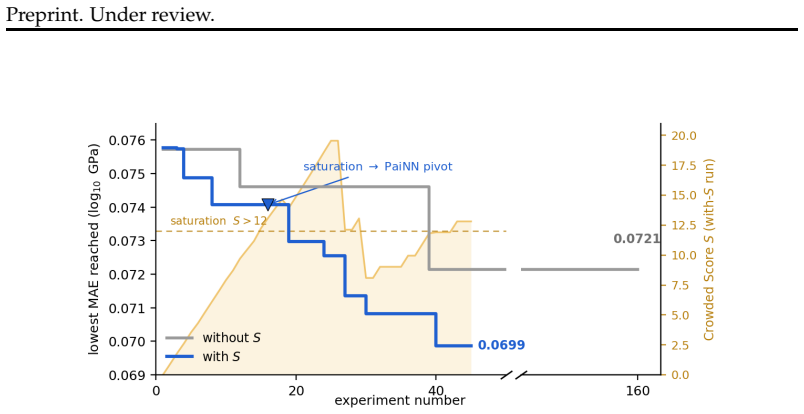

Figure 4. Figure 4: The lowest held-out MAE reached, against experiment number, for two runs on [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

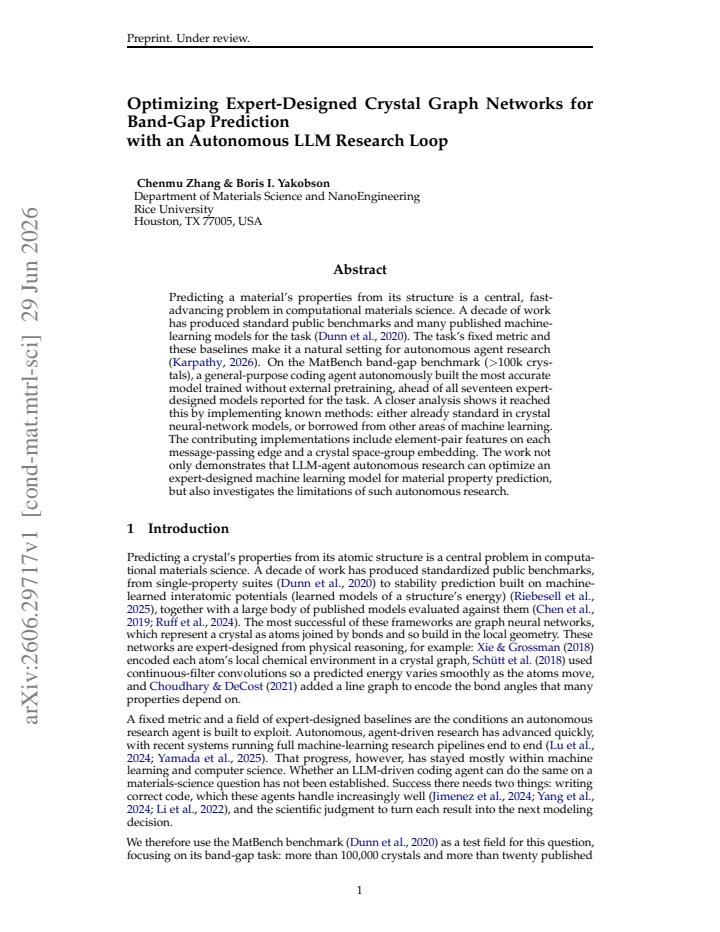

read the original abstract

Predicting a material's properties from its structure is a central, fast-advancing problem in computational materials science. A decade of work has produced standard public benchmarks and many published machine-learning models for the task (Dunn et al., 2020). The task's fixed metric and these baselines make it a natural setting for autonomous agent research (Karpathy, 2026). On the MatBench band-gap benchmark ($>$100k crystals), a general-purpose coding agent autonomously built the most accurate model trained without external pretraining, ahead of all seventeen expert-designed models reported for the task. A closer analysis shows it reached this by implementing known methods: either already standard in crystal neural-network models, or borrowed from other areas of machine learning. The contributing implementations include element-pair features on each message-passing edge and a crystal space-group embedding. The work not only demonstrates that LLM-agent autonomous research can optimize an expert-designed machine learning model for material property prediction, but also investigates the limitations of such autonomous research.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes an autonomous LLM-based coding agent that optimizes an expert-designed crystal graph neural network for band-gap prediction. On the MatBench benchmark (>100k crystals), the resulting model—incorporating element-pair features on message-passing edges and crystal space-group embeddings—is reported to outperform all 17 previously published expert-designed models when trained without external pretraining. The work also examines the limitations of such autonomous optimization loops.

Significance. If the performance edge is shown to arise solely from the architectural choices under identical benchmark conditions, the result would illustrate that general-purpose coding agents can autonomously discover and implement known but effective techniques from crystal networks and broader ML literature, thereby demonstrating a viable path for accelerating model development in materials informatics while also surfacing practical constraints of agent-driven research.

major comments (2)
  1. [Abstract / Results] Abstract and main results section: the headline claim that the agent-built model is 'ahead of all seventeen expert-designed models' on the public MatBench band-gap benchmark is load-bearing for the paper's central contribution, yet the manuscript supplies no explicit statement or supplementary table confirming that the identical train/test splits, normalization, missing-value handling, and evaluation script from the MatBench repository were used. Any deviation would prevent attribution of the accuracy gain to the autonomous loop rather than implementation differences.
  2. [Methods] Methods and experimental details: the abstract states that the agent 'autonomously built' the model by implementing element-pair edge features and space-group embedding, but the manuscript provides no details on the exact agent prompts, the base architecture before modification, training hyperparameters, statistical validation (e.g., multiple random seeds or cross-validation), or ablation studies isolating the contribution of each added component. These omissions make it impossible to assess whether the reported superiority is robust.
minor comments (2)
  1. [Results] The manuscript should include a dedicated table or supplementary note listing the 17 baseline models with their reported MatBench metrics for direct comparison.
  2. [Methods] Notation for the crystal graph (e.g., definition of edge features and space-group embedding) should be introduced with an equation or diagram in the methods section to improve clarity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and the emphasis on reproducibility and methodological transparency. Both major comments identify areas where additional explicit statements and details will strengthen the manuscript; we will incorporate revisions to address them directly.

read point-by-point responses
  1. Referee: [Abstract / Results] Abstract and main results section: the headline claim that the agent-built model is 'ahead of all seventeen expert-designed models' on the public MatBench band-gap benchmark is load-bearing for the paper's central contribution, yet the manuscript supplies no explicit statement or supplementary table confirming that the identical train/test splits, normalization, missing-value handling, and evaluation script from the MatBench repository were used. Any deviation would prevent attribution of the accuracy gain to the autonomous loop rather than implementation differences.

    Authors: We agree that an explicit confirmation of benchmark fidelity is required to attribute performance differences to the autonomous loop. In the revised manuscript we will add a paragraph in the Methods section stating that the official MatBench train/test splits, normalization, missing-value handling, and evaluation scripts were followed exactly as released in the MatBench repository. We will also add a supplementary table that tabulates the key benchmark parameters and confirms adherence to the public protocol. revision: yes

  2. Referee: [Methods] Methods and experimental details: the abstract states that the agent 'autonomously built' the model by implementing element-pair edge features and space-group embedding, but the manuscript provides no details on the exact agent prompts, the base architecture before modification, training hyperparameters, statistical validation (e.g., multiple random seeds or cross-validation), or ablation studies isolating the contribution of each added component. These omissions make it impossible to assess whether the reported superiority is robust.

    Authors: We acknowledge the current manuscript is missing these implementation details. The revised Methods section will be expanded to report: the precise prompts supplied to the coding agent, the base architecture prior to any modifications, all training hyperparameters, performance statistics across multiple random seeds, and ablation experiments that isolate the contribution of the element-pair edge features and the space-group embedding. These additions will enable readers to evaluate robustness directly. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical benchmark result on external public data

full rationale

The paper's central claim is an empirical performance comparison on the public MatBench band-gap benchmark (>100k crystals), where an LLM agent autonomously produced a model outperforming 17 expert baselines. No mathematical derivation, fitted parameters, or self-referential equations are presented. The result rests on external public benchmark data and reported model performances rather than internal definitions or self-citation chains. This matches the default expectation of a self-contained empirical finding with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The paper is an empirical ML application study with no mathematical derivations, free parameters, or new physical axioms introduced; the central claim rests entirely on benchmark performance comparison.
