arxiv: 2606.01959 · v1 · pith:J6PKJS4Qnew · submitted 2026-06-01 · 📡 eess.SY · cs.SY

Anti-Windup in PID Control: Review, Analysis, and New Tuning Directions

Malena Caparroz , Kristina Soltesz , Tore H\"agglund , Jos\'e Luis Guzm\'an This is my paper

Pith reviewed 2026-06-28 13:47 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords anti-windupPI controlFOPDT processesback-calculationconditional integrationtracking time constantload disturbance rejectiontuning rules
0
0 comments X

The pith

A hybrid anti-windup scheme and optimization-derived tuning rules for the tracking time constant improve load-disturbance rejection in saturated PI control of FOPDT processes.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper reviews existing anti-windup methods for PI controllers and introduces a hybrid approach that merges conditional integration with dynamic back-calculation to handle actuator saturation more responsively while keeping recovery smooth. It also supplies explicit formulas for the back-calculation tracking time constant, obtained by optimizing over saturation ratio, controller aggressiveness, and disturbance type on first-order-plus-dead-time models. These formulas are shown in simulation to outperform standard heuristic choices, especially for disturbance rejection. A sympathetic reader cares because saturation is routine in industrial loops and the new rules replace trial-and-error tuning with simple, condition-aware expressions.

Core claim

The central claim is that the proposed hybrid anti-windup strategy, together with the systematic tuning rules for the tracking time constant in back-calculation schemes, yields improved responsiveness during saturation and near-optimal load-disturbance rejection performance for PI-controlled FOPDT processes, outperforming classical methods and commonly used heuristics across a range of operating conditions.

What carries the argument

The hybrid anti-windup strategy that combines conditional integration with dynamic back-calculation, together with the optimization-based formulas for the tracking time constant.

If this is right

  • The hybrid method reduces overshoot and shortens recovery time after saturation ends.
  • The tuning formulas deliver near-optimal disturbance rejection using only saturation ratio and controller parameters as inputs.
  • Industrial users obtain concrete selection and tuning guidance without needing to run new optimizations for each loop.
  • Performance gains are largest in load-disturbance scenarios compared with set-point changes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same optimization procedure could be repeated for processes with different dynamics, such as integrating or higher-order models, to produce analogous rule sets.
  • The hybrid structure might be combined with gain-scheduling or model-predictive elements to handle time-varying saturation limits.
  • Implementation on embedded controllers would require only modest extra code for the conditional switch and the tracking-time calculation.

Load-bearing premise

The optimization study performed on simulated FOPDT processes produces tuning rules that continue to work well on real industrial plants with the same process structure.

What would settle it

Apply the new tuning formulas to a physical FOPDT plant under actuator saturation, measure the integral of absolute error for a load disturbance, and check whether performance is no better than the performance obtained with standard heuristic tracking-time choices.

Figures

Figures reproduced from arXiv: 2606.01959 by Jos\'e Luis Guzm\'an, Kristina Soltesz, Malena Caparroz, Tore H\"agglund.

Figure 1
Figure 1. Figure 1: : General feedback scheme for setpoint tracking and disturbance rejection [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

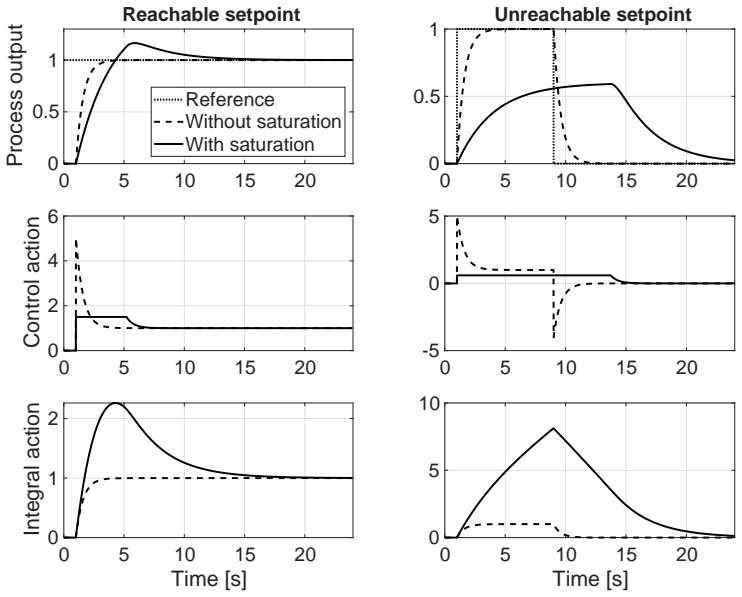

Figure 2. Figure 2: : Representative control scenarios illustrating the effect of actuator saturation [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

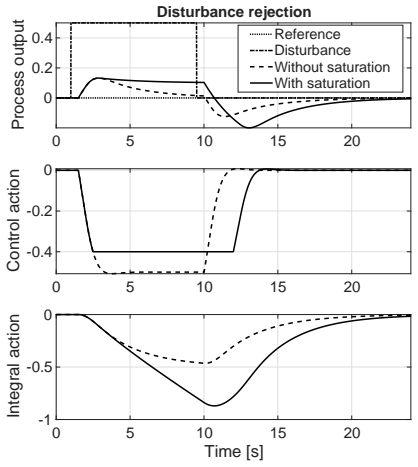

Figure 3. Figure 3: : Representative control scenario illustrating the effect of actuator saturation [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

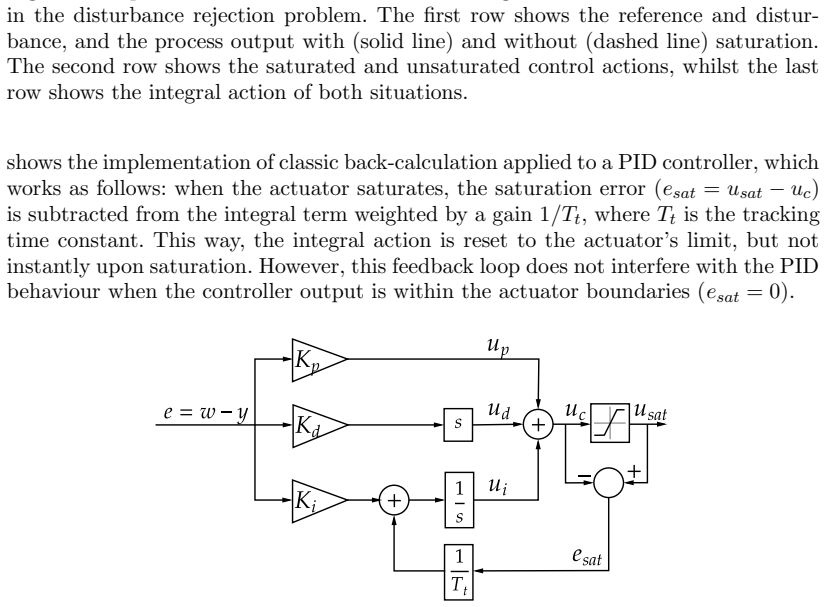

Figure 4
Figure 4. Figure 4: : Classic back-calculation scheme for PID controller [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

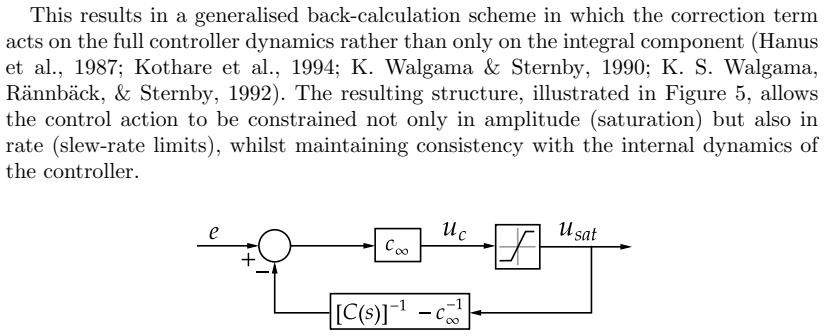

Figure 5
Figure 5. Figure 5: : Anti-windup scheme presented in (Goodwin et al., 2001) [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: : Conditional integration anti-windup scheme [PITH_FULL_IMAGE:figures/full_fig_p011_6.png] view at source ↗

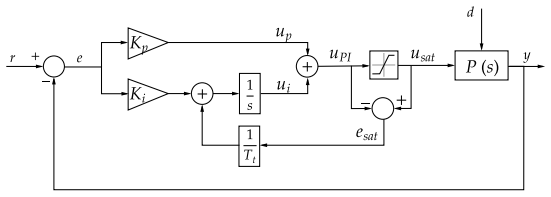

Figure 7
Figure 7. Figure 7: : PI with back-calculation anti-windup scheme for [PITH_FULL_IMAGE:figures/full_fig_p015_7.png] view at source ↗

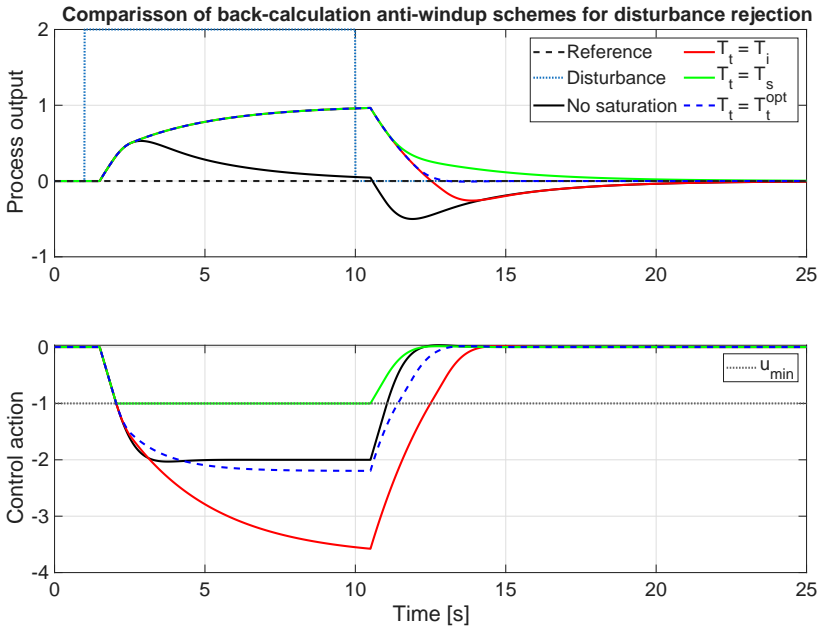

Figure 8
Figure 8. Figure 8: : Back-calculation anti-windup comparison for disturbance rejection using [PITH_FULL_IMAGE:figures/full_fig_p016_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Optimal surfaces of α for load disturbance scenario where dx(x) = −0.28 + 0.8x − 0.3x 2 represents the displacement on the RS axes that the surfaces experience for different values of x. Rule 2. The second rule analysed in this work is useful for cases in which no prior information is known about the disturbance duration, and, in this case, f(RS, x) = −0.3 − 0.63x + 1.5RS. (15) Simple guideline. Lastly, a … view at source ↗
Figure 10
Figure 10. Figure 10: Limits of RS and αmax For simplicity, [PITH_FULL_IMAGE:figures/full_fig_p018_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: : Analysed situations in setpoint-tracking problems [PITH_FULL_IMAGE:figures/full_fig_p020_11.png] view at source ↗
Figure 12

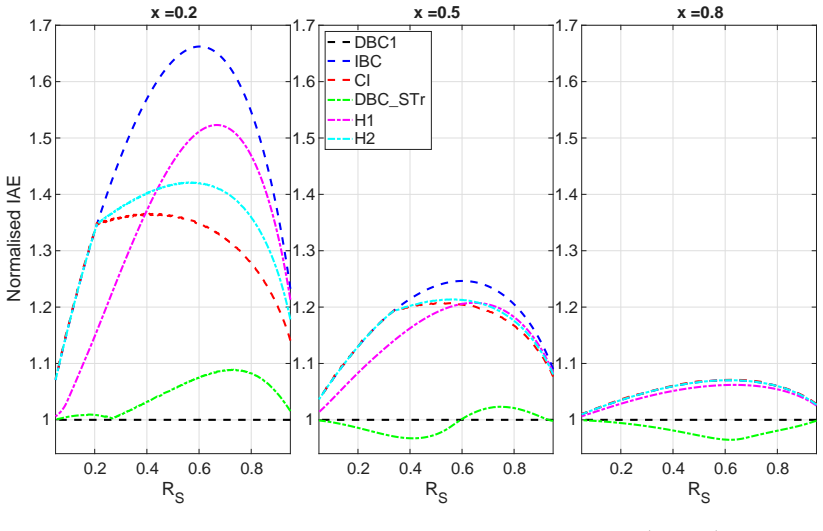

Figure 12. Figure 12: : Performance comparison for processes with [PITH_FULL_IMAGE:figures/full_fig_p021_12.png] view at source ↗

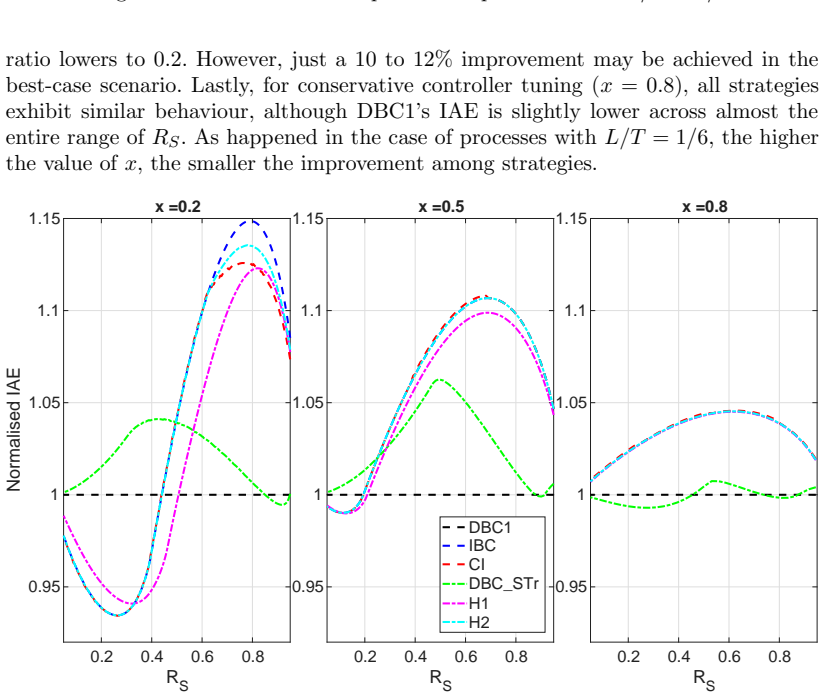

Figure 13
Figure 13. Figure 13: : Performance comparison for processes with [PITH_FULL_IMAGE:figures/full_fig_p021_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: : Performance comparison for processes with [PITH_FULL_IMAGE:figures/full_fig_p022_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: : Performance comparison for setpoint tracking - Temporal responses - 1 [PITH_FULL_IMAGE:figures/full_fig_p023_15.png] view at source ↗
Figure 16
Figure 16. Figure 16: : Performance comparison for setpoint tracking - Temporal responses - 2 [PITH_FULL_IMAGE:figures/full_fig_p023_16.png] view at source ↗

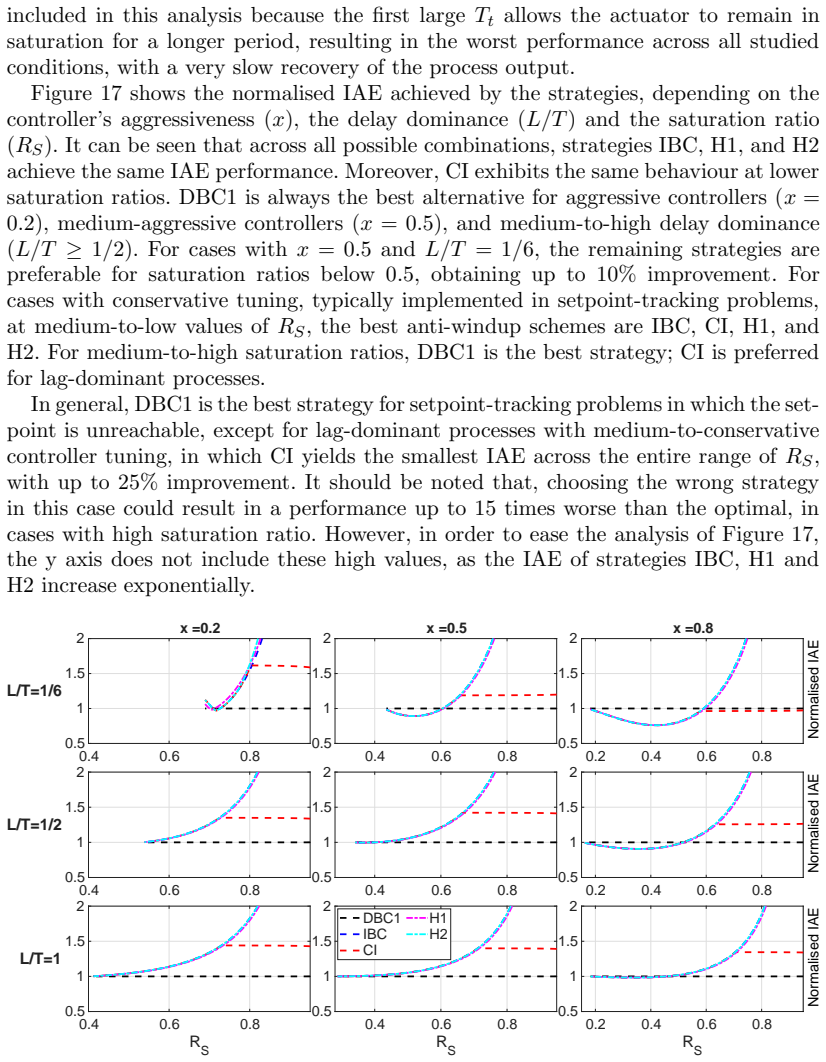

Figure 17
Figure 17. Figure 17: : Performance comparison for unreachable setpoint problem [PITH_FULL_IMAGE:figures/full_fig_p024_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: : Performance comparison for setpoint tracking - Temporal responses [PITH_FULL_IMAGE:figures/full_fig_p025_18.png] view at source ↗

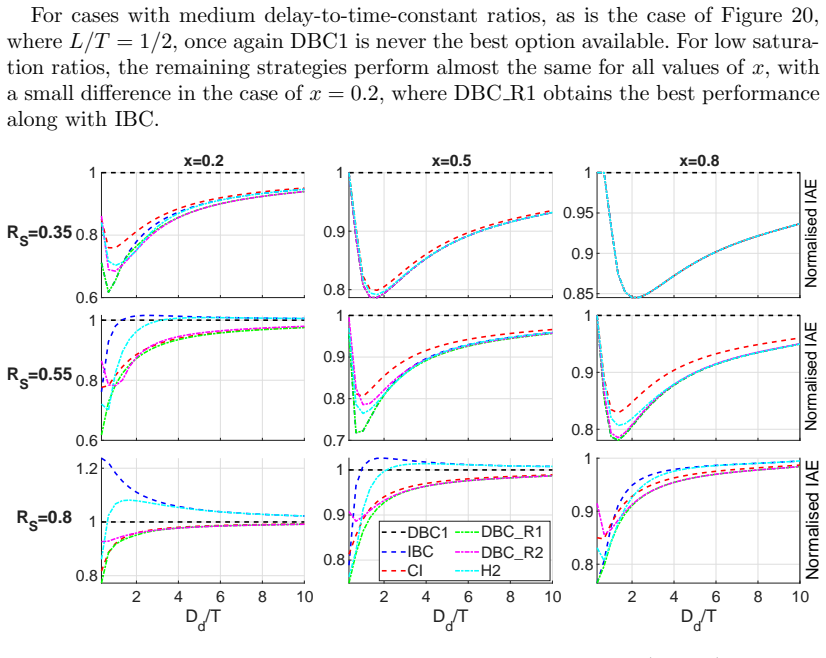

Figure 19
Figure 19. Figure 19: : Performance comparison for processes with [PITH_FULL_IMAGE:figures/full_fig_p026_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: : Performance comparison for processes with [PITH_FULL_IMAGE:figures/full_fig_p027_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: : Performance comparison for processes with [PITH_FULL_IMAGE:figures/full_fig_p027_21.png] view at source ↗

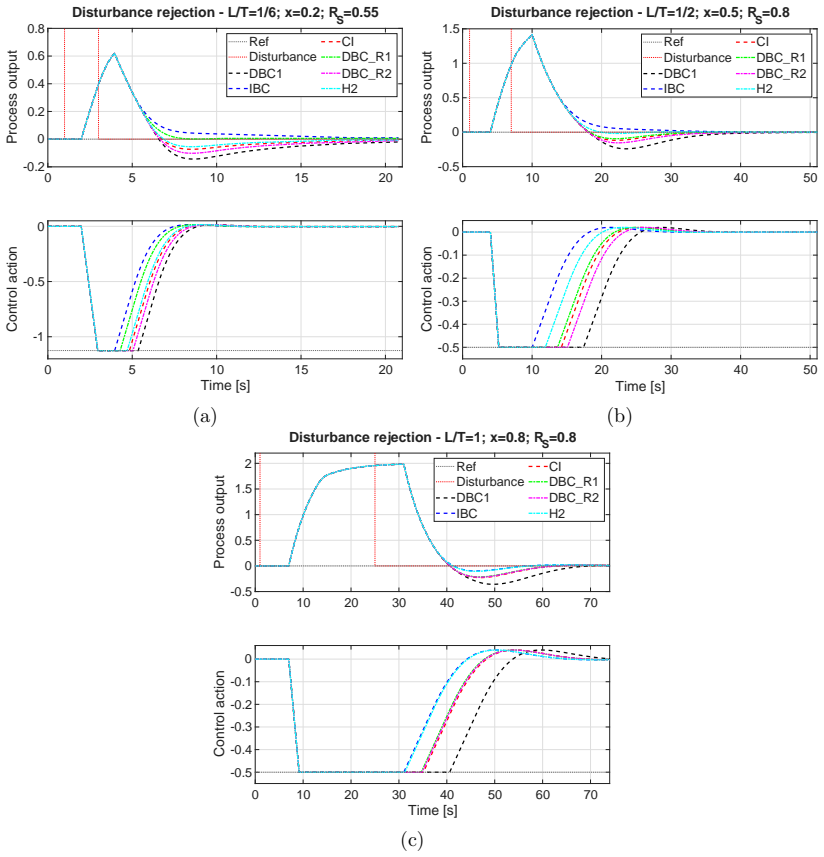

Figure 22
Figure 22. Figure 22: : Performance comparison for disturbance rejection - Temporal responses. [PITH_FULL_IMAGE:figures/full_fig_p028_22.png] view at source ↗
read the original abstract

Actuator saturation is a fundamental nonlinearity that significantly degrades the performance of PID-controlled systems by inducing integrator windup, leading to overshoot, slow recovery, and even instability. Although numerous anti-windup strategies have been proposed, their practical tuning remains largely heuristic and suboptimal in many industrial scenarios. This paper presents a comprehensive comparative study of classical and advanced anti-windup techniques for PI-controlled first-order-plus-dead-time (FOPDT) processes under a wide range of operating conditions. The analysis includes dynamic and instantaneous back-calculation, conditional integration, and adapted schemes. In addition, a novel hybrid anti-windup strategy is proposed, combining conditional integration with dynamic back-calculation to improve responsiveness during saturation, whilst preserving smooth recovery dynamics. Moreover, a key contribution of this work is the development of systematic tuning rules for the tracking time constant in back-calculation schemes, specifically optimised for load-disturbance rejection. These rules are derived from an extensive optimisation study that considers the saturation ratio, controller aggressiveness, and disturbance characteristics. The resulting guidelines provide simple yet effective formulas that achieve near-optimal performance without requiring complex computations. Simulation results demonstrate that the proposed methods significantly outperform commonly used heuristic rules, particularly in disturbance rejection scenarios, and provide clear, practical recommendations for selecting and tuning anti-windup strategies in industrial applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 0 minor

Summary. The manuscript reviews classical and advanced anti-windup techniques for PI control of FOPDT processes, proposes a hybrid strategy that combines conditional integration with dynamic back-calculation, and derives closed-form tuning rules for the back-calculation tracking time constant. These rules are obtained from an extensive optimization study that varies saturation ratio, controller aggressiveness, and disturbance characteristics; the paper asserts that the resulting guidelines deliver near-optimal load-disturbance rejection and outperform standard heuristics, as demonstrated by simulation results.

Significance. If the optimization-derived tuning rules prove robust, the work would supply practical, non-heuristic guidance for anti-windup selection in industrial PID loops, addressing a common performance bottleneck. The hybrid scheme offers a concrete way to balance saturation responsiveness and recovery smoothness. However, the claimed superiority rests entirely on simulation evidence whose details are not supplied, limiting the immediate engineering impact until the optimization procedure and its generalization properties are documented.

major comments (3)
  1. [Abstract] Abstract: the central claim that the derived tuning rules 'achieve near-optimal performance' and 'significantly outperform commonly used heuristic rules' is asserted without any reported performance metrics, error bars, dataset size, objective function, or confirmation that the optimization was not performed post-hoc on the same simulation ensemble used for validation.
  2. [Optimization study (Abstract)] Optimization study (described in Abstract): the tuning rules are outputs of an 'extensive optimisation study' whose objective function, FOPDT parameter ranges, saturation-ratio sampling, and cross-validation procedure are not specified; without these, it is impossible to assess whether the reported superiority generalizes beyond the fitted conditions or is an artifact of the simulation design.
  3. [Abstract] Abstract: no independent verification on hardware, on FOPDT instances deliberately excluded from the optimization set, or on plants with unmodeled dynamics is described, so the load-bearing assumption that the rules remain near-optimal for real industrial processes cannot be evaluated from the given evidence.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight important aspects of clarity and evidence presentation in the abstract. We address each point below and will revise the manuscript accordingly to strengthen the presentation of our optimization study and its validation.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that the derived tuning rules 'achieve near-optimal performance' and 'significantly outperform commonly used heuristic rules' is asserted without any reported performance metrics, error bars, dataset size, objective function, or confirmation that the optimization was not performed post-hoc on the same simulation ensemble used for validation.

    Authors: We agree that the abstract would be strengthened by including quantitative indicators. In the revision we will add specific metrics (e.g., average IAE reduction of X% across the test ensemble) and state that the optimization objective was IAE minimization for load-disturbance rejection, with the tuning rules derived on one set of FOPDT parameters and validated on a held-out ensemble to avoid post-hoc fitting. revision: yes

  2. Referee: [Optimization study (Abstract)] Optimization study (described in Abstract): the tuning rules are outputs of an 'extensive optimisation study' whose objective function, FOPDT parameter ranges, saturation-ratio sampling, and cross-validation procedure are not specified; without these, it is impossible to assess whether the reported superiority generalizes beyond the fitted conditions or is an artifact of the simulation design.

    Authors: The full optimization procedure (objective function, FOPDT ranges, saturation-ratio sampling grid, and cross-validation split) is documented in Section 4 of the manuscript. To address the concern, we will insert a concise summary of these elements directly into the abstract and ensure the separation between derivation and validation sets is stated explicitly. revision: yes

  3. Referee: [Abstract] Abstract: no independent verification on hardware, on FOPDT instances deliberately excluded from the optimization set, or on plants with unmodeled dynamics is described, so the load-bearing assumption that the rules remain near-optimal for real industrial processes cannot be evaluated from the given evidence.

    Authors: The study is simulation-based on FOPDT models; we will revise the abstract and add a dedicated limitations paragraph to explicitly note the use of held-out FOPDT instances for validation and to discuss the assumption of accurate process models. We will also flag the absence of hardware experiments as a scope limitation and suggest it as future work. revision: partial

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

Only abstract available; ledger populated from explicit statements in abstract. The optimisation study is the source of the tuning rules, implying fitted parameters whose exact form is unknown.

free parameters (1)
  • tracking time constant tuning parameters
    Rules are outputs of an optimisation study over saturation ratio, aggressiveness, and disturbance characteristics; specific fitted values or functional forms not stated.
axioms (1)
  • domain assumption FOPDT models adequately represent the target industrial processes under the studied operating conditions
    All analysis and tuning rules are developed specifically for PI-controlled FOPDT processes.
