Manifold-Constrained MPPI: Real-Time Sampling-Based Control Under Hard Constraints

Sanghyun Kim; Seulchan Lee

REVIEW 2 major objections 1 minor 1 cited by

Manifold-Constrained MPPI: Real-Time Sampling-Based Control Under Hard Constraints

T0 review · 2 major / 1 minor · reviewed 2026-06-30 · grok-4.3

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read MC-MPPI satisfies hard equality constraints in real-time sampling-based control by planning near-feasible trajectories in a VAE latent manifold and correcting residuals with one QP solve.

desk verdict MC-MPPI splits MPPI into VAE latent planning plus one QP correction for manifold constraints, but the single-solve hard guarantee depends on an unverified linearization assumption. read the letter →

arxiv 2605.24813 v1 pith:J7FTWW2L submitted 2026-05-24 cs.RO cs.SYeess.SY

Seulchan Lee , Sanghyun Kim This is my paper · ORCID

classification cs.ROcs.SYeess.SY

keywords MPPImanifoldconstraintsVAEquadraticprogramminghardroboticcontrolclosed-chainmanipulationsampling-basedMPC

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

Standard MPPI relies on soft cost penalties that cannot enforce hard constraints, restricting its use for tasks like closed-chain manipulation. The paper proposes decoupling the problem into latent-space MPPI planning on a learned manifold and execution-level QP correction. A VAE learns a low-dimensional representation of the constraint manifold so that MPPI produces near-feasible candidates without per-sample changes. The resulting reference allows linearization accurate enough for a single QP to eliminate residual mismatch. Experiments show the method runs stably at 100 Hz on a 14-DoF dual-arm system in simulation and on hardware while outperforming baselines in tracking accuracy.

What carries the argument

VAE-learned latent manifold representation that supplies an accurate local linearization of equality constraints for a single QP solve at execution.

What would settle it

If real-world 100 Hz trials on the 14-DoF dual-arm system show repeated QP infeasibility or constraint violation above tolerance, the single-solve linearization claim fails.

Watch

Extended reading notes

Core claim

Decoupling constrained optimal control into VAE-based latent planning and execution QP correction allows MPPI to generate trajectories that satisfy manifold equality constraints without iterative projection or loss of sampling efficiency, as shown by stable 100 Hz operation and superior tracking on closed-chain dual-arm hardware.

Load-bearing premise

The VAE latent space produces a linearization accurate enough that one QP solve removes all residual manifold mismatch without iteration or instability.

Editorial extensions

If this is right

Hard equality constraints become compatible with derivative-free sampling-based MPC without sacrificing real-time rates.
Closed-chain dual-arm systems can navigate dynamic scenes while strictly respecting manifold constraints.
Tracking accuracy improves over soft-penalty baselines on high-DoF constrained hardware.
The same planning-correction split supports 100 Hz control in both simulation and physical experiments.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

The framework may transfer to other equality-constrained robots if a suitable VAE manifold can be learned for their kinematics.
Removing the need for per-sample projection could reduce compute load enough to allow higher sampling counts or longer horizons.
The method opens a route to hybrid sampling-plus-optimization controllers for tasks where constraints change online.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit.

Desk Editor's Note

read the letter

The core idea is to run MPPI in a VAE latent space so that samples stay close to the manifold without per-trajectory fixes, then apply one QP at execution time to clean up the residual equality violation. That split is the concrete new piece; prior MPPI work either used soft penalties or iterative projection, and the one-shot QP after latent planning is not the standard extension described in the abstract.

It targets a genuine pain point. Closed-chain and contact tasks often force designers away from sampling-based methods because soft costs cannot deliver hard satisfaction. The 14-DoF dual-arm example is a reasonable testbed for that setting.

The main weakness is the load-bearing assumption that the learned latent space yields a linearization accurate enough for a single QP solve to eliminate all mismatch. The stress-test note is right on this: if the VAE embedding has noticeable curvature or reconstruction error on the actual manifold, the correction can leave residuals or force extra iterations, which would break both the hard-constraint claim and the 100 Hz timing. The abstract gives no bounds, no ablation on QP iterations, and no quantitative tracking or constraint-violation numbers, so the experimental outperformance cannot be checked for post-hoc choices or missing controls.

The paper is aimed at robotics researchers who already use MPPI and need to add hard equality constraints without losing real-time performance. A reader looking for a practical architecture could extract the latent-plus-QP pattern even if the current evidence is thin.

I would send it to peer review. The idea is worth referee time if the full manuscript supplies the missing metrics and verification on the linearization step; otherwise it stays at the level of a plausible sketch.

Referee Report

2 major / 1 minor

Summary. The manuscript introduces Manifold-Constrained MPPI (MC-MPPI), which decouples the constrained control problem by training a VAE to obtain a low-dimensional latent representation of the equality-constraint manifold, running standard MPPI in that latent space to produce near-feasible trajectories, and then applying a single execution-level QP solve that uses the VAE decoder's local linearization to eliminate residual manifold violations. The central experimental claim is that the resulting controller runs stably at 100 Hz on a 14-DoF closed-chain dual-arm system in both simulation and hardware, satisfies hard equality constraints, and outperforms baseline methods in tracking accuracy while navigating dynamic environments.

Significance. If the single-QP correction reliably eliminates manifold mismatch at the claimed rate, the method would constitute a practical bridge between derivative-free sampling-based planning and hard-constraint enforcement for high-DoF closed-chain systems, where soft-penalty approaches are known to be inadequate. The approach re-uses standard VAE training and QP solvers without introducing new fitted parameters, which is a positive attribute.

major comments (2)

[Method and Experiments] The headline claim that a single QP solve resolves all residual manifold mismatch (abstract and method description) rests on the unverified assumption that the VAE latent linearization is sufficiently accurate on the 14-DoF closed-chain manifold. No quantitative bound on linearization or reconstruction error, nor any ablation on required QP iteration count, is reported; this directly undermines both the hard-constraint guarantee and the 100 Hz real-time assertion.
[Experiments] The experimental results assert stable 100 Hz operation and significant outperformance over baselines on the 14-DoF system, yet the provided description supplies no quantitative metrics (e.g., constraint violation norms, tracking RMSE, success rates), baseline definitions, or statistical analysis. Without these data it is impossible to evaluate whether the single-QP correction actually delivers the claimed hard-constraint performance.

minor comments (1)

[Abstract] The abstract states that the VAE enables 'accurate linearization' but does not define the metric used to assess accuracy or the training protocol that guarantees it.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We agree that the manuscript would benefit from additional quantitative analysis to support the claims on linearization accuracy and experimental performance. We address each major comment below and will revise the manuscript to incorporate the requested elements.

read point-by-point responses

Referee: [Method and Experiments] The headline claim that a single QP solve resolves all residual manifold mismatch (abstract and method description) rests on the unverified assumption that the VAE latent linearization is sufficiently accurate on the 14-DoF closed-chain manifold. No quantitative bound on linearization or reconstruction error, nor any ablation on required QP iteration count, is reported; this directly undermines both the hard-constraint guarantee and the 100 Hz real-time assertion.

Authors: We acknowledge that the manuscript does not report explicit quantitative bounds on VAE reconstruction or linearization error, nor an ablation on QP iteration count. This is a fair observation that weakens the strength of the hard-constraint claim. In the revised version we will add a dedicated analysis subsection that reports mean and maximum reconstruction error of the VAE decoder on the 14-DoF closed-chain manifold, the norm of the linearization residual over representative operating trajectories, and an ablation showing the number of QP iterations needed to reach a prescribed constraint tolerance. These additions will directly support the single-solve assertion and the 100 Hz claim. revision: yes
Referee: [Experiments] The experimental results assert stable 100 Hz operation and significant outperformance over baselines on the 14-DoF system, yet the provided description supplies no quantitative metrics (e.g., constraint violation norms, tracking RMSE, success rates), baseline definitions, or statistical analysis. Without these data it is impossible to evaluate whether the single-QP correction actually delivers the claimed hard-constraint performance.

Authors: The referee is correct that the current experimental section provides only qualitative statements and omits the quantitative metrics, baseline definitions, and statistical analysis needed for rigorous evaluation. We will revise the experiments section to include tables reporting constraint violation norms (mean and maximum ||g(x)||), end-effector tracking RMSE, success rates, and timing statistics, together with explicit definitions of all baselines and statistical measures (means and standard deviations) computed over repeated trials in both simulation and hardware. revision: yes

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity: derivation relies on independent VAE training and QP solving

full rationale

The paper decouples MPPI planning in a VAE-learned latent space from a single QP correction at execution. Both the VAE (standard variational training) and QP (standard quadratic program) are externally defined algorithms whose correctness does not depend on the paper's own fitted values or results. No equation reduces a claimed prediction to a parameter fitted from the target quantity itself, no uniqueness theorem is imported from self-citation, and no ansatz is smuggled via prior work by the same authors. The 100 Hz real-time claim and hard-constraint satisfaction are presented as empirical outcomes, not as identities by construction.

Assumptions & free parameters 0 free parameters · 0 assumptions · 0 invented entities

Abstract alone supplies no explicit free parameters, background axioms, or newly postulated entities; the method description is too high-level to populate the ledger.

how reviews work

0 comments

Cite this review

Pith. "Pith review of Manifold-Constrained MPPI: Real-Time Sampling-Based Control Under Hard Constraints." pith.science (2026). https://pith.science/paper/J7FTWW2L

@misc{pith2026260524813,
  author       = {Pith},
  title        = {Pith review of: Manifold-Constrained MPPI: Real-Time Sampling-Based Control Under Hard Constraints},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/J7FTWW2L}},
  note         = {Machine review of arXiv:2605.24813}
}

read the original abstract

Sampling-based model predictive control methods, such as Model Predictive Path Integral (MPPI), offer derivative-free optimization and robustness in complex robotic systems. However, standard MPPI relies on cost-based soft penalties that cannot guarantee hard-constraint satisfaction, severely limiting its applicability to highly constrained tasks such as closed-chain manipulation. To address this, we propose Manifold-Constrained MPPI (MC-MPPI), a real-time sampling-based control framework that enforces manifold-based equality constraints while preserving the computational advantages of MPPI. The key idea is to decouple the constrained optimal control problem into latent-space planning and execution-level correction. At the planning stage, a Variational Autoencoder (VAE) learns a low-dimensional latent representation of the constraint manifold, enabling MPPI to efficiently generate near-feasible candidate trajectories without per-sample modification. Since this reference enables accurate linearization of the equality constraints, an execution-level Quadratic Programming (QP) controller resolves the residual manifold mismatch in a single solve rather than through iterative projection. Experiments on a 14-DoF closed-chain dual-arm system in both simulation and real-world settings demonstrate that MC-MPPI operates stably at 100 Hz, reliably navigates dynamic environments while effectively maintaining hard equality constraints, and significantly outperforms baseline methods in tracking accuracy. Supplementary videos and implementation details are available at https://rcilab.github.io/mcmppi.

Figures

Figures reproduced from arXiv: 2605.24813 by the authors.

**Figure 2.** Snapshots of the hard constraint validation experiment: [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

**Figure 3.** Quantitative results of the hard constraint validation [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

Figures from the paper (4 more)

**Figure 4.** Figure 4: Static obstacle avoidance performance under manifold constraints: (a) the proposed MC-MPPI with single-instance [PITH_FULL_IMAGE:figures/full_fig_p007_4.png]

**Figure 5.** Figure 5: Quantitative results of the static obstacle avoidance ex [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]

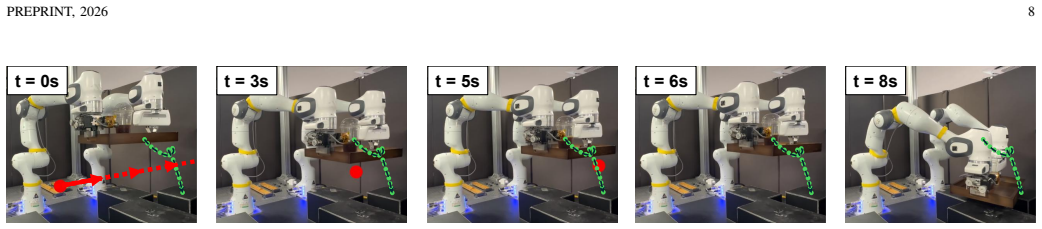

**Figure 6.** Figure 6: Snapshots of the dynamic obstacle avoidance experiment for a representative trial on the real dual-arm system. A virtual [PITH_FULL_IMAGE:figures/full_fig_p008_6.png]

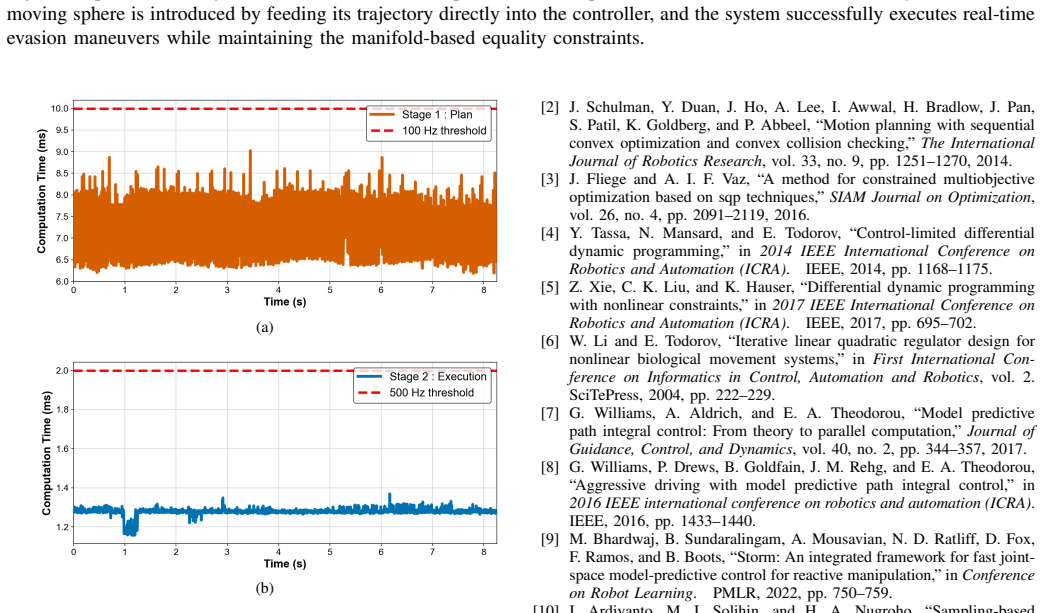

**Figure 7.** Figure 7: Computation time of the dynamic obstacle avoidance [PITH_FULL_IMAGE:figures/full_fig_p008_7.png]

Discussion (0). Continue with ORCID to comment.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score. Full citation record

Projection-Retraction MPPI: Exact Constraint-Manifold Control for Manipulators
cs.RO 2026-08 conditional novelty 6.0 of 10

A projection-retraction MPPI variant that enforces equality and inequality constraints inside sampled rollouts and returns commands that satisfy the closed-chain constraint to numerical tolerance.

Reference graph

Works this paper leans on

20 extracted references · cited by 1 Pith paper

[1]

Practical tracking control for dual-arm robot with output constraints,

H. Hu and J. Cao, “Practical tracking control for dual-arm robot with output constraints,”International Journal of Control, Automation and Systems, vol. 20, no. 10, pp. 3264–3273, 2022

2022
[2]

Motion planning with sequential convex optimization and convex collision checking,

J. Schulman, Y . Duan, J. Ho, A. Lee, I. Awwal, H. Bradlow, J. Pan, S. Patil, K. Goldberg, and P. Abbeel, “Motion planning with sequential convex optimization and convex collision checking,”The International Journal of Robotics Research, vol. 33, no. 9, pp. 1251–1270, 2014

2014
[3]

A method for constrained multiobjective optimization based on sqp techniques,

J. Fliege and A. I. F. Vaz, “A method for constrained multiobjective optimization based on sqp techniques,”SIAM Journal on Optimization, vol. 26, no. 4, pp. 2091–2119, 2016
[4]

Control-limited differential dynamic programming,

Y . Tassa, N. Mansard, and E. Todorov, “Control-limited differential dynamic programming,” in2014 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2014, pp. 1168–1175

2014
[5]

Differential dynamic programming with nonlinear constraints,

Z. Xie, C. K. Liu, and K. Hauser, “Differential dynamic programming with nonlinear constraints,” in2017 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2017, pp. 695–702

2017
[6]

Iterative linear quadratic regulator design for nonlinear biological movement systems,

W. Li and E. Todorov, “Iterative linear quadratic regulator design for nonlinear biological movement systems,” inFirst International Con- ference on Informatics in Control, Automation and Robotics, vol. 2. SciTePress, 2004, pp. 222–229

2004
[7]

Model predictive path integral control: From theory to parallel computation,

G. Williams, A. Aldrich, and E. A. Theodorou, “Model predictive path integral control: From theory to parallel computation,”Journal of Guidance, Control, and Dynamics, vol. 40, no. 2, pp. 344–357, 2017

2017
[8]

Aggressive driving with model predictive path integral control,

G. Williams, P. Drews, B. Goldfain, J. M. Rehg, and E. A. Theodorou, “Aggressive driving with model predictive path integral control,” in 2016 IEEE international conference on robotics and automation (ICRA). IEEE, 2016, pp. 1433–1440

2016

Show all 20 references

[9]

Storm: An integrated framework for fast joint- space model-predictive control for reactive manipulation,

M. Bhardwaj, B. Sundaralingam, A. Mousavian, N. D. Ratliff, D. Fox, F. Ramos, and B. Boots, “Storm: An integrated framework for fast joint- space model-predictive control for reactive manipulation,” inConference on Robot Learning. PMLR, 2022, pp. 750–759

2022
[10]

Sampling-based safety-critical control for planar quadrotors with suspended payloads,

I. Ardiyanto, M. I. Solihin, and H. A. Nugroho, “Sampling-based safety-critical control for planar quadrotors with suspended payloads,” International Journal of Control, Automation and Systems, vol. 23, no. 10, pp. 3115–3125, 2025

2025
[11]

Shield model predictive path integral: A computationally efficient robust mpc method using control barrier functions,

J. Yin, C. Dawson, C. Fan, and P. Tsiotras, “Shield model predictive path integral: A computationally efficient robust mpc method using control barrier functions,”IEEE Robotics and Automation Letters, vol. 8, no. 11, pp. 7106–7113, 2023

2023
[12]

π- mppi: a projection-based model predictive path integral scheme for smooth optimal control of fixed-wing aerial vehicles,

E. M. Andrejev, A. Manoharan, K.-E. Unt, and A. K. Singh, “π- mppi: a projection-based model predictive path integral scheme for smooth optimal control of fixed-wing aerial vehicles,”IEEE Robotics and Automation Letters, 2025

2025
[13]

Spline-interpolated model predictive path integral control with stein variational inference for reactive navigation,

T. Miura, N. Akai, K. Honda, and S. Hara, “Spline-interpolated model predictive path integral control with stein variational inference for reactive navigation,” in2024 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2024, pp. 13 171–13 177

2024
[14]

Csc-mppi: A novel constrained mppi framework with dbscan for reliable obstacle avoidance,

L. Park, K. Jang, and S. Kim, “Csc-mppi: A novel constrained mppi framework with dbscan for reliable obstacle avoidance,” in2025 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, 2025, pp. 19 645–19 652

2025
[15]

Learning equality constraints for motion planning on manifolds,

G. Sutanto, I. R. Fern ´andez, P. Englert, R. K. Ramachandran, and G. Sukhatme, “Learning equality constraints for motion planning on manifolds,” inConference on Robot Learning. PMLR, 2021, pp. 2292– 2305

2021
[16]

Approximating constraint manifolds using generative models for sampling-based constrained motion planning,

C. Acar and K. P. Tee, “Approximating constraint manifolds using generative models for sampling-based constrained motion planning,” in2021 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2021, pp. 8451–8457

2021
[17]

Auto-encoding variational bayes,

D. P. Kingma and M. Welling, “Auto-encoding variational bayes,” in Proceedings of the International Conference on Learning Representa- tions (ICLR), 2014

2014
[18]

Continuous task transition approach for robot controller based on hierarchical quadratic PREPRINT, 2026 9 programming,

S. Kim, K. Jang, S. Park, Y . Lee, S. Y . Lee, and J. Park, “Continuous task transition approach for robot controller based on hierarchical quadratic PREPRINT, 2026 9 programming,”IEEE Robotics and Automation Letters, vol. 4, no. 2, pp. 1603–1610, 2019

2026
[19]

Single-instance sampling for computationally efficient and accurate real-time task space mppi control,

D. Kim, E. Im, Y . Kim, M. Lim, and Y . Lee, “Single-instance sampling for computationally efficient and accurate real-time task space mppi control,”IEEE Transactions on Robotics, vol. 41, pp. 6327–6344, 2025

2025
[20]

Mujoco: A physics engine for model- based control,

E. Todorov, T. Erez, and Y . Tassa, “Mujoco: A physics engine for model- based control,” in2012 IEEE/RSJ international conference on intelligent robots and systems. IEEE, 2012, pp. 5026–5033

2012
