Optimal (partial) transport to non-convex polygonal domains

Shibing Chen , Yuanyuan Li , Jiakun Liu This is my paper

Pith reviewed 2026-05-24 06:24 UTC · model grok-4.3

classification 🧮 math.AP
keywords optimal transportpartial transportsingular setfree boundarynon-convex polygonal domainregularitytwo dimensions
0
0 comments X

The pith

Optimal transport to non-convex polygonal domains in the plane has a singular set that is a smooth curve away from finitely many points.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper investigates optimal transport problems with a non-convex polygonal target in two dimensions. It establishes that the singular set of the optimal map is locally a smooth one-dimensional curve except at finitely many points. The same regularity holds for the free boundary in the partial transport problem. A sympathetic reader would care because these statements extend regularity theory to targets with corners and indentations that appear in many applications, while the higher-dimensional conjectures point toward a broader geometric picture for polytope targets.

Core claim

For the complete optimal transport problem, we prove that the singular set is locally a smooth one-dimensional curve away from finitely many points. For the optimal partial transport problem, we prove that the free boundary is smooth away from finitely many singular points. In higher dimensions, we formulate two conjectures concerning the structure of singularities when the target is a non-convex polytope.

What carries the argument

The flat sides and finite vertices of the non-convex polygonal target in R^2, which are used to localize and control the geometry of the singular set or free boundary.

If this is right

  • The optimal map is smooth except along a one-dimensional curve that meets the boundary or itself only at finitely many points.
  • The free boundary in the partial-transport setting obeys the same local smoothness description.
  • These local descriptions continue to hold when the measures and cost satisfy the usual existence hypotheses.
  • Analogous but possibly more intricate singularity structures are conjectured to exist for non-convex polytope targets in dimensions greater than two.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The two-dimensional results may serve as a model for approximating domains with piecewise-smooth boundaries by polygons.
  • Numerical methods could explicitly track the one-dimensional singular curves rather than treating them as fully unstructured.
  • Techniques developed here might transfer to related free-boundary problems whose targets have flat faces.

Load-bearing premise

The target domain is a non-convex polygon in two dimensions, with the source measure, target measure, and cost satisfying the standard conditions that guarantee existence of an optimal map.

What would settle it

An explicit pair of measures on a non-convex quadrilateral target whose optimal map has a singular set containing a point that is not locally a smooth curve or that accumulates infinitely many exceptional points.

Figures

Figures reproduced from arXiv: 2311.15655 by Jiakun Liu, Shibing Chen, Yuanyuan Li.

Figure 3.1
Figure 3.1. Figure 3.1: Proposition 3.1. For any x ∈ Σ ′ 2 , there exists a small constant rx such that Brx (x) ∩ A is a smooth curve. Proof. Let x0 ∈ Σ ′ 2 . By a translation of coordinates, we may assume x0 = 0. By the definition of Σ′ 2 , ∂ −u(0) is a segment with endpoints on two open edges of Ω∗ , denoted by (bi1 bi1+1) and (bi2 bi2+1). Let y0 = ∂ −u(0) ∩ (bi1 bi1+1) and ˆy0 = ∂ −u(0) ∩ (bi2 bi2+1); see [PITH_FULL_IMAGE:f… view at source ↗

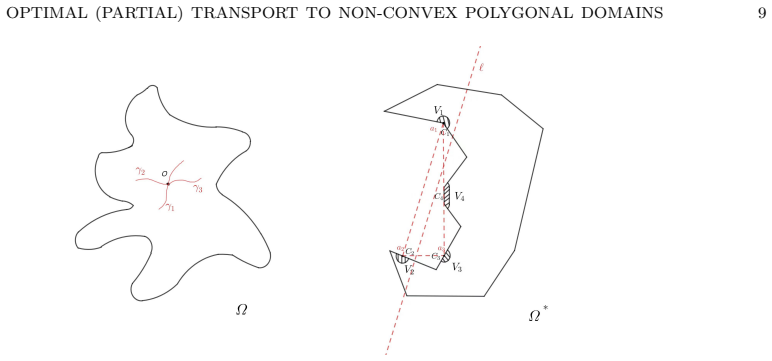

Figure 3.2
Figure 3.2. Figure 3.2: Proof. Let x0 ∈ Σ1 ∪ Σ ′′ 2 . We may assume that Bδ(x0) ∩ A \ {x0} ̸= ∅ for any δ > 0, as otherwise x0 would be an isolated singularity, and the proof is done. By Lemma 3.2, we have that ∂ −u(x0)∩∂Ω ∗ can be decomposed into a finite number of connected components Ci , i = 1, . . . , l, each being either a point or an edge. By a translation of coordinates, we may assume x0 = 0. By subtracting a constant, … view at source ↗
Figure 4.1
Figure 4.1. Figure 4.1: Lemma 4.3. Both F1 and F2 consist of finitely many points. Proof. For any x ∈ F1, by the definition of F1, there exists a vertex bi of Ω∗ , 1 ≤ i ≤ m, such that Dv(bi) = x. This implies that F1 is a finite set with a cardinality no greater than m. Let x ∈ F2. By the definition of F2, there are two distinct integers i, j, 1 ≤ i ̸= j ≤ m, such that ∂ −u¯(x) ∩ (bibi+1) ̸= ∅ and ∂ −u¯(x) ∩ (bj bj+1) ̸= ∅. De… view at source ↗
read the original abstract

In this paper, we investigate optimal (partial) transport problems for which the target is a non-convex polygonal domain in \(\mathbb{R}^2\). For the complete optimal transport problem, we prove that the singular set is locally a smooth one-dimensional curve away from finitely many points. For the optimal partial transport problem, we prove that the free boundary is smooth away from finitely many singular points. In higher dimensions, we formulate two conjectures concerning the structure of singularities when the target is a non-convex polytope.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 1 minor

Summary. The manuscript investigates optimal (partial) transport problems where the target is a non-convex polygonal domain in R^2. For the complete optimal transport problem, it proves that the singular set is locally a smooth one-dimensional curve away from finitely many points. For the optimal partial transport problem, it proves that the free boundary is smooth away from finitely many singular points. Two conjectures are formulated for the structure of singularities in higher dimensions when the target is a non-convex polytope.

Significance. If the results hold, they advance regularity theory for optimal transport and partial transport with non-convex targets, providing explicit geometric descriptions (smooth 1D curves or surfaces away from finite points) that extend beyond convex-domain results. The 2D theorems are stated as direct proofs, and the higher-dimensional conjectures are clearly posed. These could support further work on singularity structure in geometric PDEs.

minor comments (1)
  1. The abstract is clear, but the introduction should explicitly list the standing assumptions on the source/target measures and cost function to make the well-posedness statements self-contained.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive evaluation of the manuscript and for recommending acceptance. The report contains no major comments requiring a point-by-point response.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper states direct mathematical proofs of regularity for the singular set (smooth 1D curve away from finitely many points) and free boundary (smooth away from finitely many singular points) in optimal (partial) transport to non-convex polygonal domains in R^2, under standard well-posedness conditions. No equations, parameters, or claims in the abstract reduce by construction to inputs, fitted data, or self-citation chains; the results are presented as theorems derived from the geometric setting rather than renamed or self-referential constructs. This is a standard pure-math regularity paper with no load-bearing self-citations or ansatz smuggling visible.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No information available from the abstract to identify specific free parameters, axioms, or invented entities; the paper consists of regularity proofs rather than introducing new fitted quantities or entities.

pith-pipeline@v0.9.0 · 5620 in / 1131 out tokens · 26610 ms · 2026-05-24T06:24:53.166925+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

31 extracted references · 31 canonical work pages

  1. [1]

    Andriyanova and S

    E. Andriyanova and S. Chen. Boundary C1,α regularity of potential functions in optimal transportation with quadratic cost. Analysis and PDE , 9 (2016), 1483–1496

    work page 2016

  2. [2]

    Y. Brenier. Polar factorization and monotone rearrangement of vector-valued functions. Comm. Pure Appl. Math., 44 (1991), no. 4, 375–417

    work page 1991

  3. [3]

    L. A. Caffarelli. The regularity of mappings with a convex potential. J. Amer. Math. Soc. , 5 (1992), 99–104

    work page 1992

  4. [4]

    L. A. Caffarelli. Boundary regularity of maps with convex potentials. Comm. Pure Appl. Math. , 45 (1992), 1141–1151

    work page 1992

  5. [5]

    L. A. Caffarelli. A note on the degeneracy of convex solutions to the Monge-Amp` ere equation. Comm. Partial Differential Equations , 18 (1993), 1213–1217

    work page 1993

  6. [6]

    L. A. Caffarelli. Boundary regularity of maps with convex potentials. II. Ann. of Math. , 144 (1996), 453–496

    work page 1996

  7. [7]

    L. A. Caffarelli and R. J. McCann. Free boundaries in optimal transport and Monge-Amp` ere obstacle problems. Ann. of Math. , 171 (2010), 673–730

    work page 2010

  8. [8]

    Chen and J

    S. Chen and J. Liu. Regularity of free boundaries in optimal transportation. Preprint, available at arXiv:1911.10790

    work page arXiv 1911

  9. [9]

    Chen and J

    S. Chen and J. Liu. Global regularity in the Monge-Amp` ere obstacle problem. Preprint, available arXiv:2307.00262

    work page arXiv

  10. [10]

    Chen and J

    S. Chen and J. Liu. Regularity of singular set in optimal transportation. Preprint, available at arXiv:2210.13841

    work page arXiv

  11. [11]

    S. Chen, J. Liu and X.-J. Wang. Global regularity for the Monge-Amp` ere equation with natural boundary condition. Ann. of Math. , (2) 194 (2021), no.3, 745–793

    work page 2021

  12. [12]

    S. Chen; J. Liu and X.-J. Wang. C2,α regularity of free boundary in optimal transport. Comm. Pure Appl. Math., 77 (2024), 731–794

    work page 2024

  13. [13]

    Delano¨ e

    Ph. Delano¨ e. Classical solvability in dimension two of the second boundary value problem associated with the Monge-Amp` ere operator.Ann. Inst. Henri Poincar´ e, Analyse Non Lin´ eaire, 8 (1991), 443–457

    work page 1991

  14. [14]

    Figalli, A note on the regularity of the free boundaries in the optimal partial transport problem

    A. Figalli, A note on the regularity of the free boundaries in the optimal partial transport problem. Rend. Circ. Mat. Palermo , 58 (2009), no. 2, 283–286

    work page 2009

  15. [15]

    Figalli, The optimal partial transport problem

    A. Figalli, The optimal partial transport problem. Arch. Ration. Mech. Anal., 195 (2010), 533–560. OPTIMAL (PARTIAL) TRANSPORT TO NON-CONVEX POLYGONAL DOMAINS 17

    work page 2010

  16. [16]

    Figalli, Regularity properties of optimal maps between nonconvex domains in the plane Comm

    A. Figalli, Regularity properties of optimal maps between nonconvex domains in the plane Comm. Partial Differential Equations , 35 (2010), 465–479

    work page 2010

  17. [17]

    Figalli and Y.-H

    A. Figalli and Y.-H. Kim. Partial regularity of Brenier solutions of the Monge–Amp` ere equation.Discrete Contin. Dyn. Syst. , 28 (2010), 559–565

    work page 2010

  18. [18]

    Figalli and G

    A. Figalli and G. Loeper. C1 regularity of solutions of the Monge–Amp` ere equation for optimal transport in dimension two. Calc. Var. Partial Differential Equations , 35 (2009), 537–550

    work page 2009

  19. [19]

    Gilbarg and N

    D. Gilbarg and N. S. Trudinger. Elliptic partial differential equations of second order . Reprint of the 1998 edition. Classics in Mathematics. Springer-Verlag, Berlin, 2001

    work page 1998

  20. [20]

    E. Indrei. Free boundary regularity in the optimal partial transport problem. J. Funct. Anal., 264 (2013), no. 11, 2497–2528

    work page 2013

  21. [21]

    Kitagawa and R

    J. Kitagawa and R. McCann. Free discontinuties in optimal transport. Arch. Rational Mech. Anal., 232 (2019), 1505–1541

    work page 2019

  22. [22]

    B. L´ evy. A numerical algorithm for L2 semi-discrete optimal transport in 3D. ESAIM: Mathematical Modelling and Numerical Analysis , 49 (2015), 1693–1715

    work page 2015

  23. [23]

    Liu and X.-J

    J. Liu and X.-J. Wang. Interior a priori estimates for the Monge-Amp` ere equation.Surveys in Differential Geometry Vol. 19, International Press (2014), 151–177

    work page 2014

  24. [24]

    M´ erigot

    Q. M´ erigot. A multiscale approach to optimal transport. Computer Graphics Forum , 30 (2011), 1584– 1592

    work page 2011

  25. [25]

    C. Mooney. Partial regularity for singular solutions to the Monge-Amp` ere equation.Comm. Pure Appl. Math., 68 (2015), no. 6, 1066–1084

    work page 2015

  26. [26]

    Mooney and A

    C. Mooney and A. Rakshit. Sobolev regularity for optimal transport maps of non-convex planar domains. SIAM J. Math. Anal. , 56 (2024), 4742–4758

    work page 2024

  27. [27]

    Savin and H

    O. Savin and H. Yu. Regularity of optimal transport between planar convex domains. Duke Math. J. , 169 (2020), 1305–1327

    work page 2020

  28. [28]

    J. Urbas. On the second boundary value problem of Monge-Amp` ere type. J. Reine Angew. Math. , 487 (1997), 115–124

    work page 1997

  29. [29]

    C. Villani. Topics in optimal transportation . Grad. Stud. Math. 58, Amer. Math. Soc., 2003

    work page 2003

  30. [30]

    C. Villani. Optimal transport, Old and new . Springer, Berlin, 2006

    work page 2006

  31. [31]

    Y. Yu. Singular set of a convex potential in two dimensions. Comm. Partial Differential Equations , 32 (2007), 1883–1894. Shibing Chen, School of Mathematical Sciences, University of Science and Technology of China, Hefei, 230026, P.R. China. Email address: chenshib@ustc.edu.cn Yuanyuan Li, School of Mathematical Sciences, University of Science and Techno...

    work page 2007
