The MuFusE Large-Volume Diamond Anvil Cell for Exploring Muon-Catalyzed Fusion at Higher Pressures and Temperatures

J.D. Kalow , J.T. Hinchen , G. Harris , E. Koukina , D.M. Harrington , P.C. McDaniel , N.J. Brennan , A. Golossanov
show 39 more authors
I.D. Spool D. Zajac M. Mundt S. Varner M. Russell S. Bull K. McCormack D. Mayer L.E. Knaian M. Khandaker W. Stadolnik W.R. Cutler A. Sampat K. Lau J. Betances C. Fagan C.R. Shmayda M. Koch K. Payne N.J.L. MacFadden J. Simon K. Peterson A. Gami S. Machavarapu A. Tejeda J. Katz J.A. Allen R. Chaney K. Kem I. Kiniti E. Garcia Badaracco K.R. Lynch P. Gandhi C.J. Johnstone E. Niner C.C. Petitjean A. Antognini W.T. Shmayda S.O. Newburg A.N. Knaian
This is my paper

Pith reviewed 2026-06-28 03:21 UTC · model grok-4.3

classification ⚛️ physics.ins-det cond-mat.other
keywords diamond anvil cellmuon-catalyzed fusiondeuterium-tritiumhigh pressurecryogenic loadingtritium safetyMuFusE
0
0 comments X

The pith

New diamond anvil cell achieves 19.2 mm³ d-t volume at 933 MPa and 400 K

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents a large-volume diamond anvil cell built for muon-catalyzed fusion experiments on deuterium-tritium mixtures. The apparatus reaches pressures up to 933 MPa and temperatures up to 400 K while holding a stable liquid-density sample of 19.2 mm³, using 5 mm diamond anvils aligned with a muon beam. It incorporates cryogenic loading, all-metal seals, flexible bellows, remote pneumatic drive, and secondary containment to manage a 25 Ci tritium inventory without leaks. A sympathetic reader would care because these conditions exceed earlier static d-t target limits and supply an optical path for real-time laser spectroscopy of pressure and composition.

Core claim

The MuFusE diamond anvil cell enables compression and heating of deuterium-tritium mixtures to pressures up to 933 MPa and temperatures up to 400 K while maintaining a stable sample volume of 19.2 mm³ at liquid density. The cell uses 5 mm diameter diamond anvils placed in the muon beam path and integrates cryogenic loading, all-metal sealing, flexible bellows, remote pneumatic actuation, and secondary containment to handle a 25 Ci tritium inventory safely. These performance benchmarks exceed previously reported limits for static d-t targets and permit in situ laser spectroscopy of sample pressure and composition.

What carries the argument

Large-volume diamond anvil cell with 5 mm anvils, cryogenic loading, all-metal seals, flexible bellows, remote pneumatic actuation, and secondary containment for tritium safety

If this is right

  • High-precision muon-catalyzed fusion rate measurements become feasible at higher densities and temperatures than prior static targets allowed.
  • In situ laser spectroscopy can track sample pressure and composition throughout each experimental cycle.
  • A 25 Ci tritium inventory can be handled safely under remote operation during compression and heating.
  • Muon beam experiments gain access to d-t conditions beyond earlier reported static-target benchmarks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The larger sample volume could increase the number of observable fusion events per muon pulse and improve statistical precision.
  • The sealing and containment methods may transfer to other high-pressure setups that must contain radioactive or hazardous fluids.
  • Access to these pressures and temperatures could allow direct checks of fusion models at densities closer to those considered for practical applications.

Load-bearing premise

The integrated cryogenic loading, all-metal sealing, flexible bellows, remote pneumatic actuation, and secondary containment will keep the sample intact, pressure accurate, and tritium contained through repeated compression and heating cycles with a 25 Ci inventory.

What would settle it

Observation of tritium leakage above containment limits or inability to hold the claimed 19.2 mm³ volume stable at 933 MPa and 400 K during a loaded test run would show the performance claims are not met.

Figures

Figures reproduced from arXiv: 2606.05333 by A. Antognini, A. Gami, A. Golossanov, A.N. Knaian, A. Sampat, A. Tejeda, C.C. Petitjean, C. Fagan, C.J. Johnstone, C.R. Shmayda, D. Mayer, D.M. Harrington, E. Garcia Badaracco, E. Koukina, E. Niner, G. Harris, I.D. Spool D. Zajac, I. Kiniti, J.A. Allen, J. Betances, J.D. Kalow, J. Katz, J. Simon, J.T. Hinchen, K. Kem, K. Lau, K. McCormack, K. Payne, K. Peterson, K.R. Lynch, L.E. Knaian, M. Khandaker, M. Koch, M. Mundt, M. Russell, N.J. Brennan, N.J.L. MacFadden, P.C. McDaniel, P. Gandhi, R. Chaney, S. Bull, S. Machavarapu, S.O. Newburg, S. Varner, W.R. Cutler, W. Stadolnik, W.T. Shmayda.

Figure 1

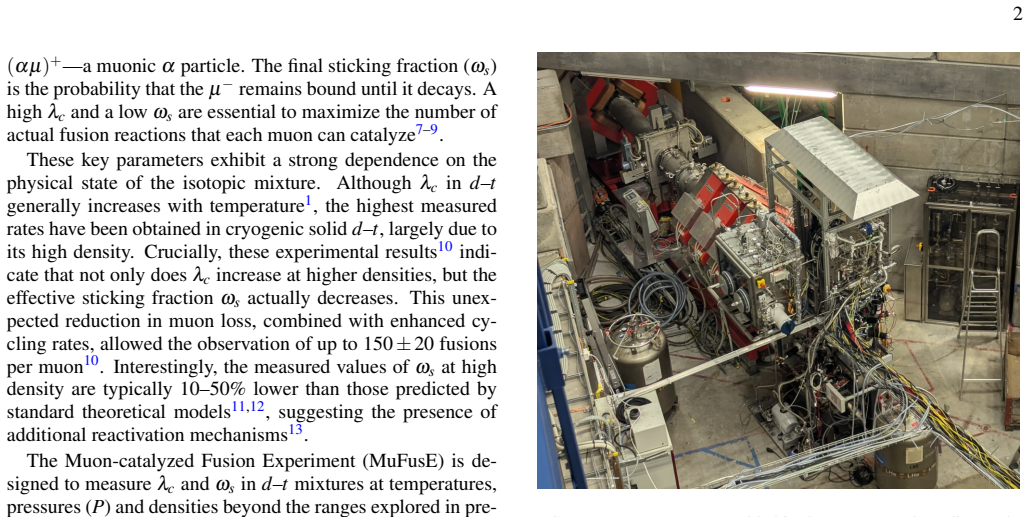

Figure 1. Figure 1: FIG. 1. MuFusE setup assembled in the [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

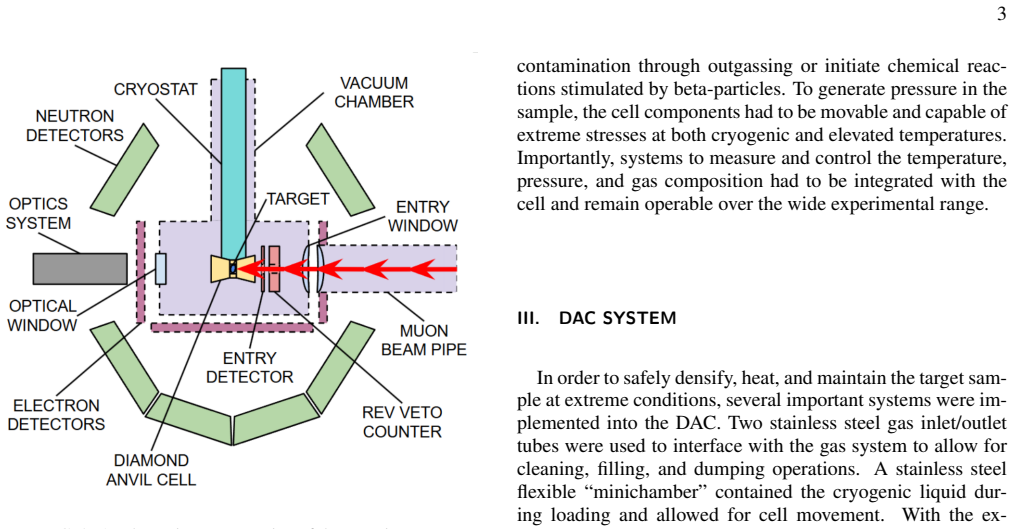

Figure 2. Figure 2: FIG. 2. A schematic representation of the experiment. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4

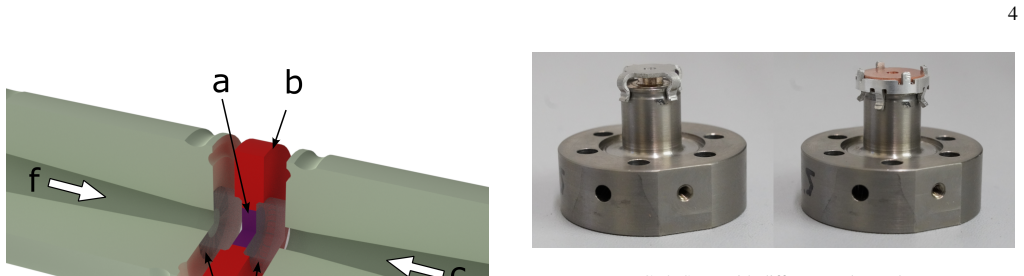

Figure 4. Figure 4: FIG. 4. Seats with different gasket styles. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 3

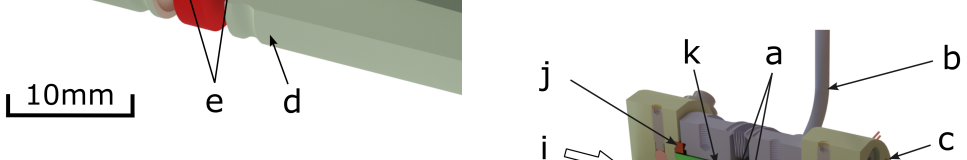

Figure 3. Figure 3: FIG. 3. Compressed target assembly, showing (a) compressed hydro [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 5

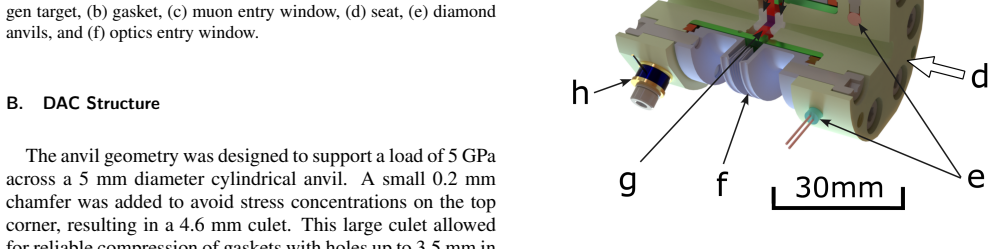

Figure 5. Figure 5: FIG. 5. Minichamber assembly, showing (a) diamond anvils, (b) fill [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗
Figure 7

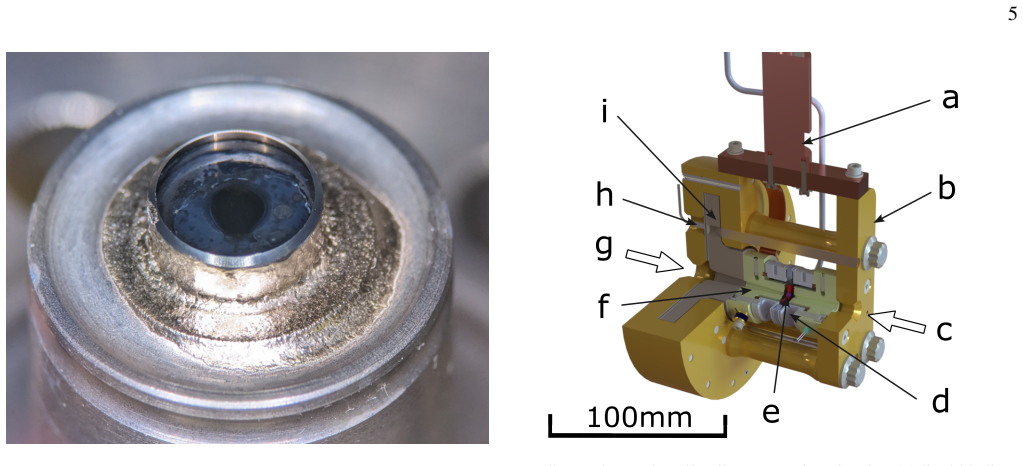

Figure 7. Figure 7: FIG. 7. Diamond anvil cell cross section showing (a) liquid helium [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 9

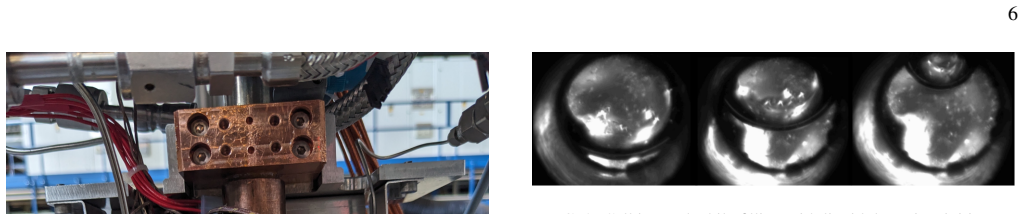

Figure 9. Figure 9: FIG. 9. Cell imaged while filling with liquid deuterium/tritium. [PITH_FULL_IMAGE:figures/full_fig_p006_9.png] view at source ↗
Figure 8

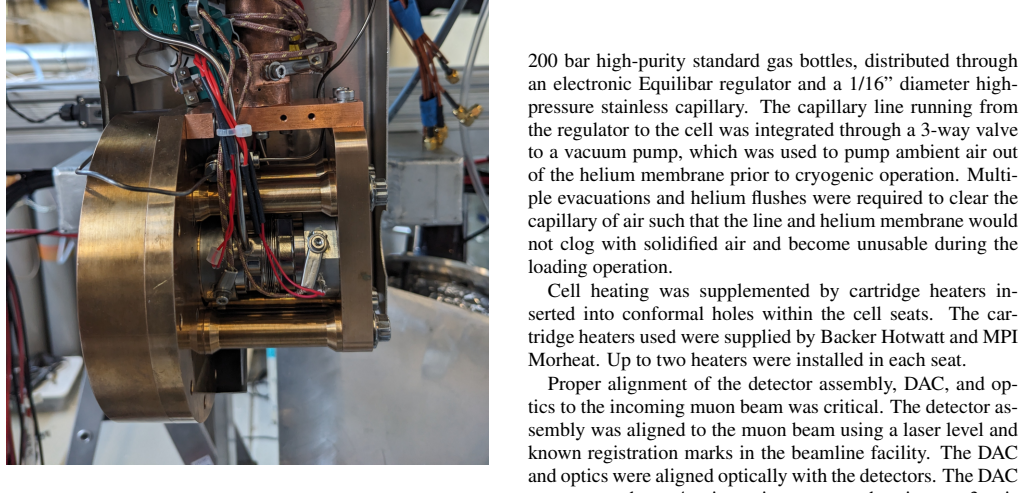

Figure 8. Figure 8: FIG. 8. Picture of diamond anvil cell assembled in detector system. [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗
Figure 10

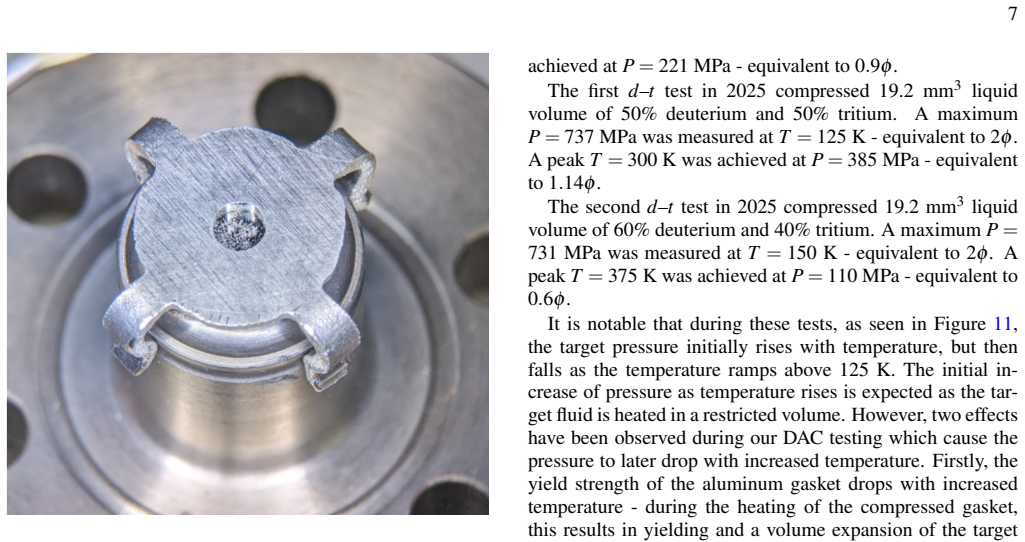

Figure 10. Figure 10: FIG. 10. Aluminum gasket prepared with ruby powder. [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
Figure 11

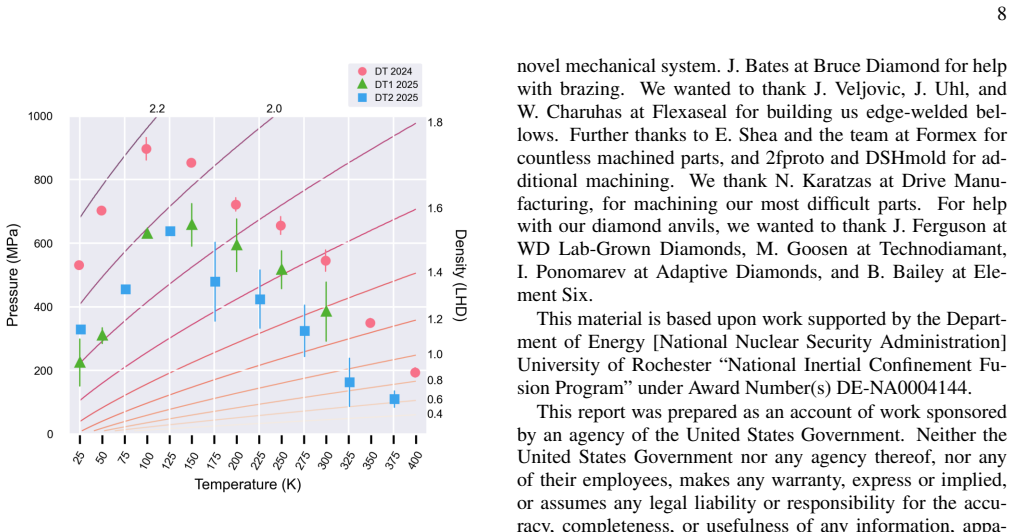

Figure 11. Figure 11: FIG. 11. Pressures and temperatures achieved when using a mixture [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
read the original abstract

A new large-volume diamond anvil cell (DAC) has been developed for the Muon-catalyzed Fusion ($\mu$CF) Experiment (MuFusE), enabling the compression and heating of deuterium-tritium (d-t) mixtures to pressures and temperatures needed to advance $\mu$CF research. The MuFusE DAC achieves the large sample volumes necessary for high-precision fusion measurements while integrating cryogenic loading, all-metal sealing, and flexible bellows to maintain a secure environment during cell compression. Combined with remote pneumatic actuation and secondary containment, the DAC safely managed a 25 Ci tritium inventory while providing a clear optical path for in situ measurements of sample pressure and composition via laser spectroscopy. Utilizing 5 mm diameter diamond anvils oriented in the path of a high-intensity muon beam, the apparatus achieved a stable sample volume of 19.2 mm$^3$ at liquid density, pressures up to 933 MPa and temperatures up to 400 K - benchmarks that significantly exceed previously reported limits for static d-t targets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The manuscript describes the design and claimed performance of the MuFusE large-volume diamond anvil cell (DAC) for muon-catalyzed fusion (μCF) experiments with deuterium-tritium mixtures. It integrates cryogenic loading, all-metal sealing, flexible bellows, remote pneumatic actuation, and secondary containment to handle a 25 Ci tritium inventory while providing a 19.2 mm³ stable sample volume at liquid density, pressures up to 933 MPa, temperatures up to 400 K, and optical access for laser spectroscopy via 5 mm diamond anvils oriented to a muon beam.

Significance. If the performance metrics hold, the apparatus would enable μCF measurements at higher static pressures and temperatures than prior d-t targets, supporting higher-precision fusion rate studies in dense matter. The explicit focus on tritium-compatible safety systems and large sample volume for beam experiments represents a practical engineering contribution to the field.

major comments (1)
  1. [Abstract] Abstract: The central claims of achieved performance (stable 19.2 mm³ volume at liquid density, 933 MPa, 400 K with 25 Ci tritium) are presented without any supporting data, error bars, time-series stability records, leak-rate measurements, or tritium monitoring results. This directly undermines assessment of the claim that these values exceed previous limits for static d-t targets.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and recommendation. We address the single major comment below and agree that the abstract requires strengthening with clearer links to supporting evidence.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claims of achieved performance (stable 19.2 mm³ volume at liquid density, 933 MPa, 400 K with 25 Ci tritium) are presented without any supporting data, error bars, time-series stability records, leak-rate measurements, or tritium monitoring results. This directly undermines assessment of the claim that these values exceed previous limits for static d-t targets.

    Authors: We agree that the abstract as written summarizes the performance claims without direct pointers to the underlying measurements. The main text describes the design, cryogenic loading, all-metal seals, bellows, pneumatic actuation, secondary containment, 5 mm diamond anvils, laser spectroscopy for pressure/composition, and the achieved metrics, but does not include the requested quantitative supporting records (error bars, time-series plots, leak rates, tritium monitoring). In the revised manuscript we will (i) expand the abstract to reference the validation methods and key figures, (ii) add a dedicated subsection or appendix with the stability, leak-rate, and tritium data (including error analysis), and (iii) explicitly compare the new limits to prior static d-t targets with citations to the supporting measurements. This addresses the concern directly. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental apparatus report with no derivations or fitted predictions

full rationale

The manuscript is a direct technical description of a diamond anvil cell design, its construction features (cryogenic loading, all-metal sealing, bellows, pneumatic actuation, secondary containment), and measured performance metrics (19.2 mm³ volume, 933 MPa, 400 K). No equations, parameter fits, predictions, or derivation chains appear in the provided text. The central claims are empirical benchmarks from the built device, not reductions of outputs to inputs by construction. Self-citations, if present, are not load-bearing for any claimed result. This is the expected non-finding for a pure instrumentation paper.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

This is an instrumentation paper; the central claim rests on successful construction and testing of the described DAC. No free parameters or invented physical entities are introduced. The performance depends on standard engineering assumptions about sealing and containment under high pressure.

axioms (1)
  • domain assumption Diamond anvils and all-metal seals maintain integrity and optical access at the reported pressures and temperatures with tritium present.
    Invoked implicitly when stating that the cell achieved the listed benchmarks while managing the 25 Ci inventory safely.
