Deconstructing Spatial Complexity: Hierarchical Decomposition for LLM Spatial Reasoning

Haojie Lu; Li Chen; Sihong Xie; Yi Wang; Zhaofan Zhang

arxiv: 2605.28144 · v1 · pith:JOGCPD4Hnew · submitted 2026-05-27 · 💻 cs.AI

Deconstructing Spatial Complexity: Hierarchical Decomposition for LLM Spatial Reasoning

Yi Wang , Haojie Lu , Zhaofan Zhang , Li Chen , Sihong Xie This is my paper

Pith reviewed 2026-06-29 12:56 UTC · model grok-4.3

classification 💻 cs.AI

keywords hierarchical decompositionspatial reasoninglarge language modelsMCTSpolicy optimizationtask planningnavigationembodied intelligence

0 comments

The pith

Hierarchical decomposition guided by a modified search algorithm lets LLMs select better intermediate states for spatial tasks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Large language models handle language well but consistently struggle with spatial reasoning that involves navigation, planning, and games. The paper proposes breaking complex spatial problems into simpler sub-tasks by identifying key intermediate states and creating reduced environments. When models pick suboptimal states because they lack strong spatial knowledge, the authors introduce M-GRPO to improve the search process by folding the model's own predictive probabilities and uncertainty estimates into the planning formula. Experiments indicate this change produces stronger results on multiple spatial benchmarks. The goal is to close the gap that currently limits LLMs in embodied applications.

Core claim

The paper claims that LLMs fail to find optimal intermediate states for task decomposition due to weak spatial priors, and that reformulating the UCT formula inside MCTS-Guided Group Relative Policy Optimization to include the model's prior predictive probabilities together with its epistemic uncertainty, plus a finer-grained advantage function, enables the model to learn better path planning and yields state-of-the-art performance on spatial reasoning tasks.

What carries the argument

MCTS-Guided Group Relative Policy Optimization (M-GRPO), which modifies the UCT selection formula to blend LLM prior probabilities with epistemic uncertainty and applies a fine-grained advantage function to train optimal hierarchical decompositions.

If this is right

LLMs achieve stronger results on navigation tasks through more effective choice of intermediate states.
Planning in complex spatial environments improves because the model learns better sequences of sub-tasks.
Performance on strategic games reaches state-of-the-art levels from the refined optimization loop.
The method supports progress toward real-world embodied intelligence applications that require spatial reasoning.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same prior-and-uncertainty adjustment might transfer to non-spatial reasoning tasks that rely on sequential decomposition.
Testing the method on models of different sizes would show whether the uncertainty term remains useful at larger scales.
Deployment on physical robots would reveal whether simulated gains hold when sensor noise and continuous space replace discrete environments.

Load-bearing premise

That LLMs choose poor intermediate states mainly from insufficient spatial prior knowledge, and that inserting their predictive probabilities and uncertainty into the UCT formula will produce optimal path planning.

What would settle it

An experiment showing that M-GRPO produces no measurable gain over standard hierarchical decomposition on the same navigation, planning, and game benchmarks would falsify the central claim.

Figures

Figures reproduced from arXiv: 2605.28144 by Haojie Lu, Li Chen, Sihong Xie, Yi Wang, Zhaofan Zhang.

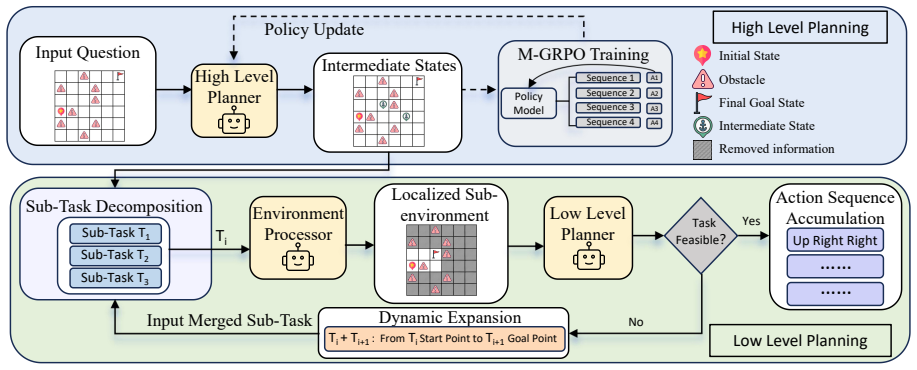

**Figure 2.** Figure 2: An overview of the HSRL framework. This framework employs a two-level hierarchical strategy. An [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

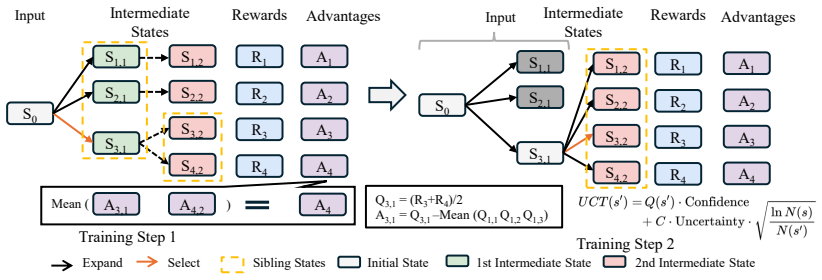

**Figure 3.** Figure 3: Overview of the M-GRPO algorithm. Starting from the initial state [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

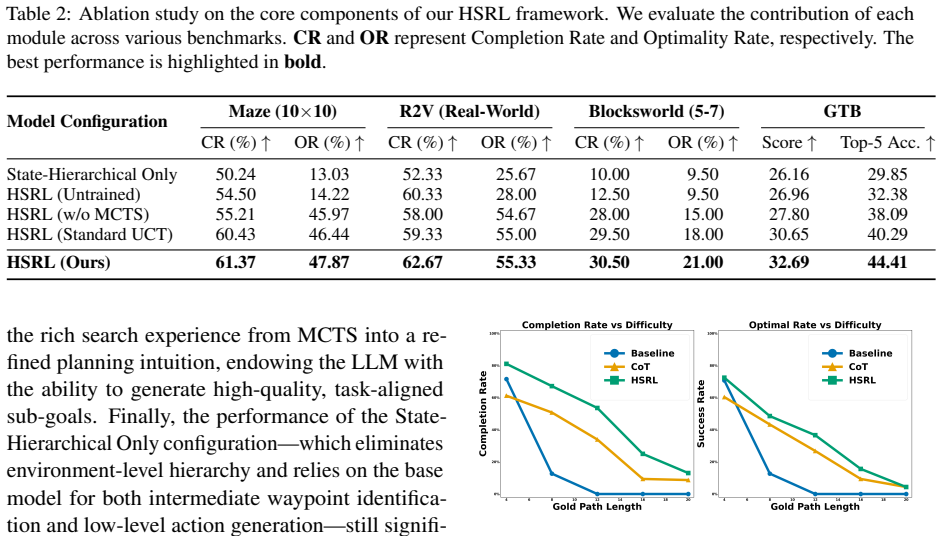

**Figure 4.** Figure 4: Performance degradation as task difficulty [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗

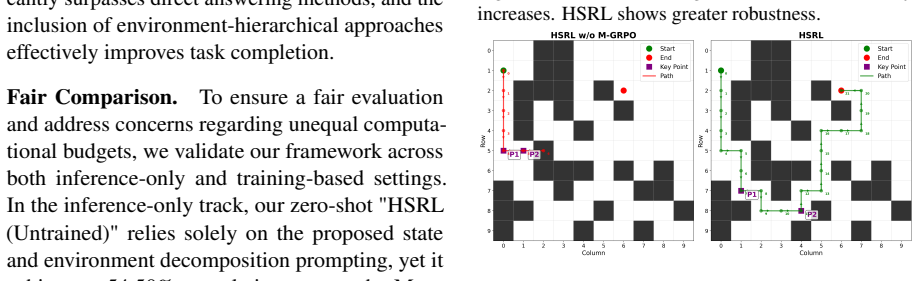

**Figure 5.** Figure 5: Qualitative comparison of a generated plan [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗

read the original abstract

LLMs have shown remarkable proficiency in general language understanding and reasoning. However, they consistently underperform in spatial reasoning that severely limits their application, particularly in embodied intelligence. Inspired by the success of hierarchical reinforcement learning, this paper introduces a novel method for hierarchical task decomposition in LLM spatial reasoning. Our approach guides LLMs to decompose complex tasks into manageable sub-tasks by identifying key intermediate states and generating simplified sub-environments. However, we identify that LLMs often fail to derive optimal intermediate states due to their insufficient spatial prior, leading to sub-optimal task decomposition. To address this limitation and enhance its planning capability, we propose the MCTS-Guided Group Relative Policy Optimization (M-GRPO), where we reformulate the UCT formula by incorporating the LLM's prior predictive probabilities alongside its epistemic uncertainty. Furthermore, we implement a more fine-grained advantage function, enabling the model to learn optimal path planning. Experimental results demonstrate that our method substantially improves LLM performance on spatial tasks, including navigation, planning, and strategic games, achieving state-of-the-art results. This work paves the way for LLMs in real-world applications.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper adapts hierarchical RL and MCTS into a custom M-GRPO method for LLM spatial task decomposition, but the abstract supplies no data or ablations to support the SOTA claim.

read the letter

The paper's main contribution is taking hierarchical decomposition from reinforcement learning and pairing it with a modified MCTS search called M-GRPO to help LLMs pick better intermediate states in spatial problems.

They identify that LLMs lack strong spatial priors, so they reformulate the UCT formula to include the model's own predictive probabilities and epistemic uncertainty, then add a finer-grained advantage function for path planning. This is a direct application of existing planning tools to the LLM case rather than a new theoretical foundation.

The approach is described clearly enough that the steps make sense on paper. Framing the problem around sub-task decomposition and using the LLM's uncertainty as a signal is a practical angle for navigation, planning, and game tasks.

The soft spot is the complete absence of evidence. The abstract states substantial gains and SOTA results but shows no baselines, no numbers, no error bars, and no ablation tables. Without those, the central claim cannot be evaluated. The assumption that the UCT tweak will yield optimal paths remains untested in the given text.

This is for researchers working on LLM agents for embodied or game settings who need concrete planning improvements. A reader in that area might pick up the method description even if the results need verification.

It deserves peer review. The idea is coherent and addresses a real limitation, so referees should see the full experiments and comparisons.

Referee Report

2 major / 1 minor

Summary. The paper introduces a hierarchical task decomposition method for LLM spatial reasoning, inspired by hierarchical RL. It identifies that LLMs struggle with optimal intermediate states due to insufficient spatial priors and proposes M-GRPO, which reformulates the UCT formula to incorporate the LLM's prior predictive probabilities and epistemic uncertainty, plus a fine-grained advantage function for path planning. The central claim is that this yields substantial improvements and state-of-the-art results on navigation, planning, and strategic games.

Significance. If the experimental claims hold with proper validation, the work could meaningfully advance LLM capabilities in embodied intelligence by bridging spatial reasoning gaps via MCTS-guided policy optimization. The hierarchical decomposition idea aligns with known RL successes, but the absence of any quantitative results, baselines, or derivations in the provided material makes it impossible to gauge actual impact or novelty.

major comments (2)

Abstract: The claim that the method 'achieves state-of-the-art results' on spatial tasks is load-bearing for the contribution yet is stated without any data, baselines, ablation tables, error bars, or statistical tests, rendering the central experimental assertion unverifiable from the manuscript.
Method description: The reformulation of the UCT formula using LLM prior predictive probabilities and epistemic uncertainty is presented at a conceptual level with no explicit equation, derivation, or pseudocode, which is required to evaluate whether the modification is well-defined, non-circular, or an improvement over standard UCT.

minor comments (1)

The abstract and method overview use terms such as 'epistemic uncertainty' and 'fine-grained advantage function' without initial definitions or references to standard formulations, which could be clarified for readers unfamiliar with the intersection of MCTS and LLM fine-tuning.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful review and constructive feedback. The comments highlight important gaps in verifiability and formal detail that we will address through revision.

read point-by-point responses

Referee: Abstract: The claim that the method 'achieves state-of-the-art results' on spatial tasks is load-bearing for the contribution yet is stated without any data, baselines, ablation tables, error bars, or statistical tests, rendering the central experimental assertion unverifiable from the manuscript.

Authors: We agree that the SOTA claim in the abstract cannot be evaluated without supporting evidence. The current manuscript version lacks the experimental results, baselines, ablations, error bars, and statistical tests, making the assertion unverifiable as noted. We will revise by adding a full experimental section with quantitative results on navigation, planning, and games (including tables, baselines, and statistical analysis) and will update the abstract to either include summary metrics or qualify the claim until the data is presented. revision: yes
Referee: Method description: The reformulation of the UCT formula using LLM prior predictive probabilities and epistemic uncertainty is presented at a conceptual level with no explicit equation, derivation, or pseudocode, which is required to evaluate whether the modification is well-defined, non-circular, or an improvement over standard UCT.

Authors: We agree that the reformulation must be presented formally rather than conceptually. The manuscript currently describes M-GRPO at a high level without the explicit modified UCT equation, its derivation, or pseudocode. In revision we will insert the precise mathematical reformulation of the UCT formula that incorporates the LLM's prior predictive probabilities and epistemic uncertainty, provide a step-by-step derivation showing it is well-defined and non-circular, and add algorithm pseudocode for M-GRPO and the fine-grained advantage function. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The abstract and available description present a high-level method (M-GRPO with UCT reformulation) but contain no equations, derivations, or self-referential steps. No load-bearing claim reduces by construction to fitted inputs, self-citations, or renamed results. The central claim is experimental improvement on spatial tasks; without visible derivation chain or parameter-fitting details that equate prediction to input, the paper is self-contained against external benchmarks. This matches the default expectation for most papers and the reader's note on absence of assessable equations.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only the abstract is available, so no concrete free parameters, axioms, or invented entities can be extracted. The ledger is left empty.
