arxiv: 2606.18200 · v1 · pith:JTPFXVCYnew · submitted 2026-06-16 · 💻 cs.MS · cs.NA· math.NA· physics.comp-ph

A Diagnostic Software Suite for Auditing Learned PDE Simulators

Lennon J. Shikhman This is my paper

Pith reviewed 2026-06-26 21:27 UTC · model grok-4.3

classification 💻 cs.MS cs.NAmath.NAphysics.comp-ph
keywords learned PDE simulatorsdiagnostic suitesemigroup consistencyfinite-difference generatorL2 errorNavier-Stokesshallow-water dynamicsmagnetohydrodynamics
0
0 comments X

The pith

Relative L2 error can stay moderate while structural diagnostics for learned PDE simulators deteriorate substantially.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents a software suite that audits learned PDE simulators by checking whether they function as coherent numerical time propagators rather than merely matching states at isolated times. Standard relative L2 error is shown to be inadequate because it can remain acceptable even as properties like semigroup consistency and energy behavior break down. The suite runs architecture-independent post-hoc checks using reference trajectories, model predictions, and equation metadata, with a configurable selection of diagnostics relevant to each problem. Validation across five benchmark tasks and multiple model architectures, including controlled underfit variants, demonstrates cases where L2 error does not flag these structural failures. This matters for users who need reliable long-term evolution from learned replacements of traditional solvers.

Core claim

The validation study establishes that relative L2 error alone does not determine whether a learned model behaves as a coherent numerical time propagator, since the error can remain moderate or even improve while diagnostics for semigroup consistency, finite-difference generator discrepancy, energy behavior, integral balance, admissibility constraints, perturbation response, and scaling-law consistency deteriorate substantially on the benchmark tasks.

What carries the argument

The diagnostic software suite, which enforces a minimal contract of reference trajectories, learned propagator outputs, equation metadata, and a configuration to compute an interpretable panel of time-propagation checks.

If this is right

  • Learned models can achieve acceptable relative L2 error while violating semigroup consistency or energy behavior.
  • Auditing requires reporting the full diagnostic panel instead of reducing behavior to a single state-error score.
  • The suite applies post hoc to any saved predictions from FNO, DeepONet, U-Net, or ResNet-style models on the listed PDE tasks.
  • Controlled underfit and oversmoothed variants exhibit substantially worse structural diagnostics even when L2 error is managed.
  • Deployment decisions for learned simulators should incorporate these checks to avoid incoherent time propagation.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Training procedures could add terms that penalize failures on these diagnostics to improve coherence directly.
  • The same diagnostic approach might extend to learned simulators for other evolution problems beyond the five PDE benchmarks.
  • Problem-specific configuration of the suite becomes essential when moving to new equations where only a subset of checks apply.
  • Widespread adoption would shift evaluation practice away from single-metric leaderboards toward multi-panel reports.

Load-bearing premise

The chosen diagnostics correctly identify coherent numerical time propagation and the five benchmark tasks represent the settings where learned simulators would be used.

What would settle it

Finding a learned simulator on one of the benchmark tasks that passes every structural diagnostic yet produces visibly unphysical long-time trajectories under the same initial conditions used in validation.

read the original abstract

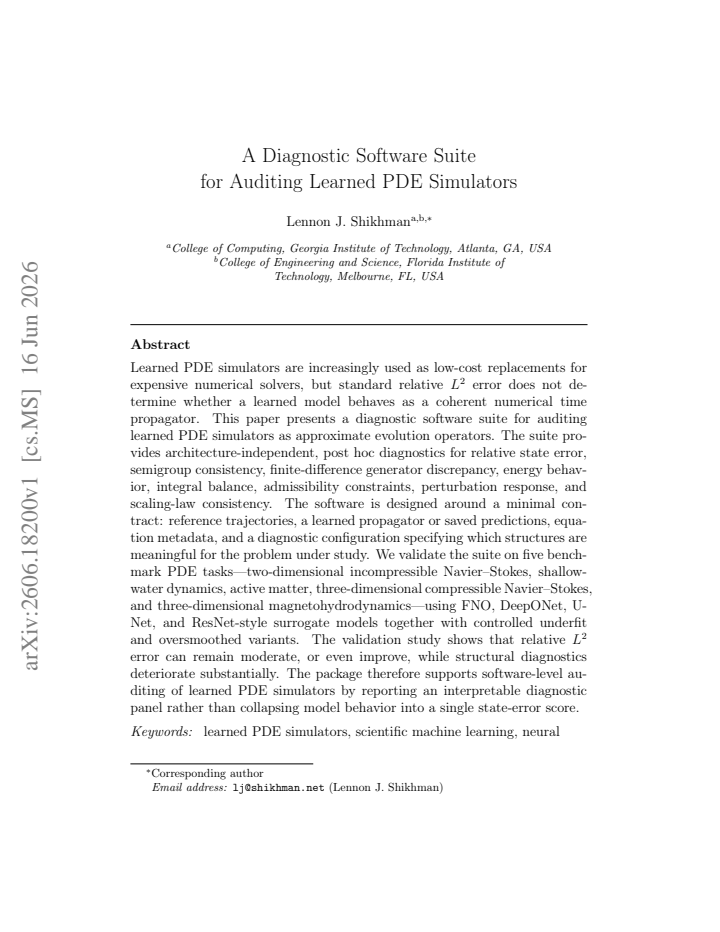

Learned PDE simulators are increasingly used as low-cost replacements for expensive numerical solvers, but standard relative $L^2$ error does not determine whether a learned model behaves as a coherent numerical time propagator. This paper presents a diagnostic software suite for auditing learned PDE simulators as approximate evolution operators. The suite provides architecture-independent, post hoc diagnostics for relative state error, semigroup consistency, finite-difference generator discrepancy, energy behavior, integral balance, admissibility constraints, perturbation response, and scaling-law consistency. The software is designed around a minimal contract: reference trajectories, a learned propagator or saved predictions, equation metadata, and a diagnostic configuration specifying which structures are meaningful for the problem under study. We validate the suite on five benchmark PDE tasks: two-dimensional incompressible Navier-Stokes, shallow-water dynamics, active matter, three-dimensional compressible Navier-Stokes, and three-dimensional magnetohydrodynamics, using FNO, DeepONet, U-Net, and ResNet-style surrogate models together with controlled underfit and oversmoothed variants. The validation study shows that relative $L^2$ error can remain moderate, or even improve, while structural diagnostics deteriorate substantially. The package therefore supports software-level auditing of learned PDE simulators by reporting an interpretable diagnostic panel rather than collapsing model behavior into a single state-error score.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript presents a diagnostic software suite for auditing learned PDE simulators as approximate evolution operators. It supplies architecture-independent, post-hoc checks (relative state error, semigroup consistency, finite-difference generator discrepancy, energy behavior, integral balance, admissibility constraints, perturbation response, scaling-law consistency) under a minimal contract requiring only reference trajectories, predictions, equation metadata, and a configuration file. Validation is performed on five benchmark tasks (2D incompressible Navier-Stokes, shallow-water, active matter, 3D compressible Navier-Stokes, 3D MHD) using FNO, DeepONet, U-Net, and ResNet surrogates plus controlled underfit/oversmoothed variants; the central empirical observation is that relative L2 error can remain moderate or improve while the structural diagnostics degrade substantially.

Significance. If the reported empirical observation holds, the suite supplies a practical, reusable auditing tool that prevents over-reliance on a single scalar error metric for scientific machine-learning surrogates. The minimal-contract design and explicit separation of diagnostics from any particular architecture are strengths that lower the barrier to adoption. The work also supplies reproducible code and a falsifiable panel of tests rather than a new theoretical claim.

major comments (1)
  1. [Validation study (§4–5)] Validation study (described in abstract and §4–5): the central claim that relative L2 error can remain moderate while structural diagnostics deteriorate is load-bearing for the paper’s contribution, yet the manuscript supplies no quantitative tables, specific error values, or statistical error analysis across the five tasks and model variants; without these numbers the strength of the supporting evidence cannot be assessed.
minor comments (2)
  1. [Software design] The description of the minimal contract (reference trajectories + predictions + metadata + config) is clear, but an explicit listing of which diagnostics are activated by default for each of the five PDEs would improve reproducibility.
  2. [Figures] Figure captions for the diagnostic panels should state the exact model variant and task shown so that readers can map visuals directly to the quantitative claims.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the constructive review and the recommendation for minor revision. We address the single major comment below.

read point-by-point responses

  1. Referee: [Validation study (§4–5)] Validation study (described in abstract and §4–5): the central claim that relative L2 error can remain moderate while structural diagnostics deteriorate is load-bearing for the paper’s contribution, yet the manuscript supplies no quantitative tables, specific error values, or statistical error analysis across the five tasks and model variants; without these numbers the strength of the supporting evidence cannot be assessed.

    Authors: We agree that the central empirical claim requires explicit quantitative support for readers to assess its strength. The current manuscript presents the phenomenon through figures in §§4–5 that compare L² error against the structural diagnostics on the five tasks and the controlled model variants, but does not include accompanying tables of numerical values or statistical summaries. In the revision we will add tables that report the key metrics (relative L² error, semigroup consistency error, finite-difference generator discrepancy, energy drift, etc.) for each task–model pair, together with means and standard deviations where multiple runs are available. This addition will make the evidence fully quantitative while preserving the existing figures. revision: yes

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper introduces an independent diagnostic software suite with explicitly defined procedures (semigroup consistency, finite-difference generator discrepancy, energy behavior, etc.) that are applied post-hoc to external reference trajectories and benchmark models. No derivation chain, parameter fitting, or prediction step reduces by construction to quantities defined within the paper itself. The central empirical observation—that L2 error can decouple from structural diagnostics—is a direct measurement on held-out benchmarks rather than a self-referential claim. No self-citation load-bearing steps or ansatz smuggling appear in the provided text.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The paper is a software and benchmarking contribution rather than a mathematical derivation; it relies on the existence of reference PDE solvers but introduces no fitted parameters, new axioms, or postulated entities.

axioms (1)
  • domain assumption Reference trajectories from traditional numerical PDE solvers are available and serve as ground truth.
    The entire validation and diagnostic contract depends on having such trajectories.
