arxiv: 1906.10822 · v1 · pith:JUV2VY6Fnew · submitted 2019-06-26 · 💻 cs.LG · stat.ML

Gradient Noise Convolution (GNC): Smoothing Loss Function for Distributed Large-Batch SGD

Kosuke Haruki , Taiji Suzuki , Yohei Hamakawa , Takeshi Toda , Ryuji Sakai , Masahiro Ozawa , Mitsuhiro Kimura This is my paper

Pith reviewed 2026-05-25 15:39 UTC · model grok-4.3

classification 💻 cs.LG stat.ML
keywords gradient noise convolutionlarge-batch SGDdistributed trainingsharp minimageneralizationloss smoothingdata-parallel optimization
0
0 comments X

The pith

Gradient noise from stochastic gradients smooths sharp loss minima in large-batch distributed SGD.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Large-batch SGD trains models faster in distributed settings but tends to converge to sharp minima that generalize poorly. The paper proposes gradient noise convolution, which treats the variation among stochastic gradients computed on parallel workers as a noise distribution and convolves it with the loss surface. Because this noise spreads preferentially along directions of high curvature, the convolution flattens sharp regions more effectively than isotropic random perturbations. The method requires no new hyperparameters and is realized simply by averaging the per-worker gradients. Experiments indicate it yields state-of-the-art generalization on large-scale image and language models.

Core claim

GNC utilizes so-called gradient noise, which is induced by stochastic gradient variation and convolved to the loss function as a smoothing effect. Due to convolving with the gradient noise, which tends to spread along a sharper direction of the loss function, GNC can effectively smooth sharp minima and achieve better generalization, whereas isotropic random noise cannot.

What carries the argument

Gradient noise convolution (GNC): the operation that convolves the loss with the empirical distribution of gradient differences across parallel workers.

If this is right

  • Large-batch training can reach flatter minima without changing batch size or adding explicit regularizers.
  • Implementation reduces to computing per-worker stochastic gradients and merging them, adding negligible overhead.
  • The same mechanism explains why isotropic noise injection fails to match GNC performance.
  • State-of-the-art test accuracy is reported for large-scale deep-network training under data-parallel SGD.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The directional bias of gradient noise may generalize to other first-order methods that already compute multiple gradient samples.
  • If the smoothing effect is truly curvature-dependent, similar gains might appear in non-distributed settings by deliberately sampling gradient directions along estimated Hessian eigenvectors.
  • Theoretical work could quantify how the covariance of per-worker gradients relates to the local Hessian eigenvalues.

Load-bearing premise

Stochastic gradient variation produces noise whose directional statistics align with and preferentially smooth the sharper directions of the loss surface without extra tuning.

What would settle it

An ablation in which replacing the observed gradient noise with isotropic random noise of matched magnitude yields equal or better generalization and sharpness metrics.

Figures

Figures reproduced from arXiv: 1906.10822 by Kosuke Haruki, Masahiro Ozawa, Mitsuhiro Kimura, Ryuji Sakai, Taiji Suzuki, Takeshi Toda, Yohei Hamakawa.

Figure 1
Figure 1. Figure 1: Relation between curvature and gradient noise. (a) In sharper regions, stochastic gradients [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a)Convolution through iterations: The SGD update rule can be viewed as the GD update rule with noise convolution through training iterations. (b)Convolution among workers: The GNC update rule can be viewed as the DP-SGD update rule with noise convolution among parallel workers. 2.1 Convolution Through SGD Iterations Consider the SGD update rule for a loss function f of a deep neural network. Let D = (zi) … view at source ↗
Figure 3
Figure 3. Figure 3: (a) Validation accuracy of training with and without GNC. Applying GNC improved validation accuracy. (b) Cosine similarity between the full gradient (FG) and large-batch gradient. The learning rate was step-decayed at the 80th and 120th epochs. Concurrently, cosine similarity significantly dropped. Note that to eliminate side-effects of noise convolution, the full gradient was calculated without GNC. In co… view at source ↗
Figure 4
Figure 4. Figure 4: (a) Upper: Condition numbers for GNC and RNC noise covariance through the training process. We calculated condition numbers for each ResNet32 layer and plot lines layer-by-layer, so different lines indicate different layers. Condition numbers for GNC are larger than those for RNC, so it is obvious that noise in GNC is highly anisotropic and noise in RNC is isotropic. (a) Lower: Eigenvalues of GNC noise cov… view at source ↗
Figure 5
Figure 5. Figure 5: Smoothness of the loss function with and without GNC. We calculated variation (shaded [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

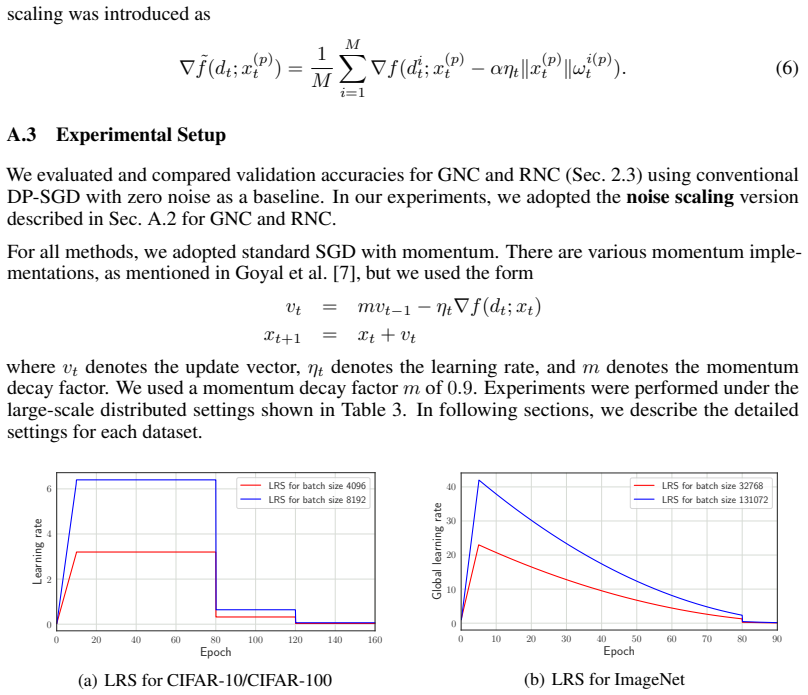

Figure 6
Figure 6. Figure 6: (a) Learning rate scheduling for CIFAR-10/CIFAR100. We adopted gradual warmup over [PITH_FULL_IMAGE:figures/full_fig_p012_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: (a) Validation accuracies of training with and without GNC for the varieties in Sec. 3.4; results for CIFAR-100 with batch size 8,192. (b) Cosine similarity between full gradient (FG) and large-batch gradient as calculated by the models in (a). Predictiveness of the full gradient dropped at step decay in all test cases. 805 810 815 820 825 830 835 840 Iteration 2.0 2.5 3.0 3.5 4.0 Loss Loss with GNC Origin… view at source ↗
Figure 8
Figure 8. Figure 8: We measured losses of models x i t in [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗

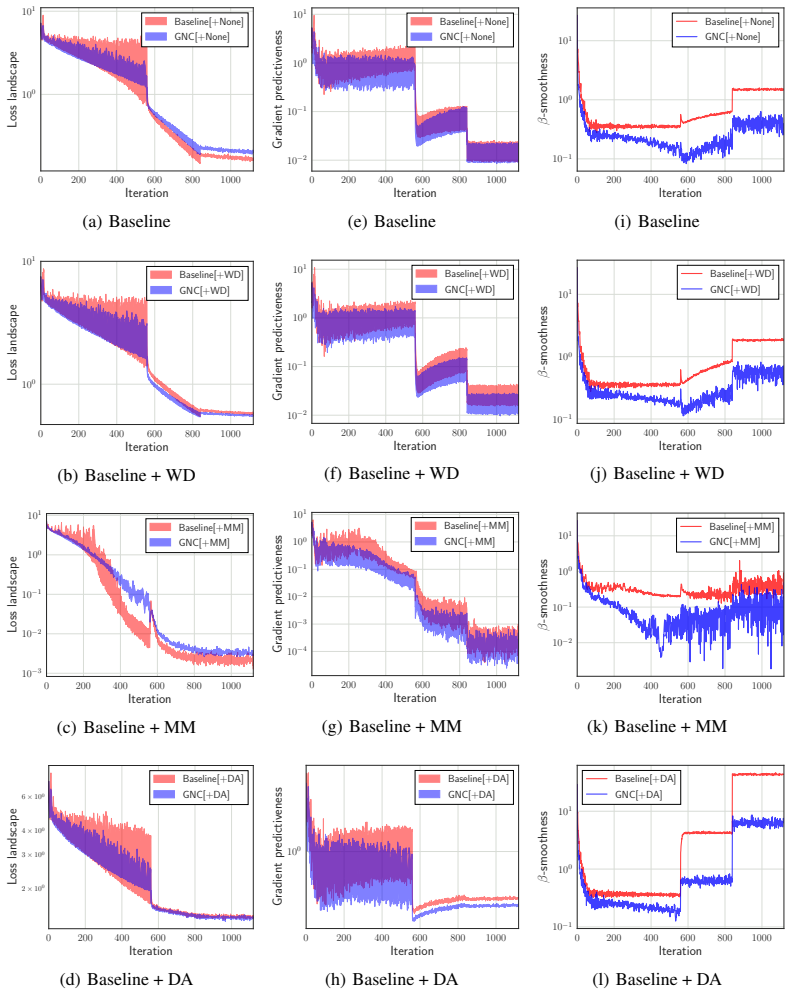

Figure 9
Figure 9. Figure 9: Smoothness of the loss function with and without GNC for the varieties in 3.4. Calculations [PITH_FULL_IMAGE:figures/full_fig_p015_9.png] view at source ↗

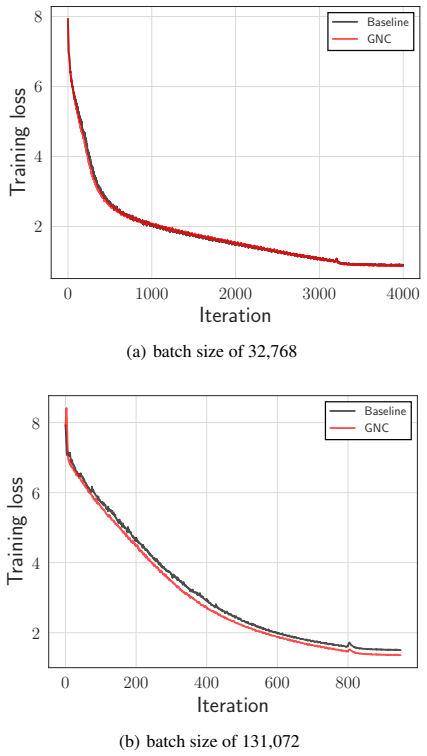

Figure 10
Figure 10. Figure 10: ImageNet training loss curve with batch sizes of 32,768 and 131,072. In both cases, GNC [PITH_FULL_IMAGE:figures/full_fig_p016_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: CIFAR-100 training loss curve with batch sizes of 4,096 and 8,192. Besides the smoothing [PITH_FULL_IMAGE:figures/full_fig_p017_11.png] view at source ↗
read the original abstract

Large-batch stochastic gradient descent (SGD) is widely used for training in distributed deep learning because of its training-time efficiency, however, extremely large-batch SGD leads to poor generalization and easily converges to sharp minima, which prevents naive large-scale data-parallel SGD (DP-SGD) from converging to good minima. To overcome this difficulty, we propose gradient noise convolution (GNC), which effectively smooths sharper minima of the loss function. For DP-SGD, GNC utilizes so-called gradient noise, which is induced by stochastic gradient variation and convolved to the loss function as a smoothing effect. GNC computation can be performed by simply computing the stochastic gradient on each parallel worker and merging them, and is therefore extremely easy to implement. Due to convolving with the gradient noise, which tends to spread along a sharper direction of the loss function, GNC can effectively smooth sharp minima and achieve better generalization, whereas isotropic random noise cannot. We empirically show this effect by comparing GNC with isotropic random noise, and show that it achieves state-of-the-art generalization performance for large-scale deep neural network optimization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 0 minor

Summary. The manuscript proposes Gradient Noise Convolution (GNC) for distributed large-batch SGD. GNC convolves the loss function with gradient noise induced by stochastic gradient variation across parallel workers, claiming this preferentially smooths sharp minima (because the noise covariance aligns with high-curvature directions) and yields better generalization than isotropic random noise. The method requires no extra hyperparameters and is implemented by simply computing and merging per-worker stochastic gradients; the abstract states that this achieves state-of-the-art generalization for large-scale DNN training.

Significance. If the directional alignment between mini-batch gradient noise and loss curvature is rigorously shown, GNC would supply a parameter-free mechanism that exploits existing stochasticity to close the generalization gap of large-batch training, with direct relevance to distributed deep-learning systems.

major comments (2)
  1. [Abstract] Abstract: the central claim that gradient noise 'tends to spread along a sharper direction of the loss function' (thereby smoothing sharp minima more effectively than isotropic noise) is load-bearing yet unsupported by any derivation from the mini-batch sampling process or by a controlled experiment that isolates noise-covariance anisotropy from other large-batch effects such as effective step-size scaling.
  2. [Abstract] Abstract: the assertion of 'state-of-the-art generalization performance' and empirical superiority over isotropic random noise is stated without any reported metrics, baselines, datasets, model architectures, or ablation details, preventing assessment of whether the claimed directional smoothing actually occurs.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments. We address each major comment below and will revise the manuscript to strengthen the presentation of the central claims.

read point-by-point responses

  1. Referee: [Abstract] Abstract: the central claim that gradient noise 'tends to spread along a sharper direction of the loss function' (thereby smoothing sharp minima more effectively than isotropic noise) is load-bearing yet unsupported by any derivation from the mini-batch sampling process or by a controlled experiment that isolates noise-covariance anisotropy from other large-batch effects such as effective step-size scaling.

    Authors: We agree that the abstract would benefit from explicit support for this claim. The manuscript provides an empirical demonstration via direct comparison of GNC against isotropic random noise under matched conditions; this comparison is intended to isolate the benefit of the noise covariance structure. To make the argument more rigorous, we will add a short derivation in the revised manuscript showing how the per-worker gradient covariance aligns with the Hessian eigenvectors of high-curvature directions. We will also clarify that the experimental controls already hold effective step size and batch size fixed across the GNC and isotropic-noise arms. revision: yes

  2. Referee: [Abstract] Abstract: the assertion of 'state-of-the-art generalization performance' and empirical superiority over isotropic random noise is stated without any reported metrics, baselines, datasets, model architectures, or ablation details, preventing assessment of whether the claimed directional smoothing actually occurs.

    Authors: We acknowledge that the abstract is too terse on these points. The full manuscript reports concrete results on standard large-scale image-classification benchmarks (ImageNet, CIFAR-10/100) with ResNet and VGG architectures, comparing against both naive large-batch DP-SGD and isotropic-noise baselines. We will expand the abstract to include the key quantitative improvements (e.g., top-1 accuracy deltas) and the primary experimental settings so that the claims can be assessed without reading the full text. revision: yes

Circularity Check

0 steps flagged

No circularity: method is direct computation on existing gradients; directional claim is heuristic, not derived by construction.

full rationale

The paper defines GNC explicitly as merging stochastic gradients across workers and presents the smoothing benefit as an empirical observation from the noise's directional spread. No equations, fitted parameters, or self-citations are shown reducing the claimed advantage to an input quantity by definition. The abstract and description treat the anisotropy as an observed tendency rather than a self-referential prediction, leaving the derivation self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the unproven directional alignment of stochastic gradient noise with sharper loss directions and on standard assumptions of SGD convergence behavior; no free parameters or new entities with independent evidence are introduced in the abstract.

axioms (1)
  • domain assumption Stochastic gradient noise tends to spread along sharper directions of the loss function
    Invoked to explain why convolution smooths sharp minima preferentially; appears in the abstract description of the mechanism.
invented entities (1)
  • Gradient Noise Convolution (GNC) no independent evidence
    purpose: Smoothing operator that uses per-worker stochastic gradients to convolve noise into the loss
    New named technique introduced by the paper; no independent evidence outside the claimed empirical results is supplied.

pith-pipeline@v0.9.0 · 5749 in / 1092 out tokens · 23842 ms · 2026-05-25T15:39:44.974490+00:00 · methodology
